Audio comedy,who is noy hyping his products ? Everyone is. Its called being a good salesman. Sugar coating it all to look better to the buyer.

Now where is my PMPO rated PRC made clone of a clonned clown?

Ask yourself mortal , do you have as much displacement as me ? The answer is no unless you have a Windmere fan sub.
TheEAR is offline
Sponsored Links
Advertisement

post #692 of 1917 Old 04-27-2008, 12:48 PM
Senior Member

AlexE's Avatar

Join Date: Feb 2008
Location: Southern Cali, SD area
Posts: 440
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:


This is the part I don't get. If they already have their test, took the time to come here and post and call into question the OP test methods, which is fine, why not clarify and post their test methods.....as you stated they already have their tests. I don't think it took any guts personally.....posting their test methods would have. Look, I highy doubt Dayton makes this amp in house, more likely they just have some third party design it, build it and stamp their name on it.

Bingo, you can't run in and yell foul without offering an alternative.

Where are his graphs? :P

The bottom line really is that it doesn't matter though. People will still buy it and use it for projects.
AlexE is offline
post #693 of 1917 Old 04-28-2008, 06:21 AM
Member

jimstewart's Avatar

Join Date: Nov 2007
Posts: 100
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Having not heard from PE on Friday I called PE this morning. Had a nice chat with Eric in the customer service department. The note worthy parts of our conversation are as follows.

The 512watt amp is the same at the 1024watt amp internally. (so buy the 512 and get out your screwdrivers)(the 512 is 300$ the 1024 is 400$)
The bias on the input stage is the only difference.
He has tested this amp before and has seen 800watts out of the one he tested.

He did not call the testing methodologies into question(good customer service) and did offer a TESTED replacement. We also have setup to have the amp sent directly to Eric for testing when it arrives.

The saga continues.

"There is no greater mistake than the hasty conclusion that opinions are worthless because they are badly argued."
-- Thomas H. Huxley
jimstewart is offline
post #694 of 1917 Old 04-28-2008, 12:56 PM
Member

cluelessngr's Avatar

Join Date: Feb 2008
Posts: 81
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I must say impressed with parts express so far
Disapointed in Dayton. Maybe you got a missmarked 512? Eager to see the results and hope it works out well for you.
cluelessngr is offline
post #695 of 1917 Old 05-11-2008, 08:45 AM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
I just received one of these.........


and I will be measuring it later this week. Here is a picture of the back of this unit.


Chuck
chasw98 is offline
post #696 of 1917 Old 05-11-2008, 08:51 AM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
For those of you so inclined.

All the IC's are 4558D op amps. The wall wart transformer is a 3 pin 16.5 VAC X 2, 250 ma unit. This allows them to get their +-15 VDC for the op amps.

After seeing how the filters operate, measuring S/N ratio, distortion, etc. I will try and modify the unit to be able to output a balanced +4 signal. It should only take a single IC, 2 capacitors, and a female panel mount XLR connector.

Chuck
chasw98 is offline
post #697 of 1917 Old 05-11-2008, 09:40 AM
AVS Special Member

augerpro's Avatar

Join Date: Aug 2005
Location: Denver, Colorado
Posts: 1,691
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 27
Is that the H@LF box project?
augerpro is offline
post #698 of 1917 Old 05-11-2008, 10:56 AM
AVS Special Member

Willd's Avatar

Join Date: Jan 2003
Location: Charlotte, NC
Posts: 5,647
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by augerpro View Post

Is that the H@LF box project?

Looks like its the Elemental Designs EQ device.

I look forward to your measurements and the addition of the balanced XLR +4 output.
Willd is offline
post #699 of 1917 Old 05-11-2008, 11:28 AM
AVS Special Member

augerpro's Avatar

Join Date: Aug 2005
Location: Denver, Colorado
Posts: 1,691
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 27
Bah, I thought that last pic was thrown in as a teaser. Nevermind me.
augerpro is offline
post #700 of 1917 Old 05-14-2008, 04:52 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
fireanimal has ever so kindly sent me a Crown XTi1000 power amplifier to put on the bench and see what it will do. When I received the unit and took it out of the box, the amp rattled. I did not want to turn it on with a rattle inside so I took the top cover off (3 torx screws) and found that the AC fuse had been knocked out of its fuseholder by UPS. While I had it open I took pictures of the insides.

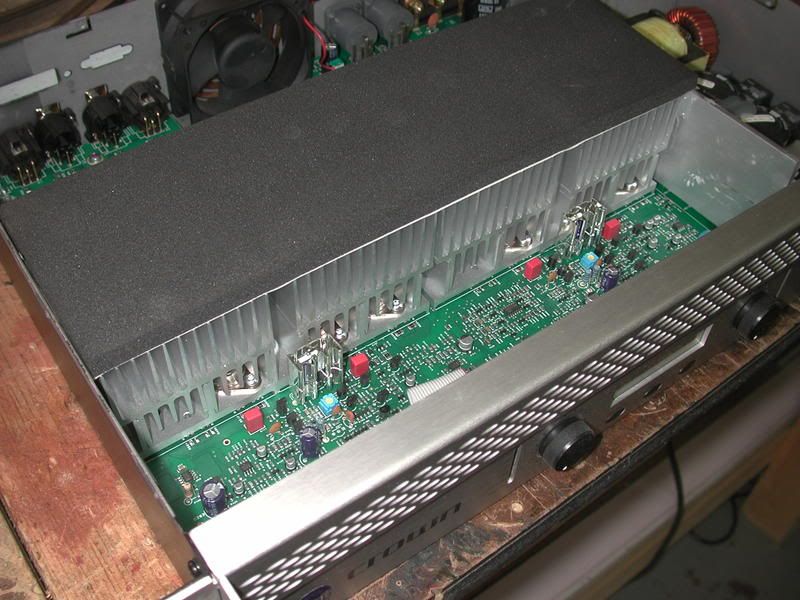

Front Inside

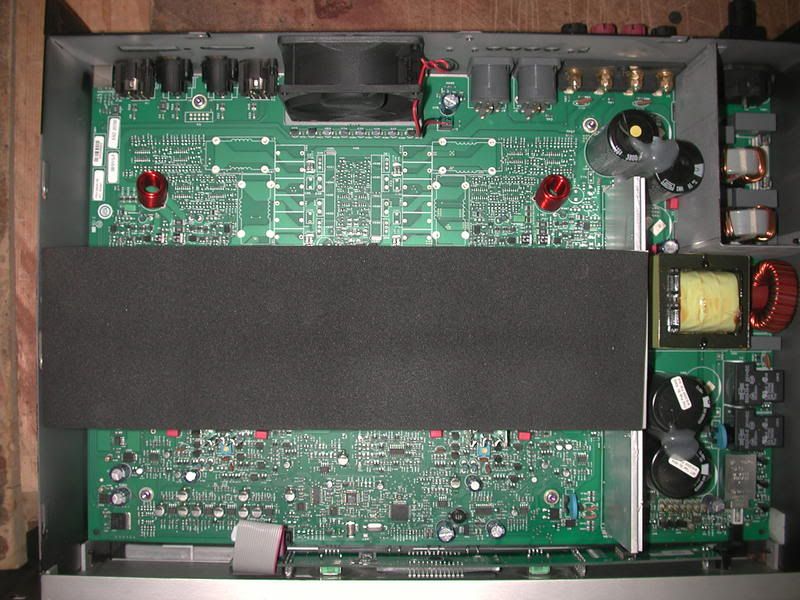

Top Inside

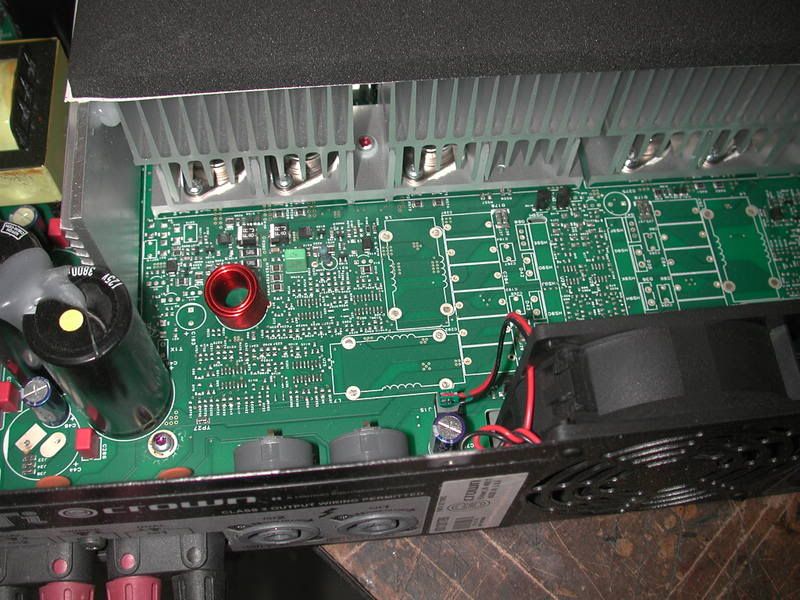

Rear Inside

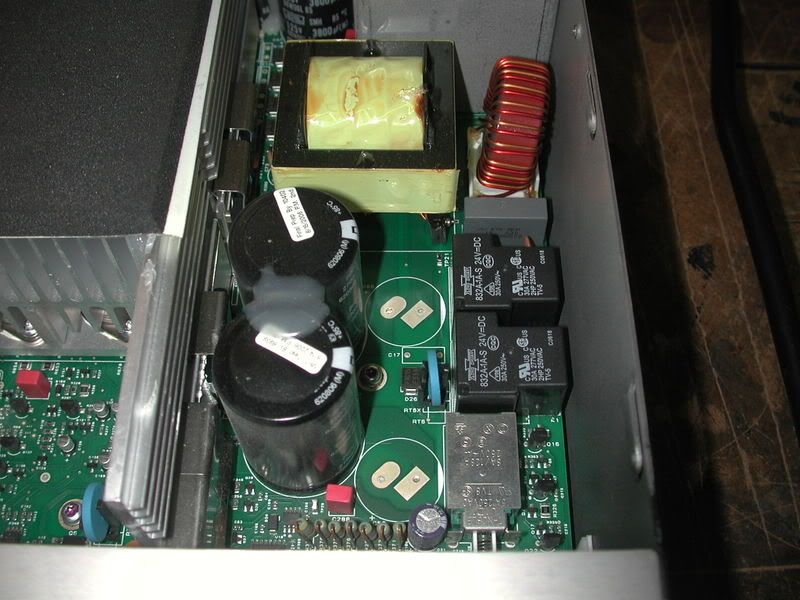

Power Supply

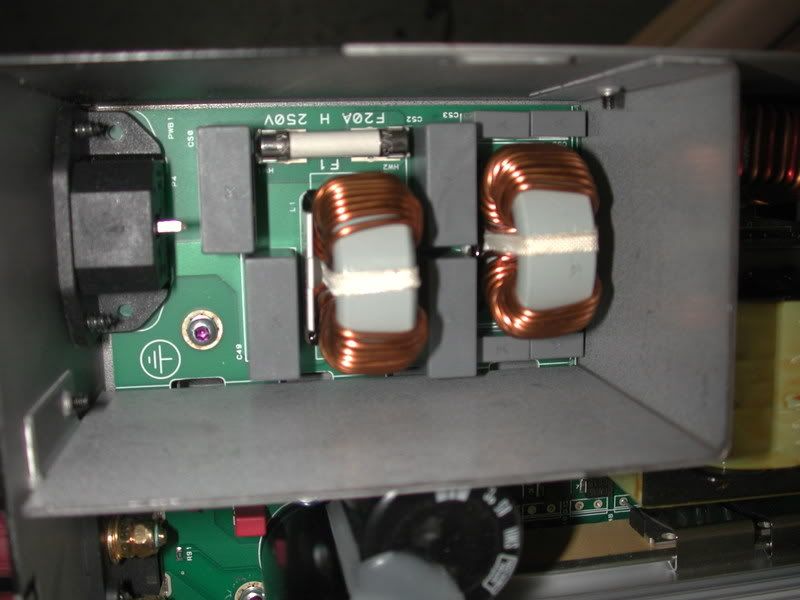

AC Inlet
chasw98 is offline
post #701 of 1917 Old 05-14-2008, 05:03 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Here are the results for 8 ohms, 4 ohms, and 2 ohms testing. There is a difference between the 8 ohm and 4/2 ohm test. Because of the 'clipping' behavior of this amplifier, I was able to run the 8 ohm test at full power and then see where the distortion was. For the 2 & 4 ohm tests, I had to run the amp up to its factory rated distortion and then measure power level. The amp is rated for 0.5% THD at 8 ohms and 4 ohms, and then rated at 1% THD for 2 ohms. When this amplifier clips at 4 or 2 ohms it does not really 'clip' in the classic sense, i.e. square off the waveforms, it goes into oscillation. At 2 ohms the amp would run at 0.1% THD and then jump to 10% THD and produce no more voltage. I did not want to damage the amp so I just ran it up to before oscillation and measured from there at 2 ohms. As a side note, while testing at 2 ohms, it took less than 90 seconds for the amplifiers thermal lights come on but the amp did not shut down nor was the case very warm to the touch. I am going to let the amp cool down and rest before doing 8 & 4 ohm mono tests.



chasw98 is offline
post #702 of 1917 Old 05-14-2008, 05:21 PM
Member

cluelessngr's Avatar

Join Date: Feb 2008
Posts: 81
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Whats up with the output power at 20 hz? Did you ever get a second Dayton plate amp to test or is that a dead issue?
cluelessngr is offline
post #703 of 1917 Old 05-14-2008, 05:30 PM
Senior Member

LINEARX's Avatar

Join Date: May 2007
Location: Pottsboro, Texas
Posts: 323
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Let me be the first to say . . . . . "That sucks"!
Unless there is something significantly wrong with this particular amp, the S/N ratio is only average. The best it can do for power is at 1000HZ and even THAT doesn't come near advertised. Then look at the discrepancy at 20HZ for the left channel . . . . . 26 watts!!??
And you might as well not even think about using this amp on a 2 OHM load . . . . .
No wonder this amp has the reputation amongst the pros as NOT to be used as a sub amp.
LINEARX is offline
post #704 of 1917 Old 05-14-2008, 06:04 PM
Advanced Member

geoffstgermaine's Avatar

Join Date: Jan 2007
Location: Winnipeg, Canada
Posts: 504
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Surely there is something wrong with an amp that produces 26 W on one channel at 20 Hz at 8 ohms and 225 on the other channel. Is the amp defective?

Edit: I see that it's obviously a typo.
geoffstgermaine is offline
post #705 of 1917 Old 05-14-2008, 06:14 PM
AVS Special Member

exojam's Avatar

Join Date: Dec 2004
Location: MA
Posts: 2,549
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 26
Can you bridge it for a 4 and 8 ohm load and see what it shows? The manual says 1400 and 1000 watts. I am interested since I have this model pushing my sub bridged at 4 ohms.
exojam is offline
post #706 of 1917 Old 05-14-2008, 06:20 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by geoffstgermaine View Post

Surely there is something wrong with an amp that produces 26 W on one channel at 20 Hz at 8 ohms and 225 on the other channel. Is the amp defective?

Edit: I see that it's obviously a typo.


Oops. Sorry. I made a mistake proofreading myself.

Chuck
chasw98 is offline
post #707 of 1917 Old 05-14-2008, 06:37 PM
Senior Member

datgai's Avatar

Join Date: Nov 2005
Location: North O.C.
Posts: 314
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
*strikes xti off of his list*
datgai is offline
post #708 of 1917 Old 05-14-2008, 07:21 PM
Senior Member

LINEARX's Avatar

Join Date: May 2007
Location: Pottsboro, Texas
Posts: 323
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
OK, Chas I'll wait until you can complete all your testing and update/correct the charts. But still, this highly touted Pro amp looks suspect.
LINEARX is offline
post #709 of 1917 Old 05-14-2008, 07:38 PM
AVS Special Member

exojam's Avatar

Join Date: Dec 2004
Location: MA
Posts: 2,549
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 26
Chuck,

I went back and read the beginning of this thread and did not see what I was looking for so I will ask. Did the Crown have the 1.4 volts rms in for the signal to put the amp at full rated power?

Sensitivity (volts RMS) for full rated power at 4 ohms 1.4V
exojam is offline
post #710 of 1917 Old 05-14-2008, 07:48 PM
AVS Special Member

TheEAR's Avatar

Join Date: Nov 2006
Location: Montreal,CANADA
Posts: 3,464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
What is this mumbo jumbo ! Under 90W into a 4Ohm load.... Crown better not clown around ,this is pathetic. 90W ...something is wrong.

Into an 8Ohm load is delivers around 225 and under 90 into 4...

This is not correct,I am calling Clown...I mean Crown to look into this mess.

Doing worse than a miserable plate amp...absolute disgrace.No excuses here. I am going to stomp a mud hole in my XTi's if this is true.

Ask yourself mortal , do you have as much displacement as me ? The answer is no unless you have a Windmere fan sub.
TheEAR is offline
post #711 of 1917 Old 05-14-2008, 09:09 PM
Senior Member

LINEARX's Avatar

Join Date: May 2007
Location: Pottsboro, Texas
Posts: 323
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by TheEAR View Post

This is not correct,I am calling Clown...I mean Crown to look into this mess.

LOL, give em a piece of your mind EAR!
LINEARX is offline
post #712 of 1917 Old 05-15-2008, 12:08 AM
AVS Special Member

BassThatHz's Avatar

Join Date: Apr 2008
Location: East side of NW Cascades
Posts: 2,499
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked: 288
This is the best thread I have read in a while, lots of good info; keep up the hard work.

The circuitry inside that Crown XTi1000 does not look very impressive... how many farads is that? In fact, it actually looks like it is missing pieces

I am curious to see how the ED LT/1300, Velodyne, JL and SVS plate amps compare to the other plates already measured
BassThatHz is online now
post #713 of 1917 Old 05-15-2008, 12:27 AM
AVS Addicted Member

noah katz's Avatar

Join Date: Apr 1999
Location: Mountain View, CA USA
Posts: 20,285
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 125
I'm impressed by the generous, thick heat sinks, but that's about it.

Noah
noah katz is offline
post #714 of 1917 Old 05-15-2008, 04:57 AM
Member

fireanimal's Avatar

Join Date: Oct 2005
Location: Stayner, Ontario, Canada
Posts: 110
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
The amp was replaced with a PLX1202 which is rated at 1200 watts, while the crown was 1400. I now have way more headroom with the QSC than I did with the Crown before clipping.

I was suspect that the amp was junk.

Thanks for testing it.
fireanimal is offline
post #715 of 1917 Old 05-15-2008, 05:22 AM
AVS Special Member

exojam's Avatar

Join Date: Dec 2004
Location: MA
Posts: 2,549
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 26
Well, it does not seem to have tested well but I think mine sounds very with my sub. I have started a thread on Crowns forum to see if they feel like commenting on this test.
exojam is offline
post #716 of 1917 Old 05-15-2008, 07:10 AM
AVS Special Member

TheEAR's Avatar

Join Date: Nov 2006
Location: Montreal,CANADA
Posts: 3,464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
I spoke with a "tech" at Crown,he found this ...SURPRISING. LOL

It cannot be,I mean come on under ...an easy 4 Ohm load the amp falls like a stone(20Hz),this makes teh Dayton amp look like a Goliath in comparison.

Under 8Ohms it delivers what it should,why whis sudden collapse? It is not like it was asked to drive a 1 Ohm load.

Le me get a puke bucket...the Sonic T amp delivers more...


chasw98,

Can you try the 4 Ohm test @ 30Hz just to see? DSP in cause...?

Ask yourself mortal , do you have as much displacement as me ? The answer is no unless you have a Windmere fan sub.
TheEAR is offline
post #717 of 1917 Old 05-15-2008, 07:13 AM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
I will be doing more testing tonight, especially at the lower end of the spectrum to see what frequency the power falls off or IF I made a mistake in setup or measurement. (exojam, I will check the sensitivity, but I thought I set the amp to defaults, i.e. no DSP at all). And I will finish the mono testing.

Chuck
chasw98 is offline
post #718 of 1917 Old 05-15-2008, 07:25 AM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Here is the datasheet from the Crown website for the XTi series of amplifiers. 2 points to notice are that the frequency response is only given at a 1 watt power level and the power output is only rated at 1Khz. The same holds true for the owners manual. Here is a link to the Crown document. http://www.crownaudio.com/pdf/amps/139472.pdf

chasw98 is offline
post #719 of 1917 Old 05-15-2008, 08:58 AM
AVS Special Member

TheEAR's Avatar

Join Date: Nov 2006
Location: Montreal,CANADA
Posts: 3,464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by BassThatHz View Post

This is the best thread I have read in a while, lots of good info; keep up the hard work.

The circuitry inside that Crown XTi1000 does not look very impressive... how many farads is that? In fact, it actually looks like it is missing pieces

I am curious to see how the ED LT/1300, Velodyne, JL and SVS plate amps compare to the other plates already measured

They use the same curcuit board for the XTi1000-4000. Not looking impressive,it is all about the numbers and here I agree it is not impressive...even troubling. The output collapsed at 4 Ohms,there is a crater in the ground ...it is so bad!

Ask yourself mortal , do you have as much displacement as me ? The answer is no unless you have a Windmere fan sub.
TheEAR is offline
post #720 of 1917 Old 05-15-2008, 11:07 AM
AVS Special Member

thylantyr's Avatar

Join Date: May 2004
Posts: 3,887
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
That's why I created this thread. My gut feeling that something
is odd.


http://www.avsforum.com/avs-vb/showthread.php?t=1022451



The storm was gone, but dark clouds still hung around
The perfect setting for things to come......

thylantyr is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
