Here is a master index to all amplifier tests:

Behringer EP1500 8 ohm http://www.avsforum.com/avs-vb/showt...4#post10747784
Behringer EP1500 4 ohm http://www.avsforum.com/avs-vb/showt...2#post10748192
Behringer EP1500 2 ohm http://www.avsforum.com/avs-vb/showt...0#post10749440
Behringer EP1500 mono http://www.avsforum.com/avs-vb/showt...8#post10749998
Behringer EP2500 8 ohm http://www.avsforum.com/avs-vb/showt...3#post10753603
Behringer EP2500 4 ohm http://www.avsforum.com/avs-vb/showt...8#post10753638
Behringer EP2500 2 ohm http://www.avsforum.com/avs-vb/showt...7#post10755537
Behringer Ep2500 mono http://www.avsforum.com/avs-vb/showt...5#post10755565
Buttkicker BKA1000-4A 4 ohm http://www.avsforum.com/avs-vb/showt...6#post11032546
Buttkicker BKA1000-4A 2 ohm http://www.avsforum.com/avs-vb/showt...6#post11036186

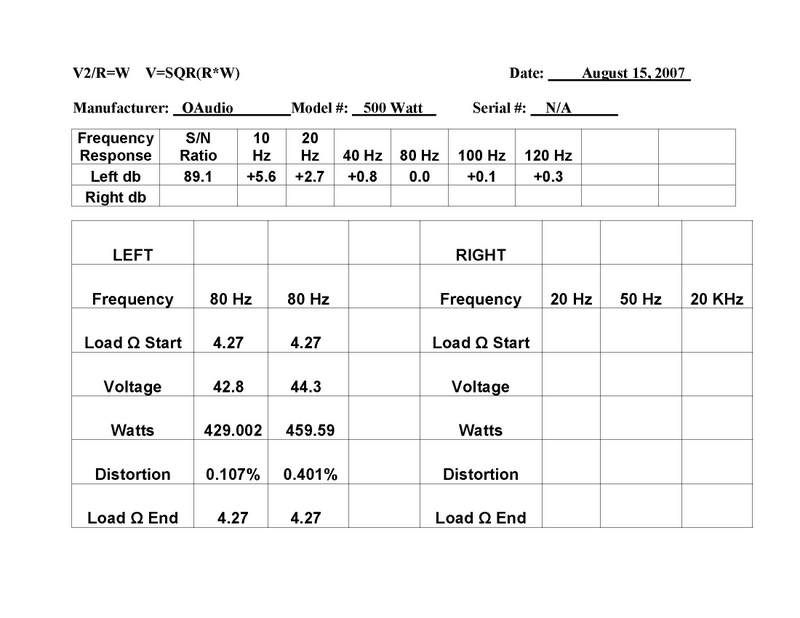

O Audio 500 watt Plate Amp http://www.avsforum.com/avs-vb/showt...0#post11318800
Crown K2 8 ohm http://www.avsforum.com/avs-vb/showt...4#post11650994
Crown K2 4 ohm http://www.avsforum.com/avs-vb/showt...0#post11651100
Crown K2 2 ohm/mono http://www.avsforum.com/avs-vb/showt...0#post11660630

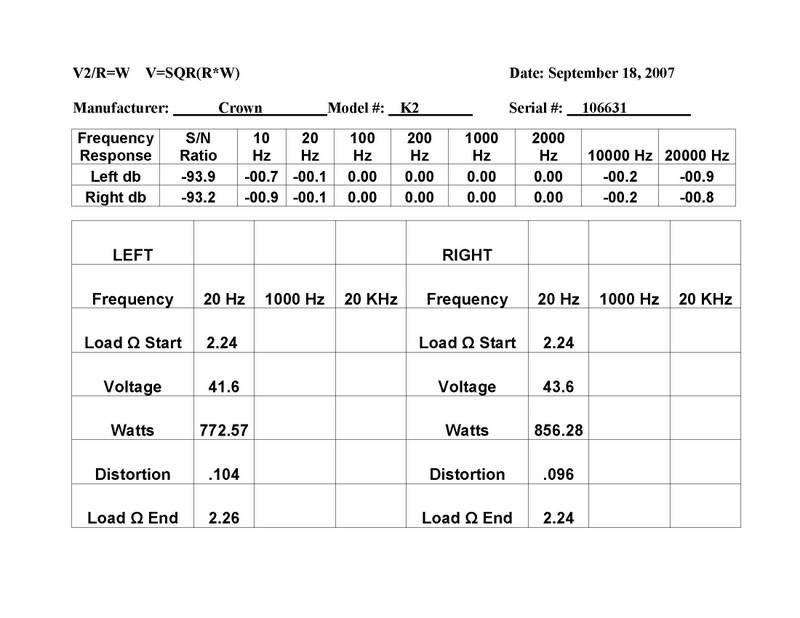

Crown K2 2 ohm 20 Hz http://www.avsforum.com/avs-vb/showt...9#post11661239
Crown XS900 8 ohm http://www.avsforum.com/avs-vb/showt...0#post12245500
Crown XS900 4 ohm/2 ohm http://www.avsforum.com/avs-vb/showt...1#post12245581
Crown XS900 mono http://www.avsforum.com/avs-vb/showt...6#post12246356
QSX PLX3402 8 ohm http://www.avsforum.com/avs-vb/showt...0#post12937520
QSC PLX3402 4 ohm/2 ohm http://www.avsforum.com/avs-vb/showt...8#post12938838
QSC PLX3402 mono http://www.avsforum.com/avs-vb/showt...1#post12939321
Dayton HPSA1000-R 8/4 ohm http://www.avsforum.com/avs-vb/showt...9#post13714349
Crown XTi1000 8/4/2 ohm http://www.avsforum.com/avs-vb/showt...6#post13869426
Crown XTi1000 extra http://www.avsforum.com/avs-vb/showt...4#post13877614
ED eQ.2 FR/distortion http://www.avsforum.com/avs-vb/showt...3#post13935023
ED eQ.2 filter response http://www.avsforum.com/avs-vb/showt...4#post13935034
Velodyne SC-1250 8/4 ohm http://www.avsforum.com/avs-vb/showt...9#post13990239
Audiosource AMP One http://www.avsforum.com/avs-vb/showt...9#post14135949
Techron 8506 http://www.avsforum.com/avs-vb/showt...5#post14230385
Peavey IPR-600 http://www.avsforum.com/avs-vb/showt...2#post18534472

I am starting a thread to post my measurements of various amplifiers that I own and that my friends own. I am posting this in the DIY forum because most of the amps are 2 channel professional power amplifiers like the type used in powering DIY subwoofers. I will also be emphasizing low frequency response measurements for these amplifiers.

The first few posts by me will lay out the methodology I am going to follow in measuring these amplifiers and the test equipment being used. I will be measuring power output in watts RMS, power output into various impedances (2, 4 and 8 ohms), THD+N or Total Harmonic Distortion, frequency response, and S/N ratio.

The first set of measurements I take will consist of duplicating what the manufacturer says the amplifier can produce, in other words, will it do what it says on the side of the box! After that, I want to see what it will do at maximum performance and, for instance, what the amplifier will do at 5 or 10 Hz.

Chuck
chasw98 is offline
Sponsored Links
Advertisement

post #2 of 1918 Old 06-02-2007, 12:28 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Here is a list of the test equipment being used to perform the measurements.

The AC voltage must be constant and able to be regulated to compensate for line voltage variations. I am using a Superior Electric 136B Powerstat Variac. It is rated at 0-140 Volts AC and 22 amps continuous current. I have also built a digital voltmeter and ammeter to be able to adjust the AC voltage under load and measure the AC current being drawn by the DUT (Device Under Test). The voltmeter is capable of reading up to 600 VAC and the ammeter has the capability to read 50 amps AC current.



I have built a load bank and a load bank controller that I will be using to test the output of the amplifiers into constant known impedances. It is capable of switching between 2 ohms, 4 ohms, 8 ohms, and a totally open circuit. The power capabilities of the load start at 3500 watts RMS and have the capability of going up to 14,000 watts for checking those monster bridged mono units. The unit is water cooled.




The test equipment being used to generate the sine waves and measure the distortion are all made by Tektronix. I am using a SG505 sine wave oscillator that is capable of .0008% distortion from 10 Hz to 100 KHz, a SC502 15 MHz oscilloscope to view the distortion components of the DUT, an AA501 audio analyzer that has the capability of reading below .002% THD+N, a DC503A frequency counter that will measure from .01 Hz to 125 MHz. I am also using a Phillips PM3218 2 channel 35 MHz delayed time base oscilloscope to view the output waveform directly from the amplifier.



I am also using some switching components and a dual channel signal pad for setting levels on the amplifiers. The switching unit and the pad do not add more than .0002% THD+N to the overall measurements. All the interconnect cables are made by Pomona Electronics.




Chuck
chasw98 is offline
post #3 of 1918 Old 06-02-2007, 12:39 PM
Advanced Member

Habs4life's Avatar

Join Date: Apr 2006
Location: Ontario Canada
Posts: 617
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Very nice test setup,I look forward to seeing some of the results.
Habs4life is offline
post #4 of 1918 Old 06-02-2007, 01:49 PM
AVS Special Member

Video's Avatar

Join Date: Mar 2000
Location: Omaha, NE USA
Posts: 1,069
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 15
I am very interested in what you have to share. I know nothing about testing, that is why I turn to this forum to figure out what is the best bang for the buck.

Thanks for your efforts.
Video is offline
post #5 of 1918 Old 06-02-2007, 02:33 PM
AVS Special Member

Looneybomber's Avatar

Join Date: Sep 2006
Location: Lawrence, KS
Posts: 4,668
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 23
More info on your resistor. Is it essentially metal rods of a givin resistance submerged in water?

*EDIT*
Ok, to not only help myself, but also others, I'm going to attatch come of Chasw's pictures. I can only attatch 10 pictures though.


















PLX 3402 Bridged


PLX-3402 stereo

YID DIY
Looneybomber is offline
post #6 of 1918 Old 06-02-2007, 02:39 PM
AVS Special Member

crackyflipside's Avatar

Join Date: Oct 2005
Location: Miami, FL
Posts: 2,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Awesome, having seen the set-up myself a few times, I can't wait for the info to be gathered. Looneybomber, his load bank is a bunch of heating elements (I think) in a 5 gallon bucket of water.

BTW, I sent you a pm a while back about prices of isolating transformers, don't know if ya read it.
crackyflipside is offline
post #7 of 1918 Old 06-02-2007, 03:31 PM
AVS Special Member

thylantyr's Avatar

Join Date: May 2004
Posts: 3,887
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
Friendly reminder. lol

Run the amp at lower power for a while to preheat your load as load resistance rises
with heat which make the power scores much better than it is. Preheat the load for
a while, then remove the load connections and use your DMM to verify that it's 2, 4 or
8 ohm. You don't want wacko load readings like 2.6, 4.7, 9.3 ohms, lol .. If you get
wacko readings like this, then your load is not stable.

Full power test. After you take your measurements, immediately use the DMM to take
load resistance readings. The readings can be higher as you crank up the power output.
Use these measured reading for the power calculation, ie if your load was stable in pre-flight and measured 2.1 ohms, but the full power test read 2.3 ohms, then use 2.3 ohms for final power calculation.

This is how other people fail when conducting amps tests, they don't follow this procedure
and the amp looks sweeter than it is.

For example.

You measured 50v rms and your load is really 4.0 ohms. That is 625 watts calculated.

But if the load was really 6 ohms during the test {due to heat}, the amplifier voltage
will be higher because the load is lighter, you may read 60v rms. Then you assume
the load is 4 ohms. That is 900 watts calculated.

Huge discrepancy that favors the amp because the load was not stable.

Last issue. Forcing the input AC voltage to 120VAC or whatever the manufacturer used
to rate the amp is not a realistic scenario. People who install audio systems don't
have variacs on each power amplifier to hold the voltage high.

A second test after the variac test would be to measure the amp output without the
variac and factor in typical AC line sag caused by typical home installation wiring
and circuit breakers.

A last test that is interesting is to determine how long the amp can run
at full power before going into protect mode {auto shutoff, fuse blowing, etc}.



The storm was gone, but dark clouds still hung around
The perfect setting for things to come......

thylantyr is offline
post #8 of 1918 Old 06-02-2007, 03:31 PM
AVS Special Member

thylantyr's Avatar

Join Date: May 2004
Posts: 3,887
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
Do you have access to testing a PLX3402? I'd like to compare notes



The storm was gone, but dark clouds still hung around
The perfect setting for things to come......

thylantyr is offline
post #9 of 1918 Old 06-02-2007, 03:47 PM
AVS Special Member

Willd's Avatar

Join Date: Jan 2003
Location: Charlotte, NC
Posts: 5,647
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Very cool Chuck! Impressive setup.
Willd is offline
post #10 of 1918 Old 06-02-2007, 04:05 PM
Member

Luke G's Avatar

Join Date: Feb 2007
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Can't wait to see the testing. Good stuff!
Luke G is offline
post #11 of 1918 Old 06-02-2007, 04:37 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by thylantyr View Post

Friendly reminder. lol

.

thylantr, I am surprised! It took you 3 1/2 hours to respond! I knew I could count on you for some tidbits. I haven't even posted my methodology yet and you are telling me where to watch out for the pitfalls. The funny part is that I agree with you on most of them. More to come.

Chuck
chasw98 is offline
post #12 of 1918 Old 06-02-2007, 05:08 PM
AVS Special Member

thylantyr's Avatar

Join Date: May 2004
Posts: 3,887
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
We can also refer to binks proamp test as they are revealing. His test methodology is
pretty tight. AP analyzer, loads bigger and meaner than ours. lol ...
http://home.pacbell.net/lordpk/bink/bink.jpg

The biggest revealing issue is the AC line sag test at 20hz, 1% distortion. Notice how
all those amplifiers {except the regulated ones, PFC} had a big drop in power vs.
advertised.

Granted, playing continuous test tones is not a normal thing as people play
music instead {lower duty cycle}, but the test tone
is a good reference vs. random music for amp testing. Make the test more like
apples to apples.

Bink tested at only 4 ohms per channel and he got those results. Many proamps are
rated for 2 ohms per channel, a more difficult load. Imagine how bad many of these
amps would score if a 2 ohm per channel test was done. I have a theory as
to why he didn't do a 2 ohm per channel test, I will be brave and say that the
risk of blow up the amps rises alot if you use a rms test method on these amps at 2 ohms... [because I blew up my amps doing this type of test, lol] ..You
can probably perform a burst test to protect the amp.

It would be nice to correlate EP2500 test results to Binks Tapco J2500 tests
because it's rumored that J2500 is a RMX2450 clone just like EP2500 is a clone
of RMX2450.

Bink has no PLX2402, 3002, or 3402 test, those would be nice to test as you can snag those
amps used now for a good price. I have my own 3402 'clipping' test results.

Crown XLS would be nice to test because version D [new ones] has a new
look inside that might make these amps perform better than older versions [A - C].

Crown XTI is new, but one issue bothers me. Crown said it's class AB, not class H.
Looking at gut pics, this has me concerned about it's advertised power. Running a high
powered amp in class AB mode is just a big generator of heat, hence why high powered
proamps are class H, at least 2 tier. When I tested my PLX3402, I bypass the class H
and force it to operate at class AB 100% of the time. The results were disturbing. The
amp fans at idle operation went into high speed mode as the heatsink got very hot. lol

EP2500, PLX's, XLS's, XTI's, would be a nice addition to add to Binks test. The amp test
list would be sweet.

Anyone going to volunteer their amps for testing - harrr...................

Amp guts pics {many snagged from cyberspace}
http://home.pacbell.net/lordpk/proamps/



The storm was gone, but dark clouds still hung around
The perfect setting for things to come......

thylantyr is offline
post #13 of 1918 Old 06-02-2007, 05:47 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
There will be 2 parts to the testing of amplifiers. The first part involves verifying whether or not the amplifier meets the published specs of the manufacturer or not.
The test equipment will be turned on and allowed to warm up and stabilize for at least 1 hour, if not longer. The DUT will be hooked into the test bench and will run at 1/2 power into an 8 ohm load with both channels driven for at least 1 hour to make sure it has settled in. When possible, I will try and duplicate the published specifications of the unit. For instance, if you read the specification sheet below taken from the Behringer website, most specifications are given as 'X' ohms, 'X' watts at 'X' % distortion. But if you read down to line 15 in the left hand column it reads "DISTORTION <.01%" with no reference to anything else on the page. Looks good as a buzz word though.



The 2nd part of the testing will be to see what the amplifier is capable of. Will it produce 'X' watts at 10 Hz at .01% distortion? How much power and at what distortion level will it really produce, hopefully, above and beyond the published specs. I am just running basic amp tests. S/N ratio, THD distortion, and power ratings. No TIM, IM, crosstalk, etc.

If you read thylantr's post above, he mentions conditioning the loads to get accurate impedance measurements for proper power measurement. I agree with him completely on this point and will be checking impedance of the load bank before and after testing with a certified impedance meter so that accurate ratings are achieved.

As far as AC voltage goes, I differ with thylantr. The 1st part of the test will be to published specs. If the specs say 120 VAC, then I will adjust the line to reflect that. In the 2nd part of the test though, I can run the DUT off the outlet (a dedicated 20 amp circuit) and monitor voltage and current without voltage adjustment and also run it through the variac with voltage adjustment possible.

Just so you are aware, there are 26 separate measurements to be taken just to verify published specs. Then there are more measurements for the unpublished portion of the testing. Like most of you, I have a wife and family, a job, and (I think) a life. So I am not miraculously going to post 10 amplifier tests right away. I will be starting with everyones favorite bang for buck units, the EP1500 & EP2500 series. I also have a line on a Crown K2 to test and some other pro amps. If anyone would like their amplifier tested, all they have to do is bring it by my house and I will test it for free and probably publish the specs. PM if you want it tested and we can set up a time.

Chuck
chasw98 is offline
post #14 of 1918 Old 06-02-2007, 05:58 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by thylantyr View Post

We can also refer to binks proamp test as they are revealing. His test methodology is
pretty tight. AP analyzer, loads bigger and meaner than ours. lol ...

The biggest revealing issue is the AC line sag test at 20hz, 1% distortion. Notice how
all those amplifiers {except the regulated ones, PFC} had a big drop in power vs.
advertised.

Granted, playing continuous test tones is not a normal thing as people play
music instead {lower duty cycle}, but the test tone
is a good reference vs. random music for amp testing. Make the test more like
apples to apples.

Bink tested at only 4 ohms per channel and he got those results. Many proamps are
rated for 2 ohms per channel, a more difficult load. Imagine how bad many of these
amps would score if a 2 ohm per channel test was done. I have a theory as
to why he didn't do a 2 ohm per channel test, I will be brave and say that the
risk of blow up the amps rises alot if you use a rms test method on these amps at 2 ohms... [because I blew up my amps doing this type of test, lol] ..You
can probably perform a burst test to protect the amp.

It would be nice to correlate EP2500 test results to Binks Tapco J2500 tests
because it's rumored that J2500 is a RMX2450 clone just like EP2500 is a clone
of RMX2450.

Bink has no PLX2402, 3002, or 3402 test, those would be nice to test as you can snag those
amps used now for a good price. I have my own 3402 'clipping' test results.

Crown XLS would be nice to test because version D [new ones] has a new
look inside that might make these amps perform better than older versions [A - C].

Crown XTI is new, but one issue bothers me. Crown said it's class AB, not class H.
Looking at gut pics, this has me concerned about it's advertised power. Running a high
powered amp in class AB mode is just a big generator of heat, hence why high powered
proamps are class H, at least 2 tier. When I tested my PLX3402, I bypass the class H
and force it to operate at class AB 100% of the time. The results were disturbing. The
amp fans at idle operation went into high speed mode as the heatsink got very hot. lol

EP2500, PLX's, XLS's, XTI's, would be a nice addition to add to Binks test. The amp test
list would be sweet.

Anyone going to volunteer their amps for testing - harrr...................

I have a Sam Ash right down the street from me and a slush fund for buying and returning amps, so we will see what we can dig up. I might even talk them into loaners for an afternoon on the weekends. I also have a lot of friends that play live for a living and can probably borrow an amp from them during the week. Right now, I have the EP1500, the EP2500, and the Crown K2 for sure so I will get those done and then proceed from there. I fully intend to test with 2 ohm loads. Those loads are not out of line for real world usage for a lot of users. And I am using my amps to start with so if I blow them up I only have myself to blame.

Chuck
chasw98 is offline
post #15 of 1918 Old 06-02-2007, 07:20 PM
AVS Special Member

kgveteran's Avatar

Join Date: Apr 2004
Location: Rochester NY
Posts: 5,746
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked: 40
kgveteran is offline
post #16 of 1918 Old 06-02-2007, 08:13 PM
AVS Special Member

thylantyr's Avatar

Join Date: May 2004
Posts: 3,887
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
Quote:


As far as AC voltage goes, I differ with thylantr. The 1st part of the test will be to published specs. If the specs say 120 VAC, then I will adjust the line to reflect that. In the 2nd part of the test though, I can run the DUT off the outlet (a dedicated 20 amp circuit) and monitor voltage and current without voltage adjustment

Found a one word typo in my post, but this above is what I meant. Test the amp using
your variac, then do a test using your 20A circuit only.

Bonus: Score an Itech for testing



The storm was gone, but dark clouds still hung around
The perfect setting for things to come......

thylantyr is offline
post #17 of 1918 Old 06-03-2007, 10:29 AM
AVS Special Member

armystud0911's Avatar

Join Date: Jul 2006
Location: Cincinnati
Posts: 4,423
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
I am excited to hear your results for the EP2500's, I am using a whole lot of those to power some line arrays this summer/fall. I doubt the amp would do much for 2ohm loads below 20Hz, thats why I am using them above 80Hz. Also wondering if it might be possible to do super low impedance testing with high frequencies, I am really curious if it could handle something like a 1 or 2ohm load bridged for my tweeters.
armystud0911 is offline
post #18 of 1918 Old 06-03-2007, 10:47 AM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by armystud0911 View Post

I am excited to hear your results for the EP2500's, I am using a whole lot of those to power some line arrays this summer/fall. I doubt the amp would do much for 2ohm loads below 20Hz, thats why I am using them above 80Hz. Also wondering if it might be possible to do super low impedance testing with high frequencies, I am really curious if it could handle something like a 1 or 2ohm load bridged for my tweeters.

The first amp I am going to test will be the EP1500. I am doing this amp first to sort of get my methodology down pat and see what works and what doesn't. Since a lot of people own an EP2500, that will be the 2nd amp I am going to test. I am planning on a 2 ohm load test at 10 Hz and I can probably add a 2 ohm bridged in the 10K to 20K range if you want.
chasw98 is offline
post #19 of 1918 Old 06-03-2007, 05:33 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,309
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 860 Post(s)
Liked: 1030
Can't wait to hear the results on the 2500, myself.

How's the progress on that sub EQ going if I may ask, Chuck?

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #20 of 1918 Old 06-03-2007, 08:25 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by Scott Simonian View Post

Can't wait to hear the results on the 2500, myself.

How's the progress on that sub EQ going if I may ask, Chuck?

The SUB EQ project has been sidetracked waiting for the circuit to be approved and transferred to printed circuit board design. I have just been told that the design for screening the boards will be done the last week of June and we should see boards by the end of July if all goes well.
chasw98 is offline
post #21 of 1918 Old 06-03-2007, 11:12 PM
Member

yuriv's Avatar

Join Date: Feb 2006
Location: Coral Springs, FL
Posts: 178
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hi Chuck,
About 5 weeks ago I talked to you about coming over to your house with some of my amps. I want to see how your test results will compare with mine. My amplifiers have been through some pretty severe physical abuse when they were out on loan. They didn't sound that bad when they came back, but I'm still interested in seeing bench tests. I'm really more interested in the performance at 1W and 100 mW because that's where the amplifier spends most of its time in a control room or a HT if it's not driving a passive subwoofer. I also want to see you test your other amplifiers to see if I can get the same results with more modest test gear. Let me know when it's a good time to meet.
yuriv is offline
post #22 of 1918 Old 06-04-2007, 06:37 PM
AVS Special Member

armystud0911's Avatar

Join Date: Jul 2006
Location: Cincinnati
Posts: 4,423
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by chasw98 View Post

The first amp I am going to test will be the EP1500. I am doing this amp first to sort of get my methodology down pat and see what works and what doesn't. Since a lot of people own an EP2500, that will be the 2nd amp I am going to test. I am planning on a 2 ohm load test at 10 Hz and I can probably add a 2 ohm bridged in the 10K to 20K range if you want.

2ohms bridged at 10Khz would be absolutely perfect!

I am afraid the EP2500 won't be able to do much for bass, I wouldn't be surprised if it only did half spec or even less, but even still, it is a good value.
armystud0911 is offline
post #23 of 1918 Old 06-04-2007, 07:57 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Yuriv:
Not this weekend, but the one after will probably be a good time if you want to bring some gear by. PM me.

armystud:
Obviously, I have been running some preliminary tests and have an idea how these amps will perform. You might be very surprised! Should have the EP1500 done before Friday.

You know what they say, the first one takes forever, the rest are easy, I think.
chasw98 is offline
post #24 of 1918 Old 06-08-2007, 02:26 PM
Member

gigbyt's Avatar

Join Date: Oct 2002
Location: southern,nh
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
any new news?

GIG
gigbyt is offline
post #25 of 1918 Old 06-08-2007, 03:21 PM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Got real busy this week. I will have my first testing done tomorrow for sure.
Hopefully it will get posted in a readable form!
Chuck
chasw98 is offline
post #26 of 1918 Old 06-08-2007, 04:01 PM
AVS Special Member

crackyflipside's Avatar

Join Date: Oct 2005
Location: Miami, FL
Posts: 2,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
crackyflipside is offline
post #27 of 1918 Old 06-08-2007, 04:21 PM
AVS Special Member

SteveCallas's Avatar

Join Date: Jun 2004
Posts: 6,867
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 121 Post(s)
Liked: 43
I may have missed it - will you also be measuring the FR?
SteveCallas is offline
post #28 of 1918 Old 06-09-2007, 11:33 AM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by SteveCallas View Post

I may have missed it - will you also be measuring the FR?

Yes, at 10 Hz, 20 Hz, 100 Hz, 200 Hz, 1KHz, 2 KHz, 10 KHz, 20 KHz.
chasw98 is offline
post #29 of 1918 Old 06-09-2007, 11:48 AM - Thread Starter
AVS Special Member

chasw98's Avatar

Join Date: Dec 2004
Location: Margate, FL
Posts: 1,085
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Here are the results of the first round of measurements of a Behringer EP1500 at 8 ohms. I have found that I must let the load bank cool down and stabilize betweeen each frequency check, so it has taken approx. 3 hours to do the first round at 8 ohms. I will plod along and get the measurements done for 4 ohms & 2 ohms as the day goes on. Here is a chart of the first round.



You will notice that at 20 KHz the distortion is out of bounds. In order to get the distortion down to a reasonable level, I had to drop the voltage to 43.7 volts which equates out to 225.4 watts at this frequency. Then the distortion dropped to .057 (L) and .042 (R). I was not sure whether this was the fault of the amp or my test rig or what so I spent a lot of time checking and I have no problem measuring .000X% THD at well above 20 KHz and I pulled out my 2nd EP1500 and it displayed the same behavior as the first. I do not believe that this amplifier likes to be tested with a 20 KHz sine wave, even for a short period of time.

I have attached the PDF of this chart for those that wish to save it or print it.
Chuck



EP1500-8ohm-060907.pdf 65.0849609375k . file
Justinicus likes this.
chasw98 is offline
post #30 of 1918 Old 06-09-2007, 11:55 AM
Senior Member

Gir_1337's Avatar

Join Date: Nov 2006
Location: Hershey, PA
Posts: 378
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:


I do not believe that this amplifier likes to be tested with a 20 KHz sine wave, even for a short period of time.

That's very odd...
Gir_1337 is offline
Reply DIY Speakers and Subs



Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
