post #91 of 193 Old 11-11-2007, 10:03 AM
AVS Special Member

steve nn's Avatar

Join Date: Aug 2003
Posts: 6,207
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 428
Quote:


Looks like I'm headed out to the hardware shop to find some custom bolts.

Nice project and pics. The custom rout is certainly a good option, but going with your standard 1 3/4 #7 or #8 course thread drywall screws work very well.. a guy needs do drill the proper pilot hole though. Actually to tell you the truth about it, it's the easier softer way going about it. Both options have their pros and cons, but nothing a guy cant get around.

Anyway, looking forward to your impressions and following your progress. Nice job!

Klipsch RB-75
Klipsch C-7
Klipsch RB-35
On-going SW management class
Denon
PS3
steve nn is offline
Sponsored Links
Advertisement

post #92 of 193 Old 11-11-2007, 10:25 AM
btp
AVS Special Member

btp's Avatar

Join Date: Apr 2005
Location: Seattle-land
Posts: 1,197
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I'm not an expert, but I would never put screws directly into the MDF if I could help it... especially not screws you might need to remove and reinstall in the future. The t-nuts are a great solution. Even if you stripped one, you could tap it out and replace it(maybe using a little glue when you put the new one in).

Signature Challenged.
btp is offline
post #93 of 193 Old 11-11-2007, 10:30 AM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,126
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 187
Quote:
Originally Posted by btp View Post

I'm not an expert, but I would never put screws directly into the MDF if I could help it... especially not screws you might need to remove and reinstall in the future. The t-nuts are a great solution. Even if you stripped one, you could tap it out and replace it(maybe using a little glue when you put the new one in).

Most of the time though, the t-nuts if stripped or crossthreaded will spin out and/or break out the MDF or even plywood if even if glued in.
I like to install the driver and test all of the bolts/nuts before putting the final panel on. If all is well then you will have no problems removing them in the future. If one does give you an issue, just put the vise-grips on the nut to prevent turning and you always get the bolt out even with stripped threads.

jpmst3 is offline
post #94 of 193 Old 11-11-2007, 11:00 AM
AVS Special Member

steve nn's Avatar

Join Date: Aug 2003
Posts: 6,207
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 428
Quote:


I'm not an expert, but I would never put screws directly into the MDF if I could help it... especially not screws you might need to remove and reinstall in the future. The t-nuts are a great solution.

No not really! If a guy is talking 3/4 then it's a probability it's going to happen if he removes and replaces the driver many times. Breaking a toothpick off in the hole remedies that quick enough though. What we're or I should say I'm talking about is 1 1/2 to 1 3/4 course thread drywall screws seated in 1 1/2 MDF or better. Striping just doesn't happen unless a guy drills the pilot hole to big or has the torque set on his drill to max, there is no way of stripping it by hand if properly done. I dunno, I have removed drivers in some enclosures up to 20-30 times I would guesstimate and have only had a few problems with all the different units I have played with. There are some, if not many in the DIY realm that cant stand T-nuts I assure you. That said, I understand the attraction of T-nuts, but once a guy has plenty of experience with both, don't be surprised if the common drywall finds favor. As for myself, I'm very glad considering how much I play with drivers that I have another option than T-nuts!

Klipsch RB-75
Klipsch C-7
Klipsch RB-35
On-going SW management class
Denon
PS3
steve nn is offline
post #95 of 193 Old 11-11-2007, 11:31 AM
btp
AVS Special Member

btp's Avatar

Join Date: Apr 2005
Location: Seattle-land
Posts: 1,197
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
OK, I'll just have to take your word for it. I can see where you'd have good results using drywall screws with 1.5" or more of MDF and a pilot hole drilled at exactly the right size - not too big and not too small. Both solutions seem to have their pros and cons. Maybe I'll change my tune after removing and installing the RL-P18 a few more times.

Signature Challenged.
btp is offline
post #96 of 193 Old 11-11-2007, 07:25 PM - Thread Starter
AVS Special Member

mynym's Avatar

Join Date: Nov 2004
Location: Columbus, OH
Posts: 1,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked: 15
These machine bolts/hurricane nuts are certainly new to me.

In my car audio career I always used coarse threaded 1 7/8 drywall screws to screw the driver into the baffle.


I did have some negative experiences with the fine threaded drywall screws, easily stripping through the MDF but the coarse threaded ones seem to work okay, at least for the 4 or 5 enclosures I built. Although the biggest drivers I was using in the car were 12" and weighed less than 50lbs.

I saw many folks in the HT world using the machine bolts and hurricane nuts which IMHO look like they'd secure these large heavy drivers better.

Never thought about the toothpick trick though. Also worst case scenario you can rotate the driver and redrill the holes if they do strip out.

So do the drywall screws have the strength ?
mynym is offline
post #97 of 193 Old 11-11-2007, 07:34 PM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,126
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 187
Quote:
Originally Posted by mynym View Post

So do the drywall screws have the strength ?

I dunno, I don't trust them. They always seem to shear off pretty easily when I use them for other than their designed purpose.

I would rather have a connection with something from behind that clamps the driver to the wood. It helps make a better seal IMO. And you don't have the fear of over torquing and stripping them out...Of course, I was mounting 80lb drivers. It comes down to whatever you think will work best.

jpmst3 is offline
post #98 of 193 Old 11-21-2007, 10:08 AM
AVS Special Member

vitod's Avatar

Join Date: Dec 2003
Posts: 3,099
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Doesn't make sense starting a new tread while this will do.

I really wanted to build my own, but due of not having the time and now it's freakin' cold outside, I decided to let eD build my boxes. For the price of the boxes shipped and the cost of the drivers, my total cost is no more than $1000!(I bought the IXL-18's at pre production prices.)

I want to thank the great folks at eD for their great customer service and especially Chris Schempp for giving me his personal attention. Was on the phone with Chris and he's a class act guy.

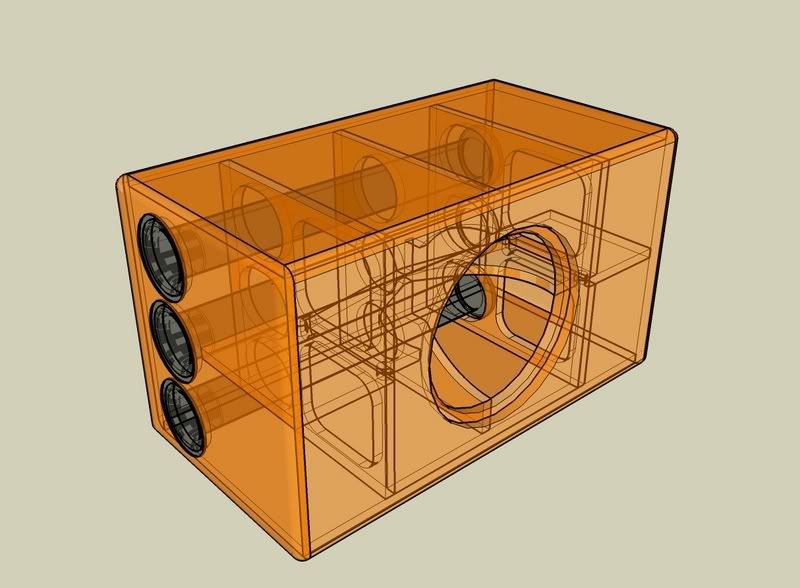

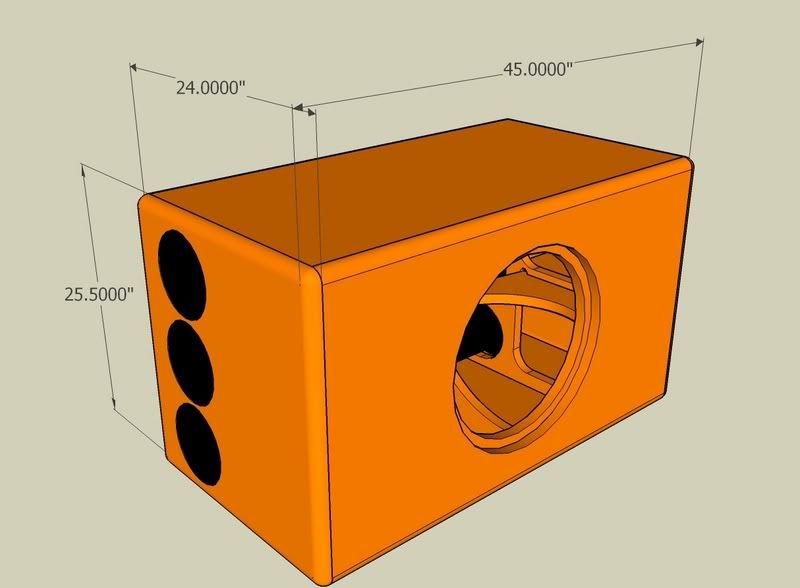

I'm having eD build me two boxes and here are the designs. 12cuft tuned to 15hz with the option to port block.




They should be at my house about a month from now. Can't wait!

Evil is Good
vitod is offline
post #99 of 193 Old 11-21-2007, 10:49 AM
btp
AVS Special Member

btp's Avatar

Join Date: Apr 2005
Location: Seattle-land
Posts: 1,197
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Sweet. Looks like Chris is also using Google Sketchup. Nice touch with the rounded edges and everything.

Is that 3/4" MDF or 1"? Also, is the magnet of driver going to be supported by the one (vertical) brace? I'd think in order to do that properly, they would need a IXL 18 in-house to measure and test fit because you would want it snug when the driver is bolted in (the idea being to better couple the driver to the box).

So he's building two of those for you? And all that is still under $1000? Wow... that's an incredible deal! Believe me, building the boxes yourself is a LOT of work.

Signature Challenged.
btp is offline
post #100 of 193 Old 11-21-2007, 11:01 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,053
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 692 Post(s)
Liked: 906
Quote:


Believe me, building the boxes yourself is a LOT of work.

+1

Took me all summer to build my twins...and that was with help. Then again, I am not a very experienced woodworker.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #101 of 193 Old 11-21-2007, 11:05 AM
AVS Special Member

vitod's Avatar

Join Date: Dec 2003
Posts: 3,099
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hey Brad,

Chris is going to use 1" in and out and no, the vertical brace is not to hold the magnet. Going to use screws. And yes, two boxes!

They'll be finished in black carpet only because they'll be placed underneath the screen to absorb any light. I want them to disappear.

Evil is Good
vitod is offline
post #102 of 193 Old 11-21-2007, 11:11 AM
btp
AVS Special Member

btp's Avatar

Join Date: Apr 2005
Location: Seattle-land
Posts: 1,197
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Cool. I may have to put something like felt or carpet on the tops of my subs for the same reason (right under the projection screen).

Man, those boxes are gonna be really beefy... heavy and SOLID! I probably would have used 1" MDF if it was readily available, but HD and Lowes don't carry it. I'd probably have to go to a real lumber place and order some.

Good stuff, vitod. You're gonna love it! What amp(s) you going to use again?

Signature Challenged.
btp is offline
post #103 of 193 Old 11-21-2007, 11:13 AM
AVS Special Member

Chris Schempp's Avatar

Join Date: Nov 2006
Location: Grand Forks, ND
Posts: 2,302
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 21
Quote:
Originally Posted by btp View Post

Sweet. Looks like Chris is also using Google Sketchup. Nice touch with the rounded edges and everything.

Is that 3/4" MDF or 1"? Also, is the magnet of driver going to be supported by the one (vertical) brace? I'd think in order to do that properly, they would need a IXL 18 in-house to measure and test fit because you would want it snug when the driver is bolted in (the idea being to better couple the driver to the box).

So he's building two of those for you? And all that is still under $1000? Wow... that's an incredible deal! Believe me, building the boxes yourself is a LOT of work.

You know how much is sucks to roundover an edge on all 3 dimensions?

Don't do it

Chris Schempp
How to post links to Amazon.com Products.
PSN - Mandos_eD
Chris Schempp is offline
post #104 of 193 Old 11-21-2007, 12:35 PM
AVS Special Member

vitod's Avatar

Join Date: Dec 2003
Posts: 3,099
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Chris Schempp View Post

You know how much is sucks to roundover an edge on all 3 dimensions?

Don't do it

Again, that's what is great about Chris and everyone else at eD. They want to please. Even if it's a little more difficult.

Evil is Good
vitod is offline
post #105 of 193 Old 11-21-2007, 12:45 PM
AVS Special Member

vitod's Avatar

Join Date: Dec 2003
Posts: 3,099
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by btp View Post

What amp(s) you going to use again?

I have an EP2500 and a QSC 3500. I'll try both and hear what sounds good.

Evil is Good
vitod is offline
post #106 of 193 Old 01-29-2008, 09:01 AM
Member

shr-t's Avatar

Join Date: Nov 2006
Location: Finland
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by mynym View Post

My IXL18.4 arrived.



And for anyone else questioning the actual depth of the IXL18.4, here's a pic that shows the height next to a tape measure:



Thanks for the depth picture, I was wondering about the depth myself.

But how wide is the magnet? If the coke can is about 4½" then I'm guessing the magnet would be roughly 6 inches wide and 3½ inches high. Am I right? close? Anyone got actual measurements?

I emailed mach5audio about this but they haven't answered me (it was about a week ago)...
shr-t is offline
post #107 of 193 Old 01-31-2008, 06:28 AM
Member

evan the cdn's Avatar

Join Date: Dec 2007
Location: SK, Canada.
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by shr-t View Post

Thanks for the depth picture, I was wondering about the depth myself.

But how wide is the magnet? If the coke can is about 4½" then I'm guessing the magnet would be roughly 6 inches wide and 3½ inches high. Am I right? close? Anyone got actual measurements?

I emailed mach5audio about this but they haven't answered me (it was about a week ago)...

I've got one at home that I can measure for you tonight.
evan the cdn is offline
post #108 of 193 Old 01-31-2008, 03:56 PM
Member

shr-t's Avatar

Join Date: Nov 2006
Location: Finland
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Schweet!!!

If you wanna take it to the next level, which would be even schweeter, you can do a number of other measurements as well, check the SDX15 datasheet which is exemplary in my opinion.
shr-t is offline
post #109 of 193 Old 01-31-2008, 04:10 PM
AVS Special Member

TheEAR's Avatar

Join Date: Nov 2006
Location: Montreal,CANADA
Posts: 3,464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Good to see people purchasing quality drivers from reputable companies and all this at great prices.

A well designed/built sub with one IXL18.4 in a EBS (LLT) configuration will fill even larger rooms with ease. Worst case,duals and these are sure to to the job.

Ask yourself mortal , do you have as much displacement as me ? The answer is no unless you have a Windmere fan sub.
TheEAR is offline
post #110 of 193 Old 01-31-2008, 06:18 PM
Senior Member

Uklit's Avatar

Join Date: Mar 2005
Location: Sask. Canada
Posts: 436
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Agreed. I have a pair of IXL-18's each in 12 cubic feet tuned to 16hz. It's a whole new level compared to the Atlas 15's I have.
Uklit is offline
post #111 of 193 Old 01-31-2008, 08:11 PM
Member

evan the cdn's Avatar

Join Date: Dec 2007
Location: SK, Canada.
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
This will be my third post, so hopefully I'll be able to post the pics right after this.
evan the cdn is offline
post #112 of 193 Old 01-31-2008, 08:12 PM
Member

evan the cdn's Avatar

Join Date: Dec 2007
Location: SK, Canada.
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by shr-t View Post

Schweet!!!

If you wanna take it to the next level, which would be even schweeter, you can do a number of other measurements as well, check the SDX15 datasheet which is exemplary in my opinion.

Some pics.








...and some dimensions.





I hope that helps.
evan the cdn is offline
post #113 of 193 Old 01-31-2008, 09:27 PM
AVS Special Member

TheEAR's Avatar

Join Date: Nov 2006
Location: Montreal,CANADA
Posts: 3,464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Great more IXL18.4 owners !

Ask yourself mortal , do you have as much displacement as me ? The answer is no unless you have a Windmere fan sub.
TheEAR is offline
post #114 of 193 Old 02-02-2008, 03:05 AM
Member

shr-t's Avatar

Join Date: Nov 2006
Location: Finland
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Evan, you're my hero
shr-t is offline
post #115 of 193 Old 02-02-2008, 08:59 AM
Member

evan the cdn's Avatar

Join Date: Dec 2007
Location: SK, Canada.
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by shr-t View Post

Evan, you're my hero

No problem.
evan the cdn is offline
post #116 of 193 Old 02-02-2008, 08:48 PM - Thread Starter
AVS Special Member

mynym's Avatar

Join Date: Nov 2004
Location: Columbus, OH
Posts: 1,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked: 15
Evan: Thanks for the great pics. Welcome to AVS
mynym is offline
post #117 of 193 Old 02-02-2008, 08:58 PM
Senior Member

kingpin111's Avatar

Join Date: Jan 2006
Location: Oshawa, Ontario Canada
Posts: 496
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 56
I have 2 of them also.
roughly 12 cu.ft 6" port tuned to 13hz.





MKtheater -"I just saw 300 tonight, great movie. I literally wanted to spear people after the show."

My speaker build. "PROJECT OVERKILL" WWMTMSS
kingpin111 is offline
post #118 of 193 Old 02-02-2008, 08:59 PM
Senior Member

mdk2007's Avatar

Join Date: Mar 2007
Location: Dallas, TX
Posts: 436
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
How would something like this mix with dual 19ov's sealed?? im looking to adding a large ported enclosure for more output down low...would this be a good option to add to?? or should i not intergrate them?? is this a better option down low than eD's?? any advice would be great!!

Ben


edit: what are the dimensions on those dual boxes?? did you elbow the pvc?? nice speakers btw!!
mdk2007 is offline
post #119 of 193 Old 02-02-2008, 09:02 PM
AVS Special Member

Spezzy's Avatar

Join Date: Jun 2006
Location: Huntington Beach, CA
Posts: 1,403
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by mdk2007 View Post

How would something like this mix with dual 19ov's sealed?? im looking to adding a large ported enclosure for more output down low...would this be a good option to add to?? or should i not intergrate them?? is this a better option down low than eD's?? any advice would be great!!

Ben

RL-P18 from Soundsplinter would be a better option if you can afford it.
http://www.youtube.com/watch?v=aaaubY4MQus

"The choices we make define our lives, because choice, not chance, determines destiny"

They call me the 18 year old DJ Audiophile-upgradeitis infected-guy!
Spezzy is offline
post #120 of 193 Old 02-02-2008, 09:25 PM
Senior Member

mdk2007's Avatar

Join Date: Mar 2007
Location: Dallas, TX
Posts: 436
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
would i be having to build 20+ cuft enclosure's like you a scott to get some serious output?? :P what would be a good size for a tune of say 14 or so?? thanks spezzy!

ps...what type of JBL's were those? LC1 or LC2 for center??
mdk2007 is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
