post #271 of 845 Old 09-27-2011, 11:08 AM
Senior Member

lifesun's Avatar

Join Date: Dec 2004
Location: Michigan
Posts: 497
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by JukeBox360 View Post

What is pixel misfire?

A misfire is what was described earlier in this thread regarding the white pixel flickering for a few seconds when the set is first turned on. When adjusting the pots for better MLL, a side effect can be many pixel misfires when the set is cold, once warmed up for a few minutes they will go away. Small price to pay for much better black level in my opinion! Can't wait to dive into this in a few days.
lifesun is offline
Sponsored Links
Advertisement

post #272 of 845 Old 09-27-2011, 11:41 AM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
I'll try it once I see proof of it working lol
JukeBox360 is offline
post #273 of 845 Old 09-27-2011, 01:57 PM
Member

no123one's Avatar

Join Date: Jul 2011
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by PrimeTime View Post

Bingo. Plasmas do indeed only have "so much white" to go around. It's a limitation to conserve power consumption and protect the power supply.

It's rather well established here at AVS that plasmas struggle with hockey (the term "dirty whites" comes from a similar hockey fan's complaint). Plasmas' other attributes usually compensate for that shortcoming. But if hockey is your thing, LCDs deserve a second look.

Thanks for taking the time to reply, PrimeTime. That's good to know this is "normal" for plasmas.

I guess it's a matter of "dirty whites" with plasma vs motion issues with LCD/LED. I recently watched a HD feed of an NHL game, (Go Jets!) and really enjoyed it, and the "limited whites" scenes with mostly ice, well, it wasn't bad. I just got used to it.

I'm really liking this tv so far, it just took some getting used to coming from super bright, contrasty CRT's. Now that I think of it, if a plasma this large was as bright as a 27" CRT, it would probably be blinding!
no123one is offline
post #274 of 845 Old 09-27-2011, 04:11 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
I'm about to give this whole tweak thing a go. Hopefully I don't mess up the set. I'll be making a full video of the entire thing. Or post pictures. Depends on which is easier for me to do while I do it.
JukeBox360 is offline
post #275 of 845 Old 09-27-2011, 04:39 PM
Member

sarge19806's Avatar

Join Date: Aug 2011
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Ok...my mistake I tuned the set_up pot and the Vs pot on the plasma...those are the only 2 you need to touch...set_up pot turned clockwise all the way with no pixel missfire...and Vs pot turned counter clockwise one tick...and am very very satisfide with the results..if anyone wants pic let me know ill try to upload them
sarge19806 is offline
post #276 of 845 Old 09-27-2011, 04:46 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
Took a stab at it. No dice. I can't seem to find anything that would turn. And I cannot fully get the back of the TV off. It stays stuck by the connections part. No idea why. As far as i can tell there is nothing to turn. I don't think this works with our set.
JukeBox360 is offline
post #277 of 845 Old 09-27-2011, 04:47 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
Quote:
Originally Posted by sarge19806 View Post

Ok...my mistake I tuned the set_up pot and the Vs pot on the plasma...those are the only 2 you need to touch...set_up pot turned clockwise all the way with no pixel missfire...and Vs pot turned counter clockwise one tick...and am very very satisfide with the results..if anyone wants pic let me know ill try to upload them

Take pics of what your turning. As I'm finding nothing to turn. Also. How did you get the entire back panel off? Mines stuck where the connections would be.
JukeBox360 is offline
post #278 of 845 Old 09-27-2011, 04:57 PM
Member

sarge19806's Avatar

Join Date: Aug 2011
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

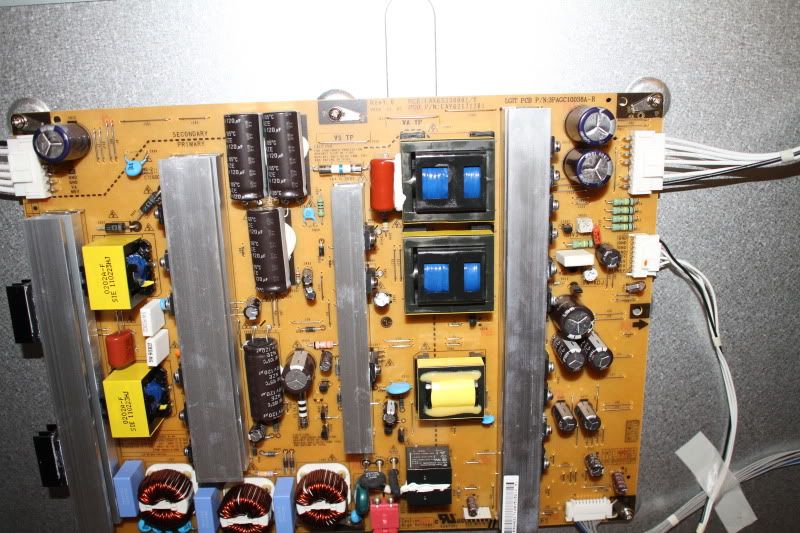

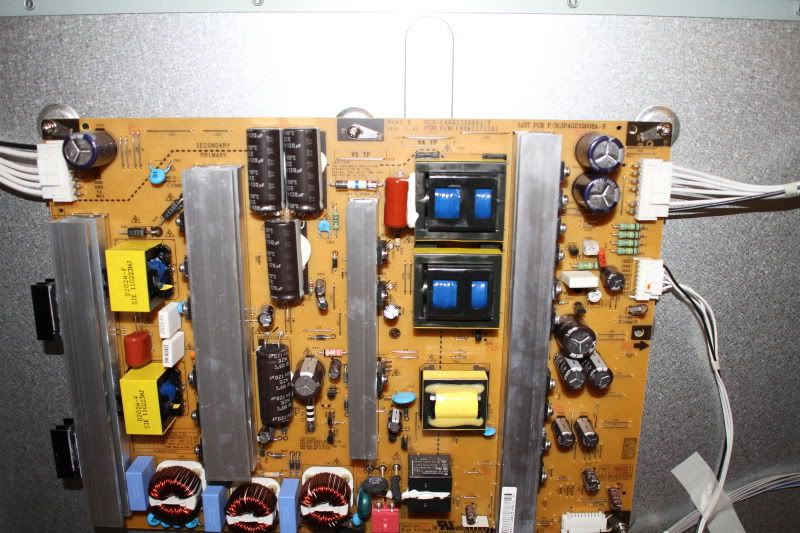

The Vs pot is on the main power board in the middle...there will be a cross pattern on the pot with 2 little holes...around the cross pattern there are lines for guides or markers...i used the holes to markwhere they met the lines for stock settings and notched it back counter clockwise one bar back...i used the hole that was closest to the top marker as set point....so if you count the lines itll be 3 lines from the top matched with second hole....if you look at it from stock settings the 2nd hole should be marked up to the forth line....so move that hole to the 3rd line counter clockwise....again ill post up pics as soon as i can on what i did and the after results...widscreen bluray 2:35:1 black bars blend with movies and black bezel...very very happy
sarge19806 is offline
post #279 of 845 Old 09-27-2011, 04:58 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50

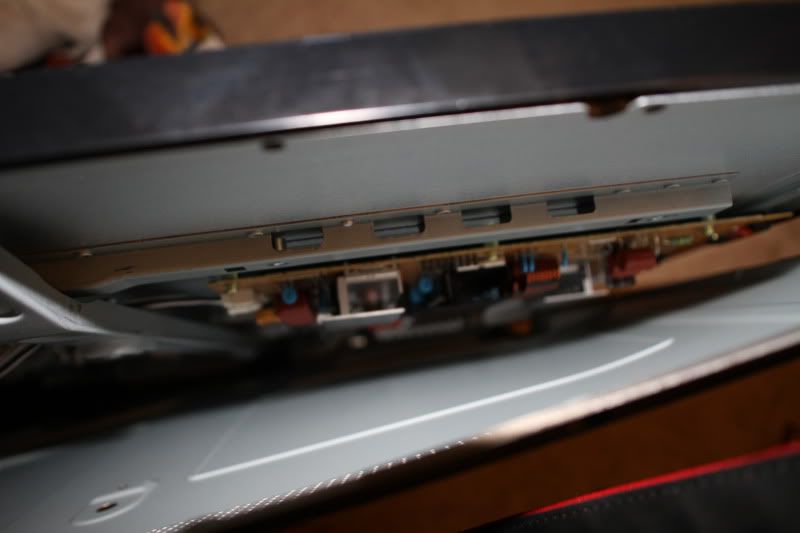

^^^The picture right above this sentence is the spot of the TV I can't get off.





JukeBox360 is offline
post #280 of 845 Old 09-27-2011, 04:59 PM
Senior Member

lifesun's Avatar

Join Date: Dec 2004
Location: Michigan
Posts: 497
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I am planning to tackle this Friday night, so if you still have trouble maybe I will be able to share a tip or two if I have some luck. I am going just by what people are posting on AVS, but our sets do indeed have these adjustment pots, I can see them on the schematics of the 50pv450 manual that I downloaded in another thread. Here is the link: http://136.166.4.200/contents/Displa...50/50PV450.htm download the training manual and panel alignment PDFs to give you an idea of what needs to come apart etc.
lifesun is offline
post #281 of 845 Old 09-27-2011, 05:04 PM
Senior Member

lifesun's Avatar

Join Date: Dec 2004
Location: Michigan
Posts: 497
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
JukeBox, did you take out the screw by the side inputs? The schematic shows a screw over there on the 50 inch set.
lifesun is offline
post #282 of 845 Old 09-27-2011, 05:08 PM
Senior Member

lifesun's Avatar

Join Date: Dec 2004
Location: Michigan
Posts: 497
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by sarge19806 View Post

The Vs pot is on the main power board in the middle...there will be a cross pattern on the pot with 2 little holes...around the cross pattern there are lines for guides or markers...i used the holes to markwhere they met the lines for stock settings and notched it back counter clockwise one bar back...i used the hole that was closest to the top marker as set point....so if you count the lines itll be 3 lines from the top matched with second hole....if you look at it from stock settings the 2nd hole should be marked up to the forth line....so move that hole to the 3rd line counter clockwise....again ill post up pics as soon as i can on what i did and the after results...widscreen bluray 2:35:1 black bars blend with movies and black bezel...very very happy

Sarge, so I would assume that you got better MLL using Set_Up, and even better MLL by adjusting Vs after? Just trying to confirm your method as it seems much easier than the other methods posted..........however, its also different than everything else I have read!
lifesun is offline
post #283 of 845 Old 09-27-2011, 05:12 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
Quote:
Originally Posted by lifesun View Post

JukeBox, did you take out the screw by the side inputs? The schematic shows a screw over there on the 50 inch set.

Yes. I've removed every single screw yet something it still holding this thing in place. on that 1 side only.
JukeBox360 is offline
post #284 of 845 Old 09-27-2011, 05:15 PM
Senior Member

lifesun's Avatar

Join Date: Dec 2004
Location: Michigan
Posts: 497
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by JukeBox360 View Post

Yes. I've removed every single screw yet something it still holding this thing in place. on that 1 side only.

Hmmm, well unless sarge has some insight, I guess you could take a look at the manual I posted to see if there is a hidden screw somewhere that you might have missed. Otherwise, I will find out first hand Friday when I attempt this.............I guess it can't be too easy....
lifesun is offline
post #285 of 845 Old 09-27-2011, 05:17 PM
Member

sarge19806's Avatar

Join Date: Aug 2011
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

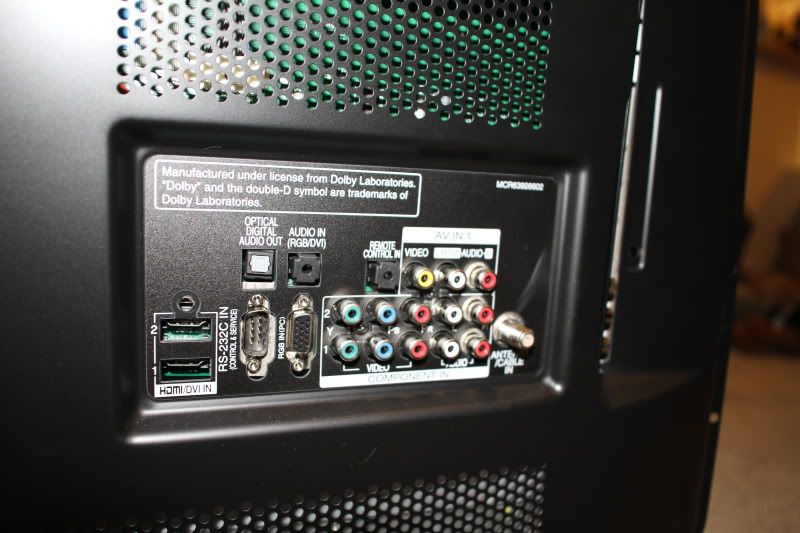

@jukebox theres 2 screws where the component conections are in order to take off the panel
sarge19806 is offline
post #286 of 845 Old 09-27-2011, 05:18 PM
Member

sarge19806's Avatar

Join Date: Aug 2011
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
One screw under the av connections and the other under the first component connections
sarge19806 is offline
post #287 of 845 Old 09-27-2011, 05:20 PM
Member

sarge19806's Avatar

Join Date: Aug 2011
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I cant seem to be able to upload pics off my android phone but ill figure out how
sarge19806 is offline
post #288 of 845 Old 09-27-2011, 05:21 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
The manual helped. I didn't see to of em. Dam things hid in there perfectly. Before I start to turn anything I'm going to take another snap shot and ask what i turn and how I turn it before I do so. I really don't want to break this set. lol
JukeBox360 is offline
post #289 of 845 Old 09-27-2011, 05:22 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
Quote:
Originally Posted by sarge19806 View Post

I cant seem to be able to upload pics off my android phone but ill figure out how

I used my phone as well. Make sure your using the app and it's easy as pie. Just have to hit add attachments.
JukeBox360 is offline
post #290 of 845 Old 09-27-2011, 05:30 PM
Senior Member

lifesun's Avatar

Join Date: Dec 2004
Location: Michigan
Posts: 497
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by JukeBox360 View Post

The manual helped. I didn't see to of em. Dam things hid in there perfectly. Before I start to turn anything I'm going to take another snap shot and ask what i turn and how I turn it before I do so. I really don't want to break this set. lol

I would mark the pots with a sharpie before you start so you can turn them back if need be. Also, worse case if you have a multimeter you can get it back to stock using the manual.
lifesun is offline
post #291 of 845 Old 09-27-2011, 05:30 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50

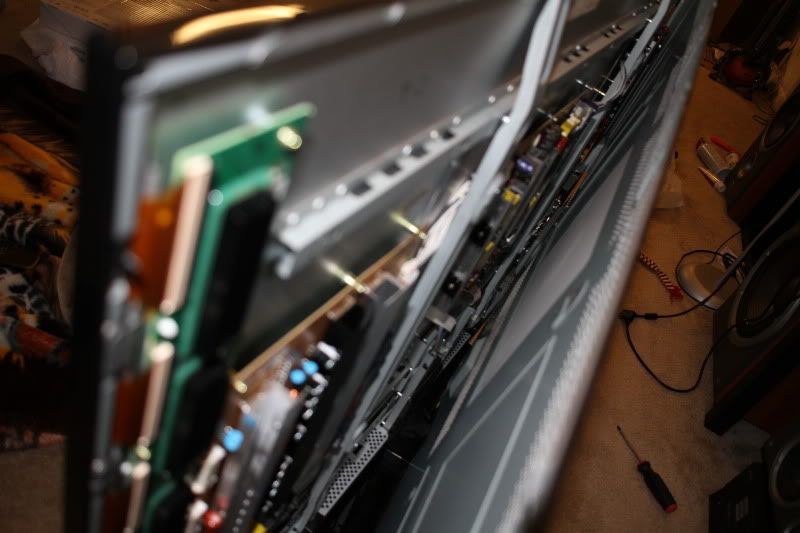

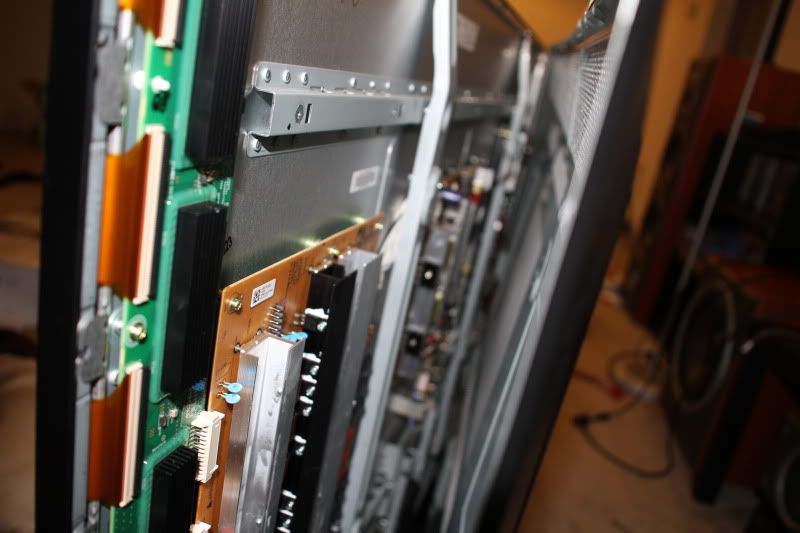

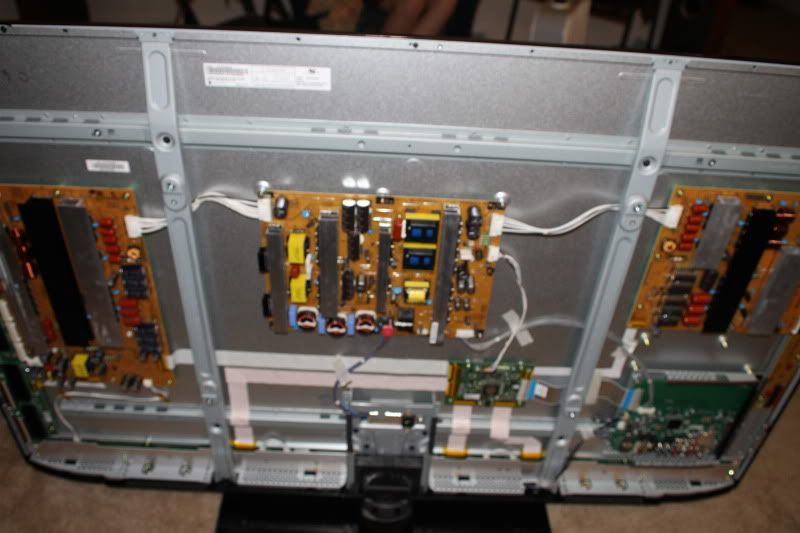

Something tells me I'm looking at the wrong spot?
JukeBox360 is offline
post #292 of 845 Old 09-27-2011, 05:31 PM
Member

sarge19806's Avatar

Join Date: Aug 2011
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

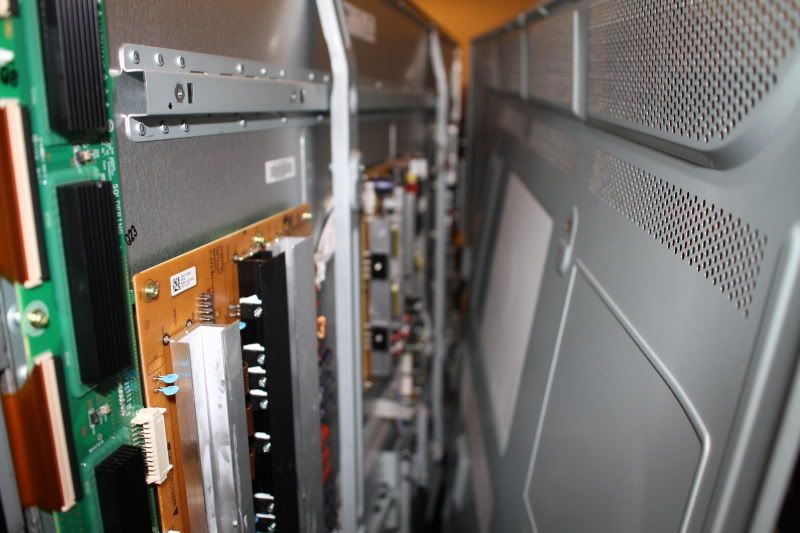

Ok...you will se 3 main boards the y board is the one all the way to the left there youll see white tuning pots the one closest to the middle main board will say set_up you want to turn that clockwise till you cant anymore.....thats it for that...now the middle main board there will be the Vs pot itll be the closest to the top of the board itll say Vs on it...now you want to turn that counter clockwise in line matching the last hole on the right...so 3 bars and hole should line up...thats it your done...make sure that you have calibrated it...before doing it to get the best results...
sarge19806 is offline
post #293 of 845 Old 09-27-2011, 05:33 PM
Member

sarge19806's Avatar

Join Date: Aug 2011
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Ok call me its easier that way then you can post the results for us jukebox...lol 918-639-0074
sarge19806 is offline
post #294 of 845 Old 09-27-2011, 05:36 PM
Member

sarge19806's Avatar

Join Date: Aug 2011
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
All those pictures are great...and correct...your looking in the right spot...remember the set_up pot is on the board to the left and the Vs pot is on the middle main board
sarge19806 is offline
post #295 of 845 Old 09-27-2011, 05:38 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
Quote:
Originally Posted by sarge19806 View Post

Ok call me its easier that way then you can post the results for us jukebox...lol 918-639-0074

321-890-7523 I can't find my phone now lol. I will hear it when it rings
JukeBox360 is offline
post #296 of 845 Old 09-27-2011, 05:45 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50

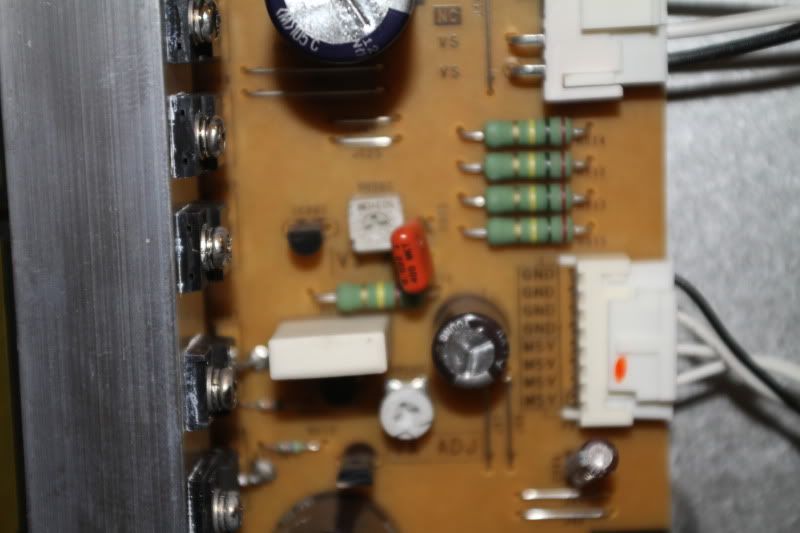

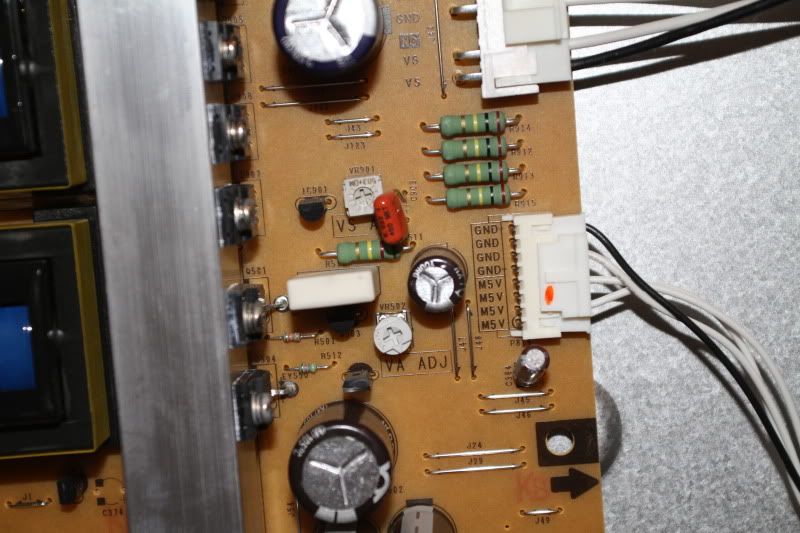

I turned one of em. Now I'm on the middle. Cant find it. I see VA ADJ or something like that. That what I turn? It's a very small screw.
JukeBox360 is offline
post #297 of 845 Old 09-27-2011, 05:46 PM
Senior Member

lifesun's Avatar

Join Date: Dec 2004
Location: Michigan
Posts: 497
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by JukeBox360 View Post

321-890-7523 I can't find my phone now lol. I will hear it when it rings

Don't forget to post your results after your phone conversations! LOL
lifesun is offline
post #298 of 845 Old 09-27-2011, 05:47 PM
Senior Member

lifesun's Avatar

Join Date: Dec 2004
Location: Michigan
Posts: 497
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by JukeBox360 View Post

I turned one of em. Now I'm on the middle. Cant find it. I see VA ADJ or something like that. That what I turn? It's a very small screw.


Vs is just above that, thats the one you want according to sarge.....
lifesun is offline
post #299 of 845 Old 09-27-2011, 07:00 PM
AVS Special Member

JukeBox360's Avatar

Join Date: Feb 2009
Location: NY
Posts: 6,653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
All done. Sarge was a HUGE help. I will confirm this indeed DOES make a difference in blacks. No. It isn't KURO blacks. But it's way better then it was before. Before the blacks were pretty much grey. Now, these are actually black. Just not inky. I'm taking some more pics. Will post once done.
JukeBox360 is offline
post #300 of 845 Old 09-27-2011, 07:01 PM
Member

sarge19806's Avatar

Join Date: Aug 2011
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
@lifesun.....sorry for getting back to you so late...was helping jukebox360 out...but yes the mll is a big difference now since i only adjusted those 2 pots...the reason i went with the Vs instead is that i felt the voltage had to do somthing with the black lvls...i adjusted the set_dwn and noticed pixel miss fire and bleeding so i adjusted it back to stock value and adjusted the set_up pot clockwise and noticed the black levels getting deeper and no pixel flares or bleeding at all...and left the pot as is...now for the Vs it was hard at first cause when you turned it clockwise all the way the set would shut off....turned it all the way counter clockwise it would get darker but would show scanning artifacts like it was going to bleed thru...so i went back to stock settings and did a micro adjustment counter clockwise and found the sweet spot i could go deeper like 1 more line in but am happy with where im at...i will post up the pics of the pot settings later tonight with the calibration settings also...just installed avs app on phone but have a job to do right now...reballing an xbox 360
