I have a dedicated build thread in the other side of the forum, but I thought I would share the screen build over here as I have gotten many ideas and inspiration from more than a couple of folks here. I will be using 1.5" screen track (window type screen) to secure my Phifer screen material to the back of the border pieces. I wanted to use something that would be removable for future needs.

I started with two 2x8x10 wood pieces to transfer over the radius of my curved false wall.




I thought the 2x8 would be enough to get the whole radius of the curve, however I was shy by about 1/2" on the backside. I figured I would try cutting one piece and if it wasn't sturdy enough I would go buy 2X10's.




Once cut though it was fine, very sturdy as a matter of fact.

You can see the arch on the front side which is what is important, on the backside you can see how it goes flat.

I was able to smooth out the curve a little better with a small hand plane.
Test fit on the false wall.



Then I was test fitting the vertical pieces 1x4x10's which make up the screen border and where the screen tracks will be attached to.



The 1x4's take shape extremely well and the curve I'm looking for is perfectly smooth. I cut 45 degree angles on the 2 horizontal pieces and now need to get the vertical pieces done. The 1x4's will be secured to the front of the frame with liquid nails and trim nailer. The inside vertical frame is simply made up of a 2x4x10 cut in half, just need to trim to the exact measurement that I need. My finished screen viewing area should be 110" wide by 46.5" high 119.5" diagonal for 2:37 aspect ratio.

I assembled the basic structure. I attached the 1X4's to the horizontal pieces as I described above. Then I attached the vertical frame pieces.
The first side attached.



Other side attached and stood up to see how stable it was and get the actual finished height.




Laying back down with the side border pieces on. They are not attached as I want to get the velvet first so I can best figure out how to wrap.


Won't get to do much in the next couple of days, but Friday night I hope to secure the screen track and by Saturday get the velvet, quite possible that it will be done by the end of the weekend.
oman321 is offline
Sponsored Links
Advertisement

post #2 of 71 Old 10-14-2008, 06:44 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Man I know the work space is messy but no comments after 228 views.... hmmm maybe this will prod some responses .

Started off by painting the inside and backside of the frame so their wouldn't be any reflections.


Then I used these corner braces to help shore up the corners of the border. I figured it would also be a good way to secure the side border pieces after they were wrapped instead of making it permanent with liquid nails and trim nails, especially since this area has no curve.




After this I started to secure the screen track pieces to the horizontal pieces of the border. No need to staple them as I thought I might need to do. They held just fine when splining the screen.





Then it was time to wrap it with velvet. What I would have done differently is to have wrapped the velvet before securing the screen track like I did with the vetical pieces. Unfortunately with the bottom piece of the screen if you go up to it you can see some staples and areas where the velvet was trimmed. Would've been a non issue if it was wrapped first and I then secured the track. I'll hopefully should be able to solve this with a thin velvet wrapped filler piece.



The vertical pieces i did while off the frame, then put in place for fit and finish.


The bottom was wrapped and the vertical pieces were secured with the corner braces. This is the point I got to on Sunday night.



Monday after running a few errands I was able to get to the good part. I bought the 63" material vs. the 98" but I tried to angle the fabric as much as I could. No biggie as my projector is only 720P but I thougt I would try in case I ever go 1080P. My original idea was to spline the first outermost row of the track and then spline the second row to make the screen tight, but I really didn't need to as the screen was very tight in most areas and only needed to respline a couple of areas. Splinnig the second row wouldn't have helped the problem areas.
Front of the screen


Back of the screen mostly trimmed off except the top. There's a couple of waves you can see on the left, this is mostly because there is no supports in the middle and the material splinned naturally pulls down on the frame. This is a non issue though when the screen is mounted. The space the screen goes into is about 1/8-1/4" bigger than the frame, I'm using mini clamps to secure the screen, this helps the frame to be pulled nice and taught removing any waves.


Now with the screen put in place, room was dark but flash was lighting it up:





No flash:




and there it is for about $350.00 in materials.
oman321 is offline
post #3 of 71 Old 10-14-2008, 08:28 AM
Advanced Member

owl1's Avatar

Join Date: Feb 2003
Location: Boston Area
Posts: 841
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 11
This is awesome! Looks very finished and professional. I cannot believe nobody's posted comments yet. Can you post a link to the screen material purveyor? Also, where do you get velvet?

What kind of speakers are you going to use and how much room is there behind the screen to hide them? Can't wait to see images of the completed theater and screenshots!
owl1 is offline

post #4 of 71 Old 10-14-2008, 09:09 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Thanks for the kind words owl1,

I actually bought phifer sheerweave material last year from Chris at SeymourAV.

Im actually using Klipsch speakers available at Best Buy, good or bad I had a limited budget and these fit the bill. I have the C2, 4 S2's and a pair of B2's. To me they sound awesome, the surrounds have tweeters which angle off to each side. They feature WDST which envelopes the whole listening area.

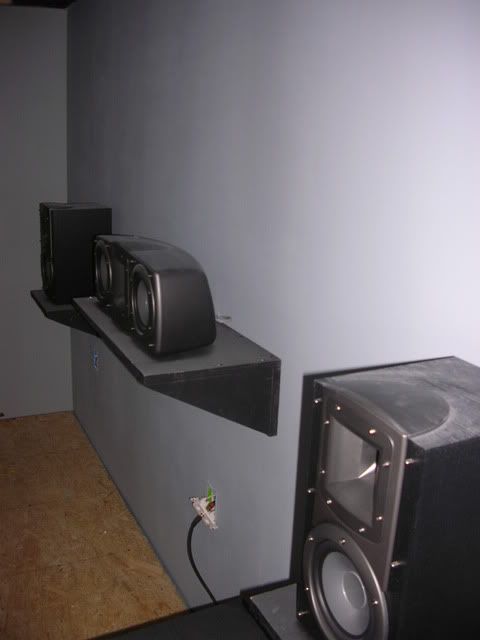

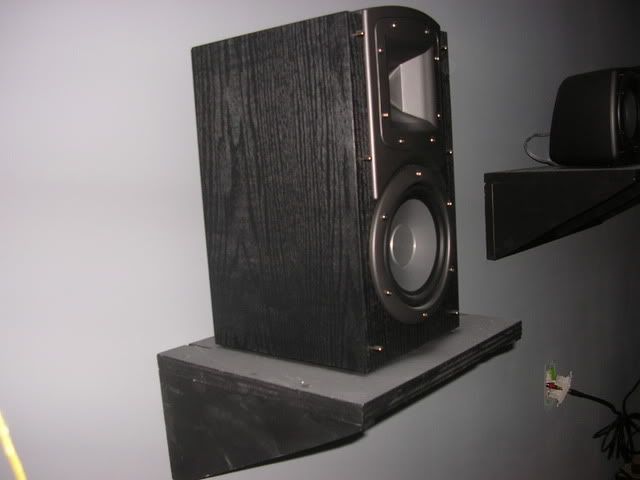

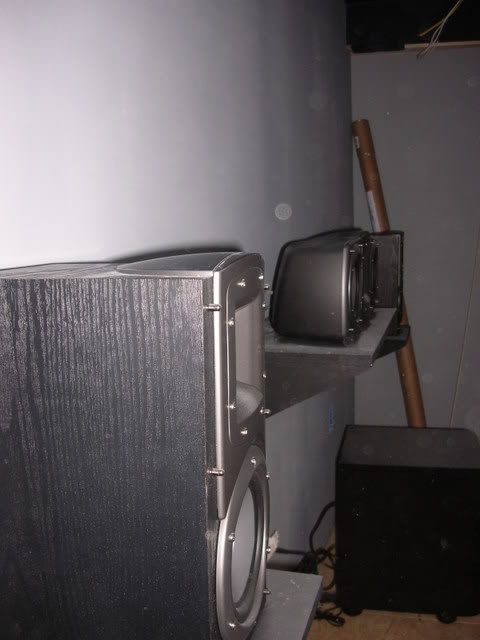

The front speakers sit on shelves attached to the wall. The left and right speakers are about 11" deep and are about an 1.5" away from the wall and the screen sits at about 18" so about 5-6 inches space away from the screen. Here are a couple shots showing the speakers and the shelves they sit on taken early in my build.





BTW, the subwoofer is a JBL 12" sub.
oman321 is offline
post #5 of 71 Old 10-28-2008, 01:24 PM
Senior Member

WannaTheater's Avatar

Join Date: Aug 2006
Location: Tampa, FL
Posts: 494
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 10
Looks great. Do you have any pics of how you mounted the screen to the wall? I am especially interested to see how managed to get tension in the middle of the screen to pull out the wrinkles. I would think the weight of the upper horizontal support would tend to make the screen sag. Also, is the screen easily removed to get to the speakers in the back?

Thanks!
WannaTheater is offline
post #6 of 71 Old 10-28-2008, 03:14 PM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
I'll snap some pics for you tonight. I simply used some mini clamps, works like a charm. Very easy to remove if need be.
oman321 is offline
post #7 of 71 Old 10-28-2008, 04:47 PM
Member

jerix's Avatar

Join Date: Aug 2008
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Oman how I appreciate people like you who can do things easily like this one --- i will also be glad to see more pics on this project and especially the screen shots which will show the projected images on the screen. thanks
jerix is offline
post #8 of 71 Old 10-29-2008, 06:12 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Thanks jerix,

If you click my build link on my signature line and go to page 8 you will see some screen pics. They are not the greatest, but that is because of my camera, and the way I had to take the pictures, not the screen.
oman321 is offline
post #9 of 71 Old 10-29-2008, 02:18 PM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
WannaTheater,

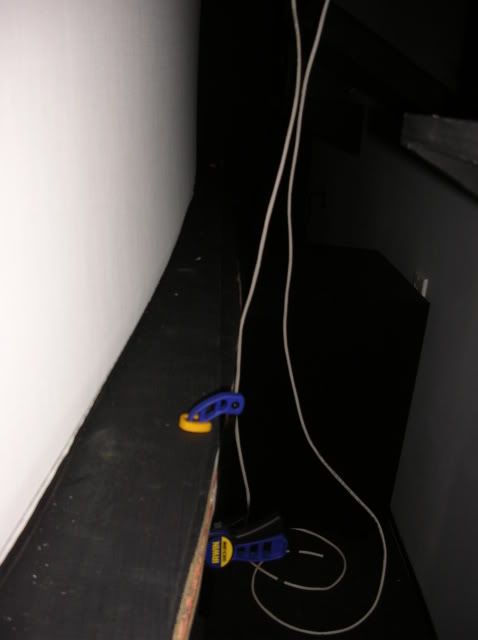

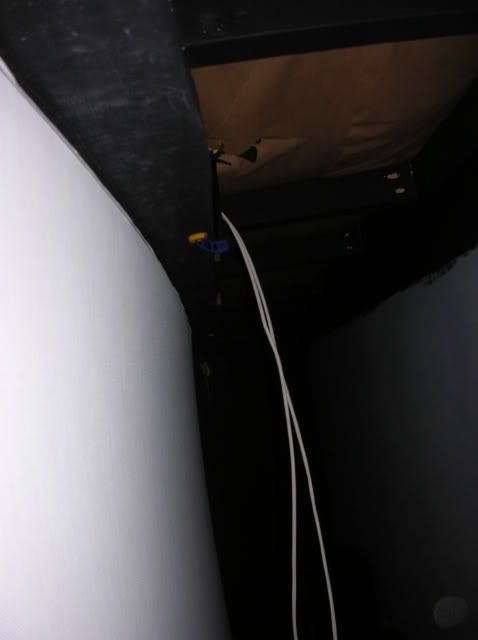

Here are the pics showing the screen secured with the clamps. The top clamps are closer to the center to help support that area. All the sags from the weight of the frame are removed when clamped.


The bottom clamps are closer to the left and right speakers



Basically the screen sits on top of the false wall. The border sticks out about 1/4" all around on the outside edges, this way when the screen is placed on the false wall it wont go past the edge due to the 1'4" lip.
oman321 is offline
post #10 of 71 Old 10-30-2008, 06:14 AM
AVS Forum Special Member

superleo's Avatar

Join Date: Nov 2006
Location: San Antonio, TX - USA
Posts: 2,277
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 312
This looks awesome... great job!

"Everybody is a genius. But if you judge a fish by its ability to climb a tree, it will live its whole life believing that it is stupid."
Screening Room - The Dream House
RPCRT-TV Overscan Reduction
Reference Blu-Ray Demo Disc

Reference 2: Blu-Ray Demo Disc

The Best of the Demo Discs Demo Disc

superleo is offline
post #11 of 71 Old 10-30-2008, 06:57 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Thanks superleo,

It really turned out as good as I had hoped and was pretty easy to put together. The movies that we have enjoyed so far have been nothing short of fantastic.
oman321 is offline
post #12 of 71 Old 11-05-2008, 09:49 AM
AVS Forum Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 5,757
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked: 780
Great pitcs/comments for others to follow.

Q:
I'm leary about wood drying and warping, was your wood "conditioned" for a few weeks in your basement and you picked non-warped pieces or used them straight after buying?

Again, you've built something to really be proud of!
mtbdudex is online now
post #13 of 71 Old 11-05-2008, 12:30 PM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Thanks mtbdudex,

I am proud of how the whole thing came together.

I only had the wood in my basement for a couple of days before starting to make my cuts. I did go after the straighest pieces I could find, although I didn't have much difficulty with the 2x8x10's they were mostly pretty good for the picking. I don't know if it is because of the size of the lumber but I had a real easy time picking it out.

Funny thing was after I picked my preferred pieces as well as the 1x4x10's I parked my cart and went looking for other items that I needed, low behold and this never has happened to me at Lowes or HD somebody put all my lumber back so I had to go re-pick everything. I had a tougher time getting straight 1x4's.

I know what you are talking about warping or twisting lumber. I remember one time I had a 2x4 that I bought, which was straight when I got it and less than a week later it had formed into very nice arc. The begginnings of a canoe I suppose.

In any event after I cut my initial frame piece I wasn't too concerned as it was very stiff, but I knew I had limited time. The next day I cut the next curved piece of the frame and attached the horizontal pieces of the border in order to provide stability. I attached the border pieces with liquid nails and a trim gun. I also cut and attached the vertical frame pieces which was one 2x4x10 cut in half. Over the next few days of working on the frame I was looking for any signs of warpage, to my relief I found no evidence of it.

Now with the frame in place and the clamps holding I have no concern of it becoming an issue.
oman321 is offline
post #14 of 71 Old 11-09-2008, 12:53 AM
Member

whodarem's Avatar

Join Date: Jan 2005
Location: Snohomish, WA
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Omen321,

How far back is the projector located from the screen? I'm thinking of doing a similar setup in my bonus room and was curious as to the distance because I have a Benq7800 that has a short throw... Do you think 11 feet is to close for this size of screen? and would I have to worry about pin cushioning at that short distance?
whodarem is offline
post #15 of 71 Old 11-09-2008, 05:01 PM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
whodarem,

I went and measured for you so I could have an accurate distance. My projector is 14'5" back from the center of my screen. Since my screen is curved it is 3" deeper in the center vs. the sides. From 11' you might have a greater amount of pincushion but if you make a curved screen you should be fine, maybe a slightly greater curve radius like 4-5".

IMO 11' is a perfect distance for this size screen. I have 2 rows of seating, the first one being about 9-9.5 feet and I'm perfectly comfortable but the Mrs. isn't. She prefers the back row seating which puts you at about 15-16'. She would probably be ok at 11'.

The thing you'll have to deal with is if you'll be able to get enough zoom thru your lens from 11'. From the distance I'm at, I'm projecting just about the smallest image I can from my projector. While I can zoom some if I need to, once you get past a certain point the image starts to vignette or be cutoff because the whole light beam wont make it thru the prisms. If your making your own lens, it may be worth getting the large trophy prisms to make sure you have enough room for zooming.

Good luck, let me know if there is anything else.
oman321 is offline
post #16 of 71 Old 12-20-2008, 01:34 PM
AVS Forum Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 5,757
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked: 780
Screen shot time!

Post a few.
mtbdudex is online now
post #17 of 71 Old 12-21-2008, 07:22 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Ah, I posted a few in my build thread, but they were just some quick shots that I took of upconverted dvd's. Tonight I will try to get some new shots with the PS3 and post them later on.
oman321 is offline
post #18 of 71 Old 12-22-2008, 06:27 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Didn't get around to taking any new pics. Dealing with to much snow and then there was the wrapping for Christmas... so here are a couple of the pics that I took before. I'll hopefully be able to get some new ones today or tomorrow.












oman321 is offline
post #19 of 71 Old 12-31-2008, 06:39 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117

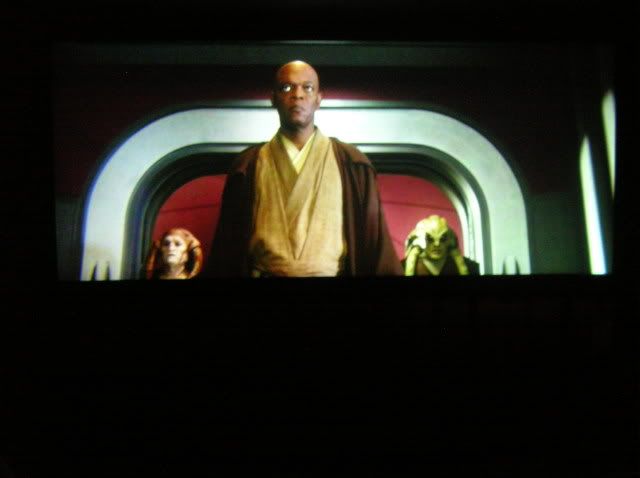

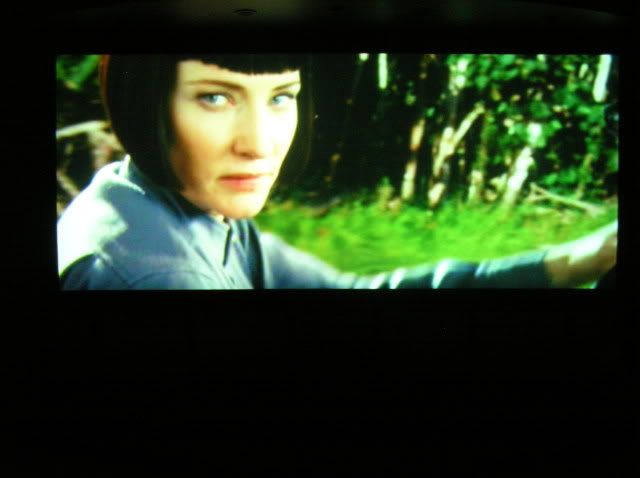

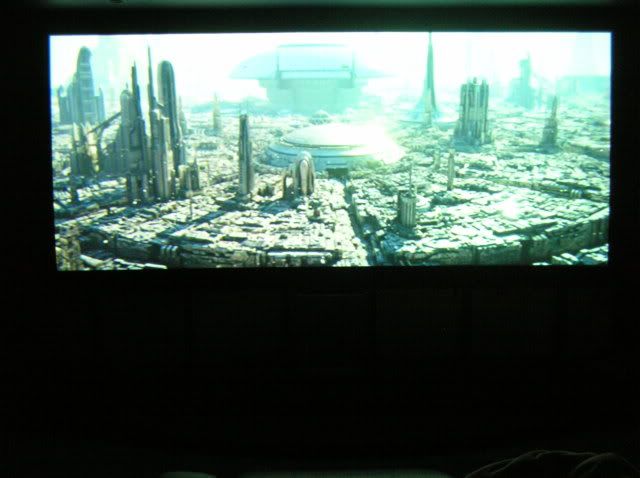

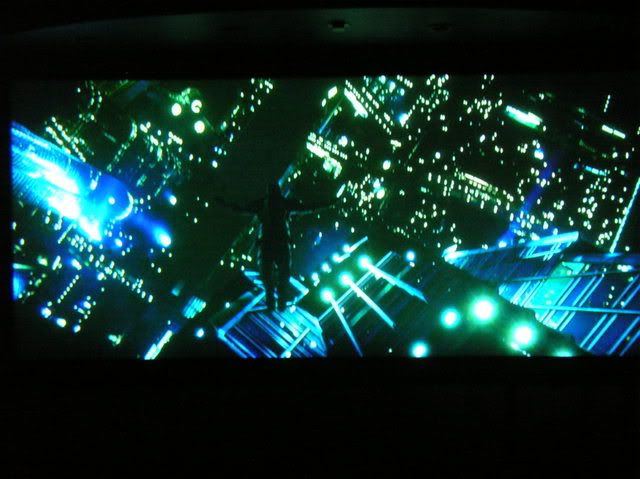

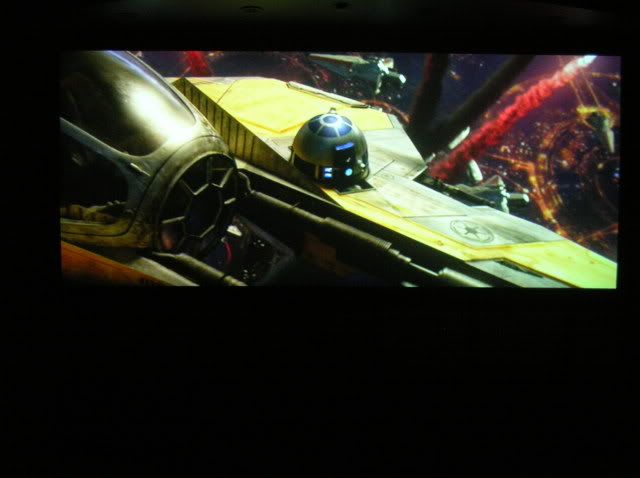

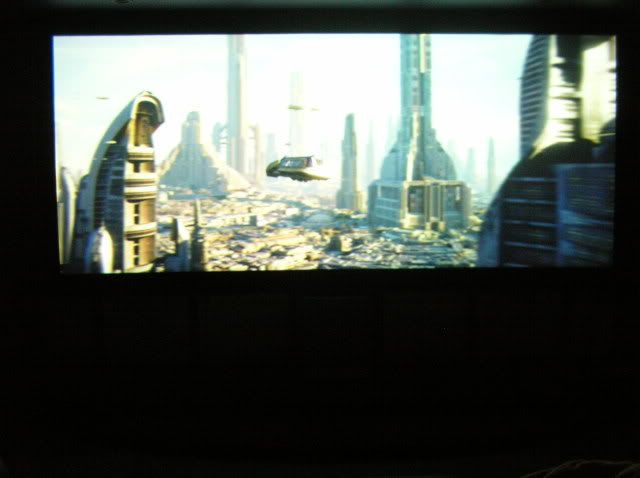

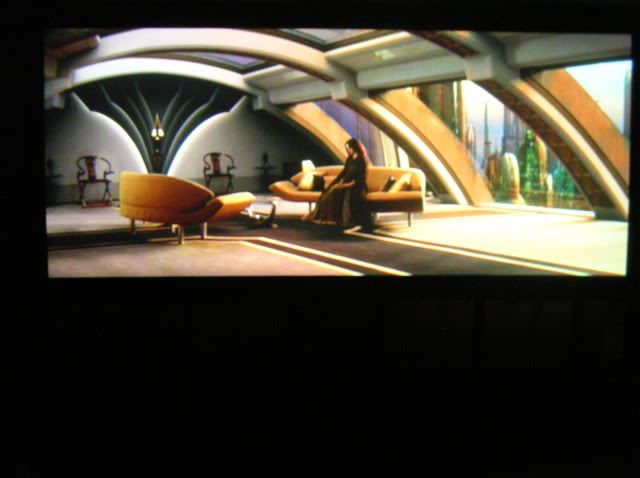

Ok I managed to get some newer pics off of my PS3 with Blu Ray. Like before I had to take these pics under not so ideal conditions. I used to have a tripod but it's broken and I didn't have an easy way to set the camera, so I sat in the second row and held the camera with both hands (my elbows supported by my legs), no flash and on most shots I allowed the timer to take the pic.

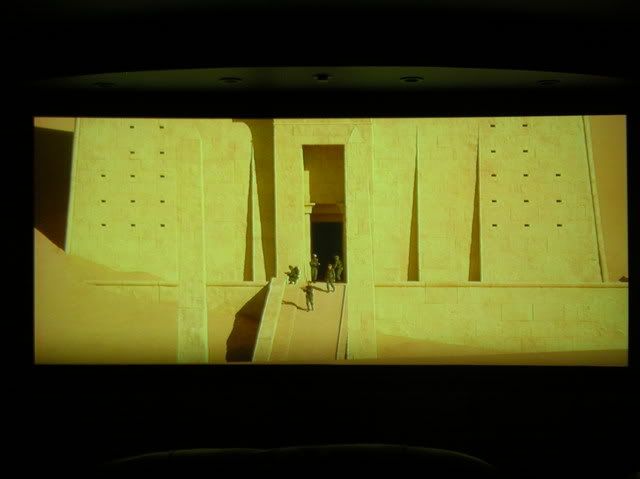

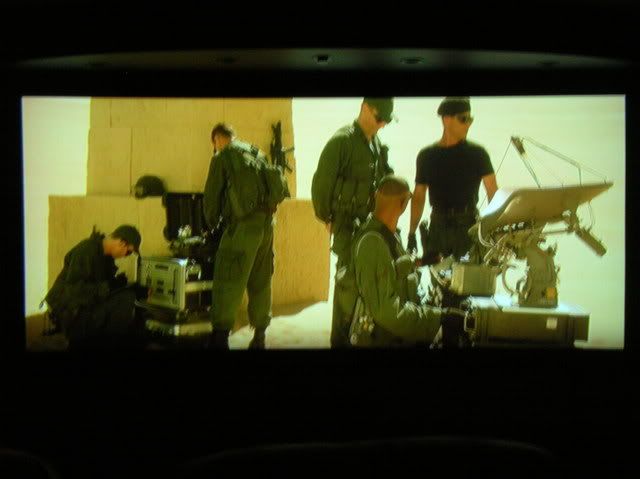

Stargate:

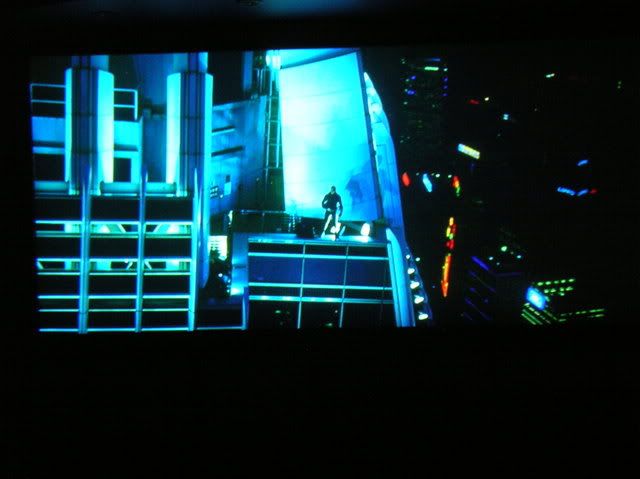

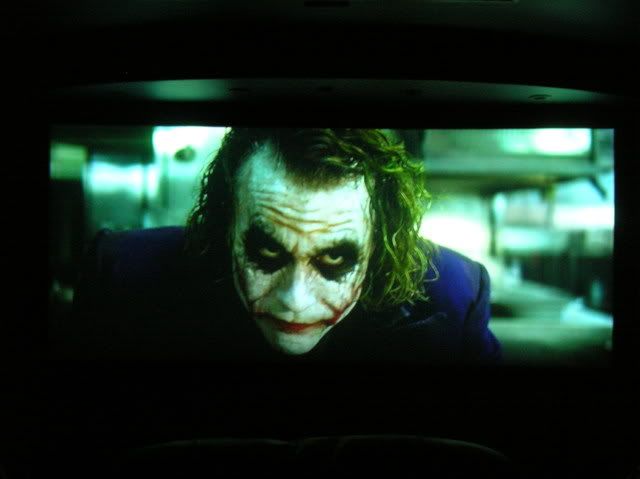

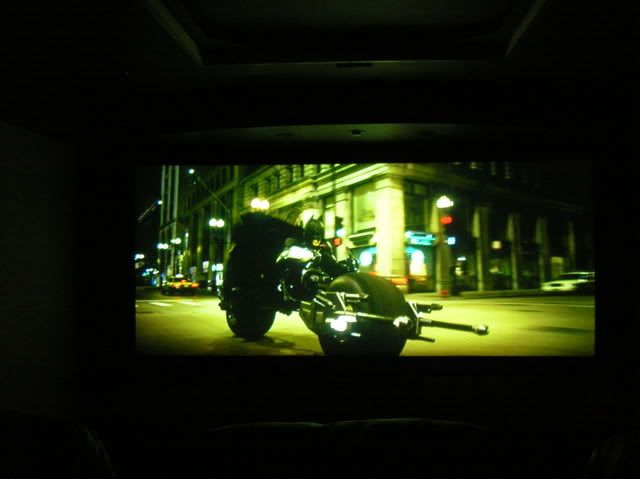

Dark Knight:





I love this shot, no hint of CA from from my DIY Anamorphic Lens





Any hint of blurriness is either because of me or the camera.
oman321 is offline
post #20 of 71 Old 01-02-2009, 03:55 PM
Advanced Member

Wazzey's Avatar

Join Date: Jan 2004
Location: Indiana
Posts: 658
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Very nice looking screen wall. Couple of questions if you have a few.

I haven't really looked at curved screens before.... what are the advantages of curved vs flat? And are all projectors able to handle a curved screen?

With the sheerweave 4500 that you bought, are there any moire problems that I've heard about?

Appreciate the build pictures and detail. Looks great

Mike's attempt at a Theater

DIY motorized masking system

"Name?" Shropshire Slasher
"Occupation?" Shropshire Slasher
Wazzey is offline
post #21 of 71 Old 01-02-2009, 04:42 PM
AVS Forum Special Member

swithey's Avatar

Join Date: Oct 2001
Location: D/FW, TX
Posts: 2,639
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Screen looks great! How did you decide on which radius to use?

I say this because... when SandmanX/Ruben replaced his projector a few years back, the angle he used on his screen had too much curve. To fix the issue, he built a new screen. I'm thinking of building me a new one and am concerned what will happen when/if I change projectors.
swithey is offline
post #22 of 71 Old 01-02-2009, 10:13 PM
Advanced Member

ifeliciano's Avatar

Join Date: Aug 2003
Location: D/FW, TX
Posts: 970
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by swithey View Post

Screen looks great! How did you decide on which radius to use?

I say this because... when SandmanX/Ruben replaced his projector a few years back, the angle he used on his screen had too much curve. To fix the issue, he built a new screen. I'm thinking of building me a new one and am concerned what will happen when/if I change projectors.

Hi Steve,

Aussie Bob or Aussiebob has a spread sheet where you can figure out the curvature for your screen. A pm to AussieBob with a request should get you the file, but I' tried twice and never got a response.

Also there is this thread...Screen Curvature
ifeliciano is offline
post #23 of 71 Old 01-03-2009, 10:18 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Quote:
Originally Posted by Wazzey View Post

Very nice looking screen wall. Couple of questions if you have a few.

I haven't really looked at curved screens before.... what are the advantages of curved vs flat? And are all projectors able to handle a curved screen?

With the sheerweave 4500 that you bought, are there any moire problems that I've heard about?

Appreciate the build pictures and detail. Looks great

Thanks Wazzey,

The nice thing about a curved screen is thatn it wraps towards you and gives a more enveloping effect I believe. The technical benifit though is when you are using an anamorphic lens. With just about every lens available DIY or otherwise you will have certain amount of pinchushion (curving of image on top and bottom for the most part). A curved screen helps to conteract this. I would only use a curved screen with a lens in place. Without a lens in place the image ends were curving upwards.

No moire problems for me. My projector is 720P so it hasn't been an issue. I tried to rotate the material as much as I could in case I ever upgrade but I only got the 63" material so I probably got about a 7 degree rotation. No worries if it becomes an issue with an upgrade the material can be had pretty easily and affordably now.
oman321 is offline
post #24 of 71 Old 01-03-2009, 10:21 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Quote:
Originally Posted by swithey View Post

Screen looks great! How did you decide on which radius to use?

I say this because... when SandmanX/Ruben replaced his projector a few years back, the angle he used on his screen had too much curve. To fix the issue, he built a new screen. I'm thinking of building me a new one and am concerned what will happen when/if I change projectors.


Aussiebob was kind enough to foward me his excel calculator via email which allowed me to put in all sorts of info to determine the proper radius. Throw, size, seating distance, etc.

I believe the result was about 3.5 inches, but I went with 3" and it has worked out fine.
oman321 is offline
post #25 of 71 Old 01-03-2009, 10:47 AM
Advanced Member

HDGTX's Avatar

Join Date: Dec 2007
Location: SE TN
Posts: 669
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
oman321,

Would a person be better off going with a flat screen, if doing the zoom method for 2.40 scope movies ?

John
HDGTX is offline
post #26 of 71 Old 01-03-2009, 11:27 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Yes, When I was projecting on my screen before I put the lens in place, it had the opposite effect of pincushion due to the curved screen.
oman321 is offline
post #27 of 71 Old 01-03-2009, 04:43 PM
Advanced Member

HDGTX's Avatar

Join Date: Dec 2007
Location: SE TN
Posts: 669
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Thanks oman321, that is good to know.

John
HDGTX is offline
post #28 of 71 Old 01-05-2009, 07:16 AM
Senior Member

bmwracer3's Avatar

Join Date: Dec 2004
Location: OPKS
Posts: 437
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
looks awesome Oman! I have a 110" AT 2.37 screen too, but am now wishing it was curved. I think I might try and build the frame first and then just attach my existing screen to it and see how that works. Could you email me the spreadsheet please, I tried PM'ing AussieBob and got no response as well.

Looks terrific...and I can't wait until the garage is warm enough for me to do this!
bmwracer3 is offline
post #29 of 71 Old 01-05-2009, 07:58 AM - Thread Starter
AVS Forum Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,939
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 117
Thanks Chris,

The screen is definately one of the highlights of my theater room. I was dreading even attempting this, but it turned out to be fairly simple to do and very rewarding.
oman321 is offline
post #30 of 71 Old 01-07-2009, 02:09 PM
AVS Forum Special Member

damnsam77's Avatar

Join Date: Feb 2007
Location: Beautiful Colorado
Posts: 2,279
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Man oh man Oman!!!
Everytime I come here you blow my mind with all your crazy and awesome work! I have built my screenwall but not my screen so I still have my 1x4 poplar pieces in the garage and I am almost thinking of going curve on my 132" wide 2.37 screen. I just dont think I have the room (behind the screen) to accomodate a 10" wide stud for the 3"-4" curve that I would need. I have exactly about 24" from treated main wall (including 2" furring) to back of the screenwall 2x4 studs, but my gigantic Klipsch speakers are 21" deep and the sub is is 22" deep. I love those speakers so I must plan my screen and screen wall distance around them. I may not be able to even do a 2" curve with the depth of these speakers and the short distance I have.

The only way I could have been able to do this is if I had made the soffit above the screen wall containing the eyeball can lights deeper so that I would have been able to move the can lights further out, and in result, I would have been able to move the entire screenwall (prior to construction) a good 5-6 inches outward to allow more room between the main wall and screen wall for my speakers and for a nice curved screen with a shadow box (neither of which I have).

Anyways it looks awesome man.
damnsam77 is offline
Sponsored Links
Advertisement

Reply DIY Constant Height

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
