Hi Old,

Thanks for the compliment.

I bought the unit your referring to from smarthome. Shows in stock right now, I had to wait about a month when I bought it last year.

They call it a "5 way Component Distribution Amplifier" 1 in 5 out. I've used it so far to hook up the projector and the Master bedroom set with the cable box which is in the living room. Previously I had done this with Y connectors, when I first connected it, it seemed to improve the image over using the Y connectors.

Ultimately the cable box will be in that closet and it will feed 4 sources Projector, MB, Rec Rm, & Living Rm. I'm glad it has a fifth out as I may add a small LCD by my concession area at some point down the road. Also another caveat is that it has, composite video, and coaxil for audio. This will aid in a monitor inside the closet as well as splitting subwoofer connection for bass shakers.
oman321 is offline
Sponsored Links
Advertisement

Old 08-14-2008, 01:22 PM
Old
Senior Member

Old's Avatar

Join Date: Feb 2008
Location: Maryland
Posts: 317
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
thanks for the link and information. This sounds like it will work for I'm doing. thanks again.

Old
Old is offline
Old 08-18-2008, 08:47 AM - Thread Starter
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,771
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 39
Time for a picture update.

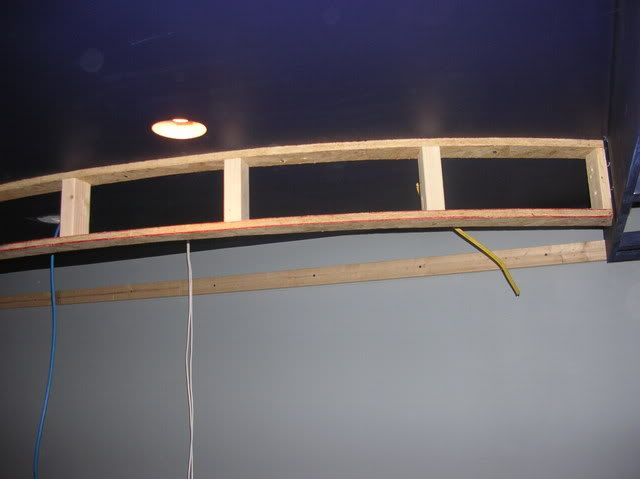

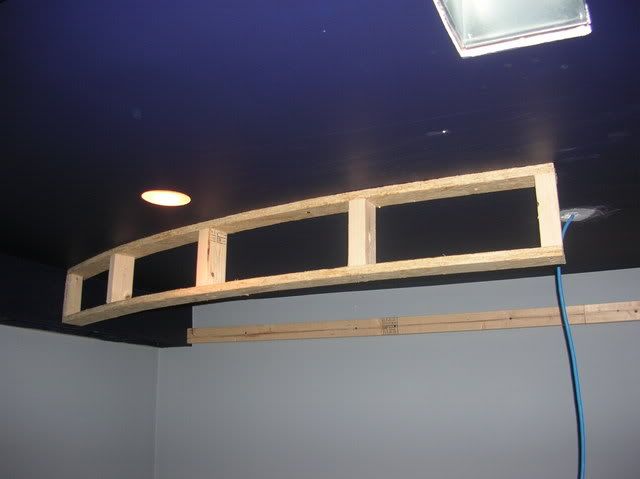

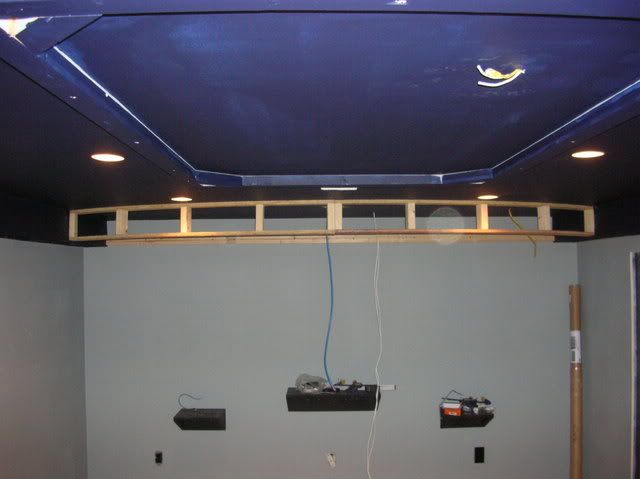

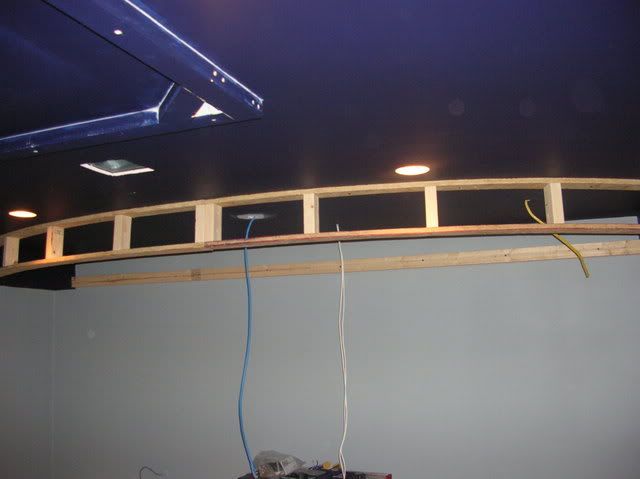

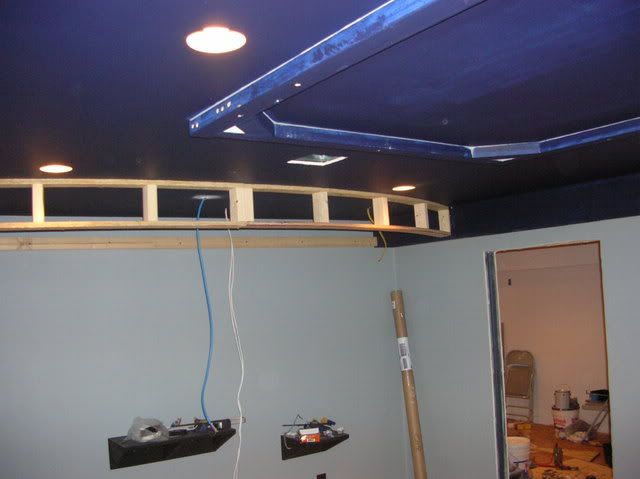

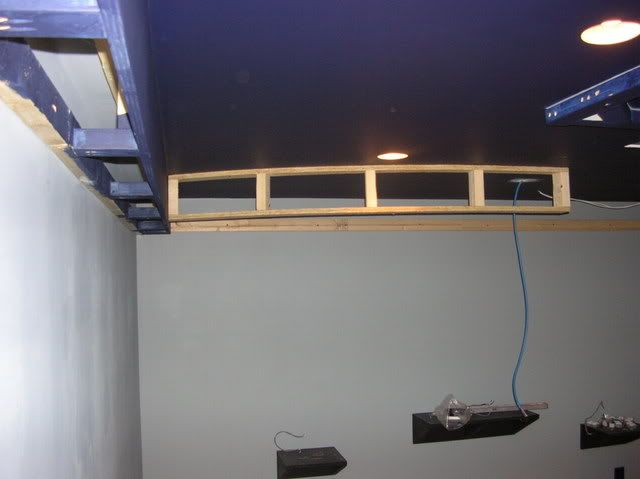

This is the curved soffit I am working on which is part of the proscenium. The first couple of pics are of the left side which I had put up last week.

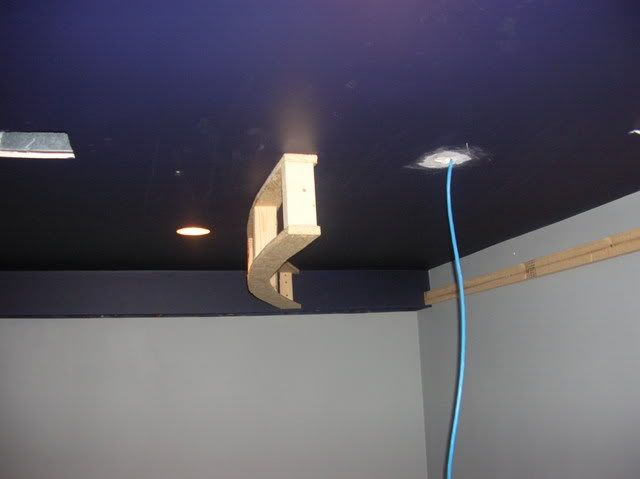

Then the right side, you can see 12/2 wire which is going to the GE for the 3" recessed lights which will be housed in the soffit. The blue wire on the left is PELV wire also going to the GE. This is for a GRX-CIR-WH basically a IR interface which gets recessed into the ceiling.

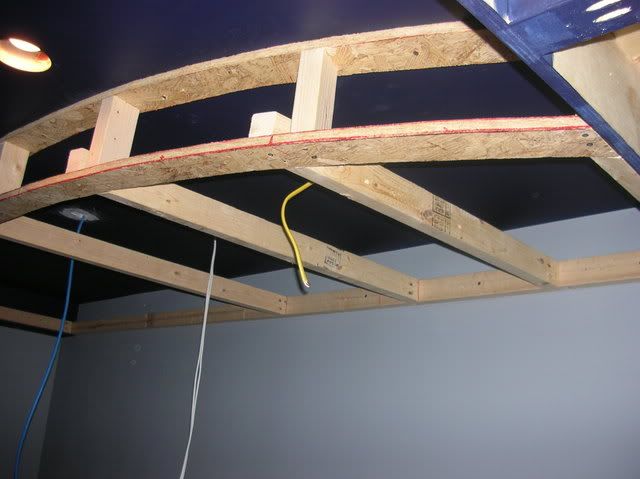

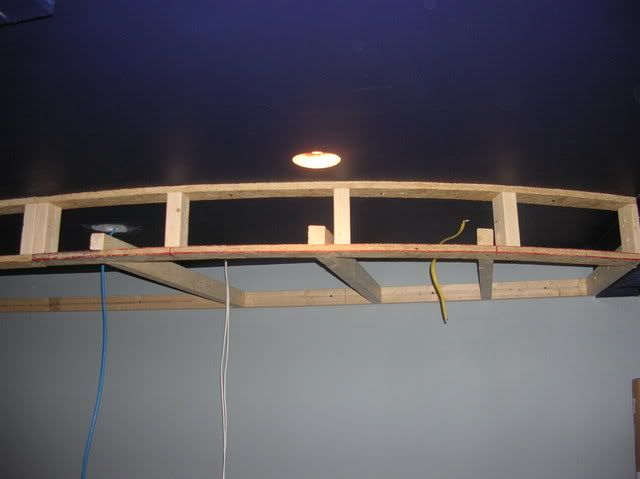

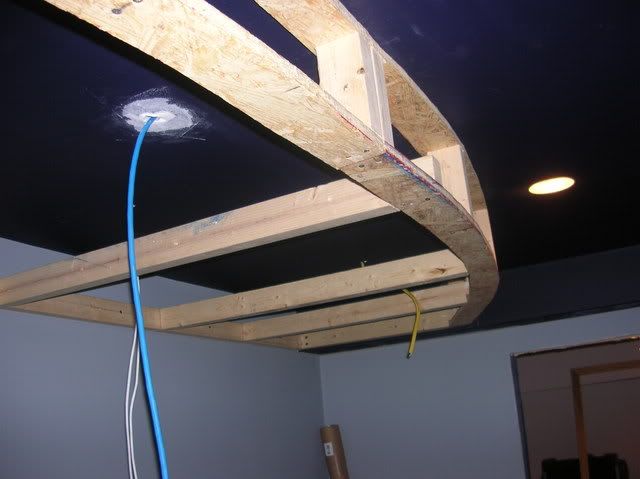

Then I added 2X3's for the cross section to secure it all together and for drywall. Still need to attach these to the left side though.







Getting a couple of folks in this week to measure for carpeting and give me some estimates, also my chairs should be shipping this week so the pressure is on. That's ok though I guess I tend to work well under pressure.
oman321 is offline
Old 08-18-2008, 04:21 PM
AVS Special Member

damnsam77's Avatar

Join Date: Feb 2007
Location: Beautiful Colorado
Posts: 2,293
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Oman, I love what you did with your curved soffit, it looks awesome!!! Makes me which I could have curved my stage soffit as well, but when you see how my room is you will understand why I went the safe route and did traditional square soffits. I should hopefully have some pics up by this weekend, the drywall guy is coming out to tape/mud tomorrow, and move that sheetrock around the stage cans. So I should start cleaning and moving debree out so I can paint the ceiling and soffits over the weekend and take some pretty pictures for everyone. Anyways, room looks great man, I cant wait to see it finished!
damnsam77 is offline
Old 08-18-2008, 06:45 PM
Senior Member

SatelliteGuy's Avatar

Join Date: Dec 2006
Posts: 472
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
What do you plan on doing with the blue 2x4's mounted onto the ceiling in post number 93? This caught my attention, because I was thinking about possibly adding such a 2x4 frame myself and mounting a full sheet of drywall onto it in the center of the ceiling. Is this going to be a star ceiling?

Rinker Family Cinema Construction Thread:
http://www.avsforum.com/avs-vb/showt...ghlight=Rinker
SatelliteGuy is offline
Old 08-19-2008, 07:11 AM - Thread Starter
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,771
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 39
Thanks for chiming in damnsam77, I appreaciate it the feedback.

Glad your taking care of your lighting placement issue now. It's small things like that, which we miss that make a difference when your putting it all together at the end.

SatelliteGuy,

Yes, that frame is for a Star ceiling/skylight. It is actually made up of 2X3's. I actually have some details and pics about it on the first page in post 23, but instead of using sheetrock I am using an inch thick insulation board that I found at Lowes. Very easy to cut and work with, yet sturdy enough to wrap in fabric. I was able to use an oversized needle to thread the fiber thru. I will be attaching trim and crown around the frame and insert that panel to give it the appearance of a skylight.
oman321 is offline
Old 08-19-2008, 07:38 AM
AVS Special Member

tlogan6797's Avatar

Join Date: Feb 2005
Location: Northern VA
Posts: 4,834
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 36
Nice looking! I don't think I'll have a high enough ceiling to that. Good work.

Tom Logan
Everytime I reply the thread ends
Need motivation? Get LOGANED
http://www.avsforum.com/avs-vb/showthread.php?t=1014847

An as-yet un-named theater designed by Big-WarrenP-BritInVA
tlogan6797 is offline
Old 08-19-2008, 07:46 AM - Thread Starter
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,771
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 39
Thanks, every inch is critical thus part of the reason of going with dricore rather than trying to frame out a subfloor. With 3/8th drywall the front soffit should be the same thickness as the side soffits. The only time your really under it is if you get on the stage step or stage and it's still tall enough for me so it's good. Only time that will happen is when I need to fix, move, or rearrange something. My ceilings are about 7.5 feet tall.
oman321 is offline
Old 08-19-2008, 08:56 AM
AVS Special Member

tlogan6797's Avatar

Join Date: Feb 2005
Location: Northern VA
Posts: 4,834
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 36
Maybe I could fit in something very shallow just to give the illusion. I'm pretty sure the screen area will be under 7'5".

Tom Logan
Everytime I reply the thread ends
Need motivation? Get LOGANED
http://www.avsforum.com/avs-vb/showthread.php?t=1014847

An as-yet un-named theater designed by Big-WarrenP-BritInVA
tlogan6797 is offline
Old 08-19-2008, 09:59 AM - Thread Starter
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,771
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 39
Ya, I was more worried about the side soffits. That's why I had to make them basically mini soffits. They are only about 7" tall and 6.5" wide. I had my tallest friend come over to see how it was when he stepped onto the riser and he cleared it ok. This is also part of the reason why I went with the angled riser design in the front so that it would feel more natural stepping up towards the center of the riser vs. straight ahead. So far so good.


I just realized this was post #100 on my build thread. Major milestone as I had not even planned to do a build thread, glad I did though. It's great to document the build and have somewhere to exchange ideas. Big shout out and thanks to the AVS community for the support, comments, ideas and just general comradity.

Special shout out to Tom for the motivation...
oman321 is offline
Old 08-19-2008, 11:36 AM
AVS Special Member

mn_hokie's Avatar

Join Date: Jul 2004
Location: Minneapolis, MN
Posts: 2,535
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 27
That soffit looks sweet dude. Still too scary for me to attempt though. I'll stick with right angles
mn_hokie is offline
Old 08-19-2008, 01:12 PM - Thread Starter
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,771
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 39
Thanks Jason,

I've sketched it out and pictured it in mind how I wanted to do it. Looked at a lot of photos of how others had done their soffits or proscenium's and still was unsure of how I would go about it. I was kind of dreading this stage (no pun) but now that I've done it, it wasn't that bad. Rather enjoyable, easily cut with a jigsaw once you figure out the curve you want.

The Mrs. thinks I'm crazy and over the top but she's been smiling when she see's my progess and says you got skilz... the guys are gonna hate you
oman321 is offline
Old 08-19-2008, 01:14 PM
AVS Special Member

mn_hokie's Avatar

Join Date: Jul 2004
Location: Minneapolis, MN
Posts: 2,535
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 27
If the wives/girlfriends (anyone have both?) ever got together, they would have us all committed. I know mine thinks I'm crazy with how I overthink every single step of the build.
mn_hokie is offline
Old 08-19-2008, 02:27 PM
AVS Special Member

damnsam77's Avatar

Join Date: Feb 2007
Location: Beautiful Colorado
Posts: 2,293
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by oman321 View Post

I just realized this was post #100 on my build thread. Major milestone as I had not even planned to do a build thread, glad I did though. It's great to document the build and have somewhere to exchange ideas. Big shout out and thanks to the AVS community for the support, comments, ideas and just general comradity.

Special shout out to Tom for the motivation...

Documentation, Documentation, Documentation...I think I got that D-bug from work since I have to document every fix I come up with. But honestly, the extensive documentation on this forum and all the before and after and in-between photos are what make this forum so vital in helping new builders....I came here 4 months ago with absolutely no construction experience, and I have learned so much that I was able to frame my basement almost all on my own and pass rough inspection! This website and forum seriosuly made it possible for 100's of HT builders to start their projects on the right track. so needless to say I will be documenting my project as well.
damnsam77 is offline
Old 08-19-2008, 02:28 PM
AVS Special Member

damnsam77's Avatar

Join Date: Feb 2007
Location: Beautiful Colorado
Posts: 2,293
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by oman321 View Post

The Mrs. thinks I'm crazy and over the top but she's been smiling when she see's my progess and says you got skilz... the guys are gonna hate you


Oh we hate you...but in the best possible way
damnsam77 is offline
Old 08-19-2008, 02:46 PM
AVS Special Member

jamis's Avatar

Join Date: Jan 2005
Location: Massachusetts
Posts: 1,919
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 13
Love the curved soffit.

I would have loved to do something like that in front to match the stage but the screen is going to be practically right up against the ceiling (3.5" border).
jamis is offline
Old 08-20-2008, 07:51 AM - Thread Starter
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,771
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 39
Quote:
Originally Posted by jamis View Post

Love the curved soffit.

I would have loved to do something like that in front to match the stage but the screen is going to be practically right up against the ceiling (3.5" border).

Can't say that is a bad thing either
oman321 is offline
Old 08-20-2008, 08:23 AM
AVS Special Member

damnsam77's Avatar

Join Date: Feb 2007
Location: Beautiful Colorado
Posts: 2,293
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by oman321 View Post

Can't say that is a bad thing either

rub it in there buddy I would have loved to have done that too....I guess it will be a good idea for my 2.0 Theater....thats probably in another 5-10 yrs if we ever move out of this house.
damnsam77 is offline
Old 08-20-2008, 08:38 AM - Thread Starter
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,771
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 39
Slow down ds77 you better finish 1.0 before you even start thinking about 2.0. Besides if memory serves me right you screen size is gonna be pretty impresive as well

Now where is that build thread you've been promising. Yes we want to see your pics...
oman321 is offline
Old 08-20-2008, 05:56 PM - Thread Starter
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,771
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 39
So officially I have completed my second item on my August goals. I need to rearrange some of the order though to ensure I build the proper sized space for the frame.

Revised Goals:
1. Build curved stage step as seen on the diagram/layout above.√
2. Build curved soffit for screen lights, also as seen on the lighting layout above.√

3. Sheetrock lower section of curved soffit.
4. Install and wire four 3" recessed lights for screen.
5. Sheetrock top section of soffit,compound, sand, prime and paint.
6. Build curved screen frame.

Stretch Goal:
7. Build curved false screen wall.
8. Paint the false wall, frame and stage area behind the false wall black.
oman321 is offline
