Now it's time for some power.




I started with a 2 gang box in the stage. I already had run power for the outlet so it was just a matter to pulling the wire to the box.




Now since the floor of my theater is two layers of 3/4 OSB with GG between I not going to just cut a hole and slap in an old work box and call it done. I made a double layer OSB box to house the outlet box. This way there is no hole in my floor sound proofing.




Test fit of the outlet box. I mortised the area where the metal arm is so the OSB will sit flush.




I attached the top to the box with glue and trim nails.




But I left one side off so I can run the wire..




Here is the hole for my floor outlet box. The box itself fits through the hole and the plate on top rests on the first layer of OSB.




I pulled the wire from the stage floor outlet and ran it into my box. I then attached the side, fire blocked the wire entry hole, and applied fresh GG to the sub floor.




And with a few screws the floor outlet box is going nowhere. (the stripe in the OSB lining up with the existing floor was just a coincidence, I'm not THAT anal....)

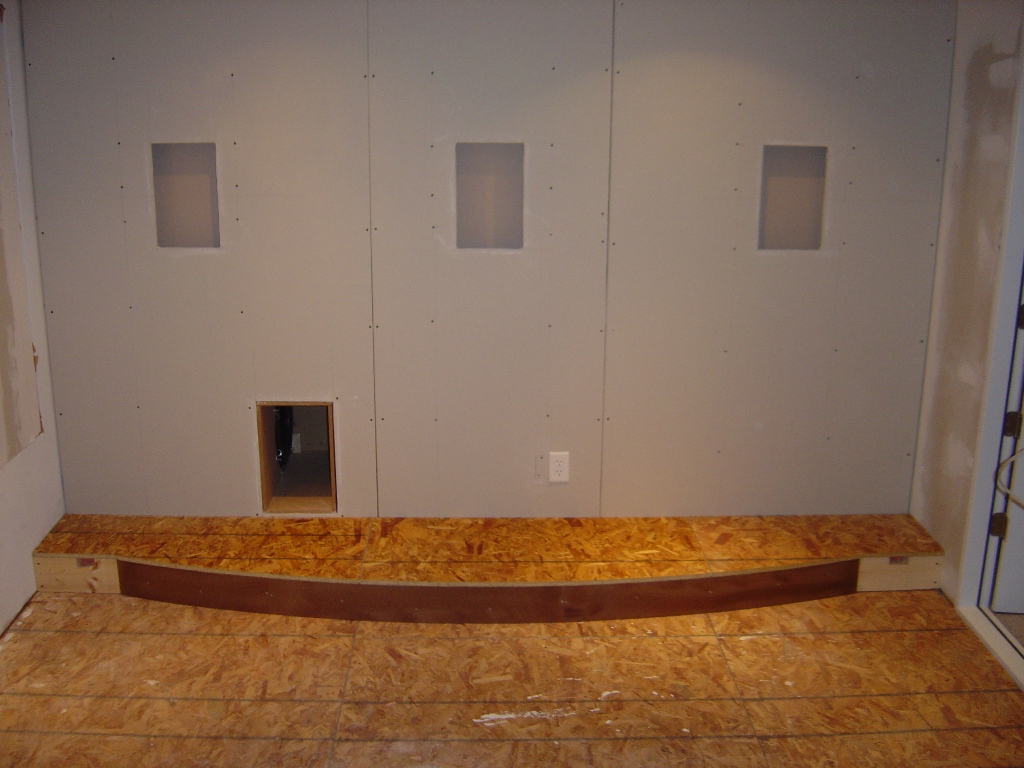

Back to our regular scheduled construction. First piece of stage OSB.




Second piece....




And done.
jelloslug is offline
Sponsored Links
Advertisement

post #92 of 613 Old 12-07-2009, 11:58 AM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Jello, that is actually your riser correct?

If so, why the curve on the front? Won't that be hidden by the front row seats?

Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
post #93 of 613 Old 12-07-2009, 12:06 PM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by In2Photos View Post

Jello, that is actually your riser correct?

If so, why the curve on the front? Won't that be hidden by the front row seats?

Yep, it's the riser. It will sort of hidden but not totally. The front seats will not be right up against the riser:


jelloslug is offline
post #94 of 613 Old 12-07-2009, 12:40 PM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Ah OK! It looks really good! Nice work!

Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
post #95 of 613 Old 12-08-2009, 05:15 AM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by In2Photos View Post

Ah OK! It looks really good! Nice work!

Thanks!
jelloslug is offline
post #96 of 613 Old 12-14-2009, 05:52 AM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
I made a little progress this weekend:

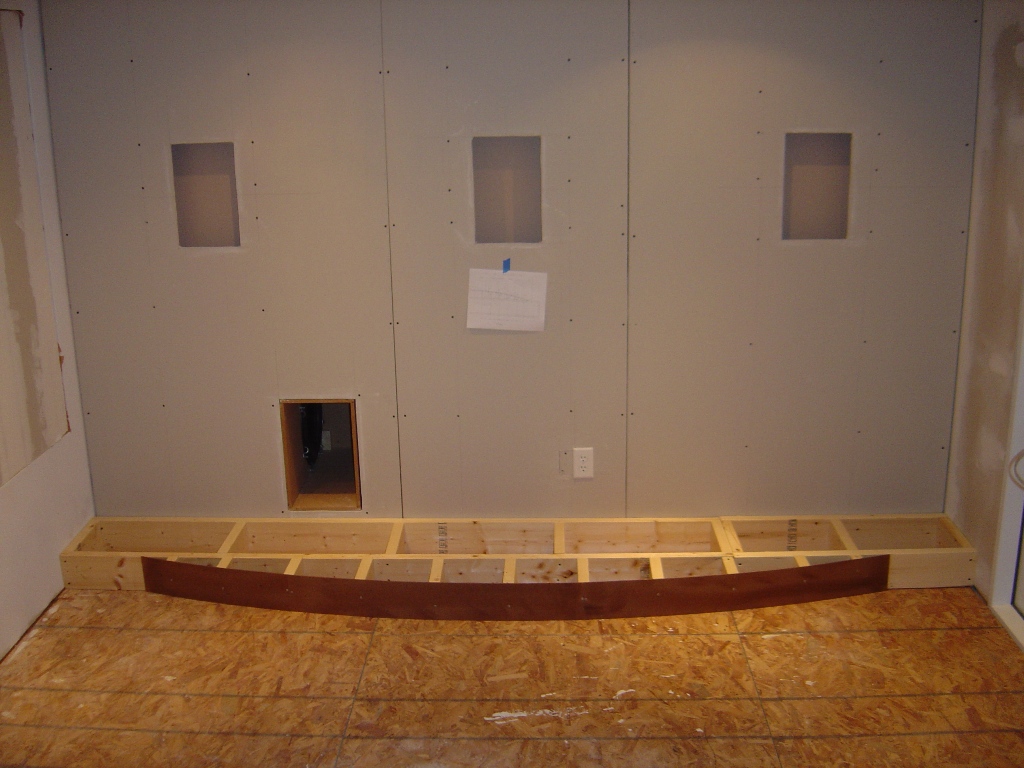

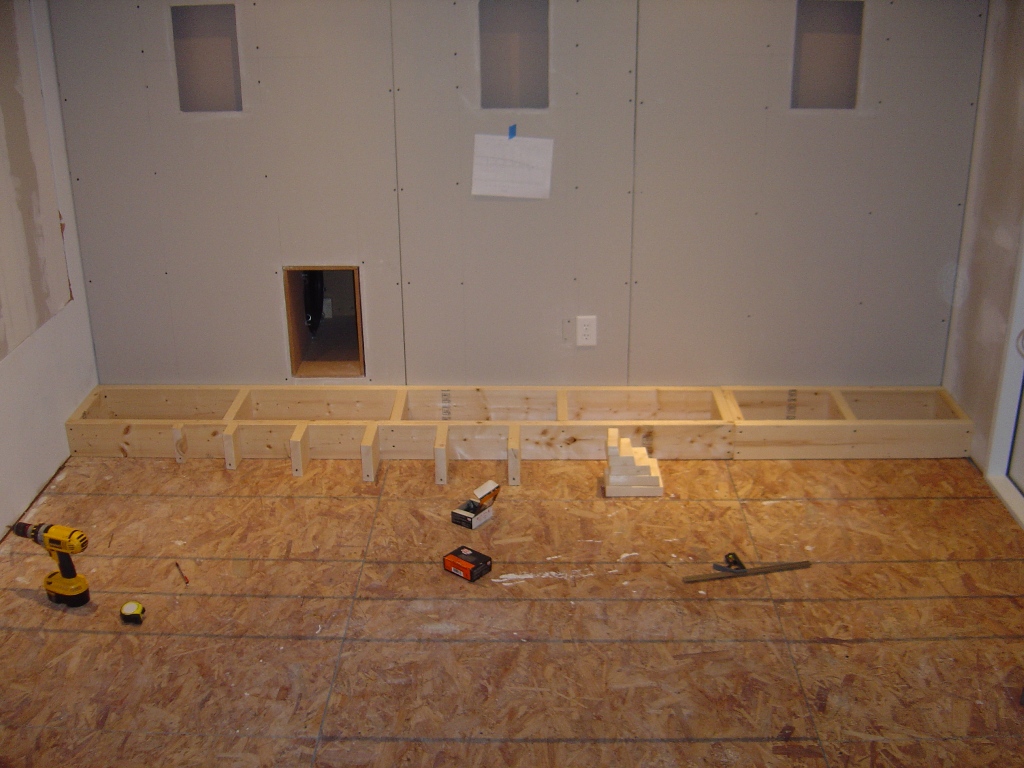

I started framing the stage.





I have this curve thing down now.

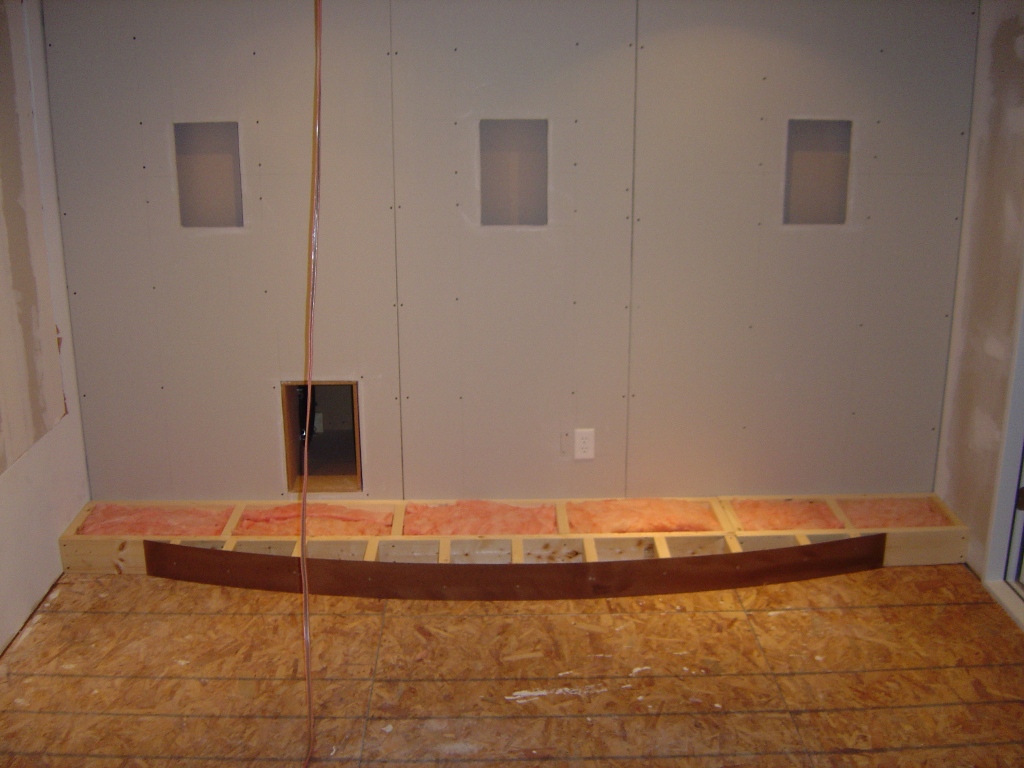

A little insulation.





Done!

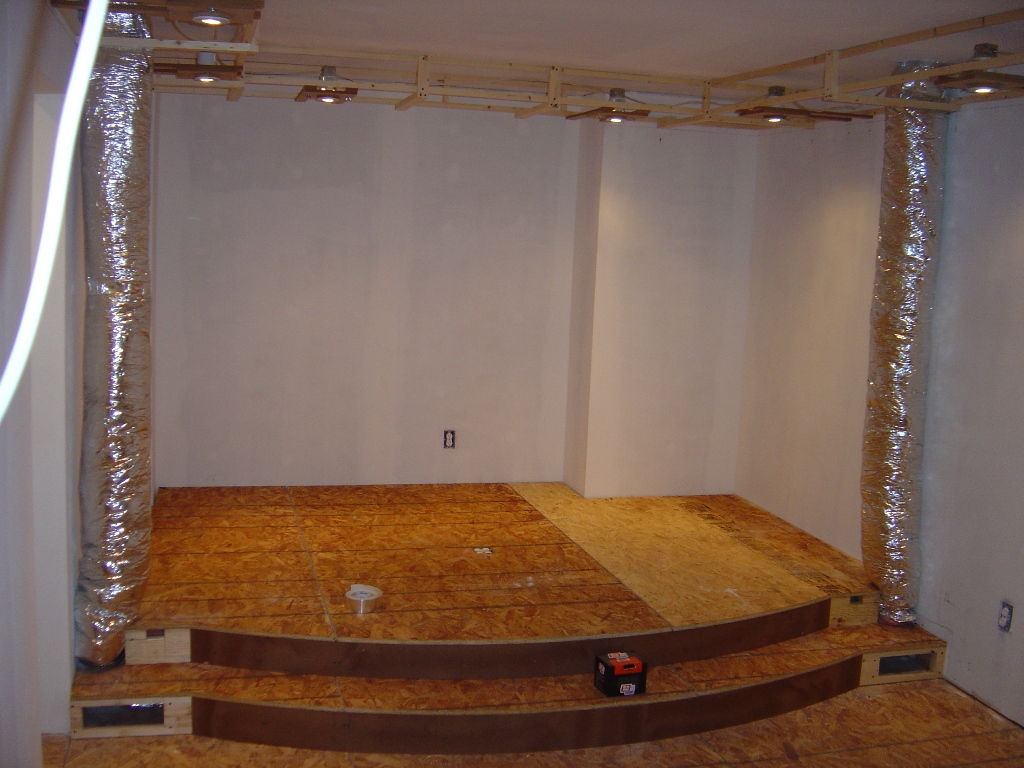

I also connected the ducts in the steps to the HVAC system. The 6" flex ducting will be encased in columns in the end.
jelloslug is offline
post #97 of 613 Old 12-14-2009, 08:32 AM
AVS Special Member

kjlewie's Avatar

Join Date: May 2008
Location: Marion, Iowa
Posts: 1,006
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 23
Nice work...everything is really looking good. I'm confused about the IB chamber. How do you access it, if you should need to? I thought I understood the process with the door opening and plug, but with the second wall and the stage in front of it, I guess not? Did I miss a post, maybe?

Clearly, I'm a man of action - just give me a few minutes to think about it.
Lewis Family Cinema 1.0

Lewis Family Cinema 2.0
kjlewie is offline
post #98 of 613 Old 12-14-2009, 08:48 AM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by kjlewie View Post

Nice work...everything is really looking good. I'm confused about the IB chamber. How do you access it, if you should need to? I thought I understood the process with the door opening and plug, but with the second wall and the stage in front of it, I guess not? Did I miss a post, maybe?

I installed the drivers from the inside of the manifold so if I ever needed to remove a driver I could go through the port and pull the driver. In a worst case scenario where I needed to pull the manifold or something like that I could go through the back wall of the closet since it backs up to unfinished space.
jelloslug is offline
post #99 of 613 Old 12-14-2009, 09:01 AM
AVS Special Member

kjlewie's Avatar

Join Date: May 2008
Location: Marion, Iowa
Posts: 1,006
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 23
Gotcha. Driver access from the front and the back wave is contained within the sealed closet. Good stuff.

Clearly, I'm a man of action - just give me a few minutes to think about it.
Lewis Family Cinema 1.0

Lewis Family Cinema 2.0
kjlewie is offline
post #100 of 613 Old 12-14-2009, 09:32 AM
Senior Member

Mr_Mike_P's Avatar

Join Date: Feb 2009
Location: Toronto, Canada
Posts: 380
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
i like the vents in the riser! clever indeed!
Mr_Mike_P is offline
post #101 of 613 Old 12-14-2009, 10:53 AM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by Mr_Mike_P View Post

i like the vents in the riser! clever indeed!

It only took me 4 months to come up with that....
jelloslug is offline
post #102 of 613 Old 12-14-2009, 11:03 AM
AVS Special Member

W00lly's Avatar

Join Date: Jan 2007
Location: NEBRASKA
Posts: 2,198
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Are they both supply lines ?

I only did one supply and one return. I should have done 2 of each as my room heats up pretty quik when its full of people

Scott

The CopperFields Cinema

          Current Photo's

W00lly is offline
post #103 of 613 Old 12-14-2009, 11:49 AM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by W00lly View Post

Are they both supply lines ?

I only did one supply and one return. I should have done 2 of each as my room heats up pretty quik when its full of people

They are both supply. There is an 8" trunk that feeds both of the 6" lines and the 8" trunk is hooked directly to the main trunk coming out of the air handler. I have a 10" return (with a 14" square filter) in the wet bar/equipment area to handle the return air.

My biggest concern is that I'm going to have to zone the theater separately in the end. It won't be a giant hassle but I would rather not do it if I don't have to.
jelloslug is offline
post #104 of 613 Old 12-14-2009, 12:24 PM
AVS Special Member

W00lly's Avatar

Join Date: Jan 2007
Location: NEBRASKA
Posts: 2,198
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
So you are not going to be using a door on your theater ? If not then you should be good

Scott

The CopperFields Cinema

          Current Photo's

W00lly is offline
post #105 of 613 Old 12-14-2009, 12:29 PM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by W00lly View Post

So you are not going to be using a door on your theater ? If not then you should be good

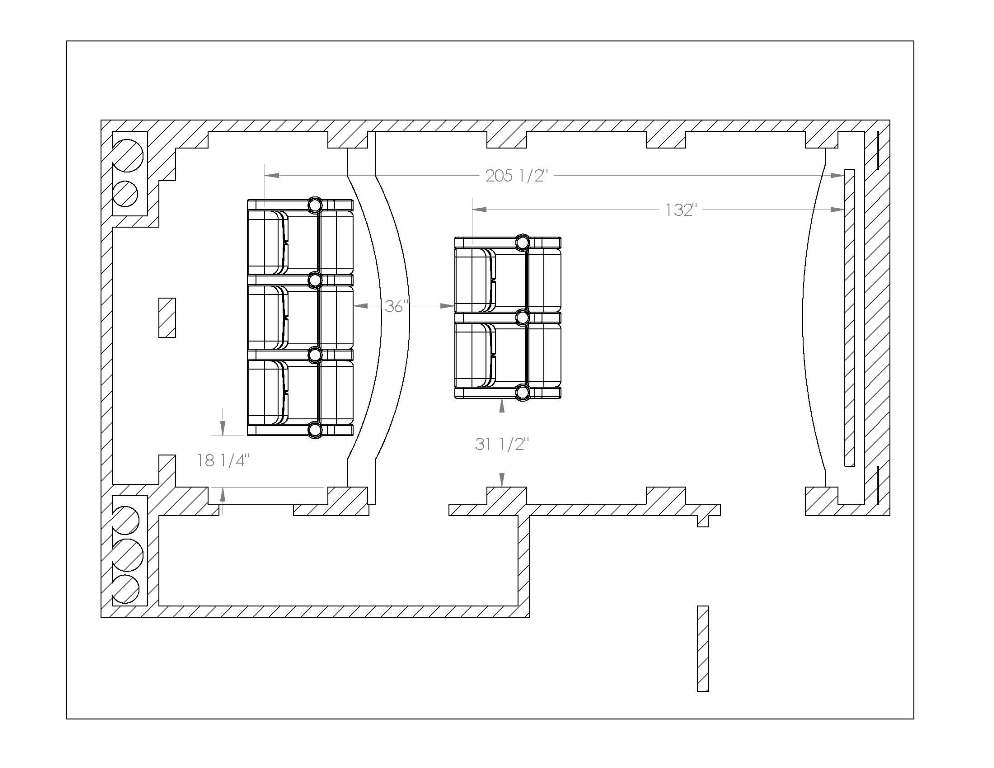

There is a door. Here is the schematic. The return sounds like it will be in the part at the bottom of this sketch.
Quote:
Originally Posted by jelloslug View Post

Yep, it's the riser. It will sort of hidden but not totally. The front seats will not be right up against the riser:




Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
post #106 of 613 Old 12-14-2009, 01:10 PM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by W00lly View Post

So you are not going to be using a door on your theater ? If not then you should be good

Like In2Photos was saying here is the return location:



There is no door between the theater and the wet bar/equipment location.
jelloslug is offline
post #107 of 613 Old 12-25-2009, 11:04 PM
AVS Special Member

yamahaSHO's Avatar

Join Date: Dec 2006
Location: NE
Posts: 1,723
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Saweet!!! You make my progress look like decades.

Subscribed!

-Jason

The "Z" Family Theater - Almost "complete".
-Not your average sub build
-Klipsch Sonosub Build

SONY quality and customer service FTMFL
yamahaSHO is offline
post #108 of 613 Old 12-28-2009, 09:09 PM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
I had some time during the "Christmas break" to start work on the columns. I also have been toying around with the Microsoft image composite editor. I have never been able to get a really good picture of my room and this program seem to do a really good job of making a composite image out of several shots.

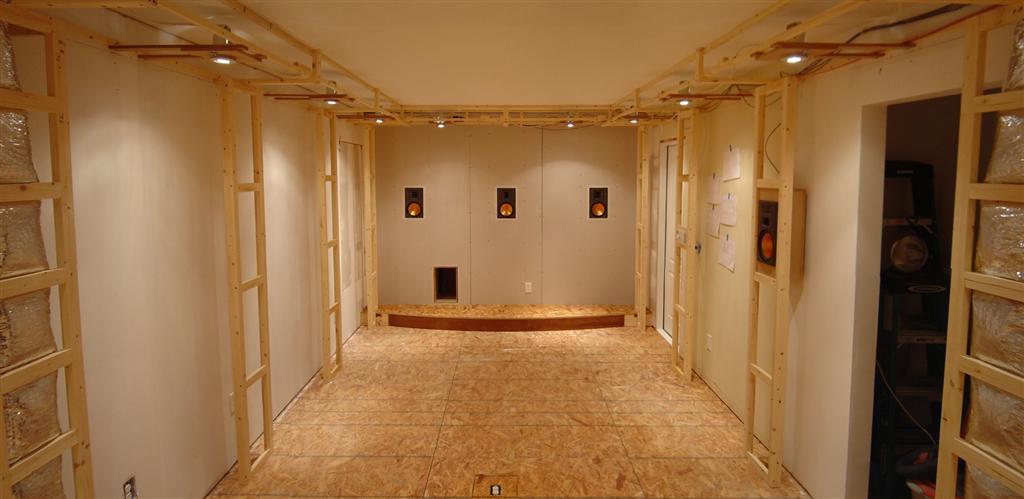

Here is the room looking at the stage. The columns are 14" wide and spaced 5" off the walls.

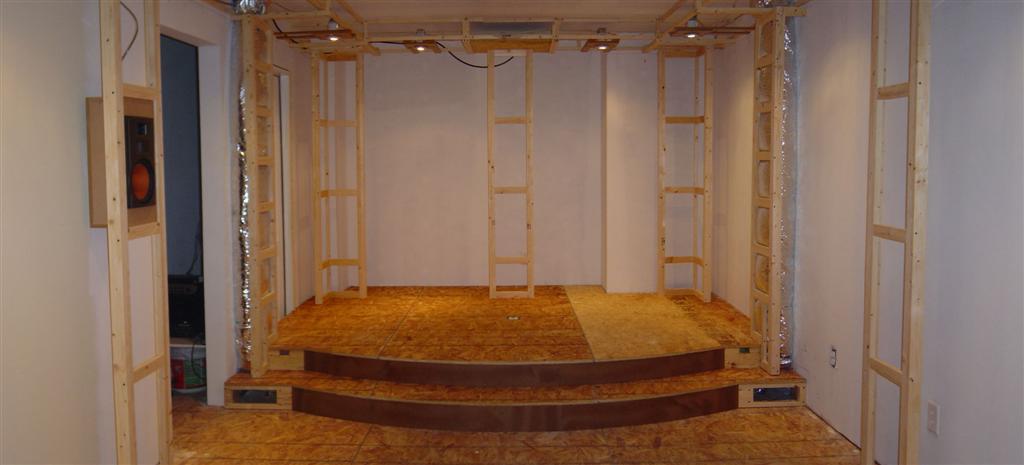

Here is the room looking at the riser. I also added the shelf for the projector and ran my Rapidrun wire from the equipment area to the projector shelf.

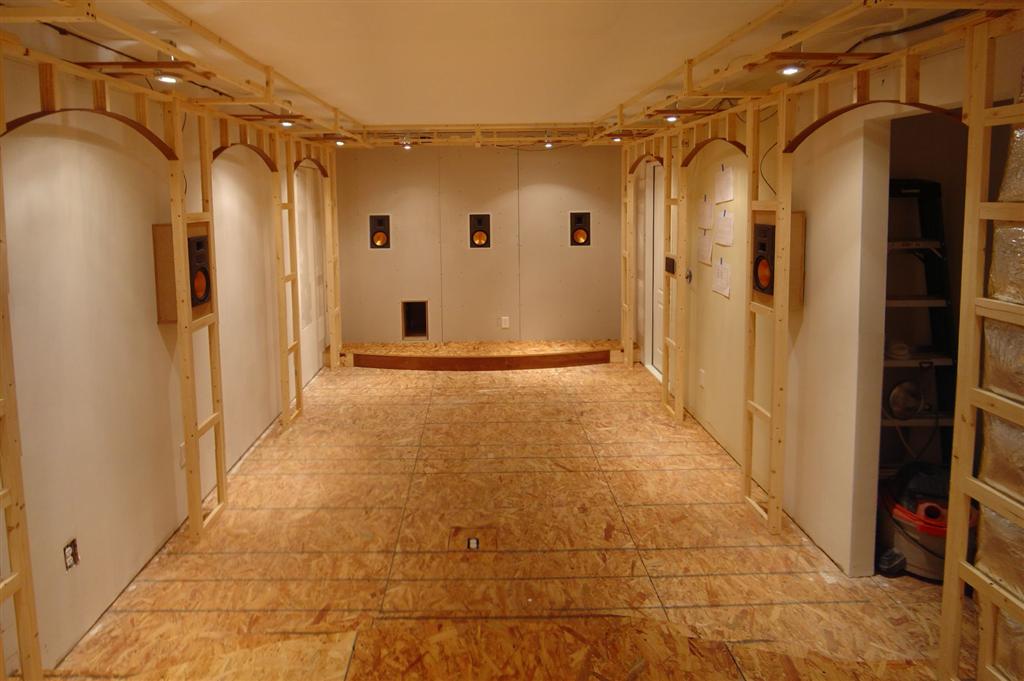

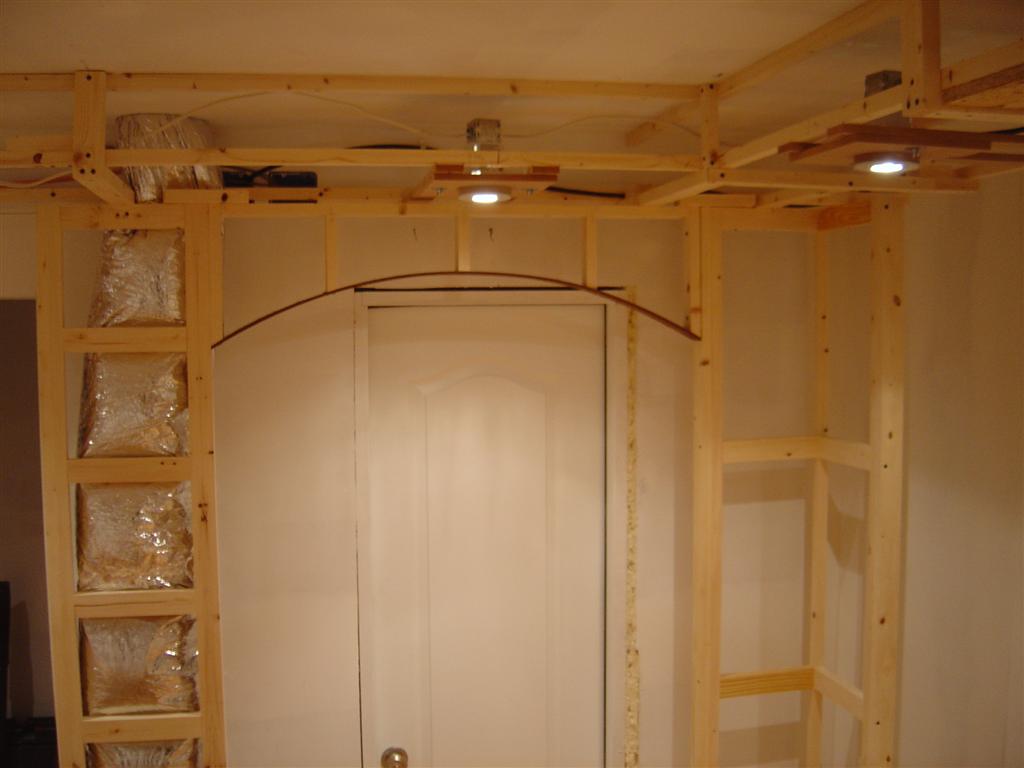

Here is a typical arch. The arches also tie the columns together and give me more places to attach the panels for the underside of the soffits.




Stage view with the arches in place.

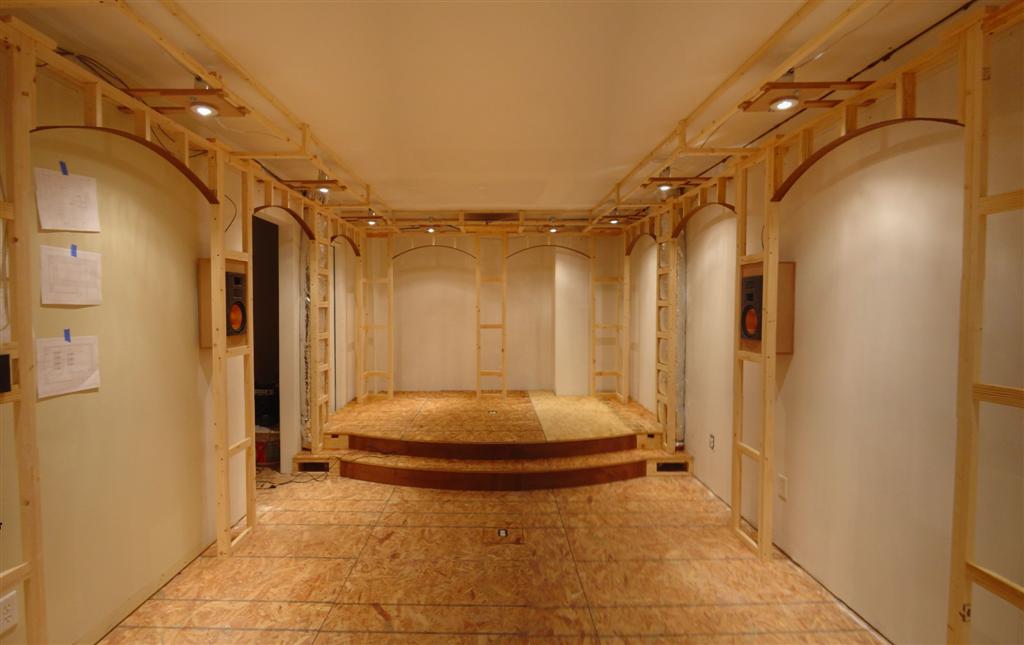

And a riser view with the arches installed. I also added the other side surround speaker.

I spaced the columns and arches off the walls for a few reasons:
1) I wanted to run the acoustic treatments behind the columns.
2) I want the curtains to fit behind the columns/trim.
jelloslug is offline
post #109 of 613 Old 12-28-2009, 09:15 PM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17

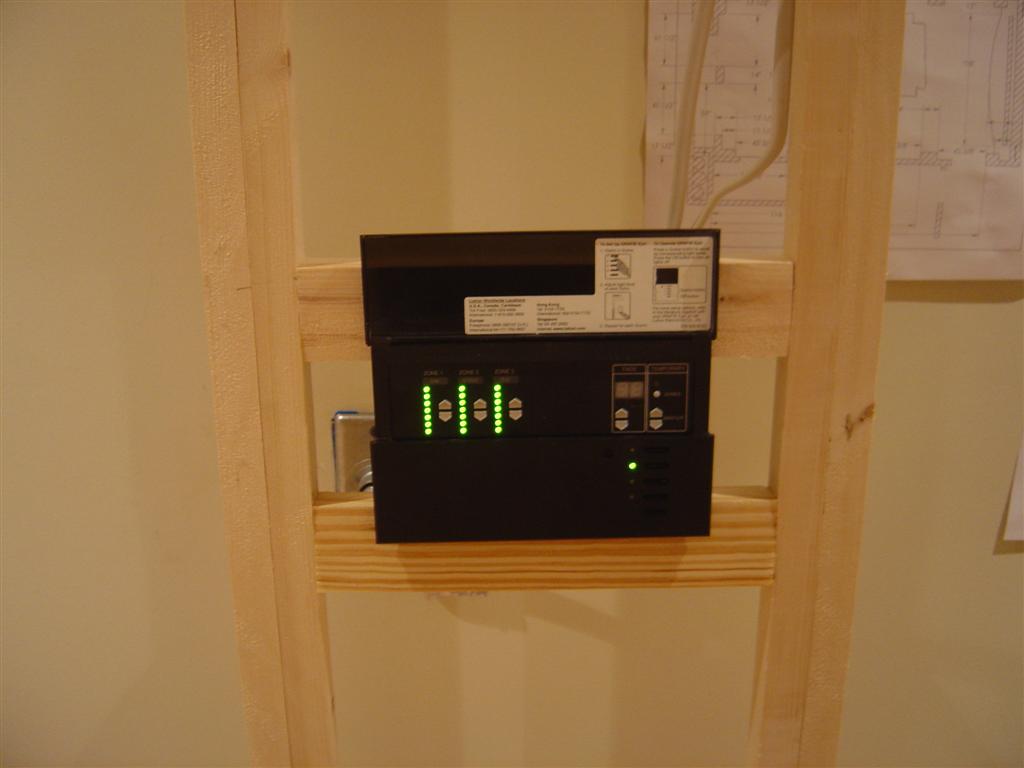

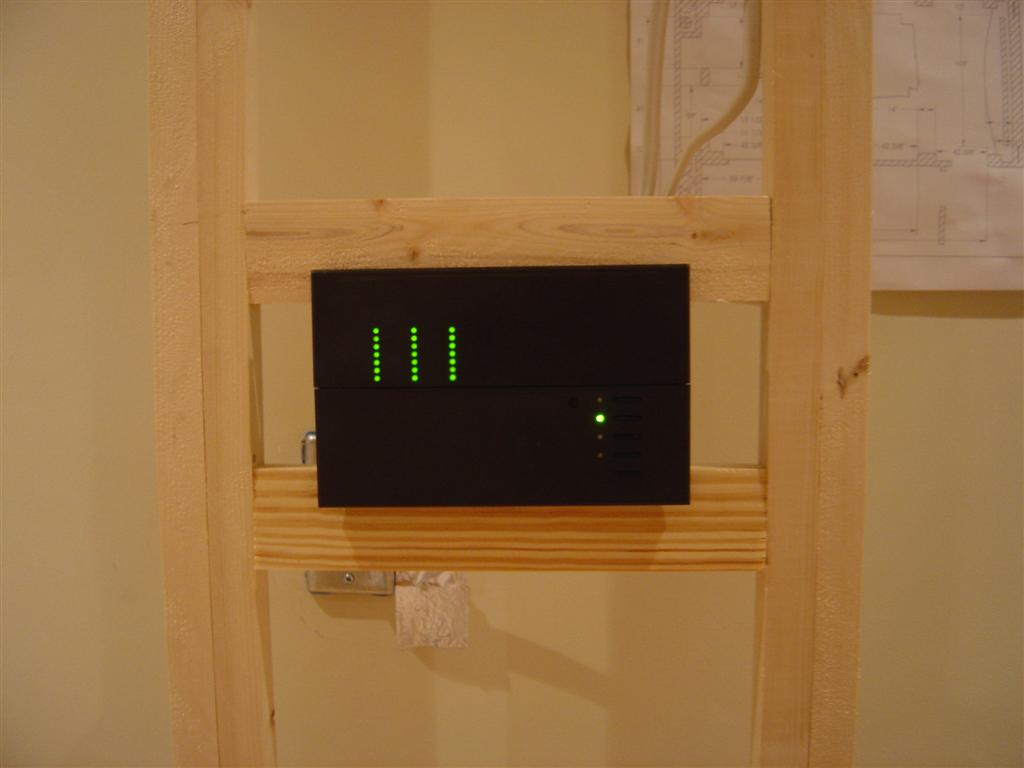

I also got a my Grafik Eye in the mail the day after Christmas.




Installation was a breeze though I still have one more zone of lighting to add.




I have not had much time to play with it but setup is easy.
jelloslug is offline
post #110 of 613 Old 12-28-2009, 09:24 PM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Nice work!

Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
post #111 of 613 Old 12-29-2009, 07:59 AM
AVS Special Member

cuzed2's Avatar

Join Date: Nov 2006
Location: Chicago Area
Posts: 4,403
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 63
Jello,

Looking good. Those arches are really going to add to the wow factor.

If i understand correctly you will be using curtains for your wall treatments..?

Cuzed2
Check out a video of my theater here
CuznEddy Cinema
Officially Hanesamatized on 8/1/09

cuzed2 is offline
post #112 of 613 Old 12-29-2009, 08:03 AM
AVS Special Member

cuzed2's Avatar

Join Date: Nov 2006
Location: Chicago Area
Posts: 4,403
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 63
Quote:
Originally Posted by cuzed2 View Post

Jello,

Looking good. Those arches are really going to add to the wow factor.

If i understand correctly you will be using curtains for your wall treatments..?

I meant to ask; Curtains will be the final the final covering over your acoustic treatments?

My bad

Cuzed2
Check out a video of my theater here
CuznEddy Cinema
Officially Hanesamatized on 8/1/09

cuzed2 is offline
post #113 of 613 Old 12-29-2009, 10:15 AM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by cuzed2 View Post

I meant to ask; Curtains will be the final the final covering over your acoustic treatments?

My bad

Yep, I will be using curtains made out of GoM fabric over the acoustical treatments. The column/arch faces will have fabric panels.
jelloslug is offline
post #114 of 613 Old 12-29-2009, 12:38 PM
AVS Special Member

yamahaSHO's Avatar

Join Date: Dec 2006
Location: NE
Posts: 1,723
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by jelloslug View Post


Absolutely "PIMP"!

-Jason

The "Z" Family Theater - Almost "complete".
-Not your average sub build
-Klipsch Sonosub Build

SONY quality and customer service FTMFL
yamahaSHO is offline
post #115 of 613 Old 12-29-2009, 01:12 PM
Senior Member

3Z3VH's Avatar

Join Date: Dec 2009
Posts: 201
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Looking great Jello, your build gives me confidence in the build I am planning... I was thinking my 23'x13' room was looking too narrow for building a nice looking set of columns, and here you are doing it in a 20'x11' ! That'll show those doubters (me) !

I have to say, though, I plan to have more room on the stage in front of the rear seating to set up trays, because I am not sure I could have a theatre room people can't eat in
3Z3VH is offline
post #116 of 613 Old 12-29-2009, 01:50 PM
Advanced Member

HDvids4all's Avatar

Join Date: Feb 2008
Location: Columbus, OH
Posts: 697
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Top notch work Jello, very impressive stuff going on here.
HDvids4all is offline
post #117 of 613 Old 01-03-2010, 01:36 PM
Advanced Member

Limp Fox's Avatar

Join Date: Aug 2009
Location: Newmanstown PA
Posts: 582
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 10
lookin good

US ARMY 42A2T/11C2T

another Deployment? ...you don't say
Limp Fox is offline
post #118 of 613 Old 01-03-2010, 05:42 PM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
It's time for more soffit work. Now that the wall arch frames are complete I needed to work on the corner radii on the soffits. I also needed to add the reinforcing framing.




Here are the reinforcing plates for the vertical faces of the side soffits. They stiffen up the soffit framing and give me something to attach the fabric frames to.




Here is the corner radius. It's the same deal as the side plates.




This is the underside of a corner with the radius frame and side frames installed. I also added a lip of the lower edge of the soffit framing so I have something to attach the molding that will hold the soffit rope lighting.




Looking at the soffits from the stage.




And looking at the soffits from the riser.




I also tidied up the wiring in the soffits a bit.




I had a little extra time so I went ahead and installed the cabinets for the wet bar.
jelloslug is offline
post #119 of 613 Old 01-04-2010, 04:24 AM
AVS Special Member

hanesian's Avatar

Join Date: Nov 2008
Location: Twin Citiesville, MN
Posts: 2,783
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 27
Awesome work - way to go!

Although you scare me a bit with the cleanliness of your build. I wish my living room was as clean as your construction zone!

The Un-Theater Un-Build
_________________________________
State Certified Alcohol Disposal Expert.



hanesian is offline
post #120 of 613 Old 01-04-2010, 05:01 AM - Thread Starter
Advanced Member

jelloslug's Avatar

Join Date: Nov 2005
Location: Greenville, SC
Posts: 738
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by hanesian View Post

Awesome work - way to go!

Although you scare me a bit with the cleanliness of your build. I wish my living room was as clean as your construction zone!

I don't take pictures of the woodshop for a reason.
jelloslug is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
