I was planing to finish my basement with a dedicated home theater last year, but due to variety reasons, the build was pushed back until now. I am excited about my own build after years of lurking here and I am more excited to start my own thread. I plan do the most of work myself and I will definitely have a lot of questions to ask and advices to seek so I thank every one here in advance.

I finally pulled the permit before Christmas, I don't know typically how much you pay for the permit, but a cool $600 in my township to get building permit, plumbing permit, electrical and mechanical permit, that is expensive, they require construction diagram (floor plan), wall construction details with firblocking diagram, electrical diagram and plumbing raiser diagram. I got rejected the first time, after I submit couple more diagrams, I got approved.

My basement is about 1,000 sf, 33'x35' rectangular shape with 7'10" height, the theater space is roughly 14'x20'. My plan as many others here is to have two row of seating, first row 3 seats, second row 4 seats on a raiser, AT 1:2.35 CH screen, 7.2 system.

To help you visualize the space I am working on, here is few sketch ups.

The original space and layout


The theater room will be on the back side of the stair case. As you can see, I have few obstacles, the water heater is standing in the premier spot so it needs to be relocated, the return trunk needs to be moved to the other side of the wall, the small window on the corner needs to be enlarged as egress, and I am planing to put a bathroom in the basement, so plumbing rough in with toilet and shower and sewer well need to be done.
This is the planed alternation of the water heater, return trunk and egress:


Here is the incomplete design of the basement, I used got a better and complete one but I lost it when my Windows XP crashed on me and destroyed the hard disk (I moved to Win7 with new hard disk and separate external hard disk as backup).


As you can see, I have to leave 3' path in the back of the screen wall for egress access per code required, so I lose 3' to the overall length of the theater room.

Here is another shot of the design in X-Ray mode:


Another one:


Side view in X-Ray:


Theater back view in X-Ray:


Screen and Stage:


Theater entrance:


Theater back:


Theater wall should be upper and lower section in black and middle section in red.

The work started after the Christmas, mainly did some prep works, first thing first, clean up the basement, get organized and thrown out a lot of junks, I built 2 8'x8'x2' shelves with wheels in garage, the two shelves can store a lot of stuff that wife and I boxed. Today is my third time to dump out the junks, still need to dump one or two more times to get rid of everything.

So far, I got egress done, water heater relocated, plumbing rough in done and return trunk moved, here are some shots:

The supposed entrance to the theater room, door is between the post and stair wall.


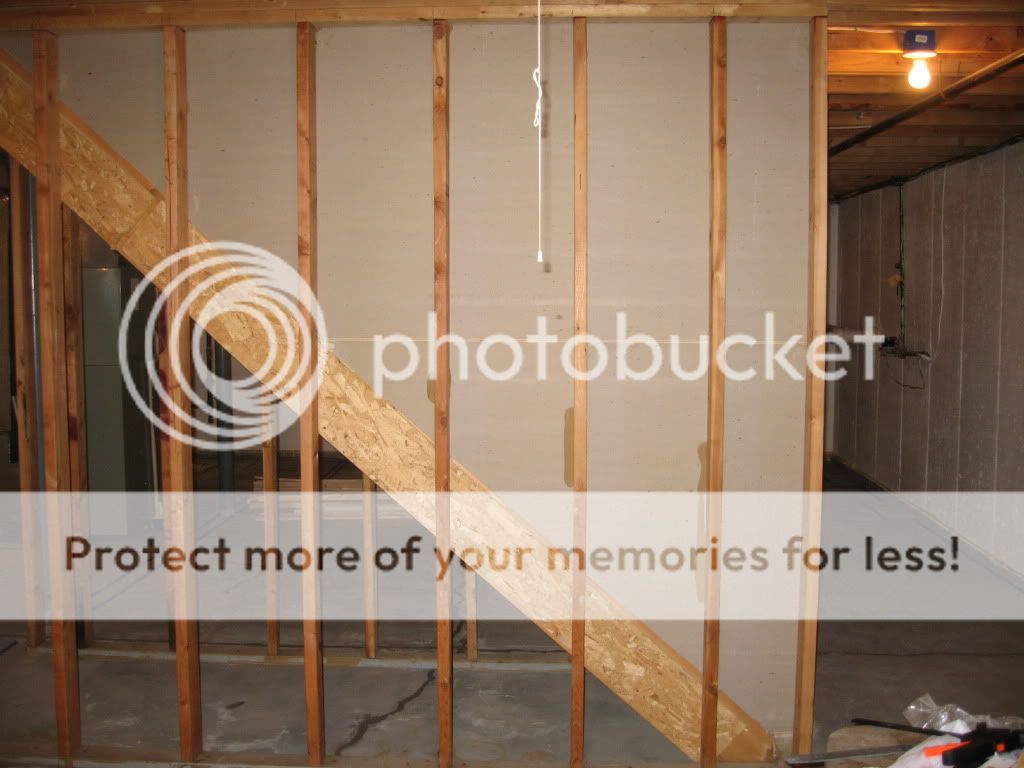

Non-exist front wall, you can see the new egress and my blue tape mock-up of the stage:


Looking into mechanical room from the theater, you can see water heater new location:


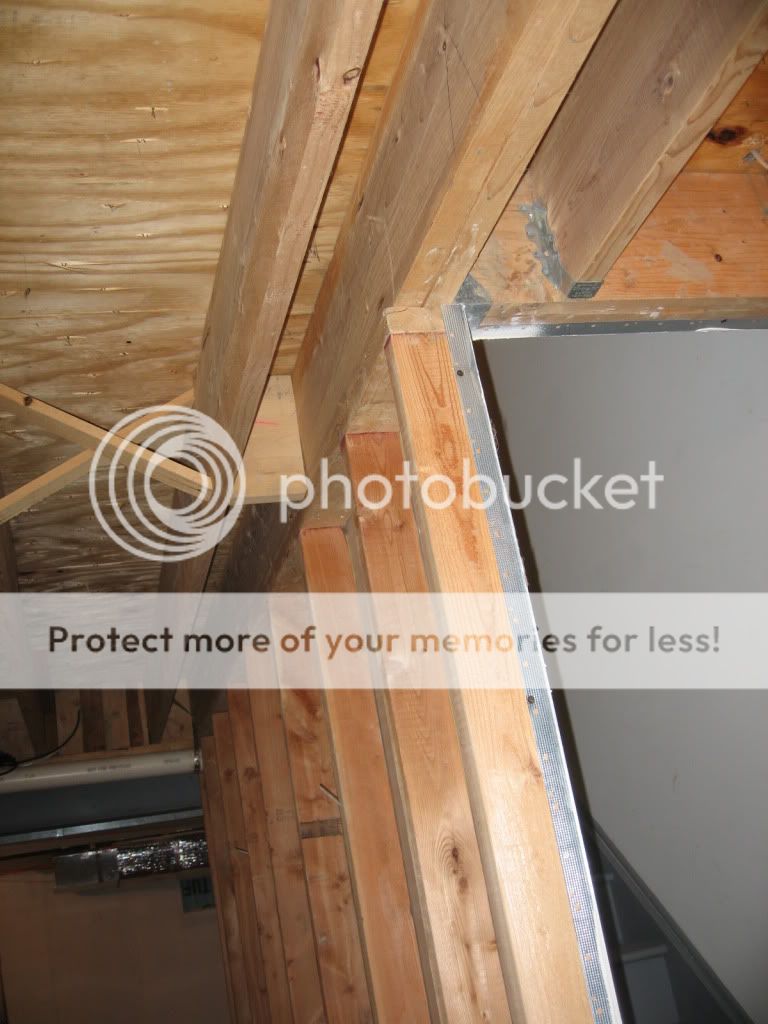

Under the stair will be the equipment closet, on the right, is the future theater door:


Future bar area:


Mechanical room and you can also see the blue tape mock-up of the bathroom with rough-in done:


Bathroom rough-in and sewer well/pump rough-in and venting:


HVAC supply trunk next to the beam, the return trunk used to be next to the supply, but was moved:


Moved return trunk on the other side of the wall:


Getting rim joist insulated:


existing dirty fiber glass insulation:


Other small window is blocked and sealed with foam board:


Insulation of rim joist is a dirty and messy job, a lot of hard reach dead corners and spot, with pipes and wires, Great Stuff is messy and sticky, wasted a lot but it works better than caulk in this scenario since there is little room to work, with caulking gun, there is no clearance to apply the caulk.

Crack on the floor are filled with Quikrete concrete crack sealer:



Found couple of cracks on the foundation wall that need to be repaired:


Another one one the same wall as the egress window, I suspect it was caused by the sludge hammer when doing the egress cutting and knocking:


I ordered foundation wall repair kit from Concrete Charlie, suppose to be very good, will arrive in couple of days. But with the freezing temperature outside, it is probably better to wait until the weather gets up 40s.

That's all so far, next will repair the cracks, then order lumber to start framing.
theWalkinator is offline
Sponsored Links
Advertisement

post #2 of 590 Old 01-12-2010, 12:38 AM
Senior Member

DavidinCT's Avatar

Join Date: Apr 2003
Location: Someplace in CT
Posts: 435
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked: 21
Nice, I'll be watching for your progress. Let me guess, a goal ? Avatar on the screen, so it has to be complete by the time it hits blu-ray ?

-Dave

MCSE 2003
Windows Media Center specialist

Avid gamer and home theater junkie..
DavidinCT is online now
post #3 of 590 Old 01-12-2010, 09:13 AM - Thread Starter
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by DavidinCT View Post

Nice, I'll be watching for your progress. Let me guess, a goal ? Avatar on the screen, so it has to be complete by the time it hits blu-ray ?

Well, my permit is only good for a year, so I have to complete it within a year. I may hire someone to do the drywall, that would speed up the build.
theWalkinator is offline
post #4 of 590 Old 01-12-2010, 07:32 PM - Thread Starter
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

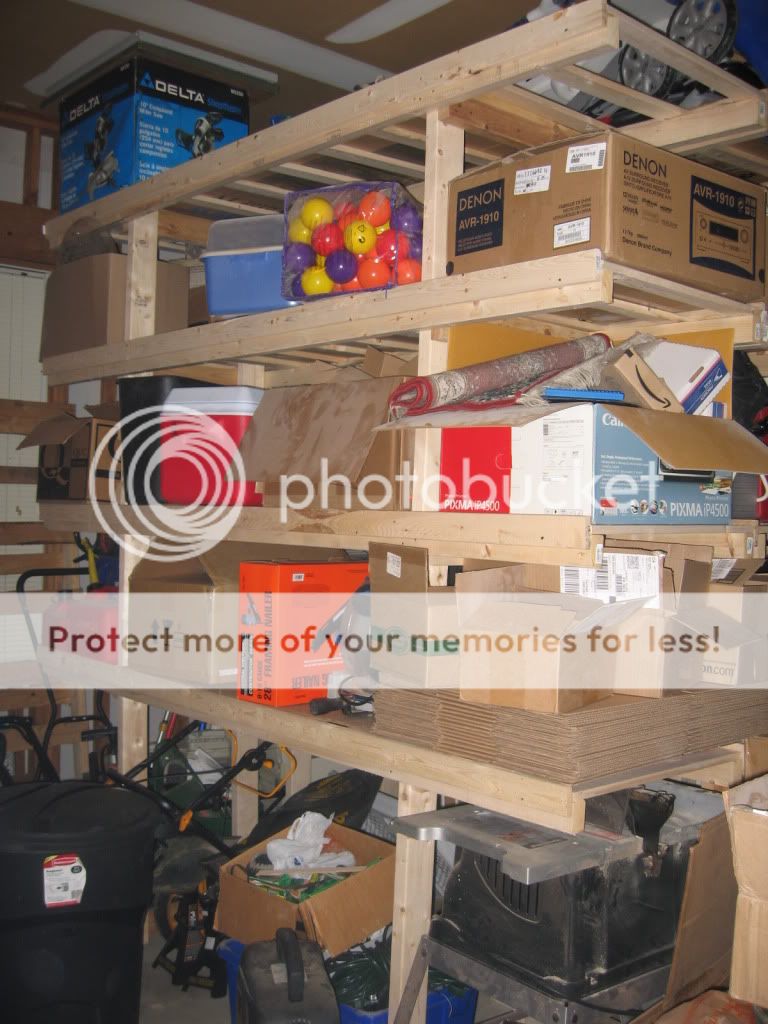

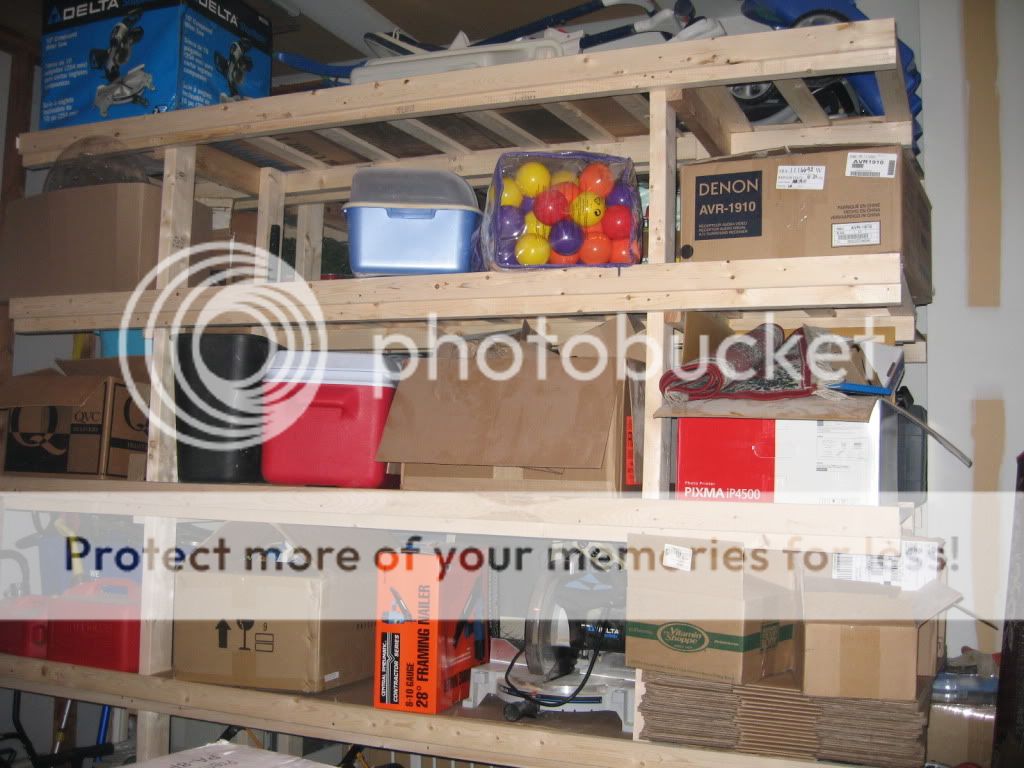

Here are couple of shots of the shelves that I made to store things that used to be sitting in the basement, now they are organized and stored in garage:



The shelves are on wheels and the bottom of the shelves is open so I can slide some big items like lawn mower under. You may not be able see in the pictures but there are two of them, if I need something stored in the back shelve, I can just pull the front shelve and get access to the back one and push the front shelve back, it is really convenient and can really store a lot of stuff.
theWalkinator is offline
post #5 of 590 Old 01-12-2010, 07:45 PM - Thread Starter
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Received it today. It comes with 4 different viscosity resins from thin to thick to repair cracks of different size. I ordered some extra resin to repair two cracks on wall, hopefully it does as good as professional repairs.


Has anyone done this before? How difficult to do and any thing that I need to pay special attention to?
theWalkinator is offline
post #6 of 590 Old 01-13-2010, 01:08 AM
Senior Member

DavidinCT's Avatar

Join Date: Apr 2003
Location: Someplace in CT
Posts: 435
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked: 21
Never seen it but, Would be interested in the process and how well it worked (I got a small crack in my basement when there is really, really heavy rain, it will leak a little (but, it has to be a major and long rain storm for it to happen)

-Dave

MCSE 2003
Windows Media Center specialist

Avid gamer and home theater junkie..
DavidinCT is online now
post #7 of 590 Old 01-13-2010, 07:39 PM - Thread Starter
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
If you are going to finish your basement, it is wise to get it repaired before you put the wall up, you don't want end up tear down the wall later.
theWalkinator is offline
post #8 of 590 Old 01-15-2010, 07:54 AM
AVS Special Member

hanesian's Avatar

Join Date: Nov 2008
Location: Twin Citiesville, MN
Posts: 2,798
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 40
Quote:
Originally Posted by theWalkinator View Post

The shelves are on wheels and the bottom of the shelves is open so I can slide some big items like lawn mower under. You may not be able see in the pictures but there are two of them, if I need something stored in the back shelve, I can just pull the front shelve and get access to the back one and push the front shelve back, it is really convenient and can really store a lot of stuff.

Nice! What are you using for wheels, with all that potential weight to support? Any more photos of these you can share?

The Un-Theater Un-Build
_________________________________
State Certified Alcohol Disposal Expert.



hanesian is offline
post #9 of 590 Old 01-15-2010, 08:44 AM - Thread Starter
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by hanesian View Post

Nice! What are you using for wheels, with all that potential weight to support? Any more photos of these you can share?

Thanks Hanesian, the wheel are from HD, go to the hardware section and you can find several different size casters. I think mine can hold 350lb so it is really strong. I am at work so I don't have pictures with me, I will post some more pictures of the shelves.
theWalkinator is offline
post #10 of 590 Old 01-15-2010, 11:47 AM - Thread Starter
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I went to a savage yard to look at a used server rack, it was huge, with the caster, it stands 85", 24" wide and 38" deep, only for $60, but it is too big for my needs, so I didn't get it. Keep looking on craigslist.
theWalkinator is offline
post #11 of 590 Old 01-15-2010, 12:20 PM
AVS Club Gold

dc_pilgrim's Avatar

Join Date: Oct 2004
Location: South Central... PA
Posts: 4,617
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Spent a little time in Sandman's thread, huh? Good luck!
dc_pilgrim is offline
post #12 of 590 Old 01-15-2010, 01:57 PM - Thread Starter
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by dc_pilgrim View Post

Spent a little time in Sandman's thread, huh? Good luck!

Thanks, if my build turn out even only one third as nice as Sandman's, I will be a very happy camper
theWalkinator is offline
post #13 of 590 Old 01-15-2010, 06:38 PM - Thread Starter
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I am kicking myself now, I think I made a huge stupid mistake, last night I went down to the basement and looked around and took some measurements and then I suddenly came to realize that I should have the egress cut on the left section of the wall next to the electric panel, so I don't have to give away 3 feet pass way to egress which would have made my theater room 23' long! What was I F**king thinking?
theWalkinator is offline
post #14 of 590 Old 01-16-2010, 08:21 PM - Thread Starter
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

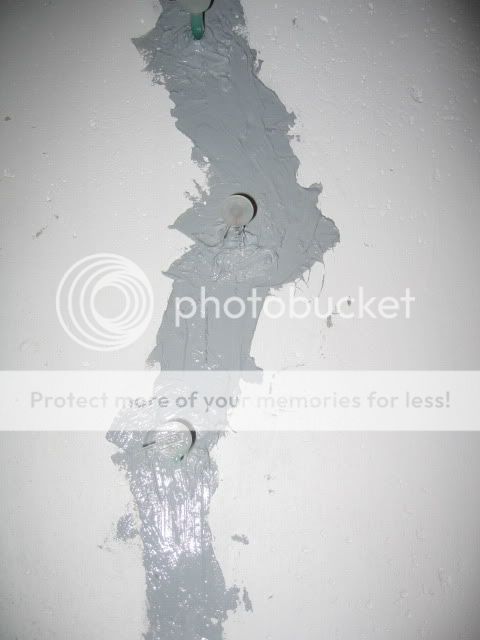

Today I got foundation wall cracks repaired with the Epoxy crack repair kit, the process went relatively smooth, just follow the instructions and it is definitely DIY-able.

First, prepare surface by wire brushing the cracks, clear any loose dirty and use you hand to pad the cracks to drive out the dusts, then mixed two parts epoxy compounds to make the surface seal, then surface seal the crack, with injection port mounted as well, after about 30 minutes, the surface seal is set, then I started injection.

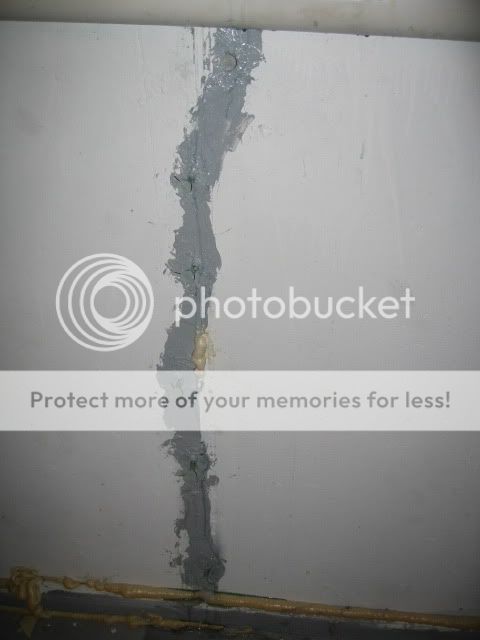

Surface seal applied and injection ports mounted:


Epoxy resin injected and ports sealed:


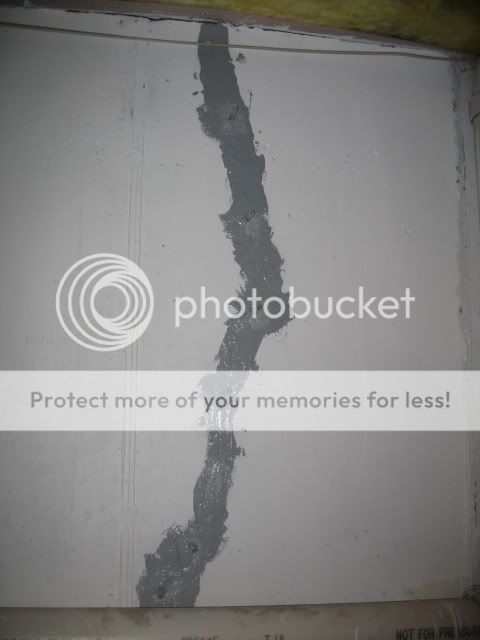

Closeup shot after the repair, it takes few hours to allow epoxy resin to set:
