So I've built the other 3 walls of my room by room in room methodologies and now comes the last and most difficult (BTW these photos dont show the new walls). I've figured out how to get around these pipes so that's not a problem.

They're really loud when the ensuite above is used.

Question do I need to insulate them in anything?

Or by building around them (no flanking points) is that good enough? By way of information, they'll have 45mm thick beams covering them on the theatre side and obviously nothing on the other.




Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is offline
Sponsored Links
Advertisement

post #2 of 23 Old 01-27-2010, 04:42 PM
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,045
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 47
Well, changing them out for a heavier pipe like cast iron would be the dream solution, but I am pretty sure that is not an option.

Barring that, the next best thing would be to add mass to the piping. There have been a couple of threads from people on how they did this. Some people have used some sort of asphalt roll-roofing. Other people have used Dynamat or Dynamat-type materials to wrap the pipe.

Try searching the forum for "dynamat", it should pick up as few threads about it.

Good luck! Too bad that brick had to be covered, the room looks cool!
Mr.Tim is offline
post #3 of 23 Old 01-27-2010, 04:45 PM
Advanced Member

NJ Jackals's Avatar

Join Date: Jun 2001
Location: NJ
Posts: 687
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
NJ Jackals is offline
post #4 of 23 Old 01-27-2010, 04:58 PM - Thread Starter
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,432
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
NJ - that is pretty much what I'd planned, well except for the insulation as that takes up too much room....

MrTim - thanks for that I'll look into it. Makes sense, albeit possibly difficult.

Thinking about it, changing the pipe to something heavier might be an option, wouldn't be hard....messy though

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is offline
post #5 of 23 Old 01-28-2010, 07:29 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Elill, you'll need the insulation in any cavity. Mass + absorption.

__________________

Ted



The Soundproofing Company
Ted White is offline
post #6 of 23 Old 01-28-2010, 08:48 AM
Senior Member

3fingerbrown's Avatar

Join Date: Aug 2009
Posts: 323
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Wrapping the pipe in acoustical pipe wrap would be a lot easier than replacing it with iron pipe. You can see in my build thread, I had a pipe behind my screen wall that I wrapped with this stuff, purchased from the Soundproofing company.

3fingerbrown is offline
post #7 of 23 Old 01-28-2010, 08:56 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
How did that work out for you?

__________________

Ted



The Soundproofing Company
Ted White is offline
post #8 of 23 Old 01-28-2010, 10:15 AM
AVS Special Member

mdputnam's Avatar

Join Date: Sep 2003
Location: Kalifornia
Posts: 1,346
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 14
Here is my data point. I have a bathroom above my theater. I specified all cast iron drain pipes, double drywall with green glue, and fiberglass insulation. Just sitting in the quiet theater you can still hear the toilet flush. It's quiet but not silent.

Human perception is not a direct consequence of reality, but rather an act of imagination. - Michael Faraday
mdputnam is offline
post #9 of 23 Old 01-28-2010, 10:27 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Curious, did you decouple the drywall from the impact vibration in the joists?

__________________

Ted



The Soundproofing Company
Ted White is offline
post #10 of 23 Old 01-28-2010, 01:22 PM - Thread Starter
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,432
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Ok So I'll look into some sort of mass loaded vinyl perhaps and a highly dense insulation? is 1inch/25mm enough?

Problem is, putting insulation on the bottom of the pipe bites into my soffit size, which will consequently make the room's second door smaller. I'm going to have to duck as it is.....

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is offline
post #11 of 23 Old 01-28-2010, 01:23 PM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
You never, ever want dense insulation within a closed air space.

__________________

Ted



The Soundproofing Company
Ted White is offline
post #12 of 23 Old 01-28-2010, 04:14 PM - Thread Starter
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,432
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Riteo, thanks Ted.

...Hmm off to find a local supplier of a solution.....more fun and games

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is offline
post #13 of 23 Old 01-28-2010, 04:58 PM
Member

Intricate1's Avatar

Join Date: Dec 2009
Location: Nashville Tn
Posts: 74
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Cast iron and a repipe with thought process as to how water is going to fall in those pipes is the BEST solution.

The pipe he has here is a thin gauge compared to what we commonly use in the USA, which is even louder then what most of us are accustomed to. As much as I hate recomending CI pipe for anything it would cut your sound level by a HUGE margin. Leaving the biggest noise producer being the splashing water from under the concrete slab area.
Intricate1 is offline
post #14 of 23 Old 01-28-2010, 05:14 PM - Thread Starter
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,432
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
That sounds awefully expensive....I might try some lagging first....the house has 2 other bathrooms, perhaps a ban during theatre hours would be simplest

Appreciate the help/suggestions

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is offline
post #15 of 23 Old 01-28-2010, 05:57 PM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Quote:
Originally Posted by Intricate1 View Post

Cast iron and a repipe with thought process as to how water is going to fall in those pipes is the BEST solution.

Best Answer. As well as minimizing contact of pipe with drywall and framing.

__________________

Ted



The Soundproofing Company
Ted White is offline
post #16 of 23 Old 01-29-2010, 04:49 AM
AVS Special Member

ctviggen's Avatar

Join Date: Dec 2003
Posts: 1,893
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 19
Is there anything you can put between the framing and the piping? For instance, for hot water pipes, they sell mickey mouse ear supports that can be placed between the studs/joists and the piping. These help tremendously.

Bob
ctviggen is offline
post #17 of 23 Old 01-29-2010, 09:26 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Bob, weren't you going to give us a pic of the mouse ears?

__________________

Ted



The Soundproofing Company
Ted White is offline
post #18 of 23 Old 01-29-2010, 12:57 PM
Member

Intricate1's Avatar

Join Date: Dec 2009
Location: Nashville Tn
Posts: 74
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by ctviggen View Post

Is there anything you can put between the framing and the piping? For instance, for hot water pipes, they sell mickey mouse ear supports that can be placed between the studs/joists and the piping. These help tremendously.

The insulators you are talking about are meant to reduce sound transmission between the supply piping and the framing members. When supply piping is attached directly to joists it transfers vibration to the framing members turning said framing into one big speaker.

His issue as far as I can see is mostly because of the way the piping was run, water is splashing with force into those pipes when they drain. Adding into the fact they are using a low density thin plastic pipe he is stuck in a pretty much worst case scenario.

And he is likely correct paying a pro to rework with CI is going to cost him a good chunk of change. No idea what it would cost in Australia. Here in Middle tn USA I would likely charge him $800-900 bucks to make it quiet.
Intricate1 is offline
post #19 of 23 Old 01-29-2010, 02:07 PM - Thread Starter
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,432
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
The cast iron pipe itself isn't that expensive - about $100 for 3m.

I've contacted a plumber to see what it'll cost to replace. I think it'll be worth the extra coin....unless he comes back at $100 an hour and 10hours work..

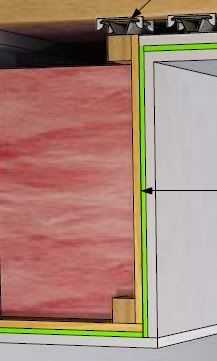

Just to clarify a point, there will be no contact between the pipes and the room in room structure of the theatre. I've devised a way around this. I haven't drawn it in sketchup yet but basically there will be a beam running on 90x90 posts which will sit inside the line of the wall. These will likely become columns...sorry that doesn't explain it very well.

Try again.

1. There will be 3 stud walls sitting in between the engaged brick peirs.
2. These will be connected by narrow (350mm x 2400mm x 19mm) strips of ply
3. Attached to the ply will be the 90x90 posts
4. The beam will sit on top of the posts and the studd walls (with rebates cut for the sections of the engaged peirs)
5. Sitting on top of that beam will be another beam at right angles that goes up round the pipe
6. The new ceiling joists will sit on this new beam. Basically the posts will support a beam that the new joists will sit on - as if I was building a very heigh (2400mm) deck

I'll them insulate the stud sections, put more ply in, then GG then DD. I'll probably DD and GG around the posts as well. My rear speakers and treaments will sit within the sectional studd walls and I'll cover that section in fabric frames and make the post section a column or feature (timbers, lights something)

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is offline
post #20 of 23 Old 01-29-2010, 02:33 PM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 46
[quote]Ok So I'll look into some sort of mass loaded vinyl perhaps [/quote[
Nope. Not appropriate for this kind of application. You want a damping agent that will physically adhere to the PVC pipe.

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors
www.erskine-group.com
www.CinemaForte.net
Dennis Erskine is offline
post #21 of 23 Old 01-29-2010, 03:56 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,667
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 208 Post(s)
Liked: 574
Quote:
Originally Posted by Dennis Erskine View Post

Nope. Not appropriate for this kind of application. You want a damping agent that will physically adhere to the PVC pipe.


What about dynamat supreme?
BIGmouthinDC is online now
post #22 of 23 Old 01-29-2010, 04:17 PM - Thread Starter
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,432
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
I'll hopefully get the cast iron replacement, if that is still too loud there is a 25mm lagging product that looks good, you wrap it around the pipe and seal it off with aluminium tape.

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is offline
post #23 of 23 Old 01-29-2010, 06:04 PM
Member

Mazlem's Avatar

Join Date: Dec 2008
Posts: 63
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by BIGmouthinDC View Post

What about dynamat supreme?

Any Dynamat is overpriced, but generally stuff with butyl instead of asphalt is better for adhesion and very high or low temps. Check out www.secondskinaudio.com and www.raamaudio.com. They also sell closed-cell foam there (same as linacoustic?) That stuff would stick to the pipe. Mass-loaded vinyl could be attached with spray adhesive, to the pipe or the damping material.
