Hi All,

I've been studying and learning here for years, (sorry, I don't lurk... ) and I'm finally starting my build. I have to thank all the AVS'ers who have posted and contributed all their valuable information - way too many individuals to list.

I had my first HT in a previous home in 2003, but we had to sell before it was finished (sorry, no pics). I've been planning another HT ever since. Due to job, home and life changes, I've had to wait until now to get this plan moving.

We recently built a new home, and I designed our basement with an HT in mind. No obstructions in the way, like HVAC, plumbing, windows, etc. The only regret I have is I didn't go with a 9 ft. ceiling (oops ).

WAF on the HT name isn't solidified yet. I like it.

THE (BIG) PLAN

I'm finishing about 1200 sq. ft., with the HT, Equip room, Lobby, Rec/bar/kitchenette room, 1/2 bath, and a bedroom/craft room for WAF. This project will take me awhile, due to funding impairment. I'm just going to finish as fast (or slow) as the $$ is available.

I'm subbing out some HVAC, plumbing rough in, final electrical hookups, plastering and carpeting. Everything else is DIY. Estimated budget is somewhere between $18 - $30K, depending largely on the electronic toys

HT
  • Roughly 14.5 x 21 x 8 feet
  • Room-within-a-room construction - walls/ceilings will be OSB/GG/Drywall and sealed tightly for WAF
  • Separate dedicated HVAC zone - 3 supply's, 1 return - all flex duct hidden in soffits
  • 2 entry doors (one in each wall, hinged on opposite sides)
  • 6 Zone GE, Sconce and can lights mounted in columns & soffits, rope, riser, stage front & back
  • 2 rows of 3 seats, 1st row about 11.5', second at 17.5'
  • 12' DIY AT screen 2.35, 2' from front wall
  • Riser, stage, soffits, treatments, columns, etc. Basically the works. I'll provide more details.
  • Equip room is a separate closet, will use IR Repeater and/or RF
  • Plan for tubes/conduit for all low voltage wiring
  • Have a Denon 4802 AVR, Sony BD, HDDVD, Xbox, and some old Cerwin Vega speakers 5.1 - will buy new or build DIY speakers 7.2. Projector, HDMI switcher, Power Conditioner and other goodies TBD.

Basement Plan

Here's the entire basement plan. I'll zoom on the HT in another posting.



I have everything framed except for the room-within-a-room for the HT. Hope to finish that this weekend.

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
Sponsored Links
Advertisement

post #2 of 225 Old 02-01-2010, 05:40 PM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
I need some help in finalizing my Circuit Plan. I hope to apply for permits in the next few weeks, so please shoot some holes in my design - or just offer some constructive criticism

Basement Circuit Plan

Bathroom/Kitchenette
- 1 20 amp dedicated for vanity light/overhead light/closet light, outlet - GFI breaker
- 1 20 amp dedicated for 5 outlets in kitchenette - GFI breaker
Lobby
- existing circuit, tie basement light into 1 sconce, add 5 outlets
Rec room/Bedroom/closet
- 1 15 amp dedicated for 6 bedroom outlets - AFCI
- 1 15 amp dedicated for 8 rec room outlets - AFCI
- 1 20 amp dedicated for 14 can lights, 3 sconce lights, both on 3 way - AFCI
Main HT
- 1 20 amp for 6 zones of lighting wired to Grafik Eye (7 soffit cans, 6 sconces, rope, riser, 3 stage front, 3 stage rear) - AFCI
- 1 20 amp for outlets (riser 2, columns 6, stage 1, projector box fan 1) - AFCI
Equipment Room
- 1 20 amp for 2 outlets - 1 powerbridged switched outlet for projector & 2 powerbridged switched outlets on stage for subs - AFCI
- 1 20 amp for 3 outlets - AFCI
Storage room east
- 1 20 amp for storage room work bench area - 4 outlets, shop light, Equip room light - GFI

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #3 of 225 Old 02-01-2010, 05:46 PM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
Here's a shot of the future HT, mess not included.



Here's some shelves I built for mess - thanks IndyGreg!!!



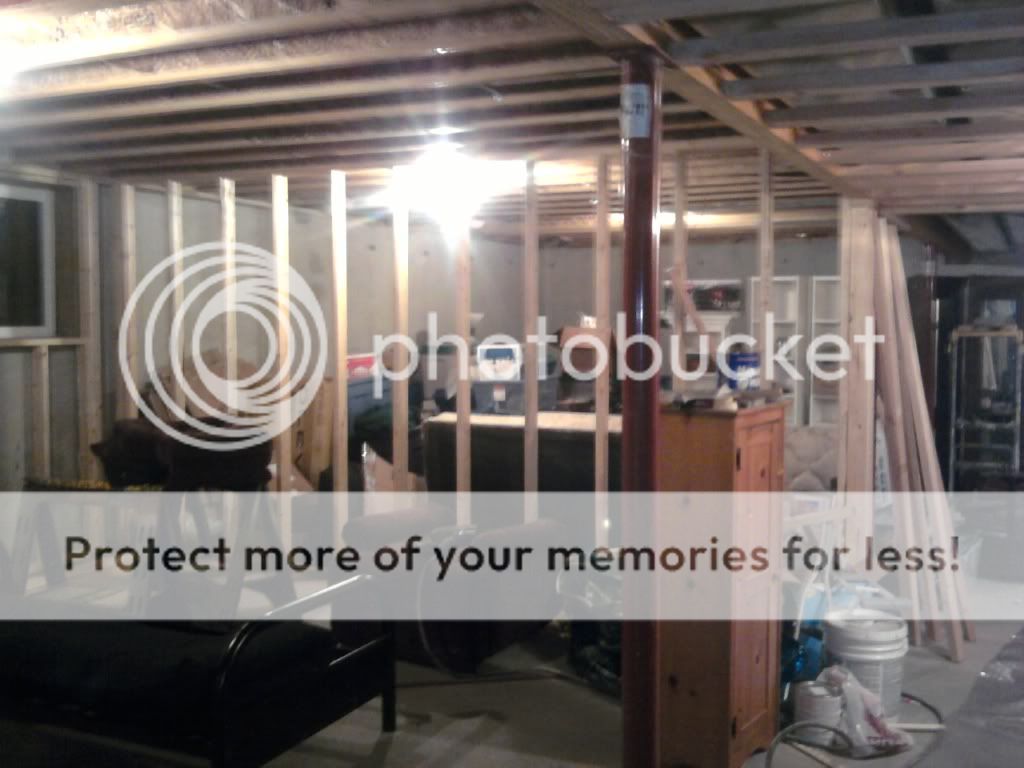

Here's a shot of the HT room - screen wall.



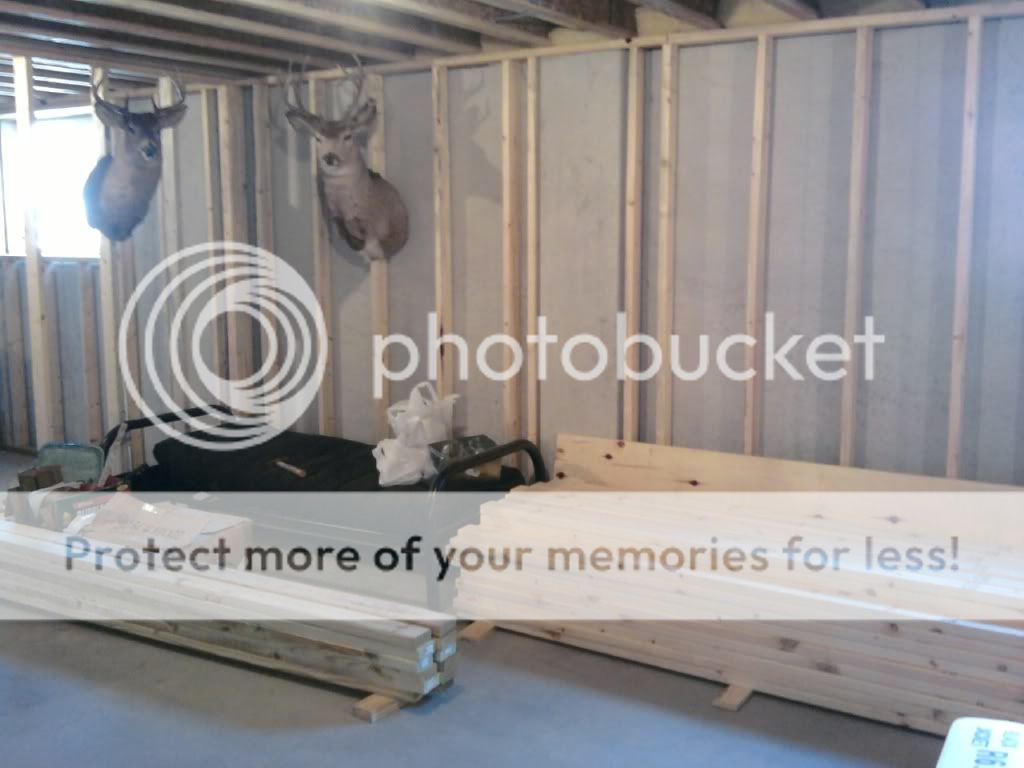

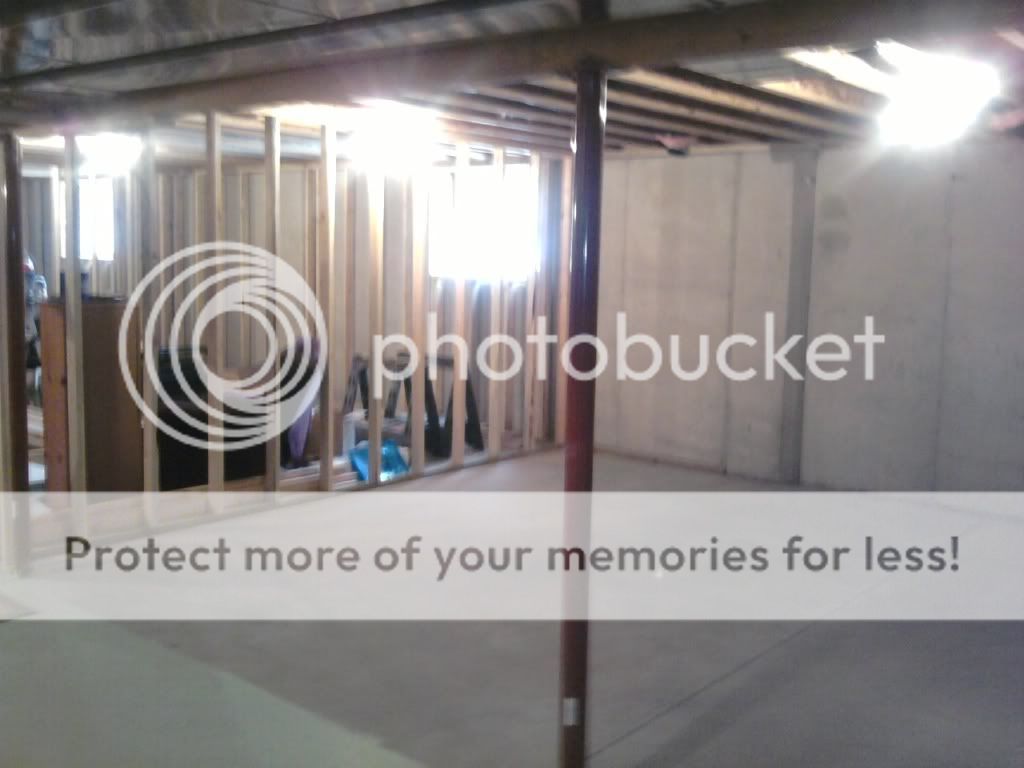

And back wall (rec room wall already framed). Sorry for the bad quality pics - doing these with my cell phone...


~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #4 of 225 Old 02-01-2010, 05:51 PM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
Here's a pic of my future HT, all piled up and ready to go. Please disregard Moe and Larry, they like to get in front of the camera.




I mentioned I didn't have any obstructions - well, mostly true. I will remove this upstairs return and box in the joist span with MDF. I have 2 of these. I will also box in 2 feeds that are in the HT area. Not too serious.



Questions, comments, slams and slurs welcomed!

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #5 of 225 Old 02-01-2010, 06:13 PM
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
What a nice and clean space you have, no HVAC duct mess like mine.

Quote:


Separate dedicated HVAC zone - 3 supply's, 1 return

Not to criticize or anything, just wondering, is that too many supplies? Just talked to Honeywell guy in my office fixing the thermostat today, he said generally you go 1 CFM for per sf of space, a 6" duct will deliver roughly 200 CFM, so if you have 3, that will give you 600 CFM, which almost double the need for the room and if most of your basement is below the grade, you don't need a lot to heat or cool the space.

Keep posting, looking forward to your build.
theWalkinator is offline
post #6 of 225 Old 02-01-2010, 06:33 PM
AVS Special Member

fotto's Avatar

Join Date: Nov 2003
Location: N.E. OH
Posts: 1,869
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 19
Herr Schmidt!

Nice space you've got going there, and it looks like you've done your homework. I have little in the way of constructive advice for you as I don't see any obvious issues. If there was one thing though (that I am running into)you might consider a bit more room behind screen for your speakers/sub. Although 2' seems like a lot at first, it starts getting eaten up pretty quickly with wall treatments, screen wall etc.

Looking forward to seeing your progress.
fotto is offline
post #7 of 225 Old 02-01-2010, 06:40 PM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
Quote:
Originally Posted by theWalkinator View Post

What a nice and clean space you have, no HVAC duct mess like mine.


Not to criticize or anything, just wondering, is that too many supplies?

Thanks tW. Actually the HVAC guys installed the 3 supply's when the house was built, I didn't know they did that until it was too late. But after discussing with them, it may be OK. I told them about my dead vent plan, just dumping the return into a storage room totally isolated from the HVAC, where there will be a return vent into the main return line. He thinks it will take 3 supply's to adequately heat/cool the room with that approach.

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #8 of 225 Old 02-01-2010, 06:44 PM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
Quote:
Originally Posted by fotto View Post

If there was one thing though (that I am running into)you might consider a bit more room behind screen for your speakers/sub. Although 2' seems like a lot at first, it starts getting eaten up pretty quickly with wall treatments, screen wall etc.

Looking forward to seeing your progress.

fotto - Thanks, good advice. I can adjust that part of the plan when I get to it. I thought most guys found 2' was enough, but am open to widening that.

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #9 of 225 Old 02-01-2010, 06:46 PM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
BTW - I've read both of your threads - and gained a great deal of info. You have both done a nice job on your builds so far!!!

No, I don't want to race. Actually I do, but my funding impaired wallet won't let me...

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #10 of 225 Old 02-01-2010, 09:05 PM
Senior Member

bat3329's Avatar

Join Date: Dec 2006
Posts: 300
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Glad to see you are getting started!

I like you're design. Looks like a good plan.

On the electrical, do you have a drawing you could post? If so, can you show the expected loads (i.e. watts) per recessed light, sconce, etc. With that information, you can calculate the circuit loads. This is same thing the inspector will want to see in the plan.

You probably know this already - 15 amps - 1500watts. Most electrical inspectors consider 1200 watts safe operating load on 15 amp circuit. Add up the loads for each 15 amp circuit. If below or equal to 1200watts, you have a winner.

In kitchenette and bathrooms, you must use Ground Fault Interupt circuits or individual outlets that are GFI.

Can't wait to see more!

One can never have enough tools.
Harrods View Theater
bat3329 is offline
post #11 of 225 Old 02-01-2010, 09:15 PM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
Thanks Brett. I don't have my electrical drawing finalized yet - it's still barely legible scribbles and notes. I think I'm pretty safe with all the circuits, but that's why I'm looking for some help. I also may just hire a sub to finalize my design.

The most I'll have on the 14 can light circuit is 75 watt bulbs, so that's still under 1200W if all are lit full on (also plan on dimmers). The HT light circuit is already 20 amps, so I'm good there. And I plan for a GFI circuit breaker for the kitchenette & bathrooms. Only planning for a small size frig and small microwave (<300 Watt), maybe a popcorn maker.

I liked your wiring plan drawing - what software did you use?

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #12 of 225 Old 02-02-2010, 06:47 AM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41

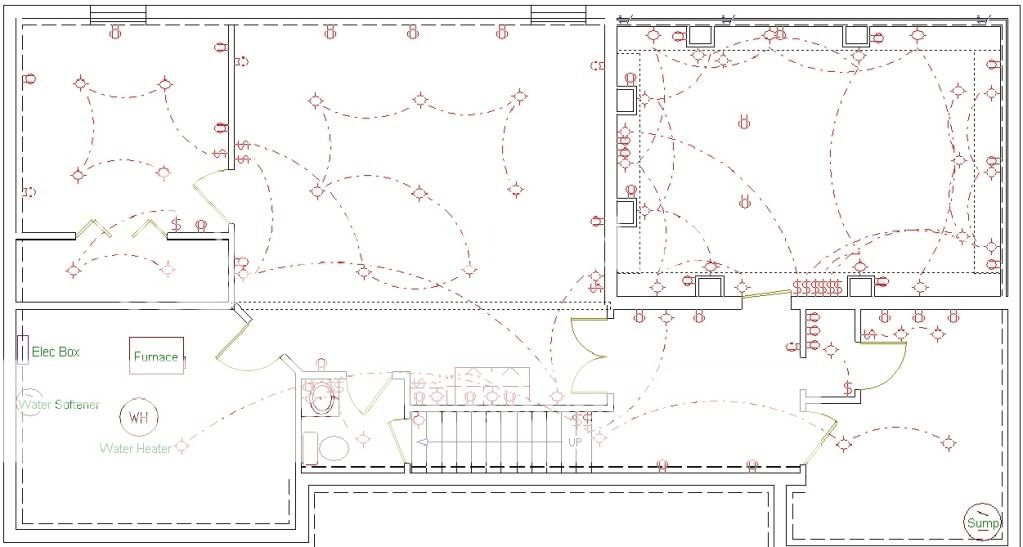

Here is an electrical placement map I drew up from an older version of 3D Home Architect. This shows all outlet and light placement. Now I just need to develop an organized list of all elements on each circuit. I've used this type of diagram in the past with inspectors, and it was fine.

Notice the chaos in the HT...


~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #13 of 225 Old 02-02-2010, 07:11 AM
Senior Member

Fuzzybear50's Avatar

Join Date: Dec 2005
Location: Northwest Indiana
Posts: 491
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Looks like an aggressive and interesting build. I am doing the same thing with similar dimensions, (HT 21x15 and basement around 1700 sqft.) I have stalled a bit with the electrical rough in and other house issues but I am getting back on track.
What is your electrical supply plan? You going to run a sub panel off your main? At first glance, I was thinking you might have planned too many 20 amp breakers but I could be wrong.

Beer is the answer! What is the question?
Fuzzybear50 is offline
post #14 of 225 Old 02-02-2010, 07:14 AM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Bill, have you thought about flipping the HT room so that when you open the door you don't walk directly into a chair? Having the door open into the room between the stage and chairs is much more inviting and won't block the aisle!

Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
post #15 of 225 Old 02-02-2010, 07:29 AM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41

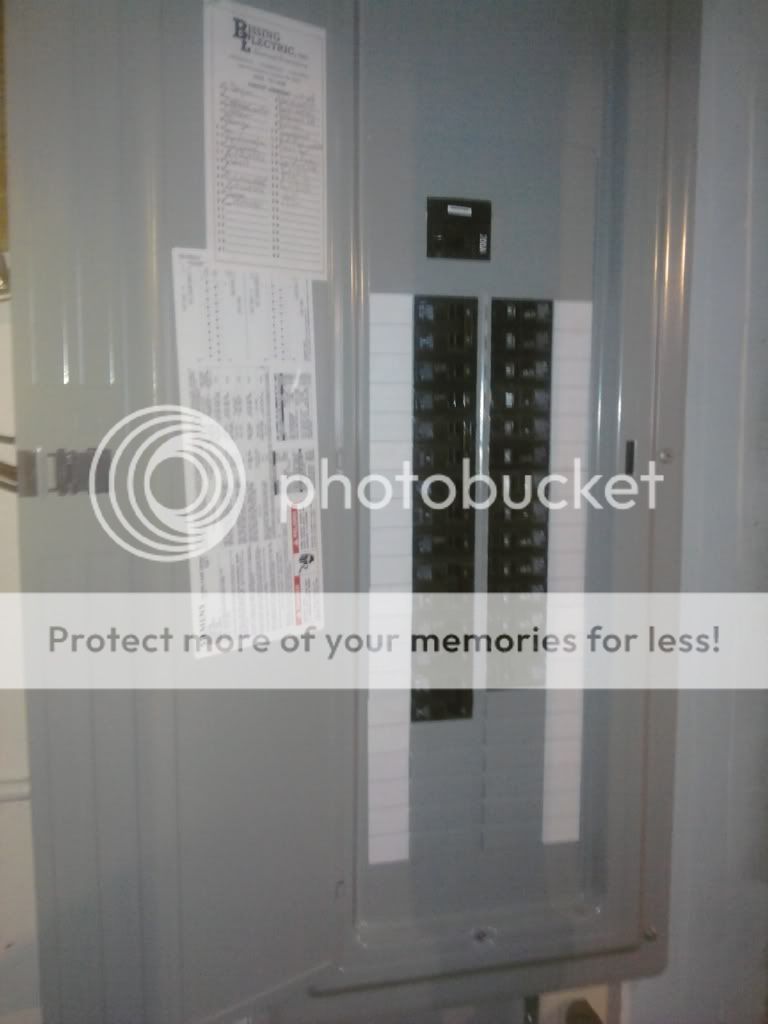

fB50, I have 200 amp service and a 40 slot breaker box, with 11 open slots. I had the builder put this beast in when I designed the basement, with the HT in mind of course.



Do you have a build thread? Sounds like you have a sizable project on your hands also.

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #16 of 225 Old 02-02-2010, 07:33 AM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
Quote:
Originally Posted by In2Photos View Post

Bill, have you thought about flipping the HT room so that when you open the door you don't walk directly into a chair? Having the door open into the room between the stage and chairs is much more inviting and won't block the aisle!

Great observation! My original plan had the room reversed, but there are some joists on the outside (right) that run perpendicular to the main joists, about 3' out. It's for an upstairs bath that sticks out a couple feet outside the foundation. So I'll need to lower my new isolated HT ceiling joists down about 6 inches to get joists in there, effectively lowering the ceiling.

Decided to have that 6 inch lowered ceiling as part of the stage instead of the riser. It will fit right in with the stage. Here's a pic to give you a better idea.


~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #17 of 225 Old 02-02-2010, 07:38 AM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
I also modified my circuit plan based on some input from here. Great site if anyone needs input from professionals.

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #18 of 225 Old 02-02-2010, 08:32 AM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41

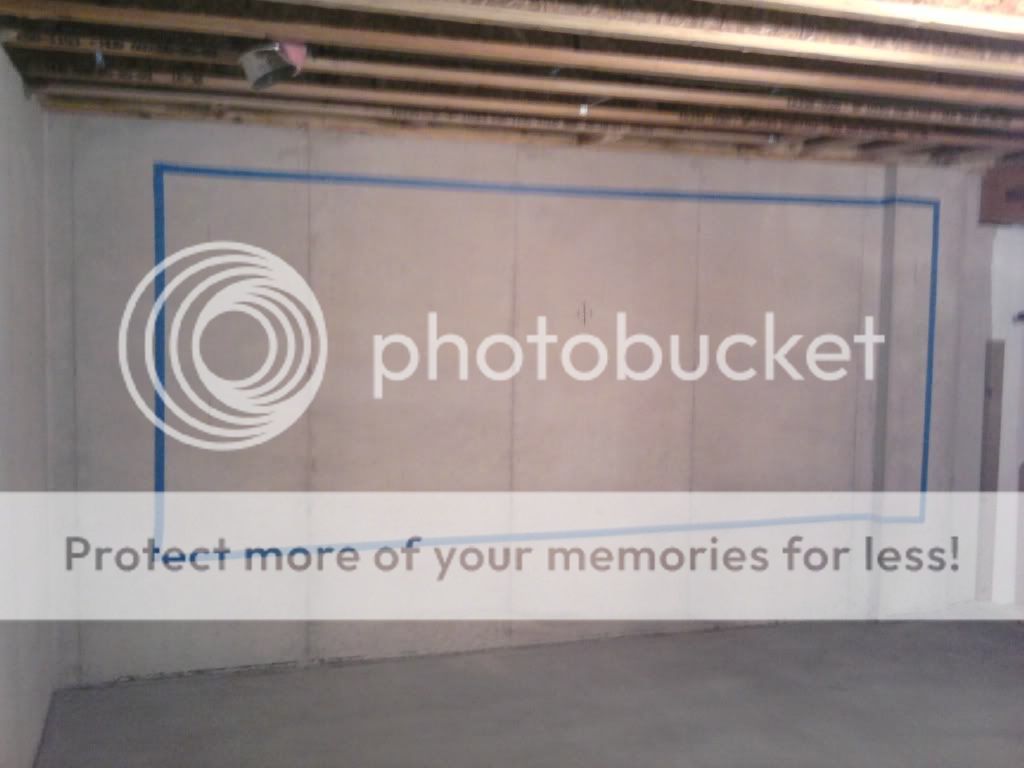

More updates from this past weekend. Here's a pic of my (hopeful) 12' screen mocked up in the obligatory blue tape.



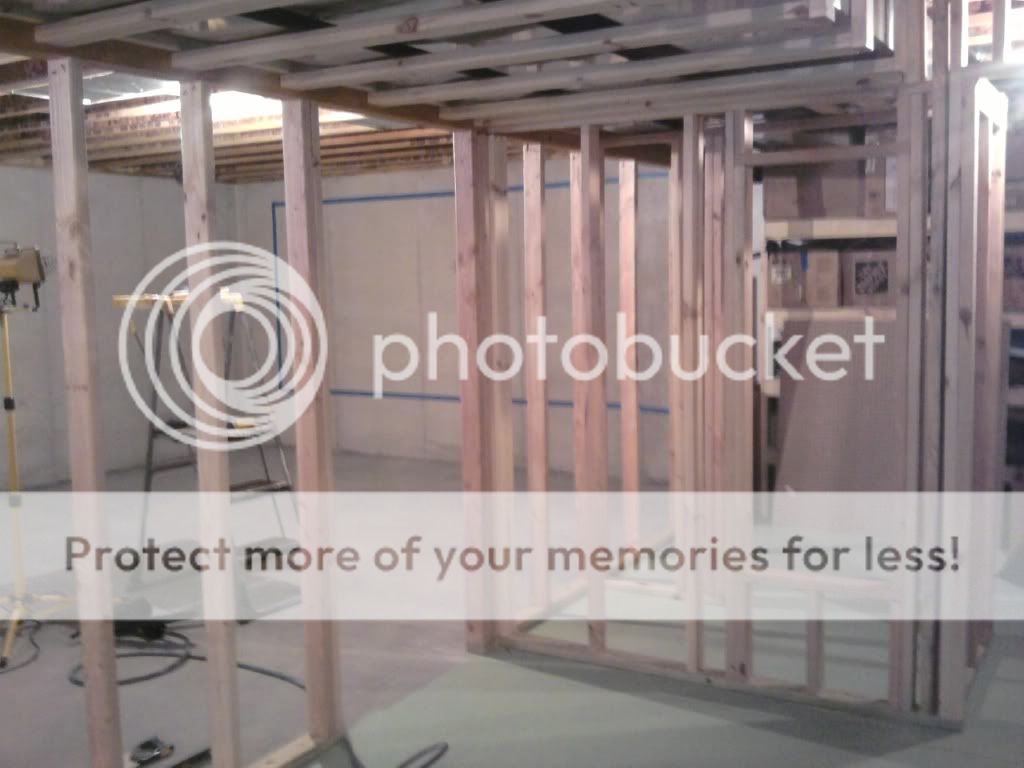

And here's the framed up outside wall & HT entrance door, with the equipment closet. I really need to buy a decent camera...


~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #19 of 225 Old 02-02-2010, 09:35 AM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41

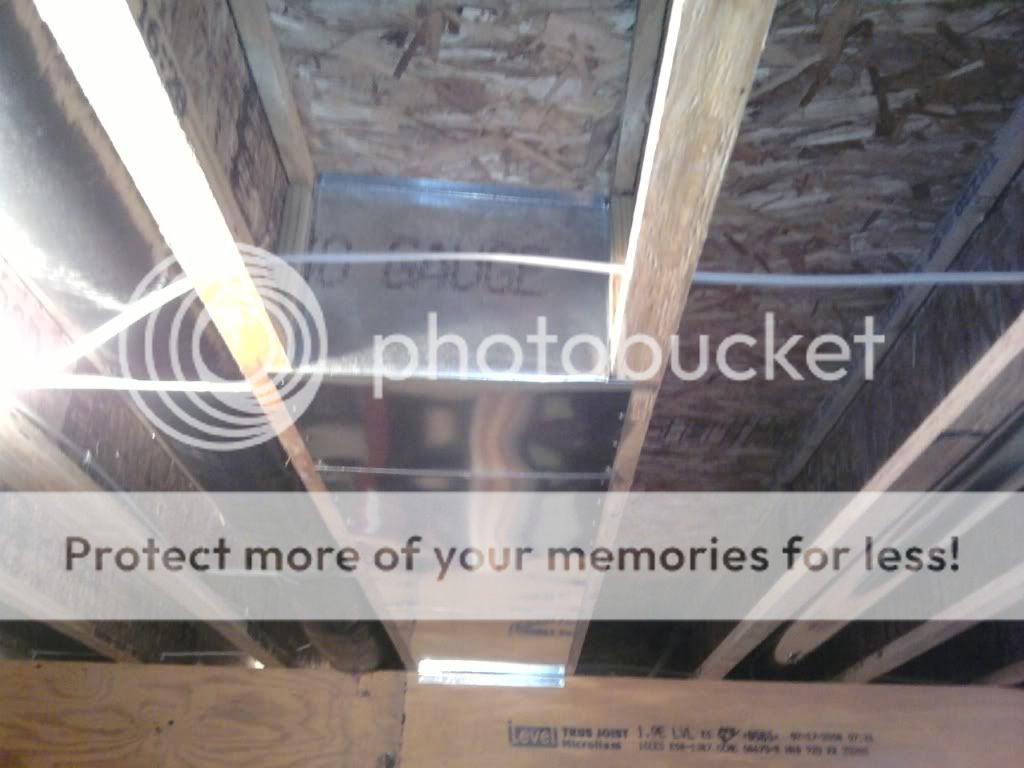

In case you're wondering, it's 82" under the main beam. And I plan to install Drycore, so I'll need to shave the door down to fit.

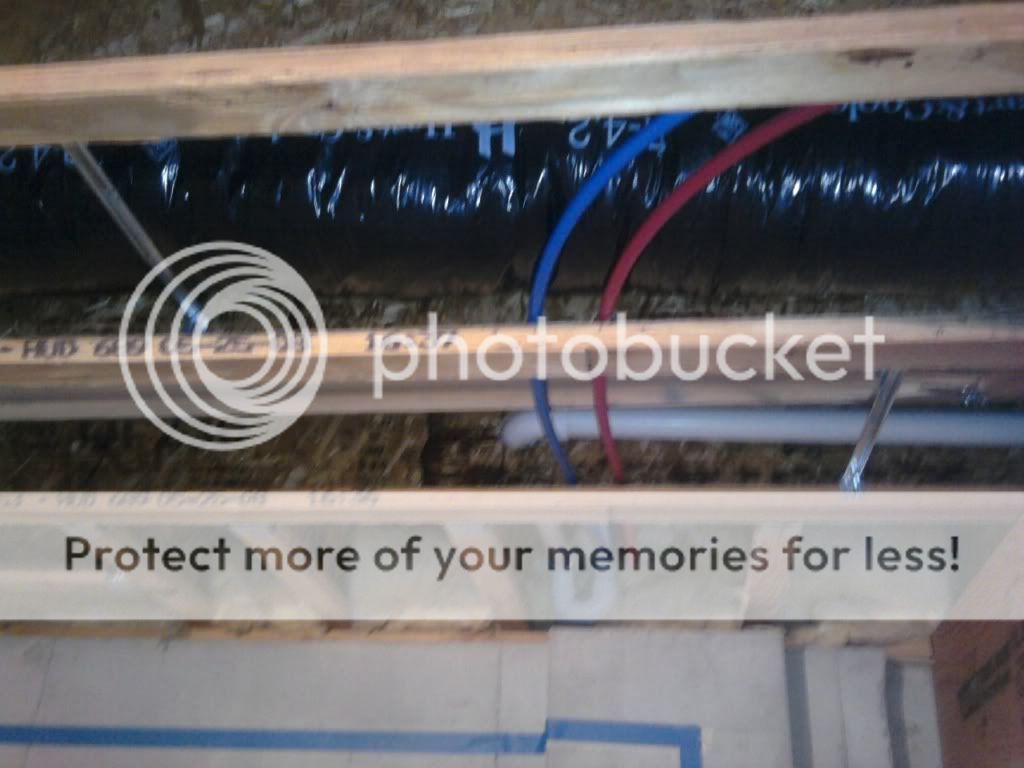

All ductwork was installed on that side of the beam, so I have 4 doors to shave down a bit. Trim may be a bit short, but I can live with that (stupid me didn't go with 9' walls...)

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #20 of 225 Old 02-02-2010, 09:39 AM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by schmidtwi View Post

Great observation! My original plan had the room reversed, but there are some joists on the outside (right) that run perpendicular to the main joists, about 3' out. It's for an upstairs bath that sticks out a couple feet outside the foundation. So I'll need to lower my new isolated HT ceiling joists down about 6 inches to get joists in there, effectively lowering the ceiling.

Decided to have that 6 inch lowered ceiling as part of the stage instead of the riser. It will fit right in with the stage. Here's a pic to give you a better idea.


It's still hard to tell exactly what is going on here, but I'll take your word for it. Sounds like you have thought things over!

Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
post #21 of 225 Old 02-02-2010, 09:44 AM
Senior Member

3fingerbrown's Avatar

Join Date: Aug 2009
Posts: 323
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Are those can lights on your electrical map? If so, you may want to consider wall sconces for sound isolation reasons. and you could easily make the walls a staggered stud construction as well.
3fingerbrown is offline
post #22 of 225 Old 02-02-2010, 10:09 AM
Senior Member

bat3329's Avatar

Join Date: Dec 2006
Posts: 300
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by schmidtwi View Post


I liked your wiring plan drawing - what software did you use?

Thanks. I used Microsoft Visio. You could also do it in Powerpoint, but you'll curse it vs. Visio. Visio has electrical stencils that make it easier. I think I paid $150 for Visio, but I use it all the time, so it was worth the $. You can scan your floorplan and embedd that into the Visio document then add your electrical symbols and circuits.

A lower cost alternative:
Make copies of your floor plan and use colored pencils to illustrate your wiring plan. I did this once, I found it was a good technique for smaller jobs. The inspector accepted it too. Problem is you will need to scan in color and print in color to make copies. This process sometimes breaks down in color quality, so use colors that offer distinct contrasts. So Visio is the better option for me going forward.

One can never have enough tools.
Harrods View Theater
bat3329 is offline
post #23 of 225 Old 02-02-2010, 10:12 AM
Senior Member

bat3329's Avatar

Join Date: Dec 2006
Posts: 300
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by In2Photos View Post

Bill, have you thought about flipping the HT room so that when you open the door you don't walk directly into a chair? Having the door open into the room between the stage and chairs is much more inviting and won't block the aisle!

+1 on this comment. I didn't pick that up late last night from the drawing. Definitely agree though with In2Photos' suggestion.


One can never have enough tools.
Harrods View Theater
bat3329 is offline
post #24 of 225 Old 02-02-2010, 11:04 AM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
Quote:
Originally Posted by bat3329 View Post

+1 on this comment. I didn't pick that up late last night from the drawing. Definitely agree though with In2Photos' suggestion.


I just measured the perpendicular joists, and it will require about 18 inches into the room where the ceiling will be 6 inches lower with my new joists underneath (not sure why I thought it was 3 feet in). I'll be framing that this week, so will post when I complete.

But now you guys got me thinking about going with my original plan and flipping the room. That's what I like about this forum - great ideas and tons of good info.

I need to think about this, but it's still early enough that I can adjust as necessary. With 18 inches of lower ceiling, my soffit in back could just match that width, and I can build my projector box under that. My concern would be keeping the projector high enough.

Since no one will walk near the back wall, it will not impact height restrictions. Plus, I could also run my HVAC return into the riser, instead of in a column. Hmmmmmmm......

I'll post pics after I finish the RWIAR, and have time to ponder this some more.

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #25 of 225 Old 02-02-2010, 11:16 AM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by schmidtwi View Post

I just measured the perpendicular joists, and it will require about 18 inches into the room where the ceiling will be 6 inches lower with my new joists underneath (not sure why I thought it was 3 feet in). I'll be framing that this week, so will post when I complete.

But now you guys got me thinking about going with my original plan and flipping the room. That's what I like about this forum - great ideas and tons of good info.

I need to think about this, but it's still early enough that I can adjust as necessary. With 18 inches of lower ceiling, my soffit in back could just match that width, and I can build my projector box under that. My concern would be keeping the projector high enough.

Since no one will walk near the back wall, it will not impact height restrictions. Plus, I could also run my HVAC return into the riser, instead of in a column. Hmmmmmmm......

I'll post pics after I finish the RWIAR, and have time to ponder this some more.

Sounds to me like you have made up your mind! Based on those points I see a lot of reasons to flip it, but only one for keeping it as is (height for PJ). Since the PJ should be placed no higher than the top of the screen I'm thinking this will not be an issue. Time to flip it and post some new drawings! You also may need to move the door some, slightly toward the screen wall so that your columns are placed properly.

Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
post #26 of 225 Old 02-02-2010, 11:16 AM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
Quote:
Originally Posted by 3fingerbrown View Post

Are those can lights on your electrical map? If so, you may want to consider wall sconces for sound isolation reasons. and you could easily make the walls a staggered stud construction as well.

3fingerbrown - Thanks for the input. All can lights will be built into the soffit, and the sconces will be built into the columns.

My priority is sound isolation - my previous theater was a sound disaster. And I like loud, not suitable for WAF.

I decided to go the RWIAR route, sacrificiing a few inches in length/width - a good tradeoff in my estimation. This room will be completely isolated and airtight. The only holes in this aquarium will be the doors, wiring and HVAC, where I'll take as much precaution as I can and caulk everything - and I'm going with 2 doors, one in each wall.

No outlets or light fixtures will penetrate the base walls. I even plan to build a 2x2 front stage halfwall for the sub outlets. Maybe overboard, but better doing it right while I can.

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #27 of 225 Old 02-02-2010, 11:20 AM
AVS Club Gold

Mike_WI's Avatar

Join Date: Mar 2008
Location: SE Wisconsin
Posts: 2,512
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Your thread is off to a roaring start.
I'll try to throw out my comments as I get a chance.
Looks nice.

Mike
Mike_WI is offline
post #28 of 225 Old 02-02-2010, 11:21 AM - Thread Starter
Advanced Member

schmidtwi's Avatar

Join Date: Jan 2004
Location: Neenah, WI
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 41
Quote:
Originally Posted by In2Photos View Post

Sounds to me like you have made up your mind! Based on those points I see a lot of reasons to flip it, but only one for keeping it as is (height for PJ). Since the PJ should be placed no higher than the top of the screen I'm thinking this will not be an issue. Time to flip it and post some new drawings! You also may need to move the door some, slightly toward the screen wall so that your columns are placed properly.

Thanks Mike, you're making extra work for me...

~~~~~~~~~~~~~~~~~~~~~~

The Schmidt Haus Theater - WIP (or not) since 2010
schmidtwi is offline
post #29 of 225 Old 02-02-2010, 11:24 AM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Bill, I have an idea that may save you some headroom along that back wall. You say that you need to put a new joist in that last cavity (the 18" one). Why? Since you are only hanging drywall off of that joist there is no reason that you can't go 24" on that span ( or it may even be less if you go just inside the first cavity without the perpendicular joists in the way). If you use a double top plate on the wall, make the top one a 2x6 to give you something to screw your drywall to. Make sense? I can try to draw it for you if needed.

Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
post #30 of 225 Old 02-02-2010, 11:25 AM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by schmidtwi View Post

Thanks Mike, you're making extra work for me...

Sorry! But in the long run I think you will be happier!

Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
Reply Dedicated Theater Design & Construction

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
