I finished running the ductwork for the hushbox today and specd out the ducting for the rack. The ducting worked out pretty well and simpler than i thought it would be......
Now i need to run the ducts for the rack and play with the PID controller to see how it works. Once i got a grip on that ill order the fans and hook it all up.
Sorry about the crappy iphone pics:

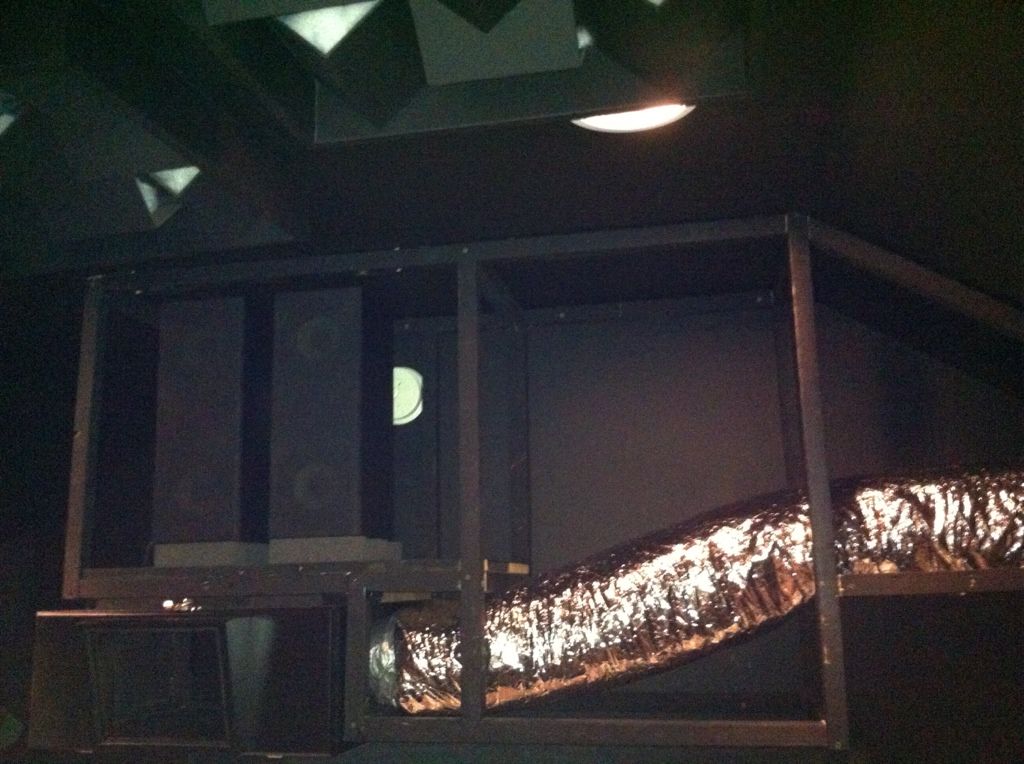

Here is a shot of the duct and conduit running to hush box:

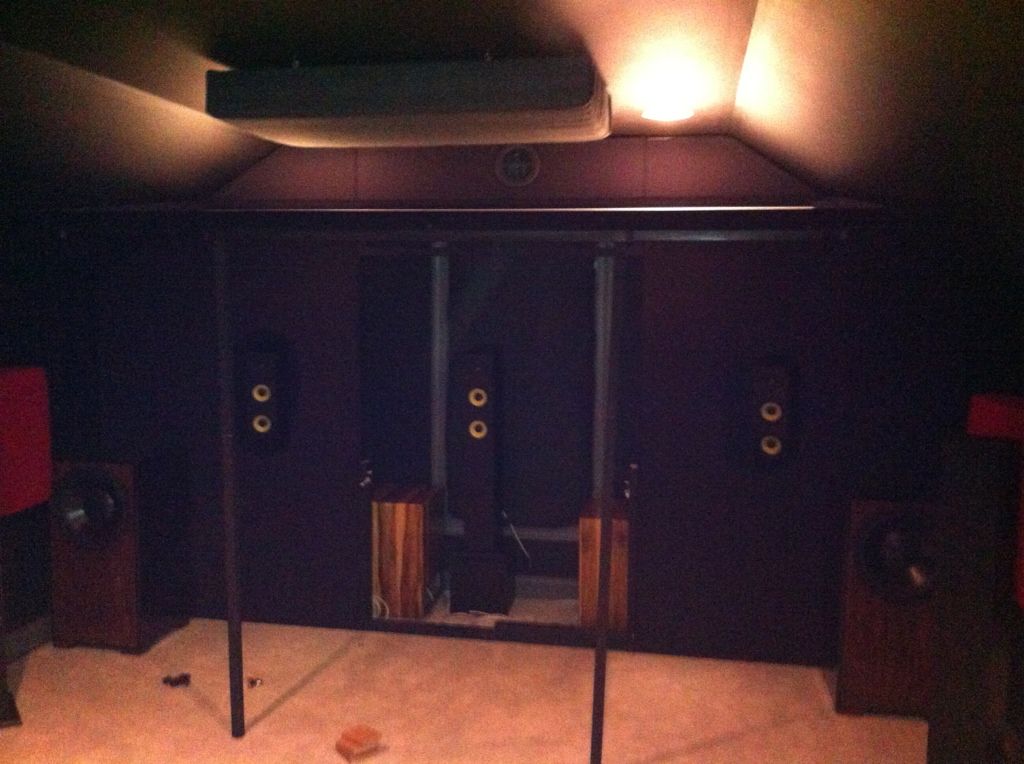

While i was up there working i wanted to reposition my subs, move and re-angle the mains so I took a quick shot with the "Hood Popped" smile.gif
I also repositioned seating.
Bad part: Now i gotta recalibrate and EQ the subs over......

Looking very nice, Nicholas!!

You may be addressing this in your attic ductwork, but do you have a return line going into your hush box? I may not have the term correct, but you need hot air (pull) and cold air (return), right? I only see one line.

Also, quick question of the glass mount. How are you securing it to the frame?

Java
Java is offline
post #363 of 649 Old 10-22-2012, 05:43 AM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,631
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked: 141
Quote:
Originally Posted by Java View Post

Looking very nice, Nicholas!!

You may be addressing this in your attic ductwork, but do you have a return line going into your hush box? I may not have the term correct, but you need hot air (pull) and cold air (return), right? I only see one line.

Also, quick question of the glass mount. How are you securing it to the frame?

Java



Hi Java,



Thanks, it is coming together pretty well.



The projector box is mounted to a shared wall with the stairwell.  The hush box has a short duct in the back that sticks through the wall back wall of theater into stairwell.  This is the cool "supply" and the duct you see leading away from box is the "return" which leads to fan in attic.



I'm not sure yet on the attachment of the glass.  I always thought I would "glaze" it into the frame with silicone or something.  I could put an applique on the outside if the glazing was too hideous.  Any ideas?

NicksHitachi is online now
post #364 of 649 Old 10-22-2012, 06:03 AM
Senior Member

Java's Avatar

Join Date: Mar 2002
Posts: 493
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
I was thinking along the lines you were until I saw Dennis' comment on perminently mounting the glass in the projection glass thread: http://www.avsforum.com/t/1434061/projection-glass-optiwhite-vs-edmund-optics#post_22504033
Quote:
External frame for the glass .... good idea. Gluing the external frame--bad idea.
You want to be able to remove the frame and glass easily so you can:

1. Clean the glass front and back (finger prints/dust)
2. Easily replace the glass after you break it.
3. Easily get to the front of the anamorphic lens, the slide, and the projector lens for maintenance, adjustment, focus, cleaning, etc.

Maybe a silicone seal isn't too bad because you can "re-pane" it if needed. Any other option I can think of that isn't sealed, would kind of negate the sound damping benefits.
Java is offline
post #365 of 649 Old 10-22-2012, 06:11 AM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,631
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked: 141
Good point, i think having the flip down front might address most of those concerns, but IDK.

I hope Dennis posts back there there were a few questions still unanswered.
NicksHitachi is online now
post #366 of 649 Old 10-22-2012, 05:52 PM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,631
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked: 141
Fans came in today, so got them prepped:

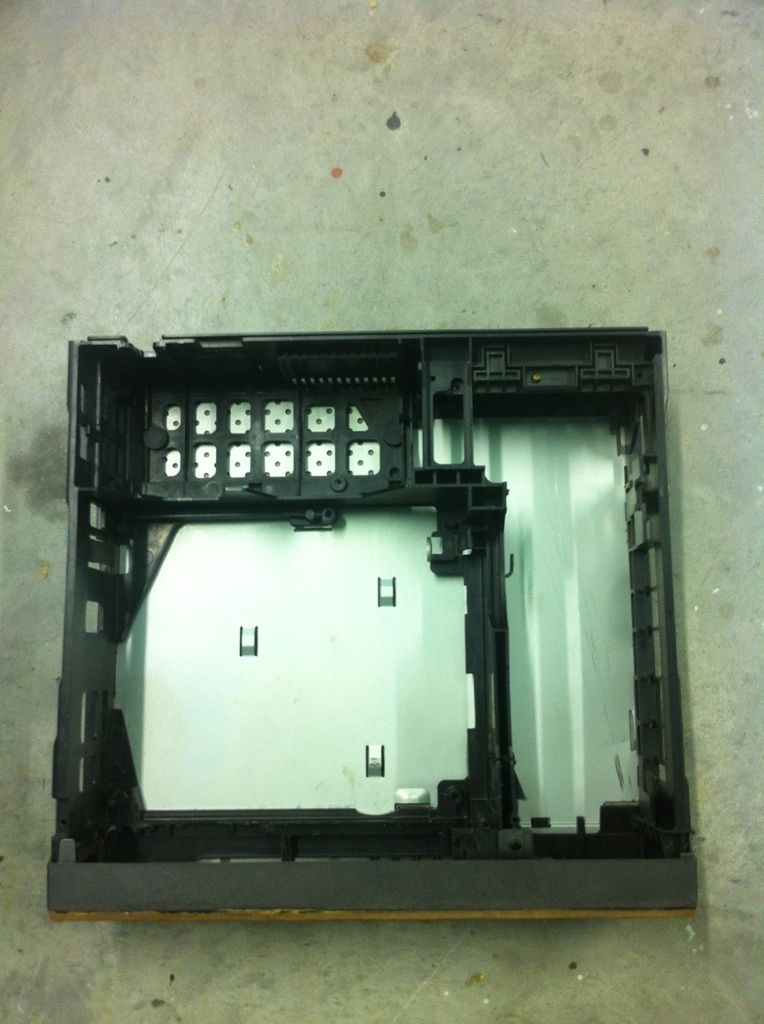

Heres a couple shots of the VCR chassis coming along....
