post #631 of 649 Old 06-25-2014, 04:51 PM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,550
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked: 124
Moar Pics:











Attached Images
File Type: jpg 100_2379.jpg (71.8 KB, 229 views)
File Type: jpg 100_2380.jpg (78.5 KB, 228 views)
File Type: jpg 100_2381.jpg (179.4 KB, 228 views)
File Type: jpg 100_2382.jpg (76.0 KB, 229 views)
File Type: jpg 100_2383.jpg (71.5 KB, 226 views)
File Type: jpg 100_2384.jpg (163.0 KB, 229 views)
BllDo likes this.
NicksHitachi is offline
Sponsored Links
Advertisement

post #632 of 649 Old 06-27-2014, 10:39 AM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,550
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked: 124
Help!
Attached Images
File Type: jpg image.jpg (298.9 KB, 30 views)
NicksHitachi is offline
post #633 of 649 Old 06-27-2014, 10:57 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked: 254
Quote:
Originally Posted by NicksHitachi View Post
Help!
Oooh, Oooh! I see it. It's either the red CAT cable or the gray power wire that's the problem!

Acoustic treatments look good!

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is online now
post #634 of 649 Old 06-27-2014, 11:13 AM
Advanced Member

KNKKNK's Avatar

Join Date: Feb 2009
Location: AZ
Posts: 868
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked: 76
If time starts running out... Cut the green wire with the red stripe.. or was it the red wire with the green stripe......

My Basement HT Construction ~ Faster than the speed of Dark

"I've cut that piece 3 times and its still too short..."
KNKKNK is offline
post #635 of 649 Old 06-27-2014, 11:56 AM
AnalysisParalysis Analyst

TMcG's Avatar

Join Date: Mar 2010
Location: North Carolina
Posts: 2,625
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 216 Post(s)
Liked: 279
TMcG is offline
post #636 of 649 Old 06-27-2014, 12:09 PM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,550
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked: 124
Bahaha it wasnt THAT BAD before i tore out all the equipment...

Sometimes you gotta tear something up to make it better!
NicksHitachi is offline
post #637 of 649 Old 06-27-2014, 12:12 PM
AVS Special Member

doublewing11's Avatar

Join Date: Feb 2010
Location: Timber Country!
Posts: 3,744
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked: 299
Quote:
Originally Posted by TMcG View Post


+ MicrobrewS for TMcG =



Maybe I should start drinking..............wished my cable system looked like that!
doublewing11 is offline
post #638 of 649 Old 07-15-2014, 05:15 AM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,550
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked: 124
Workingman's theater is still broke down....

While rack was torn out I decided to do it right when I put it back together. I ordered standard rack rails, shelving, and other parts to make rack standard. Since so much of my gear is becoming pro gear with rack mount ears it just started to make more sense, not to mention it should look better and perform better also.





I also ordered a rack mount box which I'll be mounting my minidsp into along with xlr panel mount jacks to make it a tidy box that will also mount in the rack. In case your not familiar the cables have to be stripped and converted to phoenix connectors and that makes for a messy setup IMO without mounting in a box. This will be a fun project I think, I've only seen a couple other people do this and look forward to trying my hand at it. I got the box 2U tall so I can fit another minidsp in there if(when) I need more dsp capability.

Also I found a really cheap source for rack stuff. I haven't received the stuff yet so I'll hold back from a recommendation just yet, but their prices and shipping were extremely good. Here is the box I got to mount the minidsp into:



The door and trim for the rack is complete minus glass installed I'll get some pics of that within a few days and hopefully get glass installed also. I'm hoping to get rack back together within a week or two and then start on my surround speaker build:


Last edited by NicksHitachi; 07-15-2014 at 05:20 AM.
NicksHitachi is offline
post #639 of 649 Old 07-15-2014, 05:57 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked: 254
I'm anxious to hear what you think about those surrounds! I'm considering those as well.

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is online now
post #640 of 649 Old 07-15-2014, 07:04 AM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 22,408
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked: 776
Nick,

Why the coax instead of the waveguide for surround ?

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is online now
post #641 of 649 Old 07-15-2014, 07:25 AM
Advanced Member

Bassment's Avatar

Join Date: Aug 2013
Location: Ontario, Canada
Posts: 706
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Liked: 128
Awesome theater. I'm stealing your landscaping fabric idea for the acoustic panels! I was looking for something cheap to cover the backs of the insulation with, that is perfect

Also really cool diffusor's you built.
Bassment is offline
post #642 of 649 Old 07-15-2014, 09:45 AM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,550
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked: 124
Quote:
Originally Posted by Mfusick View Post
Nick,

Why the coax instead of the waveguide for surround ?
Form factor is one major reason. AFA performance, center to center distance of the woofer and compression tweeter is 0 so that avoids phase shift for listening positions off axis. IOW when listening on axis to a 2way it should sum nicely for a flat response but as you move further below the vertical axis the speaker the distance to the waveguide gets longer than the distance to the woofer causing phase issues and nulls at crossover unless the speaker is designed that way. For coaxials the center to center is always 0 since they coincide.

It has to do with time alignment of the drivers and the forward lobe of the speaker. Sometimes speaker designers will say the forward lobe tilts slightly downward, that means slightly below on axis the drivers are perfectly time aligned and in-phase. Upward obviously means the opposite.

This comes up a lot when measuring speakers, the exact axis to measure the speaker determines summation at crossover. If you were sitting extremely off axis on a two way with waveguide, you might even find the frequency response to be flatter if you inverted polarity on one of the two drivers, they might actually time align better.

Thats the short answer.....

Quote:
Originally Posted by Bassment View Post
Awesome theater. I'm stealing your landscaping fabric idea for the acoustic panels! I was looking for something cheap to cover the backs of the insulation with, that is perfect

Also really cool diffusor's you built.
Thanks! Go for it! No patents here....
NicksHitachi is offline
post #643 of 649 Old 07-15-2014, 01:15 PM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 22,408
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked: 776
The polarity on my FUSION 8's are reversed (tweeter from woofer) and I always thought the tweeter being set farther back in the cabinet with the wave guide in front corrected the time issues ?

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is online now
post #644 of 649 Old 07-15-2014, 01:41 PM
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,760
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked: 194
Often, Mike, that's true - but it depends on the phase shifts caused by the crossover. Different filter types have different phase behavior.
HopefulFred is online now
post #645 of 649 Old 07-22-2014, 04:30 AM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,550
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked: 124
Mounted Minidsp in Rack Box:










Here is how i handled grounding the shield(pin1) on each input and output:

One short jumper wire from pin1 to body pin.





DIY Rack Mount Minidsp Balanced 2x4 Enclosure

Now I can finish the rack. The rack rails are in and several shelves mounted. Now just need to mount pro gear, install glass in door, and hook it all back up.....

The on to speaker building!!!! Woot!
NicksHitachi is offline
post #646 of 649 Old 07-24-2014, 07:10 AM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,550
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked: 124
So I guess I can add running one or two more 30A lines to my theater to-do list.... I contacted my electrician today for options.

I found a deal too good to pass on for two more EP2500s

I'm gonna use the two new EP2500s for the mains(3 of 4 channels). My mains stay just under full excursion with 450W with a LR-4 in place at 80Hz. I'll never probably need that power but its good to have too much than too little.

The fourth channel i'll run to the Maelstrom 21. I want to pull it out of the wall(IB) and make a box for it to go up front in the middle front of the screen. The IB tansmits too much energy to the structure in its current baffled installation. If I had another and could install them opposed that would be an awesome option but they are NLA. One channel of the EP2500 will be significantly anemic for that driver in any reasonably sized enclosure but I don't want to put too much power through it as it was one of those "Vegas Subs" that Kevin Haskins liquidated super cheap which most likely has the epoxy problem on the shorting ring. If you heat up the motor too much the shorting ring might come loose and start rattling around in the motor.

The other two EP4000s I'm using to run my sealed MFWs(X8).
NicksHitachi is offline
post #647 of 649 Old 08-10-2014, 01:22 PM - Thread Starter
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,550
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked: 124

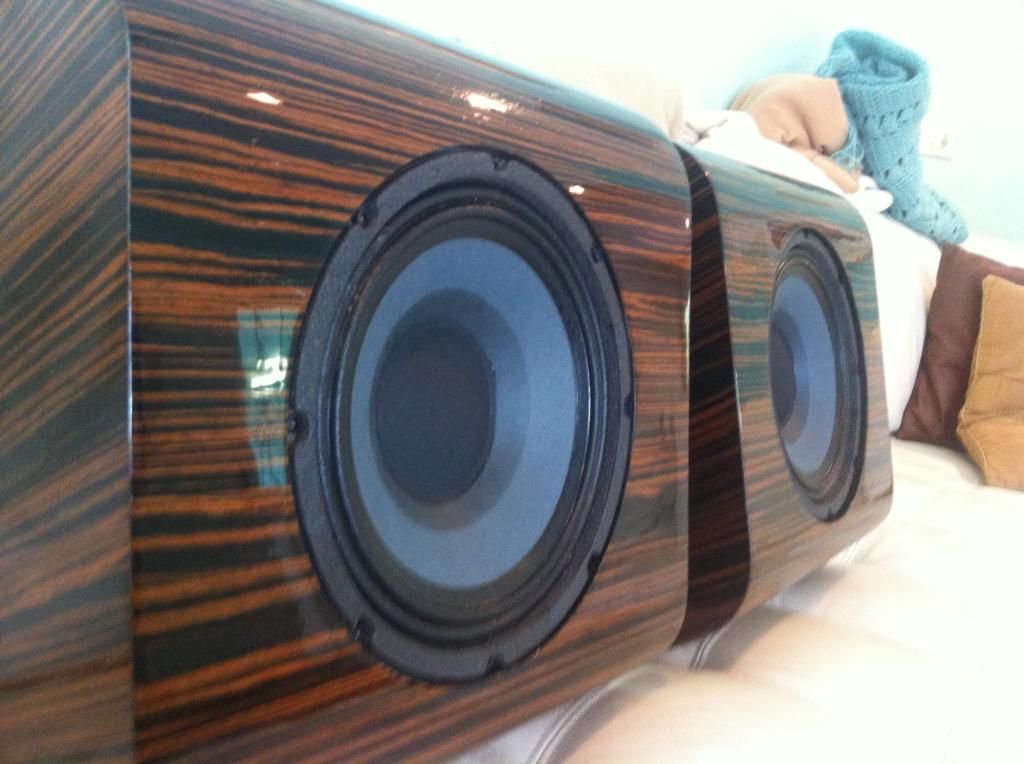

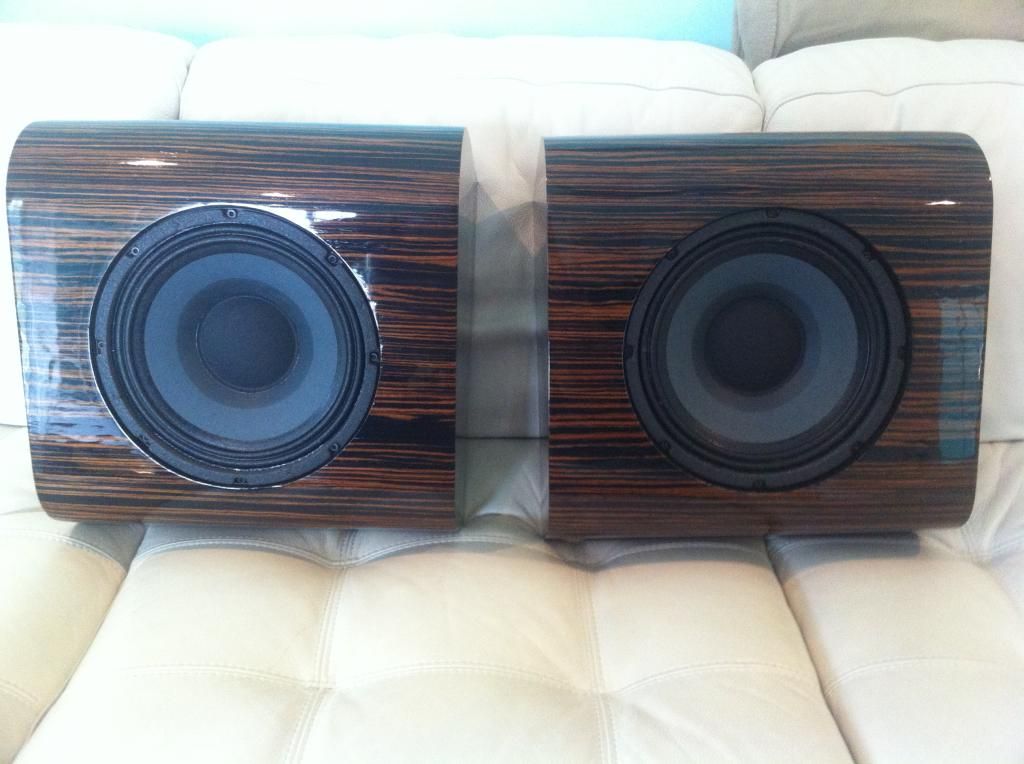

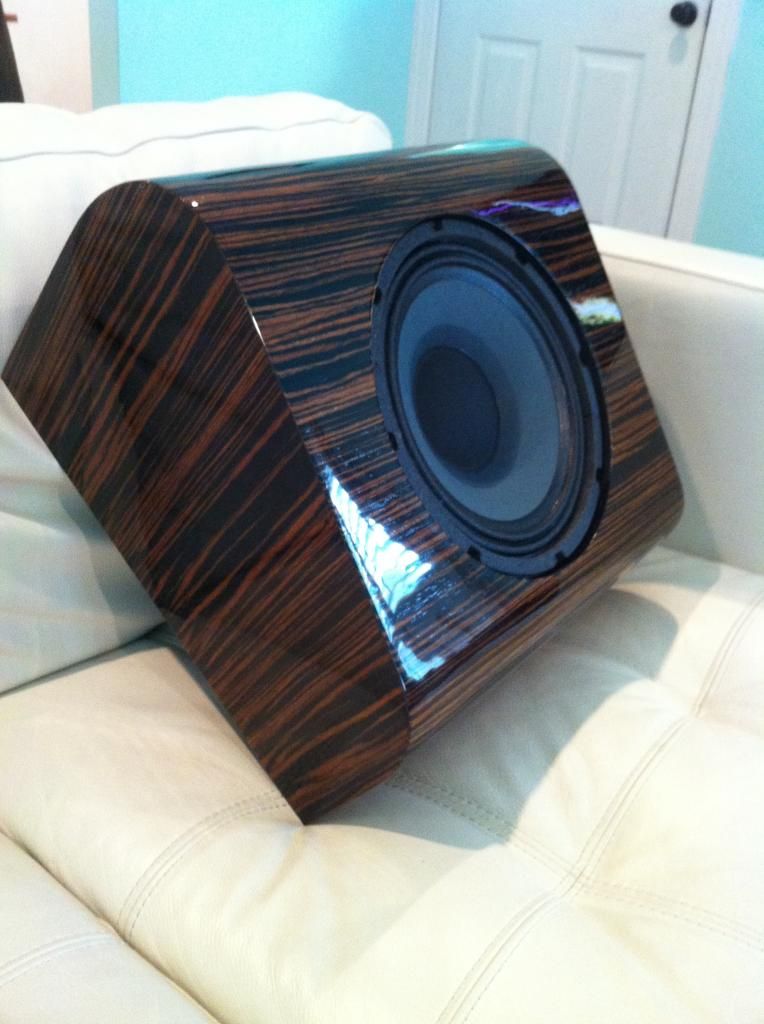

Got a build thread going in the DIY speakers forum for my Volt-10s finally....

Check it out!

Get Bent With A Curvy Volt-10
NicksHitachi is offline
post #648 of 649 Old Yesterday, 08:34 PM
Member

seanh1978's Avatar

Join Date: Nov 2011
Posts: 37
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Not sure if this the right place but here goes

I bought some wall plates with speaker binding posts and I can't seem to get sound now. I've tried banana into the front and out of the back of the plate as well as bare wire out of the back of the plate. No sound at all, any ideas ?
seanh1978 is offline
post #649 of 649 Old Yesterday, 08:43 PM
Advanced Member

NODES's Avatar

Join Date: Sep 2007
Posts: 526
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 34
I applaud you for the cable management...you sir are clean.
NODES is offline
