Wow, my own dedicated theater build thread. In my head I hear the voice of Adam Sandler screaming "They're All Gonna Laugh at You!!", but I'll share
anyway and hopefully learn from your constructive criticism along the way.

This is something I have wanted to do since I moved into my place 8 years ago, but am just now getting around to doing it. I live in a condo, so I don't
have as much space to work with as some of you do on here. I do not plan on living in this place for the rest of my life, that said...I will try to make
the room be able to easily convert to a bedroom if/when (you never know with this economy) we go to sell. The room will be approximately 16'3 x 14'3 x 7'8. I have neighbors living on both sides of me, sound reduction (proofing) is high on my list. I do plan on using clips, channels, insulation, gg, dd, etc.
I am working on a limited budget, so I have come to the conclusion that I will have to cut corners in different areas. This means no super cool carpet,
or elaborate ge setup.

If/when I move to the "final home for me", I would like to think that I would jump at the chance to have a professional design and build my next home
theater. So...Dennis, please don't retire until I get that home and you build me my dream theater.

The WAF was zero on a stage, riser, and false wall due to us planing on selling at some point in the future. I'll have to figure out how to build a stand for the screen instead of a false wall. I am planning on having only one row, so not having a riser "should" not be problem.

Thank you for reading, more info to come.
Jon_B is offline
Sponsored Links
Advertisement

post #2 of 45 Old 10-01-2010, 01:28 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

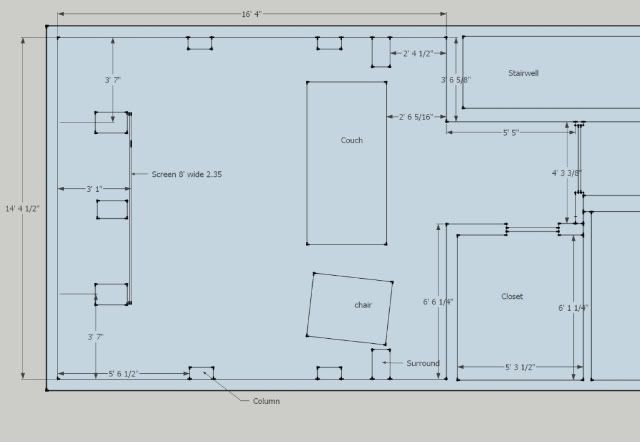

Here is my floorplan. I have no clue how I am going to wire for 7.1. The hall really makes that a challenge.
Jon_B is offline
post #3 of 45 Old 10-01-2010, 01:30 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15


There is a window located on the screen wall. I plan to use a window plug to block out light and help reduce sound leaking in/out.
Jon_B is offline
post #4 of 45 Old 10-01-2010, 01:32 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

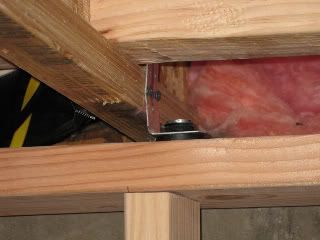

The stairwell was a concern for me for sound transmission. I spent a lot of time in the basement before building just listening. The stairwell was the area that always leaked noise from the neighbors. My plan was to seal up the area under the stairwell and build a double wall to help reduce sound transmission.

This support beam was also a concern for sound transmission. In my head a compared it to a needle on a record player. (I don't know if that is a good comparison or not) I plan to build a soffit around it after drywall and insulate, and dd, gg.
Jon_B is offline
post #5 of 45 Old 10-01-2010, 01:33 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

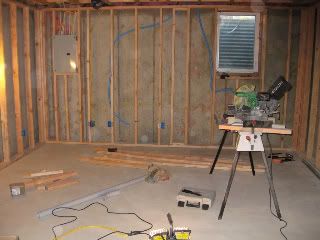

Front wall framed
Jon_B is offline
post #6 of 45 Old 10-01-2010, 01:34 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

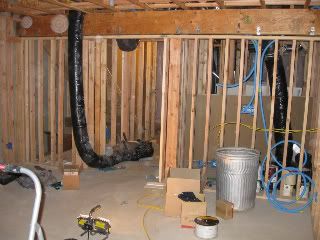

DC-04 at work.
Jon_B is offline
post #7 of 45 Old 10-01-2010, 01:36 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

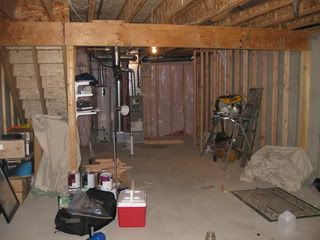

Rear wall framed. Stairwell enclosed.
Jon_B is offline
post #8 of 45 Old 10-01-2010, 01:54 PM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Looks good, Jon.

__________________

Ted



The Soundproofing Company
Ted White is offline
post #9 of 45 Old 10-04-2010, 01:33 AM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by Ted White View Post

Looks good, Jon.

Thanks Ted


Question for all of you out there. With regards to a xantech ir system...Do I need to worry about it receiving interference from lcds, plasmas tvs, cfls when I plan to use it with a front projector?
Jon_B is offline
post #10 of 45 Old 10-04-2010, 06:48 AM
Senior Member

Mr. Goodcat's Avatar

Join Date: Nov 2009
Location: IA
Posts: 396
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Jon_B View Post

Thanks Ted


Question for all of you out there. With regards to a xantech ir system...Do I need to worry about it receiving interference from lcds, plasmas tvs, cfls when I plan to use it with a front projector?

No, no need to worry.
Mr. Goodcat is offline
post #11 of 45 Old 10-04-2010, 07:36 AM
AVS Special Member

bpape's Avatar

Join Date: Dec 2000
Location: St. Louis(Wildwood), MO
Posts: 7,639
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
If you're concerned, you can get 'eyes' that are specifically designed for use with the items you're worried about.

Bryan

I am serious...and don't call me Shirley.
Bryan Pape - Lead Acoustician
GIK Acoustics

bpape is offline
post #12 of 45 Old 10-04-2010, 03:26 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
No concerns. Thanks for the replies.
Jon_B is offline
post #13 of 45 Old 10-04-2010, 07:35 PM
Senior Member

Robert_S's Avatar

Join Date: Sep 2000
Location: North TX
Posts: 464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Does xantech have any options to work with a Universal Remote RF product? I really need to stick with RF as I don't want to have an eye at the front of the room.

Robert
Robert_S is offline
post #14 of 45 Old 10-08-2010, 09:29 AM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I just had a "oh duh!" moment. I picked up my doors for the theater room that I had to special order, which took over two months to get, and not only did I not make sure it was on a exterior door jamb...I also did not account for my wall thickness.

I can imagine that it is going to cost me a pretty penny to take to a specialty door place to have done properly. As long as it is not more than what the doors cost originally I am willing to do in the name of "soundproofing".

While I am in the fixing my mistakes mode, what size stud should I have used for my door opening?
Jon_B is offline
post #15 of 45 Old 10-08-2010, 09:40 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Just a point, you could install as-is and rip pine or poplar extension jambs

__________________

Ted



The Soundproofing Company
Ted White is offline
post #16 of 45 Old 10-08-2010, 10:17 AM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I suppose that is an option. Would it be worth the extra work, money to do it with exterior door jamb?
Jon_B is offline
post #17 of 45 Old 10-08-2010, 10:22 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Well, the exterior jamb with weatherstripping costs less than after-market acoustic seals. But they don't work as well. But that's probably not such a big deal. The exterior jamb will also have a metal threshold on the floor, which may have aesthetic consequences. After-market seals have a deployable drop down seal, so you don't have any hardware on the floor.

__________________

Ted



The Soundproofing Company
Ted White is offline
post #18 of 45 Old 10-08-2010, 10:26 AM
AVS Special Member

tlogan6797's Avatar

Join Date: Feb 2005
Location: Northern VA
Posts: 4,834
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 35
Quote:


The WAF was zero on a stage, riser, and false wall due to us planing on selling at some point in the future.

Given your diagram it appears as thought you are planing for an AT screen. If that is true, you should EASILY be able to extend the side of the screen to create a false wall that is easily removable/repairable when you get around to selling.

False walls are just that, false. They do not support anything. It should be VERY easy to build frames of 2x2 pine (ripped 2X4s or even use metal studs), cover with fabric (cheap speaker cloth would work fine) and just attach to the drywall ceiling using drywall anchors and whatever is easy in the floor. When you're ready to move, remove the screws, take down the "wall," repair the drywall, paint the ceiling and done.

Tom Logan
Everytime I reply the thread ends
Need motivation? Get LOGANED
http://www.avsforum.com/avs-vb/showthread.php?t=1014847

An as-yet un-named theater designed by Big-WarrenP-BritInVA
tlogan6797 is offline
post #19 of 45 Old 10-11-2010, 04:43 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Tom, you are correct in that I am still planning some type of false wall. I want to figure out some way to do it without having to repair the drywall later on. Is that possible? I don't know yet, but at the rate I am going I'll have plenty of time to think about it.
Jon_B is offline
post #20 of 45 Old 10-11-2010, 05:10 PM
Member

jeffm13's Avatar

Join Date: Jul 2009
Location: Milwaukee, WI
Posts: 140
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Looks good, Jon. I'll also be building an "intimate" theater. Probably even more intimate than yours (unless I can talk the wife into something bigger). I'm probably a month or two behind you--just beginning now to put plans in Sketchup.

I'll be watching with interest.

Jeff
jeffm13 is offline
post #21 of 45 Old 10-12-2010, 06:12 AM
AVS Special Member

tlogan6797's Avatar

Join Date: Feb 2005
Location: Northern VA
Posts: 4,834
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 35
Quote:


I want to figure out some way to do it without having to repair the drywall later on. Is that possible?

Not that I can think of. There's going to be SOME amount of drywall repair, but I think that if you can keep it to filling in a few screw holes and painting, it won't be much easier than that.

That is, unless BigMouth thinks up some genius way to do it.

Tom Logan
Everytime I reply the thread ends
Need motivation? Get LOGANED
http://www.avsforum.com/avs-vb/showthread.php?t=1014847

An as-yet un-named theater designed by Big-WarrenP-BritInVA
tlogan6797 is offline
post #22 of 45 Old 12-17-2010, 07:51 AM
AVS Special Member

W00lly's Avatar

Join Date: Jan 2007
Location: NEBRASKA
Posts: 2,198
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Jon

If you build a stage and riser for your theater they are going to be stand alone anyway so in fact they could be removed if need be by you or the person buying your home if they didn't want them in place.

Scott

The CopperFields Cinema

          Current Photo's

W00lly is offline
post #23 of 45 Old 12-17-2010, 08:23 AM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,116
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 57
Quote:
Originally Posted by Jon_B View Post

Tom, you are correct in that I am still planning some type of false wall. I want to figure out some way to do it without having to repair the drywall later on. Is that possible? I don't know yet, but at the rate I am going I'll have plenty of time to think about it.

You could perhaps just fasten the false wall to the stage, and not to the ceiling or walls - would probably be tricky to keep it stable though, and have clean edges all the way around. Maybe just a couple long screws at the top into the ceiling joists, wouldn't be much to have to patch later on.
Brad Horstkotte is offline
post #24 of 45 Old 12-17-2010, 08:34 AM
AVS Special Member

W00lly's Avatar

Join Date: Jan 2007
Location: NEBRASKA
Posts: 2,198
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Come on now drywall and paint work are simple fixes just build it and worry about it when or if you decide to move in the future.

Scott

The CopperFields Cinema

          Current Photo's

W00lly is offline
post #25 of 45 Old 12-22-2010, 04:10 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by W00lly View Post

Come on now drywall and paint work are simple fixes just build it and worry about it when or if you decide to move in the future.

You guys are close to convincing me. I would worry about all the weight on the carpet from the sand in the stage (i.e. once I removed it to sell). But..I suppose if you vacuum enough it will look good as new.
Jon_B is offline
post #26 of 45 Old 12-22-2010, 04:50 PM
AVS Special Member

victor-eyd's Avatar

Join Date: Sep 2003
Location: Hayward, CA
Posts: 2,172
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Isn't 3ft of airspace behind the screen a bit much?

I would think you could it cut it down by 50% and would really open up the room and make it feel less confining.

Victor

Free cake! Free cake!
- Mordecai and Rigby

Big Screen/Small Space! My 13x12 Bedroom HT

Think small, project big!
Small theaters gallery
victor-eyd is offline
post #27 of 45 Old 12-22-2010, 04:54 PM
Advanced Member

malovich's Avatar

Join Date: Oct 2007
Location: NWPA
Posts: 525
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I would rotate the room 90 degrees in either direction, looks cozy to me...

XBL Krimzen Rage
malovich is offline
post #28 of 45 Old 12-22-2010, 09:05 PM - Thread Starter
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by malovich View Post

I would rotate the room 90 degrees in either direction, looks cozy to me...

There is a hallway 6 ft x 4 ft at the back of the room which would make it difficult to rotate the room.
Jon_B is offline
post #29 of 45 Old 12-22-2010, 10:33 PM
Advanced Member

theWalkinator's Avatar

Join Date: Feb 2008
Location: Philly Suburb
Posts: 726
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I used tooth paste to patch picture frame nail holes when I moved out apartment so that I can get my security deposit back
theWalkinator is offline
post #30 of 45 Old 12-23-2010, 08:25 AM
Member

travisd's Avatar

Join Date: May 2006
Posts: 91
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Jon_B View Post

You guys are close to convincing me. I would worry about all the weight on the carpet from the sand in the stage (i.e. once I removed it to sell). But..I suppose if you vacuum enough it will look good as new.

Why would you remove it? If it's custom built for space, leave the stage for the new owners - let them decide if they want to remove it or not. Heck, it might be a good opportunity to sell if your existing gear at more than going rates and get an upgrade out of the deal
travisd is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
