I'm at a point where I need some ideas for soffit... I searched the "Show me your..." sticky and was shocked when the soffit thread wasn't there. Thought I would start one, so please...

Show me your home theater soffit.
xzener is offline
Sponsored Links
Advertisement

post #2 of 42 Old 11-21-2010, 09:51 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,118
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 57
There sort of is one - kinda - http://www.avsforum.com/avs-vb/showthread.php?t=983174
Brad Horstkotte is offline
post #3 of 42 Old 11-21-2010, 10:54 PM
AVS Special Member

Roger Dressler's Avatar

Join Date: Jul 2000
Location: Oregon
Posts: 8,442
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 356 Post(s)
Liked: 219
Quote:
Originally Posted by xzener View Post

I'm at a point where I need some ideas for soffit...

Any particular purposes in mind? Hide ducts, hide wires, hold lights? I made mine with "door" fronts so I can run/change the wiring easily. See post #5 of my thread.
Roger Dressler is offline
post #4 of 42 Old 11-22-2010, 06:51 AM
AVS Special Member

Neurorad's Avatar

Join Date: Sep 2007
Location: Give a monkey a brain...
Posts: 5,071
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 79
I think this is a great idea, for a thread.

Does anyone know if soffits can be added after drywall, to conceal exposed pipes/HVAC? That is, do I need to remove the drywall on the wall, before mounting a soffit to it?

Yeah, the workshop has some new vent pipes running across a wall, near the ceiling. Thank you, tankless water heater and new efficient HVAC system.

Believe nothing, no matter where you read it, or who said it, no matter if I have said it, unless it agrees with your own reason and your own common sense. -Buddha

Give a monkey a brain and he'll swear he's the center of the universe. -Fishbone
Neurorad is offline
post #5 of 42 Old 11-22-2010, 07:11 AM
AVS Special Member

Swampfox's Avatar

Join Date: Mar 2001
Posts: 3,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by Neurorad View Post

I think this is a great idea, for a thread.

Does anyone know if soffits can be added after drywall, to conceal exposed pipes/HVAC? That is, do I need to remove the drywall on the wall, before mounting a soffit to it?

Yeah, the workshop has some new vent pipes running across a wall, near the ceiling. Thank you, tankless water heater and new efficient HVAC system.

Generally you dry wall the room to be as tight as possible and then add the soffits.
Swampfox is offline
post #6 of 42 Old 11-22-2010, 07:20 AM
Senior Member

johnbomb's Avatar

Join Date: Aug 2005
Location: Nashville
Posts: 331
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
johnbomb is offline
post #7 of 42 Old 11-22-2010, 08:29 AM
AVS Special Member

Moggie's Avatar

Join Date: Mar 2008
Location: California, Bay Area
Posts: 1,200
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 24
Quote:
Originally Posted by johnbomb View Post
Here ya go.
Now that's an interesting soffit!!

My "Old Vic" Theater Build
My 8 year old daughter: "are contractors the people that mess up your house for money?"
Moggie is offline
post #8 of 42 Old 11-22-2010, 08:46 AM
AVS Special Member

kjlewie's Avatar

Join Date: May 2008
Location: Marion, Iowa
Posts: 1,013
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 26
Quote:
Originally Posted by Moggie View Post
Now that's an interesting soffit!!
Indeed...see something new everyday.

Here is what I can submit:
















Clearly, I'm a man of action - just give me a few minutes to think about it.
Lewis Family Cinema 1.0

Lewis Family Cinema 2.0
kjlewie is offline
post #9 of 42 Old 11-22-2010, 10:19 AM
AVS Special Member

Neurorad's Avatar

Join Date: Sep 2007
Location: Give a monkey a brain...
Posts: 5,071
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 79
Quote:
Originally Posted by Swampfox View Post

Generally you dry wall the room to be as tight as possible and then add the soffits.

Thanks!

Believe nothing, no matter where you read it, or who said it, no matter if I have said it, unless it agrees with your own reason and your own common sense. -Buddha

Give a monkey a brain and he'll swear he's the center of the universe. -Fishbone
Neurorad is offline
post #10 of 42 Old 11-22-2010, 10:20 AM
AVS Special Member

Neurorad's Avatar

Join Date: Sep 2007
Location: Give a monkey a brain...
Posts: 5,071
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 79
Quote:
Originally Posted by johnbomb View Post

Here ya go.

Holy scheisse! That's awesome, John. I have to come check that out soon!

Believe nothing, no matter where you read it, or who said it, no matter if I have said it, unless it agrees with your own reason and your own common sense. -Buddha

Give a monkey a brain and he'll swear he's the center of the universe. -Fishbone
Neurorad is offline
post #11 of 42 Old 11-22-2010, 02:43 PM
AVS Special Member

Moggie's Avatar

Join Date: Mar 2008
Location: California, Bay Area
Posts: 1,200
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 24

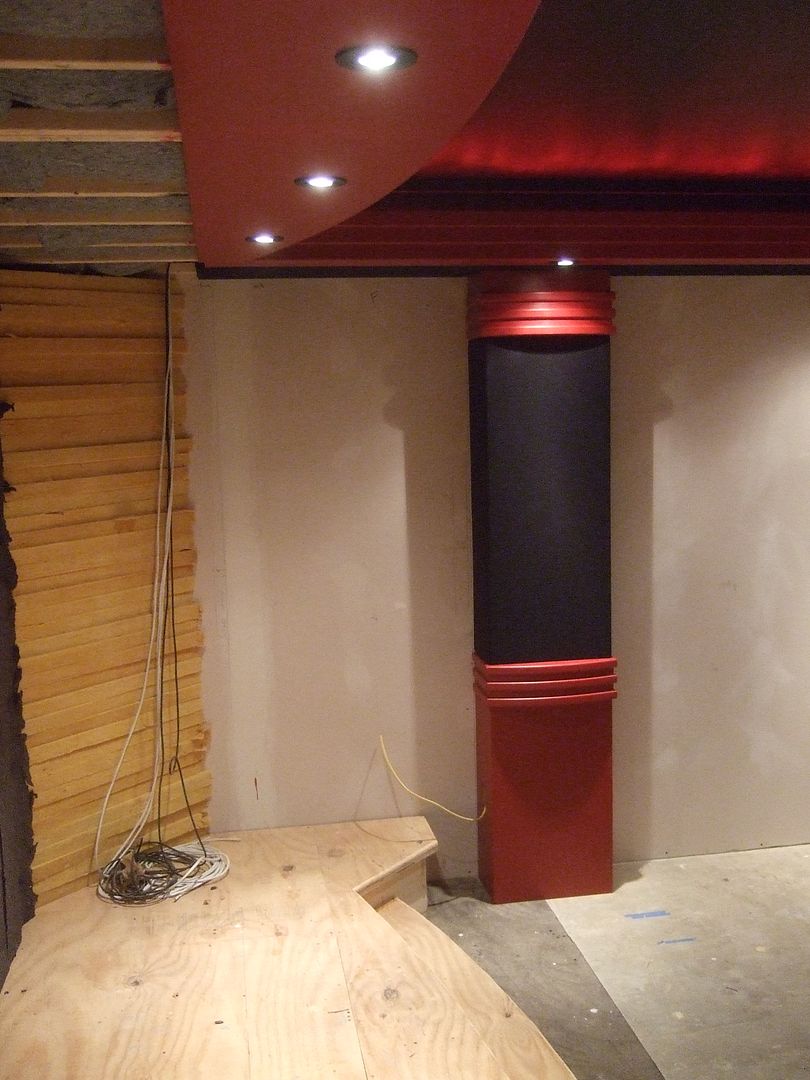

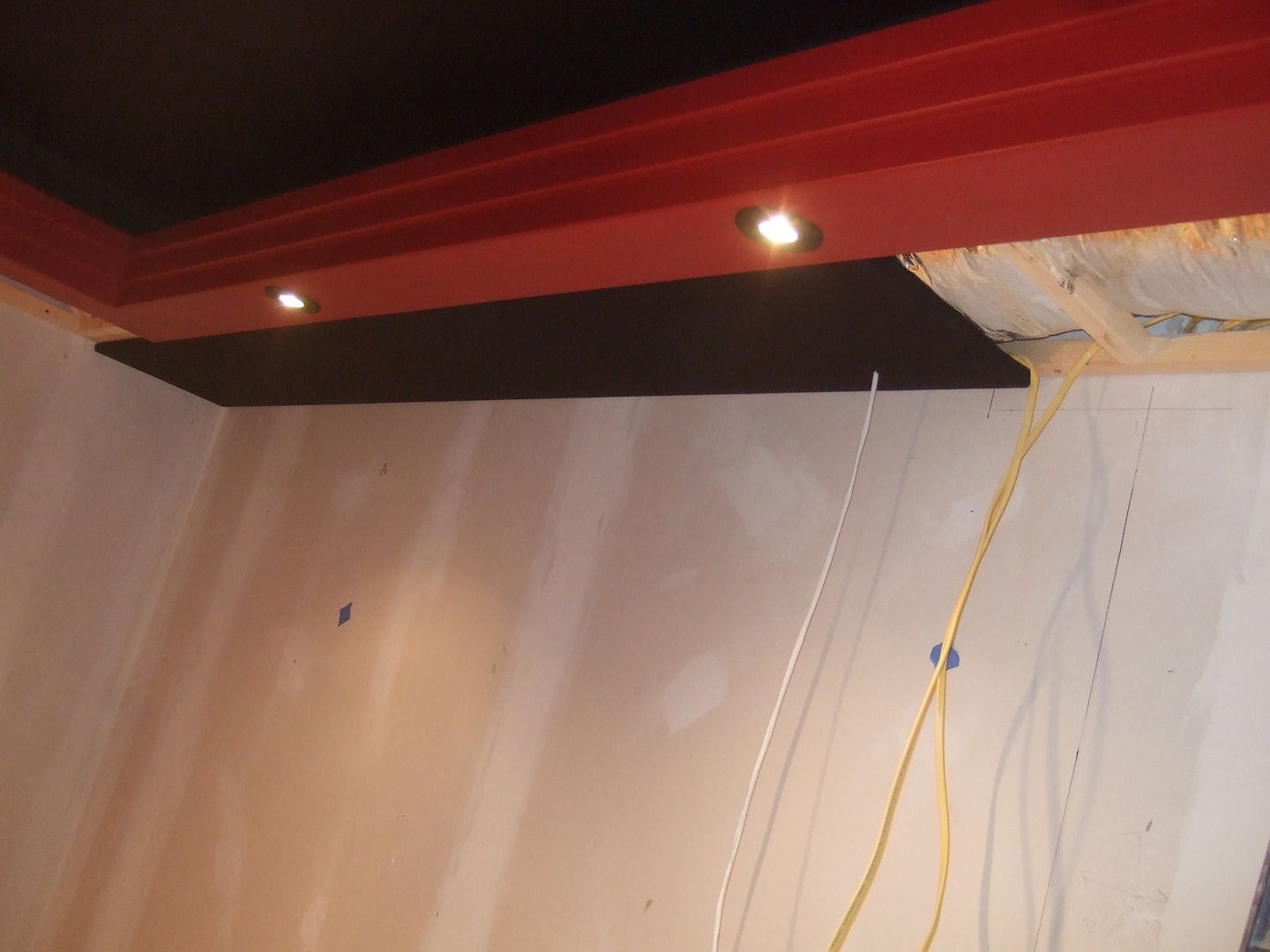

Since this is one of the few parts of my theater that is actually finished, I'll bite.









The soffits include bass traps, HVAC ducting and the bulk of the wiring circuits. The construction details can be found here.

My "Old Vic" Theater Build
My 8 year old daughter: "are contractors the people that mess up your house for money?"
Moggie is offline
post #12 of 42 Old 11-22-2010, 06:34 PM
Senior Member

johnbomb's Avatar

Join Date: Aug 2005
Location: Nashville
Posts: 331
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by Neurorad View Post

Holy scheisse! That's awesome, John. I have to come check that out soon!

Whenever you've got the time, I've got your beer.
johnbomb is offline
post #13 of 42 Old 11-22-2010, 07:05 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,118
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 57
Come on Moggie, you thread killer! Not really much point in anyone else posting their soffit pics now is there?

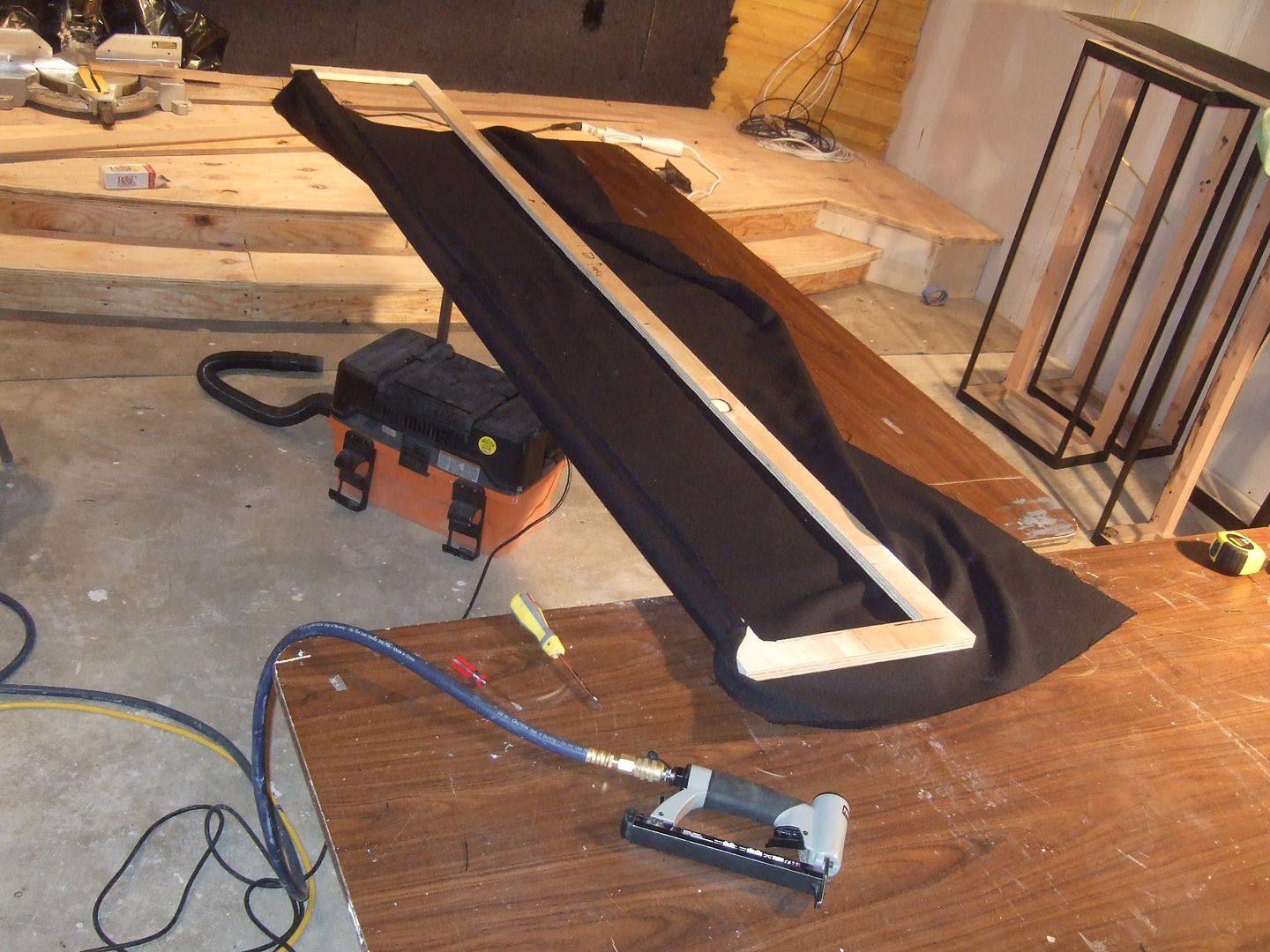

Here's mine, not quite done yet - will be covered with dark fabric, so not quite at the Moggie level.







Brad Horstkotte is offline
post #14 of 42 Old 11-22-2010, 09:36 PM - Thread Starter
AVS Special Member

xzener's Avatar

Join Date: Feb 2007
Posts: 1,292
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 28

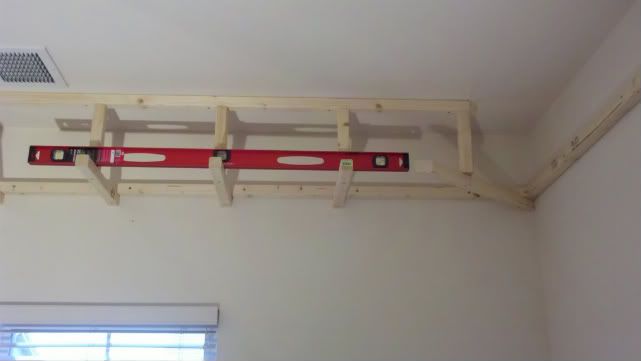

Thanks guys, keep the soffit pics coming. I've designed a couple of mockups. I used 2X2's (difficult to find straight) for my mocks. I will be installing it over finished drywall. They will be housing pot lights, black lights (for cloudy sky/ glow in the dark star mural) and rope lights. I will post some pics as soon as I can.

@Brad Horstkotte- My mockups are based off of your soffit. Although I have 9ft ceilings so the soffit will be dropped more than yours. About 12in from the ceiling and about 16in from the wall. I will also use crown moulding around the edge.

The soffits are looking great guys, its nice to come to one thread (Show me your...) for what your looking for.

Forum mods, please post this in the correct "Sticky" for quick refference.
xzener is offline
post #15 of 42 Old 11-22-2010, 10:04 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,118
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 57
Quote:
Originally Posted by xzener View Post

I used 2X2's (difficult to find straight) for my mocks. I will be installing it over finished drywall.

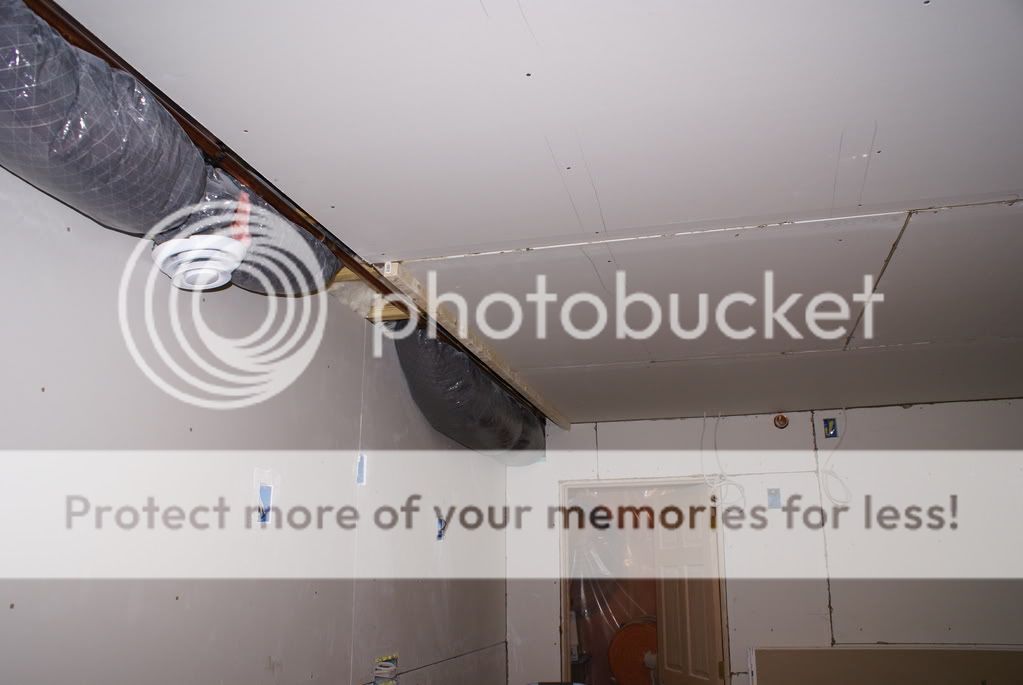

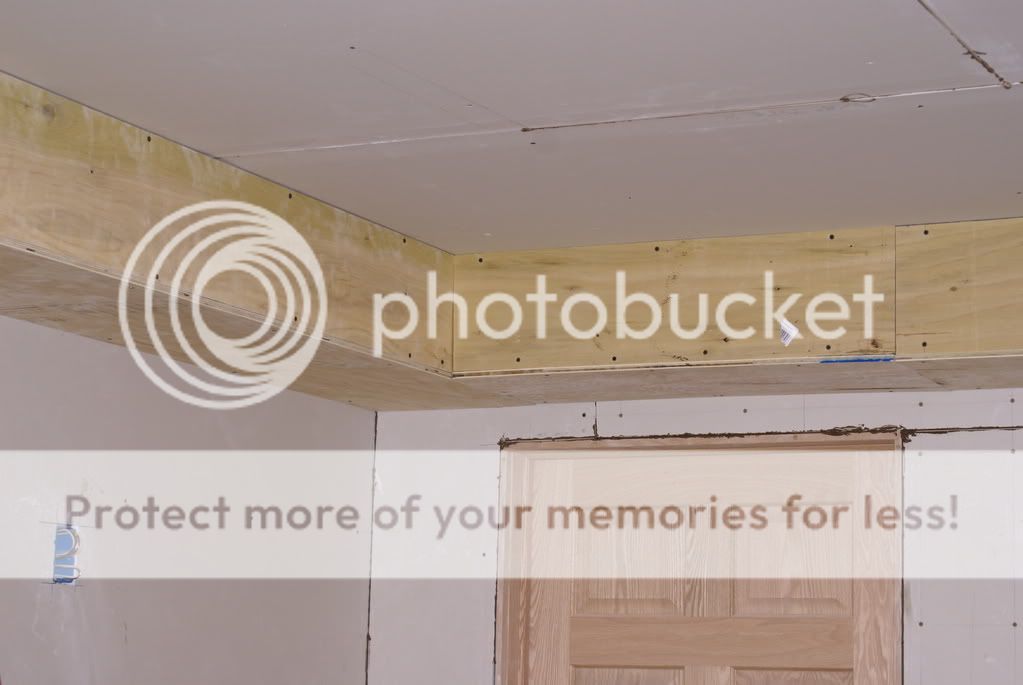

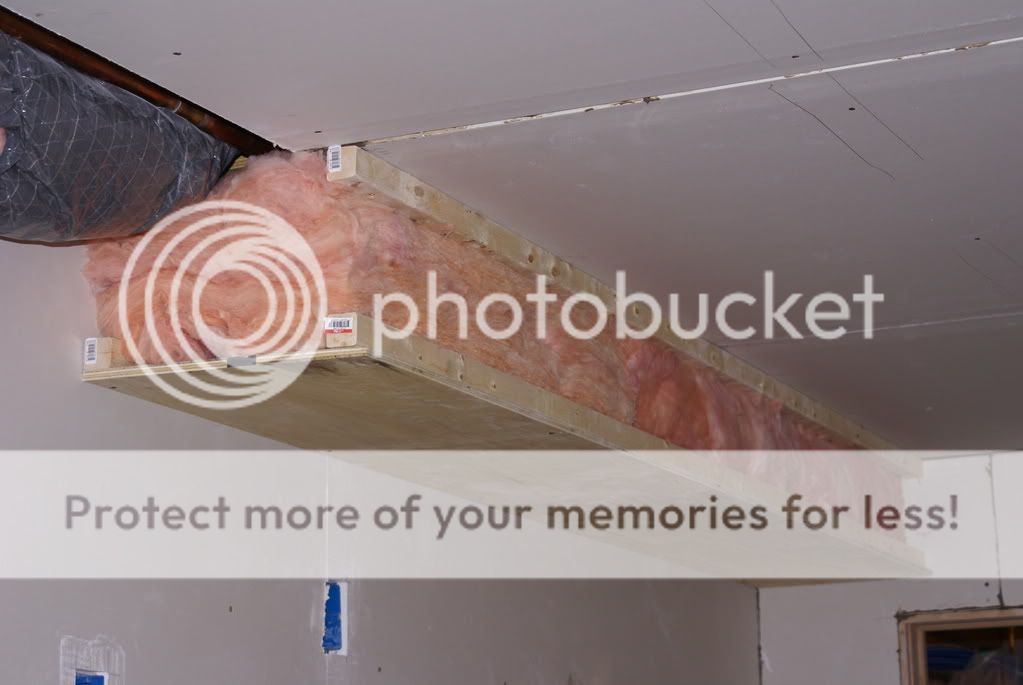

I added mine after all the drywall in the room was in as well. I used 2x3s, easier to find straight ones compared to 2x2s, and cheaper and lighter than 2x4s (and I don't have a table saw to rip 2x4s in half).

Quote:
Originally Posted by xzener View Post

@Brad Horstkotte- My mockups are based off of your soffit. Although I have 9ft ceilings so the soffit will be dropped more than yours. About 12in from the ceiling and about 16in from the wall. I will also use crown moulding around the edge.

Thanks, I'm flattered. My ceilings are actually 9' as well - 9'4" before the flooring is in I think. Go figure, a garage with 9' ceilings, lol - and of course in the house, they're all 8'.

Mine measure 8.5" high (drop), and 28" wide - low and wide. The extra width allowed me to get good coverage from the lights, while still mounting them on the inside of the soffit (not the tray side); and let me hit parallel studs on the ceiling on both sides, which simplified the framing.

I was also going to use crown molding on the edges, but doing so on the curved face would be tricky - would have to get a flexible molding custom made, not outrageously expensive, but just one extra step, and I ended up liking the square lines. May still add crown on the wall/soffit junction, not sure yet.
Brad Horstkotte is offline
post #16 of 42 Old 11-23-2010, 06:33 AM
AVS Club Gold

dc_pilgrim's Avatar

Join Date: Oct 2004
Location: South Central... PA
Posts: 4,617
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14

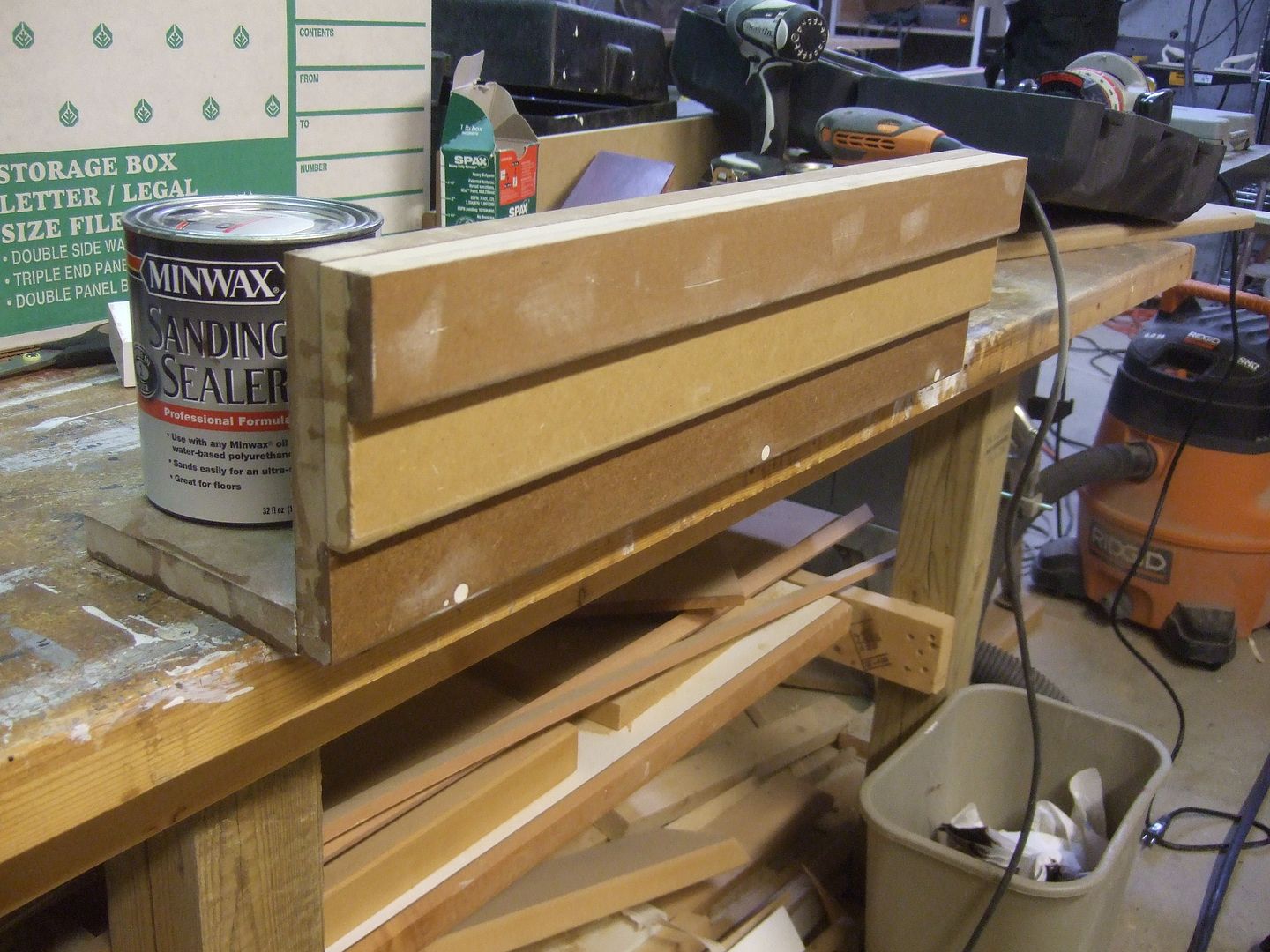

My old soffits aren't much, but I did get this nice graphic from Sandman (SmX), of his soffit design and how to use a soffit as bass trap:

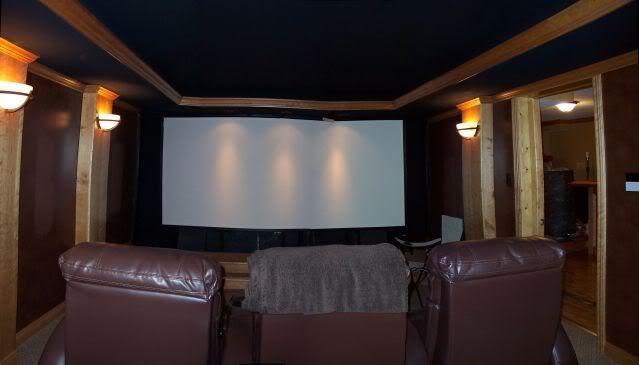

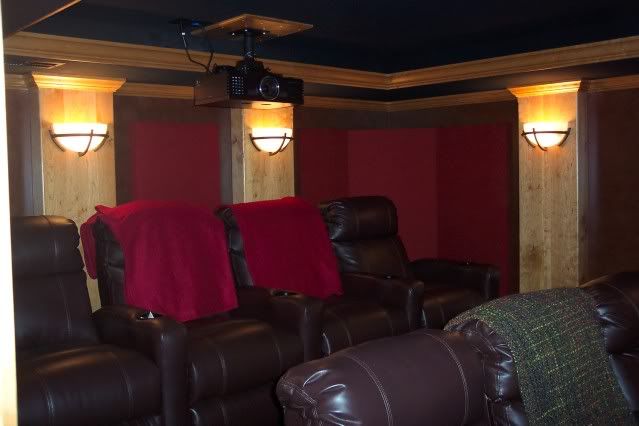

Twist my arm, here a few pics of my soffit. Just your basic crown + rope light. I used an extra trim piece below the crown, my intent before I had to rush to sell was to use the soffit as a bass trap, and to put fabric up as the bottom of the soffit. The second piece of trim would then be used to cover the staples (my carpenters put up the crown). To do so we attached the crown to 1x1 to space it out from the wall a bit. This pic shows the two pieces before we glazed the bottom piece.


I was also pretty pleased with the front marquee, although there are better ones on this board.

dc_pilgrim is offline
post #17 of 42 Old 11-23-2010, 06:52 AM
TJ7
Senior Member

TJ7's Avatar

Join Date: Dec 2007
Location: MA Southcoast
Posts: 389
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11



Radio Shack Catalogue Archive 1939-2005

Does your system seem to have a mind of its own?
Turn HDMI Control OFF!!!
TJ7 is offline
post #18 of 42 Old 11-23-2010, 09:03 AM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,118
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 57
Where is that from TJ? Doesn't look too residential. I'd hate to have to tape and mud that ceiling!!
Brad Horstkotte is offline
post #19 of 42 Old 11-23-2010, 09:46 AM
AVS Special Member

fotto's Avatar

Join Date: Nov 2003
Location: N.E. OH
Posts: 1,866
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 19

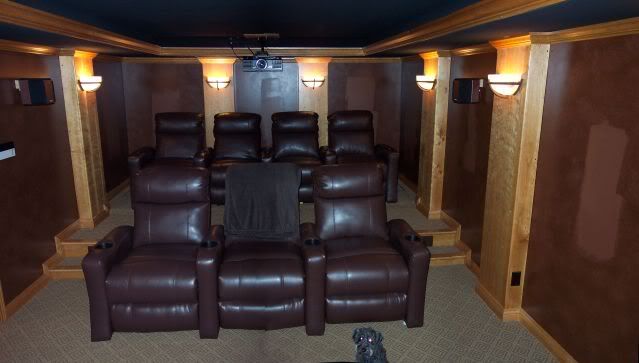

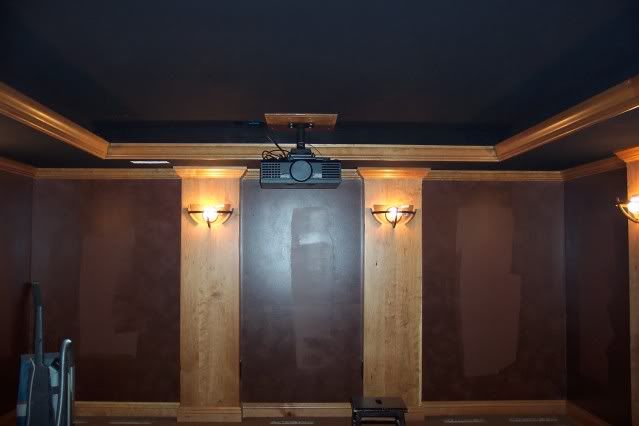

Here are a couple pics of mine (finished)







fotto is offline
post #20 of 42 Old 11-23-2010, 10:04 AM
AVS Special Member

premiertrussman's Avatar

Join Date: Mar 2009
Location: North Central Indiana
Posts: 2,043
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Check out my BUILD THREAD. First couple pages have a few pictures of my soffit. Nothing too fancy.

Shades of Grey Theater

Live: Hero of Cannton

Currently Playing: CoD Black Ops II

premiertrussman is offline
post #21 of 42 Old 11-23-2010, 12:26 PM
TJ7
Senior Member

TJ7's Avatar

Join Date: Dec 2007
Location: MA Southcoast
Posts: 389
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by Brad Horstkotte View Post

Where is that from TJ? Doesn't look too residential. I'd hate to have to tape and mud that ceiling!!

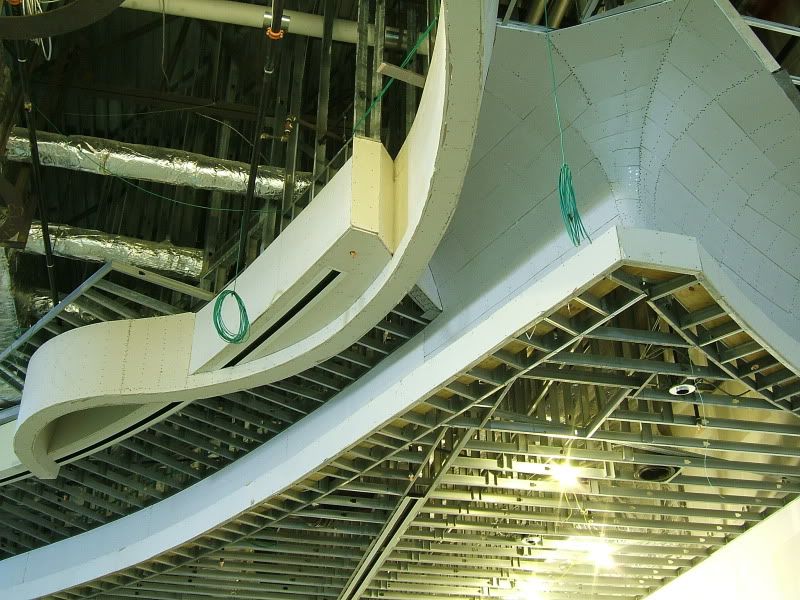

It's at The MGM Grand at Foxwoods Casino.

Imagine over 12,000 LF of that sort of soffit with all the layout taken directly from CAD drawings.

Radio Shack Catalogue Archive 1939-2005

Does your system seem to have a mind of its own?
Turn HDMI Control OFF!!!
TJ7 is offline
post #22 of 42 Old 11-27-2010, 07:12 PM - Thread Starter
AVS Special Member

xzener's Avatar

Join Date: Feb 2007
Posts: 1,292
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 28
Thanks for all the posts and ideas guys, it really helped me design something that will work, and look great. I'm going to finish it off with 1/4 inch sheet rock, keeping it as light as possible. This soffit will house rope lights, black lights and pot lights.

xzener is offline
post #23 of 42 Old 11-27-2010, 11:53 PM
Member

PakZX3's Avatar

Join Date: Mar 2007
Location: Rochester Hills, MI
Posts: 95
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
What is the purpose of trying to keep it light? I guess I don't understand when most of us use 2 layers of drywall for added mass for dampening.
PakZX3 is offline
post #24 of 42 Old 11-28-2010, 09:00 AM - Thread Starter
AVS Special Member

xzener's Avatar

Join Date: Feb 2007
Posts: 1,292
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 28
Unlike most of you, I didn't use 2 layers for dampening. Keeping it lite so it wont sag in the years to come. I'm sure it will be fine.
xzener is offline
post #25 of 42 Old 11-19-2011, 07:43 PM
Senior Member

azula's Avatar

Join Date: Jun 2009
Location: Palm Beach, FL
Posts: 424
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
With all these "show me" threads, I didn't see one for the soffit! This is an essential piece of architecture for any home theater, so let's see them! construction pics are welcomed as well!
azula is offline
post #26 of 42 Old 11-20-2011, 06:50 PM
Senior Member

finishingtouchcu's Avatar

Join Date: Dec 2006
Location: New Jersey
Posts: 232
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I had an I-beam and duct work to contend with so I made it symetrical. Insulated, plywood and rocked.
https://picasaweb.google.com/mahler0...82534891218850
finishingtouchcu is offline
post #27 of 42 Old 11-21-2011, 08:14 AM
Member

Laminar's Avatar

Join Date: Sep 2007
Posts: 53
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I used these plans:
http://www.familyhandyman.com/DIY-Pr...essed-lighting

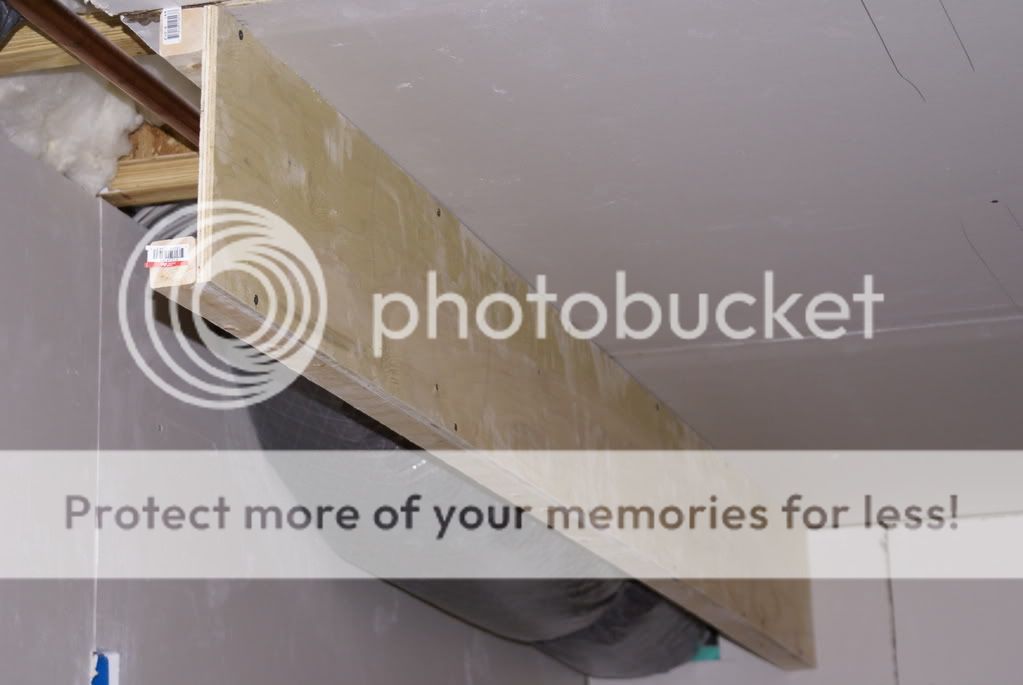

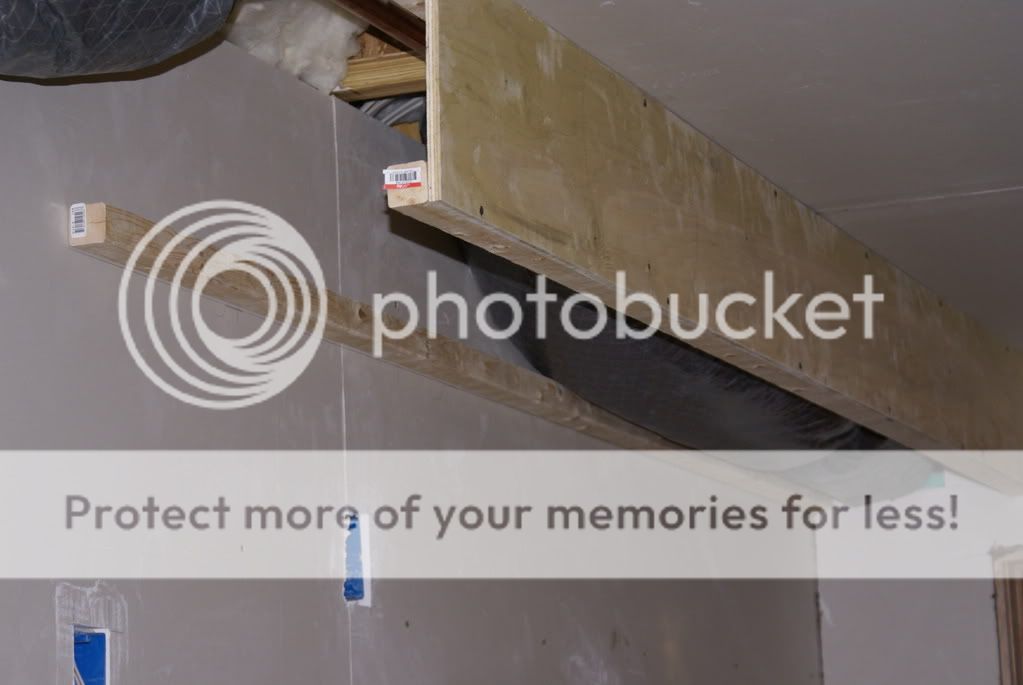

And here's how they turned out. Note: I will be covering the underside of each soffit with acoustic panels, so they're currently just bare wood.













Standard incandescent rope lighting:

Laminar is offline
post #28 of 42 Old 11-21-2011, 08:59 AM
AVS Addicted Member

rboster's Avatar

Join Date: Jul 2000
Location: USA
Posts: 17,561
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked: 60
Quote:
Originally Posted by azula View Post

With all these "show me" threads, I didn't see one for the soffit! This is an essential piece of architecture for any home theater, so let's see them! construction pics are welcomed as well!

When was started a while back:

http://www.avsforum.com/avs-vb/showt...ghlight=soffit

New thread merged with the existing thread. The best way to seach is use advance search, title search only option and limit search words to one or two. In this case, I used "soffit" as the search word. There are quite a few other threads on soffits that maybe of interest to you too.

Ron

"Retired" AVS Moderator
rboster is offline
post #29 of 42 Old 11-25-2011, 05:19 PM
AVS Special Member

petew's Avatar

Join Date: Oct 2000
Location: Albuquerque, NM USA
Posts: 2,051
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 41

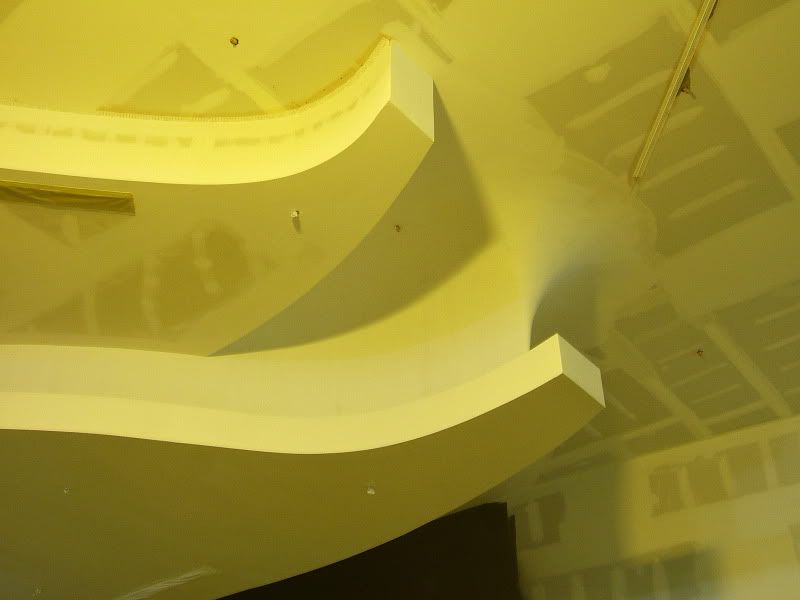

Here's my latest project:

High Desert Theater - work in progress
Building Bass - Subs

Surrounds - Easy as Pi

Storage - unRAID unDELL

petew is offline
post #30 of 42 Old 11-25-2011, 06:02 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,696
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 224 Post(s)
Liked: 579
BIGmouthinDC is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
