Home Theater Ceiling Acoustic "Cloud" - Part III 1st row

Quote:
Originally Posted by mtbdudex View Post

Home Theater Ceiling Acoustic "Cloud" - Part II

This 2nd row ceiling treatment catches some of the light from those 3 can lights, but its not so bad.
However, my 1st row - possible acoustic ceiling cloud, would block all 3 lights, so I'll need to address that at later date.

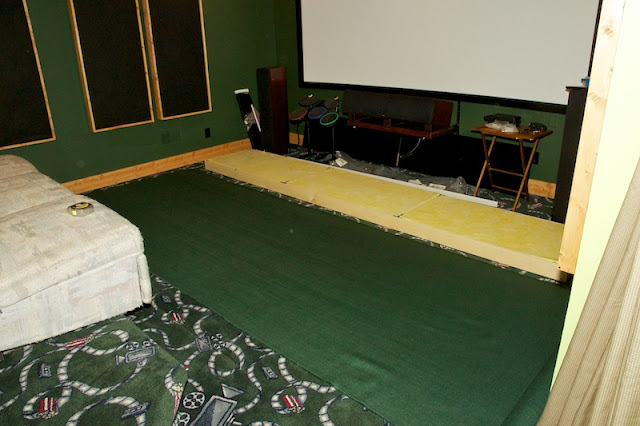

Made the 1st row Acoustic "Cloud", it was finished Thur Feb 24 and installed that evening.
Very similar to the 2nd row with some changes noted below:

Change 1:
I made the end cross braces 23 3/4" instead of 24" like prior, this gave a good "squeeze" grip onto the rigid OC703.
(1st one I only made the inside cross braces smaller)
Really, my wife and I lifted the cloud frame with the OC703 and it was held tightly inside, of course the fabric was securely stapled as prior.


Change 2:
I wanted to only catch the 1st reflections, yet wanted same size as 2nd row for aesticts, so using the mirror on the ceiling (2 person job), the blue tabe shows the boundary for seeing the speakers on each end.
I therefore blocked the mi-hi frequency by using a 12" x 24" piece of kraft paper on the LH side and a 18" x 24" piece of kraft paper on the RH side.
By doing so I still will get the broadband bass effects there w/o over damping the room.


Change 3:
Installed, I added extra chain links into the 8 chains, in future I could lower these 2" or even 4" and add more OC on top for more broadband bass absorption - this is a future option just making easier now by doing this.
Currently I'm 12" below the ceiling with 4" depth of OC703.
By the 1/4 wave guideline I should be using 6" depth currently, I've got 6 sheets of OC703 unused, if I don't use them for some limited rear wall absorber (instead of diffuser since 2nd row is quite close to rear wall) then they will go "in the clouds" ..


I have 2 ideas on the 1st row ceiling lighting, that is side project.

Note:
For my side wall treatments with exposed framing I was really concerned about the fibergalss panels not being "gripped"/held - the young kids issue for me, that is why I went thru all the hassle of the routered center.
Now, with the 1/4" squeeze" seem's that might work as well, and much easier.
Lesson learned for others making side treatment panels with fully exposed frames to consider.
(I did not want to put something like 1/4 round mldg there either to trap the wrapped fiberglass panel, though that is another option)
mtbdudex is online now
post #63 of 159 Old 02-28-2011, 06:05 AM

cybrsage's Avatar

Join Date: May 2007
Location: Harrisburg, PA
Posts: 8,074
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 147
Quote:
Originally Posted by mtbdudex View Post

I'm still waiting for you to post that picture Glenn

Update on DIY artwork acoustic fabric panels:
The printer is a HP 9000 series Designjet Low-solvent,
http://www.hp.com/united-states/desi...0/index_f.html




They are going to give me a printed 8" x 10" sample of each material, I'll do the breath test, then follow-up by nearfield speaker test without and with the material in front of my Berrigner 8000 mic. Probably not the most accurate, but the only way I can get some objective data.


Did you ever test this? I have one of these at work which I can use - but I have no material to test with. I am very interested in your results.
cybrsage is offline
post #64 of 159 Old 02-28-2011, 06:42 AM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Quote:
Originally Posted by cybrsage View Post

Did you ever test this? I have one of these at work which I can use - but I have no material to test with. I am very interested in your results.


Actually I just got email Thursday that the 8" x 8" samples from the local guy are ready for my pick-up, but was too busy to stop by last week.
I'll be getting them tonight on way home from work and test them weekend of 3/5, or more likely 3/12 when the other samples from Spoonflower come in for efficiency and comparision will be more apples-apples http://www.avsforum.com/avs-vb/showt...0#post20055530
Quote:
From: SBT - Brighton
To: Mike
Sent: Thu, February 24, 2011 2:09:11 PM
Subject: RE: 8x8 acoustic pict samples


Hello Mike,

We have your samples ready for pickup anytime

Thank you,
Aaron


On Feb 24, 2011, at 8:36 AM, "SBT - Brighton" wrote:

Hello Mike,

These are beautiful images, I will call you once I have the samples printed

Because the ink typically does not clog the holes on either material, I believe the smaller mesh will work better for your application

Talk to you soon.

Thank you,
Aaron

mtbdudex is online now
post #65 of 159 Old 02-28-2011, 05:14 PM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165

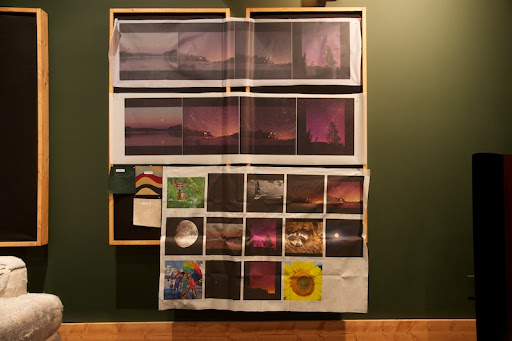

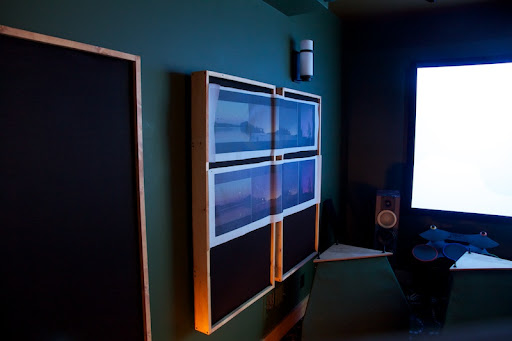

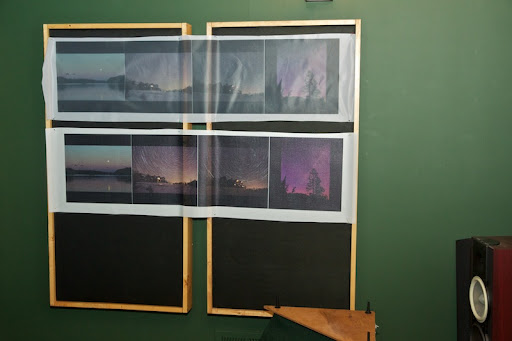

I picked up the local Acoustic transparent printed image samples, pinned them to the side wall panels, and did some visual comparisons.

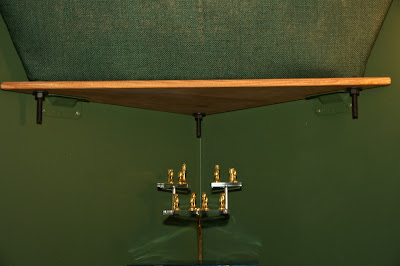

(those are my upper corner bass traps done as well, the mounting brackets are being painted/drying now.)

The fine weave is on top, the blocky weave is on bottom:




Fine Weave:


Blocky weave:

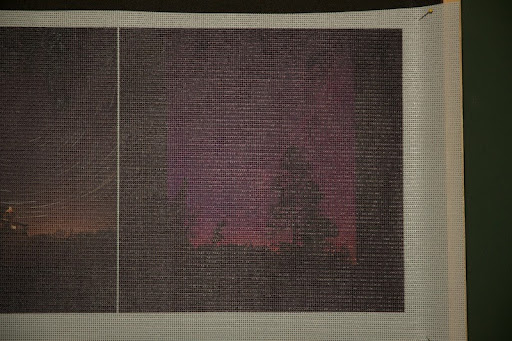

Screen light reflection test, 5 sec exposure-side shot


Onlook shot


My visual observations:The fine weave is too flat and does not hold the color pigments as well as the blocky weave.
The block weave appears to be glossy to semi-glossy, the image does show decent, better in person than the picture shows.

Both passed the breath test, Aaron (the local shop manager) told me after printing they pealed the fabric off its backing, and it does appear the majority of the holes before/after is same.
Based on my observation, blockage by this process is a non-issue.

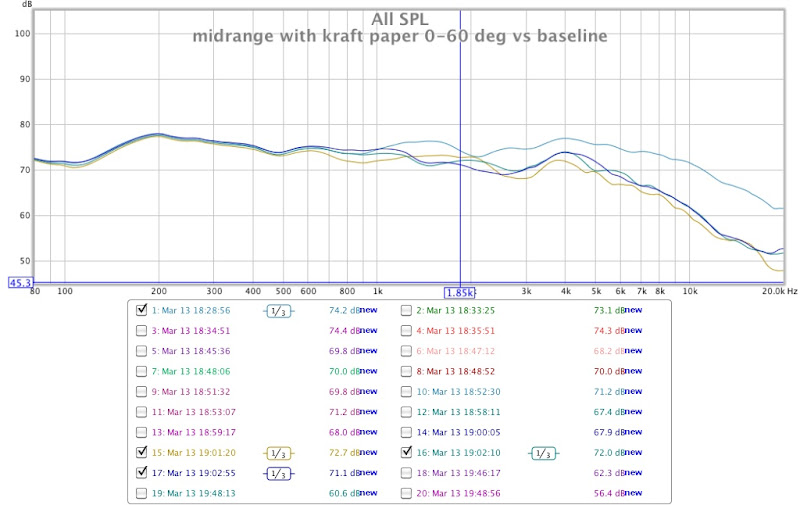

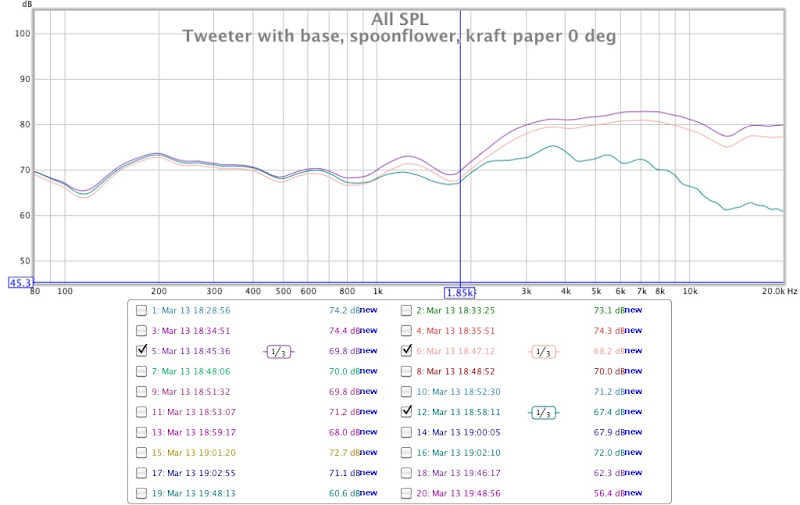

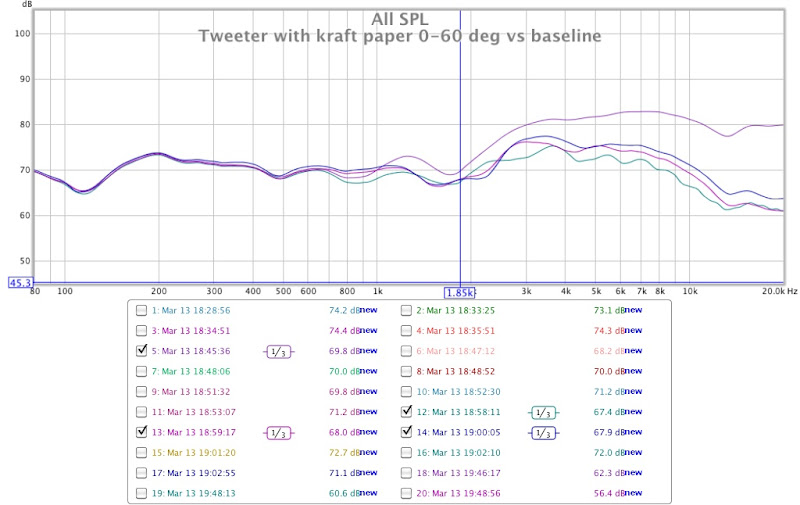

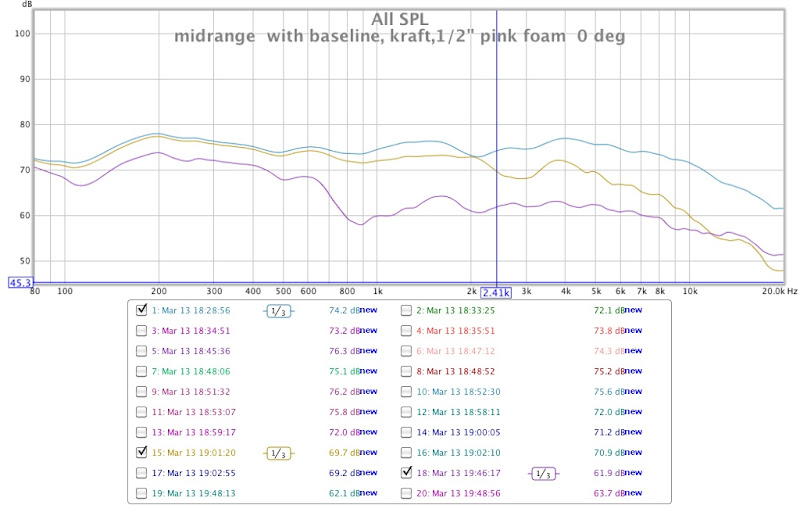

My image for frequency testing is using REW:
-driving thru the Ext In and bypass any in A/V processing of signal
-put one of my main speakers in front/center of room for equal distance from walls (reduce the SBIR as much as possible)
-take near field test with microphone centered on tweeter,
-then with cloth between at 0 degrees, then 15/30/45 degree.
-Repeat centered on midrange.
-Repeat for other sample.
-Compare freq plots.

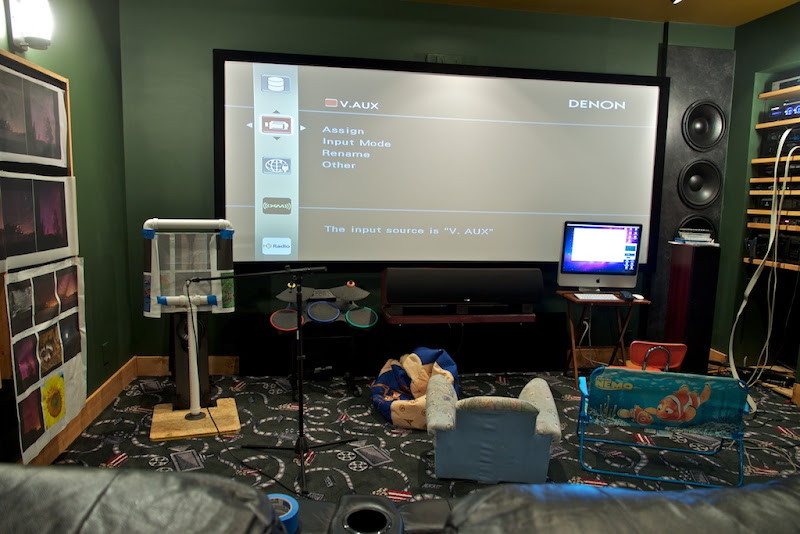

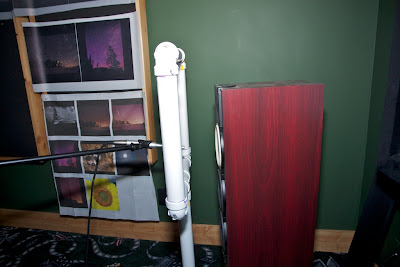

I'll make a simple test stand out of PVC pipe to hold the samples and easy consistent rotate 15 deg increments.
mtbdudex is online now
post #66 of 159 Old 03-01-2011, 07:24 AM

cybrsage's Avatar

Join Date: May 2007
Location: Harrisburg, PA
Posts: 8,074
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 147
What fabric was used for both? I agree, I like the looser weave better.

I have a basic question...if these panels prevent reflections (or minimize them), how does a bi/dipole speaker do its job? I thought the purpose was to have the sound reflected all over the place to simulate real life....that is how it gets its dispersion.
cybrsage is offline
post #67 of 159 Old 03-01-2011, 08:50 AM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Quote:
Originally Posted by mtbdudex View Post

Good news/bad news.

Good news:
Got the ECOUSTIMAC eco line stuff, non itchy, Friday 3pm delivered.

Bad news:
Its not truly 2' x 4'.
Both OC703 and OC705 are EXACTLY 24" x 48", I've got my triangle templates cut to make those.

I was about to use those on the ECOUSTIMAC eco line stuff, and something just did not line up.
So, like the old addage measure twice, cut once, I measured them they are....23 1/8" x 47 1/8". All 6 panels measure that.
Sounds small but when you've designed your templates AND your bass trap to a full 24" x 48" adjusting at the last minute is a PIA!
I'll post picts later.
From their website, http://www.acoustimac.com/index.php/...oinsul422.html, they state (and I'm quoting here):


Now, I'm making templates for those "reduced size" 23 1/8" x 47 1/8".

My fact based data from this past weekend, pictures!
Sorry for rant here, I will email and contact acoustimac directly on this.

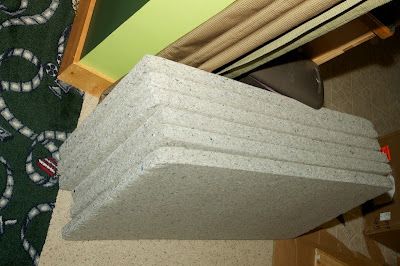

The 6 panels taken out of box:

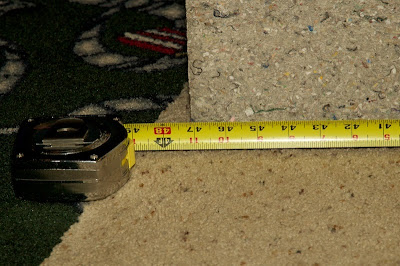

All measured consistent 23 1/8" wide .........................................47 1/8" tall


Having to adjust my cutting tempaltes for slightly different size
(I have a large one I also used not shown here)


Their panels were slightly less than 2" thick also, like 1" and a "fat" 7/8", when stacked gave a different height than using OC705 would.
Here is where I designed these for OC705, already cut the threaded rod, and this was with the OC705 (if used) compressed.
Luckily I had enough material to make 2 more 24x24x34 triangles and added a 13th piece to each to take this gap up.


Note:
The shipping box for the OC703 and OC703 was 13" in depth (outside cardboard dim) from atsacoustics - and they were stuffed tightly in it, the ECOUSTIMAC eco line box was 12.5" deep (outside cardboard dim).

Shipping weight, each 6 panels 2" thick 2' x 4':
From UPS label:
OC703 = 26 lbs
OC705 = 51 lbs
ECOUSTIMAC eco line = 29.2 lbs

I'm hoping the acoustic absorbtion properties of the ECOUSTIMAC eco line are truly what they advertise, I "trust" them, but how to verify?
I don't have that ability.....
I'm feeling slight buyers remorse here guys, I like being "GREEN" and the non-itchy usage, but these little things sorta take the winds slightly outta my "GREEN" sails.

[update]
This issue is closed, see post #76 details http://www.avsforum.com/avs-vb/showt...1#post20087341
mtbdudex is online now
post #68 of 159 Old 03-01-2011, 08:56 AM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Quote:
Originally Posted by cybrsage View Post

What fabric was used for both? I agree, I like the looser weave better.

I have a basic question...if these panels prevent reflections (or minimize them), how does a bi/dipole speaker do its job? I thought the purpose was to have the sound reflected all over the place to simulate real life....that is how it gets its dispersion.

I don't know the exact fabric spec (yet), I;ve asked that in email to Aaron.
Plus, I should have use correct printer profiles for my image export.
portion of my email:
Quote:


Q’s:
1: Is there a printer driver for the HP 9000 series Designjet and this material I should have used that would give “better” colors?
My monitor is color calibrated with a Spyder3, yet these appear overall darker than what I exported.
Also, need the print profile for the blocky material used to ensure best quality output, I assume there is one just like for different papers there are.

2: For the blocky material have you told customers to add some specific post processing in Photoshop CS5 (sharpening/definition/bring up levels on highlights/etc) for a crisp and detailed output?

After searching HP website: Which specific model HP Designjet do you have? The 9000s or the 9000sf?
I should have downloaded the printer driver prior to exporting the files, I just used a generic sRGB profile, that may be the issue with the darkness I feel the images have.
I printed same images to Costco via their print driver and it matched exactly to my monitor.
(fwiw, I have a Mac and use OSX 10.6.6 and Photoshop CS5.)
http://h20000.www2.hp.com/bizsupport...riesId=1153506

On the dipole speaker Q (for front mains), do a search in the master acoustic thread, I've seen that in there multiple times.

I'm not treating the rear/side surround speaker reflections at all, nor sure if I will ......I've seen some people use diffusers for those....I've not studied that far yet....still researching....
mtbdudex is online now
post #69 of 159 Old 03-01-2011, 02:47 PM
pfp
Member

pfp's Avatar

Join Date: Jan 2011
Location: Phoenix, Az
Posts: 110
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by mtbdudex View Post


I'm hoping the acoustic absorbtion properties of the ECOUSTIMAC eco line are truly what they advertise, I "trust" them, but how to verify?

Really? They already misled you on the dimensions. If it were me I'd be wondering what else they "fudged".
pfp is offline
post #70 of 159 Old 03-01-2011, 04:39 PM
Member

Taxi's Avatar

Join Date: Oct 2001
Location: Portland, OR
Posts: 110
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by pfp View Post

Really? They already misled you on the dimensions. If it were me I'd be wondering what else they "fudged".

I think we should let them give their side of the story before we start accusing them of misleading anybody. Maybe they cut them that size so the finished product is 2x4 with the wood surround? Maybe it was just a simple mistake?

Taxi is offline
post #71 of 159 Old 03-01-2011, 05:43 PM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Quote:
Originally Posted by pfp View Post

Really? They already misled you on the dimensions. If it were me I'd be wondering what else they "fudged".

Quote:
Originally Posted by Taxi View Post

I think we should let them give their side of the story before we start accusing them of misleading anybody. Maybe they cut them that size so the finished product is 2x4 with the wood surround? Maybe it was just a simple mistake?

I sent them email about 10 minute ago, that is start of dialog and mutual understanding.
Hopefully they give me fact based and logical response.

However, simple mistake, no way!
It is so easy to have a template and Quality Control measures to do this job.
I've audited OE auto suppliers who do this "cotton shoddy" work day in and day out with much closer tolerance control.

All I'm asking for is what I bought, 24" x 48", so design can be done before material arrives. It's not "lumber", where a 2 x 4 is really 1 1/2" x 3 1/2".
They'd get crucified in the HVAC business if some person designed ductwork exactly (24" x 48") and @ the jobsite their material arrived and was 23 1/8" x 47 1/8".

IF their end product is 23 1/8" x 47 1/8" nominal, with 1/8" variation, they should advertise as such, and we could know that upfront and design for it.
That's not asking too much I feel in this day and age of 6 sigma QC/etc.

[update]
This issue is closed, see post #76 details http://www.avsforum.com/avs-vb/showt...1#post20087341
mtbdudex is online now
post #72 of 159 Old 03-02-2011, 08:36 AM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Part II Upper bass traps

Starting from here:
Quote:
Originally Posted by mtbdudex View Post

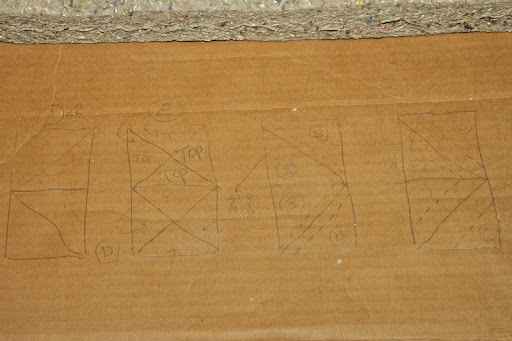

Plan out the cuts to maximize material usage....I had an image on how to do this and just sketched it out like this.
Each sheet I used as fully as possible.


Using newly made templates for the 23 1/8" x 47 1/8" sheets I have, start cutting and stacking, cut in reverse order, ie, the big one first and smallest last.
This is big template........................Smallest template showing placement


This cotton product is much harder to cut thru than OC703/705, so I bring out the turkey knife. Still cuts came out not nicely, determined my blades were dull and sharpened them , much better after sharp blades.



2 traps cut and stacked! I will use those "extra" pieces shown, part of my material usage plan.


I was not 100% satisfied with how the lower corner bass traps edges looked, so decided to tryout using drywall edging. I picked the white paper covered ones to minimize any issue with shiny reflection being seen thru the fabric. If need be, I would have painted them green, but that was not needed.


I used fishing line to secure the the bottom side and screws the top side.
mtbdudex is online now
post #73 of 159 Old 03-02-2011, 08:48 AM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Part III Upper bass traps

1 done with material stacking, added loose pieces with sticky spray, worked great.


Putting on the Kraft paper to block mid-hi frequencies:


1st one wrapped and done!
Those drywall edges made all the difference, I'm going to add those as lesson learned to lower bass trap post. Much crisper look.




Installing into the HT room.
I used a 30+ year old hydraulic bottle jack as 3rd hand...


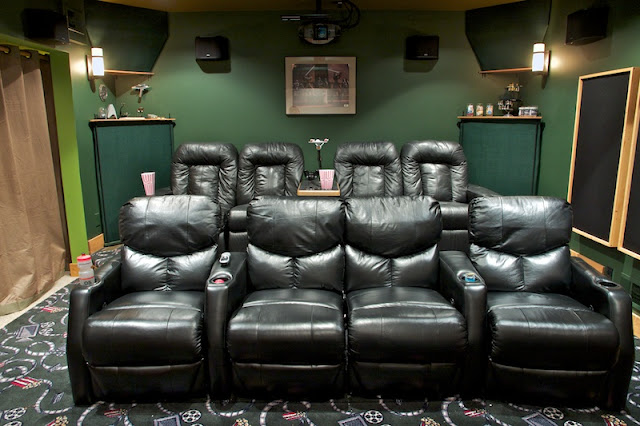

Both installed


Detail LH side....................................RH side


That completes the Rear wall broadband bass treatments.

side note:
I've used that exact same red hydraulic bottle jack back in the late 1970's when I had my 1969 Ford Torino with 390FE engine with 427 med-riser race parts, I was a car jock back then & re-built my engine 3 times...blew up 2 engines before 18 years old.
It was good to help lift up stuff (trans/whatever) to align during engine "re-entry" back into the car.
This is 1979, I'm the guy with blue coveralls on leaning on the engine cherry picker.
Yes, I had a 2 x 4 "Dual Quad" set-up as well in my 11th grade high school, can we say 400+ REAL horsepower and leaded gasoline.
mtbdudex is online now
post #74 of 159 Old 03-02-2011, 09:44 AM
Advanced Member

scl23enn4m3's Avatar

Join Date: Sep 2010
Posts: 750
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Wow, those traps greatly exceeded my expectations. You have skill bringing your ideas to reality. Clean lines and more shelf space! I like the halves more than a full trap now. The downside to a full trap is it makes the back of the room seem smaller, but this give the illusion it's still open.
scl23enn4m3 is offline
post #75 of 159 Old 03-02-2011, 12:29 PM
AVS Special Member

PTAaron's Avatar

Join Date: Jul 2010
Location: SE Michigan
Posts: 1,105
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Those upper traps look great!
How does the room sound?

-Aaron
My Basement Movie Room and Bar/Game Room - actually doing stuff now... please comment!
PTAaron is offline
post #76 of 159 Old 03-02-2011, 01:00 PM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Quote:
Originally Posted by mtbdudex View Post

All I'm asking for is what I bought, 24" x 48", so design can be done before material arrives. It's not "lumber", where a 2 x 4 is really 1 1/2" x 3 1/2".
They'd get crucified in the HVAC business if some person designed ductwork exactly (24" x 48") and @ the jobsite their material arrived and was 23 1/8" x 47 1/8".

IF their end product is 23 1/8" x 47 1/8" nominal, with 1/8" variation, they should advertise as such, and we could know that upfront and design for it.
That's not asking too much I feel in this day and age of 6 sigma QC/etc.

I got a phone call directly from Sal, he also sent this email:
Quote:
From: ACOUSTIMAC <>
Date: March 2, 2011 2:50:02 PM EST
To: Mike and Michelle R <>
Subject: Re: ISSUE with size NOT 24" x 48" Re: Acoustimac - Acoustic Panels and Bass Traps: Order # update
By the way those are some monster bass traps!! They look cool!!!!
Sal
On Wed, Mar 2, 2011 at 2:49 PM, ACOUSTIMAC <> wrote:
Hi Michael,

I am sorry to hear that the insulation you received was short. Please give me a call at your convenience and I will either send you replacement or work out something else with you. I hope to hear back from you.

Thank you for your business and sorry about the inconvenience.

Sal

They have 2 different size, the one I was shipped 23 1/8 x 47 1/8 is for their pre-made frames so the outside dimension to customer is 24" x 48".
I was wrongly shipped those, they do have full 24" x 48" stock as well.

Sal offered for me to ship back my stuff for free exchange (too late, already done), or some other $$ (partial refund or good discount on next buy).

I have to assess my future needs and decide which route I'll go, I'm ok with their response and he truly wants to keep the customer happy and admitted it as their mistake.

Case closed.
mtbdudex is online now
post #77 of 159 Old 03-02-2011, 01:10 PM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Quote:
Originally Posted by scl23enn4m3 View Post

Wow, those traps greatly exceeded my expectations. You have skill bringing your ideas to reality. Clean lines and more shelf space! I like the halves more than a full trap now. The downside to a full trap is it makes the back of the room seem smaller, but this give the illusion it's still open.

Quote:
Originally Posted by PTAaron View Post

Those upper traps look great!
How does the room sound?

Thx guys! It feels good to have those done and turning out decently, I was worried with them hanging up high if they looked so-so what people would say...
And scl23enn4m3 I agree, having a shelf is functional and the 2 traps helps keep the room "openness feeling" decent along the rear wall.

PTAaron - I posted this in another thread;
Quote:
Did you treat your entire room at once, or did you treat just the first reflection points and then try it out?
I studied, planned, and implemented in stages.
Here is what I did in order and simple subjective opinion, scale 1-5, 5 being highest ranking;
-side wall treatments first - very noticable rank 5
-2nd row acoustic cloud - noticable rank 3.5 or 4, not as much as side wall treatments
-Rear wall lower bass traps - very noticable, rank 4.5 or 5
-1st row acoustic cloud - noticable, rank 3 or 3.5
-Rear wall upper bass traps - noticable, rank 4

Ethan W (and some others) recommend you tackle the bass traps 1st, then from there your side wall 1st reflections, then determine what needs treatment after that.
There is a diminishing return on $$ vs benefites gained, both subjective and objective.
Only each individual can judge when to stop and accept their acoustics "as is".

Funny thing, my ear definitley is now tuned better for acoustics, and I can hear a echo among the center channel and my rear wall back to my DW lamiante screen, it forms a echo chamber!
That's why people say go AT screen to elimiante that issue, now I will study on specific portion of rear wall diffusor and/or thin absorber to minimize that.....

That is my subjective ranking, this weekend I'll get REW hooked up and take objective measurements and post those as well, for fact based data/graphs correlation to the subjective rankings.
mtbdudex is online now
post #78 of 159 Old 03-06-2011, 07:53 PM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
In response to a PM:
The upper bass traps are just sitting on (2) L brackets each, gotten from Lowes in the outside deck building area, painted them green.
By simple geometry they are trapped up there, not even attached screws to lower wood piece.
I did put 3/4" round felt on the top/ceiling piece to space it off the ceiling and ensure no vibrations.
Also on the wood edge to space it off the back/side walls, no issue with vibrations at all.


Other:
I did not take REW frequency readings this weekend for the bass improvements.
My AT picture samples for the side wall treatments from "spoonflower" are due later this week, therefore I will tackle that project (which supplier to work with on AT picture fabric) with the improved Bass readings at same time.
(it's a lot of cables/etc getting REW up and running......)
Quote:


Spoonflower Shipment Confirmation - Order #xxxxxxx
Thank you very much for your order from Spoonflower.com. Refer to this email for any information related to your order or visit your My Account page at: http://www.spoonflower.com/users/xxxxxx
Your Order has been shipped!
Shipping Method: We ship using the USPS, which typically takes less than a week. International orders may take quite a bit longer.
Order Detail:
Date ordered: Feb 24th, 2011 03:18 PM
Date shipped: Mar 4th, 2011 09:26 PM
Kit item ordered: Collection sampler of collection 'Test acoustic samples' by mtbdudex
Item Cost: $20.00
Shipping: $2.00
Order Total: $22.00
If you have any questions or concerns, please email help@abcxxxx.com or call +1 (000) 1234567
Thanks for your support of Spoonflower. Now get out there and make something!
Thanks for your purchase!

mtbdudex is online now
post #79 of 159 Old 03-08-2011, 03:27 AM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Got the samples in from Spoonflower last night, simply I was blown away by the picture quality!

Same test as before, I added the Spoonflower to the bottom, also a few from ats acoustics as comparison.

I did the breath test, comparing the Spoonflower material vs the ats acoustic sample pack I have http://www.atsacoustics.com/item--St...ack--1034.html

Subjective rating via breath test:
1) Spoonflower fabric passed more air than the ats acoustic sample I had for the microsuede
2) Spoonflower fabric passed same air - or slightly easier - as the ats acoustic sample cotton weave sample
3) The ats acoustic burlap definitely passed the breath test the most.

Picture quality comparison:
(these are all my original photos, so I can compare them)

This is w/o flash with HT lights on about 50%:


Pict with flash (white balance set according for each shot):


These close ups are all straight from my T1i camera, RAW format w/o any post processing added.
#1 ; the detail in the craters is fantastic, nearly same as original


#2 ; this racoon fine fur detail again quite good


#3 ; the star trails kept streaks and the star colors


#4 ; this B-17 shot in B&W was to see how it fared for B&W....really good


#5a ; tree @ night via spoonflower


#5b tree @ night (blocky weave from local supplier)


#6 reflection test - passed with flying colors!
The cotton weave has less sheen.


Ding - ding - ding: we have a clear winner! Spoonflower .
(Thx luma for pointing them out)

Very impressed with the picture quality, color matching seems spot on, much detail is there, only the star field with the 5 meteorites proved too much for their process to reproduce.

I will take objective freq comparisions later, however I see absolutely no reason not to recommend the spoonflower fabric and process for anyone looking to have Acoustic transparent artwork for their acoustic treatment panel covers.

[edit 3-9-2011: use their Quilting Weight Cotton, http://www.spoonflower.com/spoonflower_fabrics]
Quote:
Quilting Weight Cotton: $18/yard ($16.20 with designer discount)

100% cotton fabric with a soft hand, easy to sew

* 42" wide printable area (107 cm)
* 3.2 oz per square yard
* 78x 76 threads per inch
* Appropriate for quilting, appliqué, shirting, blouses, dresses, children's clothing
* Estimated shrinkage 3%
* Wash on delicate setting, warm or cool using phosphate-free detergent
mtbdudex is online now
post #80 of 159 Old 03-12-2011, 03:07 PM
Newbie

Knoppies's Avatar

Join Date: Mar 2011
Location: New Zealand
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
These french cleats are made from glass filled nylon and are extremely tough. Also used for hanging large speakers on walls. Just do a Tamik Design Google search.
Knoppies is offline
post #81 of 159 Old 03-13-2011, 06:36 PM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
After doing the subjective "breath test" of various fabrics for the AT-ness (Acoustic Transparency ability), I did want to do some objective testing to get a feel for the AT-ness frequency wise of the various fabrics I've been considering for the art coverings on the wall treatments - and share with others.

This past Saturday I built a $20 test fixture out of 1 1/2" PVC pipe, used a closet flange to bolt it to leftover 3/4" OSB 19" x 19" board.
The "T" tee fitting is NOT glued to the 24" upright for easy rotation to simulate various angles of interaction like in real life off side walls / ceiling.

Quick and easy, and holds the test sample via tape.

The test zone is 16" x 16" so I can read the midrange and tweeter drivers separately by adjustment of the mic boom stand.
My Paradigm Monitor 9 midrange driver is 32.0" above base and tweeter driver is 37.25" above base.
I marked the baseboard every 15 degrees 0-15-30-45-60.
(but did not take measurements @ 15 or 30 deg)

The fixture is set to be 4.25 inches from the cone center, and the measurement mic is 0.75 behind the fabric being measured.

If I made the fixture closer to the speaker then I could only rotate it to 30 deg before it hit the speaker sides.
I realized not perfect "nearfield", but my goal here is to quantify the change in frequency amplitude being passed thru the various fabric's to compare the subjective breath test with objective AT data.
(and learn by doing)

As used in the HT, my RH/LH main speakers are 24" from side wall and 28" from back wall, toed inward slightly.
For this Sunday afternoon quick round of testing I did NOT put them more centered in the room.....
I had about 90 minutes to do all this in the basement while my 2 boys (7 and 5) were in the 2nd floor loft playing games, so had to work quickly.
(with HVAC/other off to lower the sound floor)

Here it is at 0 degrees measure (simulating direct reflection @ 0 deg)....Here it is at 45 degrees measure (simulating reflection @ 45 deg)


Here is the fabric from spoonflower being measured.
All measurement were done with REW5 driving thru the Ext-IN, bypassing any processing.
(cables and "stuff" everywhere)


Side view of set-up.........front 3/4 view of set-up


I took over 30 measurements via REW5, iMac 24", Behringer ECM8000, and will group them into logical parings for comparison purposes and review.
-Baseline of Midrange and tweeter w/o any fabric
-Midrange and tweeter thru spoonflower fabric @ 0,45,60 degrees
-Midrange and tweeter thru local supplier blocky fabric @ 0,45,60 degrees
-Midrange and tweeter thru kraft paper @ 0,45,60 degrees
-Midrange and tweeter thru 3/4" pink hard insulation board @ 0,45,60 degrees (for comparison to kraft paper for blocking mid-hi freq in bass traps)

Again, the fixture is set to be 4.25 inches from the cone centers, and the measurement mic is 0.75 behind the fabric being measured. Not perfect nearfield but close for this purpose.

I'll post those graphs later with my comments for discussion.
mtbdudex is online now
post #82 of 159 Old 03-13-2011, 06:51 PM
AVS Special Member

xzener's Avatar

Join Date: Feb 2007
Posts: 1,283
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 28
So I was thinking while installing my inwall speakers today, it would be nice to have an acoustically transparent movie poster to cover my rear surrounds.

Do you think it would be possible to print a movie poster on say movie screen material??
xzener is offline
post #83 of 159 Old 03-14-2011, 03:34 AM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Quote:
Originally Posted by xzener View Post
So I was thinking while installing my inwall speakers today, it would be nice to have an acoustically transparent movie poster to cover my rear surrounds.

Do you think it would be possible to print a movie poster on say movie screen material??
I understand your Q - if AT movie screen material is great for the projected light visual AND is AT, why not use that for printed coverings on rear surrounds (and possible fabric covers for acoustic treatments I'll add).

I'm simply not sure the printing process used by the online place spoonflower.com or the local place (used a HP 9000 series Designjet that is fed by material on a std size roll ) could do that.
Each uses equipment with its own set-up parameters.

Can you follow-up with an inquiry to the supplier who sell's AT movie screen material with your Q?
Can it be "printed on"? Has it been done before?
What size roll does their material come on? etc.

I'd be interested that result as well.
mtbdudex is online now
post #84 of 159 Old 03-14-2011, 10:04 AM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Set-up:
REW5, iMac 24", Behringer ECM8000, test date March 13, 2011
The fixture is set to be 4.25 inches from the cone centers, and the measurement mic is 0.75 behind the fabric being measured.
As used in the HT, my RH/LH main speakers are 24" from side wall and 28" from back wall, toed inward slightly.

I measured the midrange @ its center height position (32.0")and tweeter @ its center height position (37.25")
Did the 75db calibration @ midrange position and did not re-calibrate for tweeter position.
Applied 1/3 octave smoothing for all these, if subwoofer then I would have applied 1/12 octave smoothing.

paradigm monitor 9 Crossovers specs:
3rd-order electro-acoustic at 1.9 kHz
2nd-order electro-acoustic at 500 Hz


They graphed like this as baseline w/o any thing between them and the mic:
(Blue is midrange, purple is tweeter)
Chart 1 Baseline chart:


Note:
1) I always show the "baseline" midrange/tweeter curve for visual compaision on respective charts.
2) I always ran the measurement 80hz - 20khz, and plotted that way also.
3) When looking at the charts, the midrange you should look at the 500-1.9k freq zone, the tweeter the 1.9k and above freq zone

Spoonflower cotton cloth charts
Chart 2a Midrange with spoonflower cotton cloth, baseline and @ 0, 45, 60 degrees


Chart 2b Tweeter with spoonflower cotton cloth, baseline and @ 0, 45, 60 degrees


>>My conclusion from the midrange/tweeter charts: spoonflower cotton cloth is AT and good to go for acoustic absorber panels usage.

Charts showing mi-hi freq blockage:
Chart 3a Midrange with kraft paper, baseline and @ 0, 45, 60 degrees


Chart 3b Tweeter with kraft paper, baseline and @ 0, 45, 60 degrees


>>My conclusion from the midrange/tweeter charts: Clearly krafty paper does block significant hi freq, it appears not as good at mid-freq blockage

This show the "freq blockage" of kraft paper vs 3/4" pink foamboard:
Chart 4


>>My conclusion from the midrange: Clearly 3/4" pink foamboard does block significant mid and hi freq compared to the kraft paper
(I forgot to do same test for tweeter kraft vs 3/4" pink foamboard, maybe on Part III will do)

This shows a comparision of tweeter for baseline, spoonflower, and kraft @ 0 deg
Chart 5


This shows a comparision of midrange for baseline, spoonflower, and kraft @ 0 deg
Chart 6



I might re-do these as Part III with the speakers more mid room to more remove any wall interaction from these readings, but my quick experience gained is these fabrics seem more AT than I had guessed they would. But, this is my 1st time doing this so no real frame of reference.
I've not come across anyone else here @ AVS doing these, could be burried in the 200+ page Master Acoustics thread, that thread would be so much more useful if an index was at the beginning...There is great info burried in it, lost, and then re-talked about again. I truly feel for Dennis/Ethan/Terry/Ted/Others for answering q's multiple times.
mtbdudex is online now
post #85 of 159 Old 03-14-2011, 12:28 PM - Thread Starter
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,150
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 165
Spoke with "Sal" @ acoustimac,http://www.acoustimac.com/index.php/...5/category/10/ .
I just ordered (3) more cases of their "ECOUSTIMAC Eco Friendly DIY Insulation (4 lbs/ft) 48"x24"x2" -Case of 6 ", guaranteed by Sal to be 24" x 48".
He gave me discount price on the 1st case due to prior situtation.
If I get these Friday 3/18 weekend project will be doing the Front Wall Broadband Bass Traps.
The front LH Corner will get a full floor-ceiling 24"x24"x34" superchunk, while on RH side due to IB sub I'll handle the top tri-corner only.
I've been trying to make all the acoustic treatments non-fixed, however for a whole floor-ceiling bass trap looks like a fixed one is best design.
The front RH top tri-corner will be similiar to the Rear upper bass traps I've made earlier.
mtbdudex is online now
post #86 of 159 Old 04-07-2011, 09:59 AM
AVS Special Member

localhost127's Avatar

Join Date: May 2009
Posts: 2,277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 24
just found this thread - nice work ,everyone.
just wanted to chime in --- those making frames that wrap around the oc703 (or equiv) need to take into account edge diffraction. an ETC graph will verify that you are properly absorbing all first reflections.

if you do NOT build a frame around the insulation, then you are effectively gaining 50% area coverage on a 4" thick trap (because the sides of the panel are exposed and able to absorb ingress/incident energy as well) -- just a FYI.

here's my contribution.
note, if you build a backing frame only, this leaves the sides of the panels open, eliminates edge diffraction off (what would be) a wooden frame wrapped around the insulations, and also provides an air gap (which is vital for porous absorption), spacing it off the wall. --- and also provides something to staple the rear and front fabric to.















cheers,
localhost127 is offline
post #87 of 159 Old 04-07-2011, 02:29 PM
AVS Special Member

localhost127's Avatar

Join Date: May 2009
Posts: 2,277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 24
mtbdudex,
very nice work on the corner chunks
i dont believe i saw any waterfall plots? if you really want to see how effective the corner chunks can be, take watefall plots (0-300hz, 0-500ms) and that will give you a good idea of the modal ringing that was cured and what still needs to be addressed. freq response is only one part of the story! time domain will tell you more.
cheers,
localhost127 is offline
post #88 of 159 Old 05-02-2011, 11:25 AM
Senior Member

aackthpt's Avatar

Join Date: Sep 2004
Location: In the mitten, USA
Posts: 348
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 16
Your graphs aren't going to show any difference below about 850 Hz since that is roughly the frequency corresponding to 16" wavelength. Below that will just refract right around it. Someone did a test on Gearslutz like this (though with a different aim, like trying to figure out absorption for a material or something), and Ethan suggested the only accurate way to do this all the way down is to make a door of the material and mount it in a wall then run this type of test (after the guy got roundly and obtusely beaten down by SAC, heh). I can find the thread in my info stash if you'd like.

That said, great testing! I may want to use this stuff for some of my panels, so thank you for leading the way on testing it! This test method is awesome, and would be very useful for whatever sort of fabric was under consideration.

When I chose fabrics, I went to the fabric store with someone else, and not only chose one that I could breathe freely through, but also one that preserves the sound of my voice well when I speak through it. I figure that is a pretty decent fabric store test of AT.

Hopefully I didn't miss this from before: how are you removing reflections from the analysis? Tight (really tight) windows?

And did you use any sort of reflective facing on your chunk-style corner bass dampers?
aackthpt is online now
post #89 of 159 Old 05-02-2011, 04:47 PM
AVS Special Member

localhost127's Avatar

Join Date: May 2009
Posts: 2,277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 24
Quote:
Originally Posted by aackthpt View Post

Your graphs aren't going to show any difference below about 850 Hz since that is roughly the frequency corresponding to 16" wavelength. Below that will just refract right around it.

this is entirely incorrect. you must have taken something out of context within that conversation.

yes, larger wavelengths diffract around - this is why we place bass traps in the corners
localhost127 is offline
post #90 of 159 Old 05-02-2011, 05:59 PM
Senior Member

aackthpt's Avatar

Join Date: Sep 2004
Location: In the mitten, USA
Posts: 348
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 16
Quote:
Originally Posted by localhost127 View Post

this is entirely incorrect. you must have taken something out of context within that conversation.

yes, larger wavelengths diffract around - this is why we place bass traps in the corners

I wasn't referring to your stuff localhost127, I was referring to testing the AT transparency that mtbdudex was doing. YOU didn't post any graphs to which to refer! I doubt we are in disagreement on the acoustics. If I am incorrect that there will little difference between measured response with and without the 16 inch panel in place (regardless of material) below 850Hz, then please explain!

I'm sure that your panels as well as those mtbdudex has up, and his superchunk-style corners, are effective. With the caveat that, to have an actual meaningful conversation, we'd have to hash out the precise meaning of "effective" under a certain circumstance!

I apologize for not making it clear to whom and about what I was referring.
aackthpt is online now
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
