Looks great! Man, working on the inside of the IB chamber must have been loads of fun - I got annoyed just putting up fabric behind my screen wall, so cramped - nothing compared to that sweat box!
Brad Horstkotte is offline
Sponsored Links
Advertisement

post #62 of 1097 Old 03-21-2011, 03:11 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
when doing the caulking I had a hologen work light in there - It got warm pretty fast. Starting on the double drywall tonight - should be fun.
stockmonkey2000 is offline
post #63 of 1097 Old 03-21-2011, 11:09 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26

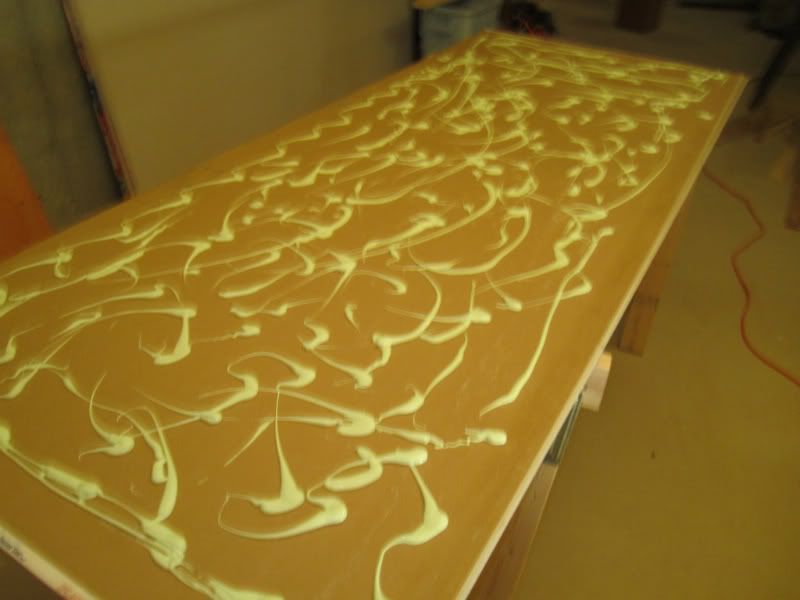

Managed to get a few hours in and started on the drywall. Here is the obligatory Green Glue shot.

stockmonkey2000 is offline
post #64 of 1097 Old 03-21-2011, 11:11 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26

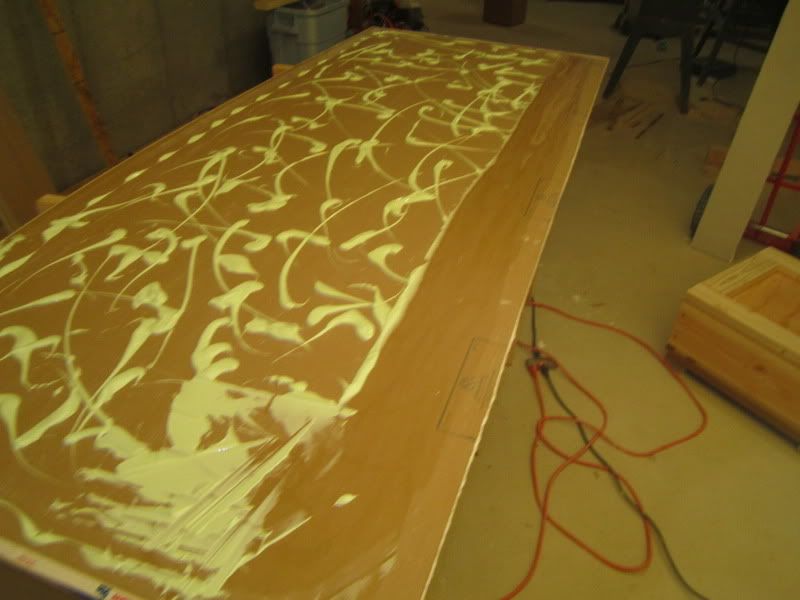

Measure twice cut once - Especially true when working with Green Glue - Got this piece up and realized I measured wrong and cut it 5 inches too big - Had to scrape off the Green glue and cut again. When all was said and done I ended up about an inch too short . It was the end of a wall so I will tuck the other wall behind this one and fill in the little gap with caulk.

stockmonkey2000 is offline
post #65 of 1097 Old 03-22-2011, 03:17 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
While working in the theater I noticed how loud the pipes are when the toilet is flushed - I remembered that I had a few rolls of self adhesive rubber window flashing that I bought for my last house and never ended up using - the rolls are about 5-6 inches wide and when doubled up fit perfectly on the 4 inch drain pipes. It is pretty thin stuff so I'll probably need to put several layers up, but even with one layer it does make a bit of a difference.

stockmonkey2000 is offline
post #66 of 1097 Old 03-22-2011, 03:41 PM
AVS Special Member

GoCaboNow's Avatar

Join Date: Mar 2008
Posts: 4,187
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
Liked: 355
Quote:
Originally Posted by stockmonkey2000 View Post

Managed to get a few hours in and started on the drywall. Here is the obligatory Green Glue shot.


Looking good! You are almost inspiring me to get off my butt and finish my back wave as well. Are you going to put up anything on the drywall when you finish? Insulation or OC703?

Location: Beaverton, Oregon
My Dedicated Home Theater Room
GoCaboNow is offline
post #67 of 1097 Old 03-22-2011, 06:54 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
I'll be putting in a bunch of fluffy fiberglass insulation. Right now my chamber is at about 8.5x Vas for the 4 drivers. I think with the insulation the chamber should simulate 10x Vas fairly well.

If Blueprint ever releases the 22" IB drivers I may put those in which would likely reduce that down to 5-6x vas. I wonder how much difference that would make.
stockmonkey2000 is offline
post #68 of 1097 Old 03-22-2011, 07:23 PM
AVS Special Member

Moggie's Avatar

Join Date: Mar 2008
Location: California, Bay Area
Posts: 1,206
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 25
Quote:
Originally Posted by stockmonkey2000 View Post

If Blueprint ever releases the 22" IB drivers I may put those in which would likely reduce that down to 5-6x vas. I wonder how much difference that would make.

I'm shaking my head thinking "wait to you hear what you've got".

My "Old Vic" Theater Build | Screen Build | HT of the Month | Contest Win
My 8 year old daughter: "are contractors the people that mess up your house for money?"
Moggie is offline
post #69 of 1097 Old 03-22-2011, 07:36 PM
Member

chainsaw12117's Avatar

Join Date: Dec 2009
Location: New York
Posts: 127
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
looking good
chainsaw12117 is offline
post #70 of 1097 Old 03-22-2011, 11:25 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
Quote:
Originally Posted by Moggie View Post

I'm shaking my head thinking "wait to you hear what you've got".

I hear you - I'm sure you can speak to that better than I can. I've never heard an IB yet - But from what I understand it is a different sound that most are used to due to the lack of distortion and because of the lack of distortion some say they do not sound as loud to some people as a conventional sub.

I hope that you are right and I have no desire to upgrade - 4 18's is probably considered excessive by many, but this is the way I look at it. - I remember in the late 80's I went into a high end stereo store and they had the Infinity IRS Beta's - The IRS Betas were $70k if I recall correctly and this was a time when $5000 speakers were considered extremely high end. The IRS betas had two towers with 12 - 10 or 12 inch woofers in two towers and they went down to 16 hz. They played an organ note at 16 and it totally pressurized the room. I was amazed by those speakers.

Those Infinity drivers of that era probably had 8-10 mm of xmax if that - Now you can get the equivalent displacement with a few 15 inch drivers and just about everybody these days with a subwoofer has 16hz extension. The Infinity's seemed very excessive back then (and they were), but looking at them from today's perspective the output does not seem as impressive.

One other thing - each halving of frequency requires 4x the displacement for equal volume - Lets say hypothetically My speakers with dual 9" scanspeak woofers can output 110db at 40hz and have 1 liter of displacement - to have the same output as the mains at 20 hz - the sub would require 4 liters. 16 liters at 10 hz, 64 at 5 hz etc. (the 4 fi 18's have 29 liters of displacement) When you start to look at it like that maybe 4- 22's does not sound so crazy

I'm not interested in cranking out 130 db's at 20 hz. I really have no use for that - I want the subs to be able to play low and free of distortion and driving them well under their limits.

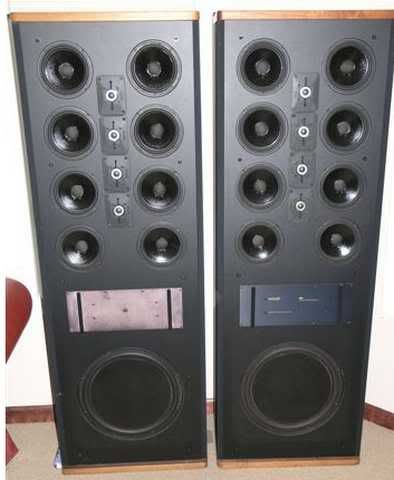

This is the Infinity system I was referring to (this was just a photo pulled off the web)
stockmonkey2000 is offline
post #71 of 1097 Old 03-22-2011, 11:31 PM
AVS Special Member

xzener's Avatar

Join Date: Feb 2007
Posts: 1,309
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 33
You really know your stuff.
xzener is offline
post #72 of 1097 Old 03-23-2011, 08:23 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
I've got the first layer of drywall up in the chamber and caulked all the seams - I'm going to have to put the ceiling in last this time because there is barely enough room to tilt a sheet of drywall in there now. I'm also going to have to pick up some more green glue - I wasn't planning on having green glue in between the drywall and the osb when I bought it.

I also bought several of the IB3 clips to attach the framing to the outside walls or the existing ceiling joists - I ended up not using them so the entire chamber room is free standing. Now that everything is tied together this thing has absolutely no give. I have to say this is the most overbuilt framing structure I have ever built.

stockmonkey2000 is offline
post #73 of 1097 Old 03-23-2011, 10:50 AM
AVS Special Member

GoCaboNow's Avatar

Join Date: Mar 2008
Posts: 4,187
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
Liked: 355
Quote:
Originally Posted by stockmonkey2000 View Post

I hear you - I'm sure you can speak to that better than I can. I've never heard an IB yet - But from what I understand it is a different sound that most are used to due to the lack of distortion and because of the lack of distortion some say they do not sound as loud to some people as a conventional sub.

You are going to have fun. First movie I did after I hooked up the ib was Godzilla (by coincidience had just shown up in my queue), and I was amazed at - how clear my surrounds sounded.

Well, that, and how awesome Godzillas footsteps are. I expected to get the great ulf, and pure growl, but I did not realize how much distortion was in my old subs that masked the other speakers.

Location: Beaverton, Oregon
My Dedicated Home Theater Room
GoCaboNow is offline
post #74 of 1097 Old 03-27-2011, 10:46 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
Both layers of drywall up in the chamber. Glad to finally get this done - it was getting small in there. I managed to get everything up without getting green glue all over everything - until the very last piece - it was the piece covering the doorway to get in and I had to put green glue on the wall instead of the drywall. The drywall slid down as I was trying to screw it in and it ended up getting all over my tool belt and clothes - Then it ended up all over my drywall screw gun. Managed to get it off the gun with some goof off.

stockmonkey2000 is offline
post #75 of 1097 Old 03-27-2011, 02:03 PM
Member

nicknageli's Avatar

Join Date: Jan 2006
Posts: 27
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Lookin' really good!
nicknageli is offline
post #76 of 1097 Old 03-29-2011, 09:07 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
Quote:
Originally Posted by DavidK442 View Post

Seeing the pictures of the Infinity's brought back some of that old hi-fi nostalgia. I remember reading about them back when I was saving $500 for my first set of bookshelves. Yup, the price tag was excessive, but still the object of many budding audiophiles wet dreams. Altec Lansing had a series out at the time that was almost as crazy. Can't remember the name but it was a monster tower vertically loaded with large drives, bigger I think then the bass tower of the Infinity's. It was an active speaker, with a five way cross over if memory serves...and where is Altec now? Making $50 computer speakers. Sad really.

Where is infinity for that matter? - Back in the late 80's Infinity and even Polk made some good stuff. The speakers from that era are much better than what they put out today. In the late 80's (still high school for me), I dreamed of owning the Polk SRS-SDA 1.2's. I remember listening to these in the store and being amazed at the 3d image they provided.

stockmonkey2000 is offline
post #77 of 1097 Old 03-29-2011, 09:13 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26

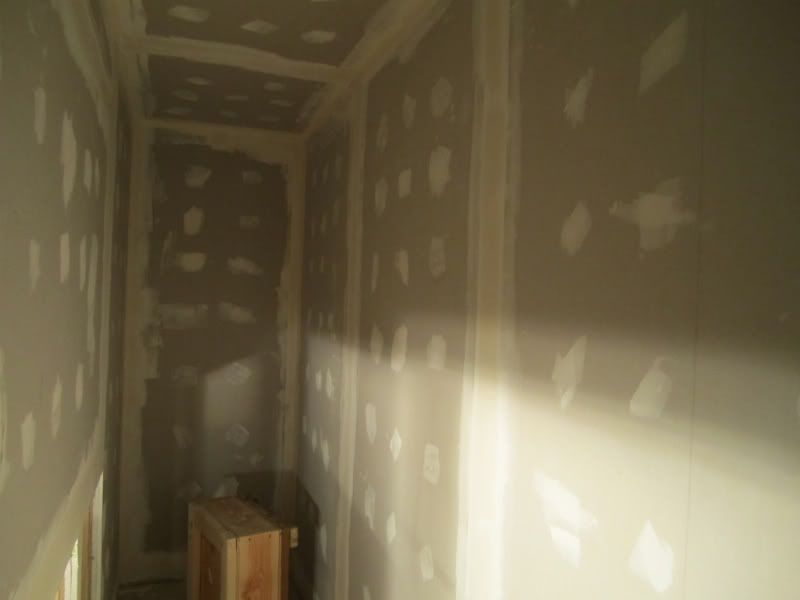

I mud and taped the chamber - I figured I could have just used acoustic caulk, but thought the mud and tape would prevent any cracking at the seams. Since none of this would be seen, I did a quick job not worrying about a quality finish.

stockmonkey2000 is offline
post #78 of 1097 Old 03-29-2011, 09:14 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
Last steps are to put in insulation, mount the manifolds and build the access door.

stockmonkey2000 is offline
post #79 of 1097 Old 03-30-2011, 08:26 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26

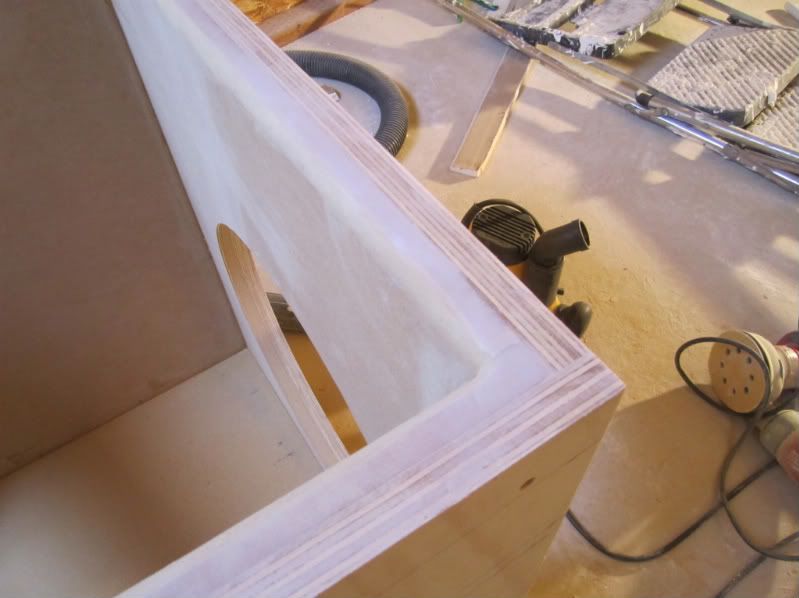

Not much progress the last few days but I did put a rounded edge on the manifolds and got the insides of the boxes painted.



stockmonkey2000 is offline
post #80 of 1097 Old 03-30-2011, 03:36 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
I'm glad I have this thread as a journal of my progress - I was feeling like my progress has slowed and things were not moving along as quickly as they should - It feels like I have been at this for at least a few months.

I looked back and the first time I did anything to the theater was just over a month ago - The first nails went in just a bit less than a month ago. I guess with planning and the other parts of the basement It made it feel like I have been doing this longer than I have. It made me feel better about my progress to look back at the thread.
stockmonkey2000 is offline
post #81 of 1097 Old 03-30-2011, 03:45 PM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,143
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked: 50
Quote:
Back in the late 80's Infinity and even Polk made some good stuff. The speakers from that era are much better than what they put out today. In the late 80's (still high school for me),
Now, just hold on. How'd you know that. I happen to know they didn't have electricity South of Point of the Mountain until '89.

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors
www.erskine-group.com
www.CinemaForte.net
Dennis Erskine is offline
post #82 of 1097 Old 03-31-2011, 08:28 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
Quote:
Originally Posted by Dennis Erskine View Post

Now, just hold on. How'd you know that. I happen to know they didn't have electricity South of Point of the Mountain until '89.

I did have to hitch up the wagon and make the trip to the big city in order to hear the Polks
stockmonkey2000 is offline
post #83 of 1097 Old 03-31-2011, 10:23 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26

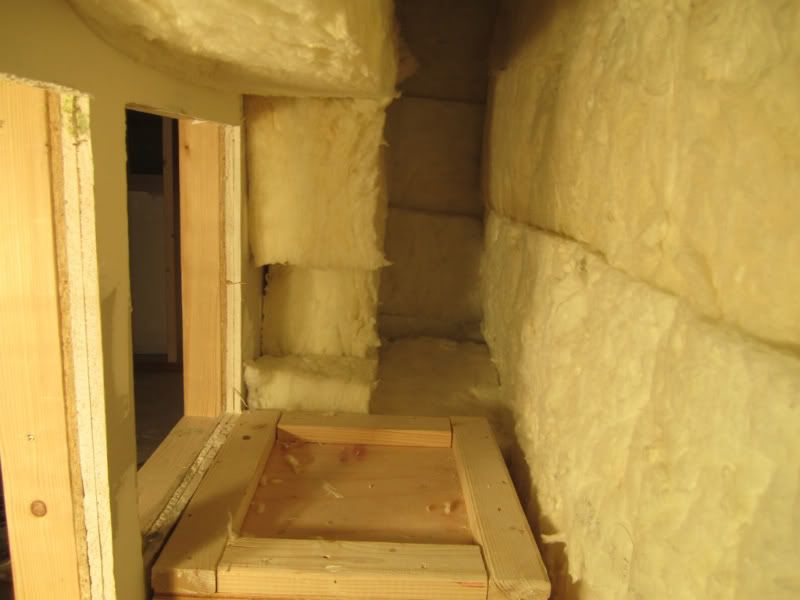

Insulation in chamber finished. Very itchy when done. Hope I don't have to spend much time in here anymore.



stockmonkey2000 is offline
post #84 of 1097 Old 03-31-2011, 10:28 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 57
Urg that does look unpleasant - congrats on having escaped from it!
Brad Horstkotte is offline
post #85 of 1097 Old 04-01-2011, 06:48 AM
AVS Special Member

petew's Avatar

Join Date: Oct 2000
Location: Albuquerque, NM USA
Posts: 2,069
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 49
Yikes. That looks horrible!

High Desert Theater - work in progress
Building Bass - Subs

Surrounds - Easy as Pi

Storage - unRAID unDELL

petew is online now
post #86 of 1097 Old 04-01-2011, 10:08 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
It wasn't to bad at first, but toward the end it was like swimming in a fiberglass filled swimming pool.

I didn't think it through at first and started doing the walls first so the ceiling could rest on the insulation on the walls - I realized that doing that I wouldn't be able to get the ladder in there to put up the ceiling - So i had to remove some and put the ceiling in first. I was worried i was going to run out of insulation before I covered the chamber and was not looking forward to getting cleaned up and then having to go in there for a few small pieces - I ended up just making it with what I had.

I just used twine to hold the batts in place - I stapled twine to the bottom of the walls and wrapped it around the batts and stapled to the top.
stockmonkey2000 is offline
post #87 of 1097 Old 04-02-2011, 04:02 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26

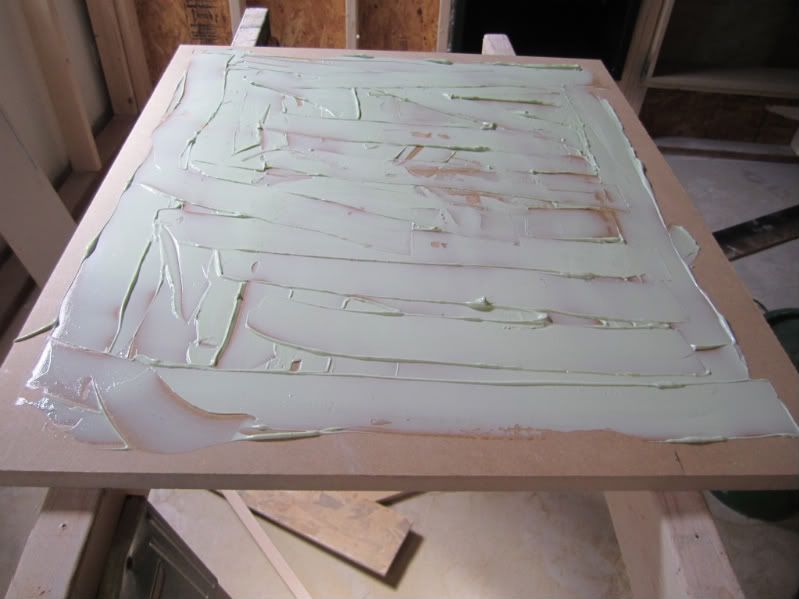

Started building the panel to cover the access hatch in the chamber. Built it out of 2 layers of 3/4 MDF with Green Glue between. I didn't want to have to clean the applicator for such a small job so I put the Green Glue on with a cheap putty knife.



Handles installed.

stockmonkey2000 is offline
post #88 of 1097 Old 04-02-2011, 05:10 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
stockmonkey2000 is offline
post #89 of 1097 Old 04-02-2011, 05:15 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
stockmonkey2000 is offline
post #90 of 1097 Old 04-03-2011, 05:18 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,711
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 26
Panel door installed - I still need to put in a gasket to seal the door. Also started installing the drivers.

stockmonkey2000 is offline
Reply Dedicated Theater Design & Construction

Tags
Behringer Europower Ep4000 Professional Amplifier , infininte baffle , Integra , Jvc Dla Rs45 Home Theater Projector 1080p Hdmi , Oppo Bdp 93 Blu Ray Player
Gear in this thread - 1080p by PriceGrabber.com



Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
