post #241 of 1093 Old 06-26-2011, 04:07 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
The door has been hung. I put quite a bit of reinforcement around the jamb particularly where the hinges go. It doesn't appear to have any sag so I think it is going to hold up. It is a very heavy door though. I still need to install the threshold and door seal.



It looks like the door is sagging a bit in this picture, but the door is just opened a bit which makes the bottom appear uneven.

stockmonkey2000 is offline
Sponsored Links
Advertisement

post #242 of 1093 Old 06-26-2011, 04:09 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Now that the door is installed and the room is fairly sealed off the room is very quiet in there now. However I noticed that the a/c condenser lines make an annoying buzz when in operation. I've never noticed them making noise before but the quiet and live room really makes it so you can hear them. I hope it will not be an issue when it is enclosed in the soffit but I may have to take some measures to isolate them.

stockmonkey2000 is offline
post #243 of 1093 Old 07-21-2011, 06:55 AM
FOH
AVS Special Member

FOH's Avatar

Join Date: Apr 2010
Location: Midwest
Posts: 4,737
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 206
Any updates? Still very interested in your build.

------------------------------------
Flat, Deep, Clean, Linear, and Loud
------------------------------------
Active 16.8kw, 7.3 system
(3)Seaton Cat12C up front, (4)QSC K8 sides/rears
(2)Seaton SubM-HP, (4)18" IB
FOH is offline
post #244 of 1093 Old 07-25-2011, 07:11 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Sorry for the lack of updates, Summer vacation, and taking the scouts for a week of scout camp has gotten in the way of progress on the theater. Should be able to make some progress the next few weeks.
stockmonkey2000 is offline
post #245 of 1093 Old 08-03-2011, 02:09 PM
AVS Special Member

Djoel's Avatar

Join Date: Jul 2006
Location: NYC
Posts: 7,475
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked: 156
Looking awesome, wish i had talent like you, and others on this forum..Oh yeah I would need a house to go with that talent, so I'll take one of each.

I'm betting you'll be done way before your schedule, well this is from some who don't know much abot building anything.

Djoel
Djoel is online now
post #246 of 1093 Old 08-04-2011, 08:23 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Quote:
Originally Posted by Djoel View Post
Looking awesome, wish i had talent like you, and others on this forum..Oh yeah I would need a house to go with that talent, so I'll take one of each.

I'm betting you'll be done way before your schedule, well this is from some who don't know much abot building anything.

Djoel
Not if I keep going at the pace I've been going the last month. Hardly have done anything. I'm ready to get back going full bore again.
stockmonkey2000 is offline
post #247 of 1093 Old 08-04-2011, 11:00 AM
Member

tmhouse's Avatar

Join Date: Jul 2011
Location: Lancaster, PA
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I'm planning a pretty similar room to this so far. Great work, and thanks for all the details and pics. I'll enjoy watching you complete the room!
tmhouse is offline
post #248 of 1093 Old 09-12-2011, 08:18 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22

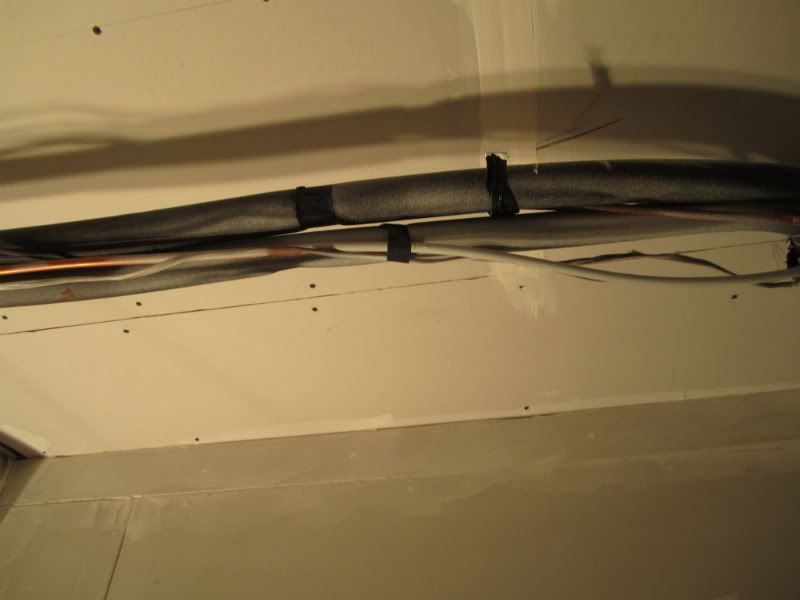

I have been making some progress on the theater this week. The drywall mud is almost done. One final touchup coat on the walls should do it. I only put a single coat on the ceiling since it will be covered by the star ceiling panels. Figured there was no point in spending a lot of time on it. Plan to get started on the soffits this week.
stockmonkey2000 is offline
post #249 of 1093 Old 09-15-2011, 07:58 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22

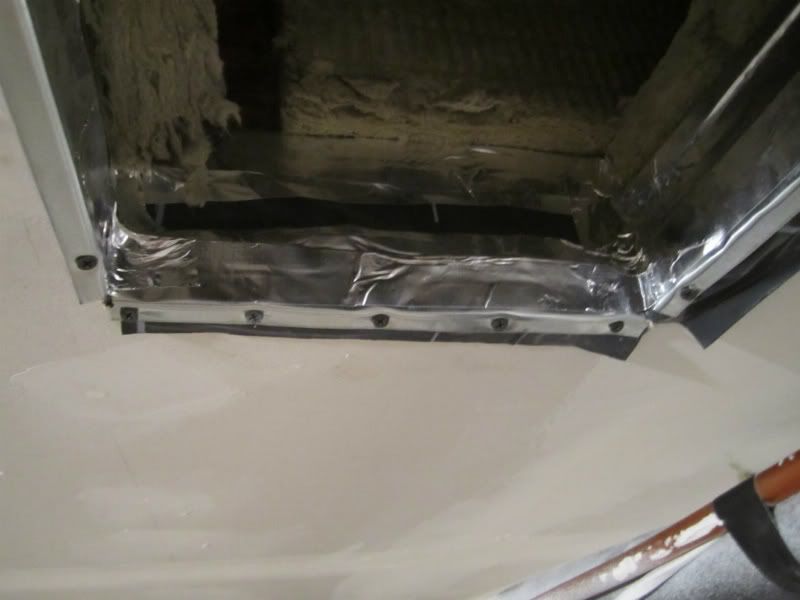

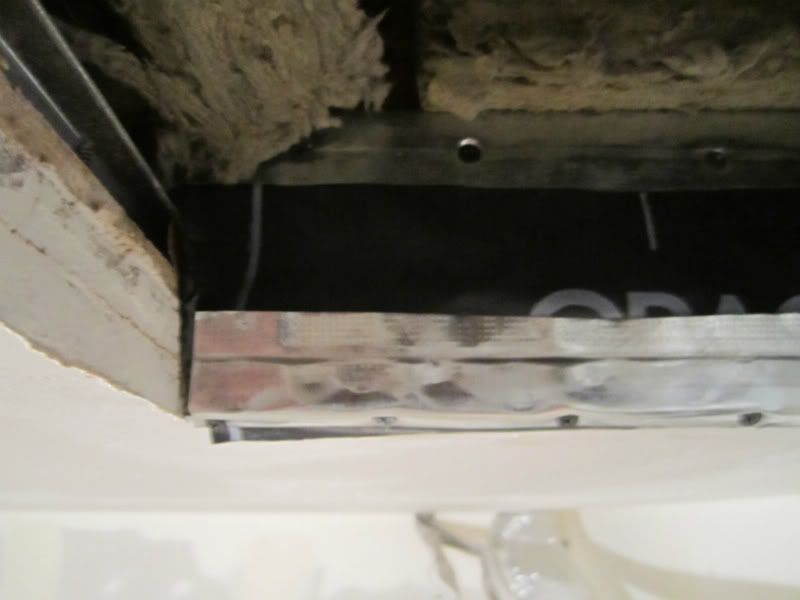

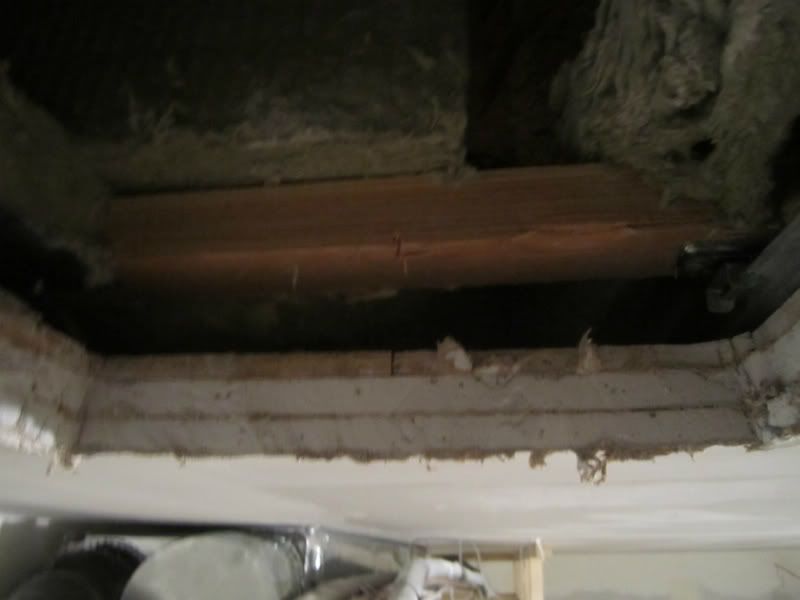

I have 2 return air ducts that go through the ceiling that I needed to deal with before installing the soffits. I had to come up with a way to decouple the ceiling from the joist so I came up with this solution. The first picture shows the gap between the ceiling and the joists. I put a rubber membrane to connect the sections together. I cut up some hat channel to make a metal clamp to hold the rubber membrane in place. I then sealed it off with aluminum tape. This is the best solution I could think of but if anyone has any other ideas that might work better I'm open to suggestions.





stockmonkey2000 is offline
post #250 of 1093 Old 09-15-2011, 07:50 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Quote:
Originally Posted by DavidK442 View Post

So with the returns taken care of is the sound proofing now complete, or do you have more stripping to add around the door? Do you plan on measuring the attenuation when you are done? Crude, but you could play white noise at a measured level inside the room (100db say) then take readings at various locations outside of the room. With all the time and effort people spend on sound proofing I'm surprised I see so little measurement to confirm the results afterwards. Glad to see you are making progress again. Once the mud is done the exciting stuff begins to happen.

I still have not sealed the door and the return air will not be isolated until the soffit is up. I will take some measurements once I have the system set up and everything done. I think the reason many people do not take measurements is that it is readily apparent just being in the room. Even without the door sealed it seems very quiet in the room as long as you are very still. The room is still very live with no treatments up. When my air conditioner is running the condenser lines seem very loud against the quiet background. I never noticed the noise they made before. Hopefully I will not hear them once they are sealed up in the soffit.
stockmonkey2000 is offline
post #251 of 1093 Old 09-16-2011, 08:16 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22

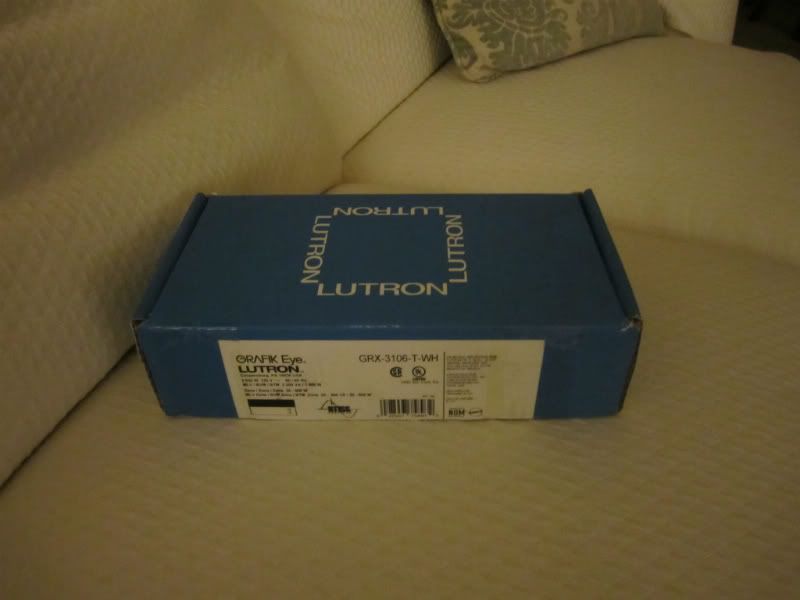

Had a new toy for the theater waiting for me when I got home yesterday. Need to get this thing figured out.

stockmonkey2000 is offline
post #252 of 1093 Old 09-17-2011, 08:46 PM
Member

misugrad's Avatar

Join Date: Jan 2010
Location: W Bloomfield, MI
Posts: 166
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Just read through your build - subscribed. Great progress and work. Really interested in the IB set up. I've just started and waiting for my IBs to show. Did you end up connecting your manifolds to the wall or just to your sand filled bases?

Mike
Started the build...Theater With A View
misugrad is offline
post #253 of 1093 Old 09-17-2011, 10:25 PM
AVS Special Member

xzener's Avatar

Join Date: Feb 2007
Posts: 1,280
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 28
Have fun with the Grafic Eye... they are a MUST in a theater room.
xzener is offline
post #254 of 1093 Old 09-18-2011, 09:36 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Quote:
Originally Posted by misugrad View Post
Just read through your build - subscribed. Great progress and work. Really interested in the IB set up. I've just started and waiting for my IBs to show. Did you end up connecting your manifolds to the wall or just to your sand filled bases?
I did end up connecting the IB to the wall. My original plans were to decouple the manifolds like moggie did in his build. I had a discussion about decoupling the manifolds over at the IB cult forum and the consensus was that I should couple the manifolds to the wall. I hope I do not regret it later. With the opposed drivers and the weight of that wall (triple layer with osb and 2 layers of drywall) I think it is going to be solid.
stockmonkey2000 is offline
post #255 of 1093 Old 09-19-2011, 07:57 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
I framed all the soffits over the weekend. Only part remaining is the radius curve on the soffit for the screenwall. Had to stop before I could get the room cleaned up so I did not take pictures but will get some pictures up of the soffits tonight.
stockmonkey2000 is offline
post #256 of 1093 Old 09-19-2011, 08:51 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22

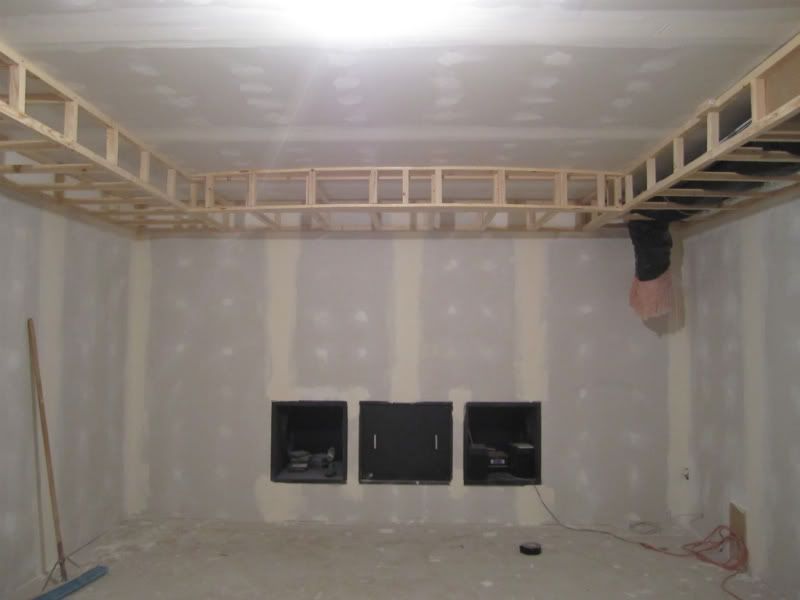

Here is the soffit work I did over the weekend. I put up the curve for the screenwall tonight.

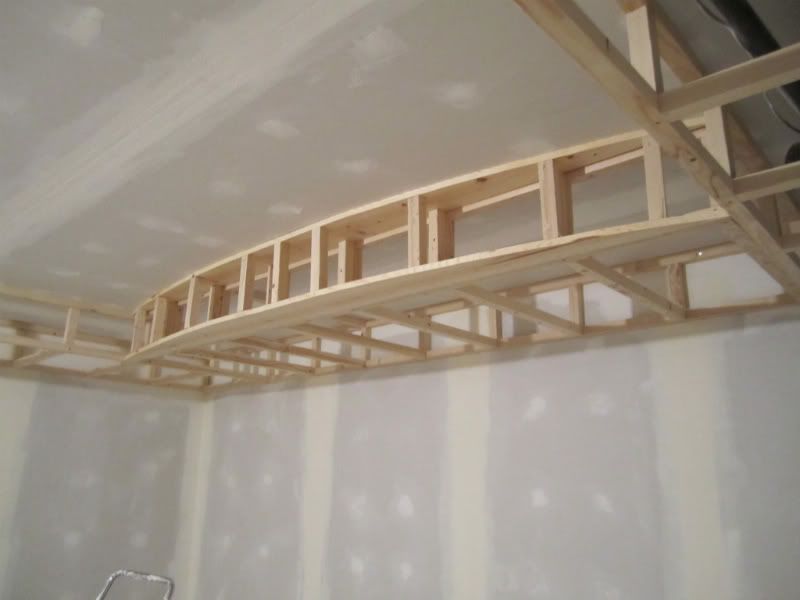

Better shot of the curve.

stockmonkey2000 is offline
post #257 of 1093 Old 09-19-2011, 08:52 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22

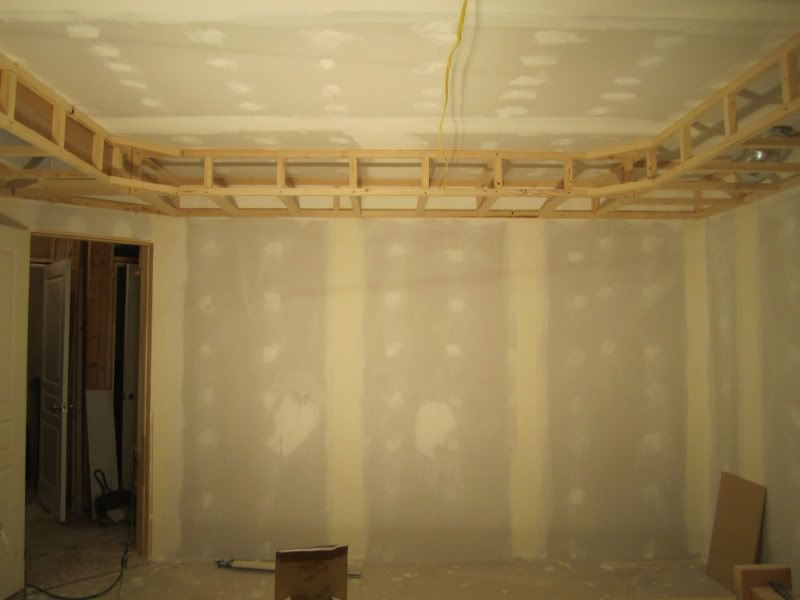

Here is the soffit at the rear of the room.



stockmonkey2000 is offline
post #258 of 1093 Old 09-20-2011, 12:21 AM
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
What are the dimensions of your soffit?

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #259 of 1093 Old 09-20-2011, 03:14 AM
AVS Special Member

NGiovas's Avatar

Join Date: Dec 2002
Location: Michigan
Posts: 1,349
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 35
Quote:
Originally Posted by cdika17 View Post

What are the dimensions of your soffit?

Also, what is your ceiling height? The soffit looks great.
NGiovas is offline
post #260 of 1093 Old 09-20-2011, 07:20 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
The soffit dimensions are 10" by 30" A bit bigger than I would have liked but it was the width I needed for the HVAC for the theater and the room above. Now that it is up I am pleased with the look. The star ceiling will be about 9'8" wide.

The ceiling height is 8'6 or so after the clips and channel and all the drywall were in. There's plenty of clearance now but I'm a bit worried about the ceiling height where the riser is going to be.
stockmonkey2000 is offline
post #261 of 1093 Old 09-20-2011, 07:50 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
I also mocked up some columns last night to figure out final placement so I could run some lighting. My columns will be small - 10" wide x 5" deep. They will just hold an electrical outlet and will have an acrylic or glass panel for lighting.



I still haven't made my final decision on the recessed backlit panel yet but I'm thinking something like this.

stockmonkey2000 is offline
post #262 of 1093 Old 09-20-2011, 07:59 AM
Senior Member

ragged's Avatar

Join Date: Dec 2006
Posts: 428
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 16
Quote:
Originally Posted by stockmonkey2000 View Post

The ceiling height is 8'6 or so after the clips and channel and all the drywall were in. There's plenty of clearance now but I'm a bit worried about the ceiling height where the riser is going to be.


My suggestion...don't worry about it. They can just not stand up all the way when they get up.
ragged is online now
post #263 of 1093 Old 09-20-2011, 08:18 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Quote:
Originally Posted by ragged View Post

My suggestion...don't worry about it. They can just not stand up all the way when they get up.

I was thinking something along the lines of one of those height bars like they have in parking garages. I'll put it at the entrance to the theater and if your over 6'6 or something you will not be allowed in.
stockmonkey2000 is offline
post #264 of 1093 Old 09-20-2011, 08:35 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Even though I wish I had another foot of height - I am glad to have what I have- My last basement theater had 7'8 ceilings and the basement before that had 6'10 ceilings (1930's house).
stockmonkey2000 is offline
post #265 of 1093 Old 09-20-2011, 07:05 PM
Member

filetandrelease's Avatar

Join Date: Dec 2010
Posts: 130
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
you may wanna get a good dental plan. I see loose teeth in you future!
filetandrelease is offline
post #266 of 1093 Old 09-22-2011, 12:04 PM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
I have an HVAC question I was hoping I could find an answer to. I do not have a zoned system for the theater but I was contemplating putting in an electric damper on the theater. I have other basement vents closed off or partially shut because it gets cold in the basement in the summer while trying to cool the main floor. (the third floor upstairs is on a separate thermostat but basement and main floor share a unit.) With an electric damper (normally open) I can flip a switch to cut off the air to the room when not in use or not needed. The dampers I have been looking at run on a 24 v transformer. Is there a way to wire this to a remote controlled switch or do those switches need a 120v ac connection to work. I'd like to be able to control the damper with my remote control so it could be opened / closed easily. Has anyone done anything similar? Would this cause me any problems having a damper on a non zoned system. I figured it would be the same as manually shutting the vents.
stockmonkey2000 is offline
post #267 of 1093 Old 09-23-2011, 02:58 AM
AVS Special Member

NGiovas's Avatar

Join Date: Dec 2002
Location: Michigan
Posts: 1,349
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 35
Quote:
Originally Posted by stockmonkey2000 View Post

I have an HVAC question I was hoping I could find an answer to. I do not have a zoned system for the theater but I was contemplating putting in an electric damper on the theater. I have other basement vents closed off or partially shut because it gets cold in the basement in the summer while trying to cool the main floor. (the third floor upstairs is on a separate thermostat but basement and main floor share a unit.) With an electric damper (normally open) I can flip a switch to cut off the air to the room when not in use or not needed. The dampers I have been looking at run on a 24 v transformer. Is there a way to wire this to a remote controlled switch or do those switches need a 120v ac connection to work. I'd like to be able to control the damper with my remote control so it could be opened / closed easily. Has anyone done anything similar? Would this cause me any problems having a damper on a non zoned system. I figured it would be the same as manually shutting the vents.

Yes, you can run it remotely, but you will need a special switch with a low voltage relay to switch the transformer on and off. Gas fireplaces typically run off of low voltage relays, so look for a remote fireplace switch that is 24v capable. Your best bet is to call someone like Automated Outlet. They will be able to tell you which switch to use and they also sell the dampers.
NGiovas is offline
post #268 of 1093 Old 09-23-2011, 06:25 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Thanks for the tip. I'll check that out.
stockmonkey2000 is offline
post #269 of 1093 Old 09-23-2011, 10:52 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22

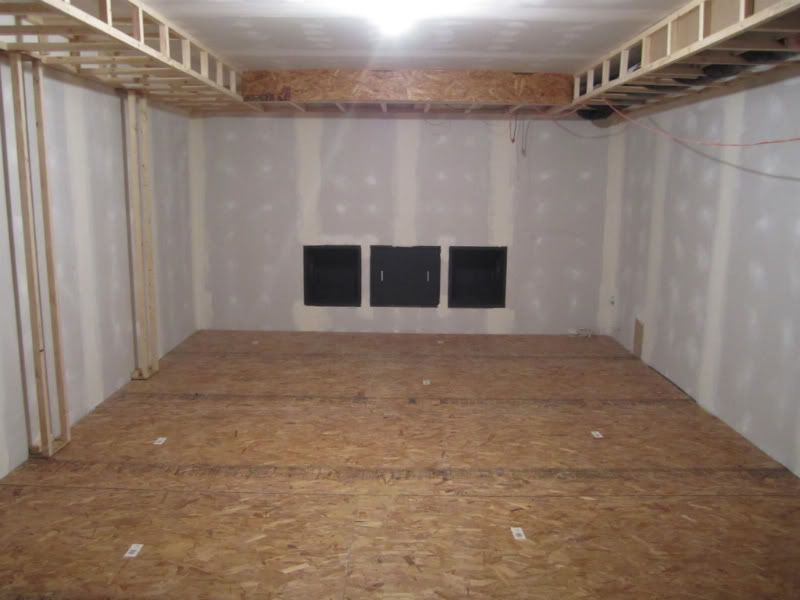

Started installing the Delta-FL and Subfloor.


stockmonkey2000 is offline
post #270 of 1093 Old 09-25-2011, 09:23 AM - Thread Starter
AVS Special Member

stockmonkey2000's Avatar

Join Date: Nov 2005
Location: Utah County
Posts: 1,707
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Finished laying the floor in the theater this weekend. Thought I would be able to get this and the stage done but the floor took a lot longer than expected.

stockmonkey2000 is offline
Reply Dedicated Theater Design & Construction

Tags
Jvc Dla Rs45 Home Theater Projector 1080p Hdmi , Behringer Europower Ep4000 Professional Amplifier , Integra , Oppo Bdp 93 Blu Ray Player
Gear in this thread

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
