post #91 of 443 Old 09-22-2011, 08:21 AM
Advanced Member

dwightp's Avatar

Join Date: Sep 2007
Location: Mesa, AZ
Posts: 630
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:


That room is going to have serious wow-factor. Looks great so far!

+1. It's going to be a jaw-dropping home theater. It looks like the crew is doing really nice work executing the design.

Quote:
Originally Posted by Ted White View Post

5/8" Type X standard drywall. Green Glue to damp.

Ted,

Is there a general rule about how far apart the two drywall surfaces should be to avoid the dreaded "triple leaf" problem?

Maker of the finest saw dust since 1980, give or take

MY Custom AV Cabinet with DIY Pull-Out and Rotate Rack
dwightp is offline
Sponsored Links
Advertisement

post #92 of 443 Old 09-22-2011, 08:29 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
More space = less triple leaf effect. No specific guidlines

__________________

Ted



The Soundproofing Company
Ted White is offline
post #93 of 443 Old 09-22-2011, 02:35 PM
FOH
AVS Special Member

FOH's Avatar

Join Date: Apr 2010
Location: Midwest
Posts: 4,744
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 207
Congrats on the progress,... looking very, very nice.

------------------------------------
Flat, Deep, Clean, Linear, and Loud
------------------------------------
Active 16.8kw, 7.3 system
(3)Seaton Cat12C up front, (4)QSC K8 sides/rears
(2)Seaton SubM-HP, (4)18" IB
FOH is offline
post #94 of 443 Old 09-23-2011, 04:04 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,136
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 45
Quote:


I was planning to just use 1/2" drywall on the interior walls since it will be the third layer of drywall and there will be fiberglass batts behind it.

Quote:


More mass is more better.

Technically, even layers damp better. 5/8" to 5/8" is optimal damping. 1/4" to 1" is less efficient damping, for example.

----The interior partition walls are INSIDE the sound isolation barrier of high mass damping, etc. These interior partition walls should be covered in 1/2 drywall or 1/4 pegboard ... in this case, 1/2 drywall to provide better support for the rails.

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors
www.erskine-group.com
www.CinemaForte.net
Dennis Erskine is offline
post #95 of 443 Old 09-23-2011, 11:45 AM
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Quote:
Originally Posted by KBlaw2010 View Post

I have not made official selections on equipment just yet. I would love to hear suggestions and thoughts. The only thing I have locked in is a Procella speaker system.

So that's it for now. I will post updates and more pics as I have them. Electrical is beginning this week and low voltage wiring should come shortly thereafter.

What other systems besides procella did you look at, any major reasons why your going with them?

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #96 of 443 Old 09-23-2011, 12:11 PM - Thread Starter
Member

KBlaw2010's Avatar

Join Date: Oct 2010
Location: Allen, Texas
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Quote:
Originally Posted by cdika17 View Post

What other systems besides procella did you look at, any major reasons why your going with them?

Believe it or not, I did not really listen to any other high-end systems. In fact, I have not even heard the Procellas yet. I just did quite a bit of looking on AVS and elsewhere, and I could not find any real negative reviews on the Procellas. Seems like they get positive comments from just about everyone who has heard them.

When you combine that with the fact that Dennis Erskine recommends them, I am willing to take the leap of faith that they are really, really good.
KBlaw2010 is offline
post #97 of 443 Old 09-23-2011, 12:32 PM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Quote:
Originally Posted by KBlaw2010 View Post

When you combine that with the fact that Dennis Erskine recommends them, I am willing to take the leap of faith that they are really, really good.

Yoda's Insurance Policy

__________________

Ted



The Soundproofing Company
Ted White is offline
post #98 of 443 Old 09-23-2011, 05:45 PM
Member

Gerben Van Duyl's Avatar

Join Date: Nov 2009
Location: Sydney, Australia
Posts: 87
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by KBlaw2010 View Post

Believe it or not, I did not really listen to any other high-end systems. In fact, I have not even heard the Procellas yet. I just did quite a bit of looking on AVS and elsewhere, and I could not find any real negative reviews on the Procellas. Seems like they get positive comments from just about everyone who has heard them.

When you combine that with the fact that Dennis Erskine recommends them, I am willing to take the leap of faith that they are really, really good.

Hi KBlaw, Gerben from Procella here. I am subscribed to your thread, looking very good indeed. I saw the drawings for your room several months ago, when Dennis shared them with us. The combination of his room design and our speakers will guarantee a great audio result, and I mean that: guaranteed. The acoustics that are built-in to this design and the way that works together with our speakers just leaves only one outcome: prepare to be impressed! Its is going to be much bigger and much better than you can now imagine. We call that the Procella Effect. You will know what we mean with that once you turn the system on!
Dennis, along with other cinema designers and Procella dealers around the world, is an active member of our unofficial 'Sound-Board'. We solicit their input and feedback on new loudspeaker designs, from very basic points such as 'will it fit in that wall/riser?' to highly theoretical audio design discussions.
When Anders and I started Procella in 2005/2006, we knew there was a very small niche for a truly high quality loudspeaker line for dedicated cinema rooms. And really all we want is for people to build great rooms with great sound, just like yours. Have a great time building it!
Gerben Van Duyl is offline
post #99 of 443 Old 09-23-2011, 06:49 PM - Thread Starter
Member

KBlaw2010's Avatar

Join Date: Oct 2010
Location: Allen, Texas
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Quote:
Originally Posted by Gerben Van Duyl View Post

Hi KBlaw, Gerben from Procella here. I am subscribed to your thread, looking very good indeed. I saw the drawings for your room several months ago, when Dennis shared them with us. The combination of his room design and our speakers will guarantee a great audio result, and I mean that: guaranteed.

Gerben,

Thanks for chiming in. I already felt pretty good about my selection. Now I feel even better! I know that I am going to be absolutely blown away. Can't wait to hear them and post my review.

We have planned to use 815s for the LCRs, 2 P18s for subs, and P6s for surrounds. We are on schedule to move in and install in early January.

Kris
KBlaw2010 is offline
post #100 of 443 Old 09-23-2011, 06:50 PM
AVS Special Member

smakovits's Avatar

Join Date: May 2007
Posts: 2,077
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by KBlaw2010 View Post

That is another nice feature of Dennis' design. We don't have to cut the boxes; rather we just pull the wires through and seal around the holes because there will be another set of walls built inside the isolation shell.

Thats just plain awesome, just another example of just how large the space is.
smakovits is offline
post #101 of 443 Old 09-23-2011, 07:33 PM
AVS Special Member

phisch's Avatar

Join Date: Nov 2004
Location: Colorado
Posts: 1,759
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I may have missed it earlier in the thread, but what size screen are you going with?
phisch is offline
post #102 of 443 Old 09-23-2011, 07:37 PM - Thread Starter
Member

KBlaw2010's Avatar

Join Date: Oct 2010
Location: Allen, Texas
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Quote:
Originally Posted by phisch View Post

I may have missed it earlier in the thread, but what size screen are you going with?

12 feet wide. Cinecurve microperf from Stewart.
KBlaw2010 is offline
post #103 of 443 Old 09-30-2011, 06:30 PM - Thread Starter
Member

KBlaw2010's Avatar

Join Date: Oct 2010
Location: Allen, Texas
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20

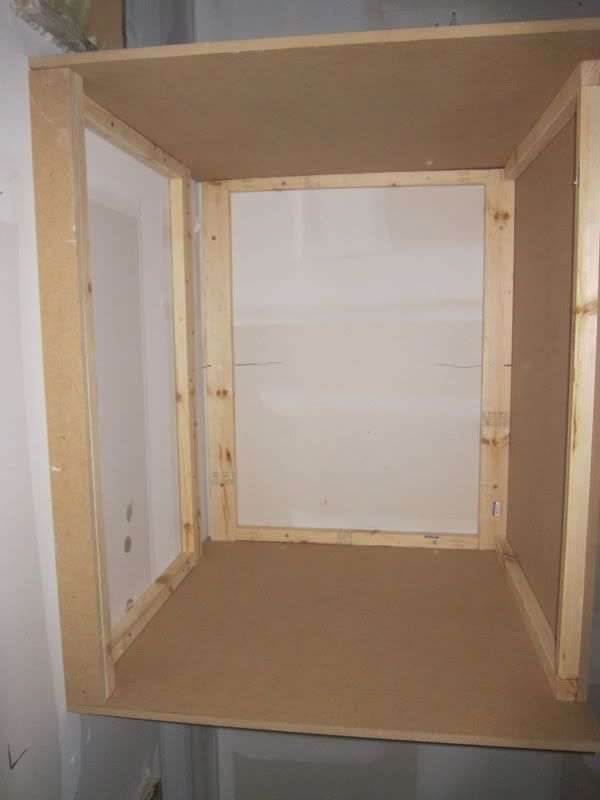

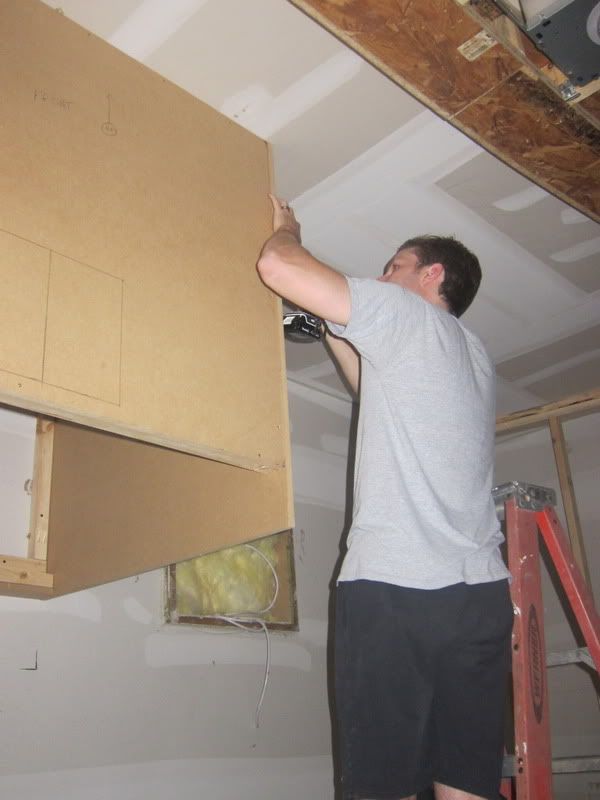

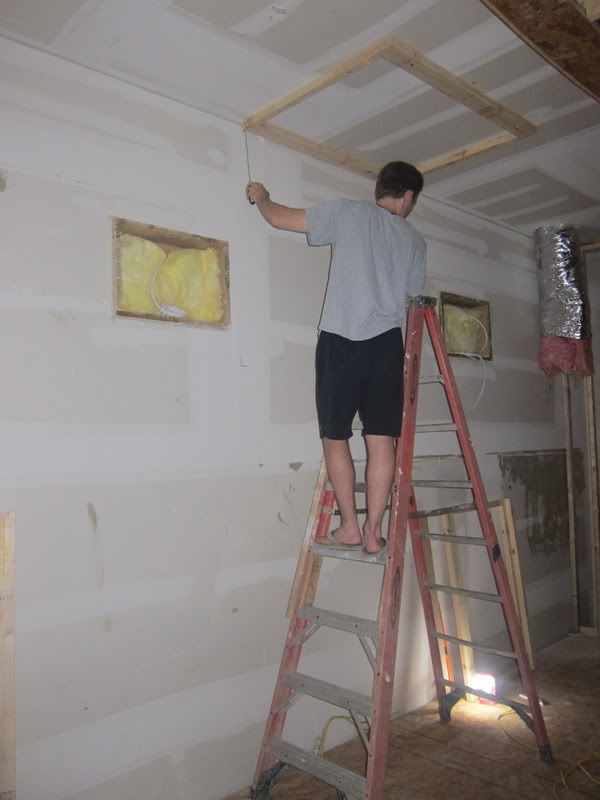

This week we got the recessed can lights installed and I built a hush box for the projector. I installed all of it except for the bottom. I still need to line it with insulation, cut the window, and install the hinging bottom. Here are photos:

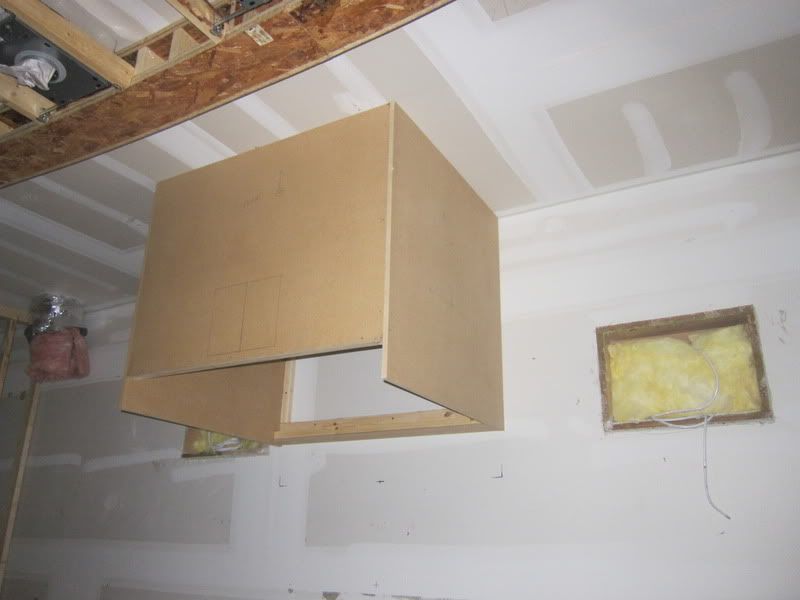

View from underneath





Tomorrow, we are set to frame the rear soffit that will house the HVAC returns.
KBlaw2010 is offline
post #104 of 443 Old 10-01-2011, 02:30 PM - Thread Starter
Member

KBlaw2010's Avatar

Join Date: Oct 2010
Location: Allen, Texas
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20

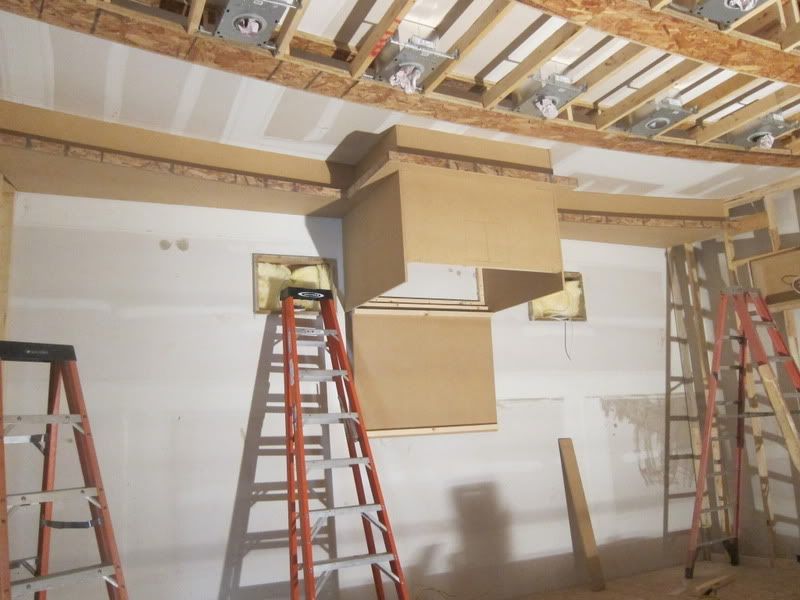

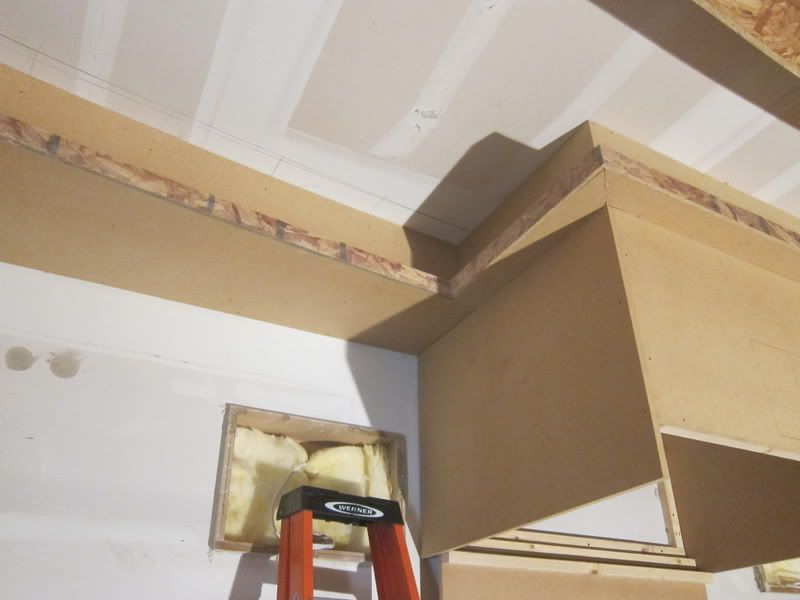

Built the rear HVAC return soffit, attached bottom of PJ cabinet, and installed LED tray today.





KBlaw2010 is offline
post #105 of 443 Old 10-01-2011, 03:07 PM
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,422
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 17
Interesting position for the rears on the back wall....very close to the box

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is online now
post #106 of 443 Old 10-01-2011, 03:21 PM - Thread Starter
Member

KBlaw2010's Avatar

Join Date: Oct 2010
Location: Allen, Texas
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Quote:
Originally Posted by Elill View Post

Interesting position for the rears on the back wall....very close to the box

Yeah. . . Not a happy moment when I discovered that they were not centered properly in the room. So do I rip out two layers of DD & GG? Or just live with it?

They will be covered with fabric, so they won't be an eye sore. But I am unsure of how much it may impact the sound. Thoughts?
KBlaw2010 is offline
post #107 of 443 Old 10-01-2011, 04:02 PM
Member

tmhouse's Avatar

Join Date: Jul 2011
Location: Lancaster, PA
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Is the projector hush box in the direct line between speaker and any seating position? If so, I would move them. Rather do it now, than wait and do it later when you have more work to fix. If not in the direct line, you'll still have some reflective waves that weren't considered during design. Send the question to Dennis in this case.
tmhouse is offline
post #108 of 443 Old 10-01-2011, 04:34 PM
AVS Club Gold

SierraMikeBravo's Avatar

Join Date: Mar 2007
Location: Topeka, KS
Posts: 1,392
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 29
Quote:
Originally Posted by KBlaw2010 View Post

Yeah. . . Not a happy moment when I discovered that they were not centered properly in the room. So do I rip out two layers of DD & GG? Or just live with it?

They will be covered with fabric, so they won't be an eye sore. But I am unsure of how much it may impact the sound. Thoughts?

What did the original drawing specify?

Shawn Byrne
Erskine Group
HAA Design Certified -THX Certified Professional

Design-Video & Audio Calibration Information

The original Pro Theater Layout
SierraMikeBravo is online now
post #109 of 443 Old 10-01-2011, 05:29 PM - Thread Starter
Member

KBlaw2010's Avatar

Join Date: Oct 2010
Location: Allen, Texas
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Quote:
Originally Posted by SierraMikeBravo View Post

What did the original drawing specify?

Well, Dennis has been adding as we go along. The problem came when the framers had to find the center of the room before we had the isolation shell or interior walls built. The missed by about 10 inches. Dangit.
KBlaw2010 is offline
post #110 of 443 Old 10-01-2011, 07:17 PM
Advanced Member

Dixon's Avatar

Join Date: Aug 2001
Posts: 730
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
The room is simply too nice to compromise. I don't think it is that difficult to cut out part of that back wall drywall, move your speaker over, and patch up the hole with new double drywall/GG.

I would go ahead and bite the bullet if it were my room.

Good luck. Looks like it is going to be a fantastic room.
Dixon is offline
post #111 of 443 Old 10-01-2011, 07:22 PM
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,696
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 108
Quote:
Originally Posted by Dixon View Post

The room is simply too nice to compromise. I don't think it is that difficult to cut out part of that back wall drywall, move your speaker over, and patch up the hole with new double drywall/GG.

I would go ahead and bite the bullet if it were my room.

Good luck. Looks like it is going to be a fantastic room.

I had the same pain when I was discussing with BIGmouthinDC about my door not being centered between my columns after doing the GG/DD. Trust me, just cut it out and do it right or it will bug you forever. It doesnt take that long to fix and patch and caulk a wall. Bite the bullet and make it the way you want.
damelon is online now
post #112 of 443 Old 10-01-2011, 07:24 PM
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,422
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 17
Interesting, I'd have thought the speaker should be below the height of the hush box....even if it is a foot or so from it....highlights my complete lack of knowledge about it.

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is online now
post #113 of 443 Old 10-06-2011, 05:09 AM
Advanced Member

ccapozzoli's Avatar

Join Date: Sep 2002
Location: North of Boston
Posts: 601
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hello,

After reading your thread, I decided to hire Dennis to fix my theater. Mine has been completed for a bit now, but I always knew that the room was not correct. So I figured that since I put all this work into it, I want it to be right.

Looking forward to his drawings and hopefully the corrections will be able to be performed without drastic woodworking adjustments.

Keep those pics coming.
ccapozzoli is offline
post #114 of 443 Old 10-06-2011, 05:21 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,502
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 142 Post(s)
Liked: 532
Bite the bullet and reposition the speakers, Did you really need that big of a hush box? What is going in there?
BIGmouthinDC is online now
post #115 of 443 Old 10-06-2011, 07:55 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,136
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 45
The projector/lens is 36" deep, 21" wide, and 15" high. Lens must be placed at a height equal to top of screen. Additional width is required for air intake/exhaust plumbing.

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors
www.erskine-group.com
www.CinemaForte.net
Dennis Erskine is offline
post #116 of 443 Old 10-06-2011, 08:02 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,136
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 45
The surround array speakers are monopolar compression drivers. They must be mounted high and aimed downward into the listening area to reduce the distance delta seat to seat in the listening area to avoid large SPL differences between seats.

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors
www.erskine-group.com
www.CinemaForte.net
Dennis Erskine is offline
post #117 of 443 Old 10-06-2011, 08:45 AM
AVS Special Member

zxlr8's Avatar

Join Date: Apr 2003
Location: Powell, Wyoming
Posts: 1,118
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Dennis Erskine View Post

The surround array speakers are monopolar compression drivers. They must be mounted high and aimed downward into the listening area to reduce the distance delta seat to seat in the listening area to avoid large SPL differences between seats.

Not to sound too obtuse, but wouldn't any correction for sound fix that right away?

The Spiral Staircase Theater Build Thread
zxlr88- Xbox live and PS Network
zxlr8 is offline
post #118 of 443 Old 10-06-2011, 12:02 PM
Senior Member

youngho's Avatar

Join Date: Feb 2003
Posts: 390
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by zxlr8 View Post


Not to sound too obtuse, but wouldn't any correction for sound fix that right away?

No, how would sound processing change the physics of how sound drops off as a function of distance?
youngho is offline
post #119 of 443 Old 10-06-2011, 12:13 PM
AVS Special Member

elmalloc's Avatar

Join Date: Apr 2002
Location: Cleveland, OH
Posts: 4,776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 35
I wish I needed a ladder to get to my basement ceiling. =(
PaulFSemicolen likes this.

Current Projects:
IN PROGRESS (80%) - Building 3D Theater room.
IN PROGRESS (30%) - Building Lounge/Hallway Area.
IN PROGRESS (15%) - Building Home LAN (4 PCs).
ON HOLD - Building Home Gym.
ON HOLD - Building Simulation Room (Eyefinity).
ON HOLD - Building Theater room (Sim2 HT380, 2.35 14ft wide).
elmalloc is offline
post #120 of 443 Old 10-06-2011, 12:37 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,502
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 142 Post(s)
Liked: 532
Quote:
Originally Posted by youngho View Post

No, how would sound processing change the physics of how sound drops off as a function of distance?

Make one louder to start, problem is every seating position is different. What you end up with is something that is the result of a weighted averaging process.
BIGmouthinDC is online now
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
