Bacon Race Theater
Construction by BIGmouthinDC and Damelon (Construction Time: 7/26/11 - Mid November 2011)
Inspiration from Sandman's/SMX Theater - Acoustical Plans by Bryan Pape (BPape)

Room Details (Trying to make this a table!)
Initial Space : 23’6”L x 16’4”W x 8’9”H
Wall Construction : Room in a Room. Second wall with 1” gap.
Space after Secondary Wall : 22’8”L x 15’4”W x 8’9”H
Wall Decoupling Method : RISC-DC04 Clips
Ceiling Decoupling Method : Clip & Channel
Drywall Method : 2 Layers of 5/8” Drywall with Green Glue
Door : 28” Wide, 1 ¾” Thick solid core door.
Soffit Size : 16” Wide x 10” Tall
Column Info : 6 Columns, 16” Wide x 10” Deep
Screen Size : 130” Wide “Scope” SMX CineweaveHD Screen
Stage Specs : 2x10s, Sand Filled, Double ¾” Plywood with Felt
Riser Specs : 2x12s, Insulation Filled, Double ¾” Plywood with Felt
Front Wall Treatment : 2” 3lb Dense Cotton – OC703 Corner Bass Traps
Side Wall Treatments : 1” 3lb Dense Cotton
Rear Wall Treatments : 2” OC703 with Paper Face + 2” air gap
Fabric Colors : GOM Black and GOM Claret Accent.
Paint Color : Behr (Home Depot) Antique Ruby (To Match Fabric)
Viewing Distances : 12’ Front Row, 18’ Rear Row (Approx)
Projector : Sony VW95ES
Speakers : 3x Axiom M80 L/C/R, 4x Axiom QS8 Surrounds
Subwoofers : Seaton Submersive HP+ (Master & Slave)
Amp / Preamp : Sunfire TGA7400 – Onkyo PR-SC5508
Playback : 27TB Unraid NAS & HTPC using XBMC “Gotham”
Carpet : Stainmaster "Silver Lake" (Lowes)

Link to my complete cost breakdown of the theater, along with several links of where I acquired products
http://www.avsforum.com/avs-vb/showt...9#post21138019

Original Acoustical Plan design (See above for treatment variance on side/rear walls)
Acoustical Plan

Latest Photos - Theater






Some initial 3D Renders of the Pool/Patio Project (Outdoor theater is not in the render)



Current Progress of Patio - End Phase #1 (Under-Deck, Bar/Grill, and Hot Tub Area) - Spring 2013





Basement Bar Project - In Progress. Completed July, 2014

Bunga99 and 24Changer like this.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Last edited by damelon; 09-19-2014 at 06:20 AM.
damelon is offline
Sponsored Links
Advertisement

post #2 of 2492 Old 07-27-2011, 09:30 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,861
Mentioned: 5 Post(s)
Tagged: 1 Thread(s)
Quoted: 293 Post(s)
Liked: 620
I have great expectations for this Theater. The space is perfect. No windows, good ceiling height, no significant obstacles and an experienced home owner/theater builder.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,

BIGmouthinDC is offline
post #3 of 2492 Old 07-27-2011, 09:43 AM
Senior Member

randy98mtu's Avatar

Join Date: Jul 2002
Location: Michigan
Posts: 372
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
This one sounds like one to watch! An experienced builder with great local mentors and a great space to work with. Very jealous of the space! Good luck!


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Now Operational!




To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

randy98mtu is offline
post #4 of 2492 Old 07-27-2011, 11:09 AM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,926
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked: 64
Isn't the stage a little on the tall side?
Tedd is offline
post #5 of 2492 Old 07-27-2011, 11:25 AM
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,190
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked: 45
Subscribed. Sound proofing plan sounds very similar to what I would like to do when my project begins this fall. Hope there are going to be lots of pictures...


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
vanice is online now
post #6 of 2492 Old 07-27-2011, 12:02 PM - Thread Starter
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,713
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 111
Quote:
Originally Posted by Tedd View Post
Isn't the stage a little on the tall side?
Yes, I was basing it off of another stage construction which I liked, but the height isn't set in stone. I may use 2x6's instead of 2x10s. The design would be the same, having a curved front lip and a second curve halfway down. I'm actually in the process of discussing reflection points now with Bpape so a lot of room dimensional adjustments will be hammered out soon.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
damelon is offline
post #7 of 2492 Old 07-27-2011, 12:14 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,861
Mentioned: 5 Post(s)
Tagged: 1 Thread(s)
Quoted: 293 Post(s)
Liked: 620
I think Damelon likes Sandman's and this stage design. It is also my favorite. Screen wall may vary.



Sandman's

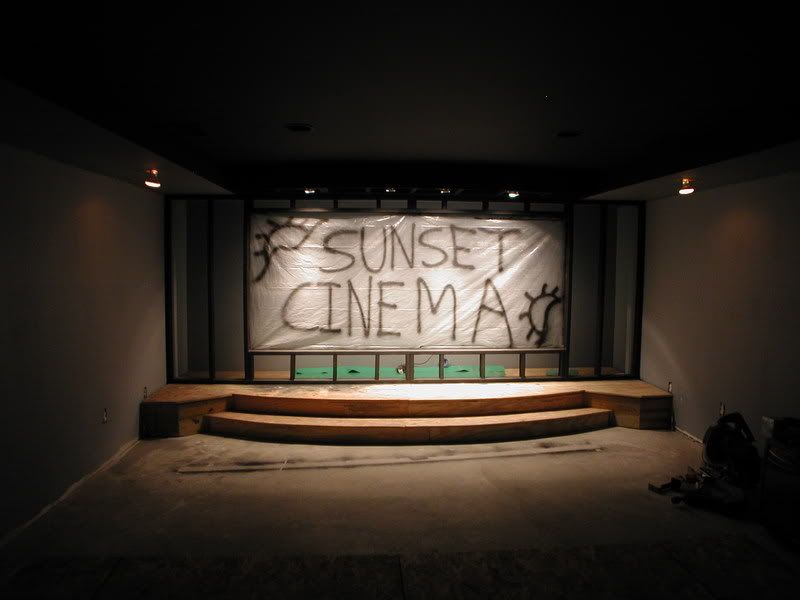

I actually like the proportions of Sunset Cinema step a little better, the wings come out farther on the sides. With the two levels you really need to make the main section tall.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,

BIGmouthinDC is offline
post #8 of 2492 Old 07-27-2011, 12:17 PM - Thread Starter
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,713
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 111
Quote:
Originally Posted by BIGmouthinDC View Post
I think Damelon likes Sandman's and this stage design. It is also my favorite. Screen wall may vary.





Sandman's



I actually like the proportions of Cinema Murry's step a little better the wings come out farther on the sides.
100% correct, thanks BIG. I was too lazy to search for a link! I too like Sunset's proportions better, and the incredible background art helps too


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
damelon is offline
post #9 of 2492 Old 07-27-2011, 12:28 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 57
About the same size I have, I'll be following to see how it comes along.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
| Xbox Live: Atomic Hamper
Brad Horstkotte is offline
post #10 of 2492 Old 07-27-2011, 02:01 PM
AVS Special Member

nebrunner's Avatar

Join Date: Sep 2001
Location: omaha,NE,USA
Posts: 1,106
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 26
~ same size room as I have, ~ same design ideas...subscribed.

Only thing I'm doing different and you might reconsider is screen aspect ratio. Unless I read you wrong, a 130" 16:9 screen

I'm not going to have a lens either but I am going 2:4:1, will be doing the zoom method, there is a thread about that on the constant image height forum, it's worth a read. I have never heard of anybody who went with widescreen aspect ratio and was unhappy about that.

My perpetual home theater build -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
nebrunner is online now
post #11 of 2492 Old 07-27-2011, 02:25 PM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,134
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked: 258
Count me in! I'll come along for the ride, too!

Dude, are you made of leprechauns? Cause that was awesome!


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
J_P_A is offline
post #12 of 2492 Old 07-27-2011, 02:45 PM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,926
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked: 64
Somehow I was envisioning a single level stage.... The second step stage design reduces the visual heft that I envisioned.

I was also thinking that an 8' 9" height, with a 12" stage, plus the soffits, is creating several nearby boundaries to the speakers. And aren't the 1/4 wave lengths off these boundaries are going to cause nulls?

And that maybe less is more? Less sand, less work slugging the sand.
Tedd is offline
post #13 of 2492 Old 07-27-2011, 03:20 PM - Thread Starter
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,713
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 111
Quote:
Originally Posted by nebrunner View Post

Only thing I'm doing different and you might reconsider is screen aspect ratio. Unless I read you wrong, a 130" 16:9 screen

I'm not going to have a lens either but I am going 2:4:1, will be doing the zoom method, there is a thread about that on the constant image height forum, it's worth a read. I have never heard of anybody who went with widescreen aspect ratio and was unhappy about that.

You read it right. And trust me, I've read the CIH thread a few times now. One reason I said to feel free to argue with me on that topic was because maybe I just need convincing. I did watch a fair bit of HDTV format things on my old screen, but probably more movies than shows. So I'm up in the air about it.


Quote:


Somehow I was envisioning a single level stage.... The second step stage design reduces the visual heft that I envisioned.

I was also thinking that an 8' 9" height, with a 12" stage, plus the soffits, is creating several nearby boundaries to the speakers. And aren't the 1/4 wave lengths off these boundaries are going to cause nulls?

And that maybe less is more? Less sand, less work slugging the sand.

Well it was a 10" stage plan not 12", and chances are the soffit will be about 10" or so around the edges of the room. Bpape didn't think the height was a big issue and plans to use the soffit as a treatment as well. I will likely lower it to 2x6s or 2x8s when the time comes. And you're absolutely right about the sand! a lot less work! I think SMX said he used 4,000lbs of it to fill his at a 2x10" height. Crazy!

---------------

Just finished a lot of discussions with Bryan (bpape) about 30 min ago and we're going to move the entry door to the left rear corner to make adding side treatments easier with the door opening inward followed by steps up to the back of the riser. We'll use ductboard for HVAC inside of the soffit, surrounded by MDF casing with supply in the front and return in the rear. Caulking around every seam, etc. The equipment room will also be de-coupled due to the rack opening to the rest of the theater.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
damelon is offline
post #14 of 2492 Old 07-27-2011, 03:35 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 57
For me, the aspect ratio decision was driven by what I plan to use the theater for (lots of movies - majority of them cinemascope; a fair amount of gaming - 16:9; not a whole lot of TV or sports). I had enough height and width really to go either way. I wanted cinemascope "epic" movies to have maximum impact, so started down the 2.35:1 path - but after shooting movies for a couple weeks on a temporary muslin screen to test out various screen sizes, I came to the conclusion that there are a fair number of 16:9 or variable aspect movies that I also wanted to have a high impact / level of immersion. So I opted for a custom aspect ratio that gave me the width I wanted for 2.35:1, and the height I wanted for 16:9 - a 2.125:1 ratio (136" x 64"), CIA more or less. CIH didn't seem to be what would work best for me.

I'm also zooming - no plans for a lens any time soon.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
| Xbox Live: Atomic Hamper
Brad Horstkotte is offline
post #15 of 2492 Old 07-27-2011, 03:48 PM - Thread Starter
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,713
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 111
Here are my "BEFORE" pictures of the space.






The only pesky thing in the way is this drain pipe located at the front top left corner of the space, but since it's right where my inner wall will be, I will just frame around it. This will be hidden inside of the soffit, so no one will ever see the bump in.



To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
damelon is offline
post #16 of 2492 Old 07-27-2011, 03:52 PM - Thread Starter
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,713
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 111
First thing to go is that stupid bump out with two doors




And then part of the area behind where the movie room, where I will recess a bar/kitchenette into the wall of my rec room. The entry way to the bar will also serve to enter my equipment room and my movie theater.




To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
damelon is offline
post #17 of 2492 Old 07-27-2011, 04:09 PM - Thread Starter
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,713
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 111
Quote:
Originally Posted by Brad Horstkotte View Post

I wanted cinemascope "epic" movies to have maximum impact, so started down the 2.35:1 path - but after shooting movies for a couple weeks on a temporary muslin screen to test out various screen sizes, I came to the conclusion that there are a fair number of 16:9 or variable aspect movies that I also wanted to have a high impact / level of immersion. So I opted for a custom aspect ratio that gave me the width I wanted for 2.35:1, and the height I wanted for 16:9 - a 2.125:1 ratio (136" x 64"), CIA more or less. CIH didn't seem to be what would work best for me.

Yeah I've noticed this a lot too. A lot of material uses the in-between aspect ratio. I'm so used to the bars over time that I just let them do their job, but a lot of the movies where you want it as big as possible are usually scope. What to do!?


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
damelon is offline
post #18 of 2492 Old 07-27-2011, 05:33 PM
AVS Special Member

carboranadum's Avatar

Join Date: Jan 2004
Location: Winchester, VA
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Hold it...you're in NoVA and managed to escape being "outed" for a long time? How is that possible? Folks in NoVA usually want to jump on the bandwagon. Something's awry here!

In all seriousness, welcome. Glad to see you posting a thread. It's also nice to see another NoVA build popping up. They have become scarce of late.

Regarding the 2.39:1 CIH question...go for it! I too was on the fence but I jumped in and would not go back. There is something about seeing a widescreen movie as intended by the director. My screen is an SMX 2.39:1 with a 130" diagonal measurment. I LOVE it!

Good luck, and post a floor plan when you are able.

Oh, and consider resizing your pictures to 800 x 600 or posting to PHotobucket or the like. It will make it much easier for the forum members to see (we're a lazy bunch and we don't like to click timy pictures to see larger images).

Follow my build here:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
carboranadum is offline
post #19 of 2492 Old 07-27-2011, 05:50 PM
AVS Special Member

petew's Avatar

Join Date: Oct 2000
Location: Albuquerque, NM USA
Posts: 2,052
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 45


Is that Michael Jackson? Or Ozzie? What the heck is going on in NoVA?

High Desert Theater -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Building Bass -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Surrounds -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Storage -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

petew is offline
post #20 of 2492 Old 07-27-2011, 05:56 PM
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 715
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 20
be nice if pictures were larger for the build if possible

-----------------------------------------------
Chase "Fetch"



To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.




To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.



cdika17 is offline
post #21 of 2492 Old 07-27-2011, 07:07 PM
AVS Special Member

petew's Avatar

Join Date: Oct 2000
Location: Albuquerque, NM USA
Posts: 2,052
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 45
Note to OP - you can go back and edit your prior posts and imbed the pictures that are attached to the same post.

Click the thumbnail to show full size.
Right click the thumbnail and click "copy image url" or something similar (put the url of the big image on the clipboard)
Go back to the original post and edit it.
Select the insert image icon, and paste the url you stuck on the clipboard earlier.

That's how I inserted the image of MJ above.

High Desert Theater -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Building Bass -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Surrounds -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Storage -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

petew is offline
post #22 of 2492 Old 07-28-2011, 05:44 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,861
Mentioned: 5 Post(s)
Tagged: 1 Thread(s)
Quoted: 293 Post(s)
Liked: 620
On the name for this thread, How about Making the Bacon Run Theater.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,

BIGmouthinDC is offline
post #23 of 2492 Old 07-28-2011, 06:17 AM - Thread Starter
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,713
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 111
Quote:
Originally Posted by petew View Post



Is that Michael Jackson? Or Ozzie? What the heck is going on in NoVA?

Hehe my wife goes a bit overboard on Oct 31. It's our skeletal butler. We can call him Ozzie if it makes you happy.
By the way I removed the attachments so your link doesnt work now so I just inserted the new one in this quote.

Quote:
Originally Posted by BIGmouthinDC View Post

On the name for this thread, How about Making the Bacon Run Theater.

Done!

Quote:
Originally Posted by carboranadum View Post

Hold it...you're in NoVA and managed to escape being "outed" for a long time? How is that possible? Folks in NoVA usually want to jump on the bandwagon. Something's awry here!

I've mostly been a thread lurker... what can I say. I only had a half dozen or so posts until recently. What can I say, if I posted earlier I had the risk of mentioning a future build plan and then I might run the risk of getting loganed.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
damelon is offline
post #24 of 2492 Old 07-28-2011, 06:21 AM - Thread Starter
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,713
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 111
Quote:
Originally Posted by cdika17 View Post

be nice if pictures were larger for the build if possible

So I have the original pics, which are all high-res, but shrank them to 1024x768 so I could upload them. Some people are saying resize to 800x600 and others say larger... is 1024x768 adequate?

I also changed them to links on photobucket. Let me know if that is better.

I will upload all of the high-res pics to an online picasa album as well and link the enitre album as well (Like 4k x 3k res), so that anyone interested can get close-ups if they want.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
damelon is offline
post #25 of 2492 Old 07-28-2011, 07:09 AM - Thread Starter
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,713
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 111
Quote:
Originally Posted by carboranadum View Post

Regarding the 2.39:1 CIH question...go for it! I too was on the fence but I jumped in and would not go back. There is something about seeing a widescreen movie as intended by the director. My screen is an SMX 2.39:1 with a 130" diagonal measurment. I LOVE it!

Good luck, and post a floor plan when you are able.

So let's cover this topic for a minute, as this is the time I need to really hammer down this decision. (Before I do my wiring and screenwall!)

If I get a scope screen, it would be SMX CineweaveHD or a SeymourAV CeterStageXD. I was initially looking to buy a JVC X3 as my projector. (I may do 3d eventually, but not active. And if I do it, it will be using the dolby method so I won't need a silver screen. This is future though, so don't worry about it. Basically, I don't need a 3d projector. So keep that in mind) Looking at the ProjectorCentral calculator, in order to fall in the green area with the 130" diag (And I'd even prefer the 130" WIDE one), I'd have to be at maximum 2x zoom at a 13'7" throw. Not sure if I should be considering another projector based on this. Though I consider myself generally well versed on a lot of things, I have to admit when it comes to how Zoom affects the image or how this will play into the "zoom" part of CIH, I really don't know much. So time to hammer me with suggestions.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
damelon is offline
post #26 of 2492 Old 07-28-2011, 07:10 AM
Advanced Member

HDvids4all's Avatar

Join Date: Feb 2008
Location: Columbus, OH
Posts: 697
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by damelon View Post

So I have the original pics, which are all high-res, but shrank them to 1024x768 so I could upload them. Some people are saying resize to 800x600 and others say larger... is 1024x768 adequate?

I would say stick with 1024x768. Resolution for pics on a forum can be a tricky thing to please everyone, since not everyone runs their monitors at the same resolution. Anything bigger than 1024x768 usually requires to scroll left and right to see everything, whereas anything lower (IMHO) looks just a little too small to get some good detail.

Looks like this'll be a great build, subscribed!


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

........................................

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
HDvids4all is offline
post #27 of 2492 Old 07-28-2011, 07:46 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,861
Mentioned: 5 Post(s)
Tagged: 1 Thread(s)
Quoted: 293 Post(s)
Liked: 620
I just upload my pics as I take them without resizing direct to Photobucket the rest is automatic. I can tell you though with the popularity of the AVS forum if you keep this thread well stocked with progress photos you will exceed the "free" bandwidth limitation of Photobucket and need to pony up the annual "Pro" fee. It's not much.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,

BIGmouthinDC is offline
post #28 of 2492 Old 07-28-2011, 08:27 AM
AVS Special Member

carboranadum's Avatar

Join Date: Jan 2004
Location: Winchester, VA
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by damelon View Post
What can I say, if I posted earlier I had the risk of mentioning a future build plan and then I might run the risk of getting loganed.
That is still a very real risk! He's the type that rubs off on you occasionally. Some of us have been able to resist his "charms" and continue moving forward past the finish line...others...not so much!

Follow my build here:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
carboranadum is offline
post #29 of 2492 Old 07-28-2011, 08:30 AM
AVS Special Member

carboranadum's Avatar

Join Date: Jan 2004
Location: Winchester, VA
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by damelon View Post
I also changed them to links on photobucket. Let me know if that is better.
Much better, IMHO. When I started my build, I resized all of the photos to 800 x 600 before uploading to Photobucket. It mad ehte photos much smaller and I've not had an issue with exceeding bandwidth for Photobucket. Sometime during my build, they started automatically resixzing photos, so it's not necessary to resize. Also, monitors grew in size, so now 1024x768 is a great size to use. BUT, as Biggy said, watch the bandwidth usage.

Looks like a good build...SUBSCRIBED!

Follow my build here:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
carboranadum is offline
post #30 of 2492 Old 07-28-2011, 03:18 PM
Member

tmhouse's Avatar

Join Date: Jul 2011
Location: Lancaster, PA
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 15
Looks like a great build to follow. I would go with as big a screen as you can fit on the wall and make it CIH, but keep it under 80% of the width of that wall. Smarter folks than me have recommended that limitation.

Are you planning DD and GG, or put a layer of plywood on the studs before the first layer of drywall? (see http://www.avsforum.com/avs-vb/showthread.php?t=1127266 from KNKKNK)
tmhouse is offline
Reply Dedicated Theater Design & Construction

Tags
Optoma Th1060p Projector , Oppo Bdp 93 Blu Ray Player , M80 V3 Floorstanding Speaker Boston Cherry , Sony Vpl Vw95es Full Hd 3d Home Cinema Projector , Seaton Sound Submersive H P
Gear in this thread

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
