Greetings everyone,

I've been reading and participating in AVS Forum since 1999, when I worked at ReplayTV and was known here as "ReplayMike." Since then, I've worked at a number of other CE companies, in both the audio and video sides of the industry. In all that time, while I've had home theater and music gear that I've enjoyed greatly, what I've really wanted was to build a dedicated room. At last, the time has come!

In this thread, I'm planning to document the construction of my dedicated music and movie room.

I'm my own general contractor on the project, and I'm responsible for the technical design of much of the media system and the control system. The construction is being handled by a small team of superb craftsmen, without whom the project would be impossible. I'm extremely excited to say that I'm working with Keith Yates Design Group on several aspects of the room, including the acoustical design and treatment of the space.

My goal is to complete the room in September of this year. It's an aggressive goal, but the design work is behind us and construction is underway, so I think we can get there. [update: Yeah, that didn't work out at all. Construction went in parallel with the rest of the house for awhile, but then some of the people working on the house became the "critical path" for the project and all work stopped. At this point, I am hoping to be finished before June or before I collapse from stress or go broke.][update: Notice how I cleverly said "June", but didn't include a year?  That wasn't on purpose, but it has turned out to have been a clever omission.  mad.gif]

The room will have comfortable seating for seven, with additional bar seating for four more. I will be using an acoustically transparent screen with automated "Constant Area" masking for movies. The audio system is built around Aerial Acoustics speakers, and was designed to work well for both music and movies, erring on the side of music when those two uses were at odds. All of the acoustical treatments and some of the speakers will be behind stretched fabric walls and ceiling. All systems (electrical, media, HVAC) have been designed for low noise.

With all that said, this is not a "no holds barred" room. I am limited by some of the realities of the building, the site, and the budget. Nonetheless, I'm hoping that the final product will be a space that my friends and I will enjoy for many years to come. I look forward to hosting some HT meets, as well.

My goal with this thread is to share what I have learned so far, and what I will be learning as we go forward with the build. I have learned so much from what others have shared here in their own build threads, and I want to contribute to the community in the same way. I am also, of course, excited about a project that has been years in the making, and I want to share it with an audience that will appreciate it!

I plan to write a series of articles, each focusing on a particular aspect of the room's design, and post them in this thread. I'll also include construction details and progress reports. As I add major articles, I'll update this first posting to maintain a table of contents linking to each article.

I'll do my best to explain why certain decisions were made, especially when I think the tradeoffs and compromises may prove interesting to others. I also intend to spend a bit of time on particularly interesting technical aspects of the room, like the constant-area system.

I'm especially excited to be an early beneficiary of some new work Keith Yates and his team have been doing with the shaping of bass response in rooms like this, and I'll do my best to explain how that work has contributed to this room's design.

A few ground rules:

  • I work for a CEDIA member company, but I will not be discussing my employment or the nature of my work, at least for now. I do not speak for my company in any way, especially online!
  • I don't speak for Keith Yates and his team, either! I'll do my best, though, to accurately represent what they're doing.
  • I will not discuss costs, except to say that I have been extremely aggressive in controlling costs where possible, but this is definitely not a "low budget" project.
  • I will not discuss sources of equipment or materials, except to say that while some equipment was purchased specifically for this project, I am also using equipment that I have acquired over many years: some new, some used/B-stock, and some traded for other equipment.
  • Questions and comments are welcome, but I would appreciate it if we could keep the thread civil, informative, and on topic.

Fair enough? Okay! Let's get started.

Table of Contents:
1. Introduction (this page)
2. Mike's Money Pit
3. The Tyranny of Trigonometry
4. Ten Pounds of S*** in a Five Pound Bag (Construction Update #1)
5. The Art of Compromise

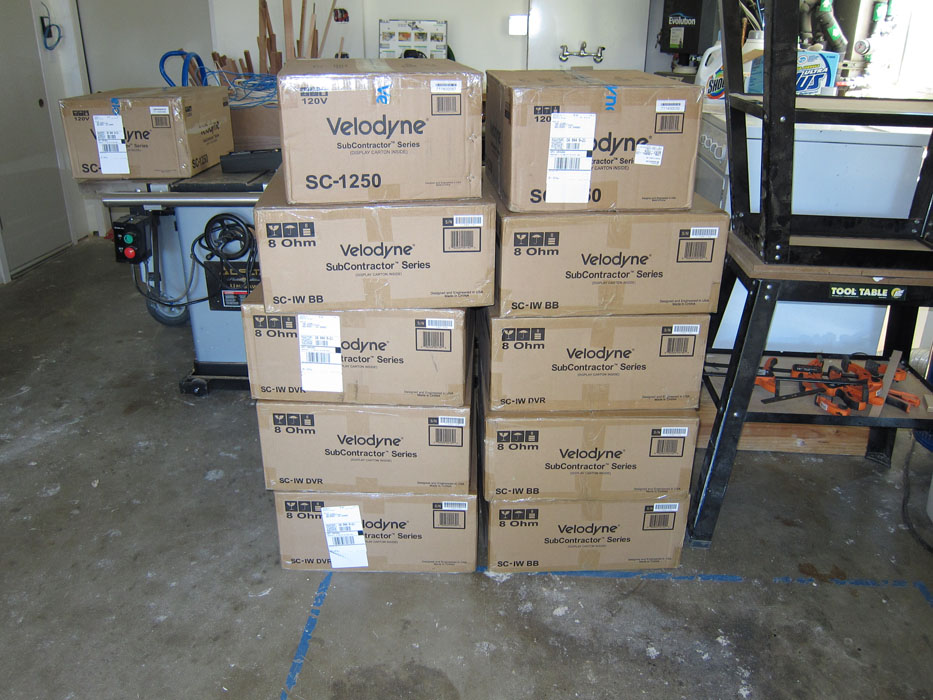

6. Seven Subwoofers! Surely You Can't Be Serious?!

7. Matterport 3D Scan of the Theater


Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Sponsored Links
Advertisement

Old 08-04-2011, 06:26 PM
AVS Special Member

Moggie's Avatar

Join Date: Mar 2008
Location: California, Bay Area
Posts: 1,206
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 25
Hi Mike,

This sounds like a really interesting build. I'm subscribed.
Can you described the basic dimensions? Post plenty of pictures -- we are a visual bunch round here.

My "Old Vic" Theater Build | Screen Build | HT of the Month | Contest Win
My 8 year old daughter: "are contractors the people that mess up your house for money?"
Moggie is offline
Old 08-04-2011, 06:35 PM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Well, how did I get here?

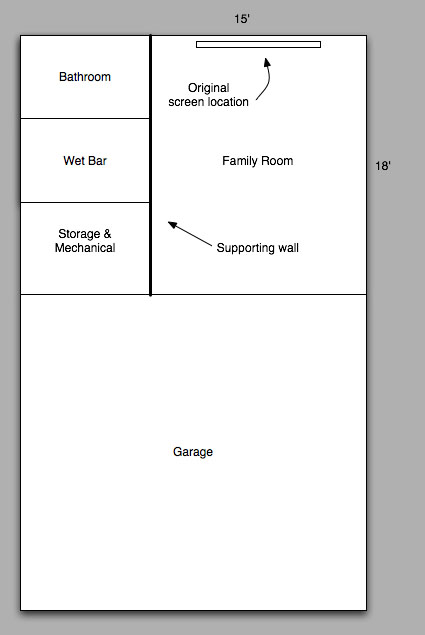

When I was looking at houses five years ago, I carried along with me a laser measuring tool, because I knew I wanted to be able to do a theater room in my new house, and I had some ideas of how big that room needed to be, based upon the setup I had in the house I rented previously. My requirements were that the room should be 17-19 feet deep, and at least 12' wide.

When I saw the house I would eventually buy, sure enough it had a family room in the walk-out basement that was 15x18 feet, so I thought this would be perfect. There was even a bathroom and a wet bar area adjacent to the room! Here's a primitive schematic of the space as it was then. Note that the garage was extra wide, with room for two cars and storage along the side as well.

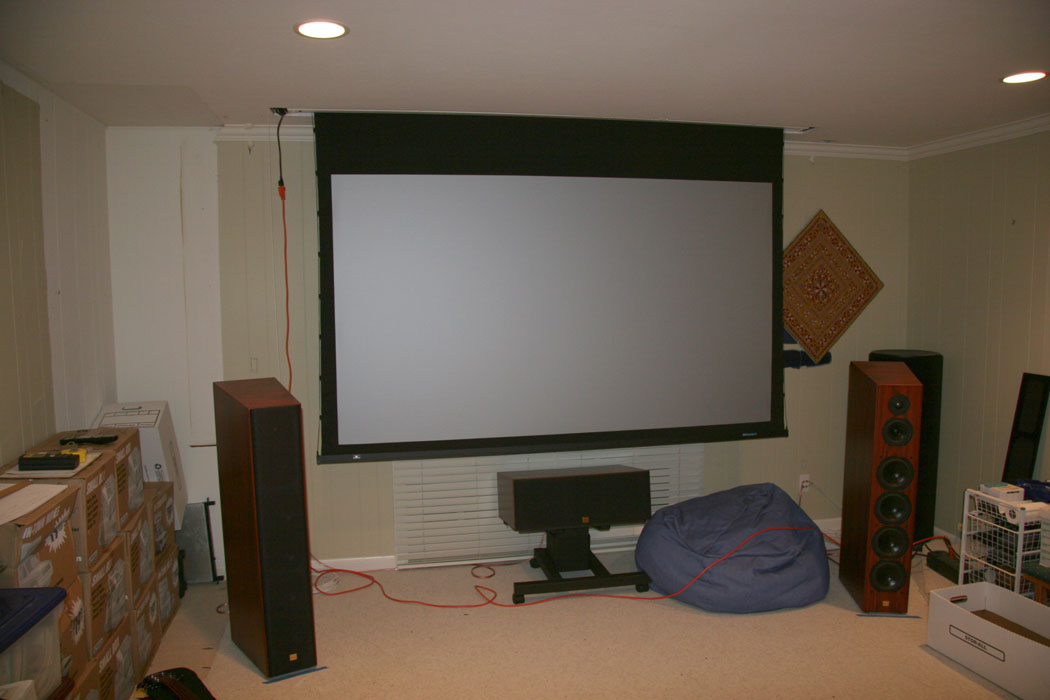

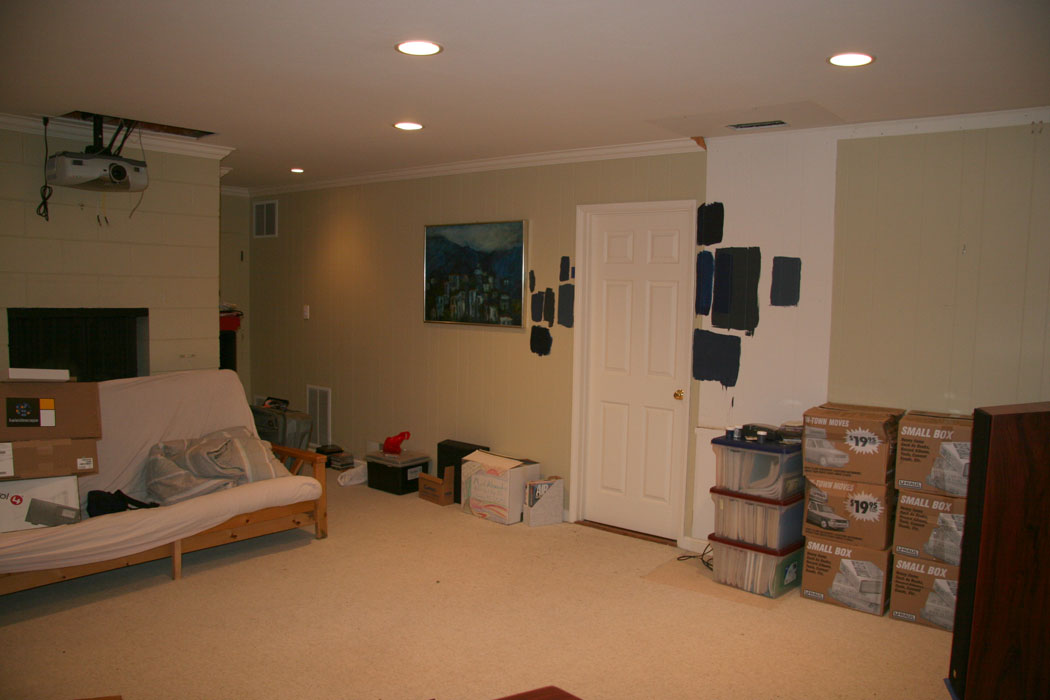

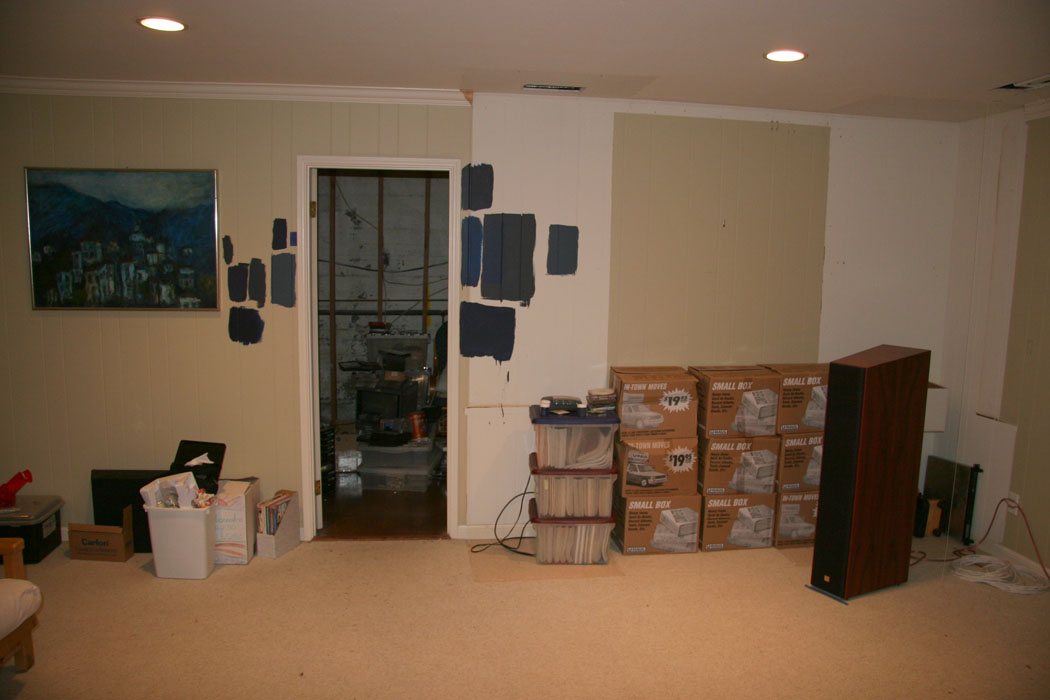

After I moved in, I put my 108" Stewart Firehawk up on the ceiling and my Sharp XV-Z9000U projector on a pole in the back of the room, and enjoyed some movies with friends.

I soon figured out that there was a problem. If I wanted to have more than a few people over, then we ended up pushing some folks way out to the sides of the room where the image brightness started to fall off, and the sound wasn't so great. I couldn't do a second row very easily, because the first row needed to be 12.5 feet back from the screen for my preferred viewing angle, and that meant that a second row would be hard against the back wall, which was inconvenient for foot traffic through the room, and also bad for the second row's sound. I started thinking about bumping out a wall by a few feet at the front of the theater so that I could do a second row on a riser.

It turns out that my house is already maxed out for the lot, though, so that plan soon died as I couldn't add any square footage. The chimney stack was on the back wall, so I couldn't expand that way without losing both of the house's fireplaces. I had several contractors and an architect in to advise, and they all suggested compromising the theater in some way.

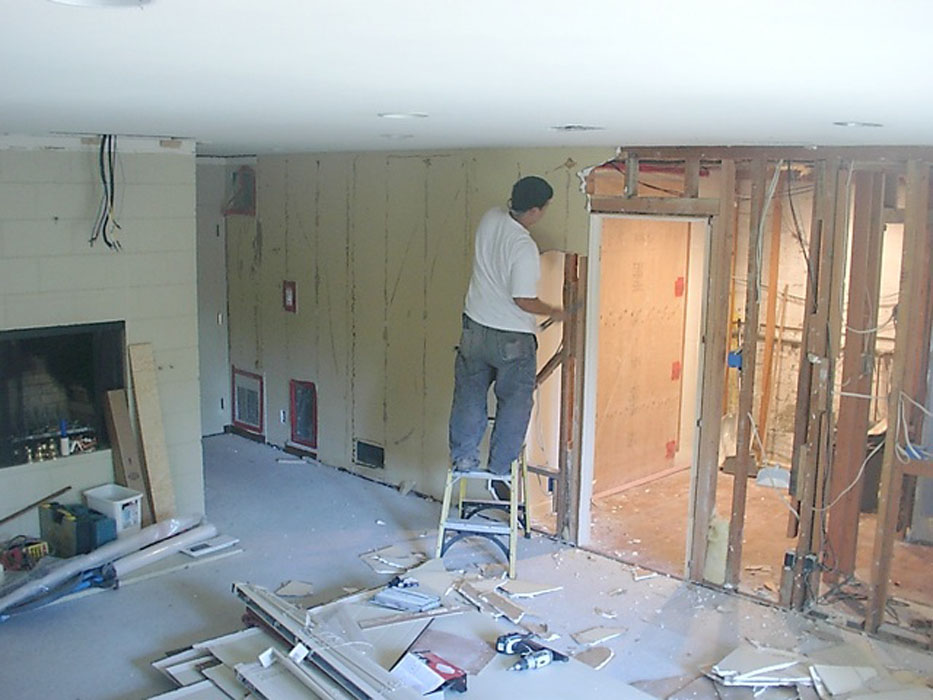

Then, I spoke with the husband of a former co-worker. An electrician by trade, he's also a builder and cabinetmaker, and quite a lateral thinker. His suggestion: take out the left side wall of the family room and relocate the wet bar and bathroom that were behind the wall into a storage area in the garage (therefore not adding to the house's square footage). Rotate the whole theater 90 degrees, so that the former depth became the new width, and the extra size gained by removing the wall would create the depth needed to have the second row. That would create this layout:

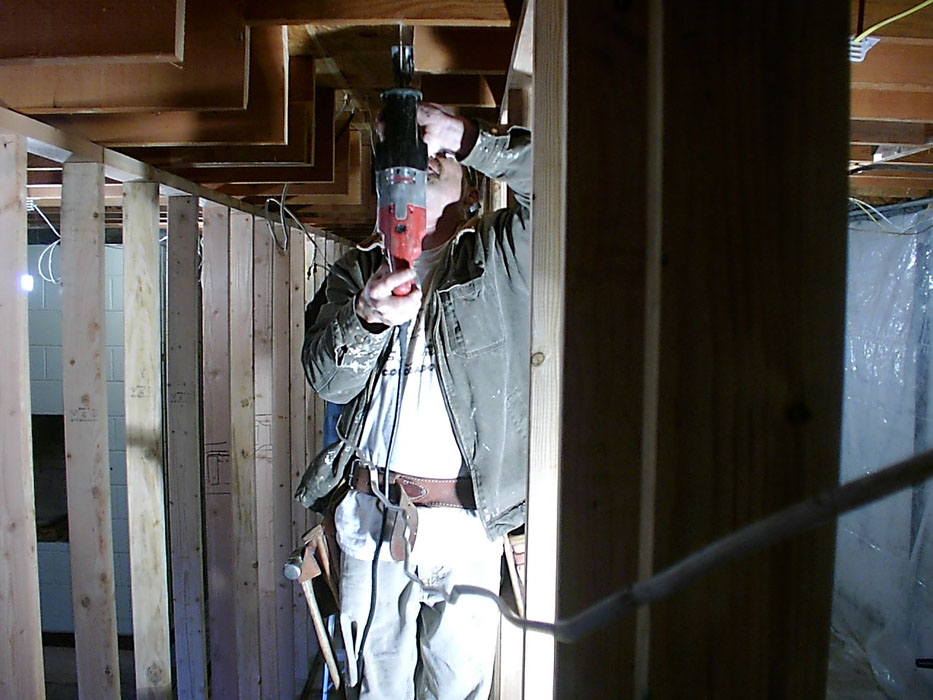

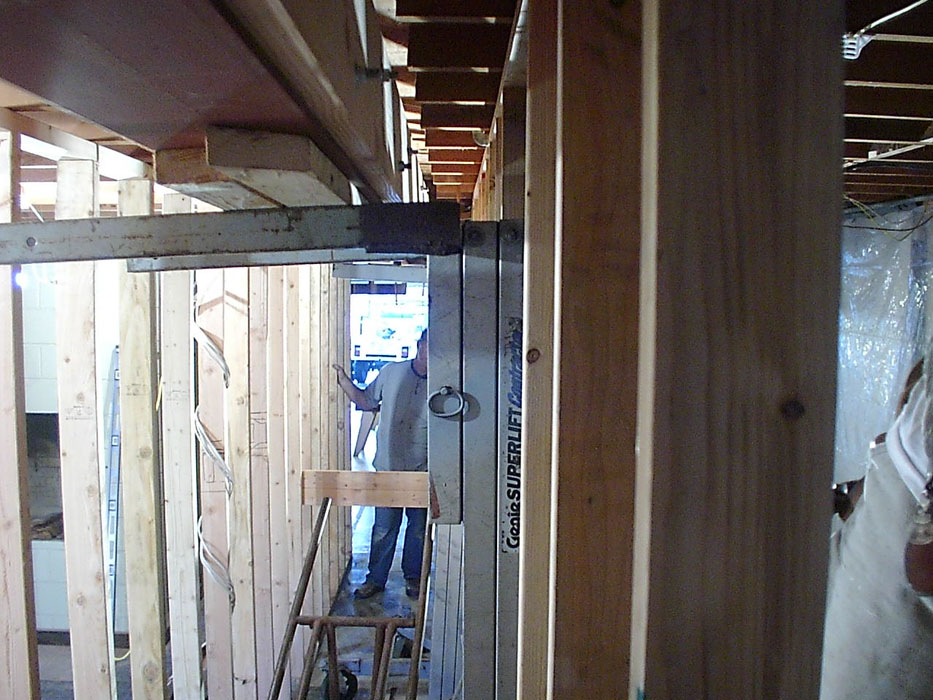

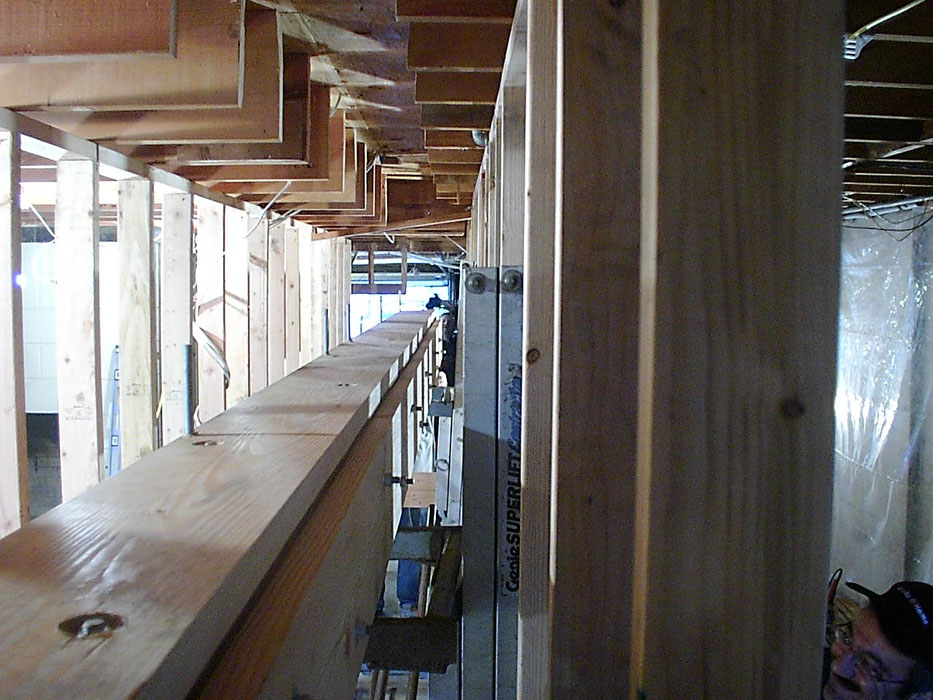

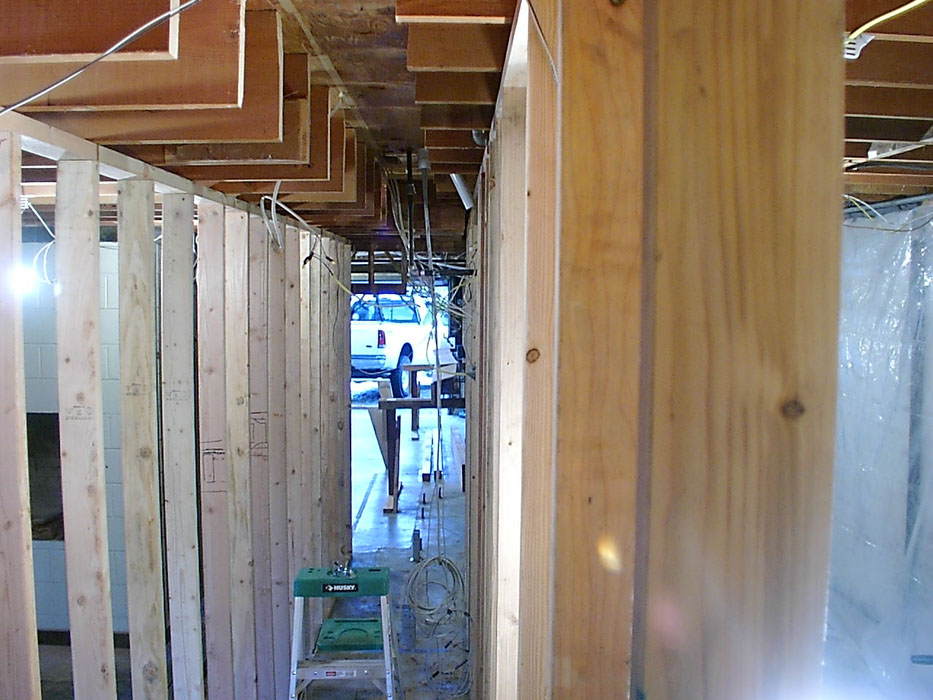

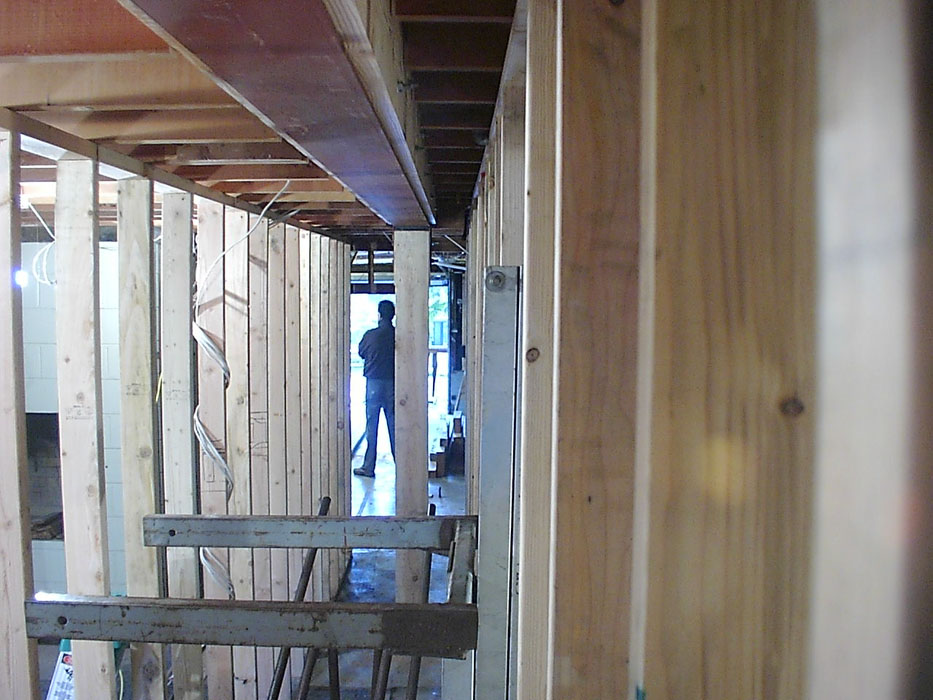

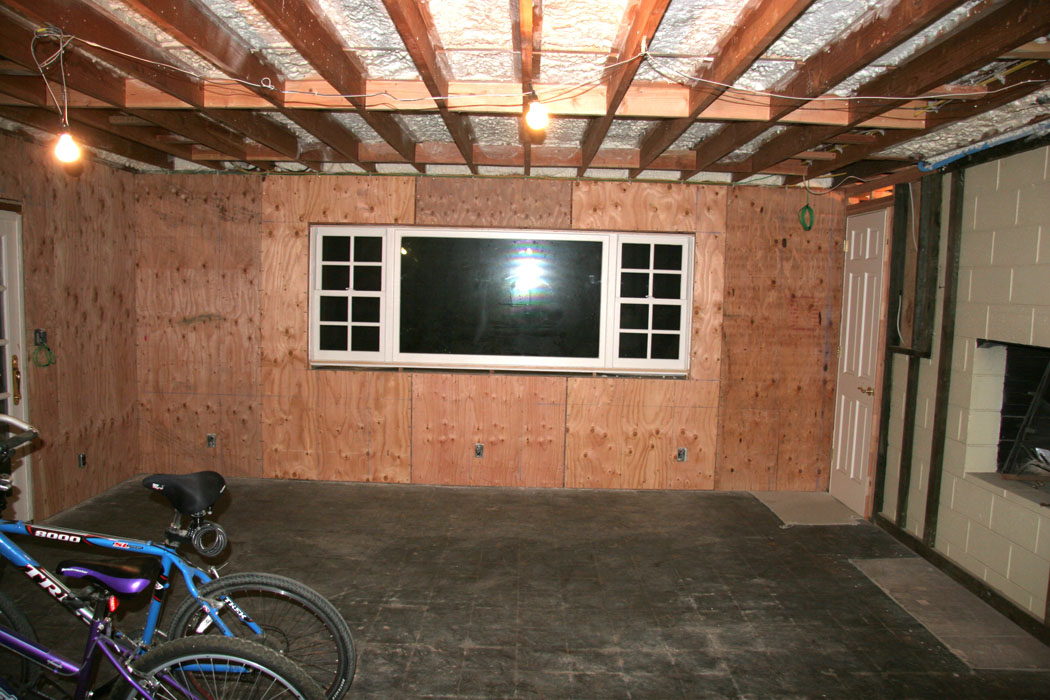

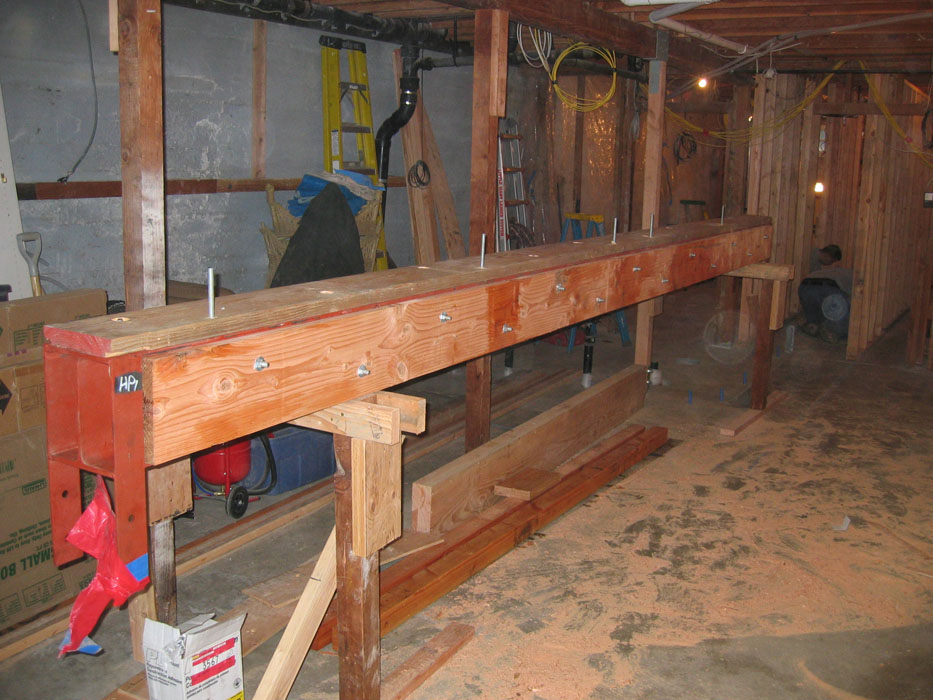

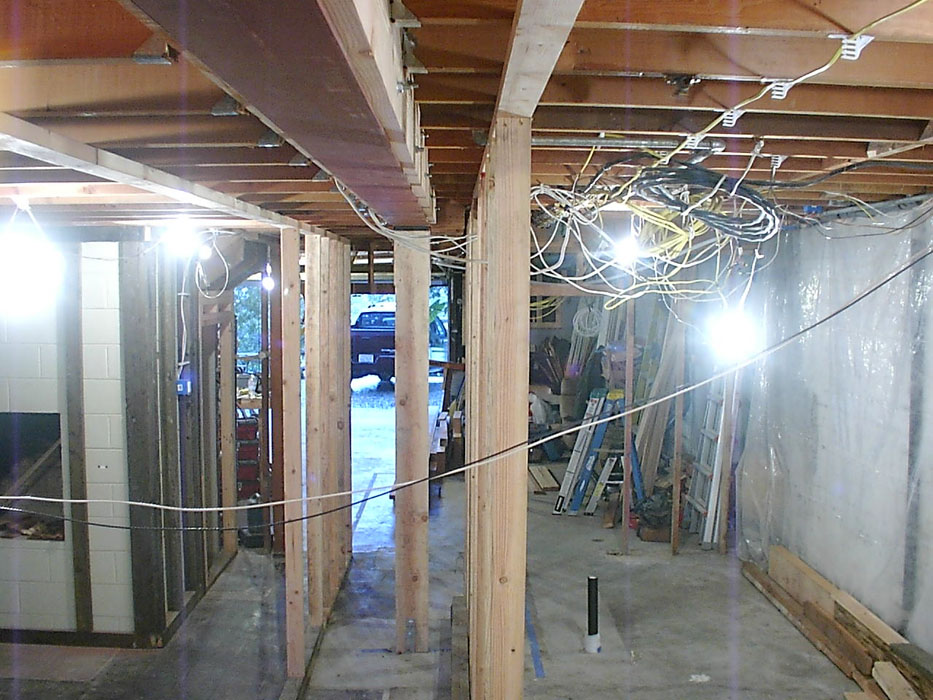

That wall was a load-bearing wall, so we'd need to put in a steel I-beam to support the upper floor, which would mean pouring some new footings. But, the result would be a room that was 18' wide and a whopping 24' deep. That would be enough room for three comfortable chairs side by side (or two love seats) with good walking room on both sides. And, deep enough for two rows of seats with a third-row bar at the back. Now, we were talking!

At around the same time, I became aware of Keith Yates via an article about the "Listen Up" theater showroom that he designed in Denver. As I read Keith's design philosophy for how he approached acoustics, it all just made total sense. I was convinced that Keith was who I wanted to do the acoustical design of the room. I also spoke with a friend who had had Keith design a room, and he told me how impressed he had been with the design. I soon made contact, and after some discussion, we reached an agreement on goals and budget for the project.

In addition to the acoustics, I requested that Keith's team work on the interior design of the theater, since I was so impressed with the looks of the "Listen Up" room. I also asked them to consult on making the HVAC system low-noise.

The first issue that came up was how to do the two rows of seating so that we could get the best viewing angles and lines of sight. There needs to be a height difference between the two rows so that both rows can have an unobstructed view of the screen. Well, my room only has an 8' ceiling! We could build a riser for the second row, but they would be feeling a fairly low ceiling. Add to that the need for a soffit around the room for the HVAC ductwork, and it was feeling pretty iffy.

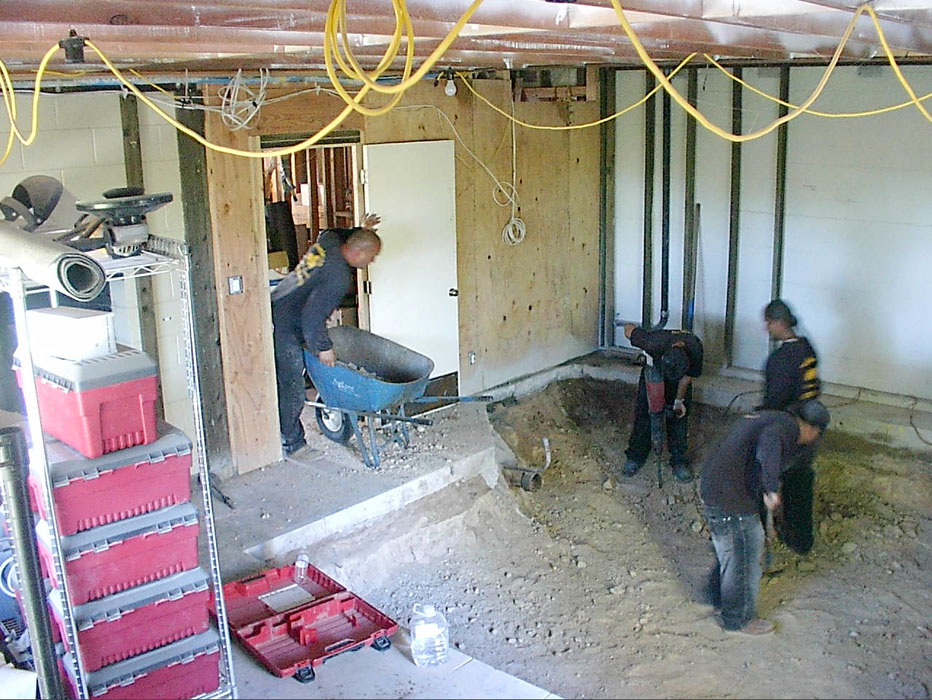

What was the alternative? Well, my theater room is in the walk-out basement. The floor is the slab. The alternative was to bring in a concrete saw, some jackhammers, and a whole lot of concrete, and pour a lowered "pit" for the front row.

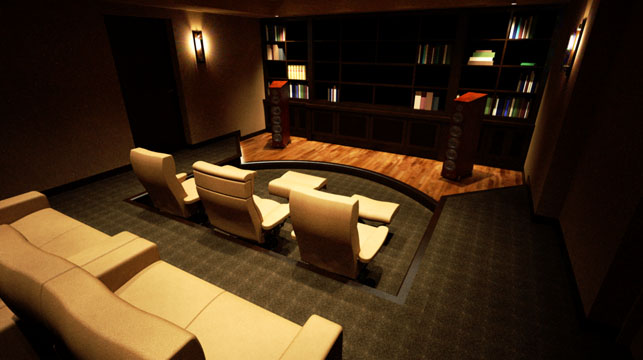

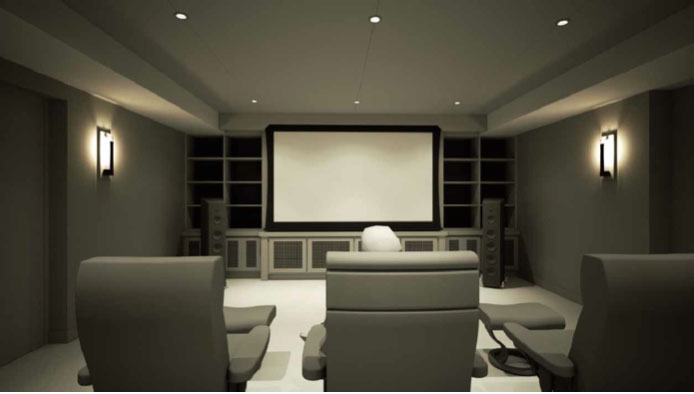

I was skeptical. But then Keith's team produced a couple of renderings that totally sealed the deal. First, they did a set of renderings showing a riser:

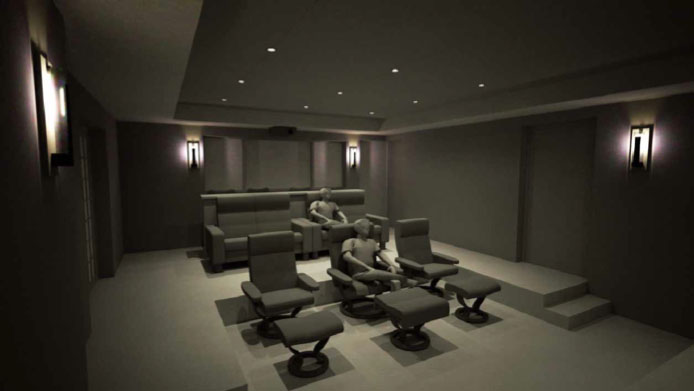

Then, they did a set showing a lowered front row:


As soon as I saw those renderings, I knew that the pit was the way to go. My prime seat -- the "money seat" -- would be in the front row, in the pit.

And thus, Mike's Money Pit was born!

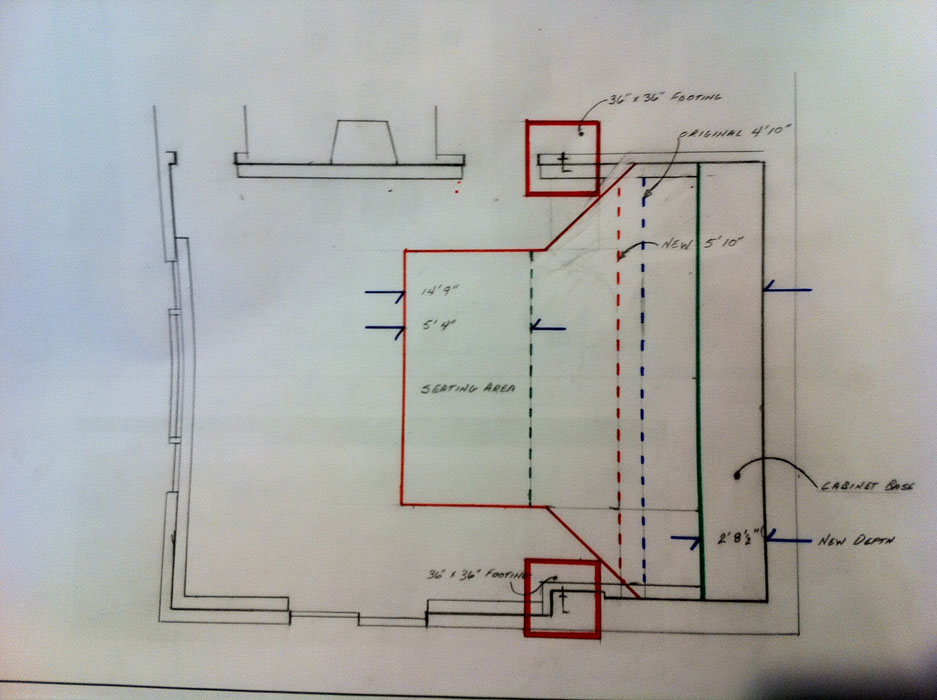

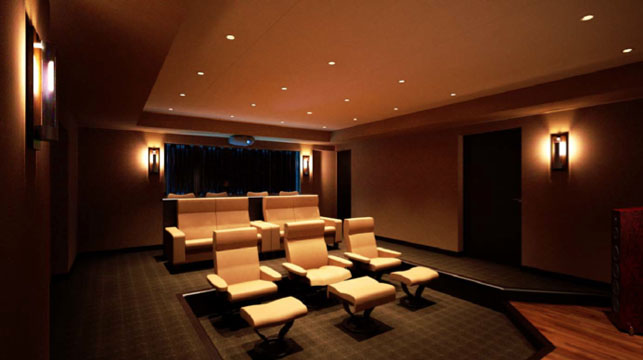

We did some further refinements of the original design. We had to stay clear of the new footings holding up the steel beam, and I also didn't want the speakers to be so far above my ear level, as they would be if the "stage" up front was at the original floor level. So, we split the difference.

When my room is completed, the front row will sit 12" below the original level of the floor. The left and right speakers will sit on a 6" high stage at the front of the room, splitting the height difference between the two floor levels. The stage also acts as the step to get from the original floor level down to the front row. Here's how it will look:









(note that the last two images show an earlier, angular stage design that was later replaced with the curve)

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-04-2011, 06:43 PM
AVS Special Member

Dingaling2004's Avatar

Join Date: Dec 2006
Location: Sydney, Australia
Posts: 1,131
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 19
Subscribed. Really looking forward to following your build. Renders look awesome!

Follow my thread here
Dingaling2004 is offline
Old 08-04-2011, 06:54 PM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Thanks! Next up I'm planning a little piece about screen sizing and viewing angles. It's mostly written. Just want to review it and the diagrams again before I post it.

I'm also planning to write some stuff about the constant-area system I'm planning to use, and then get into the really fun stuff with the acoustical treatment plan and the bass management (to be entitled, "Seven Subwoofers? Surely You Can't Be Serious?!")

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-04-2011, 08:19 PM
AVS Special Member

tony123's Avatar

Join Date: Jul 2002
Location: Upstate, South Carolina
Posts: 4,994
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 25
Quote:
Originally Posted by Dingaling2004 View Post

Subscribed. Really looking forward to following your build. Renders look awesome!

You have to do more than bug a buddy to get renderings like those!

The "Twinseltown" Theater
Construction Thread
tony123 is offline
Old 08-04-2011, 08:31 PM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Quote:
Originally Posted by tony123 View Post

You have to do more than bug a buddy to get renderings like those!

Indeed! Those are the fine work of KYDG.

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-04-2011, 08:57 PM
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,931
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked: 226
Seven subwoofers?! You MUST be serious!

Looking forward to it, especially to see how they get set in the interior design.
HopefulFred is offline
Old 08-04-2011, 09:10 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 21,510
Mentioned: 10 Post(s)
Tagged: 1 Thread(s)
Quoted: 582 Post(s)
Liked: 739
Can you talk a little bit about your decision process of 16:9 versus 2.35:1 screen format and the size of the screen you are showing in the renders?



The reason I ask is it just looks a tad small if you watch a lot of 2.35:1 format content.

Other than that it looks like a beautiful space and I look forward to your progress reports.
BIGmouthinDC is offline
Old 08-05-2011, 12:09 AM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Quote:
Originally Posted by BIGmouthinDC View Post

Can you talk a little bit about your decision process of 16:9 versus 2.35:1 screen format and the size of the screen you are showing in the renders?

The reason I ask is it just looks a tad small if you watch a lot of 2.35:1 format content.

Yup, definitely! I will have two full postings discussing exactly that. The short answer is that the screen is designed to give the front row a 36° horizontal viewing angle for 2.35:1 content, which is the size that I find most comfortable after extensive viewing tests. The angle for 1.85:1 content will be 32°, using a subset of the screen, and IMAX-type content (Planet Earth, etc, etc) will use the entire screen.

The renders show a 108" diagonal 16:9 screen. I will actually be using a 110, not that that makes much of a difference. (It's a matter of standard sizes...) Also, keep in mind that the render you quoted is showing the second row view. The "prime" row in my theater is the front row.

Stay tuned for all the gory details!

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-05-2011, 01:02 AM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
I hadn't fully appreciated the benefits of a very large room and a very large screen until I started working on the calculations for my screen size and seating distances. I intend to discuss my screen sizing and masking strategy in detail in an upcoming posting.

Before I do that, though, I've noticed that a lot of people seem to use online calculators for things like screen size and viewing angle, but I'm not sure they always know how they work, so I thought I'd just explain the concepts. Once you know how this stuff works, you can design your room however you like, without being limited by somebody else's tools. Caution: there is math ahead, but it's easy math!

Let's start by figuring out how to calculate a few key numbers. The first is the width of a screen of a given diagonal size. We need to know the width of a screen because it's the width that determines the horizontal viewing angle, which in turn is a key factor in setting seating location.

Calculating Screen Width
The obvious way to calculate this is with a tape measure or a spec sheet! If you don't have the screen yet, though, and you only know the diagonal size of the screen, it's still easy to find the width -- all we need is a simple ratio. If we know what the ratio is between the diagonal and the width, then given any diagonal, we can find the corresponding width.

Let's say our screen is a 108" diagonal 16:9 model. That means that the width is proportional to 16 and the height is proportional to 9, but what about the diagonal?

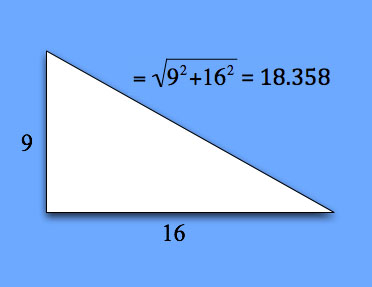

Well, the side and bottom of the screen form the two sides of a right triangle, and the diagonal is the hypotenuse. The Pythagorean Theorem tells us that in a right triangle, the square of the length of the hypotenuse is equal to the sum of the squares of the lengths of the other two sides. This allows us to easily find the length of the diagonal in a right triangle whose other sides are 16 and 9. Then all we have to do is scale the size of that triangle (using a ratio) to find the width of any 16:9 screen we want.



So, as we can see from the image, if our width is 16, then our diagonal is 18.358. The ratio of width to diagonal, then, is 16 / 18.358. That ratio will hold for any 16:9 triangle, so now we can figure out the formula for the width of a 16:9 screen, given the diagonal:

width / diagonal = 16 / 18.358
width = diagonal * (16 / 18.358)
width = diagonal * 0.872

All we need to do is plug in our known 108" diagonal to get:

width = 108 * 0.872
width = 94.18

So, our width is about 94". This formula works for any 16:9 screen -- just plug in the diagonal in place of 108. If your screen isn't 16:9, you need to calculate the appropriate ratio starting from the right triangle. Just plug different numbers into the square root in order to find the number to which the diagonal is proportional.

Calculating Horizontal Viewing Angle

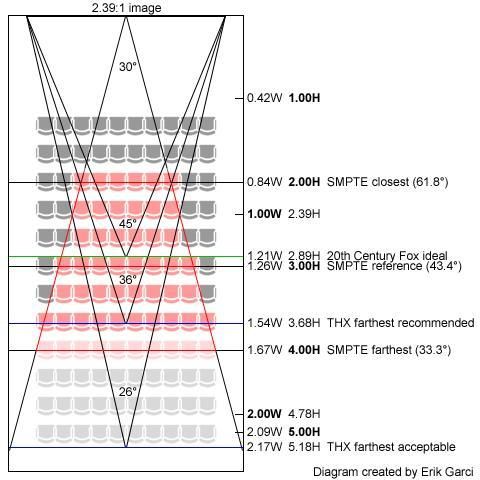

The size of the screen that you want is determined in large part by the horizontal viewing angle. When you hear people saying, "You want the distance from your eyes to the screen to be 1.5 times the width of the screen," they're really basing this number on viewing angle, and making some assumptions about the aspect ratio of the screen.

If you know how to calculate the horizontal viewing angle, and if you know the angle you like, you can figure out the ideal distances for any screen size and ratio and not have to resort to rules of thumb. Here's a little drawing that illustrates the angle we're interested in:

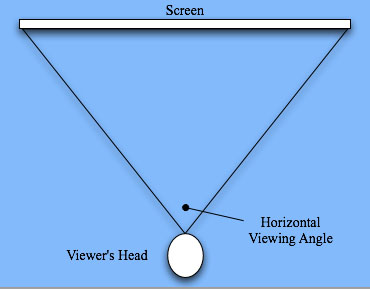

To calculate that angle, the easiest way to do it is to split it in half, so that we can use the geometry of right triangles, specifically the trigonometric function called the "tangent":



In this diagram, 't' is the angle at that end of the right triangle. The definition of the tangent of the acute angles in a right triangle is that it is equal to the length of the side opposite, divided by the length of the adjacent side. Referring to our diagram:

tan( t ) = ( screen width / 2 ) / distance to screen

We know the screen width and the distance to the screen, and we want to solve for 't', so we need to use the arctangent (the inverse of tangent) to convert the equation. Just take the arctangent of both sides to get:

t = atan( ( screen width / 2 ) / distance to screen )

Let's do an example using the screen we talked about above, which was 94" wide. Let's say that the viewer is 12' (144") back from the screen. We get:

tan( t ) = ( 94 / 2 ) / 144
tan( t ) = 47 / 144
tan( t ) = .326388
t = atan( 0.326388 )
t = 18.07 degrees

(If you're noodling along, be sure your calculator is set to "degrees" and not "radians"! If you like plugging formulas into The Google, you want "atan(47/144) in degrees".)

Now, remember that this angle is only half of the viewing angle, since we split things in half to give us a convenient right triangle to work with. Multiply by two, and we see that our viewing angle is 36.1°.

What's all this about "Tyranny"?
Phew! Okay, now that we know how to calculate the horizontal viewing angle, let's see what it can tell us about room sizes and seating locations.

I have done extensive viewing tests to see what my preferred screen size is. It turns out to be extremely consistent for me: I prefer a screen that is sized such that, when watching 2.35:1 content, the screen creates a 36° horizontal viewing angle. 40° is consistently too big for my liking, but 36° is spot on perfect. I know others here (like Art Sonnenborn) prefer a larger screen, and more power to them. It's all about what you like, since it's your theater! For me, 36° is as big as I care to go.

(As a side note, with this screen size in a constant-height setup, I find 1.78 content to be too small. That's why I'm going with a constant-area approach, which I'll discuss in a later article. 2.35 is the widest content, though, so it sets the overall screen width, and is what I discuss here.)

From the examples above, we know that to get a 36° viewing angle given a 94" wide screen, my seat needs to be 12' from the screen. How convenient that all my examples are what I actually need in my room!

The overall depth of my room is 24', but by the time I factor in acoustical treatments, HVAC requirements, storage requirements and so forth, I have about 20' of usable depth from the screen location to the back wall. 12', therefore, is in a pretty good spot for my prime row.

Now, where to put the other row? Uh-oh. Here we get into the tyranny of trigonometry. Assuming that you need about 5' from row to row for legroom and walking space (6' for big recliners), we start to see a problem. If I put the second row of seats five feet behind the prime row, they're 17' (204") from the screen. Using the same formulas as above:

viewing angle = 2 * atan( 47 / 204 )
viewing angle ~= 26°

That's a bit small, but usable. What if I make the second row (at 17') into the prime row? How wide does my screen need to be? I have to flip the formula around just slightly in order to solve for width:

tan( viewing angle / 2 ) = ( width / 2 ) / distance
tan( 36 / 2 ) = ( width / 2 ) / 204
tan( 18 ) * 204 = width / 2
tan( 18 ) * 408 = width
132.5 = width

I need a 132" wide screen to get my 36° angle with the prime row at 17'. That's a big screen! What does that do to my guests in the front row, at 12'?

viewing angle = 2 * atan( ( 132 / 2 ) / 144 )
viewing angle ~= 49°

Either way you slice it, there's a very large difference in viewing angle between the two rows, just because of how the trig works out. The "other" row of seats may have an image that's a bit small, or (for me) uncomfortably big.

Imagine for a moment that I had a much bigger room, and I could put the prime row 24' back from the screen. To get 36°, my screen would be 188" wide (wow!). A second row at 29' would have a viewing angle, though, of 30 degrees. Or, put a row in front, at 19', and it would be at 44°. These are much less dramatic changes in angle!

In short, just because of how the math works out, a larger room with a larger screen will allow for a smaller row-to-row difference in viewing angle. If you extend this to a full-scale commercial theater, you'll understand why there's not a very big difference in viewing angle at all if you move forward or backwards one row.

For a theater in a normal sized home, though, the second row of seating is going to be a compromise one way or the other. In my case, I went with the prime row in front, at 12', and the "other" row behind it, at 17':
  • Given my bias against overwhelmingly large picture, I opted to have my guests have a smallish but comfortable image
  • Doing the larger screen would have required a very large and bright projector, which is both costly and probably noisier due to cooling fan requirements.
  • A 132" wide screen would be very tall with a constant-area setup. In a room with an 8' ceiling, it probably would have been difficult to avoid having the front row obstruct the screen.

In a later article, as I mentioned, I'll talk about my approach to a "constant area" screen and how I intend to do screen masking.

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-05-2011, 12:23 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,125
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 57
Looks like a great plan so far!

Are you considering the acoustic impacts of having the prime seat very close to the middle of the room front to back? Not that its unworkable - I'm pretty close to that as well - but it does present some challenges. Maybe you and Keith have a plan to mitigate (many subs?).
Brad Horstkotte is offline
Old 08-05-2011, 12:29 PM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Quote:
Originally Posted by Brad Horstkotte View Post

Looks like a great plan so far!

Are you considering the acoustic impacts of having the prime seat very close to the middle of the room front to back? Not that its unworkable - I'm pretty close to that as well - but it does present some challenges. Maybe you and Keith have a plan to mitigate (many subs?).

Thanks! Yes, the middle-of-room factor was taken into consideration. The prime seat is not quite centered either front-to-back or side-to-side, so it's clear of the "danger zone". The bajillion subwoofers help, too! More on that in an upcoming article.

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-05-2011, 02:53 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 21,510
Mentioned: 10 Post(s)
Tagged: 1 Thread(s)
Quoted: 582 Post(s)
Liked: 739
Quote:
Originally Posted by JustMike View Post

I have done extensive viewing tests to see what my preferred screen size is. It turns out to be extremely consistent for me: I prefer a screen that is sized such that, when watching 2.35:1 content, the screen creates a 36° horizontal viewing angle.

I think the key here is "preferred". Often we suggest in this forum that the first time theater builder take the projector and shine it on the wall to get the feel for what they like before buying a screen. Not knowing better at the time, my first screen was calculated using the 1.5 width rule and I started out with a screen that resulted in a 35 degree horizontal viewing angle. For 5 years I thought it was a little small. When I converted to a scope screen I ended up with about a 46 angle and I love it. Now in a perfect world I would want my 16:9 content to be a little larger and if I could afford a 4 way masking system that is what I would have done.
BIGmouthinDC is offline
Old 08-05-2011, 04:17 PM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Yeah, that's interesting and definitely my point -- I couldn't stand a 46° angle for CinemaScope content. I've tested this everyplace from home theaters to commercial cinemas. I go to where I find the image to be "just right", then measure, and it's always 36° +/- a degree. My friend can't stand 36°, and she always wants to sit at a point that gives closer to 32°. To each his own, especially in his own theater!

FYI, my masking system is going to be partially custom, since nobody makes a fully variable 4-way masking roll-down screen. Stay tuned for that article!

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-05-2011, 06:21 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 21,510
Mentioned: 10 Post(s)
Tagged: 1 Thread(s)
Quoted: 582 Post(s)
Liked: 739
On the subject of screen size, this chart has been floating around the forum for a couple of years.

BIGmouthinDC is offline
Old 08-05-2011, 06:55 PM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Yeah, I saw that chart, and I did take it into consideration. However, I don't think it applies directly to a home cinema for a couple of reasons:
  1. This is for film content, which has a higher spatial resolution than 1080p home projection technology. With lower resolution content, the image "looks smoother" if you sit at a greater distance. (I can't swear to it, but the fact that I like 36° content at my local gigaplex may have something to do with the fact that their projectors are 2K digitals.)
  2. Those standards are also directed at substantially larger venues. I don't know this for a fact, but I have a feeling that when your eyes are focused, say, 40 feet away, you can more comfortably process a large visual field than you can when the image is only 12-15 feet away.

Those are general considerations. Then there are the considerations for me specifically:
  1. My visual acuity is very high (20/13 uncorrected vision), and I also work in user interface design, where I look at HD user interfaces all day long. Artifacts and picture imperfections bother me. By sitting where I get a 36° angle of view, I don't tend to notice jaggies and pixel structure.
  2. I'm also quite flicker sensitive, so I suspect that having less picture in my visual field is just more comfortable for me at a fairly fundamental neural level. [As an aside, I cannot watch a color wheel projector without noticing the rainbow effect. I can see the DLP refresh flicker on a 3-chip DLP (even a very nice one) if it's a bit on the bright side, like 17-18 foot lamberts. At a more reasonable 14-16 foot lamberts or so, though, I love 3-chip DLP, especially the gorgeous Sim2 models. I'm hoping to try out Sim2's MICO projector shortly to see whether the much higher refresh rate that they are able to do with LED illumination will still trigger my flicker sensitivity. If I wanted to totally go off the deep end on budget, I'd get a Sim2 C3X Lumis 3D Solo for the theater, although it might present noise issues with its larger cooling requirements. But I digress... ]

Finally, I was told by a movie industry veteran that for home video-type content (1080p), the angle that most people find comfortable is about 36°, which squares directly with my own experience. As with any statistical distribution, there will be people on either side of the hump in the middle. Fortunately for me, since it's my room, I can optimize for exactly what I like best.

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-06-2011, 05:27 AM
Advanced Member

KNKKNK's Avatar

Join Date: Feb 2009
Location: AZ
Posts: 873
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 76
Mike.. Looks like it will be a great build, I like the Non typical approach/look for the tiered seating.

You've probably already seen this award winning theater, similar to what you are doing with the walk around platform, and the lowered front row:

http://www.electronichouse.com/slide...gory/8629/1222

Looking foward to more of your updates.

Brad

My Basement HT Construction ~ Faster than the speed of Dark

"I've cut that piece 3 times and its still too short..."
KNKKNK is offline
Old 08-06-2011, 10:56 AM
AVS Special Member

Moggie's Avatar

Join Date: Mar 2008
Location: California, Bay Area
Posts: 1,206
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 25
Quote:
Originally Posted by JustMike View Post

Thanks! Yes, the middle-of-room factor was taken into consideration. The prime seat is not quite centered either front-to-back or side-to-side, so it's clear of the "danger zone". The bajillion subwoofers help, too! More on that in an upcoming article.

My front center seat is close to the center of my room and my front/rear subwoofer setup definitely helps a great deal when equalized correctly. Without the multiple subs the "danger zone" is at least a couple of feet in each direction.

My "Old Vic" Theater Build | Screen Build | HT of the Month | Contest Win
My 8 year old daughter: "are contractors the people that mess up your house for money?"
Moggie is offline
Old 08-06-2011, 12:35 PM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Thanks, Brad! I hadn't seen that room, but it's cool!

Moggie, first, I love your signature! Second, yeah, in my room layout, I'll have two subs directly in front of my seat, one on either side, and three behind at various points. We should have pretty even response at the prime seat and the others as well.

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-06-2011, 01:28 PM
AVS Special Member

mikieson's Avatar

Join Date: Jun 2008
Posts: 1,279
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
yep....looking forward to this one..
mikieson is offline
Old 08-07-2011, 12:10 AM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Ten Pounds of S*** in a Five Pound Bag

That's the expression that my contractor uses to describe my project, and he's totally right, both in terms of the physical challenges of the construction project, and in the metaphorical sense of having taken on a very large project.

For better or for worse, my theater build is a part of a larger overall remodel of my house that started with some fairly extensive upgrade plans but eventually turned into a gut remodel.

The result is that the theater construction has really happened in two phases. The first phase consisted of gutting the original room, removing the load-bearing wall and installing the steel I-beam, and doing mechanical systems work that affected the main floor up above.

Then, the room was basically frozen for almost a year while the upstairs remodel happened. During that time, I lived in the partially-completed theater room.

Now that the work on the main floor is down to cabinetry and odds and ends, the construction has begun in the theater in earnest. Obviously, this two-phase approach has greatly delayed the completion of the theater itself, but it meant that I didn't have to move out of the house, and it also gave some time to refine the plans for the theater in a way that I think will be very positive to the end result.

I thought some folks would probably appreciate some photos of the process so far.

First up, here's what the room looked like shortly before we decided on the new layout. If you refer back to the floor plans that I included in the "Mike's Money Pit" posting up above, you can orient yourself based on the location of the screen.







Once we decided that the theater's requirements dictated removal of the old left wall, we began demolition. I have a nice IP-based camera that can shoot time lapse, so I've documented most of the construction process and am planning a fun time-lapse movie for opening night of the theater. This frame was taken by that camera mounted in the corner that's in the top-right of those diagrams, looking back towards the area labeled "Storage & Mechanical" in the first diagram. You can see the framing of the load-bearing wall, and you can see where the bathroom, wet bar and storage/mechanical area were.



Next, I've included some shots documenting the installation of the beam. We had to build temporary walls on either side of the load-bearing wall, then remove that wall. The slab was cut and new footings were poured to support the beam.

On beam installation day, the crew cut all of the upper floor's joists to form a "pocket" into which the I-beam was lifted. Once in place, the posts were installed to support the beam, and then hangers were installed on all of the floor joists, so that they now hang off of the beam instead of resting on top of the old wall. The result is that we were able to gain lots of space in the theater without losing any precious ceiling height.

In this first picture, note that it is actually a steel beam, but it is sandwiched on both sides with wood to accept the hangers, and there's wood on the top as well so that the wall plate above could be nailed to the top of the beam:



Now here's one of the crew cutting the ends of the floor joists where they used to rest on the supporting wall. They will hang from the new beam instead:



Here you can see the completed "pocket" into which the beam will be lifted:



The beam was lifted in stages by a crew from the steel shop:



Here it is almost fully up:



The beam is all the way into the pocket, and you can see one of the posts supporting it at the far end:



At the end of the day, the beam was up and all the joists were hangered on:

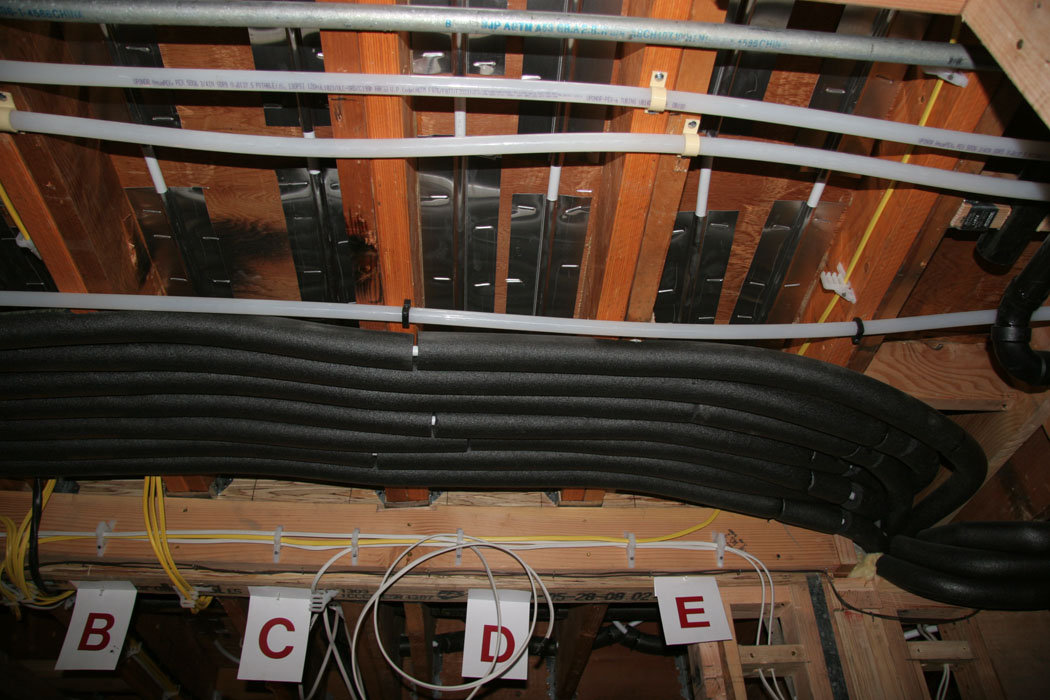

With the beam in, we began installation of the radiant heating system. The tubes go up under the floor, which isn't so bad, but the big challenge is routing the feeder tubes in a way that they won't interfere with the later needs of the theater. You can see the feeders in the second picture (they're wrapped in black insulation), along with some of the PEX water supply piping for the upper floor and a metal gas line.

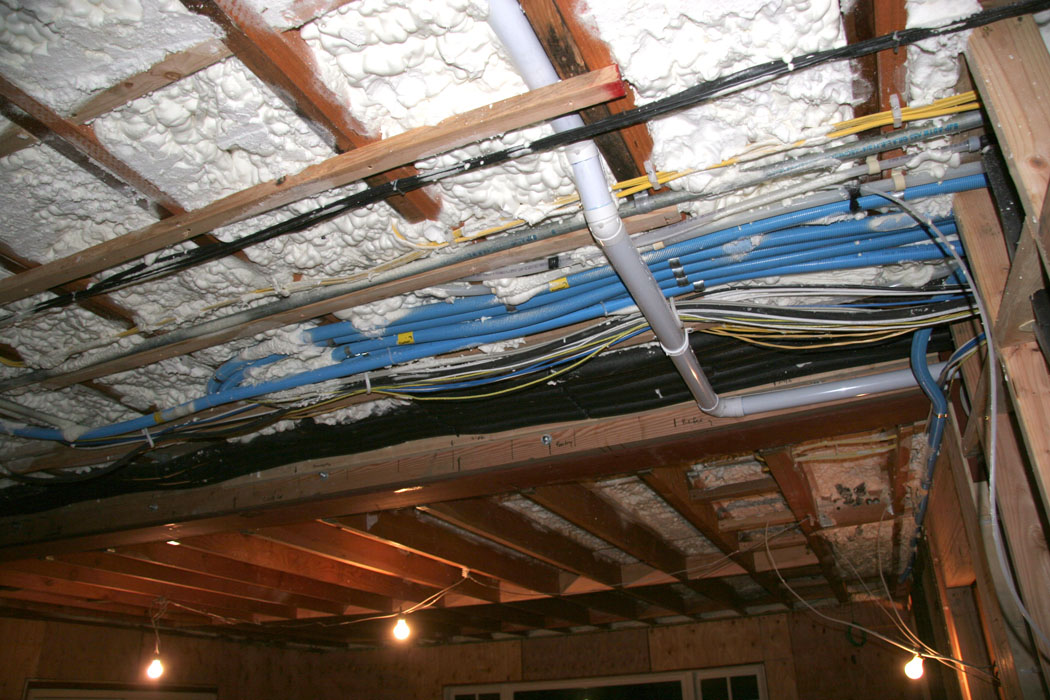

By the way, check out the big red letters in those pictures above. Because of the complexity of the mechanical systems in the house, my contractor suggested that we photographically document all the walls and ceilings while they were open. That way, if we ever need access to something later, we will know exactly where to find it. This has already proven useful!

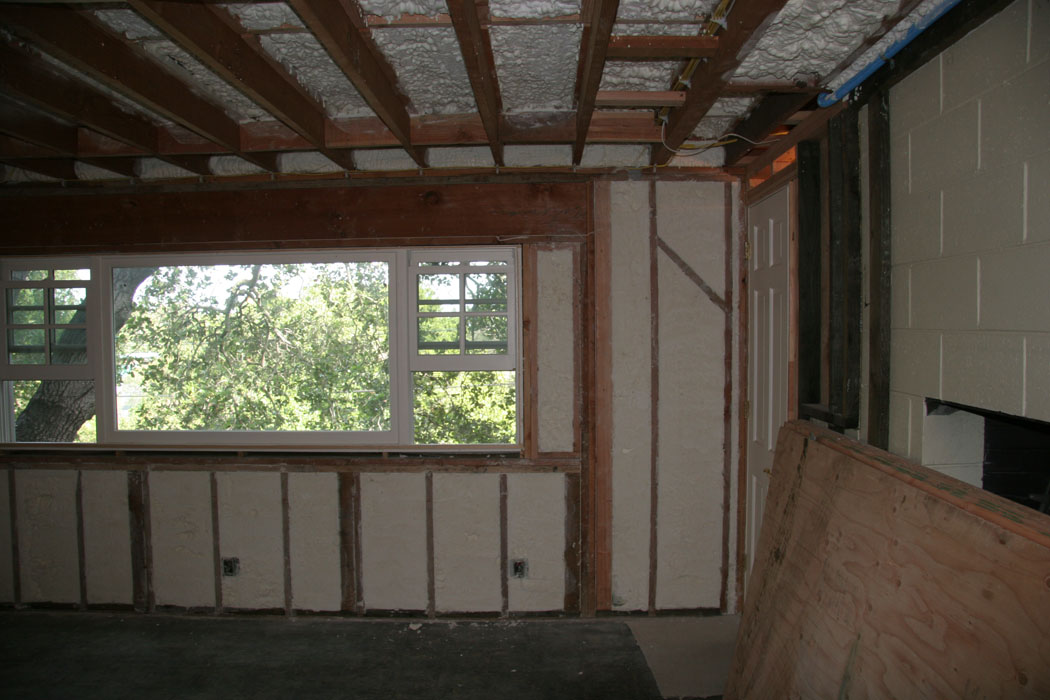

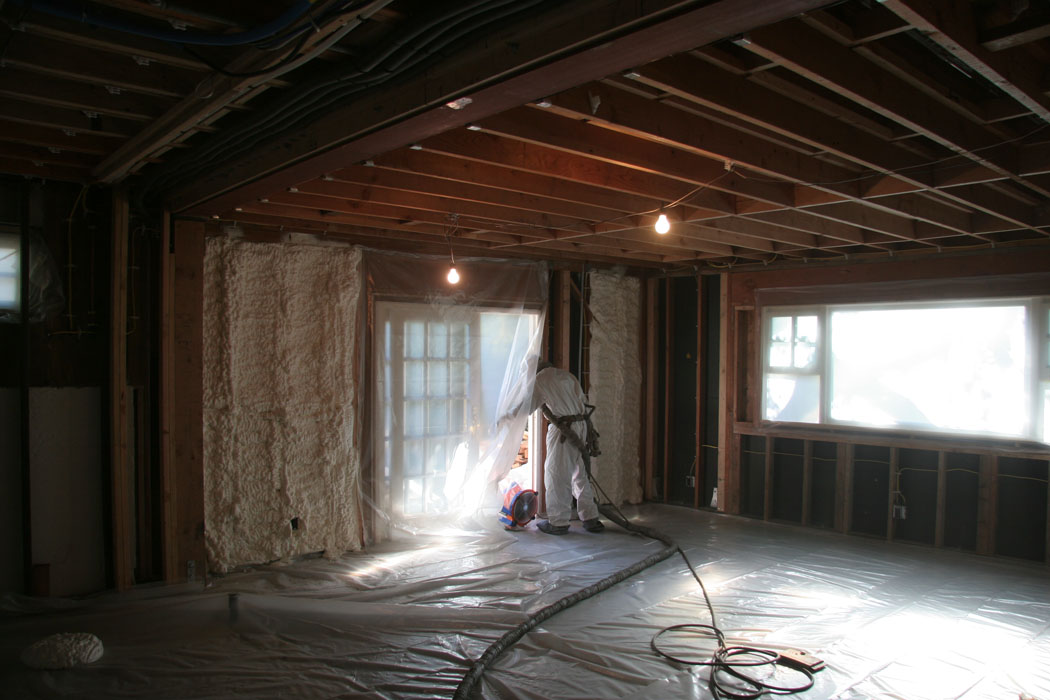

Once the radiant was in, it was time to insulate the formerly-uninsulated room. Because of the low ceiling in the theater room (only 8' from the slab to the ceiling), KYDG's acoustic treatment plan calls for mounting acoustics in the joist bays, in order to preserve ceiling height. In order to leave room for the acoustical treatments and still have adequate insulation under the radiant heating tubes, we used spray foam to a depth of 4" under the radiant. This was later covered with plywood and Sheetrock, leaving about 5.5" of depth in the joist bays to accommodate acoustic treatments. Stretched fabric will cover the entire ceiling in the finished product. Since we had a spray foam crew on site, we did the exterior walls with foam as well. It was a little more expensive than conventional insulation, but it's very high performance.

These two photos are taken from the front left corner of the theater, looking towards the back right corner. You can also clearly see the steel beam, and get an idea for how much it has opened up the room.





The last step was to sheathe the exterior walls in plywood. This serves two purposes. First, since I live in seismic country, the plywood will add shear strength to the walls. Second, when it comes time to install the acoustics, we don't have to try to hit studs. Everything can just be screwed to the walls and it will find plywood structure behind. The plywood will be covered in Sheetrock before the acoustics go up, for fire protection and sound absorption.



Here's a shot showing a good example of that whole "Ten Pounds" thing. In this shot, you can see electrical, low voltage, central vacuum, radiant feeders, and natural gas. The white PVC central vac line is right at the edge of where the soffit will wrap the room, so in this area, we can afford to come all the way down to the bottom of the beam. Notice that just to the left of there, everything jumps up so that we have at least 4" above the level of the beam, to accommodate acoustical treatment.



Finally, we get to the really fun stuff. As I mentioned in "Mike's Money Pit" above, the way we are getting a 12" difference between the back row and the front row is by going down through the original slab and pouring a new concrete pit. Here's a sketch showing the perimeter of the concrete cut. Notice the big red squares representing the massive footings for the steel beam. We had to stay clear of those, obviously.

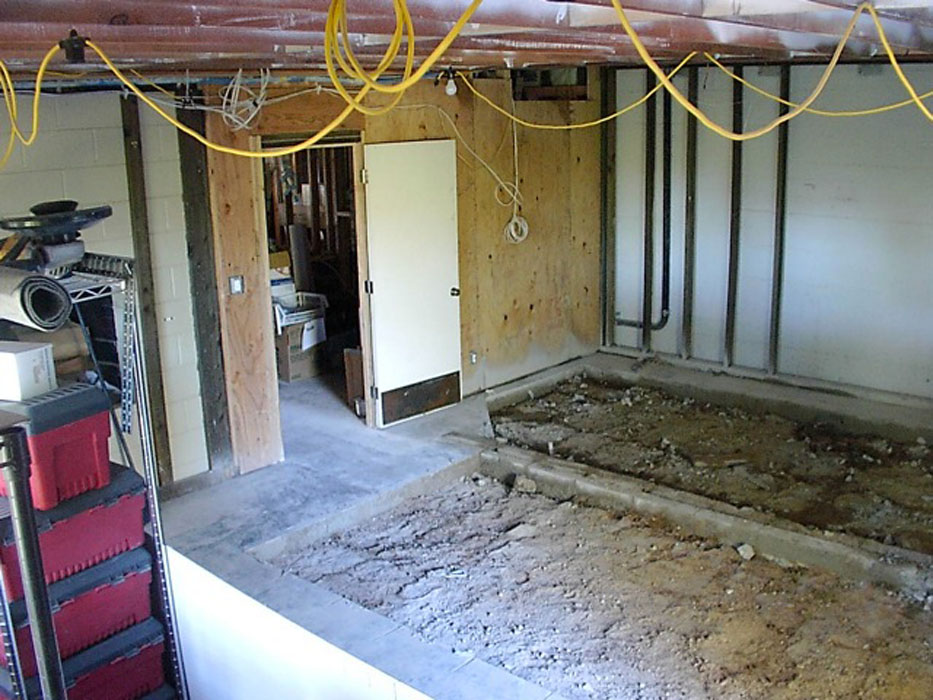

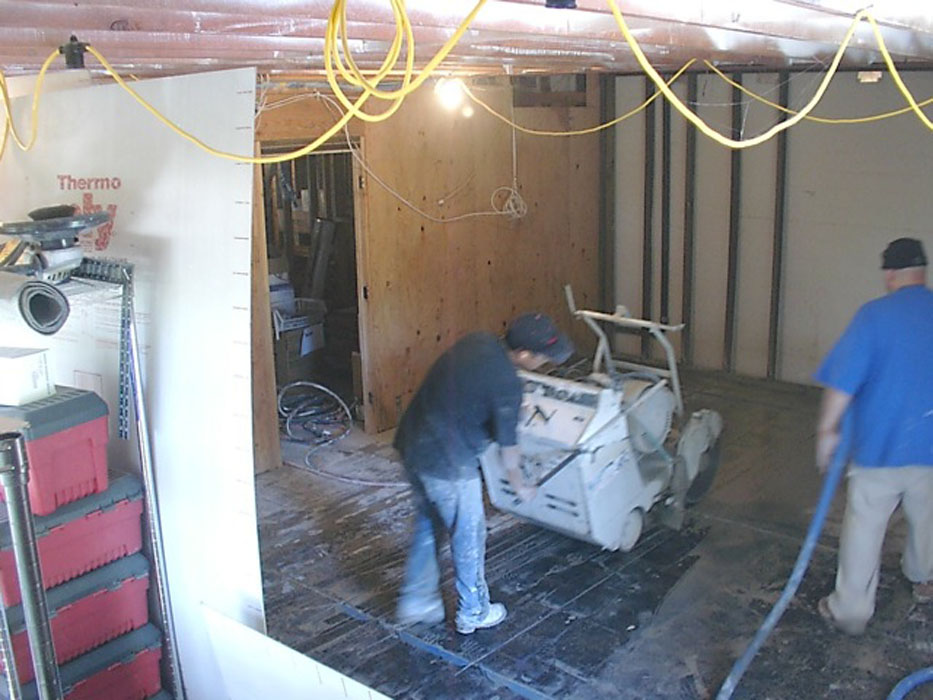

One happy day while I was out of town, the diamond saw crew arrived, and in the course of one day, removed the slab over the future pit. By the way, compare this picture with the photo farther up where the wall was initially being stripped of its drywall. You can see how much more depth we gained in the room by installing that beam:







Then the pit was excavated...

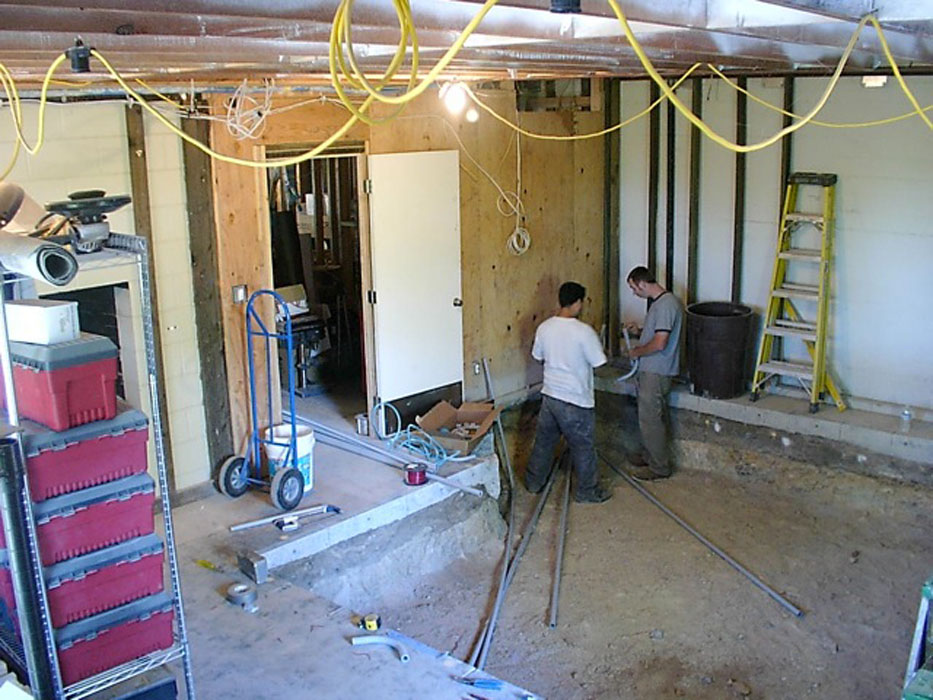

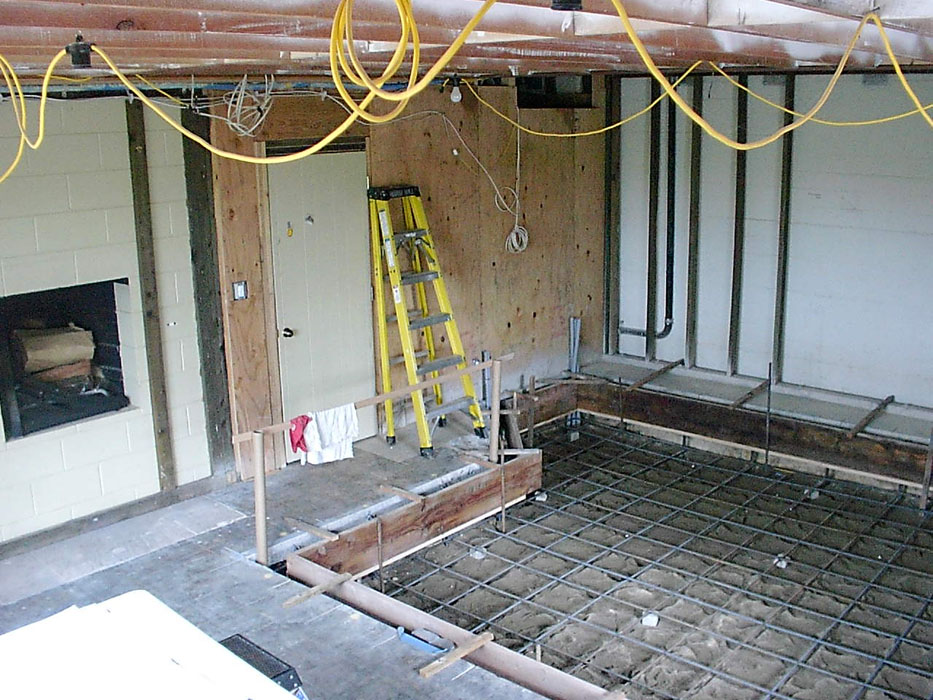

...and conduit for line voltage and low voltage electrical was run. This will supply outlets behind the front row for touch panels, laptops and so forth, as well as providing power outlets behind the second row and in the third row bar.

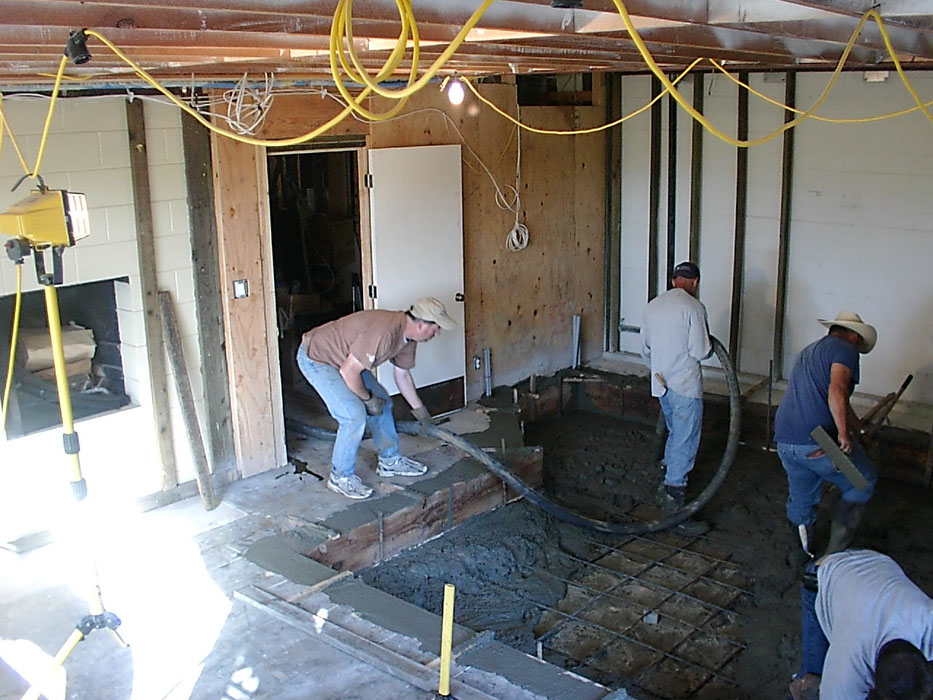

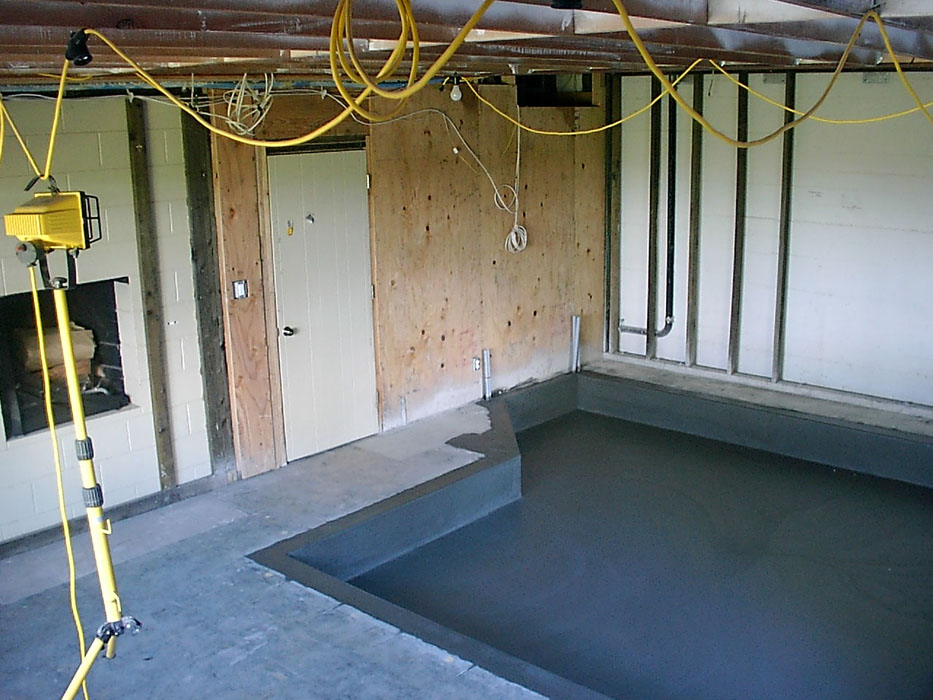

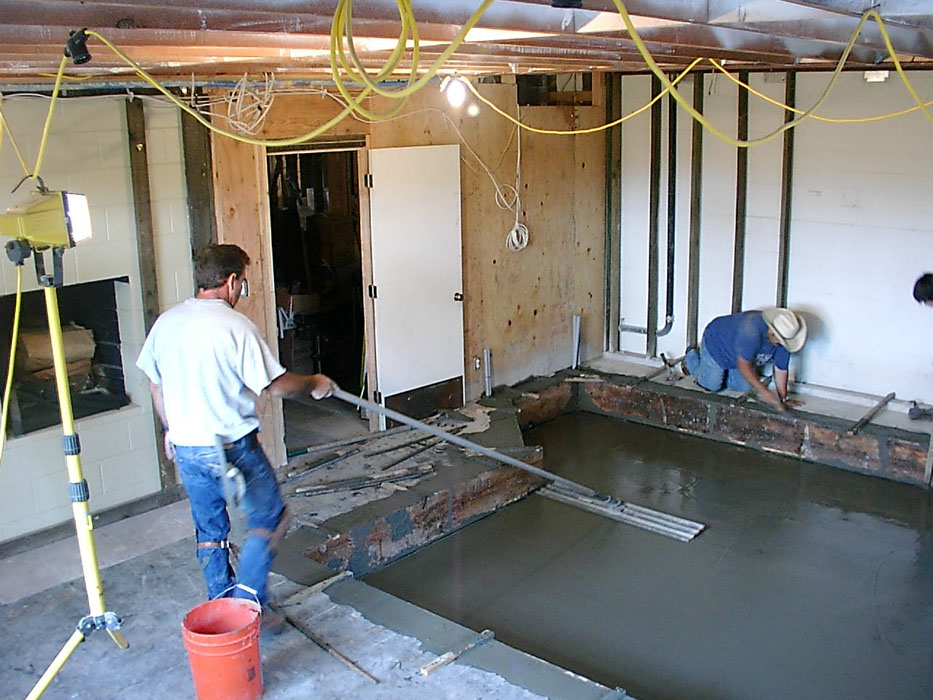

And, finally, the pit appears! Here's the concrete pour and the final product:









Unfortunately, the time lapse camera has had a hiccup, and I'm missing some photos from the most recent work in the theater. After the pour was done, we built the outer shells of the HVAC soffits. These are being built from plywood to keep the amount of structure down as much as we can. This is to maximize the size of the ductwork while preserving as much headroom as possible.

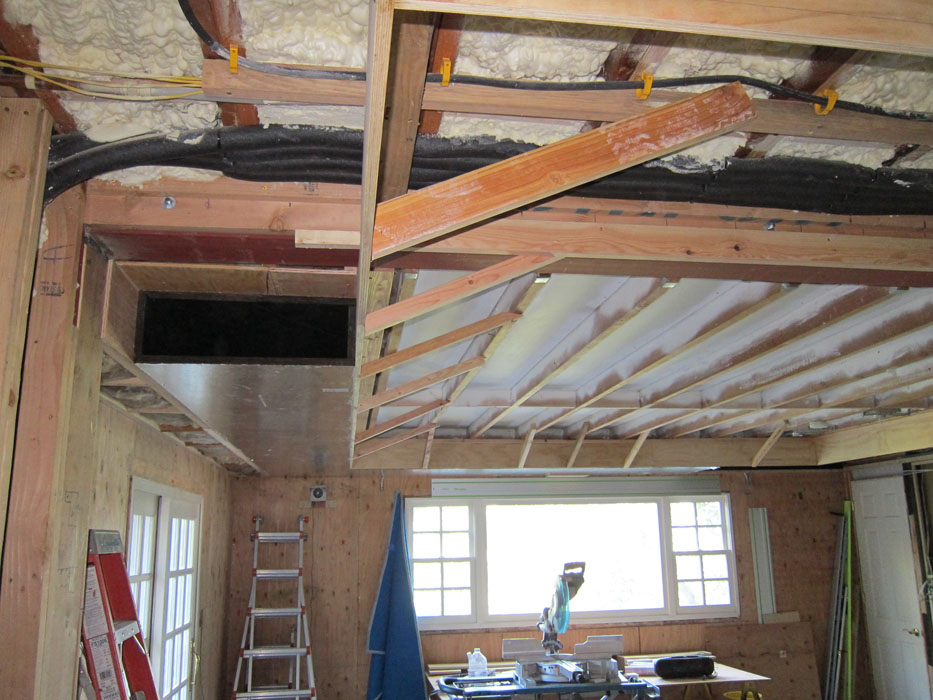

Once the outer shells were done, the crew begain construction of the HVAC ductwork itself. Here are a couple of shots. The diagonal braces are temporary until the bottom panels go on:

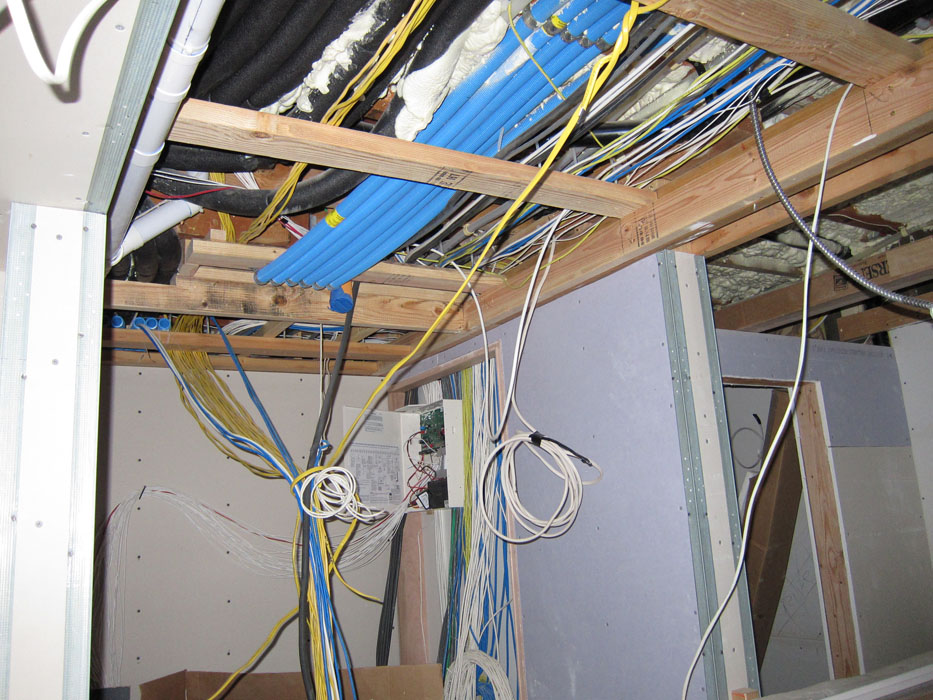

In this shot, you can also see the finished joist bays in the ceiling, with the sheetrock installed. All of those cavities will house acoustics, lighting, and even three subwoofers!

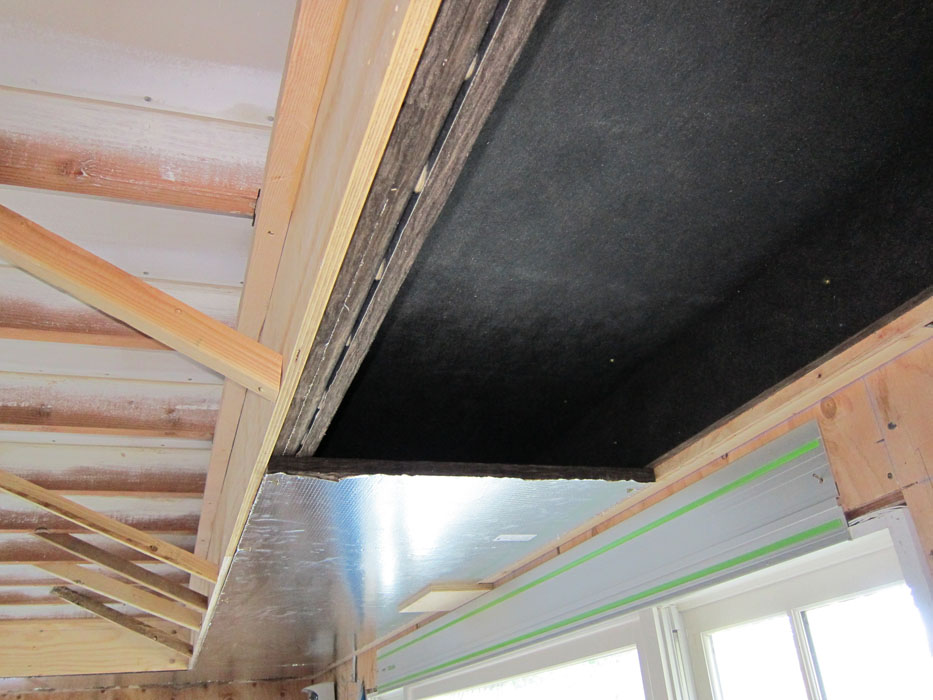

"Construction" is really the right word for these ducts -- to absolutely maximize duct sizing (and therefore minimize air velocity and induced noise), rectangular ducts are being built from 1" Knauf Ecose duct board. They are being built in place in the soffits, again to maximize our limited available space. In a future article, I'll talk a bit about some of the compromises that have been made in the theater. The HVAC ductwork has been one such area, where we've had to trade off duct sizing versus headroom.

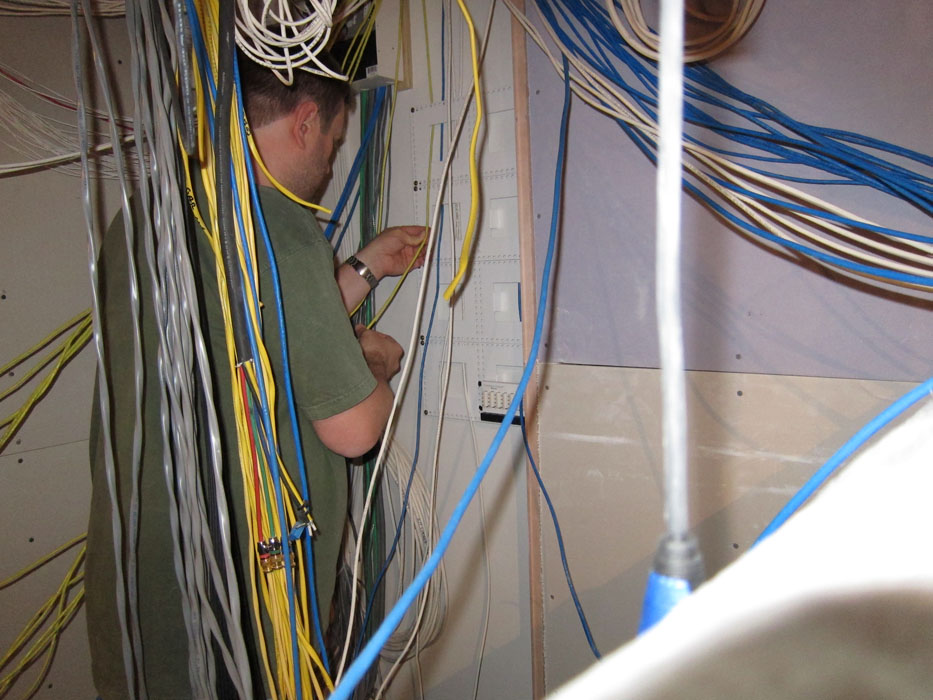

Meanwhile, as work has been proceeding in the theater, the guys have also done some work on the equipment closet. This closet will eventually house two 45U racks of A/V and computer equipment, providing all of the A/V and network services to both the theater and the rest of the house. The racks will be open on the front into the kitchenette area adjacent to the theater, so that they will be easily accessible, but isolated from the theater by a wall with a heavy door to keep their noise out of the theater. There's an access door to the back of the racks from the garage for easy wiring and upkeep. To date, they've been working on getting all of the network and A/V wiring from the rest of the house into the closet. It's a lot of wire.





That's it for now! I hope you guys enjoyed the photos and the first construction update. I'll plan another round of photos in a few weeks when fabric walls and acoustics go in.

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-07-2011, 12:17 AM
AVS Special Member

mikieson's Avatar

Join Date: Jun 2008
Posts: 1,279
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
GREAT update!!!!
mikieson is offline
Old 08-07-2011, 12:21 AM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Thanks! Glad you enjoyed it.

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-07-2011, 12:28 AM
AVS Special Member

ack_bk's Avatar

Join Date: Jan 2007
Location: Maple Grove, MN
Posts: 8,841
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 106
Subscribed! Very interesting build.
ack_bk is offline
Old 08-07-2011, 05:08 AM
Newbie

HurdyGurdyRob's Avatar

Join Date: Jul 2011
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Ditto.
HurdyGurdyRob is offline
Old 08-07-2011, 08:52 AM
Advanced Member

JVoth's Avatar

Join Date: Jul 2010
Location: Beaumont, TX
Posts: 620
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked: 40
Subscribed. Definitely an interesting and ambitious build. Mike, you said you would not discuss equipment sources or cost but are you able to share equipment manufacturers? I was just curious if you were going to post an equipment list or if you were able to. By reading your signature and your first post, it sounds like there is a lot of legal stuff you have to worry about with your employers.
Thanks,
Jeff
JVoth is offline
Old 08-07-2011, 11:40 AM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Hi Jeff,

Yes, I'll definitely be posting a complete equipment list later on. There are still a few things left to sort out. I don't want to give the impression that I'm in some sort of legal bind -- it's just that, unlike when I was at ReplayTV and Roku, I'm not an official online presence for my company, and I wanted to make it clear that this thread is just about my personal project.

Here's a teaser on the equipment front, in alphabetical order: Aerial Acoustics, Classé, Control4, Kaleidescape, Seaton Sound, Sunfire, Trinnov, Velodyne. More to come.

Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 08-21-2011, 09:05 PM - Thread Starter
AVS Special Member

JustMike's Avatar

Join Date: Feb 2001
Location: Silicon Valley, CA
Posts: 2,247
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 26
Still working on the next article in the series, but in the meantime I thought this would be a fun photo to share. The first installment of the subwoofers for the theater arrived on Friday. That's four Velodyne SC-IW subwoofers (two boxes each) with a pair of SC-1250 amps to drive them.


Mike Kobb
(Formerly "ReplayMike". These opinions are mine alone, and in no way reflect the opinions of employers past or present!)
"Mike's Money Pit" Build Thread
JustMike is offline
Old 09-06-2011, 03:39 PM
AVS Special Member

nebrunner's Avatar

Join Date: Sep 2001
Location: omaha,NE,USA
Posts: 1,134
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 28
Congratulations on going forward with the digging and pouring the new floor! There are quite a few of us on the forum that would love to what you did but don't have the wherewithal to see it through.

My perpetual home theater build - Omaha Theater #5
nebrunner is offline

Thread Tools


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
