Happy to have decided to upgrade my aging Denon 3806 receiver. It will stay with the current theater when we sell it.

The leading candidate for replacing it is the Pioneer Elite VSX-53. I like the sound of the Elites and intrigued by many of the new features it offers. All the Apple stuff in particular and the two HDMI outputs (which I want so that I can show the same programming at the bar in the next room simultaneously). Also like what I've read about the Yamaha Aventage 2000 level units. Anyone listened to both and have a preference? Audio quality is number one priority. The nice thing is how many features you can get these days on great sounding $1000 units.

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
Sponsored Links
Advertisement

post #62 of 90 Old 02-25-2012, 07:38 AM
AVS Special Member

blipszyc's Avatar

Join Date: Aug 2000
Location: Concord, NC
Posts: 2,580
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked: 36
Quote:
Originally Posted by gsearles View Post

Happy to have decided to upgrade my aging Denon 3806 receiver. It will stay with the current theater when we sell it.

The leading candidate for replacing it is the Pioneer Elite VSX-53. I like the sound of the Elites and intrigued by many of the new features it offers. All the Apple stuff in particular and the two HDMI outputs (which I want so that I can show the same programming at the bar in the next room simultaneously). Also like what I've read about the Yamaha Aventage 2000 level units. Anyone listened to both and have a preference? Audio quality is number one priority. The nice thing is how many features you can get these days on great sounding $1000 units.

If you're upgrading from the 3806, have you considered the new 3312? I believe it too has 2 HDMI outs. Or, if you're lucky, you can catch the 4311 for $1299 when Newegg has a sale. (Don't buy from Newegg as they're not Authorized, but use them to PM to someone else!)

Visit the
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

2.0 done and finally posted! -
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

And now...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
blipszyc is offline
post #63 of 90 Old 02-25-2012, 11:10 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Yeah I hadn't realized how full featured the Denon 3000 series had become. Two subwoofer outputs would be nice. Im looking add adding a second. That 3312 looks great. Has Denon improved their user interfaces at all? My 3806 is awful in that regard.

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #64 of 90 Old 02-25-2012, 04:11 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Hmmm, read some reviews on the Denon. Sounds like it's sonically very good but still the type of problems that annoy me:

Complicated setup
Menu difficult to navigate
Remote not backlit, missing some functions
No satellite radio
Sluggish app interface

I think I'll try Pioneer Elite this time. Sounds like it's *very* polished. (and looks sweet)


Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #65 of 90 Old 02-25-2012, 04:54 PM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,926
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked: 64
How about aim-able in-wall speakers in the soffits?

I've seen this done in several builds. BShaw@bedhandlers' is one that comes to mind.

http://www.avsforum.com/avs-vb/showthread.php?t=839053 post 38
Tedd is offline
post #66 of 90 Old 02-25-2012, 05:14 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by Tedd View Post

How about aim-able in-wall speakers in the soffits?

I've seen this done in several builds. BShaw@bedhandlers' is one that comes to mind.

http://www.avsforum.com/avs-vb/showthread.php?t=839053 post 38

Interesting idea there for sure. Particularily if one is width challenged I would definitely think that would be a good option. Would prefer in walls even, but no go there in my case due to the window obviously.

The sad thing is that I essentially had a blank canvas and 750 square feet to work with for two rooms. I never should have somehow screwed myself into a suboptimal surround setup. Sigh. Realistically I think I'll be happy with the setup when it's done anyway. It's just the only thing that isn't quite coming together as well as I'd hoped...

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #67 of 90 Old 02-25-2012, 05:28 PM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked: 258
Will there be a soffit above the windows? If so, could you mount your speakers in the sides there, or even from the bottom of the soffit? It might hang down in front of the window some, but realistically, the blinds are going to be closed anyway.

You could also build a "trim" box at the top of your windows like some people do to hide the tops of their shades. You could build that as big as you like and mount your surrounds there. Might be a little high, but you that would allow you to mount them symmetrically. You could even get artsy and build them to make your windows look like an arch from the inside to match your doorway (weren't you considering an arched door at one time?

What about a plug for the windows? From the outside it would just look like the blinds are closed. You can even make things semi-easily removable in case you decide you want to take them back out.

Since the windows are in, you gotta start thinking inside the box your given That doesn't mean you can't be creative though.

Dude, are you made of leprechauns? Cause that was awesome!


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
J_P_A is online now
post #68 of 90 Old 02-25-2012, 06:11 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
That's exactly what we're doing - building a bracket down from the soffit. It will hold the speaker at a downward angle, just put in from of the double heavy navy drapes that will block the windows.Will post some pics when that's done next week.

And yes for real extreme need I'm planning to have some sort of styrofoam plug for the windows if the drapes alone don't quite cut it...

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #69 of 90 Old 02-25-2012, 06:12 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

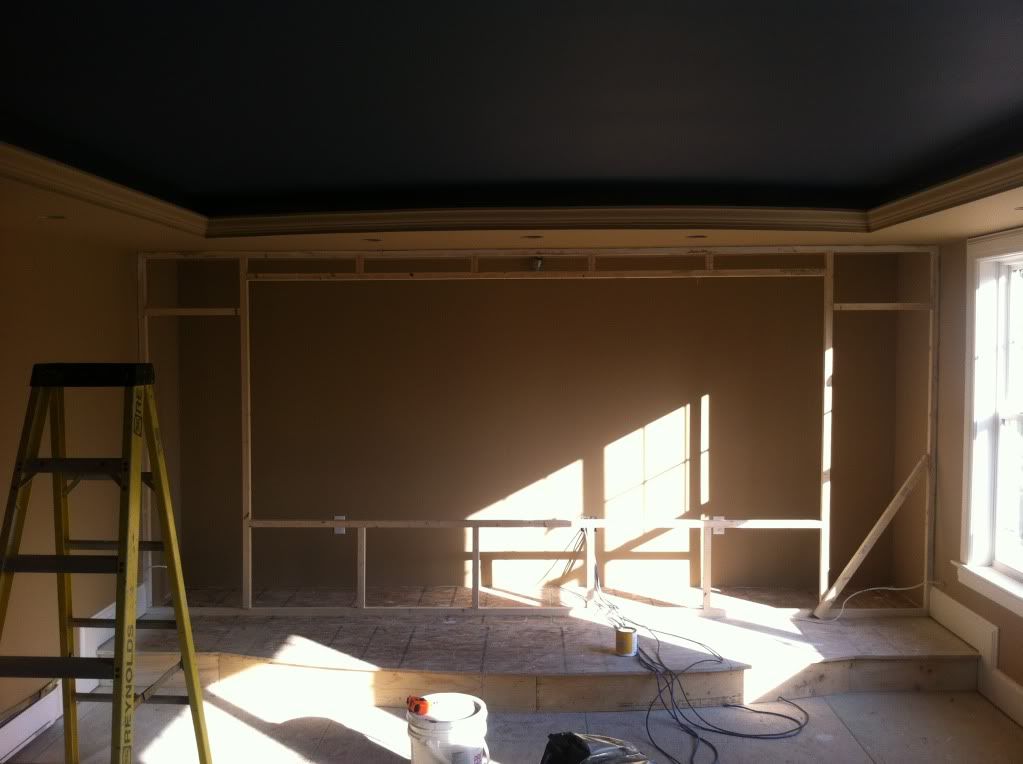

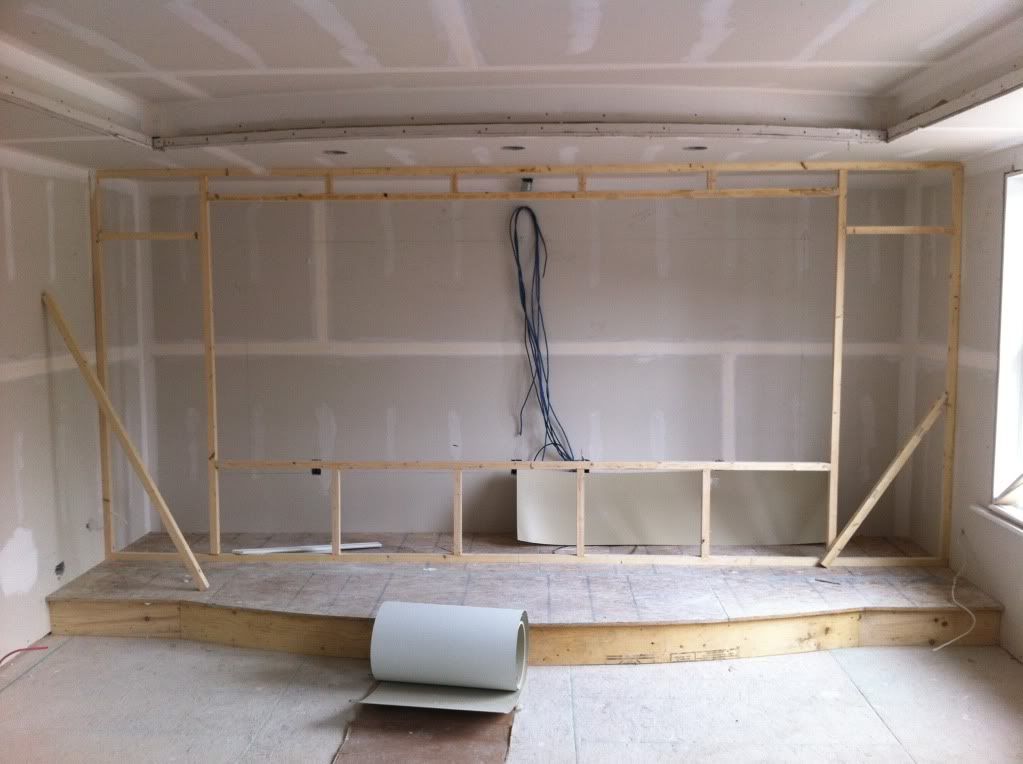

Love it once the screen wall is up. Gives you a good feel for the size and scope of the screen! Feels just right to me. The opening is exactly the size of the screen, the frame will attach to the surrounding wood. Screen will be 130" wide 2.25:1 from Seymour AV. Cinema XD fabric.


Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #70 of 90 Old 02-26-2012, 09:27 AM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,926
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked: 64
Maybe a narrow room was a bad choice as an example. It's just an example that came to mind. I'm not totally convinced you've screwed yourself into sub-optimal surround setup when you see high end rooms use surround speakers in the ceiling.

Peter's Prometheus: http://www.avsforum.com/avs-vb/showthread.php?t=1021614
Tedd is offline
post #71 of 90 Old 03-11-2012, 07:34 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12





Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #72 of 90 Old 03-11-2012, 07:35 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #73 of 90 Old 03-11-2012, 07:36 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #74 of 90 Old 03-11-2012, 07:42 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
After some more research I've decided to go with the Yamaha Aventage RX-A2010. More power than the Pioneer and better reviews for sound quality, plus a friend's recommendation (thanks T). Also has a second sub output natively which is nice and still good networking features.


Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #75 of 90 Old 03-14-2012, 07:35 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Lots to think about. I ordered the Yamaha RX-A2010, though it's on backorder until April. Fine, since that's when we're moving anyway. Got a very fair price from a local dealer too, I much prefer than to ordering online for something like this.

Looking at installing the new Fiber Optic service available here in Atlantic Canada. Bell Aliant Fibre Op, offers true Fiber To The Home, with 30 mbps for download AND upload speeds, plus TV and home phone all in a bundle that makes it cheaper than Bell Satellite and home DSL/phone. I hear the HD TV quality is not quite as good yet, but the convenience factor sounds amazing, and they're expecting tweaks to HD channels over time.

I got a Slingbox Pro HD to hook up to the TV receiver in the home theater room. That way we'll be able to stream TV to computers and iPads throughout the house, plus watch from our cottage without having to get a satellite receiver out there.

Got a barely used Lutron 6 zone Graphik Eye for $300 from an Amazon seller - great deal.

Wow, saving all kinds of money I guess! Makes me feel less guilty about splurging on that new receiver.

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #76 of 90 Old 04-28-2012, 07:44 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Lots of more progress in a few weeks. Here are some pictures from about two weeks ago with some painting done and the media shelves at the back installed. The first pictures shows the soffit and screen wall edges. The colors are much better represented in the second picture. We went dark blue on the celing both for reflection control and lighting effects.




Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #77 of 90 Old 04-28-2012, 07:54 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #78 of 90 Old 04-28-2012, 07:57 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

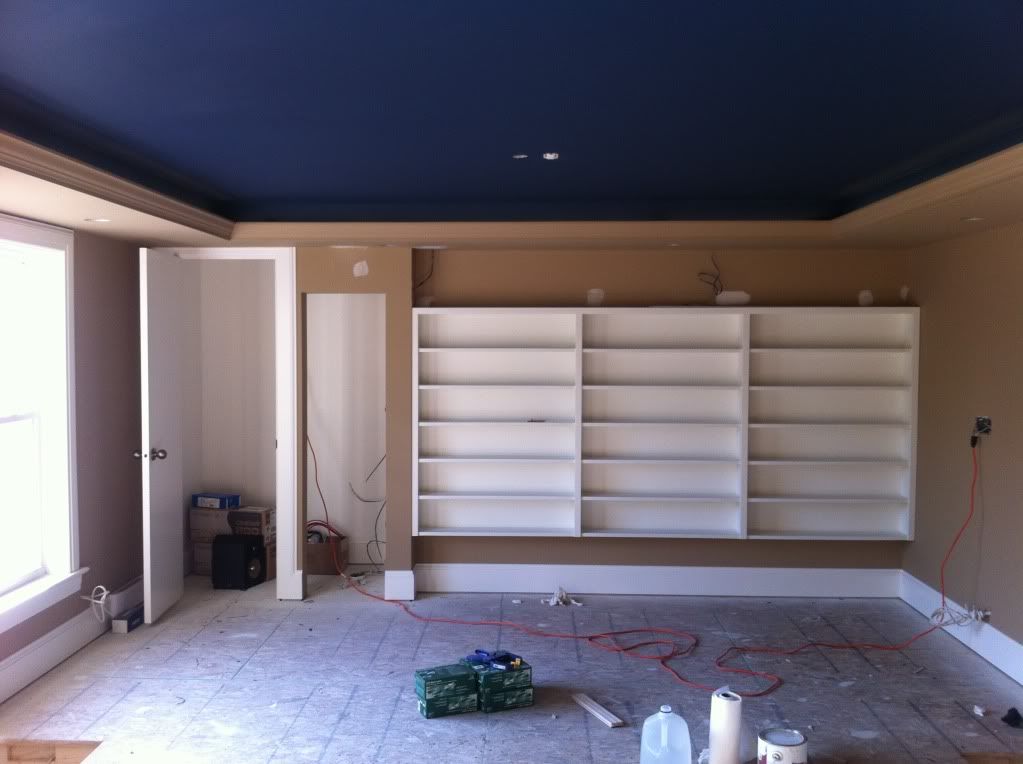

After painting but before acoustic treatments. The crew hadn't realized there was no real point in painting behind the screenwall.


Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #79 of 90 Old 04-28-2012, 08:07 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

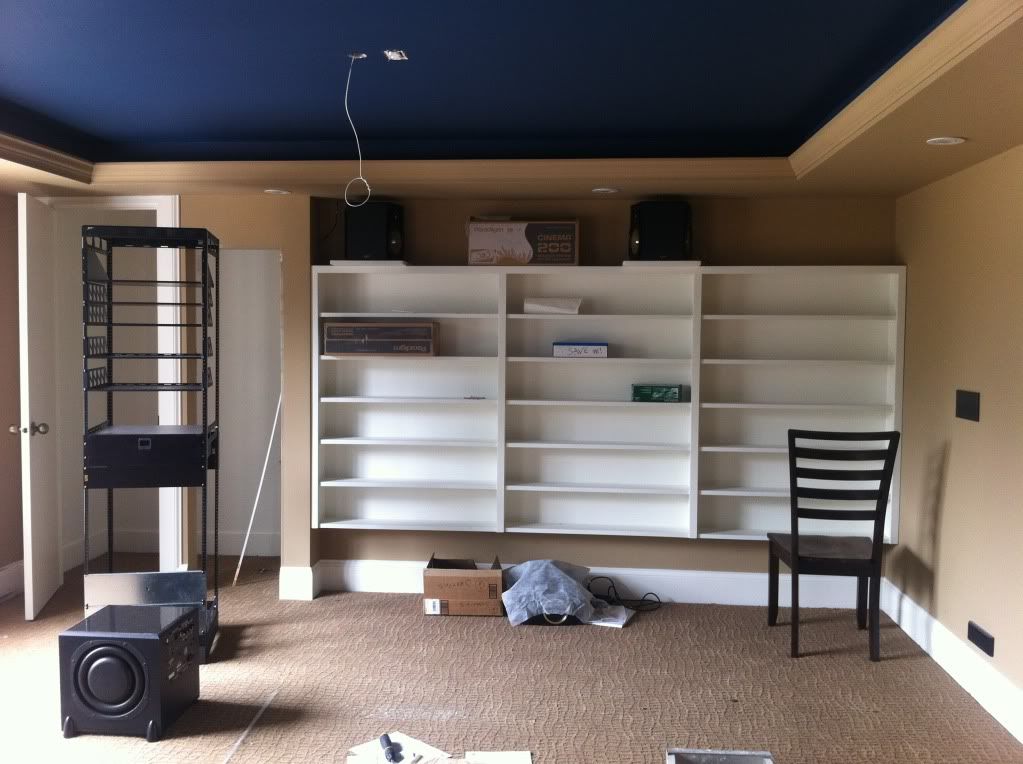

So construction proceeds quickly, along with the rest of the house. We move in in two weeks. The bar room next door is coming together nicely as well. I can post pics of that here is people would like.

I like the wall and ceiling colors that we (well, OK, she) picked out. Carpet now going in, it's similar to the wall color. Drapes, chairs and ceiling are all dark blue.

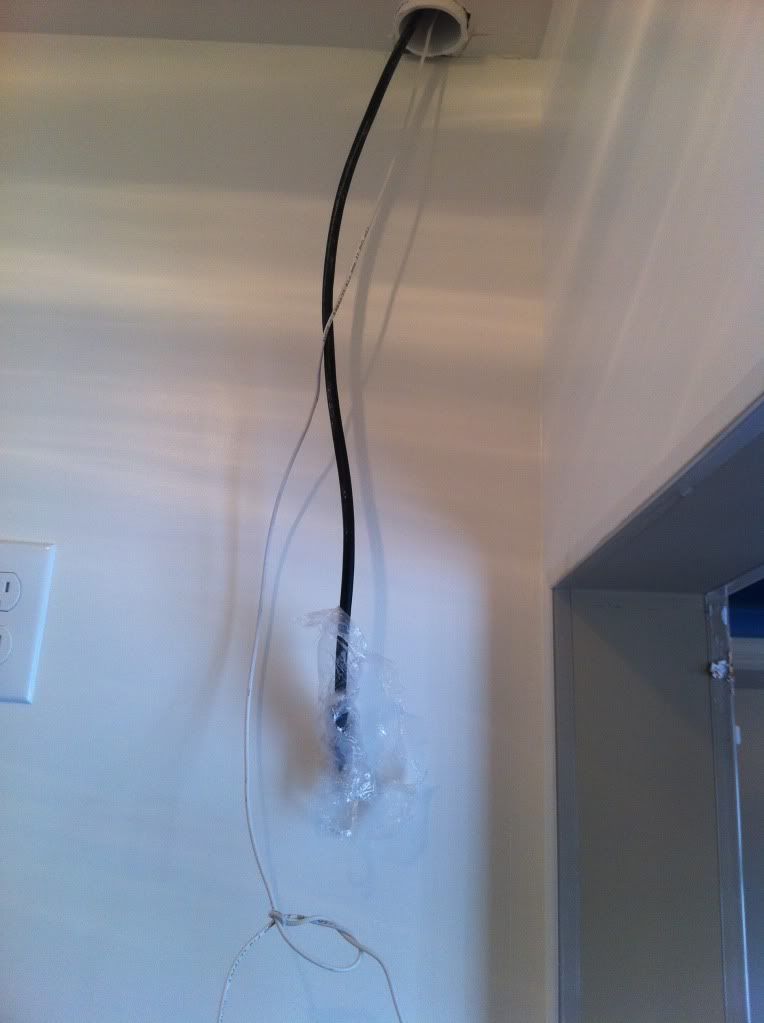

The electrician has almost everything done. Will do some close up pictures of the lighting scheme when I have the chance.

I am removing my speakers and projector from our current house today and taking them over. I picked up my new Yamaha RX-A2010 yesterday - very excited to hook that thing up.

Need to put together my Middle Atlantic Slim 5 rack

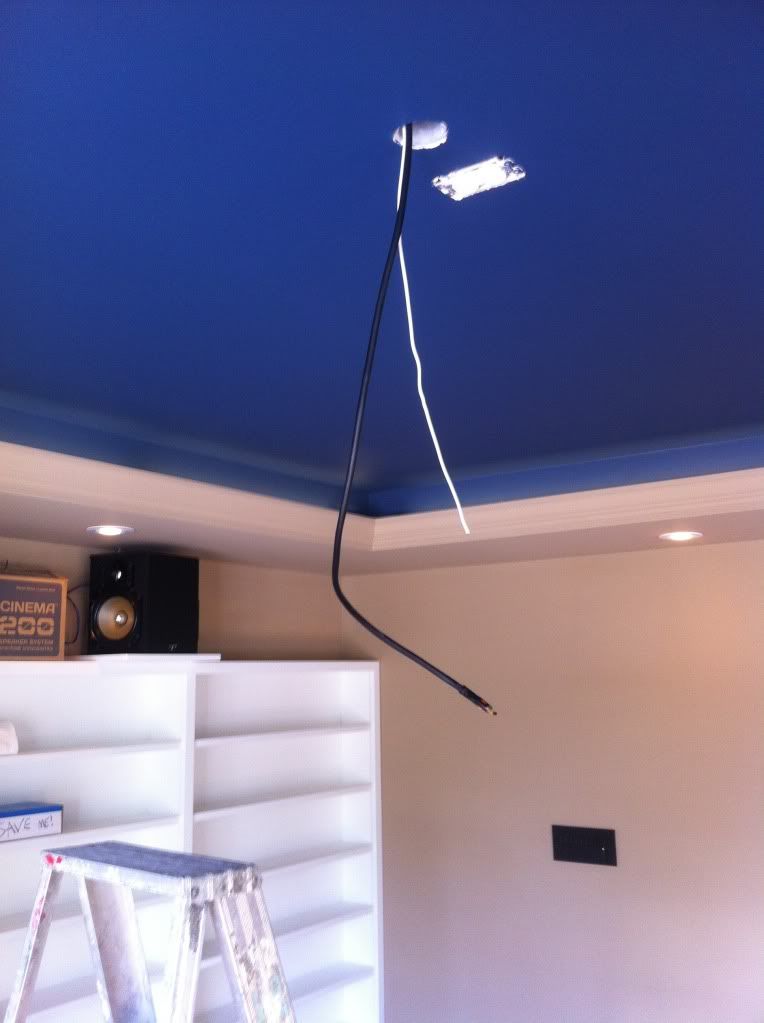

Need to figure out the best spot for the projector on the ceiling. I have a broad area of the ceiling re-inforced with wood behind the drywall to accommodate the current projector and possible future changes.

Will put up more pics today or tomorrow

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #80 of 90 Old 05-04-2012, 02:09 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

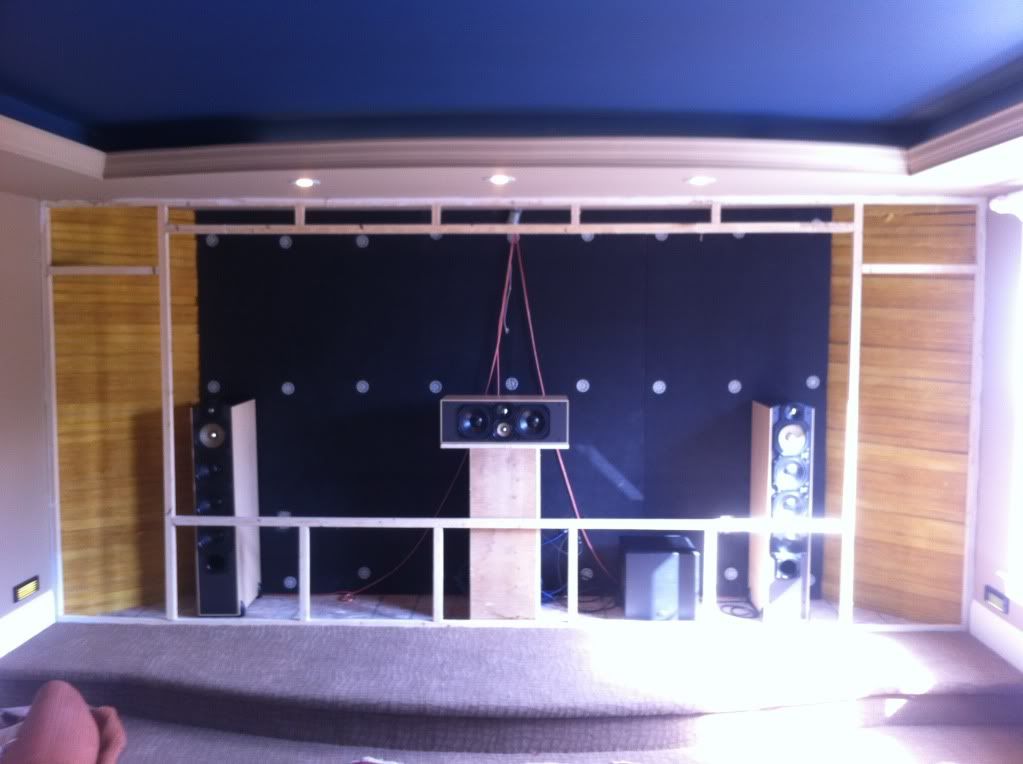

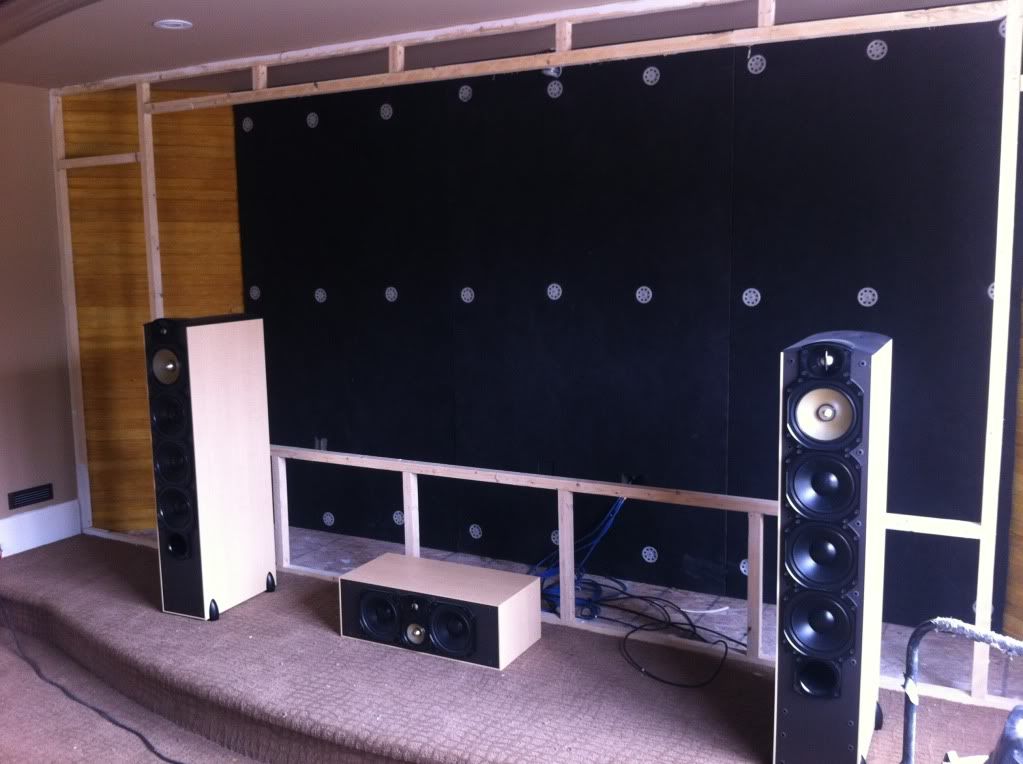

Front wall 2" linacoustic and bass traps done

Speakers going in, questions next post...




Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #81 of 90 Old 05-04-2012, 02:21 PM
Senior Member

dvmiller's Avatar

Join Date: Apr 2008
Location: Great Northwest
Posts: 264
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 20
Coming along nicely Greg. Really like how the blue ceiling looks. Looks like an interesting texture to your carpet or is that a visual illusion?

Dale

~Dale




To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

dvmiller is offline
post #82 of 90 Old 05-04-2012, 02:24 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
1. Not sure what to do with screen height and L/R mains. I specified the screen height that you see here, but my speakers (Paradigm Studio 100s) have so many drivers that they come below the screen bottom. My options are:

a) leave as is, allowing a driver below and above the screen frame - the spacing is actually pretty decent
b) lower the screen opening - sounds appealing in some ways but not in others - would have to be pretty low to get all drivers behind the screen
c) build small platorms to raise the speakers up
d) a bit of b and c

2. What height and orientation for the center channel? I've mostly read that given the choice it should go vertically as shown. Is there good info supporting this? If I do, what tweeter should I like up with the tweeter of my mains?

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #83 of 90 Old 05-04-2012, 02:25 PM
AVS Special Member

Spaceman's Avatar

Join Date: Nov 2009
Location: North Houston
Posts: 1,966
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 100
Looks great, Greg. You are getting close. Can you tell me what you used to secure the Linacoustic to the wall. They look like the reels from ViewMasters, but I'm guessing they are something else.



Regardless of what they are, you might want to hit them with some black paint as they may stand out against your black background if they are reflective.

Spaceman Theater Build


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Spaceman is offline
post #84 of 90 Old 05-04-2012, 02:28 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by dvmiller View Post

Coming along nicely Greg. Really like how the blue ceiling looks. Looks like an interesting texture to your carpet or is that a visual illusion?

Dale

Thanks! I LOVE the blue ceiling. It just got the final coat today. As is often the case, the pictures I took don't show it quite right. Same for the carpet. Yes, it's textured, but also currently covered in dust (hahaha) and the picture is brightness corrected to show the screen wall better.

Will take more of the rest of the room and try to get the brightness right for those details.

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #85 of 90 Old 05-04-2012, 02:35 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by Spaceman View Post

Looks great, Greg. You are getting close. Can you tell me what you used to secure the Linacoustic to the wall. They look like the reels from ViewMasters, but I'm guessing they are something else.

Regardless of what they are, you might want to hit them with some black paint as they may stand out against your black background if they are reflective.

They're just these little plastic snap things that do happen to look like reels. Not deliberate. Just something my builders use when securing this type of stuff in large quantities. But you're right, should cover them over with something dark.

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #86 of 90 Old 05-04-2012, 02:37 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Here's a picture I'll share to show some other details. As you can see, pretty messy. However, this shows the ceiling color quite accurately. The carpet looks lighter than it really is, but that's the weave in it.

Also, can see the rear shelf surround speaker placement, and the Slim 5 rack I'm putting together.


Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #87 of 90 Old 05-05-2012, 01:25 PM
Advanced Member

dwightp's Avatar

Join Date: Sep 2007
Location: Mesa, AZ
Posts: 630
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
Quote:
Originally Posted by gsearles View Post

1. Not sure what to do with screen height and L/R mains. I specified the screen height that you see here, but my speakers (Paradigm Studio 100s) have so many drivers that they come below the screen bottom. My options are:

a) leave as is, allowing a driver below and above the screen frame - the spacing is actually pretty decent
b) lower the screen opening - sounds appealing in some ways but not in others - would have to be pretty low to get all drivers behind the screen
c) build small platorms to raise the speakers up
d) a bit of b and c

2. What height and orientation for the center channel? I've mostly read that given the choice it should go vertically as shown. Is there good info supporting this? If I do, what tweeter should I like up with the tweeter of my mains?

Will the screen be surrounded by acoustically transparent fabric panels? If so, I wouldn't worry about the LR speakers. I wouldn't want the tweeters or the midrange drivers to be firing right into the wood frame, but diffraction is not as audible in the bass frequencies.

I'm pretty sure that particular center channel speaker should be mounted horizontally. You want the tweeter and midrange to be vertically aligned (tweeter on top of midrange). The usual advice not to mount the center channel horizontally applies to speakers that use a woofer-tweeter-woofer layout. With your center channel speaker, Paradigm engineered around the issue by using the vertically-aligned tweeter and midrange.

Maker of the finest saw dust since 1980, give or take


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
dwightp is offline
post #88 of 90 Old 05-05-2012, 02:11 PM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Thanks for the feedback.

I'm sure you're right about the center channel. Will do a bit of checking but will likely mount it horizontally.

Yes, the screen will be surrounded by Guilford of Maine acoustically transparent fabric. The screen frame goes right on the wood so should work out fine re the woofers.

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #89 of 90 Old 05-08-2012, 04:16 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Also need to decide exactly where the projector goes. I got a 130" diagonal 2.25:1 screen, with side masking panels. Will be using zoom method with my JVC RS-15. Used Projector Central calculator last time. Is it still the best online throw/brightness calculator on line?

Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
post #90 of 90 Old 05-13-2012, 08:41 AM - Thread Starter
Senior Member

gsearles's Avatar

Join Date: Feb 2004
Location: Rothesay, New Brunswick, Canada
Posts: 420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
As much as all the construction was done for me by professionals, I'm fussy about doing the wiring and component installation myself. This weekend I ran all the needed wired through the pre-installed conduits. I love conduits. My equipment closet at the back of the theater has conduits to the projector mounting area, the front screen wall area, and to the TV area in the games/bar room. This allows any future cable/speaker upgrades and added features obviously.

I bought a new 13' cable to run to the projector. For the first time ever, I bought the highest quality (ultra high speed) Monster cable that Future Shop has to offer (I am no cable snob and usually avoid overpaying for Monster branded products. But for this critical run I thought what the heck, get top quality and future proof). The white wire you see is scrap CAT-6 that was used as a wire pull and will be left in place, tucked away out of sight for future use.







I already owned a 40' HDMI cable from my current installation. I ran this to the TV area in the bar/games room. This will allow me to duplicate the output to both rooms simulataneously.

I then ran my 12 gauge speaker wire from the equipment closet to the three front speakers. I cut, trimmed and threaded them in place - bare wire connections.

I had pre-installed a run of RG6 cable with a coaxial termination and hooked up the sub with this.




Greg


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gsearles is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
