Well, the name says it all. I set out to buy/ build a new house because my old place didn't have the space I wanted for my home theater. Until recently, I worked in the industry as a consultant and had the opportunity to acquire some fun toys over the years. As I am in the middle of a home build and I am currently in frame, I would very much appreciate everyone's thoughts and suggestions. So here is the plan.....

Check out my whole house build HERE
BrittonYoder is offline
Sponsored Links
Advertisement

post #2 of 607 Old 08-29-2011, 09:07 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31

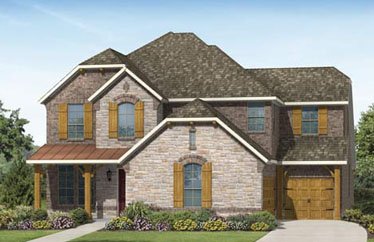

This is the house my wife and I are building. 3900 Sq ft with a game and media room.

Check out my whole house build HERE
BrittonYoder is offline
post #3 of 607 Old 08-29-2011, 09:08 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31


First Floor

Check out my whole house build HERE
BrittonYoder is offline
post #4 of 607 Old 08-29-2011, 09:09 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31


Second Floor

Check out my whole house build HERE
BrittonYoder is offline
post #5 of 607 Old 08-29-2011, 09:10 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31


Doing both of these options

Check out my whole house build HERE
BrittonYoder is offline
post #6 of 607 Old 08-29-2011, 09:16 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Scope:
Centralized Equipment Location
12 Zones of HDMI distributed Video
15 Zones of Audio
Control4 Control System
Lighting Control of 90% or greater of all switches in home.
HVAC Control
Solar Panels
Dedicated Theater with Genelec Sound, Stewart Screen, and JVC 950 Projector
3-Display Game Room with Arcade setup for game play across all displays
8+ Security Cameras
Occupancy Sensors in 6 rooms
Seating Sensors in Theater

This will probably grow, but the equipment I have purchased accomplishes the scope above.

Check out my whole house build HERE
BrittonYoder is offline
post #7 of 607 Old 08-29-2011, 09:18 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31


Current State - They put on the roof today, I haven't taken any pictures yet. Meeting with electrical contractor tomorrow morning.

Check out my whole house build HERE
BrittonYoder is offline
post #8 of 607 Old 08-29-2011, 09:20 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31


Backyard - I would also like to do a theater in the backyard once everything is done.

Check out my whole house build HERE
BrittonYoder is offline
post #9 of 607 Old 08-29-2011, 09:23 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31


I plan to model the game room after this. Little different, 46" Sony Google TV flanked by (2) 24" LEDs.

Check out my whole house build HERE
BrittonYoder is offline
post #10 of 607 Old 08-29-2011, 09:26 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31


This is my inspiration theater. Clean lines, comfortable. I have several trades that work with me and I plan to work with them to do wainscoting on the bottom with speakers behind faux panels and fabric walls above. Considering star ceiling.

Check out my whole house build HERE
BrittonYoder is offline
post #11 of 607 Old 08-29-2011, 09:29 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Wiring Plan:

Master Bedroom -
·***** Coax for cameras to TV from equipment
·***** Dual Cat-5 for balun
·***** Dual Cat-5 for data
·***** Audio Back-feed
·***** In-Wall Speakers
·***** Cat-5 to sides of bed for future phone or data


Master Bathroom -
·***** Coax for cameras
·***** Dual Cat-5 for balun
·***** Dual Cat-5 for data
·***** Multi-Con for interface
·***** In-Ceiling Speakers
·***** HDMI
·***** Cat-5 for sensor


Master Closet -
·***** Cat-5 for sensor
·***** Dual Cat-5 to alarm panel


Laundry -
·***** Cat-5 for sensor


Family Room -
·***** Coax for cameras to TV from equipment
·***** Dual Cat-5 for balun
·***** Dual Cat-5 for data
·***** Audio Back-feed from HC-200
·***** 5.1 Speakers
o** Fronts to be wired both in-ceiling and for floor standing speakers.
o** Rears to be wired in-ceiling
o** Center in the ceiling and above mantle.
o** Subwoofer in niche
·***** Dual Cat-5 to Niche for phone and Data
·***** Dual Cat-5 to niches for balun backfeed.
·***** Audio Backfeed from niche.
·***** Audio Backfeed from TV


Kitchen -
·***** Cat-5 for phone in butlers pantry
·***** Cat-5 for data in butler's pantry
·***** Cat-5 somewhere for possible control panel.
·***** In-ceiling speakers above Island
·***** IR Control for LED Lighting
·***** Cat-5 for pass through to floor


Dining -
·***** In-ceiling speakers
·***** Dual Cat-5 and Dual coax to plate location on floor.


Foyer
·***** Cat-5 for motion sensor
·***** Cat-5 near stairs for phone or data
·***** Cat-5 to doorbell


Office -
·***** Coax for cameras
·***** Dual Cat-5 for balun
·***** Dual Cat-5 for data and IR to TV
·***** Cat-5 for component video
·***** Audio feed to speakers
·***** Audio feed from computer
·***** Dual Cat-5 to desk for Data
·***** Cat-5 to desk for phone
·***** Dual Cat-5 to desk for Balun
·***** Dual Cat-5 to desk for 2 audio baluns.


Front Patio-
·***** Camera Locations with Cat-5 and Siamese
·***** Speakers in-Ceiling
·***** Cat-5 for motion Sensor


Garage-
·***** Camera Locations with Cat-5 and Siamese
·***** Speakers in-Ceiling
·***** Cat-5 for motion Sensor
·***** Dual Cat-5 for video balun
·***** Dual Cat-5 for IR and Data
·***** Multi-conductor to TV location
·***** Cat-5s to both garage opener locations
·***** Cat-5s to button locations
·***** Cat-5s to door sensor locations


Loft Desk Area
·***** Cat-5 for Data
·***** Cat-5 for Phone


Guest -
·***** Coax for cameras
·***** Dual Cat-5 for balun
·***** Dual Cat-5 for data
·***** Dual Cat-5 for phone/ Data
·***** In-Ceiling Speakers
·***** Back feed from HC-200


Exercise -
·***** Coax for cameras
·***** Dual Cat-5 for balun
·***** Dual Cat-5 for data
·***** Dual Cat-5 for phone/ Data
·***** In-Ceiling Speakers
·***** Back feed from HC-200


Kid 1 -
·***** Cat-5 for Camera


Game -
·***** Coax for cameras
·***** Dual Cat-5 for balun
·***** Dual Cat-5 for data
·***** Dual Cat-5 for phone/ Data
·***** Tower Speakers
·***** Back feed from HC-200
·***** HDMI to Small TVs X2
·***** Cat-5 to Small TV's x2


Theater -
·***** Dual Cat-5 for balun
·***** Dual Cat-5 for data and IR
·***** 7.2 XLR Wiring
·***** Cat-5 x 2 to back of sofa location for seat sensors
·***** Coax to sofa for transducer
·***** Cat-5 to each speaker
·***** 7.2 Speaker wiring.


Backyard -
·***** Dual Cat-5 for balun
·***** Dual Cat-5 for data and IR
·***** 2 Surface mount speaker locations
·***** 2 rock speaker locations
·***** Cat-5 to garage wall for pool controller
·***** HDMI to TV
·***** Component to TV

Check out my whole house build HERE
BrittonYoder is offline
post #12 of 607 Old 08-29-2011, 09:33 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Along with wiring, I have been putting a lot of thought into sound isolation. I am building a spec home so there is only so much I can do, but I do plan to insulate the interior walls, use sound putty on outlets, acoustic sealant on top and bottom plates. I don't know if there is anything else that can be accomplished given the constraints of building a spec home. Any thoughts would be appreciated.

Check out my whole house build HERE
BrittonYoder is offline
post #13 of 607 Old 08-30-2011, 02:09 AM
Member

gareth_alien's Avatar

Join Date: Jan 2011
Location: Portsmouth, UK
Posts: 66
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Looks fantastic! I'm looking forward to seeing what you're going to do with the cinema room.
gareth_alien is offline
post #14 of 607 Old 08-30-2011, 12:46 PM
Advanced Member

ADDUpstate's Avatar

Join Date: Mar 2011
Location: Perinton NY
Posts: 650
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by BrittonYoder View Post



First Floor

Just my worthless $0.02.
How do you get into your Master Bedroom? Through the family room and that little entrance way off the covered porch? Might be nice to have a small door way or a pass through or something in the wall between the WIC and what appears to be the laundry room. Long walk back around the house to get the clothes from closet to laundry and back.

ps- looked at the rest of the posts, and I also like the plan of the study instead of the formal living room. We have a formal living room in our house, and it's only used to go in and dust. Nice looking plans for everything.
ADDUpstate is offline
post #15 of 607 Old 08-30-2011, 01:00 PM
AVS Club Gold

dc_pilgrim's Avatar

Join Date: Oct 2004
Location: South Central... PA
Posts: 4,617
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Which room is the theater? The room above the family room?
dc_pilgrim is offline
post #16 of 607 Old 08-30-2011, 01:08 PM
AVS Special Member

elmalloc's Avatar

Join Date: Apr 2002
Location: Cleveland, OH
Posts: 4,776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 36
looks like a half a million dollar home at least

Current Projects:
IN PROGRESS (80%) - Building 3D Theater room.
IN PROGRESS (30%) - Building Lounge/Hallway Area.
IN PROGRESS (15%) - Building Home LAN (4 PCs).
ON HOLD - Building Home Gym.
ON HOLD - Building Simulation Room (Eyefinity).
ON HOLD - Building Theater room (Sim2 HT380, 2.35 14ft wide).
elmalloc is offline
post #17 of 607 Old 08-30-2011, 01:46 PM
AVS Special Member

jayn_j's Avatar

Join Date: Aug 2002
Location: Milwaukee, WI
Posts: 1,240
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 29
What happens with the space above the optional office? 2 story office?? Why not leave it as a living room then and simply use it as an office?
jayn_j is offline
post #18 of 607 Old 08-30-2011, 02:29 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Quote:
Originally Posted by DavidK442 View Post

Do you have a link to more information on your inspiration theater?

This was a CEDIA 2008 winner for best theater. I found this on HGTV-PRO's website for contractors.

Check out my whole house build HERE
BrittonYoder is offline
post #19 of 607 Old 08-30-2011, 02:32 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Quote:
Originally Posted by ADDUpstate View Post

Just my worthless $0.02.
How do you get into your Master Bedroom? Through the family room and that little entrance way off the covered porch? Might be nice to have a small door way or a pass through or something in the wall between the WIC and what appears to be the laundry room. Long walk back around the house to get the clothes from closet to laundry and back.

ps- looked at the rest of the posts, and I also like the plan of the study instead of the formal living room. We have a formal living room in our house, and it's only used to go in and dust. Nice looking plans for everything.

Funny you should say that, the change order was already written last week. There will be a doorway between the WIC and laundry.

We had a formal in the last house and I turned it into a theater. Will use an office everyday.. Still feel like the dining will be wasted on my wife and I. No kids YET, so I cannot imagine ever eating in there even on formal occasions.

Check out my whole house build HERE
BrittonYoder is offline
post #20 of 607 Old 08-30-2011, 02:33 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Quote:
Originally Posted by dc_pilgrim View Post

Which room is the theater? The room above the family room?

Yes, it is in the third plan drawing above. I plan to close in the niche on the front wall and recess the genelec speakers in that space.

Check out my whole house build HERE
BrittonYoder is offline
post #21 of 607 Old 08-30-2011, 02:36 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Quote:
Originally Posted by elmalloc View Post

looks like a half a million dollar home at least

Not in Texas!

Although the property taxes are rough, will be in the neighborhood of a JVC990 every year.

Check out my whole house build HERE
BrittonYoder is offline
post #22 of 607 Old 08-30-2011, 02:39 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Quote:
Originally Posted by jayn_j View Post

What happens with the space above the optional office? 2 story office?? Why not leave it as a living room then and simply use it as an office?

I have had some discussions with my builder about this. Only my elevation has this space above the office. So the permits are filed for 3900sq ft and this cannot be changed. I plan to finish this out and use half for storage and will make the other half a play room off of the upstairs bedroom. Something like this would be kind of cool one day when we have children.


Check out my whole house build HERE
BrittonYoder is offline
post #23 of 607 Old 08-30-2011, 02:47 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,122
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 57
Sounds like a fun build and a nice house, good luck, will be watching...
Brad Horstkotte is offline
post #24 of 607 Old 08-30-2011, 06:18 PM
Advanced Member

ADDUpstate's Avatar

Join Date: Mar 2011
Location: Perinton NY
Posts: 650
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
The Lion, the Witch and the Wardrobe!
ADDUpstate is offline
post #25 of 607 Old 08-30-2011, 08:16 PM
Advanced Member

longtimelurker's Avatar

Join Date: Jun 2005
Posts: 565
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 13
Quote:
Originally Posted by BrittonYoder View Post

I have had some discussions with my builder about this. Only my elevation has this space above the office. So the permits are filed for 3900sq ft and this cannot be changed. I plan to finish this out and use half for storage and will make the other half a play room off of the upstairs bedroom. Something like this would be kind of cool one day when we have children.


make sure the builder frames you in some rim joists where you think you will be putting the floor joists in the future.....that way you can strip drywall and attach the hangers and slap the joists and subfloor in...bada bing bada boom.
longtimelurker is offline
post #26 of 607 Old 08-31-2011, 11:22 AM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Quote:
Originally Posted by longtimelurker View Post
make sure the builder frames you in some rim joists where you think you will be putting the floor joists in the future.....that way you can strip drywall and attach the hangers and slap the joists and subfloor in...bada bing bada boom.
Thank you for this great advice. I am going to bolt them up this weekend after pre-drywall inspection. I will try and post pictures of the space this evening if I can sneak out of work before it gets dark. My boss just tasked me to design a dist. audio/ Vid. system for our offices. They are taking advantage of my background. Currently work for a company that does high process mechanical for semi-con fabs..

Check out my whole house build HERE
BrittonYoder is offline
post #27 of 607 Old 08-31-2011, 11:42 AM
AVS Special Member

chinadog's Avatar

Join Date: Dec 2004
Location: Knoxville, TN
Posts: 5,481
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 24
Quote:
Originally Posted by BrittonYoder View Post
This was a CEDIA 2008 winner for best theater. I found this on HGTV-PRO's website for contractors.
HGTVPro is about to get redesigned. Stay tuned.
chinadog is offline
post #28 of 607 Old 08-31-2011, 01:39 PM
Advanced Member

Scout's staff's Avatar

Join Date: Jan 2011
Location: Massachusetts
Posts: 590
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 21
Just curious, why the need for the video security? Looks like a great house.

Dan
Scout's staff is offline
post #29 of 607 Old 08-31-2011, 03:54 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Quote:
Originally Posted by Scout's staff View Post
Just curious, why the need for the video security? Looks like a great house.

Dan
Thanks...

Most of those drops are going to be for signal feed from the DVR to the TVs. I will probably install 5-6 exterior cameras for no other reason than having evidence if cars get broken into and not wanting to get up if the doorbell rings. I will be wiring for some internal cameras as well. We don't have kids yet, but when we do we will probably have a nanny and some hidden cameras would be nice to check in on things from work. Just trying to prepare for all eventualities.

Check out my whole house build HERE
BrittonYoder is offline
post #30 of 607 Old 08-31-2011, 03:57 PM - Thread Starter
Advanced Member

BrittonYoder's Avatar

Join Date: Nov 2006
Location: McKinney, TX
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 31
Just met with my builder, did 7k in electrical upgrades. He said they brought in a special crew due to the number of extras I wanted. 2 x dedicated 20 amps in the equipment closet. LED strips, LED wall washers, House uplighting, soffit down lighting to name some of the items. Heading over there now to give the guys a little extra for all the hard work and having to deal with me.

Check out my whole house build HERE
BrittonYoder is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
