When is the next theater progress update due ? confused.gif

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is offline
post #1084 of 1186 Old 05-22-2014, 02:55 PM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224
That's a great question; a question for the ages... If you know what I mean. I don't use the "L" word, but things move at their own pace.

In better news, Plex works great. smile.gif I was always a little frustrated by my Boxee, especially the network functions, so imagine my surprise when Plex practically set itself up and worked with virtually no tweaks. (I've only had a handful of meta-data errors out of many hundred files.) I lent out my Chromecast, but I hope that integrating it in the system will fix me up for a good long while. Actually, now's probably not the time to start into details, but eventually a rack mounted NAS and HTPC sounds like a great option, or maybe a TiVo along with it - but the TiVo makes for too many UIs and interfaces.
HopefulFred is offline
post #1085 of 1186 Old 05-22-2014, 03:03 PM
AVS Special Member

TMcG's Avatar

Join Date: Mar 2010
Location: Earth
Posts: 2,765
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Liked: 315
Quote:
Originally Posted by Mfusick View Post

When is the next theater progress update due ? confused.gif

Right after you start your theater build thread!!! tongue.gif
Mfusick and cowger like this.
TMcG is offline
post #1086 of 1186 Old 05-24-2014, 10:28 AM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 24,123
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Liked: 1003
Quote:
Originally Posted by TMcG View Post

Right after you start your theater build thread!!! tongue.gif

Not till I have a plan ! I want to wait till I have the final dimensions, everything is contingent upon that. I'm actually a lot more solid on my ideas and plans for theater than the rest of the house tongue.gif

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is offline
post #1087 of 1186 Old 05-27-2014, 02:28 PM
AVS Special Member

cw5billwade's Avatar

Join Date: Aug 2011
Location: GA
Posts: 1,465
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked: 129
Quote:
Originally Posted by TMcG View Post

Right after you start your theater build thread!!! tongue.gif

Quote:
Originally Posted by Mfusick View Post

Not till I have a plan ! I want to wait till I have the final dimensions, everything is contingent upon that. I'm actually a lot more solid on my ideas and plans for theater than the rest of the house tongue.gif
cw5billwade is online now
post #1088 of 1186 Old 06-23-2014, 06:21 PM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224

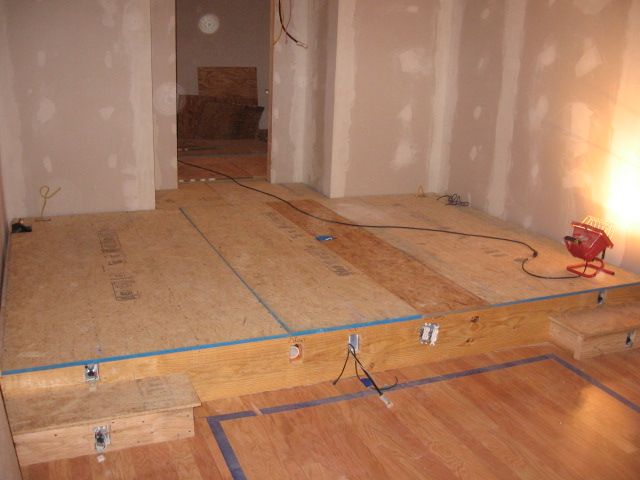

Wow... a month without a post again. Good news is that I got some more subfloor and GG down on the riser yesterday. Trust me when I say you don't need to see the pictures. There aren't any, but if there were, they would look just like this one, but with an extra layer of subfloor, and may a little GG squeezing out the front.
ellisr63 likes this.
HopefulFred is offline
post #1089 of 1186 Old 07-02-2014, 09:21 AM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224
Well here's a lesson learned, but not too dearly. I finally got the downstairs HVAC system up and running this morning.

When we initially moved in, the HVAC company explained that there was some goofy wiring, but everything seemed to operate normally. The thermostat that was installed was incompatible in some way (I think it wouldn't run the heat or something), so I removed it long ago. Last week I bought a new thermostat and went to install it. The weird wiring left me unsure that I had done it right, and the compressor didn't come on - so I paid the guy to come back out today and make sure everything got hooked up and still worked.

Turns out that my thermostat wiring was mostly good - I hadn't connected the lead for the emergency heat (which I'll probably never use, but now it's connected and verified), so that's good. The other thing was that the power to the compressor was turned off at the panel, on an unmarked breaker. A little confidence and experience goes a long way. (That's why you hire pro's right?)

I also got an opinion from the guy about how to add my return duct, which has been routed for months, but not connected to the air handler. I was on the fence about how to balance the air pressures. I'm not 100% certain that his suggestion was the absolute answer, but I'll go with his first. The choice is in whether to add a new intake port to the box under the air handler, or just to expand an existing port and replace the duct. Feel free to skip over this net paragraph if you have no patience for mundane details of HVAC - OTOH, if you are a geek for this, here you go...

The basement was initially configured with 6 supply ducts - all flex and all 6" I think - and two return paths - one large grill directly through the wall into the air handler, and one 7" flex duct. The large grill provided return for the theater and adjacent space (the was no wall dividing them) and the 7" duct is in the stairs, providing return for the stairwell and other room; there is no return in the bathroom. Now that the theater area is separated, I've devoted two 6" supply ducts to it, and added one 8" flex duct for return. Since the door that previously separated the two basement areas has been removed, my thought was I could change the hole for the 7" flex to 8" and just get rid of the 7", allowing the single large grill to provide return for everything outside the theater. The alternative is to cut a new 8" hole and leave the 7" in place. I don't think I explained everything well enough to the repair guy, but he said he would add a new hole for the new duct. Can I get an opinion? Do you need a diagram to understand more clearly?

I feel good about this progress, because now I can start to consider the duct boots in the theater more confidently. The registers outside the theater are loud, but the unbooted ducts in the theater are pretty quiet for now - so that's a good start I guess.
Mfusick likes this.

Last edited by HopefulFred; 07-06-2014 at 02:01 PM.
HopefulFred is offline
post #1090 of 1186 Old 07-02-2014, 10:38 AM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224

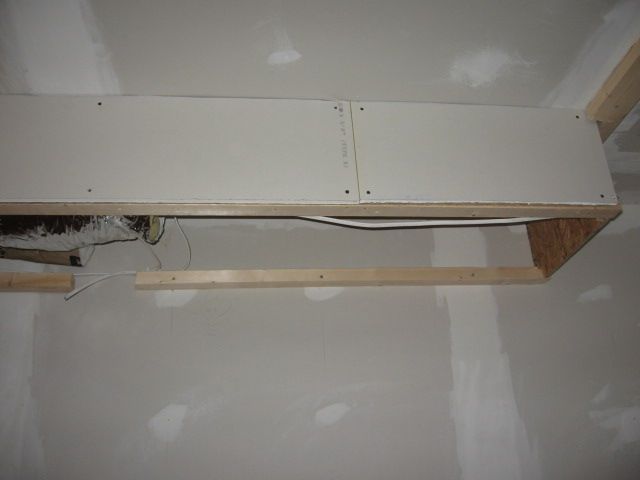

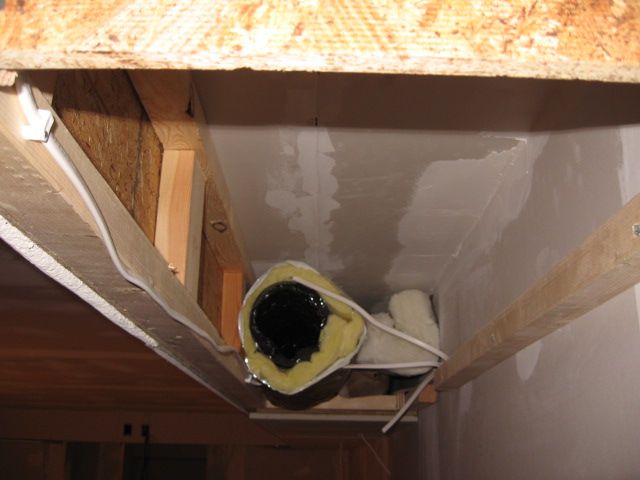

Duct boots: do they need to be built and installed as separate structures?

It seems I could just simply cut a hole int he soffit for the diffuser and call it a day. Probably better than that is to line to boot area with duct liner and install the diffuser. What advantage would building a boot to attach to the end of the flex duct provide? Maybe I just need to seal the duct against something to keep the conditioned air from leaking back into the other areas of the soffit?





I think I just need to seal the duct against something and then line with duct liner. Reasons to do something more involved?
HopefulFred is offline
post #1091 of 1186 Old 07-02-2014, 11:05 AM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 24,123
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Liked: 1003
Poorly sealed ductwork is often the most prevelent yet easily solved problem in HVAC and new construction. Duct leakage contributes to 10% to 30% of the heating and cooling loads in many homes. In addition, duct leakage can decrease comfort and endanger health and safety (extreme cases). Duct insullation does not provide an air tight seal. You should use duct sealing mastic with embeded reinforced mesh tape, and do a duct leakage test.

Nontoxic duct sealing mastic or Aluminum tape with UL-181 A or B rating with improved adhesives are slightly more expensive than silver tape but work better.

Attached Thumbnails
Click image for larger version

Name:	Untitled.png
Views:	216
Size:	69.5 KB
ID:	145609

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is offline
post #1092 of 1186 Old 07-02-2014, 08:54 PM
AVS Special Member

doublewing11's Avatar

Join Date: Feb 2010
Location: Timber Country!
Posts: 3,864
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked: 319
Quote:
Originally Posted by HopefulFred View Post
Duct boots: do they need to be built and installed as separate structures?

It seems I could just simply cut a hole int he soffit for the diffuser and call it a day. Probably better than that is to line to boot area with duct liner and install the diffuser. What advantage would building a boot to attach to the end of the flex duct provide? Maybe I just need to seal the duct against something to keep the conditioned air from leaking back into the other areas of the soffit?





I think I just need to seal the duct against something and then line with duct liner. Reasons to do something more involved?
Fred, if you seal then you should be fine.......I just built a plywood box, sealed, lined with sheetrock, sealed and lastly, applied Linacousic RC. Flex duct coming into box used appropriate transition with gasket.
doublewing11 is offline
post #1093 of 1186 Old 07-03-2014, 06:16 AM
AVS Special Member

cw5billwade's Avatar

Join Date: Aug 2011
Location: GA
Posts: 1,465
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked: 129
cw5billwade is online now
post #1094 of 1186 Old 07-03-2014, 06:29 AM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224
Thanks guys. Maybe I can get to that this weekend.
HopefulFred is offline
post #1095 of 1186 Old 07-03-2014, 08:21 AM
Senior Member

cowger's Avatar

Join Date: Jul 2007
Location: Northern California
Posts: 326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 43
Good progress! Now you can work in comfort... : )
cowger is offline
post #1096 of 1186 Old 07-03-2014, 11:34 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,172
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked: 267
I'm still trying to figure out your return duct layout. How does the total cross-sectional area change? Is your air handler under the stairs? Is that where the grill is? And then where does the 7" return run to again?

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is online now
post #1097 of 1186 Old 07-03-2014, 12:09 PM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224
JPA, I'll describe what I can, but posting from my phone, I may not have the images that might be needed.

The air handler is under the stairs built on a plywood box, about 15"-18" tall. Of course the box is the return or intake chamber - air is ejected through the six or seven flex ducts out the top (totally normal as far as I know). One side of the return box is very close to the wall of the lobby area, and there is a large return grill - maybe 1 foot square, maybe a little more. One other face of the return box has a 7" flex duct in it, coming through the face of the stairs - a small return grill is positioned in the riser of the fifth or sixth step. That's it for returns in the entire basement.

Before, as the system was designed, the theater and lobby areas were a single space, enclosed by doors I have since removed. This area was served by the single large intake grill. That area was approximately 35'x12'x9'. The 7" duct was the return for the remainder of the basement: the stairwell, the other room, and the bathroom. The "other room" in this scenario is approximately 19'x12'x9'. The bathroom is about 6'x10'x8' and the stairwell is probably half of 4'x9'x12'.

By adding the wall for the theater and removing the door that separates the stairwell from the lobby, I still have two areas, but of different volume and heat load obviously. The theater is 12'x9'x22' and has an 8" flex duct I place for the return. That flex duct will transition to filling a space in the staggered stud end wall before opening through the soffit at the rear of the room. The wall space will be approximately 11"x5" and 7-8' tall, running from under the outside riser to the theater soffit.

That leaves the remaining basement area with two possibilities for how to handle the return air. That remaining area includes the lobby, the "other room," the bathroom, and the stairwell. For that total now combined area, I have the large 1' square return and the option to keep the 7" flex or discard it.

Hopefully you can make sense of that and help me crunch the numbers.
Mfusick likes this.

Last edited by HopefulFred; 07-03-2014 at 12:12 PM.
HopefulFred is offline
post #1098 of 1186 Old 07-03-2014, 02:20 PM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,172
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked: 267
My gut reaction to this is keep it simple. If I understand what you've got, the theater has an 8" return that will tie into the HVAC return box. The rest of the basement now has a 12x12 return in the lobby and a 7" flex in the stairwell. I think I would probably leave those just as they are unless you find something not working properly. I see three things that might happen:
  • It all works just fine. We can hope!
  • If for some reason the bathroom side of the basement doesn't seem to be getting enough air, you may need to relocate the 7" return to the wall facing into that space and/or close off part of the 12x12 return. I can't see how that would happen, but fluid flow does some surprising things.
  • If you don't have enough flow from the theater, you may decide to remove the 7" return to get a little extra flow from the other returns. Although I would probably start by blocking it off to see it makes any difference. Again, another possibility might be to reduce the size of the 12x12 return depending on how things are balanced.

I'm sure there other possibilities, but having been down the HVAC path before, I really think you're best off with the simplest solutions. In this case, I think I would connect my 8" return from the theater and see what happens. If you need to make changes after that, then we can put our heads together and see what options we have.

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is online now
post #1099 of 1186 Old 07-03-2014, 02:49 PM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224
That's the perfect response!

Every time I get into an esoteric field of science or engineering I find myself overwhelmed with data and possibilities. Having never been trained as an engineer, I always forget to step back and consider the system intent and limitations. I tend to try to work from an infinite list of possibilities instead of working from the much shorter list of practical options. Kudos.
HopefulFred is offline
post #1100 of 1186 Old 07-03-2014, 03:01 PM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,172
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked: 267
Quote:
Originally Posted by HopefulFred View Post
That's the perfect response!
……..
Well, if it's any consolation, I had to learn this lesson the hard way. If you need proof just search my thread for HVAC, duct, or fan

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is online now
post #1101 of 1186 Old 07-04-2014, 05:42 PM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224
I need to talk through something else here - JPA's assistance may be required... The air handler is rated 1240 CFM, 30,000 BTU/hr

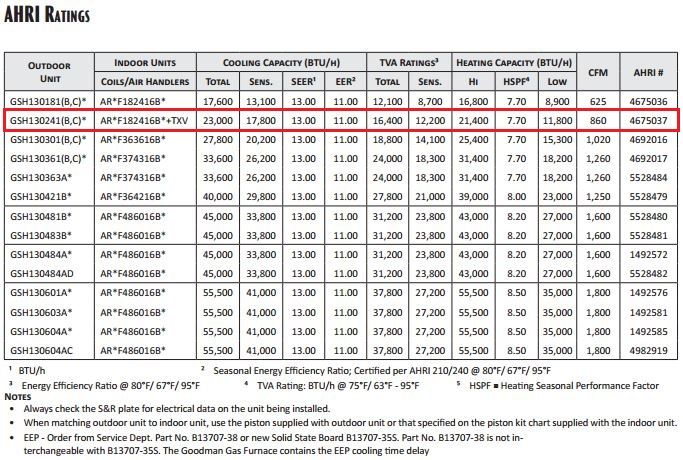

The heat pump has similar specs; it's 2-ton instead of the 2.5-ton of the air handler. 23,000 BTU/hr, and if I'm reading this table correctly, should be matched to an AHU at 860 CFM.


My first reaction there is that it seems the AHU I have should somehow be limited to low fan. (960 CFM from the AHU to match the 860 CFM recommended for the heat pump) I spoke with the HVAC repair guy the other day, who said that if the blower in my AHU was to be run at multiple speeds that there would be a provision for that on the control board, but there isn't - so he says. Can anyone speak to that?

The real reason for this post is I'm trying to figure out how large the supply registers need to be. They'll come through the face (or theoretically the bottom if better) or the soffits - one on each side near the screen. The maximum height is about 6 inches, and the maximum length is about 36 inches.

The theater has 2x 6" flex duct supplies. JPA's field sizing chart estimates each 6" round duct can supply 75 CFM. My air handler has 6x 6" flex ducts feeding from it, 2 to the theater and 4 elsewhere. If they were all the same length and shape, they would all move the same volume of air. Of course, they're not, so how do I go about estimating the volume through the theater ducts? Short of taking the approach that I'll have to tweak the register size, which I can make peace with ultimately - what's the data I need to figure this? If I had the volume through each duct, I could figure the face velocity through a given register - right? But is there another way? Maybe I should just assume 75 CFM in each duct, and shoot for 250 fpm based on that.

I know that most of the registers in the basement are unacceptably loud, and whatever standard size is (6x10?). It seems that the length of the ducts to the theater, which are the longest aside from the duct to the bathroom, which is very quiet and the same register as the others, would keep the registers quiet in the theater, but obviously I'd like to be sure. I can close off other registers to improve flow into the theater if I need to, so if volume is down in the long theater ducts, I can improve that after the fact.

Any thoughts?
HopefulFred is offline
post #1102 of 1186 Old 07-04-2014, 09:02 PM
AVS Special Member

TMcG's Avatar

Join Date: Mar 2010
Location: Earth
Posts: 2,765
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Liked: 315
4x24 for each supply. Would recommend a bar diffuser or linear slot diffuser. Either will work. DE recommends bar diffusers as they are slightly less turbulent.
TMcG is offline
post #1103 of 1186 Old 07-04-2014, 09:06 PM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224
I have a hunch that's a number I can trust, but I have to ask anyway: did you calculate something for that, or do you just know somehow?
HopefulFred is offline
post #1104 of 1186 Old 07-04-2014, 09:23 PM
AVS Special Member

TMcG's Avatar

Join Date: Mar 2010
Location: Earth
Posts: 2,765
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Liked: 315
It's been calculated many times before and this is the minimum diffuser size to hit your FPM target IF you were truly pushing 75 CFM, but chances are you won't. My system is set to "high" fan for cooling and "low" fan for heating. In the high setting my system (2 ton, just like yours) puts out 860 CFM. The theater supplies are the first and third takeoffs from the main supply trunk line, which is a 14" round rigid duct. My anemometer measures the ducts at 65 and 63 CFM respectively.

As a footnote, my return duct has two rigid 90s and is connected directly to a rigid plenum box that the AHU sits on. The duct is 10" flex and goes to an oversized 14x14 return with the 1" panel filter (CFM dictates only a 12x12 return is needed, FYI). The panel filter can cause turbulence, so I have plans for a separate in-line plenum box that can be located close to the AHU that will handle the 1" panel filter and have an adjustable baffle to balance the return CFM with the supply.
TMcG is offline
post #1105 of 1186 Old 07-05-2014, 07:38 AM
Senior Member

cowger's Avatar

Join Date: Jul 2007
Location: Northern California
Posts: 326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 43
Yup, sounds like your hunch was correct... : )
cowger is offline
post #1106 of 1186 Old 07-05-2014, 07:40 AM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 24,123
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Liked: 1003
Just curious how you calculated 35.6% more procrastination ?
cowger likes this.

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is offline
post #1107 of 1186 Old 07-05-2014, 08:49 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,172
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked: 267
I've always felt that chart was making some significant assumptions. That said, I think you can size your return grills based on 75 cfm and be good. As TMcG pointed out, you are likely moving much less air due to the length of the run and the bends.

Quote:
Originally Posted by Mfusick View Post
Just curious how you calculated 35.6% more procrastination ?
Step one is to put it off till later.
Mfusick likes this.

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is online now
post #1108 of 1186 Old 07-05-2014, 09:48 AM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224
Quote:
Originally Posted by TMcG View Post
4x24 for each supply.
With 2 supplies and 1 return, the return should be approximately equal to the total area of the supplies, right? Or is there some adjustment to be made since I'm combining the two into one? (I wouldn't think so, just checking.) So I'm expecting to need somewhere around 200 square inches for return.

Shopping at HVACQuick.com, I'm looking at (2) Dayus DABL - Bar Linear Grill for an opening of 24" by 4" or do I need to go larger to get that much actual grill area? (pn in my basket is DABL-00-A-24x4-Brown-STD)
HopefulFred is offline
post #1109 of 1186 Old 07-05-2014, 06:54 PM - Thread Starter
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,922
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked: 224
Quote:
Originally Posted by HopefulFred View Post
With 2 supplies and 1 return, the return should be approximately equal to the total area of the supplies, right?
I think I've decided there is a better way to think about this. The 6" flex is designed for 75 CFM, but we upsize it at the grille to reduce face velocity and noise. Since a 4x24 rigid duct is designed for 330 CFM, I'll double that instead and find the rectangular duct size that's good for 660 CFM and use that for my intake grill. I think 8x18 looks good.

Too big?
HopefulFred is offline
post #1110 of 1186 Old 07-05-2014, 08:04 PM
AVS Special Member

doublewing11's Avatar

Join Date: Feb 2010
Location: Timber Country!
Posts: 3,864
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked: 319
Quote:
Originally Posted by HopefulFred View Post
I think I've decided there is a better way to think about this. The 6" flex is designed for 75 CFM, but we upsize it at the grille to reduce face velocity and noise. Since a 4x24 rigid duct is designed for 330 CFM, I'll double that instead and find the rectangular duct size that's good for 660 CFM and use that for my intake grill. I think 8x18 looks good.

Too big?
It's been a while since I sat down with our HVAC guy........I do know I have two 8" flex duct supplies with grills 12" X 24".

Returns were handled different for some reason but two 9" return flex duct with each grill being 85 square inches. I double check and had HVAC company guarantee 250 fpm ......

In 4300 cf room dead silent and is very well supplied with fresh air.

Based on your information provided, doesn't seem too large.....
HopefulFred likes this.
doublewing11 is offline
