UPDATE: Yes today I pile my tools in the 4runner and head back to Ohio. Major items on the list are all the trim molding, light fixtures, Acoustic and Fabric treatments, Projection booth exhaust fan, Sit at bar construction. Graphic Eye install, DIY Screen and hanging the Projector.

PART I I'm starting a new project, I loaded most of my tools in my SUV and headed for NE Ohio. I'll be staying in a Hotel and seeing how fast we can get this one built.

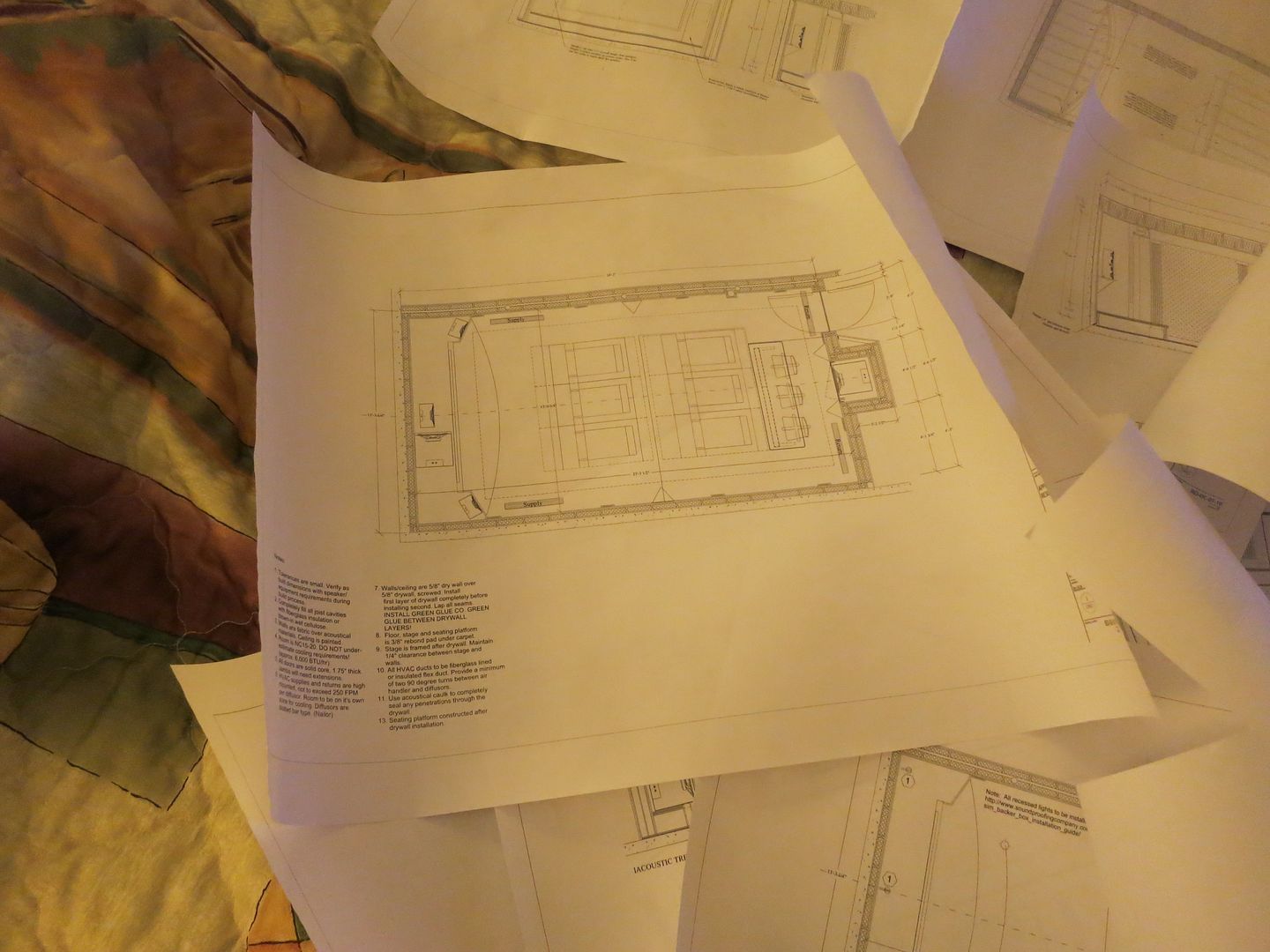

The theater owner started some time ago by getting a detailed set of plans developed by Dennis in the summer of 2010. Progress was painfully slow after that with life getting in the way. So I got asked to come over and lend a hand, We are going to see how far/fast we can take this project over the next 9 days.

So we have a set a plans for a 2 rows, plus bar in a width constrained space.

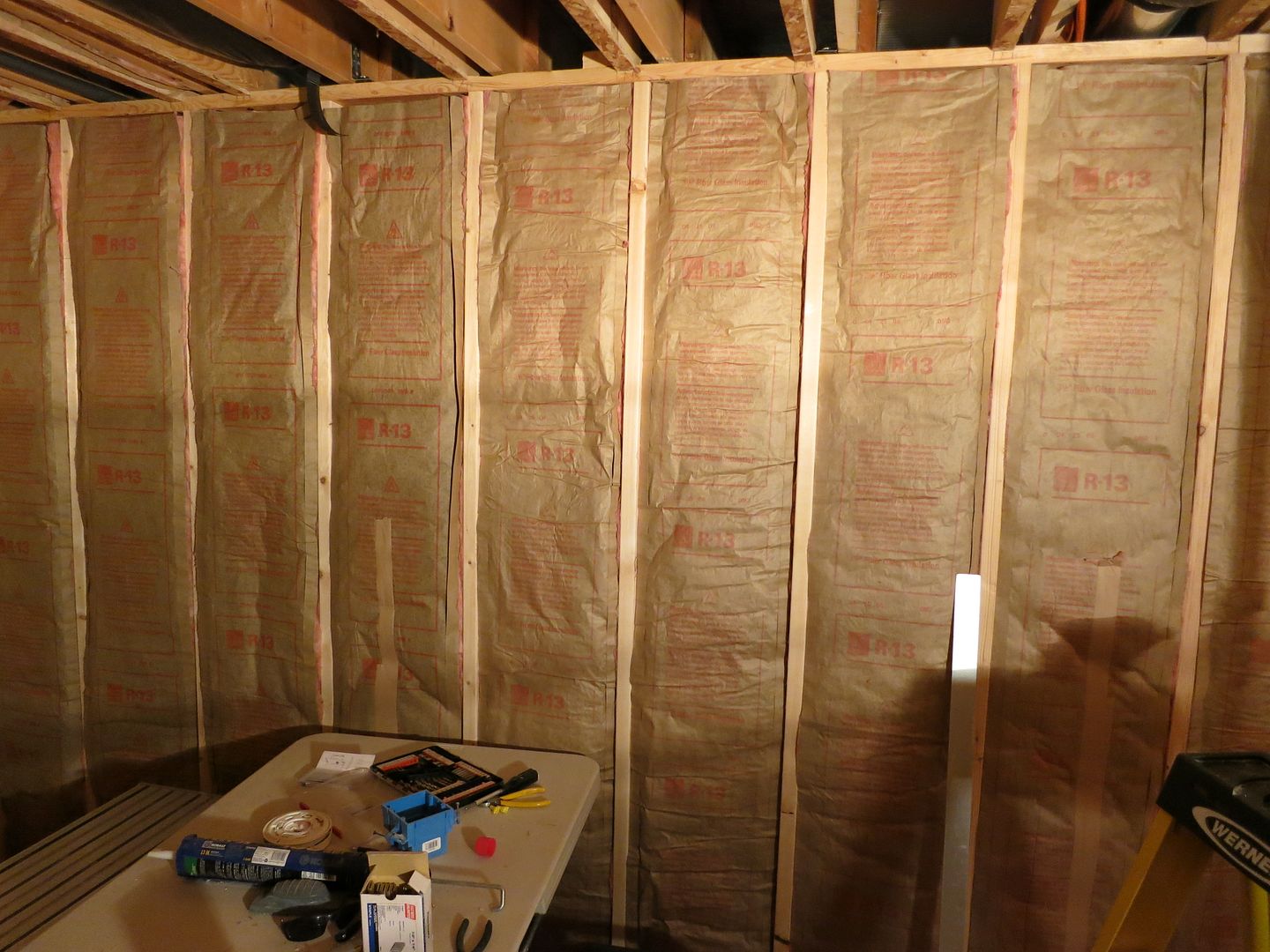

The room has been framed using a true Room within a Room approach and a second set of ceiling joists have been strung hanging lower than the originals.

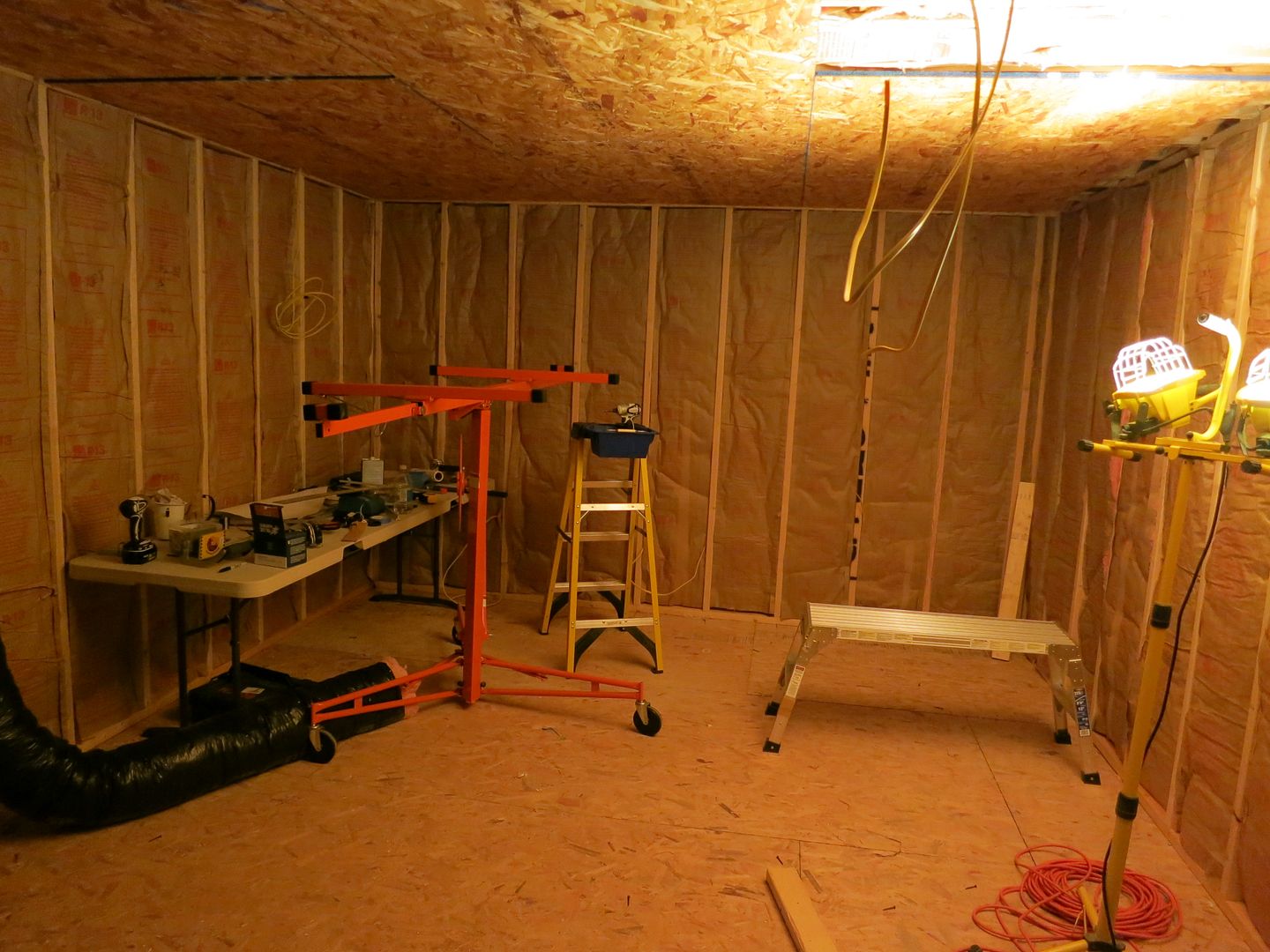

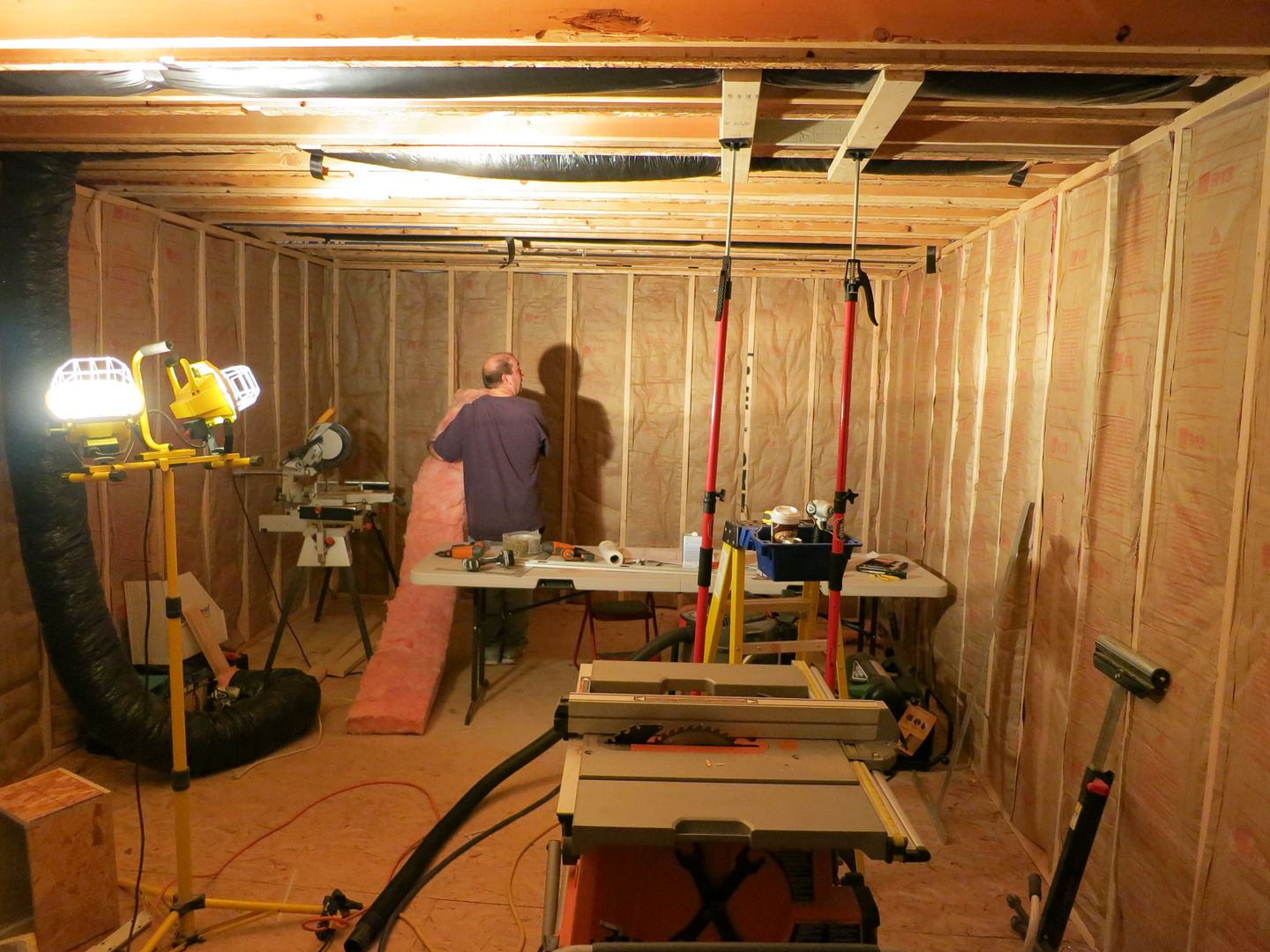

I arrived at 5 tonight and we assembled some backer boxes and finished running a couple of ducts, tomorrow we will finish and install the boxes, pull in some wiring, run some more ducts and insulate. Maybe get started with the first layer which is going to be OSB for rigidity of the Room within a Room structure.
BIGmouthinDC is online now
Sponsored Links
Advertisement

post #2 of 369 Old 12-02-2011, 08:59 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,122
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 57
Get a good night's sleep - sounds like some late nights coming this week! Looking forward to watching this one rip through.
Brad Horstkotte is offline
post #3 of 369 Old 12-02-2011, 09:01 PM
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,862
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked: 213
Well, this is exciting. I know what I'll be doing for the next 9 days - reading this!

I hoping to swing a true room within a room also, so I'm interested especially in these early steps.
HopefulFred is online now
post #4 of 369 Old 12-02-2011, 09:10 PM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 21,076
Mentioned: 8 Post(s)
Tagged: 1 Thread(s)
Quoted: 394 Post(s)
Liked: 679

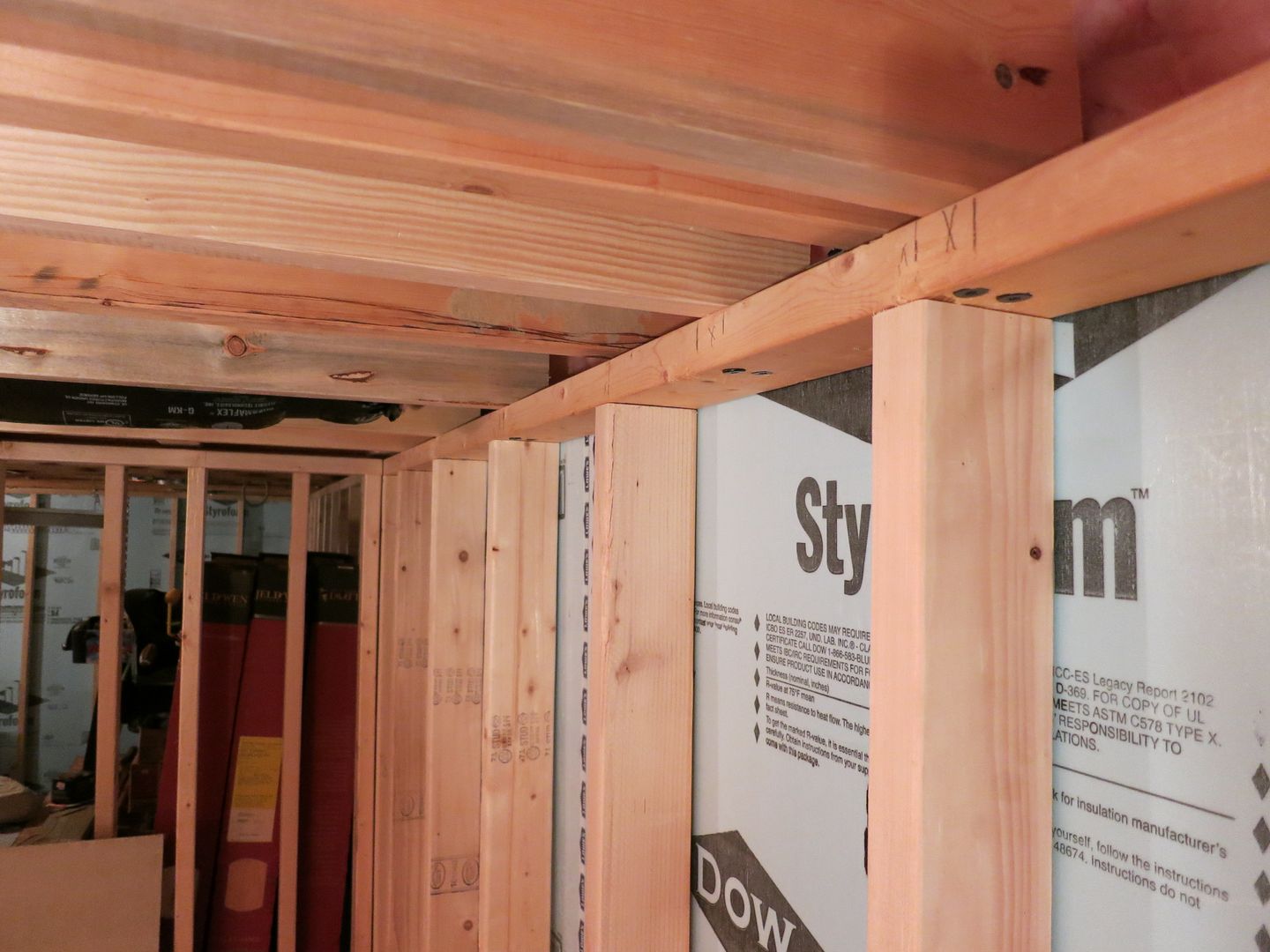

The wall framing is attached at the top with only isolation clips. The second set of joists rest on the walls and do not touch the sub floor above so there is no mechanical connection between the theater framing and the rest of the house.
BIGmouthinDC is online now
post #5 of 369 Old 12-02-2011, 09:49 PM
AVS Special Member

ack_bk's Avatar

Join Date: Jan 2007
Location: Maple Grove, MN
Posts: 8,836
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked: 105
Big is on the move!



Subscribed! This should be a fast pace 9 days and am anxious to see the progress...
ack_bk is offline
post #6 of 369 Old 12-03-2011, 02:13 AM
AVS Special Member

Dingaling2004's Avatar

Join Date: Dec 2006
Location: Sydney, Australia
Posts: 1,131
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 19
This is going to be an interesting ride! You will shame many of us that are taking, months, years even to accomplish what you will get done in 10 days.
When not hanging my head in shame and embarrassment I will be following this thread closely.

Cheers

Greg

Follow my thread here
Dingaling2004 is online now
post #7 of 369 Old 12-03-2011, 06:34 AM
AVS Special Member

carboranadum's Avatar

Join Date: Jan 2004
Location: Winchester, VA
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Congrats Big. This will be an interesting ride.

For the rest of us who are looking at our build taking years....remember:
  • Big has done this a few times before (this is his fourth+ theater).
  • He has the knowledge and tools necessary to make quick progress.
  • He is motivated (I assume he's charging money for this).
  • He's got a great set of plans to work with, designed by a true professional.
  • He's also got Dennis as a backup in case he needs advice.
  • He's got the time to be fully dedicated to this project!

Any one of these would cause most DIY builders to speed up. Having all six (particularly items 1, 2, 4, and 6), would cause us to go into light speed.

Godspeed Big! We're all pulling for you and looking forward to another great "Built By Big" project!

Follow my build here: Harvest Ridge Theater
carboranadum is offline
post #8 of 369 Old 12-03-2011, 06:37 AM
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,722
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 112
Quote:
Originally Posted by carboranadum View Post

Godspeed Big! We're all pulling for you and looking forward to another great "Built By Big" project!

I think he needs a sticker or a fabric patch or something.

"Built BIG" or "Big Built" could be the brand. haha.
damelon is offline
post #9 of 369 Old 12-03-2011, 06:50 AM
AVS Special Member

carboranadum's Avatar

Join Date: Jan 2004
Location: Winchester, VA
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by damelon View Post

I think he needs a sticker or a fabric patch or something.

"Built BIG" or "Big Built" could be the brand. haha.

Maybe something like a brass plaque or the like. Or better yet...nothing. I bet Dennis doesn't clutter up a beautiful space with an ad.

I can see him making quite the business out of this. He's got the time, the skills, and the resources to pull this off. When the housing market spins around in NoVA, I bet he'l have more business than he can handle.

Follow my build here: Harvest Ridge Theater
carboranadum is offline
post #10 of 369 Old 12-03-2011, 07:49 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,141
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked: 46
Quote:


He's also got Dennis as a backup in case he needs advice.

In an effort to support the DIY crowd here, I will do my best to misdirect, misguide and otherwise slow down his progress.

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors
www.erskine-group.com
www.CinemaForte.net
Dennis Erskine is offline
post #11 of 369 Old 12-03-2011, 08:01 AM
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,862
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked: 213
Quote:
Originally Posted by Dennis Erskine View Post

...I will do my best to misdirect, misguide and otherwise slow down his progress.

Thank You, Mr Erskine! Your efforts are appreciated.
HopefulFred is online now
post #12 of 369 Old 12-03-2011, 08:25 AM
Advanced Member

Speqtre's Avatar

Join Date: Dec 2006
Location: NoVA
Posts: 596
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Damn Big, you're a regular love-em-and-leave-em playa! Poor Damelon's theater seats aren't even cold and you're on to your next Bromance!

LOL, have fun in OH! We'll keep the the projector on in NoVA for ya!
Speqtre is offline
post #13 of 369 Old 12-03-2011, 08:27 AM
AVS Special Member

cuzed2's Avatar

Join Date: Nov 2006
Location: Chicago Area
Posts: 4,426
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 70
Two of the respected Masters on this one - Just subscribed.
Should be fun!!

Cuzed2
Check out a video of my theater here
CuznEddy Cinema
Officially Hanesamatized on 8/1/09

cuzed2 is online now
post #14 of 369 Old 12-03-2011, 08:37 AM
AVS Special Member

carboranadum's Avatar

Join Date: Jan 2004
Location: Winchester, VA
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by Dennis Erskine View Post

In an effort to support the DIY crowd here, I will do my best to misdirect, misguide and otherwise slow down his progress.

LOL, thanks, but we're really pulling for him here. I for one, understand my limitations and am comfortable with them. Building a theater is all about trade-offs, anyhow, right? :-)

Follow my build here: Harvest Ridge Theater
carboranadum is offline
post #15 of 369 Old 12-03-2011, 08:38 AM
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 715
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 20
Any chance you want to take a job in wonderful world of Canada? haha, bacon race will be my thread to goto for reference on my build, more the merrier. Good work till now and good luck on next build, will be following this one like a hawk! Lots of pictures please!!!!

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #16 of 369 Old 12-03-2011, 08:41 AM
Advanced Member

ADDUpstate's Avatar

Join Date: Mar 2011
Location: Perinton NY
Posts: 649
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Locked and Loaded... subscribed.
ADDUpstate is offline
post #17 of 369 Old 12-03-2011, 09:02 AM
AVS Special Member

petew's Avatar

Join Date: Oct 2000
Location: Albuquerque, NM USA
Posts: 2,054
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 45
I see a reality TV show here. Too bad I just killed off DirecTV. I'll have to wait for it to show up on Netflix.

High Desert Theater - work in progress
Building Bass - Subs

Surrounds - Easy as Pi

Storage - unRAID unDELL

petew is offline
post #18 of 369 Old 12-03-2011, 10:35 AM
AVS Special Member

nezff's Avatar

Join Date: Jan 2007
Location: Cajun Country
Posts: 4,278
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 29
nezff is offline
post #19 of 369 Old 12-03-2011, 11:08 AM
AVS Special Member

queendvd2's Avatar

Join Date: Jan 2005
Posts: 1,935
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 10
Forget about where in the world is Matt Lauer. This is way more exciting! On to BIGger and better builds.
queendvd2 is offline
post #20 of 369 Old 12-03-2011, 11:13 AM
AVS Special Member

jimim's Avatar

Join Date: Mar 2006
Location: NEPA
Posts: 1,183
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 13
Subscribed. . .let the countdown begin! Good luck guys!

jim
jimim is offline
post #21 of 369 Old 12-03-2011, 02:43 PM
Senior Member

BRAD S's Avatar

Join Date: Feb 2008
Location: Mason City, Iowa
Posts: 202
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 15
Quote:
Originally Posted by damelon View Post

I think he needs a sticker or a fabric patch or something.

"Built BIG" or "Big Built" could be the brand. haha.

How about: "I went BIG!"
BRAD S is offline
post #22 of 369 Old 12-03-2011, 04:48 PM
AVS Special Member

HeyNow^'s Avatar

Join Date: Jul 2001
Location: Martinsburg, Wv USA
Posts: 2,720
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
I suppose this means that Big and Logan broke up.....
HeyNow^ is offline
post #23 of 369 Old 12-04-2011, 04:56 AM
AVS Special Member

carboranadum's Avatar

Join Date: Jan 2004
Location: Winchester, VA
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by HeyNow^ View Post

I suppose this means that Big and Logan broke up.....

Maybe it means that Logan has to pay cash for help and advice from now on!

Follow my build here: Harvest Ridge Theater
carboranadum is offline
post #24 of 369 Old 12-04-2011, 02:31 PM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Well I'm at about the same point currently in my build. Hmmmmm......what can I get done in the next 8 days? I feel a competition brewing. Although I'm at an embarrassing disadvantage

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #25 of 369 Old 12-04-2011, 02:52 PM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 264 Post(s)
Liked: 264
I just hope they take time to snap some pics! I love watching Big's builds.

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is offline
post #26 of 369 Old 12-04-2011, 05:56 PM
AVS Special Member

RTROSE's Avatar

Join Date: Dec 2005
Location: South Central Indiana
Posts: 6,167
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 47
Whoooo Hoooooo!!!!!!!!! I'm in baby! Can't wait to see this one come together. Go getem' Big and Mr. anonymous builder guy.

Regards,

RTROSE

My (slower than molasses) HT build here.
Now a Certified Carpet Counselor and Plumbing Counselor (Self given titles - pay no attention).
Enjoying my "almost done" theater.
RTROSE is offline
post #27 of 369 Old 12-04-2011, 06:09 PM
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,459
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 20
Subscribed.

Strap yourselves in for the ride fellas, this'll be insane!

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is online now
post #28 of 369 Old 12-04-2011, 09:29 PM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 21,076
Mentioned: 8 Post(s)
Tagged: 1 Thread(s)
Quoted: 394 Post(s)
Liked: 679
It has been a really busy two days as the list of items that needed attention before drywall grew exponentially.

Things accomplished include

Removing existing ceiling wiring
Building and installing 10 backer boxes, then pulling in 5 circuits of lighting wiring.
Adding 1/2 inch furring to the new ceiling joists to make sure the ceiling didn't contact the old joists
Insulating the walls and ceiling
Installing a conduit to the Projector location
Running acoustical duct work for supplies and returns

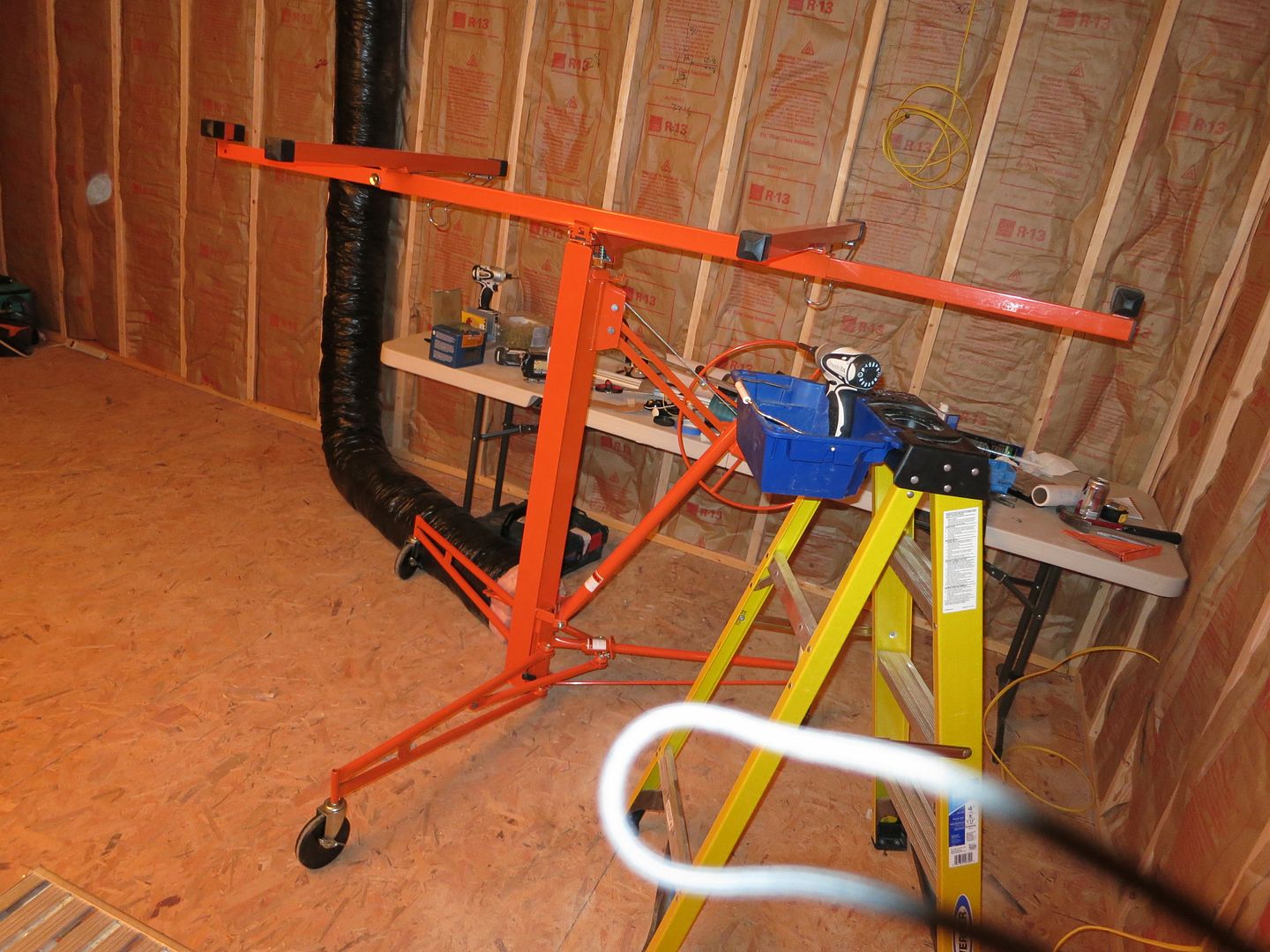

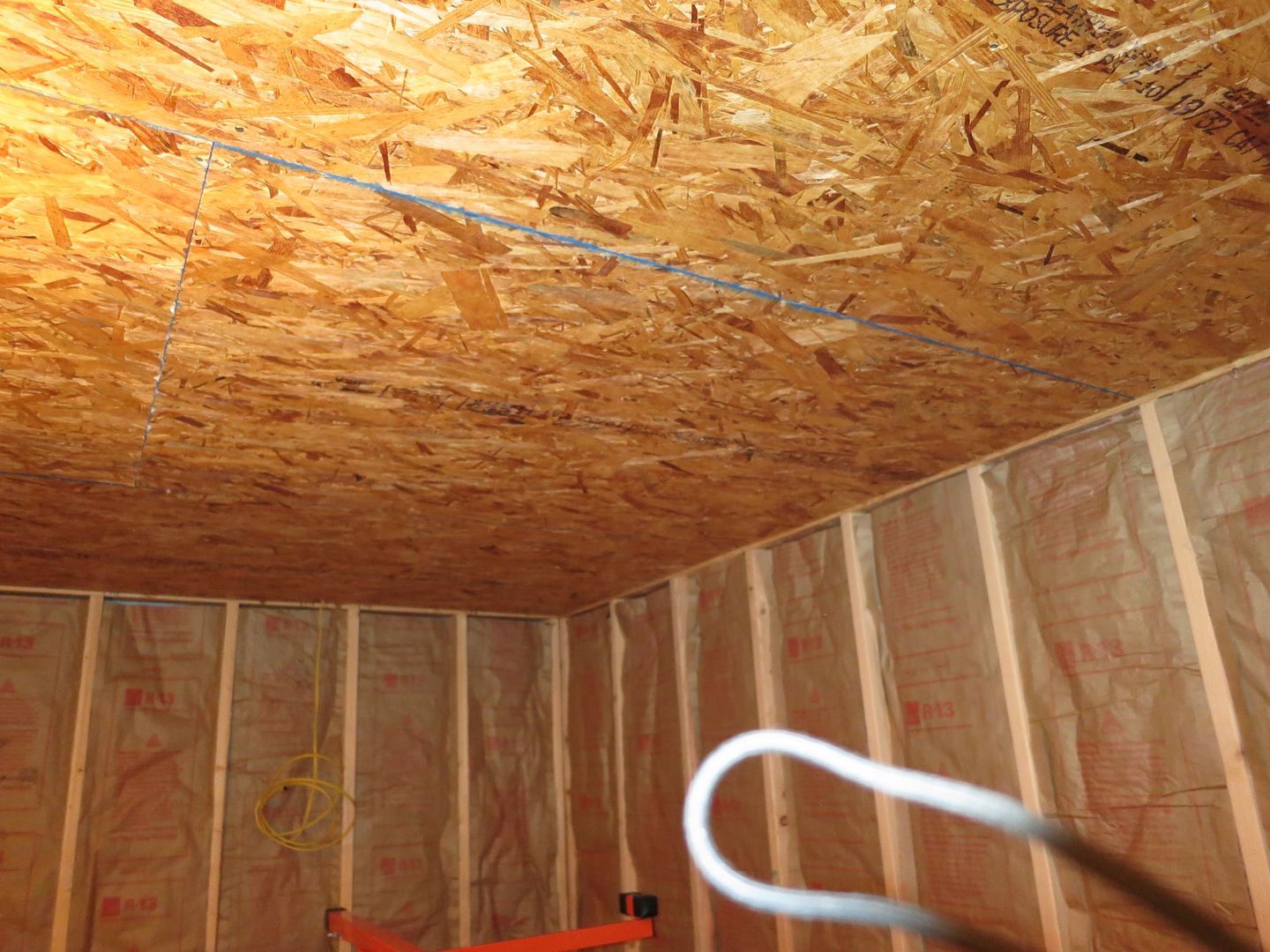

Finally after dinner tonight we hung a few sheets of 5/8 OSB on the ceiling. Instead of drywall for the first layer we will be using the OSB to give stability to the Room within a Room.

Some Pictures, I'll come back later and add comments





















BIGmouthinDC is online now
post #29 of 369 Old 12-04-2011, 09:46 PM
AVS Special Member

RTROSE's Avatar

Join Date: Dec 2005
Location: South Central Indiana
Posts: 6,167
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 47
Looks like Big has gotten younger, shrank, and lost some weight. Nice to see some "help" pitching in on this build.

I understand the reasoning behind using the OSB for rigidity, what if anything does it do acoustically (pros and cons).

Regards,

RTROSE

My (slower than molasses) HT build here.
Now a Certified Carpet Counselor and Plumbing Counselor (Self given titles - pay no attention).
Enjoying my "almost done" theater.
RTROSE is offline
post #30 of 369 Old 12-04-2011, 10:48 PM
AVS Special Member

Elill's Avatar

Join Date: Dec 2007
Location: Sydney, Australia
Posts: 1,459
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 20
Quote:
Originally Posted by RTROSE View Post

I understand the reasoning behind using the OSB for rigidity, what if anything does it do acoustically (pros and cons).

I'll be doing the exact same in our room one day. Its not good acoustically as its not nearly as flexible as drywall on channel.

I didn't realise this until I saw Greg/Dingaling's room - the flexibility is impressive - I should imagine this has significant benefits for bass

....my walls will be like blockwork

Peter the Greek

Downunder Theatre MkII
Redefining snail pace construction
"what is worth knowing is difficult to learn"

Elill is online now
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
