post #61 of 467 Old 01-08-2012, 09:03 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Hi Queenie, thank you so much for the kind words. Yes I have a GREAT wife! She knew this was a big dream of mine since we met way back in 1999 and supports me in it. She loves movies as well but not as fanatic about movie watching as I am - she'll be ok with watching a flick on a 20" tv with the internal speakers -
Bobbejaan is offline
Sponsored Links
Advertisement

post #62 of 467 Old 01-08-2012, 10:31 AM
Member

misugrad's Avatar

Join Date: Jan 2010
Location: W Bloomfield, MI
Posts: 166
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Just went through your thread. Great space you'll have. What are your plans for sound control throughout (e.g. the floor tiles, traps, wall coverings)? Are you leaving tile?

Mike
Started the build...Theater With A View
misugrad is offline
post #63 of 467 Old 01-08-2012, 12:28 PM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Misugrad, (Mike) the floortiles will be covered with carpet as well as the stage and the riser. The columns and soffits will be stuffed with pink stuff and the walls will be covered with sound absorbing panels (fibreglass or fibreboard) and fabric streched over panels. The outside walls of the HT are double brick walls (firewall) plastered on both sides and going up to the roof tiles, so basically it's sealed of from the rest of the house. The sleeping rooms are also far from the HT with a second firewall going up to the roof between them and the kitchen.

The roof is Harveytiles - a type of sheetmetal covering in the shape of normal cement tiles - very srong but keeps no noise in or out and makes the attic above the HT as hot as an oven. I took out the insulation that was in the attic before while cleaning it. I'm still undecided with what to do to insulate the attic space. I am thinking of putting blow in cellulose fibre of about 4" thick onto the ceiling in the attic and also attaching something like the pink stuff to the underside of the roof itself.

The HT itself will have a solid wood door and the foyer part another - so double wood doors to the rest of the house - hope its enough.

There will also be bass traps in the front corners as well as the whole screenwall covered in insulation and the two back columns will also act as traps stuffed with insulation.

Will
Bobbejaan is offline
post #64 of 467 Old 01-08-2012, 01:02 PM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
New pics!

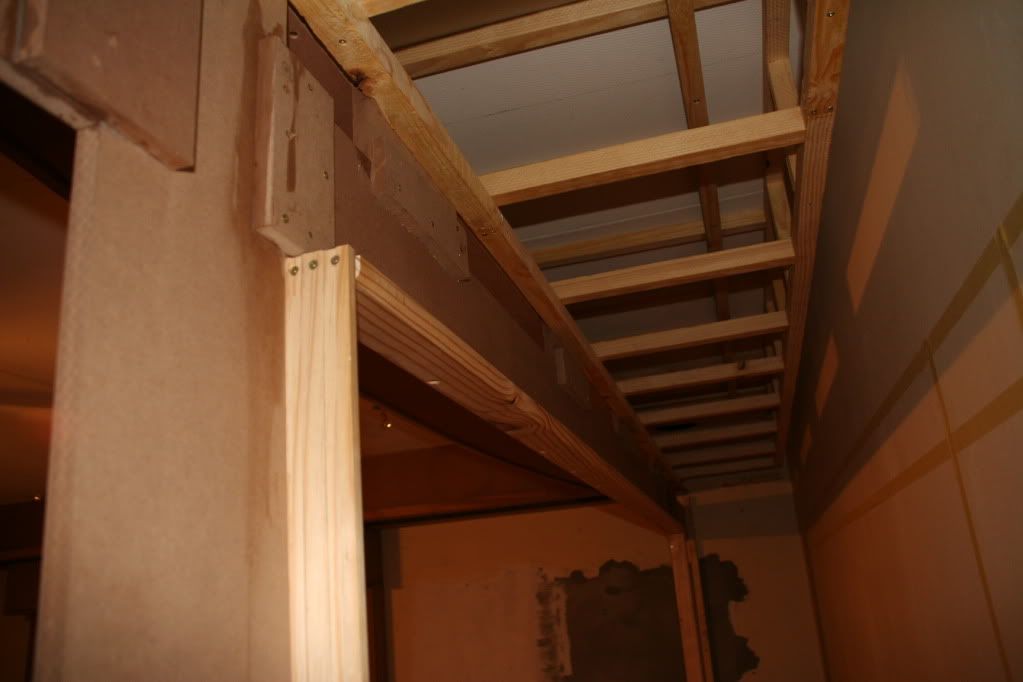

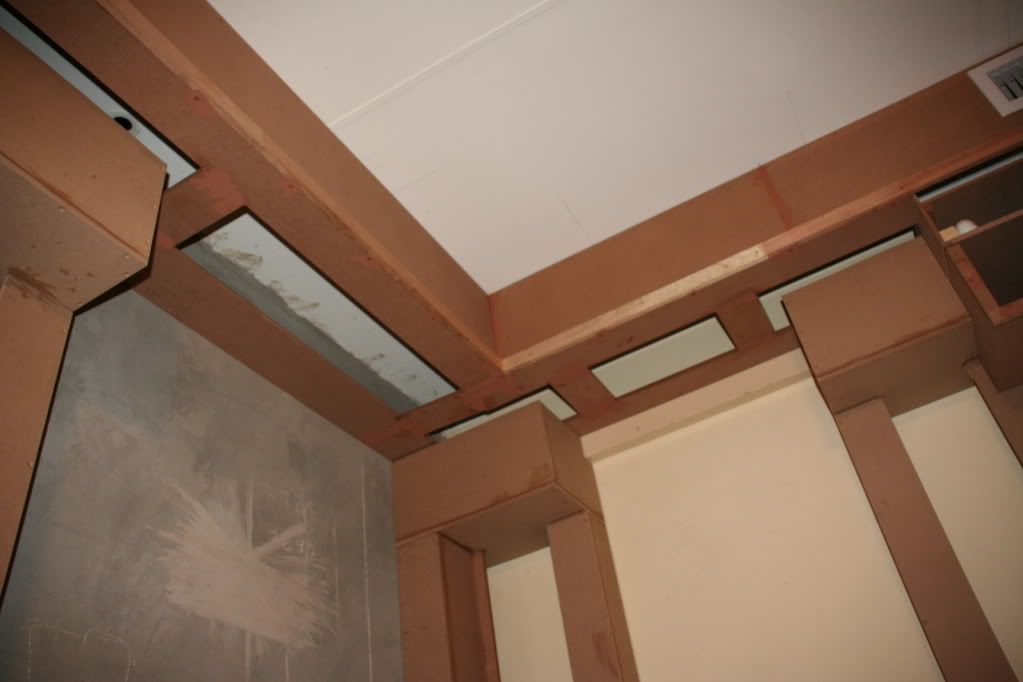

The "cross-braces" in the underside of the soffits are all glued in place. The openings will be covered with a fabric panel and will each hold a LED dimmable downlight.




And here's a "Behind the Screen" picture:

The screen will fit inside the pine frame in the screenwall. The screen frame is ordered from an aluminium (or aluminum for the US of A'ers) company that makes window frames and doors ect. It will be constructed out of 2X2" aluminium square tubing. This will be covered with a white weaved screen material similar to sheerweave thats available in the US. As said before the screen ratio will be 2:1 3m X 1,5m (120" x 60"). This will give me a 16:9 screen of 122" diagonal, a 2.39:1 screen of 128" diagonal and a 4:3 screen of 100" diagonal. The masking system with velvet covered panels will frame off the different ratios horisontally and vertically. The screen may be a bit to big for my first row seats but I will have to wait and see!! What's the saying: "Go BIG or go home!"
Bobbejaan is offline
post #65 of 467 Old 01-09-2012, 11:11 PM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11

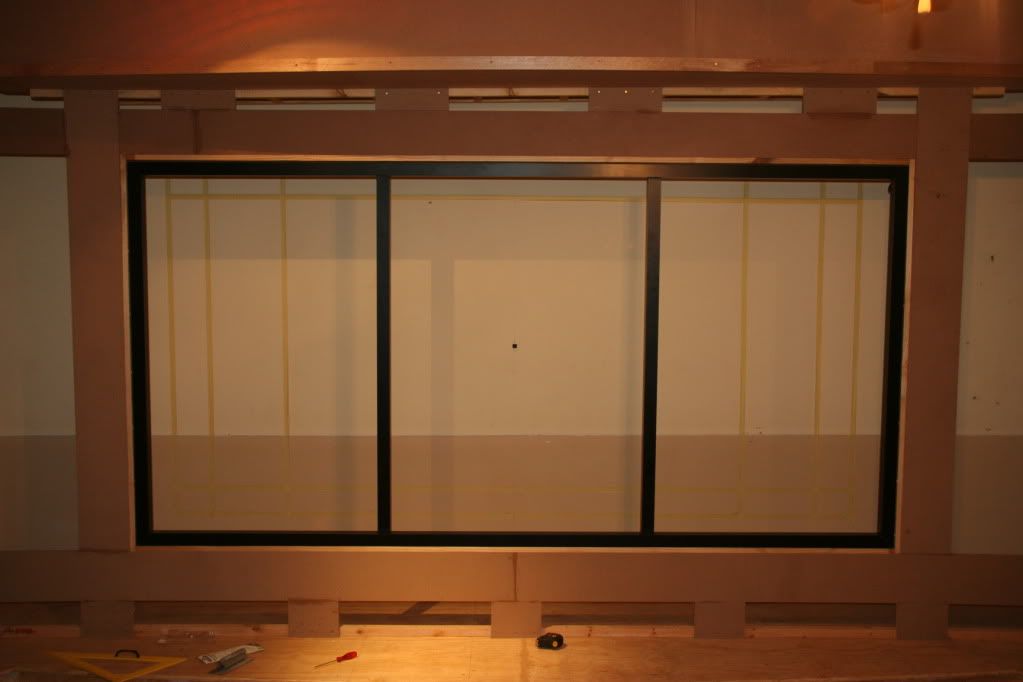

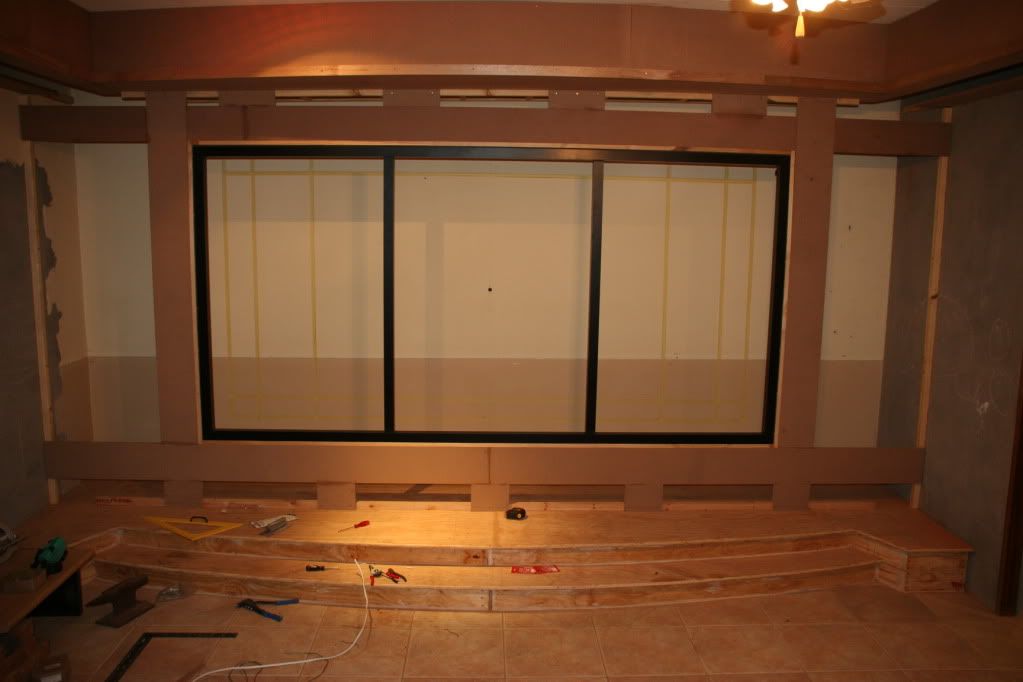

The screen frame arrived:
The guy at the aluminium shop was kind enough to drop it off at my home. I had the option to have it in black or regular grey, so you can guess wich colour I chose. You can't believe how light the frame is but yet VERY strong and sturdy - it won't pull skew under the tension of the screen material.




The frame is just standing in place - the screen material will only be put over it when all the "dirty, dusty work" is finished.
Bobbejaan is offline
post #66 of 467 Old 01-10-2012, 01:38 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11

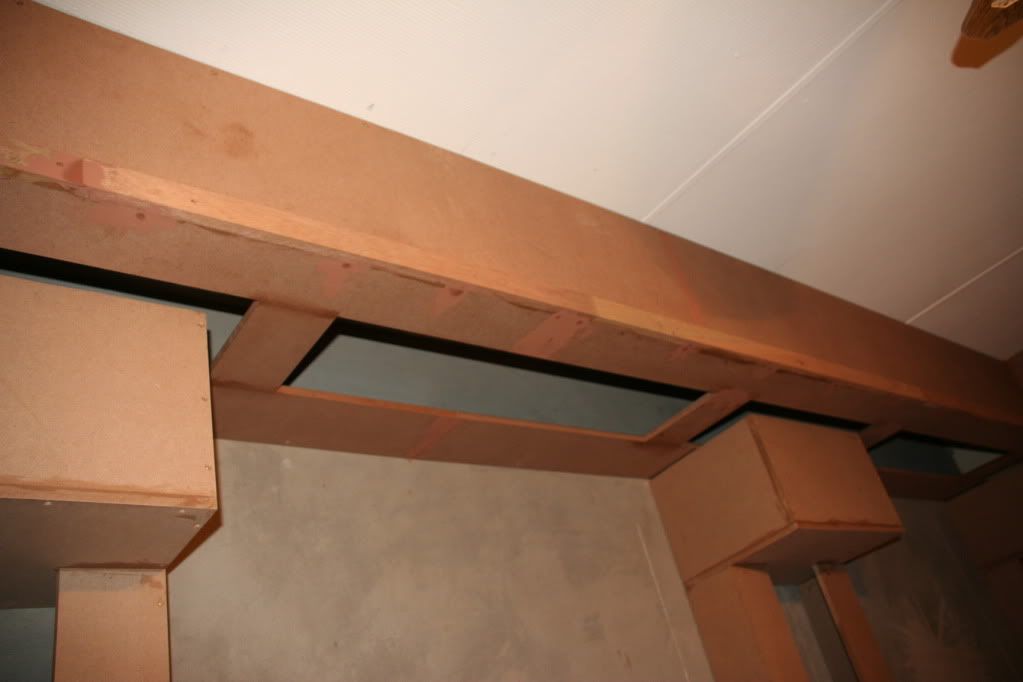

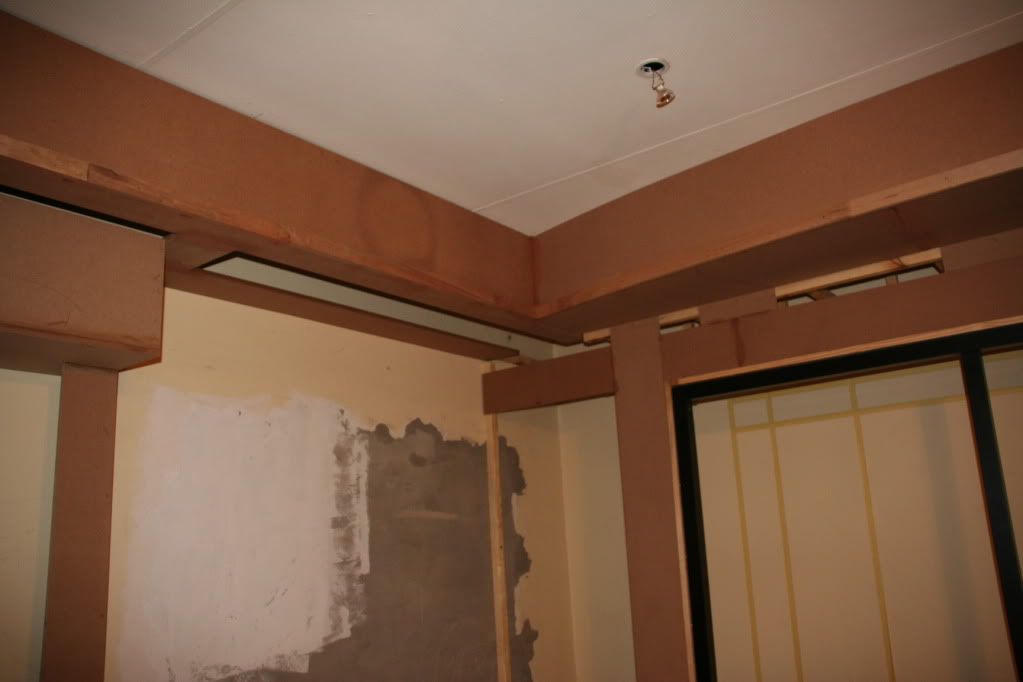

This it the front lefthand corner where the front column will go
Bobbejaan is offline
post #67 of 467 Old 01-11-2012, 01:47 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
I made the masking system horizontal panels. I used aluminium U channel and correx board for the construction. The correx fit inside the channel and the corners is fastened with corner brackets and rivets. They must be quite sturdy but lightweight since the span will be more than 3m (10') so they must not sag in the centre. The panels will be covered with black velvet once they fit propperly and the HT is more clean and dust free.

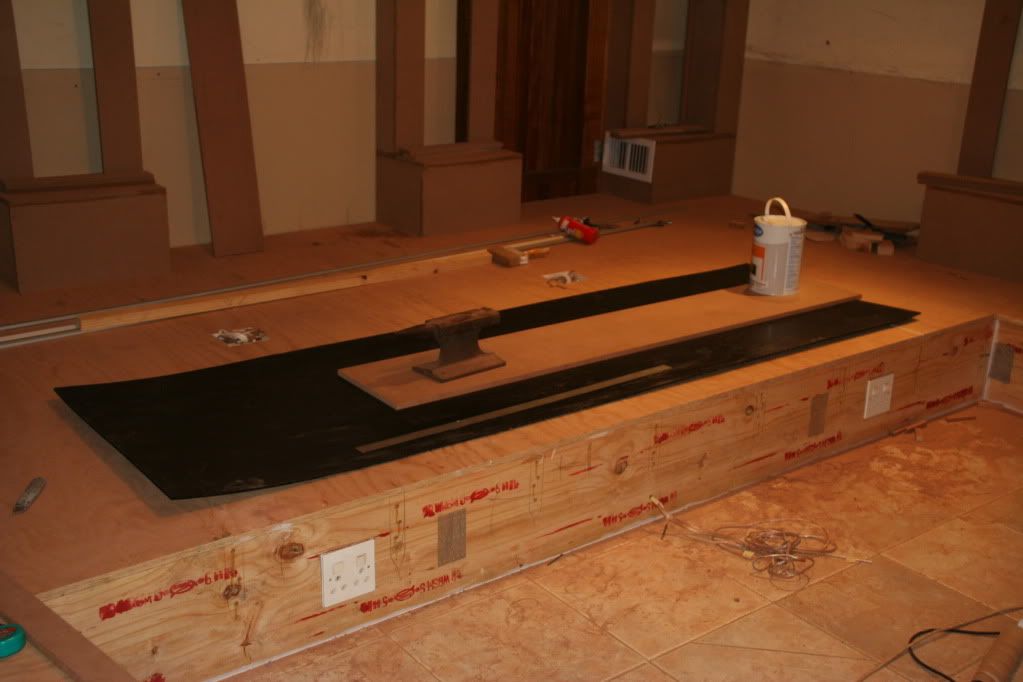

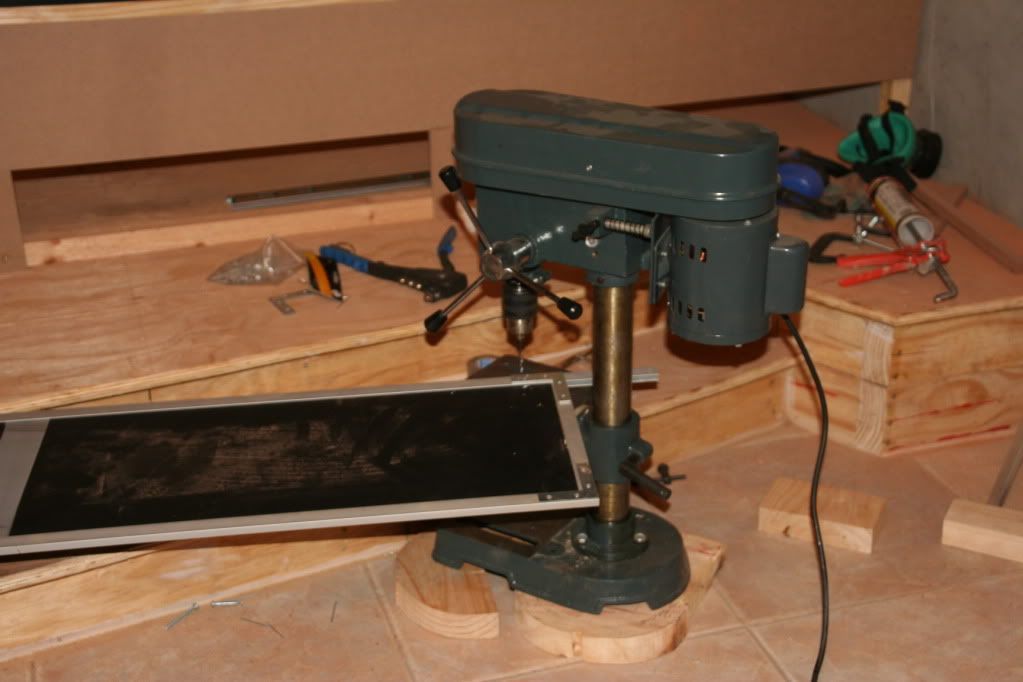

Here's a pic of the correx being cut. (Note that my trusty anvil is always at hand for when a pesky cartoon character comes by and I need to drop it on its head )

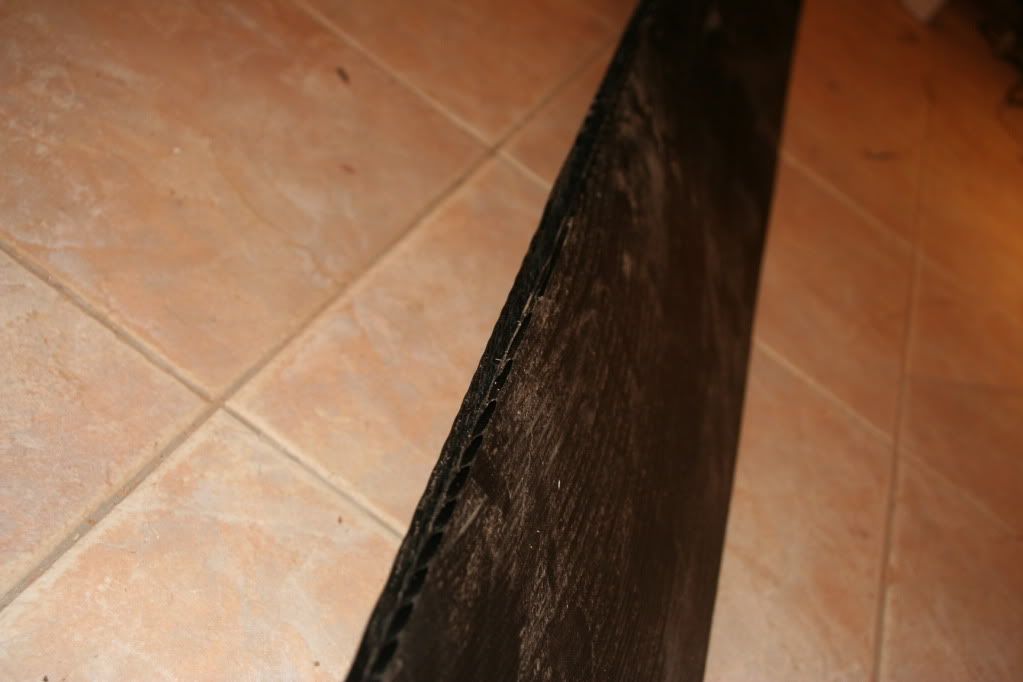

Here's one of the cut correx. This stuff statically attracts every little dust particle in the air and from the floor



I wonder if the "health and safety officer" will approve of my bench drill stand?
(it actually once nearly toppled over but I caught it just in time )


I used duct tape to secure the correx on the backside to the U-channel and also used glue inside the channel
Bobbejaan is offline
post #68 of 467 Old 01-11-2012, 11:31 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11

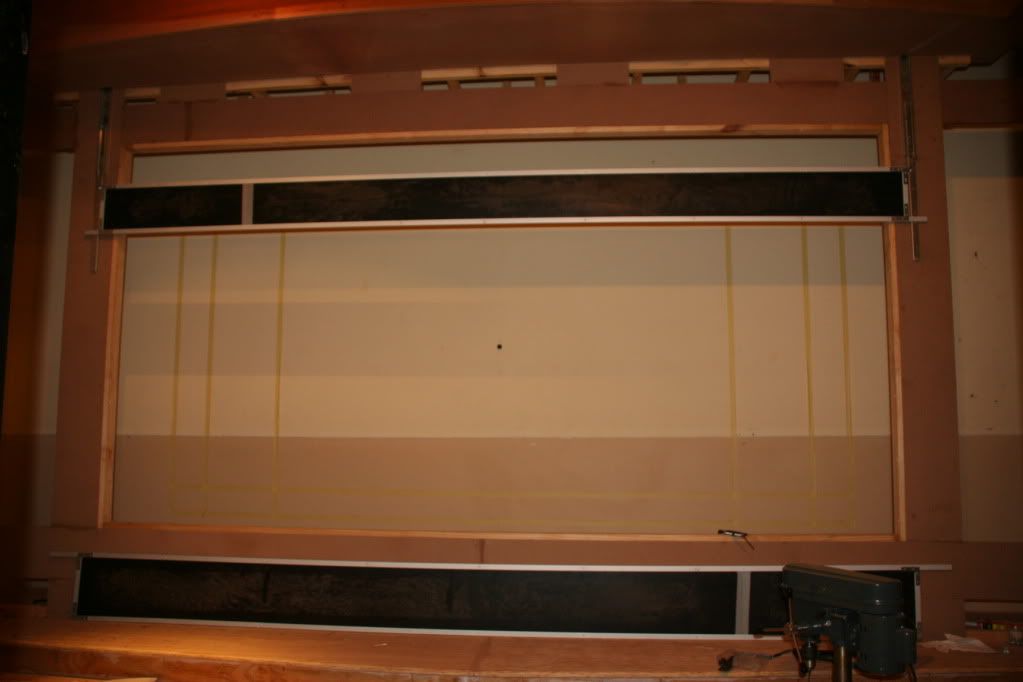

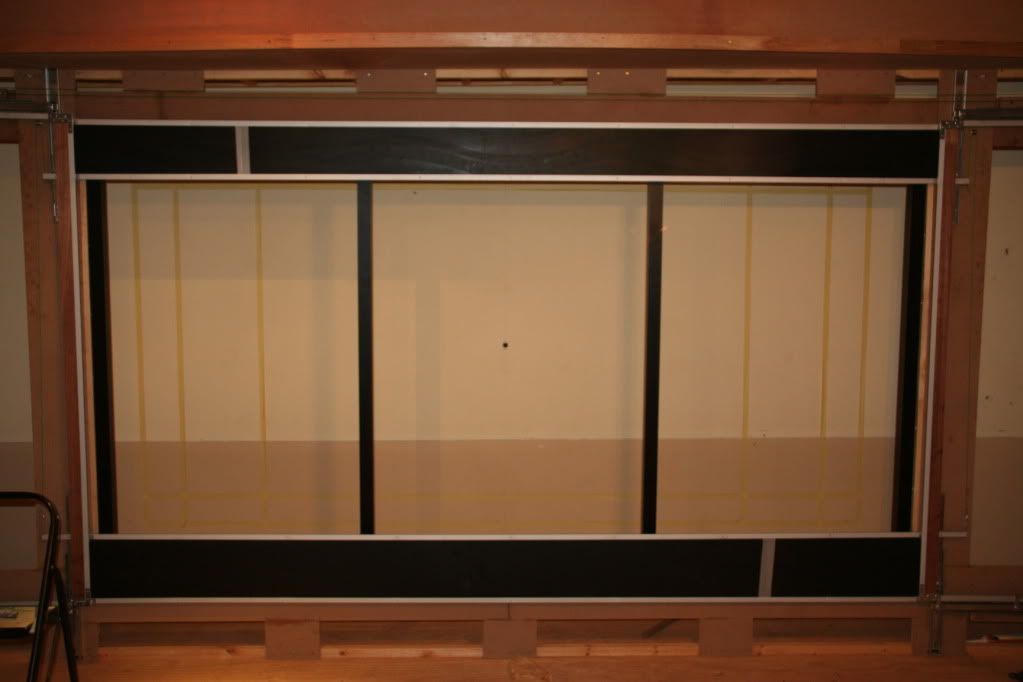

Here is the top horizontal mask fitted to the sliders.

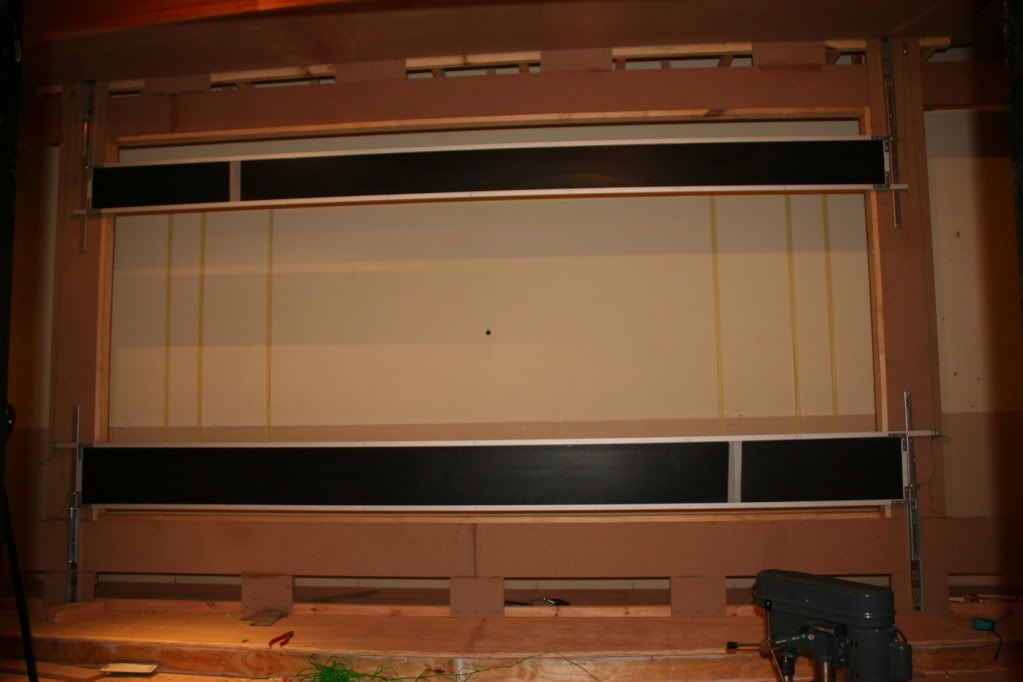

Here they are connected to each other with nylon rope over pulleys. If the one goes UP the other goes DOWN. Very smooth - I'm happy


You might have noticed that the panels are not the same height. Little error on my side I've made the bottom mask first, fitted nice and all but forgot that the screen is not in the centre of the screenwall between the procenium and stage, but a bit higher up. It was such a big job to put the mask together so I just let it be and made the top one smaller to fit the space above the screen - you won't even know they differ once the fabric wall in up in front of the masks
Bobbejaan is offline
post #69 of 467 Old 01-11-2012, 04:04 PM
AVS Special Member

RTROSE's Avatar

Join Date: Dec 2005
Location: South Central Indiana
Posts: 6,149
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 45
Quote:
Originally Posted by Bobbejaan View Post

You might have noticed that the panels are not the same height. Little error on my side I've made the bottom mask first, fitted nice and all but forgot that the screen is not in the centre of the screenwall between the procenium and stage, but a bit higher up. It was such a big job to put the mask together so I just let it be and made the top one smaller to fit the space above the screen - you won't even know they differ once the fabric wall in up in front of the masks

Ummm.......We will now.

Very nice work, that is a very slick masking system for sure. You are very smart not to do any velvet work until things are cleaned up. That stuff does attract just about everything.

Keep it up and the pics coming.

Regards,

RTROSE

My (slower than molasses) HT build here.
Now a Certified Carpet Counselor and Plumbing Counselor (Self given titles - pay no attention).
Enjoying my "almost done" theater.
RTROSE is offline
post #70 of 467 Old 01-11-2012, 05:51 PM
Senior Member

calimark's Avatar

Join Date: Dec 2010
Posts: 340
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
masking actuated by hand? Or you have some gizmo hiding back there?
calimark is offline
post #71 of 467 Old 01-12-2012, 10:48 PM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Quote:
Originally Posted by RTROSE View Post

Ummm.......We will now.

But you won't tell now, will you? Let's just keep it between friends

calimark, "Keep Watching This Space!"

Thanx Woolly, I love your nice theater, especially that great woodwork.
Bobbejaan is offline
post #72 of 467 Old 01-12-2012, 11:18 PM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Now what have we got here?



A 'lil clue above the green thingy


O.K. so it works with a remote!

Yes!! The startings of my Mask-O-Matic Super-Dooper don't lift your butt of your chair masking system changer !!

Second ingredient:
We'll need 9 of these

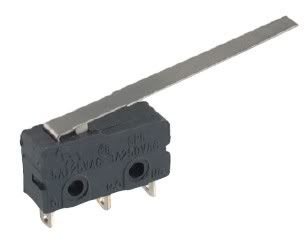

Third ingredient:
We'll need 4 of these


Fourth ingredient:
2 of these will do


Let's leave it at this Cliffhanger for now!
Bobbejaan is offline
post #73 of 467 Old 01-13-2012, 12:03 AM
Newbie

zisco888's Avatar

Join Date: Dec 2011
Location: South Africa
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Looking great so far!

Regards,

Dirkie
zisco888 is offline
post #74 of 467 Old 01-13-2012, 12:30 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Dankie (thank you) Dirkie.

PS. Welcome to the forum and madness of HT building!!
Bobbejaan is offline
post #75 of 467 Old 01-13-2012, 06:47 AM
Senior Member

calimark's Avatar

Join Date: Dec 2010
Posts: 340
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Ah nice...I wouldnt have expeced anything less based on how your build is going.
let me guess, a threaded shaft on the motor attached to the bottom panel?
calimark is offline
post #76 of 467 Old 01-13-2012, 06:55 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Calimark, YES! that was my original plan, but I came up with something simpler and faster. The threaded rod moved the nut too slow - about 12cm in 24 seconds I tried the fastest motor I could get, but still stong enough (270 rpm), and it was still to slow. Sometimes it's better to not over-engineer something I'll post pics soon!!
Bobbejaan is offline
post #77 of 467 Old 01-13-2012, 07:33 AM
AVS Special Member

petew's Avatar

Join Date: Oct 2000
Location: Albuquerque, NM USA
Posts: 2,037
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 38
COOL, can't wait to see the masking system. I've been eyeing that same relay board myself!

High Desert Theater - work in progress
Building Bass - Subs

Surrounds - Easy as Pi

Storage - unRAID unDELL

petew is online now
post #78 of 467 Old 01-13-2012, 08:23 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Wow Pete, nice room, I've just checked out your build and it's looking good. I was looking for an IR kit ready-built but to no avail, so I built the kit at work between helping customers. I cant believe it worked the first time I tested it
Bobbejaan is offline
post #79 of 467 Old 01-13-2012, 08:44 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
The masking saga continues...........

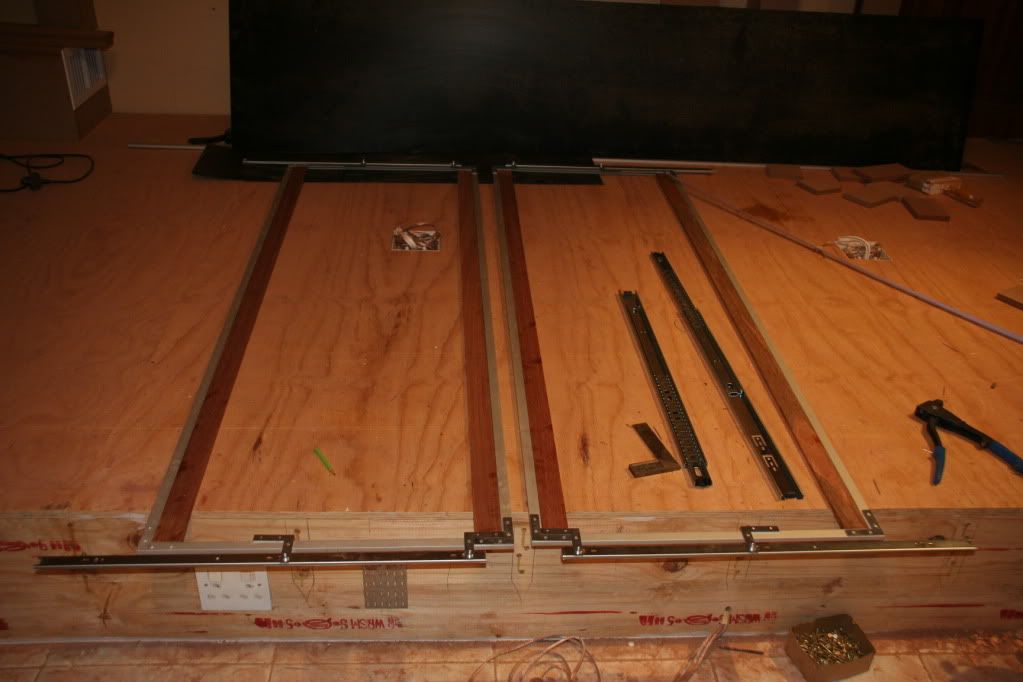

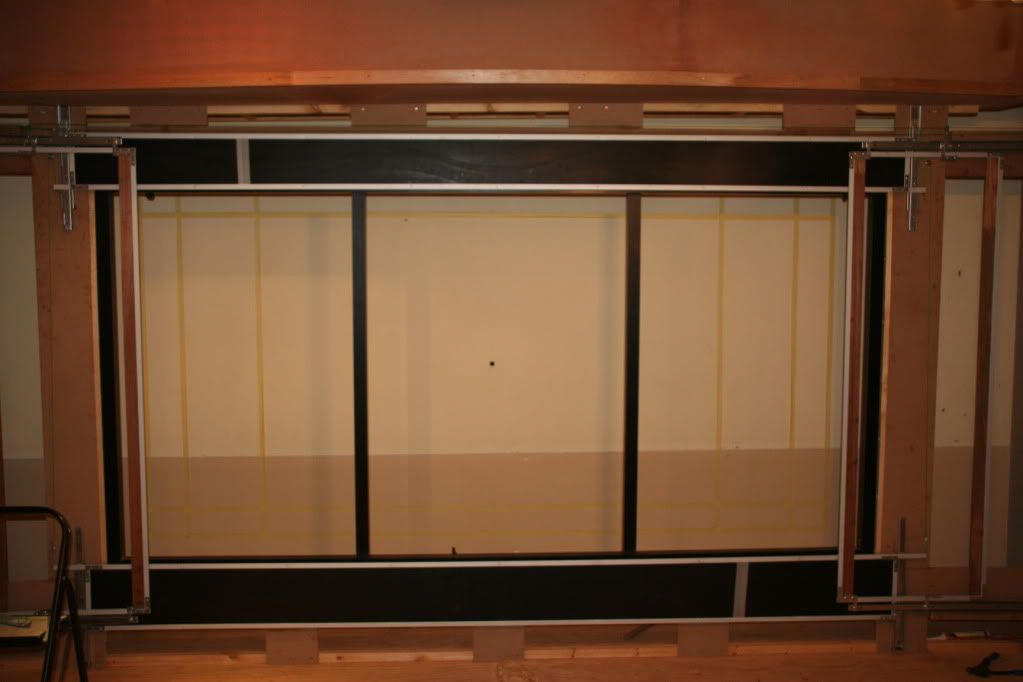

The side masking or vertical masks is constructed a little bit different than the horizontals. They are also made with aluminium U-channel and corner brackets same as hor. but instead of using the correx I chose to use meranti wood cover strips inside the channel to strengthen the frame. This is done 'cause the side panels must be accoustically transparent since they will move in front of the main L+R speakers when they are masking for 4:3. The material will be wrapped around the panels and fixed (glued or stapled) to the wood strips.



Sorry that there is not more pictures of the different steps involved in making the things because I sometimes forget to take pics when I'm on a working-spree

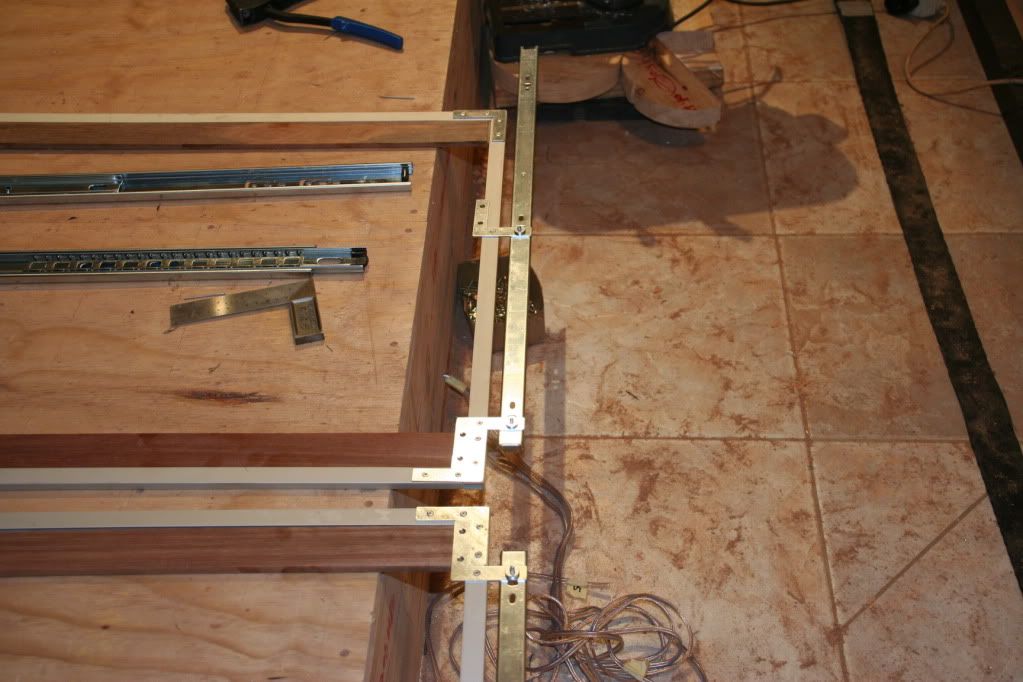

In the pictures you can see the sliders that'll go on the screenwall and the sliding parts already fixed with rivets to the panels.
Bobbejaan is offline
post #80 of 467 Old 01-13-2012, 04:53 PM
AVS Special Member

RTROSE's Avatar

Join Date: Dec 2005
Location: South Central Indiana
Posts: 6,149
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 45
Nice work. I'm sure I speak for the others here, but I can't wait to see that masking system in action. Very cool.

Regards,

RTROSE

My (slower than molasses) HT build here.
Now a Certified Carpet Counselor and Plumbing Counselor (Self given titles - pay no attention).
Enjoying my "almost done" theater.
RTROSE is offline
post #81 of 467 Old 01-13-2012, 05:15 PM
AVS Special Member

pokekevin's Avatar

Join Date: Jun 2011
Location: Huntington Beach, CA
Posts: 5,062
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 101
To the ot, which part of SA are you from? I was just in grahamstown for the Shared Accord military exercise in your country!

No subwoofer I've heard has been able to produce the bass I've experienced in the Corps!

Must..stop...buying...every bluray release...
pokekevin is offline
post #82 of 467 Old 01-14-2012, 12:07 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Thank you RT. I hope it turns out as planned.

Kevin, I live WAY up north-east from Grahamstown near Pretoria. I hope you enjoyed your stay in SA.
Bobbejaan is offline
post #83 of 467 Old 01-14-2012, 12:39 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11

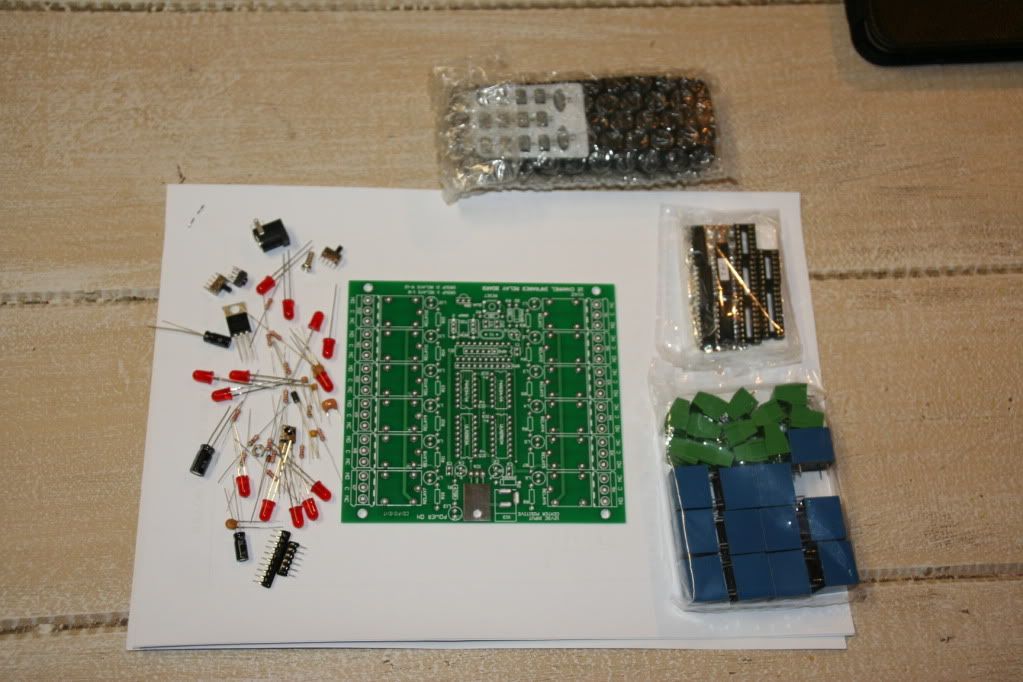

In the previous posts I showed the pic of the unbuilt pc board and components. After soldering everything together at work throughout the day it actually worked.

Just a before pic:


And the after:


Then I spend 4 hours into the night at the kitchen table putting everything together. It went from this pic where I got all the stuff ready for assembly:



To this (looks like a bowl of spagetti overturned on the thing!)


This is basically the "brains" of the masking system. At the points marked A to G next to the connector blocks the wires will go to the different limit/micro switches for the panels. The fixed stops will be for horizontal mask at 16:9 and 2.35 or if a movie is played with a narrower aspect like 2.40 I can manually drop it down to fit. The same goes for the vertical masks. The fixed stops will be at 2.35, 16:9 and 4:3 or any in between.

At the two upper left connector blocks, the two geared motors will be connected.

The power for the motors and the IR relay board comes from 1 wall-wart 12v power supply plugged into the setup at the top right.

I just used 7 of the 12 relays on the board, so that means there is still 5 left to connect other stuff to!

You must be wondering why I went through all the trouble to make this thing when I could've just used 2 Somfy electric blind/curtain motors? Easy answer - there is just one place in SA that imports them and they are VERY expensive,...........so.........here we are now!
Bobbejaan is offline
post #84 of 467 Old 01-14-2012, 08:48 AM
AVS Special Member

petew's Avatar

Join Date: Oct 2000
Location: Albuquerque, NM USA
Posts: 2,037
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 38
Can you draw up a schematic?

I've been pondering my automated horizontal masking controls. In my usual "overkill" approach I'm considering using encoders on the masks to read back actual position. I'd be able to program the micro controller to set the masks at any position. Encoders would give the repeatability needed to make it work.

But I'd probably spend more time getting everything working than a lifetime's worth of time adjusting masks manually.

High Desert Theater - work in progress
Building Bass - Subs

Surrounds - Easy as Pi

Storage - unRAID unDELL

petew is online now
post #85 of 467 Old 01-15-2012, 12:34 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Pete, I'll see what I can do. It's gonna be a huge task to put on paper what is floating around in this overworked brain of mine
Bobbejaan is offline
post #86 of 467 Old 01-15-2012, 12:45 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Here we have the masks in place:
It's masked here to 4:3


And here we have it masked to 16:9


And here it's masked to 2.35:1



Everthing works smoothly when it's opperated by hand. The first step of the automation will start next - connecting the motors to the cables to move the masks!
Bobbejaan is offline
post #87 of 467 Old 01-15-2012, 01:38 PM
AVS Special Member

RTROSE's Avatar

Join Date: Dec 2005
Location: South Central Indiana
Posts: 6,149
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 45
Very nice, well done. Now when you get all the mechanical parts hooked up and working you need to post a YouTube video of it all.


Regards,

RTROSE

My (slower than molasses) HT build here.
Now a Certified Carpet Counselor and Plumbing Counselor (Self given titles - pay no attention).
Enjoying my "almost done" theater.
RTROSE is offline
post #88 of 467 Old 01-15-2012, 10:41 PM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Quote:
Originally Posted by RTROSE View Post

Very nice, well done. Now when you get all the mechanical parts hooked up and working you need to post a YouTube video of it all.


Regards,

RTROSE

Thank you RT. I will post a vid as soon as everything is up and running.
Bobbejaan is offline
post #89 of 467 Old 01-16-2012, 06:21 AM - Thread Starter
Senior Member

Bobbejaan's Avatar

Join Date: Oct 2005
Location: Sunny South Africa
Posts: 305
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
You've asked for it, you got it!

http://youtu.be/128vITyKL-A

Please excuse the poor quality of the clip. I was so excited to see it work so I just snapped the vid with my phone ( will post a better video later) to show you guys!
Bobbejaan is offline
post #90 of 467 Old 01-16-2012, 06:30 AM
AVS Special Member

RTROSE's Avatar

Join Date: Dec 2005
Location: South Central Indiana
Posts: 6,149
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 45
Many thanks! That is Sooooo Cool! Well done and everything works so smoothly. I would probably just sit there and run the thing back and forth and not get anything else done.

Regards,

RTROSE

My (slower than molasses) HT build here.
Now a Certified Carpet Counselor and Plumbing Counselor (Self given titles - pay no attention).
Enjoying my "almost done" theater.
RTROSE is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
