post #91 of 1273 Old 03-04-2012, 06:59 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
A few more pics. Getting close to finishing all the framing details for the theater.

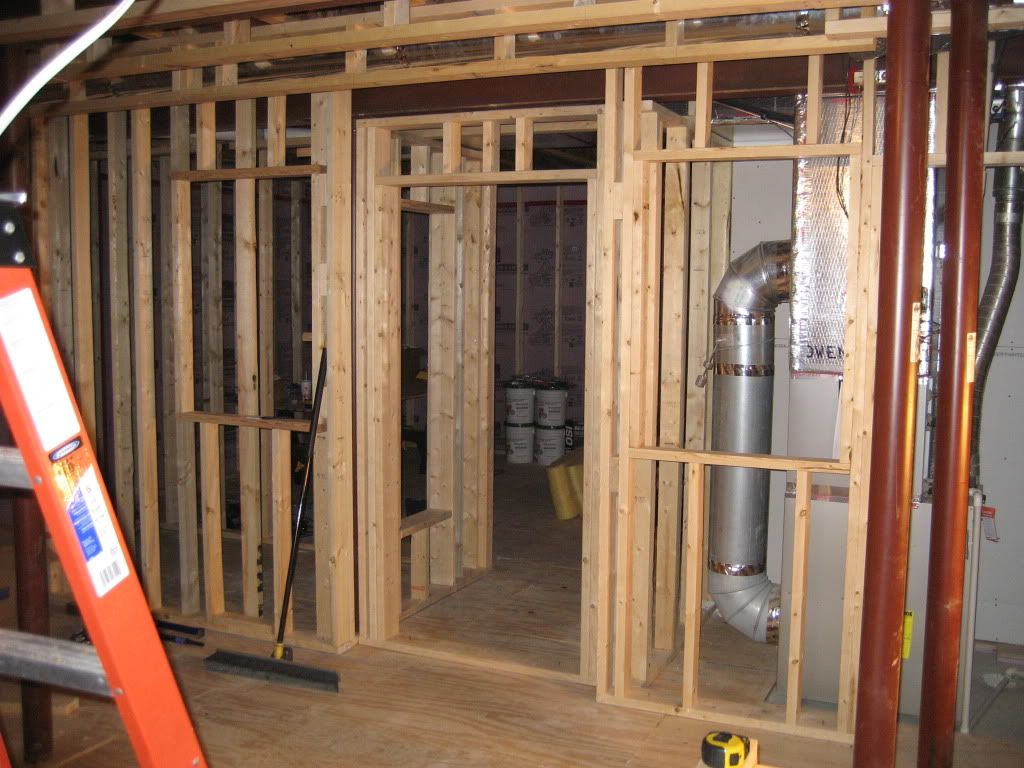

Nearly complete entrance.

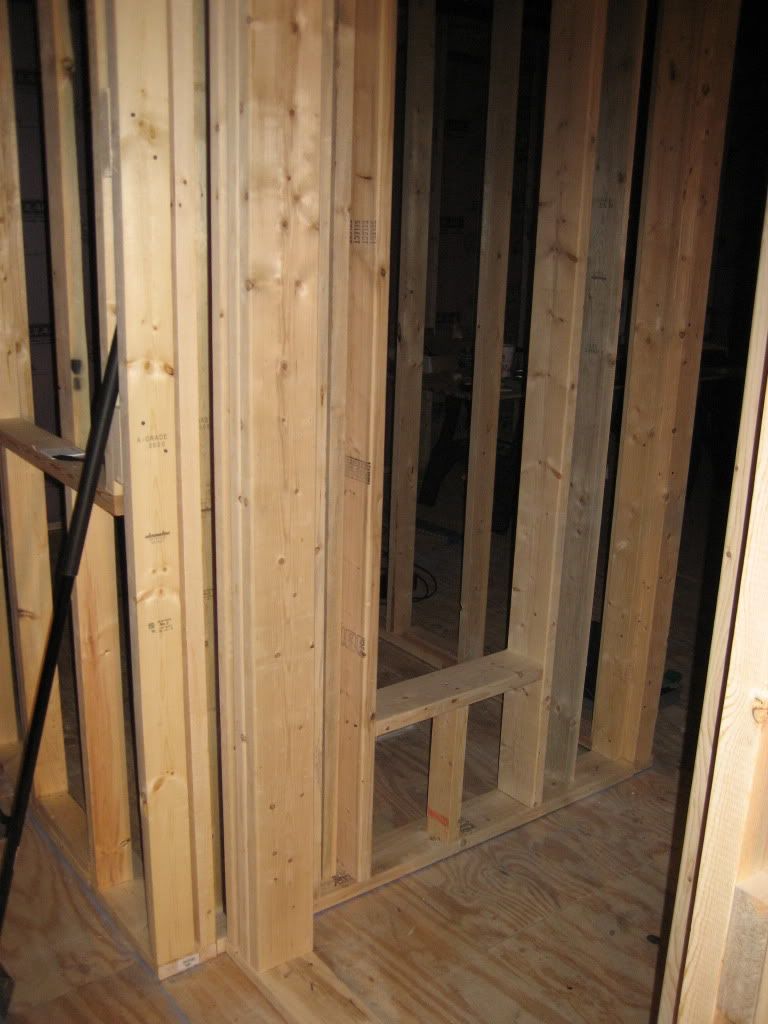

Rack location in the entryway.

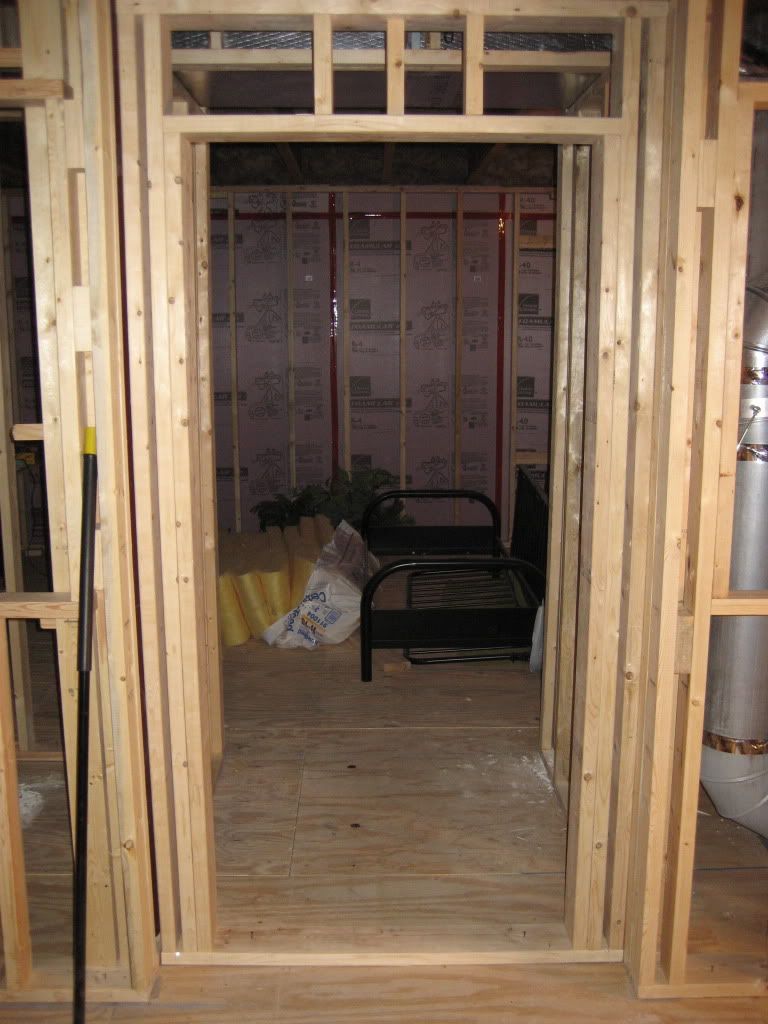

Entrance view from inside the theater.

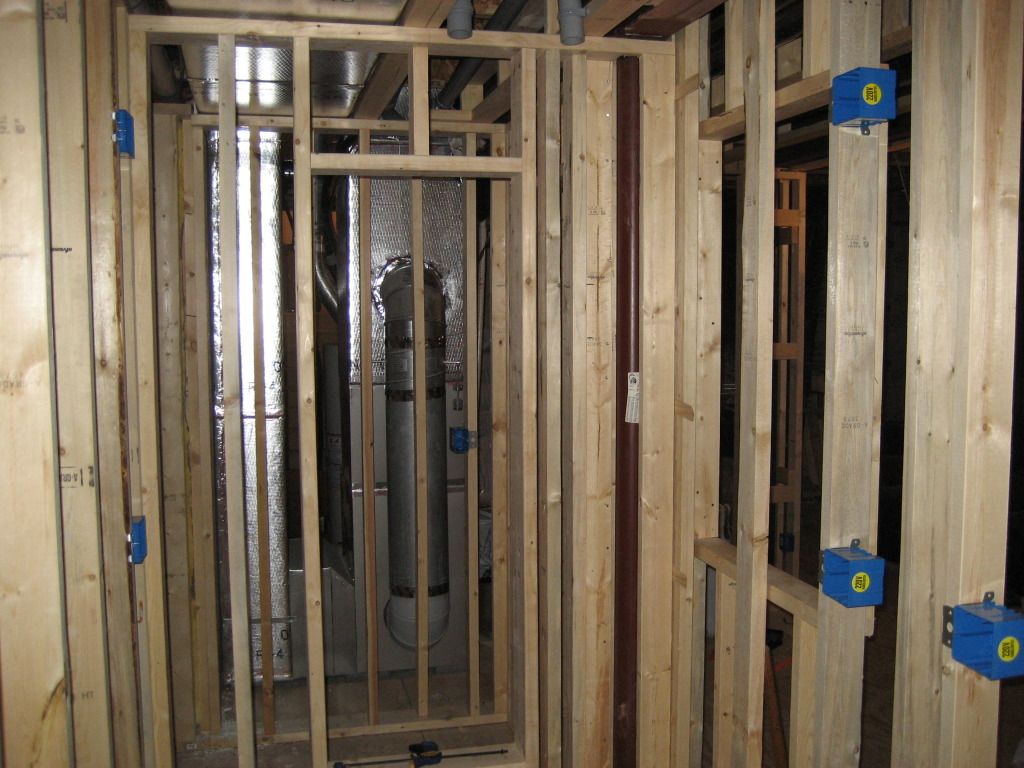

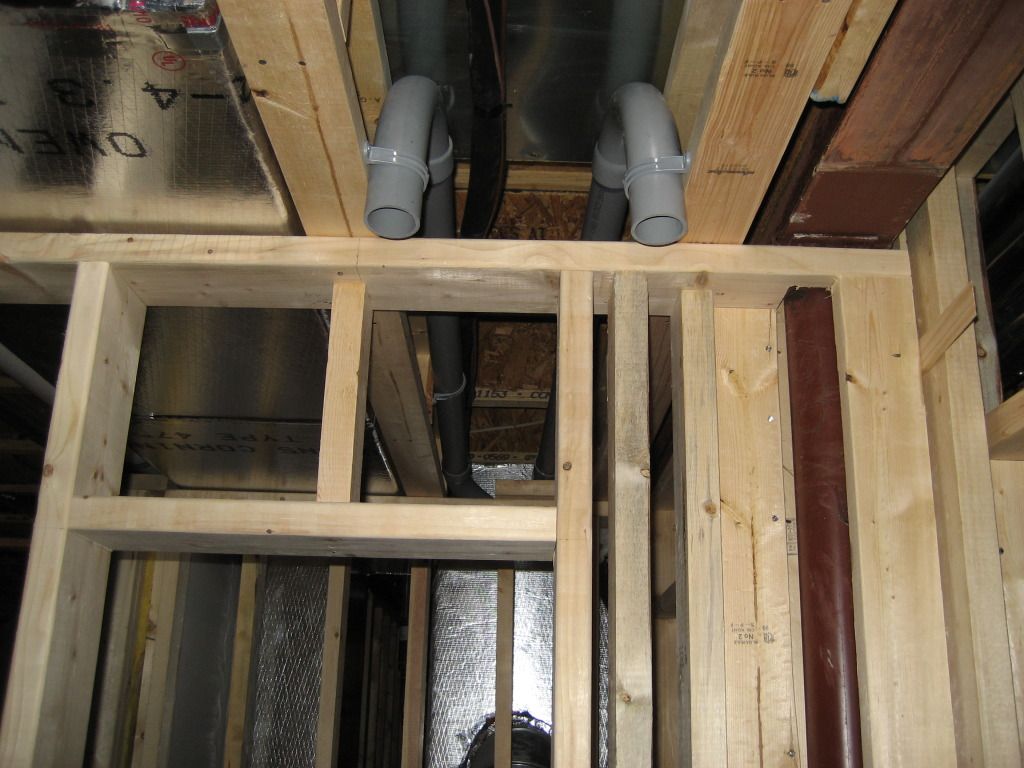

Also worked on the ceiling structure in the equipment room and entrance. One of these days I'll have something new to share other than framing pics.
vanice is online now
Sponsored Links
Advertisement

post #92 of 1273 Old 03-04-2012, 07:17 PM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Looks sweet! That is a lot of framing. Just wait until electrical.

Keep up the great work!

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #93 of 1273 Old 03-05-2012, 04:43 AM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
I would be done with the theater by now if I wasn't also framing out the rest of the basement at the same time. I am actually looking forward to electrical. A change of pace and I might actually be able to see what I am doing down there with a few more lights.

Won't be but a few small protrusions into the theater for wiring like Damelon did for his. Most wiring will be run through soffits.

Going to try and get an HVAC guy in this week to give me some suggestions and help me out with the capabilities of my current system. I really hope HVAC doesn't hold me up or cost me a fortune.
vanice is online now
post #94 of 1273 Old 03-06-2012, 06:30 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
A few deliveries have shown up.





Bam!




Looking forward to putting this stuff to use. Quick shipping from the Soundproofing Company.
vanice is online now
post #95 of 1273 Old 03-06-2012, 07:00 PM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Wow. That is a lot of OSB and Green Glue. Good choice on the OSI sealant. It is what I am using as well.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #96 of 1273 Old 03-06-2012, 07:18 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
Tell me about it. Theater, equipment room, and IB enclosure all getting OSB. Hoping that the floor joists above can handle all of it.

The guys who did the HVAC for my house are currently looking at laying out the basement. Luckily the original system was sized to handle the additional square footage in the basement. Now I just need to figure out how I am going to control the theater room temp. Thought about a dead vent but I may hold off since I have the space/ability to add it later if needed.
vanice is online now
post #97 of 1273 Old 03-08-2012, 12:00 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
Have spoken to the HVAC guy a couple of times now. I think he is starting to understand what I want to do with the theater. Will have one supply (on the front left wall if you are looking at the screen) and one return centered on the back wall (hopefully to help pull the warm projector air out). I have sent them a few pictures from Damelon's build to try and give them a visual representation of what I am trying to accomplish.

If I need to I will add a dead vent in the equipment room to pull air out and into the main room.

They are a little pricier than I had hoped but I don't really feel comfortable cutting holes in my supply and return trunks. This is probably one of those cases where you spend the money, get it done right, and spend your time doing other things that you know you can do... even if it's not very fast.
vanice is online now
post #98 of 1273 Old 03-12-2012, 07:46 AM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
Man I feel like I am spinning my wheels. I took off Friday to work in the basement which gave me three days of quality time to dedicate and I still look around and wonder what I spent my time on. I am framing/finishing approx. 1200 sqft of space so it will take time, especially for a non-pro, but man this is dragging on.

Sorry, no pictures yet. Maybe I can snap a few tonight to post. Main completion was the theater door opening. Now I need to see what I can find in the solid core door family that fits my needs. Have people found it easier/cheaper to order from the big box stores or from local specialty shops?
vanice is online now
post #99 of 1273 Old 03-12-2012, 08:20 AM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
I know how it feels to work for hours and think that you got nothing done. But you did!

Hang in there and keep up the good work!

I think that the general consensus is to order your door from shop and avoid the big box stores. That is what I did. They even cut it down to the height I needed for a small fee.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #100 of 1273 Old 03-12-2012, 10:48 AM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
What type of store did you order your door from? Do they only do doors? I guess what I am trying to figure out is what I need to Google to find a location in my area.

Post #100 milestone!
vanice is online now
post #101 of 1273 Old 03-12-2012, 11:43 AM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
I ordered mine from a local lumber yard. Try searching millwork and your city. Also a building supply warehouse might have a recommendation on where to go.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #102 of 1273 Old 03-12-2012, 01:14 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
Thanks for the info. I have a lumberyard minutes from my house so I may have to drop in there and see what they have to offer. I will also do some online searches to see if any other options are available.
vanice is online now
post #103 of 1273 Old 03-12-2012, 01:34 PM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Sounds good. Remember to look for a thick solid core door. Most are 1 3/8" but ask about a 1 3/4" for the added mass. Also see if they will hang it on an exterior jamb so that there is built in weather stripping to seal it up. You might also want to consider 4 hinges if you want to add more weight to it in the form of an MDF panel with Green Glue. The place where you order the door from should be able to satisfy all of these requests for you.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #104 of 1273 Old 03-12-2012, 07:10 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
That sounds good. Definitely going with 1 3/4" with 4 hinges. Will probably add more mass on the interior sideI had considered the soundproofing companies door seals. I'm sure the weatherstripping is cheaper. Wonder if the SPC seals are worth upgrading to?

Here are a few pics of progress.

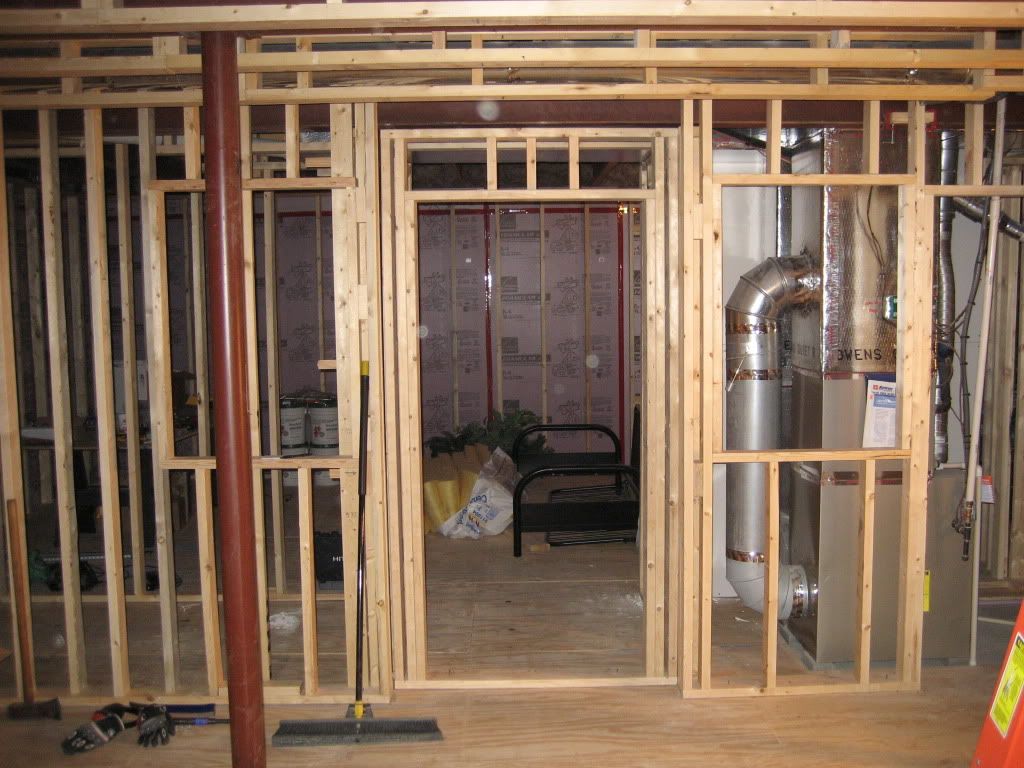

The updated theater entrance.

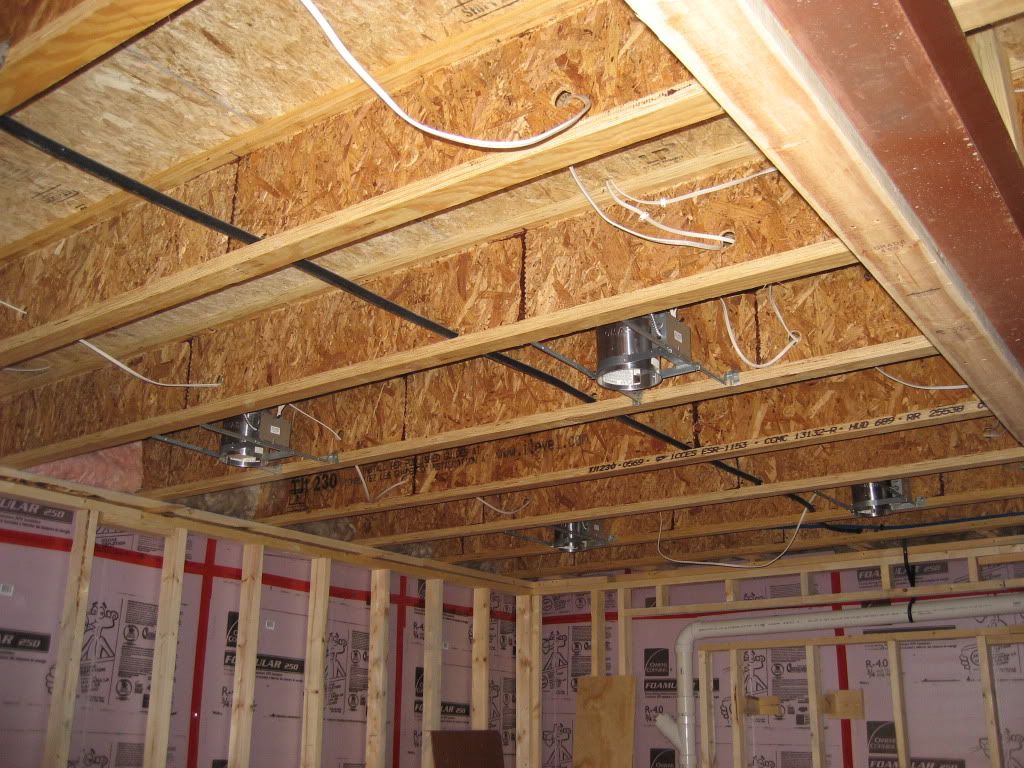

And soon... let there be light!

vanice is online now
post #105 of 1273 Old 03-16-2012, 12:31 PM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Looks good!

I assume that you are going to put those lights in backer boxes to preserve sound isolation. Also attaching them to the joists like that and then to the ceiling drywall will cause some recoupling.

I don't know much about the soundproofing company door seals. An automatic door bottom from them to seal the gap between the door and the floor would be a good idea but I think that you would be fine with some weatherstripping like what goes on exterior doors for around the top and sides.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #106 of 1273 Old 03-16-2012, 02:30 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
Guess I should have specified that the can lights are not in the theater. So no backer boxes needed.

I need to do more research on the door. Would be nice to save a little money on the door seals. I think the automatic bottom seal is probably a definite.

College basketball has put a hold on my work this week. I love this time of year but it really hurts productivity.
vanice is online now
post #107 of 1273 Old 03-16-2012, 06:26 PM
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 616
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by aaustin View Post

Wow. That is a lot of OSB and Green Glue. Good choice on the OSI sealant. It is what I am using as well.

I like the OSI sealant better than the Silenseal. Better consistency, less air in each tube, overall easier to work with.
Jon_B is offline
post #108 of 1273 Old 03-16-2012, 06:32 PM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Quote:
Originally Posted by Jon_B View Post


I like the OSI sealant better than the Silenseal. Better consistency, less air in each tube, overall easier to work with.

I agree. And if the soundproofing company is selling it then it must be good.

Vanice;
If you get your door mounted on an exterior jamb with weatherstripping then you'll be fine. That's what I have seen a lot of people do. You can also buy door stops at your local Lowes or Home Depot with kerfed weatherstripping. Replace the ones that come with the door with those if the door shop won't just put them on for you.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #109 of 1273 Old 03-16-2012, 07:22 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
I'll keep that in mind when I start looking at doors. Never looked at them before so it will be a learning process.

I hope that is the case with the OSI. Still a little ways off from using it. Need to get the HVAC in order and get a door fitted so I can lay the OSB and drywall up tight.
vanice is online now
post #110 of 1273 Old 03-27-2012, 11:19 AM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
Well, still framing the rest of the basement. Nearly complete with the bathroom and workout room. I have some minor items to finish with those rooms and then on to the small bar area, columns, and some soffit work. I will still have one wall that I can't complete because it would block my access to getting large supplies into the basement. That wall will have to wait until I get drywall and trim down there before it can go up.

Already have two lighting circuits in and it feels great. Amazing what a little light will do for your mood. Need to add some recepticles so that I can untether myself from the two outlets I have in the corner of the basement. Then on to low voltage and all the worries that go into that. Can't....close...up...wall...may...have...missed...something .
vanice is online now
post #111 of 1273 Old 04-05-2012, 01:31 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
I'm going to be getting to the stage where I need to run all my low voltage throughout the basement and I am getting a little worried that I might forget something. My equipment room will house most (if not all) sources. I have four main areas in the basement that I will need to supply: theater, workout room, multi-TV area, and main req area. This does not include other rooms on the first and second floor that I will have to reach (though most will be a copy of what I do in the basement). The obvious answer is to run conduit to all locations so that I am covered. I plan to do that to an extent but I don't want to fill the conduit at this time. I would prefer it to be for future needs. So is there anything that people have looked back on after the fact and said, "man that would have been nice to add"? One example is have a place to plug in an iPod to play music over in-room speakers. Or have multiple LFE connections in a room so that you have flexibility in sub placement (or the ability to add more than one).

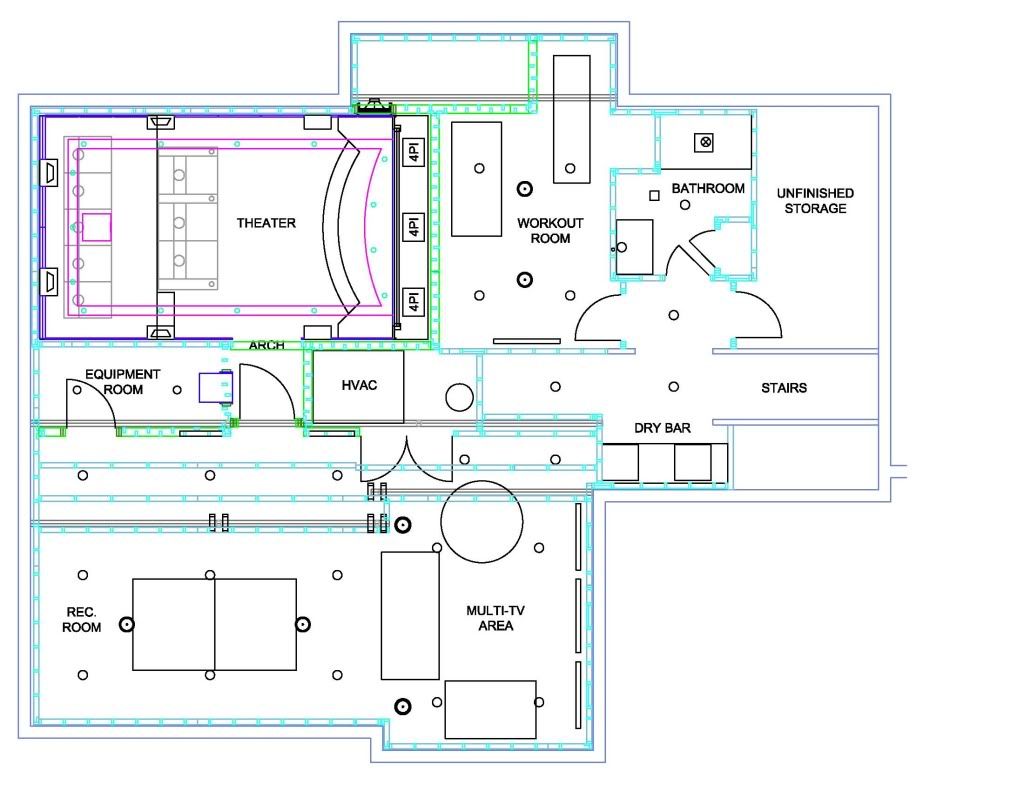

Here is a quick reminder of the floor plan:


Theater
1) Typical viewing on projector (video games, BR, DVD, cable, HTPC), 7.1 surround sound

Workout Room
1) TV (BR, DVD, cable, HTPC) w/ in-ceiling speakers that I would like to have iPod when desired.

Multi-TV Viewing Area
1) Three TVs viewing independant sources (video games, BR, DVD, cable, HTPC), 5.1 (or 5.2) surround sound

Main Rec Area
1) Really just in-ceiling speakers for music listening.


Any help you guys can give me would be greatly appreciated. I think this stage could paralyze me if I think I might be missing something.

Small update: Dry bar area mostly framed and some electrical started. I have some soffit work to do but HVAC is holding that up. Speaking of HVAC, they will be there tomorrow to get that completed. Nice to be moving on to something besides framing.
vanice is online now
post #112 of 1273 Old 04-05-2012, 03:28 PM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
If you will have all of your components housed in the closet then I would recommend doing some HDMI wallplates throughout to plug in other sources like cameras since it would be cumbersome to try to cycle through pictures or what not from the closet. I wired an HDMI, composite video, 3.5mm jack, and ethernet to a wallplate in the room for that very reason. The 3.5mm jack will also come in handy for the Audyssey setup.

Since you'll have so many displays and components have you thought about doing an HDMI matrix system? I'm no expert on them but it allows you to hook up all your sources so that they can be played on any combination of displays. They can get kind of expensive but I think monoprice has one for a reasonable price.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #113 of 1273 Old 04-05-2012, 06:47 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
You are right about not wanting to have to run back and forth to the equipment room to plug in temporary things. I like the idea of having inputs in various locations.

I have looked into matrix switches some but am still learning. My guess is I will try it without for now but maybe look to add if I realize that I can't view something that I want to. Looking at doing a Ceton card with media center extenders (or multiple xboxs) to provide cable and gaming to all the TVs. The popcorn hour may need a matrix switch since I don't plan on having multiple PCHs.
vanice is online now
post #114 of 1273 Old 04-15-2012, 06:11 PM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
Finally some theater progress! Pics, pics, pics...

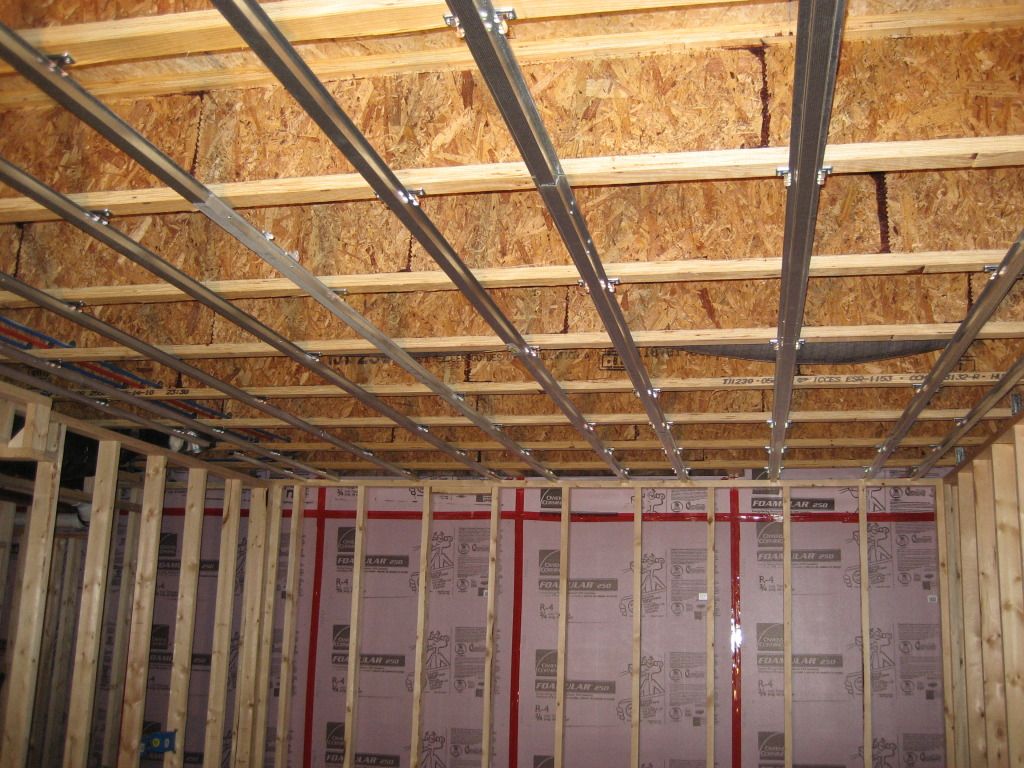

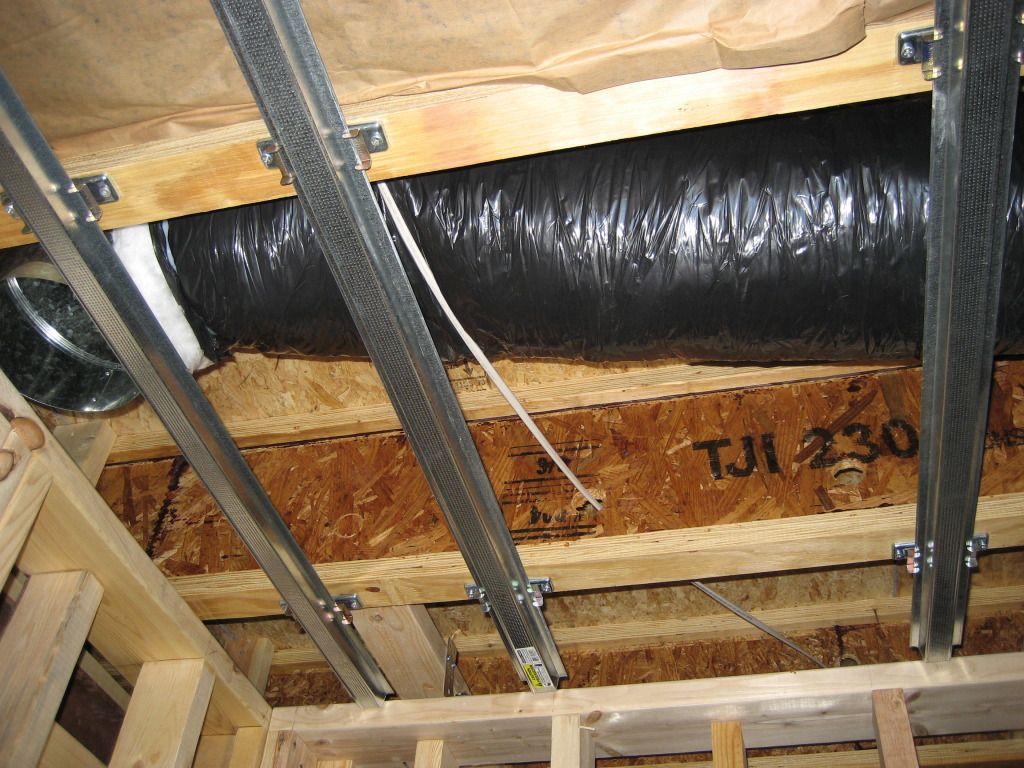

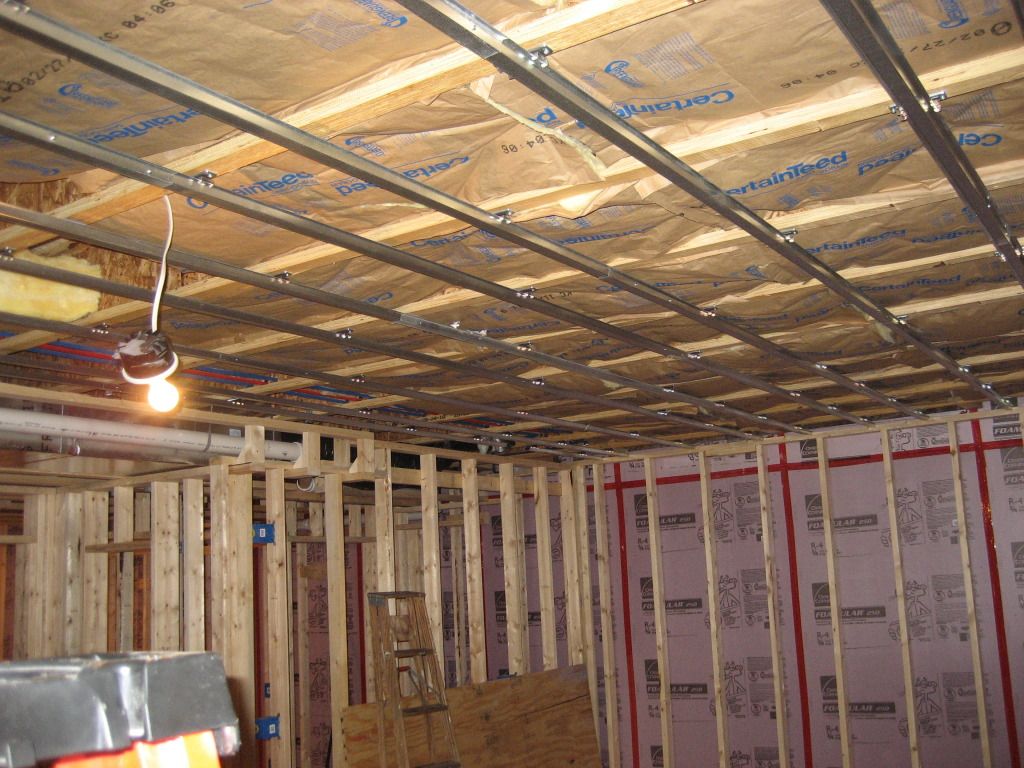

Channel is up on the ceiling.

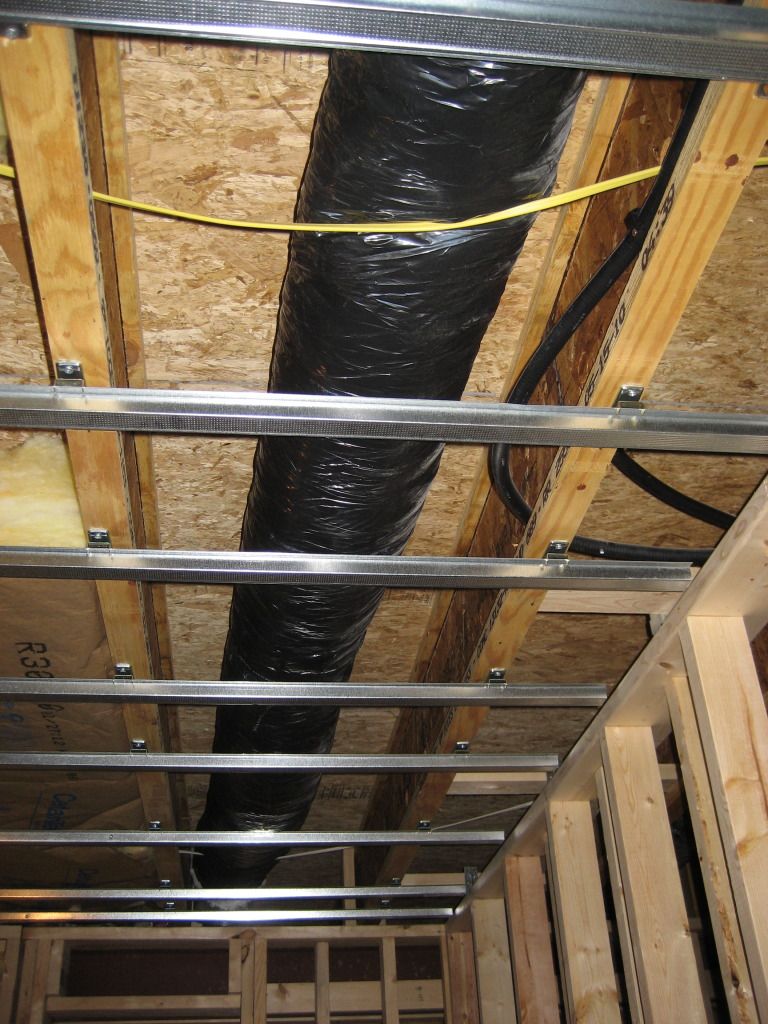

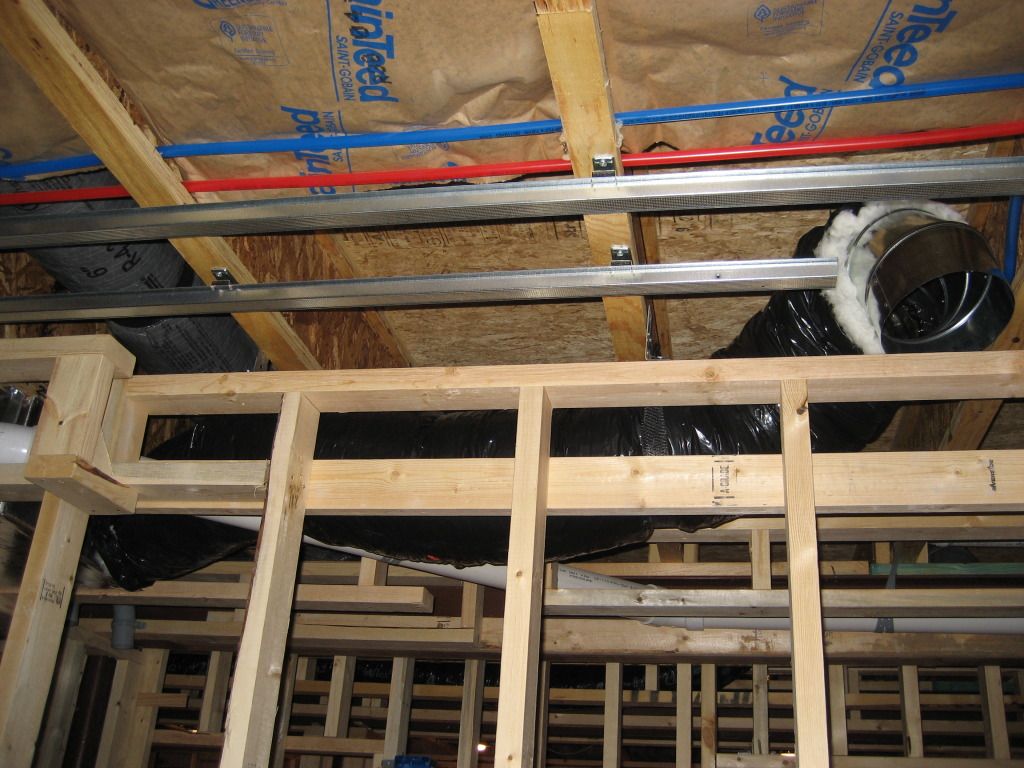

Conduit in the ceiling between the equipment room and the HVAC closet.

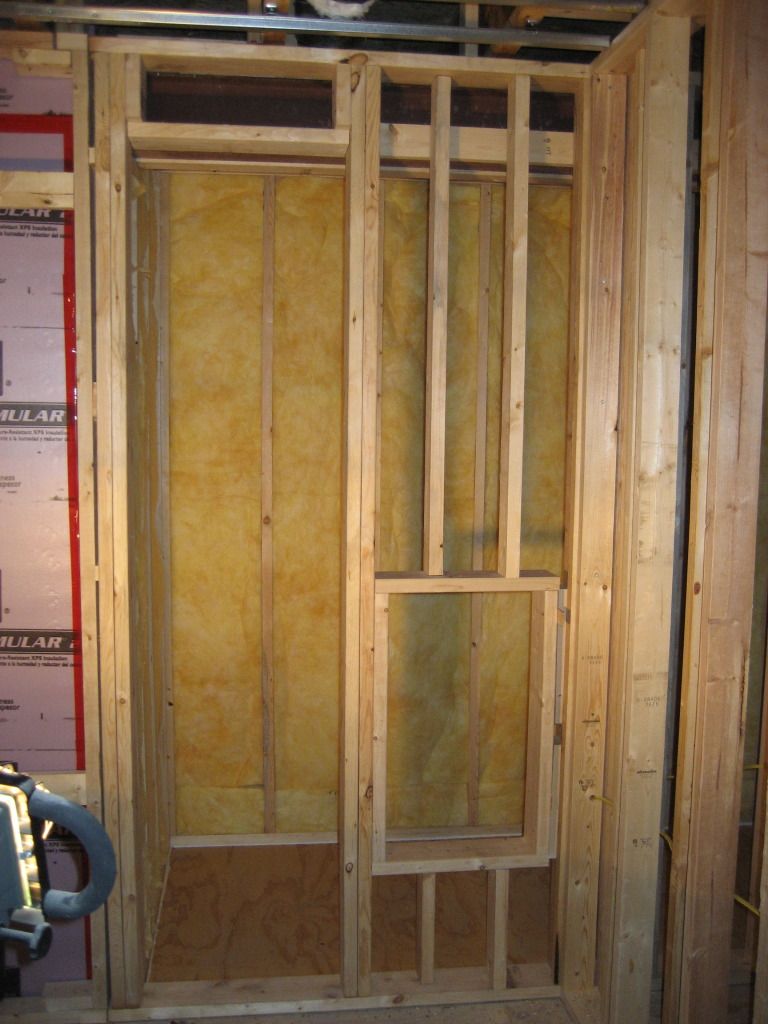

Framed a hole in the IB enclosure for access. This will be behind the screen.


Caulked the bottom of the IB enclosure.


Lot's of insulation...


Outlet locations and conduit in relation to rack opening.


Got most of the insulation in the ceiling above the theater room. Have to pull down the ceiling in the IB enclosure to put the batt insulation up. Today was a long day. Started off with the plan of using blown-in insulation for all theater related areas but after wrestling the machine from the store to the house it was just logistically impossible to use. I really wanted to use blown-in but it just wasn't to be. Instead I am using kraft faced R-30. Hopefull it won't be too much of a concession.


Return air vent. Will be located in the right side soffit.


Air supply. Will be located in the left side soffit.



This week I hope to get most of the insulation up so that I am ready to put up the OSB on the ceiling next weekend.

Question for those who have installed drywall/OSB on furring channels. It says to use fine thread drywall screws for attaching to the channels. Is there anything special about the screws? Other than them not being to long to interfere with the clip/channel connection. I'm worried that the fine thread screws won't have the holding power in the metal channel. Seems like they would be easy to strip out. Any thoughts would be appreciated.
trenter33 likes this.
vanice is online now
post #115 of 1273 Old 04-15-2012, 09:00 PM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
So much progress!!

Looking really good. I know how nice it feels to move on from the framing stage.

I know it's too late now but the general consensus here is the use R-19 fiberglass batts in the ceiling and R-13 in the walls. Anything more and you're spending unnecessary money for little to no improvement. So if you haven't used all of the R-30 I'd return it and save yourself some cash.

Also be sure that the insulation isn't compressed or you will recouple the structure. When you install it in the staggered stud walls cut the batts to fit vertically between the studs on both sides. So if your framing is 16" on center each batt would be 8" wide to fit between the front and back studs. That way you won't have any compression through the wall.

Fine thread screws are made for metal. They are whats used in steel stud construction so they also work well in the metal furring channel. Don't be concerned about their holding strength, it's what they are designed for. Coarse thread is for wood so use those on the walls. I used 1 1/8" fine thread for the first layer and 2" fine thread for the second layer on the ceiling.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #116 of 1273 Old 04-16-2012, 06:24 AM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
Had it not been for the insulation incident I would have probably had a lot of the OSB up on the ceiling already. I was mentally and physically drained after f'ing around with the insulation machine. That thing is not DYI friendly.

Unforturnately I have most of the insulation up and only like one package that hasn't been opened. Really wasn't too costly compared to the other options. Believe it or not I was going to try and get R38 for the ceiling! Had it not been for the nearly 50% premium I would have gone that route. Glad to hear I saved that money which is nice.

So when installing insulation in a staggered stud wall I only put 8" pieces in each cavity and not one full piece in each 15 1/4" cavity (effectively doubling my insulation)? It didn't seem like it was all that tight in the wall. If I can save some insulation that would be great but it seems like I will have a lot of voids created by the framing.

I was just worried that the fine thread screws I got didn't specifically call out metal usage. I may see if there is a different brand that says it can be used for metal. Otherwise I should be good to proceed with the ceiling.

Thanks for following along. Seems like you are about the only one watching... granted it is just now starting to get a little interesting.
vanice is online now
post #117 of 1273 Old 04-16-2012, 06:37 AM
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
You would be surprised at who's watching vs posting, also on the screws, you may want to pm Ted on that, for some reason i thought he recommended something else.

Great start to ur build, ivr had you subscribed since day 1. I will be starting construction on my walls soon.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #118 of 1273 Old 04-16-2012, 06:40 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 3,899
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Liked: 201
+1

There are lots of us that just watch as things progress. Looking great, BTW. I'm envious!

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is online now
post #119 of 1273 Old 04-16-2012, 07:03 AM - Thread Starter
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 41
Thanks for chiming in. Things are about to start getting way more interesting. I have two huge stacks of drywall clogging up my garage right now. Need to get the OSB up and out of the way so I can get that to the basement this weekend. In the meantime I have a lot of wiring and low voltage to run.

I have emailed John to see if they have a recommendation beyond the description in their instructions.

Thanks again for following along!
vanice is online now
post #120 of 1273 Old 04-16-2012, 07:47 AM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Ok so in regards to the insulation:

Your staggered stud wall is 5.5 inches deep. In between each set of studs on the theater side there is a stud in the middle for the other side. That means that along that middle stud there is only 2 inches between the front of the bottom plate and that stud. R13 insulation is 3.5 inches deep so if you lay a batt across that stud it will be compressed and recouple your wall. To stop this you install two 8" batts in each cavity (one on each side if the back stud) so that it doesn't compress against the back stud.

I hope that makes sense now.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
Reply Dedicated Theater Design & Construction

Tags
Speaker Systems , Jvc Dla Rs45 Home Theater Projector 1080p Hdmi , Playstation 3 160gb System , Xbox 360 250gb Console With Kinect
Gear in this thread

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
