post #541 of 576 Old 04-15-2014, 09:40 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Starting point: 80lb solid core door from Lynden Doors:




A shame to cover a nice birch finish but sound isolation comes first smile.gif




Add 3/4" MDF layer:




Borrow my neighbor's drill press:




Drill door latch hole into spruce:




Rather than drilling the usual large hole for handle mechanism I went with this:




Cutout ready:




Glued and screwed into place along with 3/4" MDF edging which will support fabric track:




The flipside:




Door now weighs 130lbs and adds some damping. Next is to cut down the key stock I bought to address the door thickness.

J_P_A likes this.
235 is offline
Sponsored Links
Advertisement

post #542 of 576 Old 04-16-2014, 08:12 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked: 264
That's going to be one heck of a door! You've got my stamp of approval smile.gif
Mfusick likes this.

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is offline
post #543 of 576 Old 04-18-2014, 07:23 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Thanks JPA, now if I could only remember where I left my door bottom from Ted.......
235 is offline
post #544 of 576 Old 04-19-2014, 09:49 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked: 264
^^^^^. Haha that's funny....... On second thought. I haven't seen mine in months, and I have a sudden sinking feeling about that load of cardboard boxes I tossed a while back wink.gif

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is offline
post #545 of 576 Old 04-21-2014, 07:43 PM
AVS Special Member

RTROSE's Avatar

Join Date: Dec 2005
Location: South Central Indiana
Posts: 6,167
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 47
Man that is a big (heavy) door. Please, please, please buy and install appropriate handles/locking mechanisms built to handle that kind of weight. I know this sounds like it is obvious but having been locked in a theater (bunker) before is can be rather traumatic. Depending on who you get locked in with of course. biggrin.gif

Regards,

RTROSE

My (slower than molasses) HT build here.
Now a Certified Carpet Counselor and Plumbing Counselor (Self given titles - pay no attention).
Enjoying my "almost done" theater.
RTROSE is offline
post #546 of 576 Old 04-22-2014, 02:19 PM
AVS Special Member

W00lly's Avatar

Join Date: Jan 2007
Location: NEBRASKA
Posts: 2,202
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 21
Also make sure you have some extra Heavy duty hinges as my solid core door only had 3 hinges that were not heavy duty and it sagged at least a 1/4" after I installed it mad.gif

Scott

The CopperFields Cinema

          Current Photo's

W00lly is offline
post #547 of 576 Old 04-22-2014, 03:29 PM
AVS Special Member

RTROSE's Avatar

Join Date: Dec 2005
Location: South Central Indiana
Posts: 6,167
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 47
I know this is way OT but W00lly I so love your avatar! It makes me smile whenever I see it. biggrin.gif

Regards,

RTROSE

My (slower than molasses) HT build here.
Now a Certified Carpet Counselor and Plumbing Counselor (Self given titles - pay no attention).
Enjoying my "almost done" theater.
RTROSE is offline
post #548 of 576 Old 04-22-2014, 03:40 PM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 23,476
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 182 Post(s)
Liked: 913
Lol that baby seems so angry, I am guessing it's due to lack of progress pictures biggrin.gif

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is online now
post #549 of 576 Old 04-23-2014, 01:24 PM
AVS Special Member

cw5billwade's Avatar

Join Date: Aug 2011
Location: GA
Posts: 1,374
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked: 119
cw5billwade is offline
post #550 of 576 Old 04-24-2014, 07:33 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
This 2 year old at a Penguins game might give him a run for his money...

235 is offline
post #551 of 576 Old 04-24-2014, 07:38 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
RTROSE / W00lly, I hope this setup is sufficient for my door. I can afford to be locked in the bunker for a while but any sagging in that door will cause rubbing on the door jamb. So far so good.
235 is offline
post #552 of 576 Old 04-24-2014, 08:00 AM
AVS Special Member

W00lly's Avatar

Join Date: Jan 2007
Location: NEBRASKA
Posts: 2,202
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 21
Those hinges look beefier then the hinges on mine. I think you will be ok cuz that door is going to weight a ton. Post up pics when you get it hung

RTROSE

I picked it so you know exactly who is posting when you see it. tongue.gif

Scott

The CopperFields Cinema

          Current Photo's

W00lly is offline
post #553 of 576 Old 05-02-2014, 11:30 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Corner chunk trap:






I managed to install all the 2" treatments on front wall without any fastening - friction fit all the way smile.gif. This product had a black coated layer so no need to cover with any fabric:

235 is offline
post #554 of 576 Old 05-03-2014, 07:54 AM
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 4,536
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked: 259
Nice progress! 130lb door, nice job on that also.


Via Mikes brain/thumb interface, LLAP
mtbdudex is online now
post #555 of 576 Old 05-03-2014, 09:22 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Thanks, here's the door where it belongs.


235 is offline
post #556 of 576 Old 05-03-2014, 09:41 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20

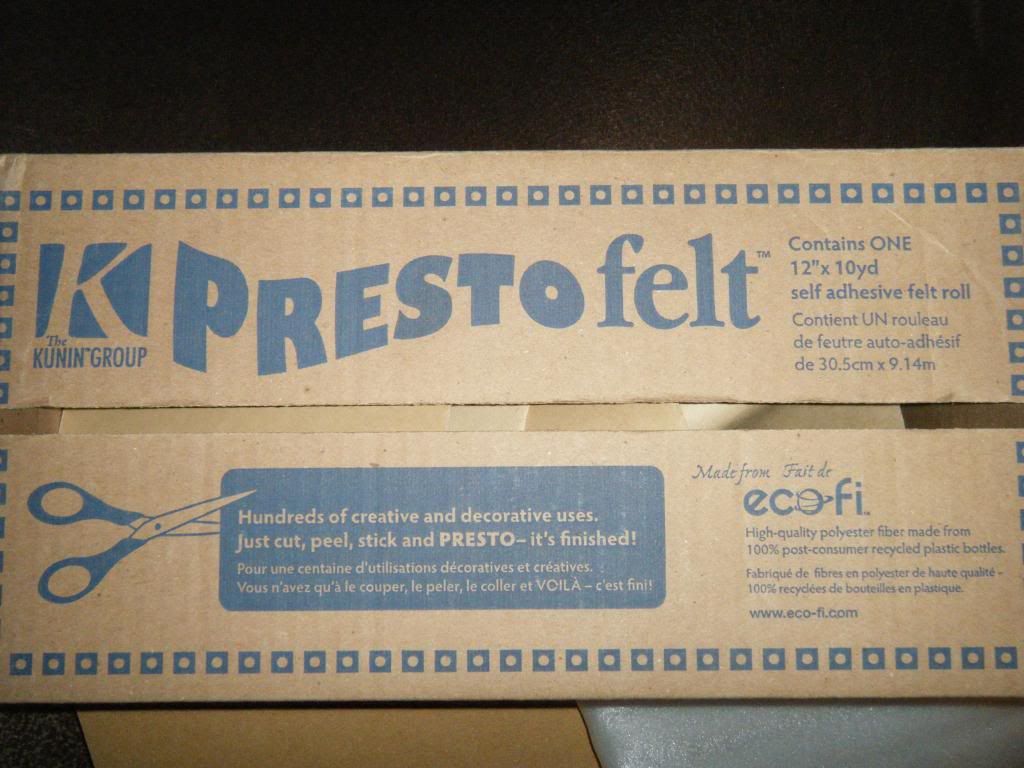

I wanted to avoid having to fill and sand all the screw holes and joints in the vertical section of the soffits. I found this brown felt roll with peel and stick backing at Fabricland at clearance prices. They also had matching felt fabric that I will use on the bottom portion of the soffits and the columns:



First section is up. Peel and stick, I like how it turned out smile.gif

235 is offline
post #557 of 576 Old 05-03-2014, 09:50 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20

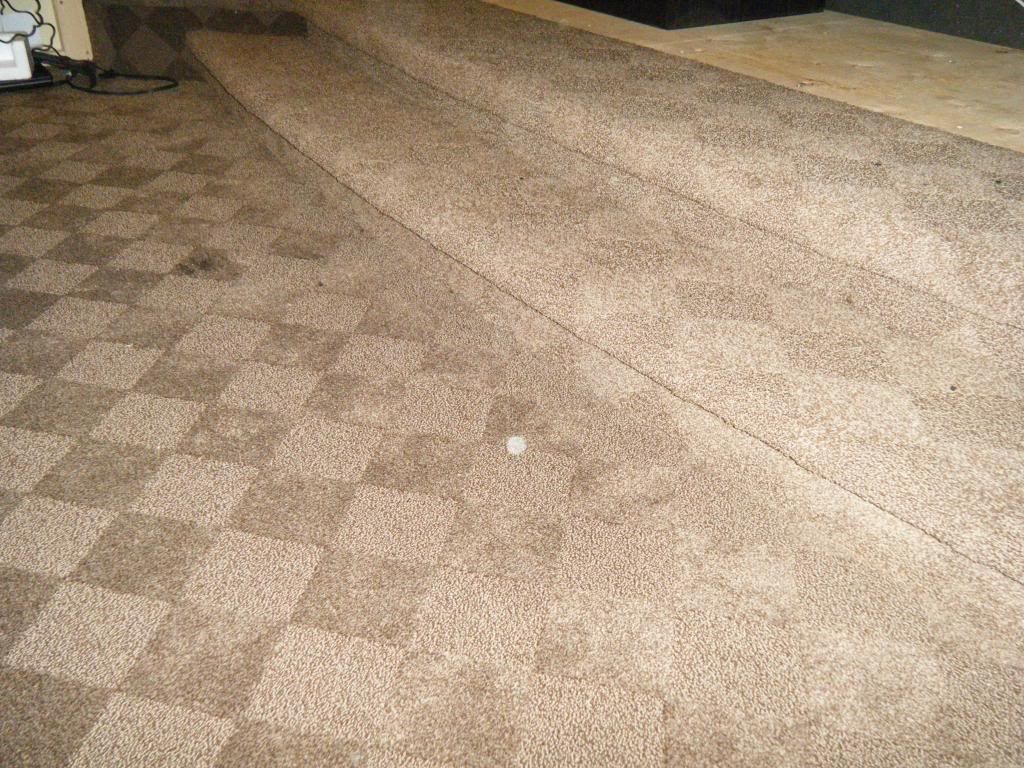

Carpet has been installed for a while. I'm a horrible photographer but this gives you an idea of the color. I had a close call with the installation. The roll they sent me was short from what I ordered. The installer noticed as he unrolled the final piece and it literally stopped at the wall eek.gif He didn't even have to cut it.

235 is offline
post #558 of 576 Old 05-04-2014, 04:49 AM
AVS Special Member

TMcG's Avatar

Join Date: Mar 2010
Location: Earth
Posts: 2,727
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 285 Post(s)
Liked: 304
What is that fiberglass on the front wall with the black coating....is that Insulshield??
TMcG is offline
post #559 of 576 Old 05-04-2014, 07:43 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
It's a 3lb density 2" thick fiberglass by CertainTeed. This product has a black coating: "For applications requiring an exposed, black faced, sound absorbing insulation. "
It cost a bit more but the black coating provides a nicer finish that doesn't need to be covered with fabric. It essentially has the same acoustic properties as the uncoated version which they also sell.
235 is offline
post #560 of 576 Old 05-06-2014, 01:43 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Laying out the brown felt for cutting in strips that are to be applied to soffits. I used masking tape to keep me straight:

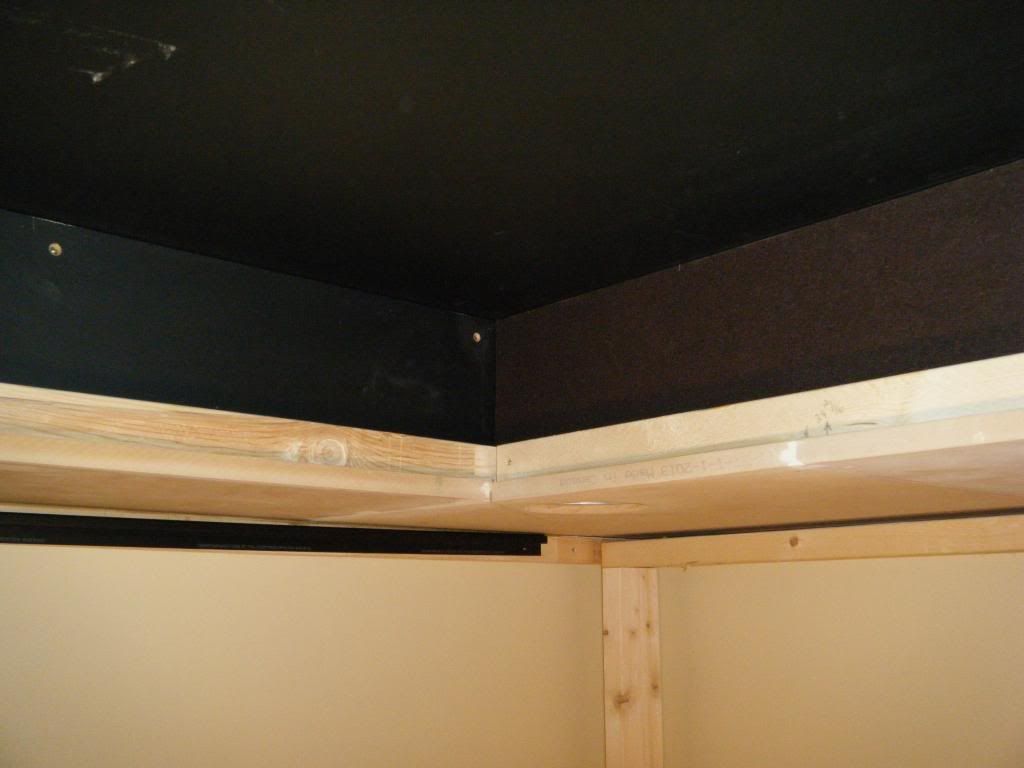

Square profile track on soffits. I used my multi tool to cut a groove for the 45 degree corner:




Fabric installed into track at both ends using pizza cutter:




Corners:





Painted LED lights:





Cutout felt for lights:





Installed LED lights:





Installed HVAC registers:

235 is offline
post #561 of 576 Old 05-07-2014, 11:07 AM
AVS Special Member

cw5billwade's Avatar

Join Date: Aug 2011
Location: GA
Posts: 1,374
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked: 119
cw5billwade is offline
post #562 of 576 Old 05-09-2014, 07:53 AM
Advanced Member

GWCR's Avatar

Join Date: Jul 2009
Location: Cedar Rapids, IA
Posts: 790
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 33
Looking great 235! Keep up the good work!!
GWCR is offline
post #563 of 576 Old 05-09-2014, 02:17 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Thanks guys. Any suggestions on a first movie - preferably something recent. Thx

Start of 6" on back wall:




Down below on back wall:




Final layer is reflective. I left last foot or so non-reflective to possibly aid in riser bass trapping:

235 is offline
post #564 of 576 Old 05-10-2014, 07:00 PM
Senior Member

avtexan's Avatar

Join Date: Mar 2007
Location: Houston, TX
Posts: 491
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 71
Nice progress. One suggestion is if you have any more track to staple go perpendicular with the staples. There is a surprising amount of tension when you get the fabric in the track.



What fabric and color are you going to use?

The Moving Pictures Theater Construction Thread:
http://www.avsforum.com/t/1462881/th...ruction-thread

Houston GTG - Summer 2014
http://www.avsforum.com/forum/61-are...l#post26079610
avtexan is offline
post #565 of 576 Old 05-16-2014, 11:11 AM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 23,476
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 182 Post(s)
Liked: 913
He disappeared biggrin.gif hopefully because he's busy making progress tongue.gif

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is online now
post #566 of 576 Old 05-16-2014, 03:16 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Yup busy making good progress. My updates aren't keeping up. Here's the color of the fabric (the one on the right in this post)
235 is offline
post #567 of 576 Old 06-01-2014, 10:27 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 486
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Curved front soffit with black velvet into track:

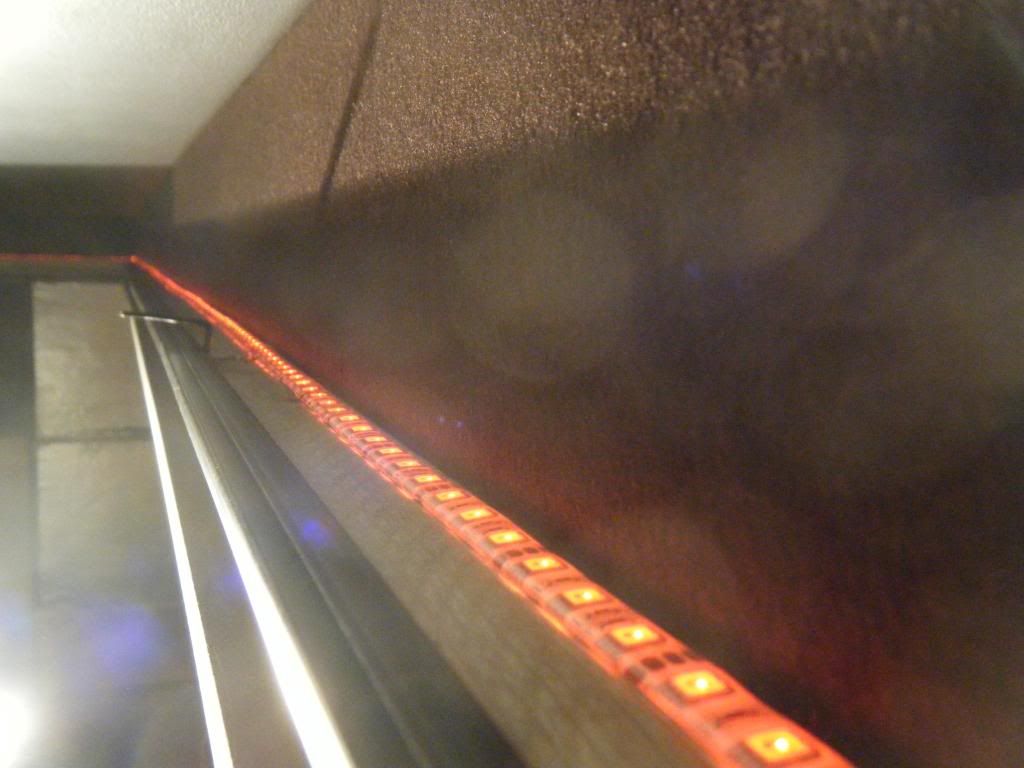

Led strip lights along soffits:

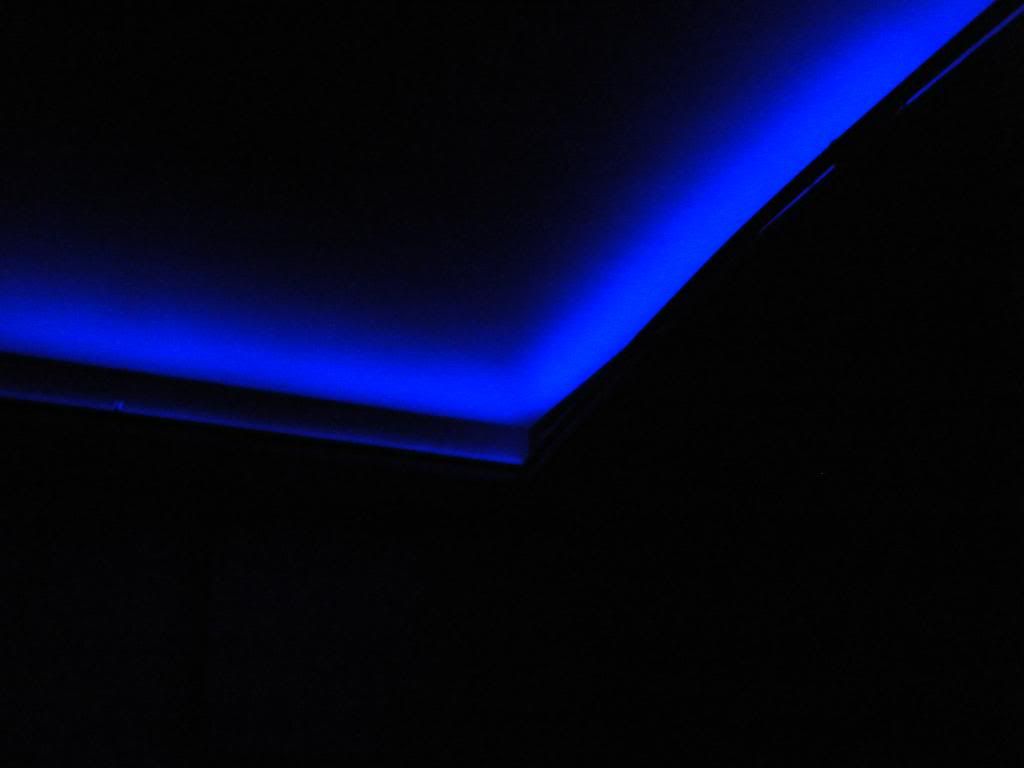

Can't decide between the blue and red:

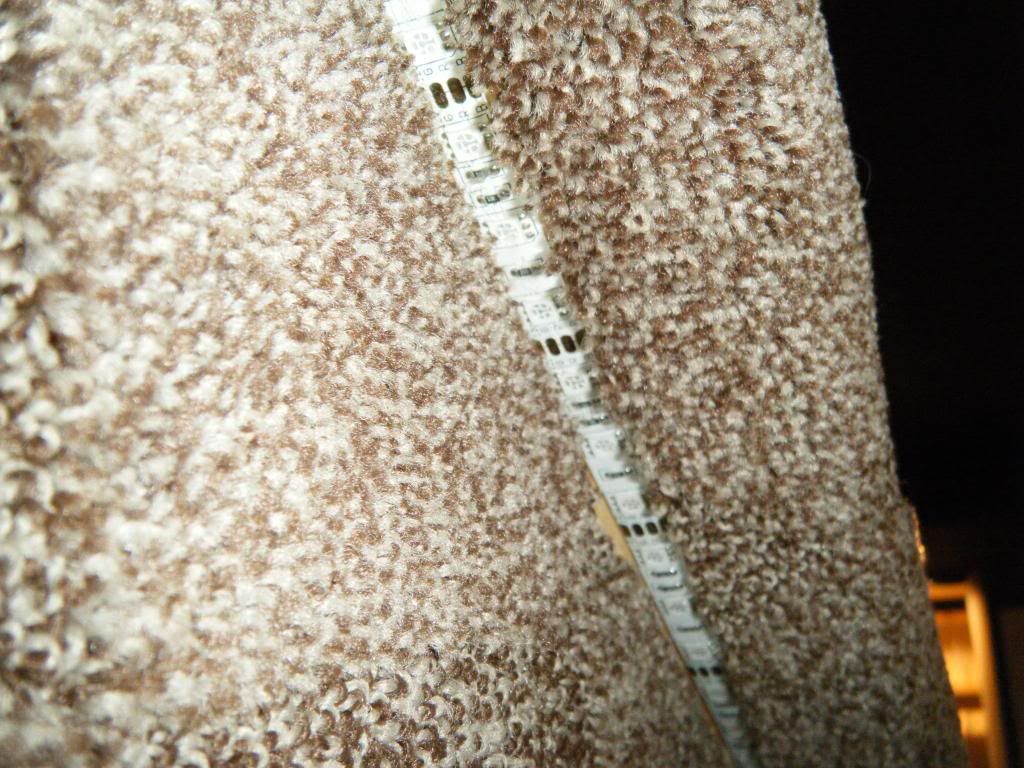

I had the carpet installer leave a gap for riser/step lights:




Peel and stick:

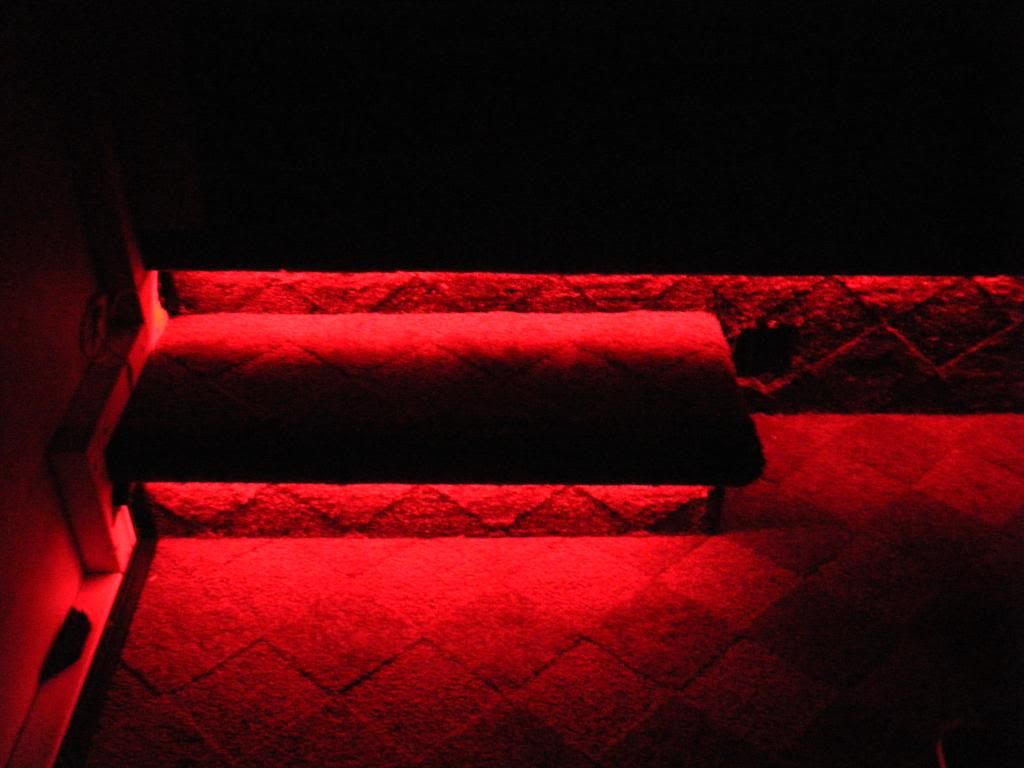

I think I prefer the red:

235 is offline
post #568 of 576 Old 06-02-2014, 07:03 AM
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,199
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 47
Nice work on the LEDs. Those step lights look great. I'm partial to blue in my room but that is what's great about color changing LEDs, you can switch them up at any time for a change of pace.
vanice is offline
post #569 of 576 Old 06-02-2014, 01:23 PM
Member

mleclair's Avatar

Join Date: Apr 2012
Location: Winnipeg, MB
Posts: 24
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Rooms looking great! Love the spirit in the face of adversity feel of the whole thread smile.gif. Nice to see a Winnipeg person on too.
mleclair is offline
post #570 of 576 Old 06-03-2014, 11:47 AM
AVS Special Member

cw5billwade's Avatar

Join Date: Aug 2011
Location: GA
Posts: 1,374
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked: 119
cw5billwade is offline
Reply Dedicated Theater Design & Construction

Tags
Panasonic Pt Ae7000u 1080p Full Hd Projector
Gear in this thread

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
