Old 09-27-2012, 09:46 PM
AVS Club Gold

LeBon's Avatar

Join Date: Jun 2006
Location: Pebble Beach, CA
Posts: 720
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 37
I've used a lot of these in studio applications and they are slick.
http://www.markertek.com/Audio-Equipment/Audio-Interface/RDL-Stick-Ons/Radio-Design-Labs/ST-DA3.xhtml?ST-DA3

It has adjustable gain, and 3 outputs (balanced or unbalanced)

They also make a mono line amp (STA-1M) for more gain.
LeBon is offline
Sponsored Links
Advertisement

Old 09-27-2012, 10:02 PM
AVS Club Gold

LeBon's Avatar

Join Date: Jun 2006
Location: Pebble Beach, CA
Posts: 720
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 37
The EPX4000 has Input Sensitivity of 1 Volt, so you shouldn't need any intermediate amplifier, unless you're driving several amplfier loads from a single preamp output port, so that you might overload the source.
LeBon is offline
Old 09-28-2012, 12:10 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
I was testing this out with loaner Pioneer SC-1527. I connected the sub RCA output from AVR to EPX-4000 RCA inputs. After driving a single buttkicker for about 1 minute the AVR would shut off. I was assuming this was caused by issues between consumer vs pro components. IIRC others were not able to directly connect consumer AVR to Behringer amps....I'll have to see if I can dig those up. Looking at the specs for the AVR....

Input (Sensitivity/Impedance):
Line 380mV / 47K Ohms
Output (Level/Impedance):
REC 380mV / 2.2K Ohms


The unbalanced input impedance on the EPX-4000 is 10K Ohms

Maybe I should just wait until I buy my permanent prepro and hope for the best?
235 is offline
Old 09-29-2012, 10:56 AM
AVS Club Gold

LeBon's Avatar

Join Date: Jun 2006
Location: Pebble Beach, CA
Posts: 720
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 37
Here's another box that seems to address your situation directly:
http://artproaudio.com/artcessories/audio_solutions/product/cleanbox_pro/

Also, cheaper than the Stick-Up box
LeBon is offline
Old 09-29-2012, 11:14 AM
AVS Club Gold

LeBon's Avatar

Join Date: Jun 2006
Location: Pebble Beach, CA
Posts: 720
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 37
LeBon is offline
Old 09-29-2012, 09:55 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Quote:
Originally Posted by LeBon View Post

Great explanations of the gain matching issues with pro vs. consumer equipment:
http://www.hometheatershack.com/forums/home-theater-receivers-processors-amps/35677-gain-structure-home-theater-getting-most-pro-audio-equipment-your-system.html

Thanks for the light reading wink.gif
It looks like I'll just have to wait until I buy my AVR before I'll know if I need a boost between it and the Behringer.
235 is offline
Old 10-13-2012, 12:03 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21

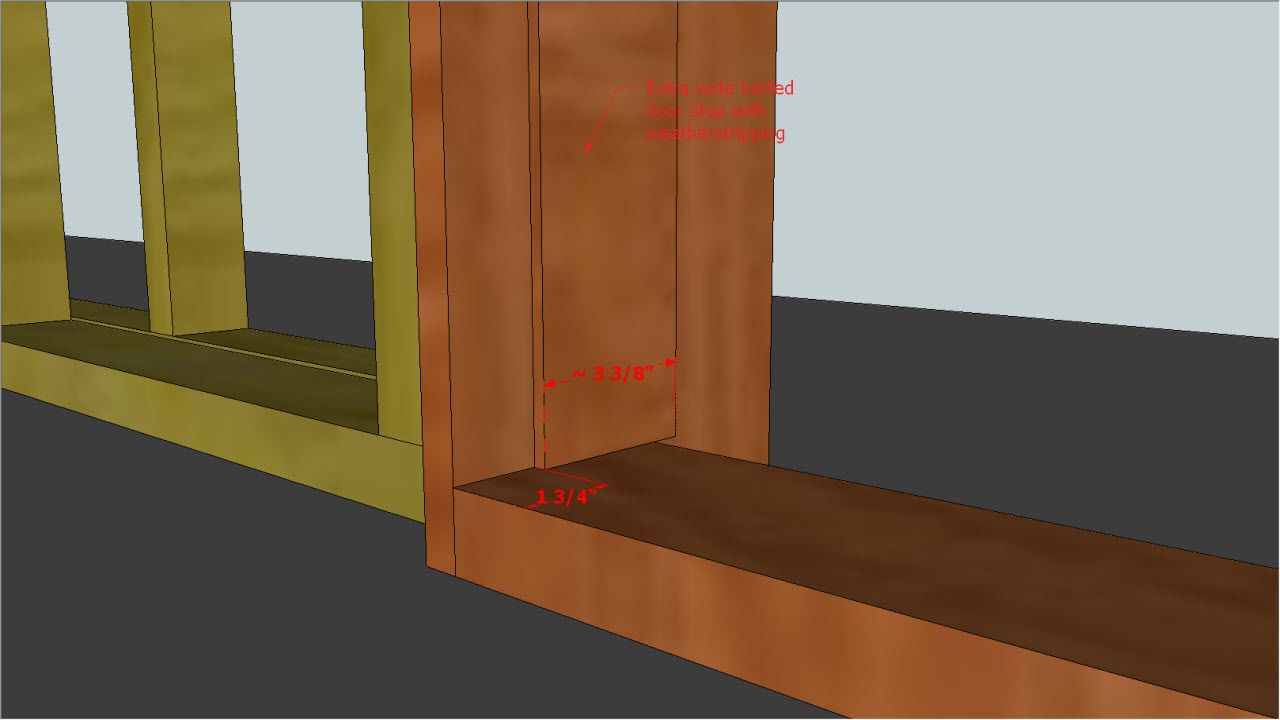

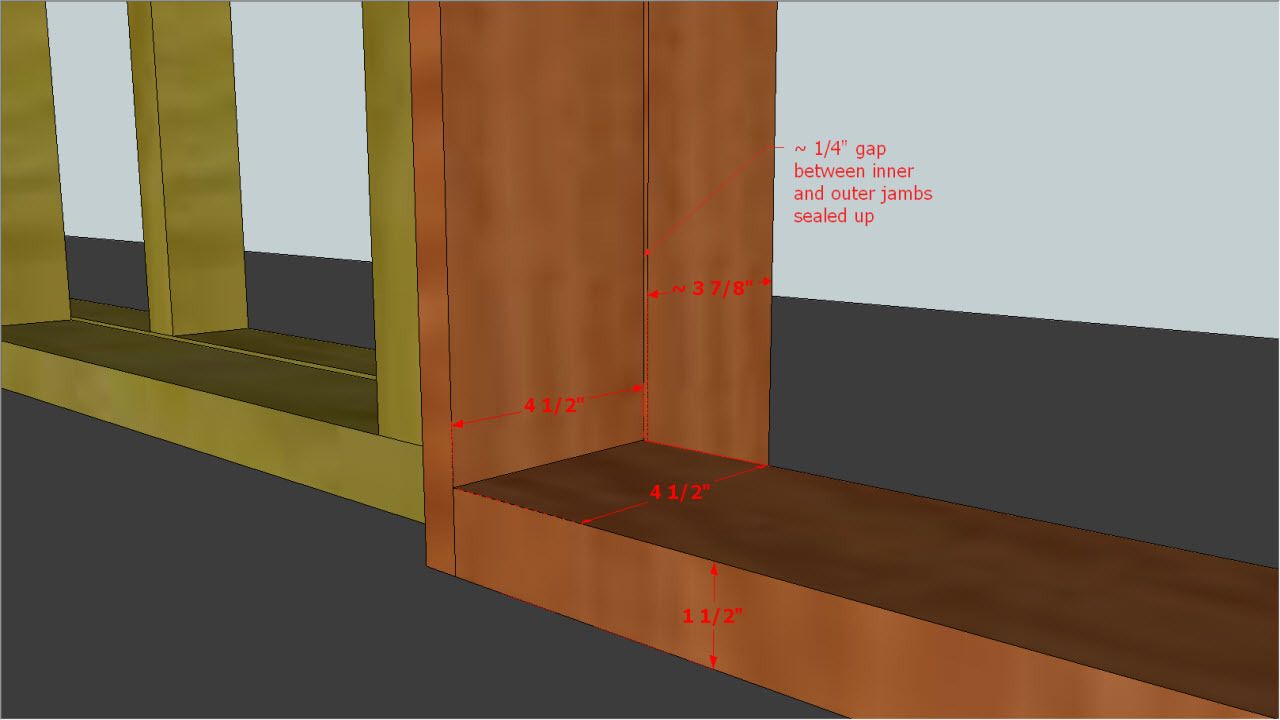

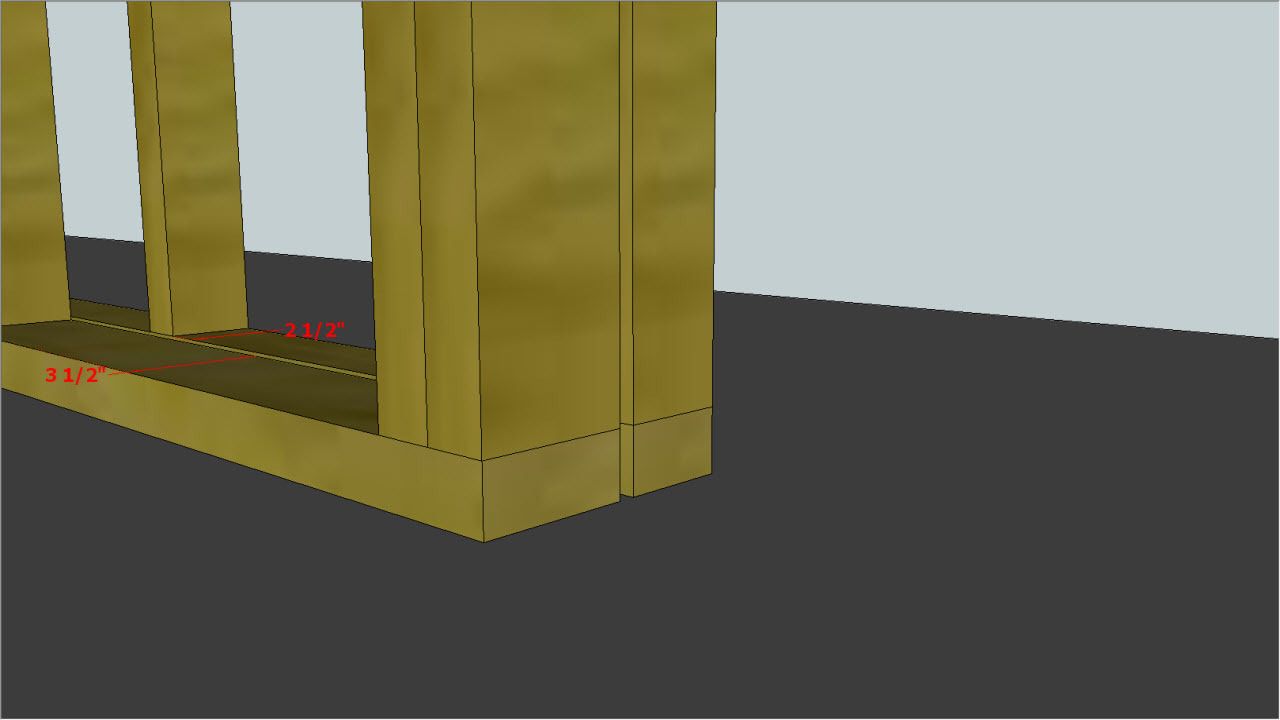

I still think HVAC was the most challenging part of the planning so far but this 'little' door issue has also been interesting. I toyed with the idea of adding two 1/2" layers of MDF to a solid core door but that seemed to complicate things quite a bit. With 2" treatments on the wall I will need an 8" wide-throw hinge (will likely be ordering this hinge). I would also need a door handle that can handle a 3 3/4" thick door. Emtek only seems to go up to 3" thick. Any suggestions that don't include welding?

Theater side wall (2x4 @ 24" OC)


Door jambs and threshold. Could 3/4" MDF be used for the jamb to support 100lb door?


Custom door stop attached to inner jamb only


Put up OSB/DW right up to jamb:
235 is offline
Old 10-13-2012, 05:34 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 21,504
Mentioned: 10 Post(s)
Tagged: 1 Thread(s)
Quoted: 581 Post(s)
Liked: 739
Did you consider using two doors? I've worked on theaters with them and they do work well. Your framing is wide enough to make it doable.
BIGmouthinDC is offline
Old 10-13-2012, 05:22 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Hey Big, Yes I thought about communicating doors but the WAF is pretty low. I think I could easily add a 2nd door later if we aren't happy with the results. Do you think 3/4" MDF will work well holding a 100lb door. I think 2 of the 4 screws in each hinge should line up with a stud (rather than DW or OSB) so longer screws there should help. Thx.
235 is offline
Old 10-13-2012, 05:51 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 21,504
Mentioned: 10 Post(s)
Tagged: 1 Thread(s)
Quoted: 581 Post(s)
Liked: 739
It is those longer screws that will do the holding. MDF isn't the best, don't over tighten those screws or you will strip out the holes.
BIGmouthinDC is offline
Old 10-14-2012, 07:27 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Michigan, USA
Posts: 8,187
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 35
I would say that probably 2X a week we have a gentleman that has a WAF issue with doors. Wife is demanding double doors (French style) or refuses communicating doors. Very common so don't feel alone. One other common point of marital contention is not having a back wall at all. Again, we get these every week, every year.

The door is far and away the weak link in most builds, just due to the surface area. I encourage the guys out there to simply explain that a single door or communicating door is profoundly practical, so given the efforts and expenses going on in the rest of the theater, knowingly leaving such a blatant acoustic hole in the room just makes no sense.

Also, a single door opening can be made very theater-like. I try and encourage guys to play up the possible theater treatments to the door as a peace offering to eliminate french doors from the project.

__________________

Ted



The Soundproofing Company
Ted White is offline
Old 10-14-2012, 11:24 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Quote:
Originally Posted by Ted White View Post

I would say that probably 2X a week we have a gentleman that has a WAF issue with doors. Wife is demanding double doors (French style) or refuses communicating doors. Very common so don't feel alone. One other common point of marital contention is not having a back wall at all. Again, we get these every week, every year.
The door is far and away the weak link in most builds, just due to the surface area. I encourage the guys out there to simply explain that a single door or communicating door is profoundly practical, so given the efforts and expenses going on in the rest of the theater, knowingly leaving such a blatant acoustic hole in the room just makes no sense.
Also, a single door opening can be made very theater-like. I try and encourage guys to play up the possible theater treatments to the door as a peace offering to eliminate french doors from the project.

Thanks Ted. Do you have any examples of 'theater-like' single doors? I'm not sure what you mean by that. Maybe I can PM you my wife's cell number and you can charm her into going with communicating doors....tongue.gif
235 is offline
Old 10-14-2012, 11:25 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Mortise automatic door bottoms or surface mount? Wouldn't mortised bottom caused the neoprene seals on the door bottom to be misaligned with the seals on the door stops?
235 is offline
Old 10-15-2012, 08:15 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21

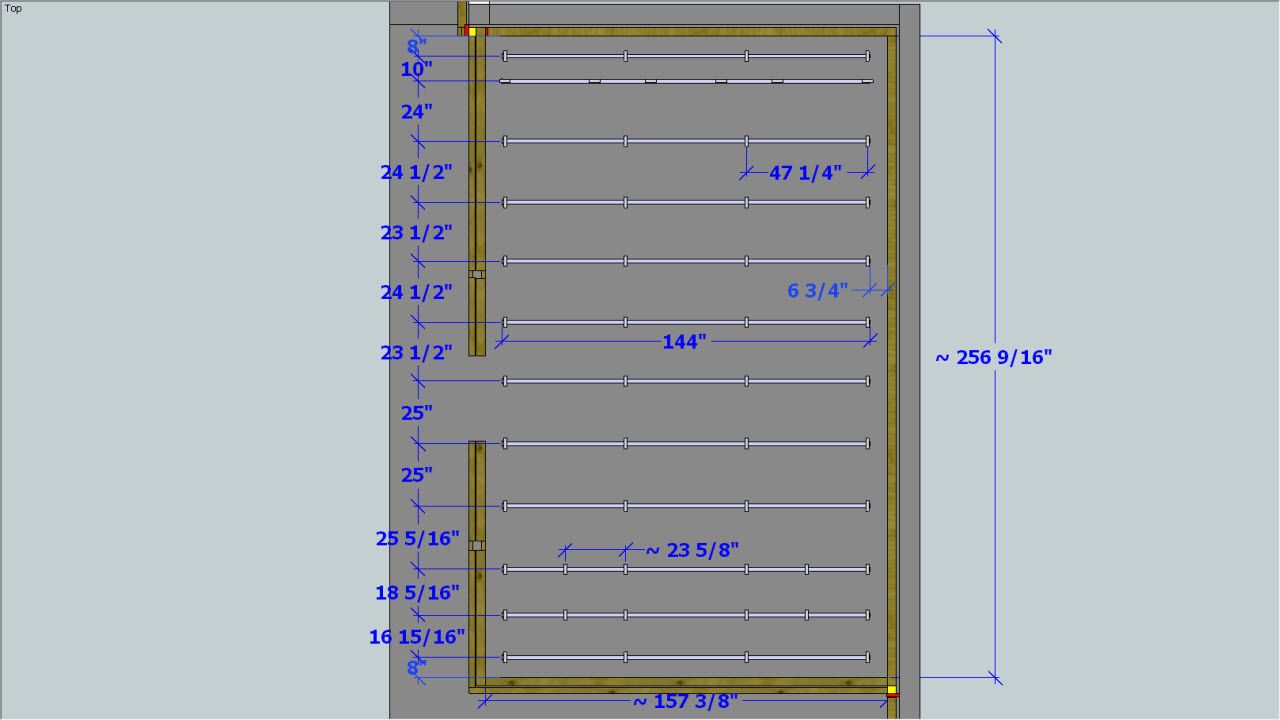

Time for some clips and channel layout. I'll have 5/8" OSB, GG, 5/8" DW. My room is around 13' wide but according to Ted I should be able to get away with 12' channels. Hopefully Ted notices this post and give me his blessing otherwise I may have to PM him directly. I'll throw in a few keywords that might get snagged in his searches: Green Glue, soundproofing, whisper clips, automatic door bottoms tongue.gif
Does anyone know how close to the end of each channel I should install the last clips (I currently have them at 1/2").

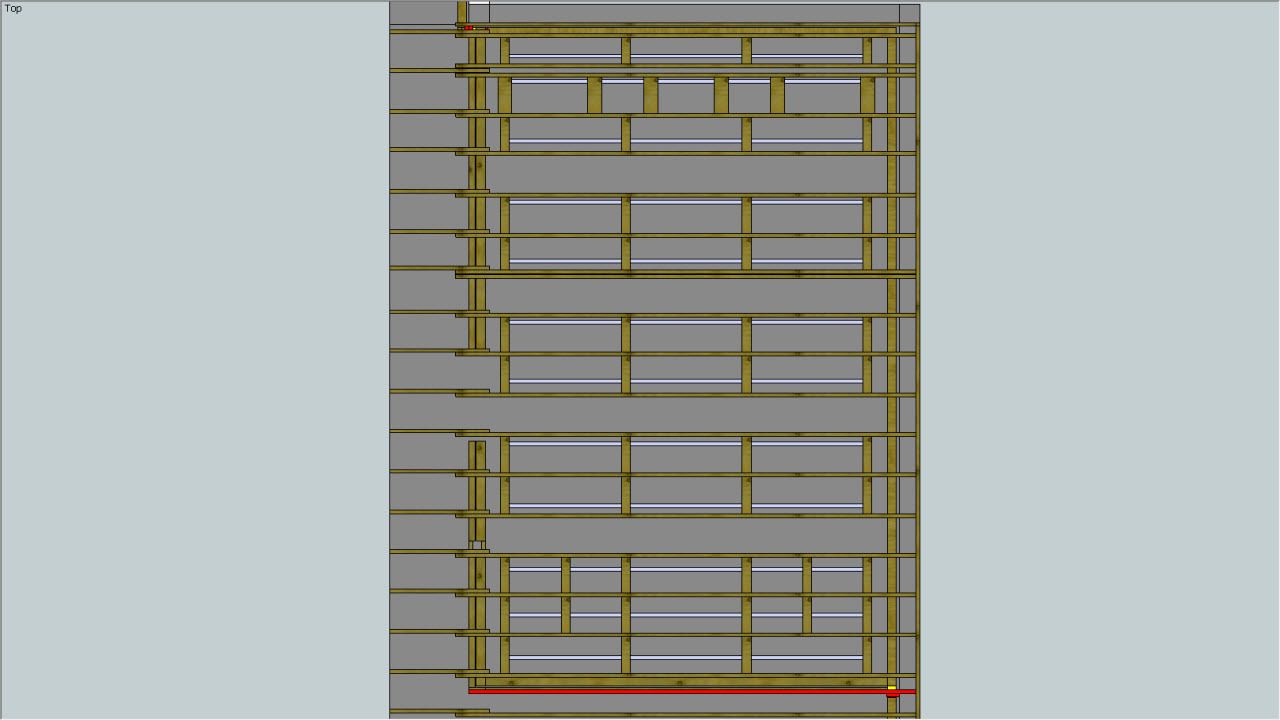

Showing joists as well as blocking I will need to add:


Showing soffits. I aligned channels and added extra clips where front and rear soffits connect to ceiling....hope that's enough.
235 is offline
Old 10-16-2012, 08:01 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Michigan, USA
Posts: 8,187
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 35
Stagger the clip placement. They are all lined up. See the SIM.

The last clip on a row should have maybe 1" of channel sticking out beyond the clip. You'd hate to have that channel creep out of the clip.

I would surface mount the 365 bottom to the door

__________________

Ted



The Soundproofing Company
Ted White is offline
Old 10-16-2012, 01:07 PM
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 715
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 20
Quote:
Originally Posted by Ted White View Post

Stagger the clip placement. They are all lined up. See the SIM.

The last clip on a row should have maybe 1" of channel sticking out beyond the clip. You'd hate to have that channel creep out of the clip.

I would surface mount the 365 bottom to the door

That's tough to do in corners. Put clip as close to edge of stud to give the most channel sticking out, without touching other channel or corner stud.


Chase "Fetch"

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
Old 10-16-2012, 01:11 PM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Michigan, USA
Posts: 8,187
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 35
You would install a couple of additional studs to accomodate.

__________________

Ted



The Soundproofing Company
Ted White is offline
Old 10-16-2012, 11:35 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Thanks Ted, I missed that staggered clip 'detail' frown.gif
Here's the revised layout, hopefully I got it right this time?


235 is offline
Old 10-17-2012, 12:21 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Assuming I have the correct layout above I can now order my hat channel (clips already here). Next will be screws/hardware for the following 4 ceiling steps......Suggestions on hardware and spacing of screws for step 3 and 4?

235 is offline
Old 10-17-2012, 06:58 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Michigan, USA
Posts: 8,187
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 35
Your staggered pattern looks good.

Attach clips to blocking with a good deck screw or wood screw.

Attach panels (ply or drywall) to channel with fine thread drywall screws.


__________________

Ted



The Soundproofing Company
Ted White is offline
Old 10-26-2012, 12:57 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
I ordered the full height Middle Atlantic Slim 5 on casters from ebay. It will sit inside my equipment closet and I will pull it out when I need to hookup cabling. I'm trying to figure out where/how to terminate cables coming into the closet. Should it be on the back or side wall of the closet? Should I connect speaker cables directly to my amps? Should HDMI be terminated in a keystone wall plate and then put a patch cord to components? How do I handle extra length of cabling required to allow rack to be pulled out of closet without tangling up in it when pushing rack back in? Any suggestions appreciated.
235 is offline
Old 10-26-2012, 05:09 AM
AVS Special Member

Nightlord's Avatar

Join Date: Feb 2009
Location: Southern Sweden
Posts: 1,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 371 Post(s)
Liked: 152
Quote:
Originally Posted by NicksHitachi View Post

Quote:
Should I use Dipoles?

IMO, No. Properly setup surrounds should have no problem producing the surround field, IMO the dipoles are a "trick" for those either not willing or able to properly devote the space or resources to achieve it.


Probably much too late reply to have any relevance for the project, but still...

The interesting part here is "surround field". You don't want to be listening to the surrounds by way of the on-axis direction as you do front speakers. You aim for a diffuse sound that has no real sense of direction, at least not on lower volume sounds.

Now, there are dipoles and dipoles, just like there are better and worse direct radiators. But after changing to my current surrounds, I would not ever go back to direct radiators... Heck, I have to lean into each speaker just to verify they're still working... that never happened when you stood up close to the surround speakers before.

Here's a borrowed picture of one (with a placement I wouldn't recommend at all!):


I use three of these per side surround channel and one each for the surround-back channels and there's nothing that gives me any reason to say the sound comes from loudspeakers... it's a totally diffused sound field. (About $7-8k worth, though.. and not available outside Sweden)

Under construction: the Larch theater
Nightlord is offline
Old 10-26-2012, 06:08 AM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 4,172
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked: 79
Middle Atlantic hinged cable carriers or a DIY version perhaps?:

MA cable carriers.jpg 368k .jpg file
Attached Images
File Type: jpg MA cable carriers.jpg (368.2 KB, 48 views)
Tedd is online now
Old 10-26-2012, 01:36 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Never too late for some pics smile.gif Nice budget for surrounds!
235 is offline
Old 10-26-2012, 01:38 PM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Quote:
Originally Posted by Tedd View Post

Middle Atlantic hinged cable carriers or a DIY version perhaps?:
MA cable carriers.jpg 368k .jpg file

Those cable carriers give me some ideas for a DIY spring-based equivalent. Thanks for the pic.
235 is offline
Old 11-23-2012, 01:18 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
I posted a sketchup of my riser design in a different thread. Appreciate any feedback.....riser plan
235 is offline
Old 11-23-2012, 06:06 AM
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,734
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked: 166
im not sure ive ever heard of designing a riser like that. Have you seen the joist bays open ended like that somewhere else? Acoustically idk what that would do? I am curious though.

Power and conduit in the riser are nice additions also.
NicksHitachi is offline
Old 11-23-2012, 06:58 AM
AVS Special Member

Nightlord's Avatar

Join Date: Feb 2009
Location: Southern Sweden
Posts: 1,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 371 Post(s)
Liked: 152
Quote:
Originally Posted by 235 View Post

I posted a sketchup of my riser design in a different thread. Appreciate any feedback.....riser plan

Looks ok to me. Have seen plenty of basstraps with just holes in the top at the back, this should about the same. I'd probably stuff it all the way, though.

Under construction: the Larch theater
Nightlord is offline
Old 11-23-2012, 07:28 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,143
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked: 48
Several issues ... see my comments in your riser plan posting.

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors
www.erskine-group.com
www.CinemaForte.net
Dennis Erskine is offline
Old 11-23-2012, 09:09 AM - Thread Starter
235
Senior Member

235's Avatar

Join Date: Dec 2011
Location: Winnipeg
Posts: 490
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 21
Quote:
Originally Posted by NicksHitachi View Post

im not sure ive ever heard of designing a riser like that. Have you seen the joist bays open ended like that somewhere else? Acoustically idk what that would do? I am curious though.
Power and conduit in the riser are nice additions also.

Haven't seen this elsewhere but looks like it might work better than floor registers on the back wall. I am planning outlets for the chairs and conduit to column locations. Thanks.
235 is offline


Tags
Panasonic Pt Ae7000u 1080p Full Hd Projector
Thread Tools


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
