A long while back, I came across some fantastic designs and photos of forum member's builds where they had placed a bar table at the back of the HT to eat at (on a riser if I remember right).

I loved the concept but didn't think much of it since my planned room was 11 x 17. I have recently been reconsidering using a different room for the HT that has the dimensions of 13 x 27 and would have the space for risers and a bar/counter at the back of the HT.

I am sure there are several builds that have done this with great pics. Can anyone recall any forum member's builds with this layout that I can look at again to see if that is what I would like to incorporate? I would like to see as many suggested examples as I can to get some ideas. Thanks.

My Home Theater and Game Room Build -- IN PROGRESS

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
sillywilly is offline
Sponsored Links
Advertisement

post #2 of 17 Old 01-03-2012, 12:20 AM
AVS Special Member

Roger Dressler's Avatar

Join Date: Jul 2000
Location: Oregon
Posts: 8,627
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked: 276
Here's one.

Roger

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Roger Dressler is offline
post #3 of 17 Old 01-03-2012, 01:02 AM
Member

hamptonht48's Avatar

Join Date: Oct 2009
Location: Clayton, NC
Posts: 98
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Here's another!

In fact, we just got the bar stools for it yesterday, but no pics of that yet. They're a little lower than we'd like, and may trade them in for the standard 30" height, but it's still a great space!

http://www.avsforum.com/avs-vb/showthread.php?t=1377460

Tobe H.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

hamptonht48 is offline
post #4 of 17 Old 01-03-2012, 07:18 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,913
Mentioned: 7 Post(s)
Tagged: 1 Thread(s)
Quoted: 323 Post(s)
Liked: 632
Old screen. bar not on riser.


JEFF PARKINSON


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
BIGmouthinDC is online now
post #5 of 17 Old 01-03-2012, 07:54 AM
Advanced Member

dwightp's Avatar

Join Date: Sep 2007
Location: Mesa, AZ
Posts: 630
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
One of my favorites is indygreg's Big Red theater: http://www.avsforum.com/avs-vb/showt...2&post14187032

Maker of the finest saw dust since 1980, give or take


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
dwightp is offline
post #6 of 17 Old 01-03-2012, 09:12 AM
Member

saldog78's Avatar

Join Date: Aug 2007
Location: Philly 'Burbs
Posts: 128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 10
Hey BIG, could you post dimensions of your bar behind the riser? I am planning one similar, and would like to know your height, width, depth of the countertop, etc. And 4 people sit there comfortably? Thanks!

~~~~~~~~~~~~~~~~~

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Paradigm Studio 60v3, Studio 570v3, Studio 20v5, Onkyo TX-NR808, PS3, Chromecast, Acer H6510BD
saldog78 is online now
post #7 of 17 Old 01-03-2012, 09:30 AM
AVS Special Member

turls's Avatar

Join Date: Feb 2000
Location: Central IL
Posts: 4,634
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked: 44
Great timing on this thread, as I am within weeks of finalizing my design for a build. Actually, my setup is more stadium seating, and the bar/countertop will be quite a bit higher than the seats in front of it.

Matt
turls is offline
post #8 of 17 Old 01-03-2012, 10:03 AM
AVS Special Member

phisch's Avatar

Join Date: Nov 2004
Location: Colorado
Posts: 1,775
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 14
Looks like some put the bar and stools on the riser and others do not. Is this just a matter of preference, or is there a reason to do it one way or the other?
phisch is offline
post #9 of 17 Old 01-03-2012, 10:09 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,913
Mentioned: 7 Post(s)
Tagged: 1 Thread(s)
Quoted: 323 Post(s)
Liked: 632
Quote:
Originally Posted by saldog78 View Post

Hey BIG, could you post dimensions of your bar behind the riser? I am planning one similar, and would like to know your height, width, depth of the countertop, etc. And 4 people sit there comfortably? Thanks!

Copied in from my multi-year thread. I think it is 42 inches tall.

First the finished granite top is 135 inches long, 17.5 deep at the ends, 25 deep in the middle. Yes, finding a slab that long turned out to be a problem I had to go to the regional wholesaler to pick out the slab and then my fabricator ordered it. When I planned it the fabricator had one long enough but it was gone by the time I needed it.

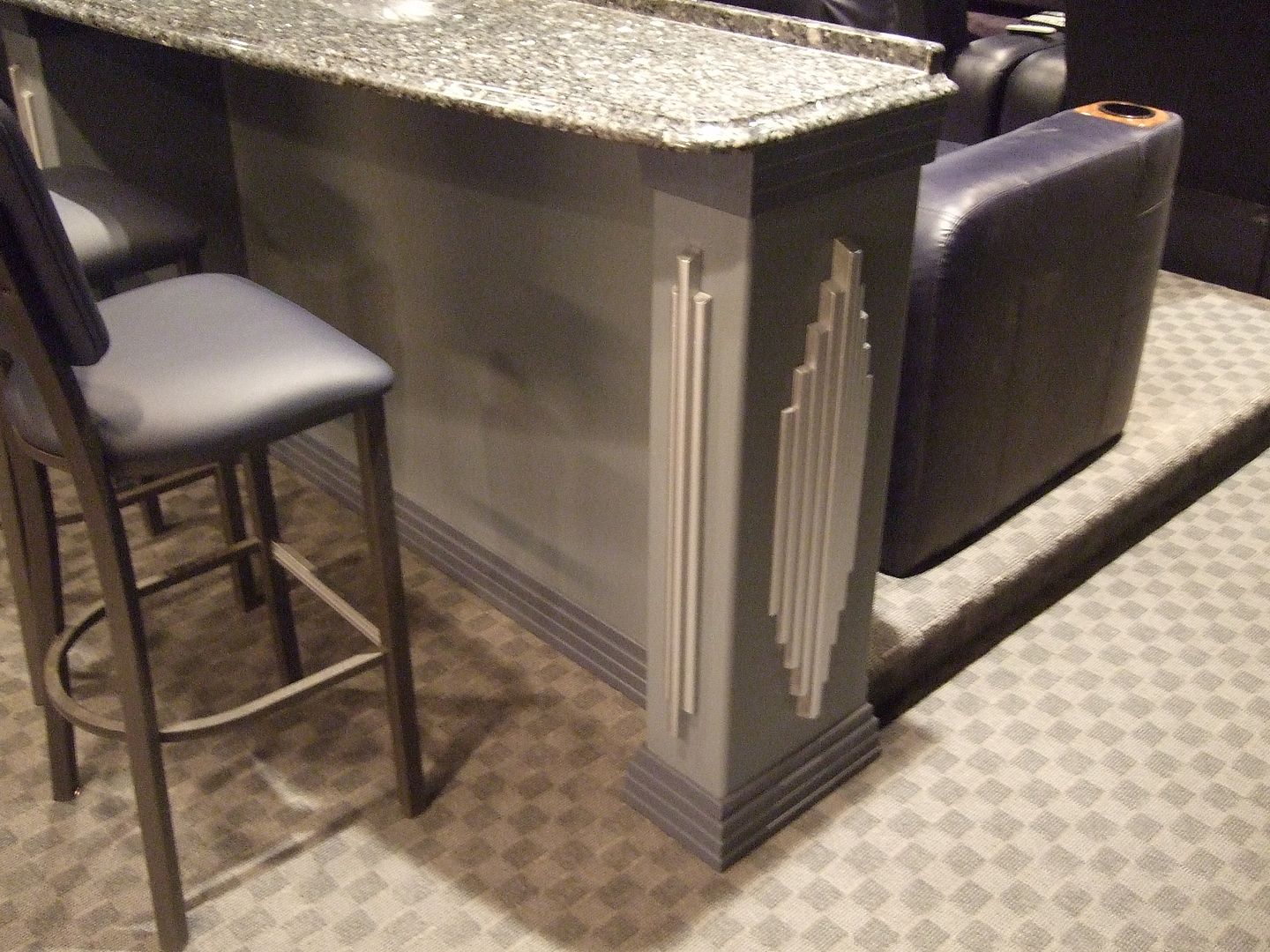

Final view:

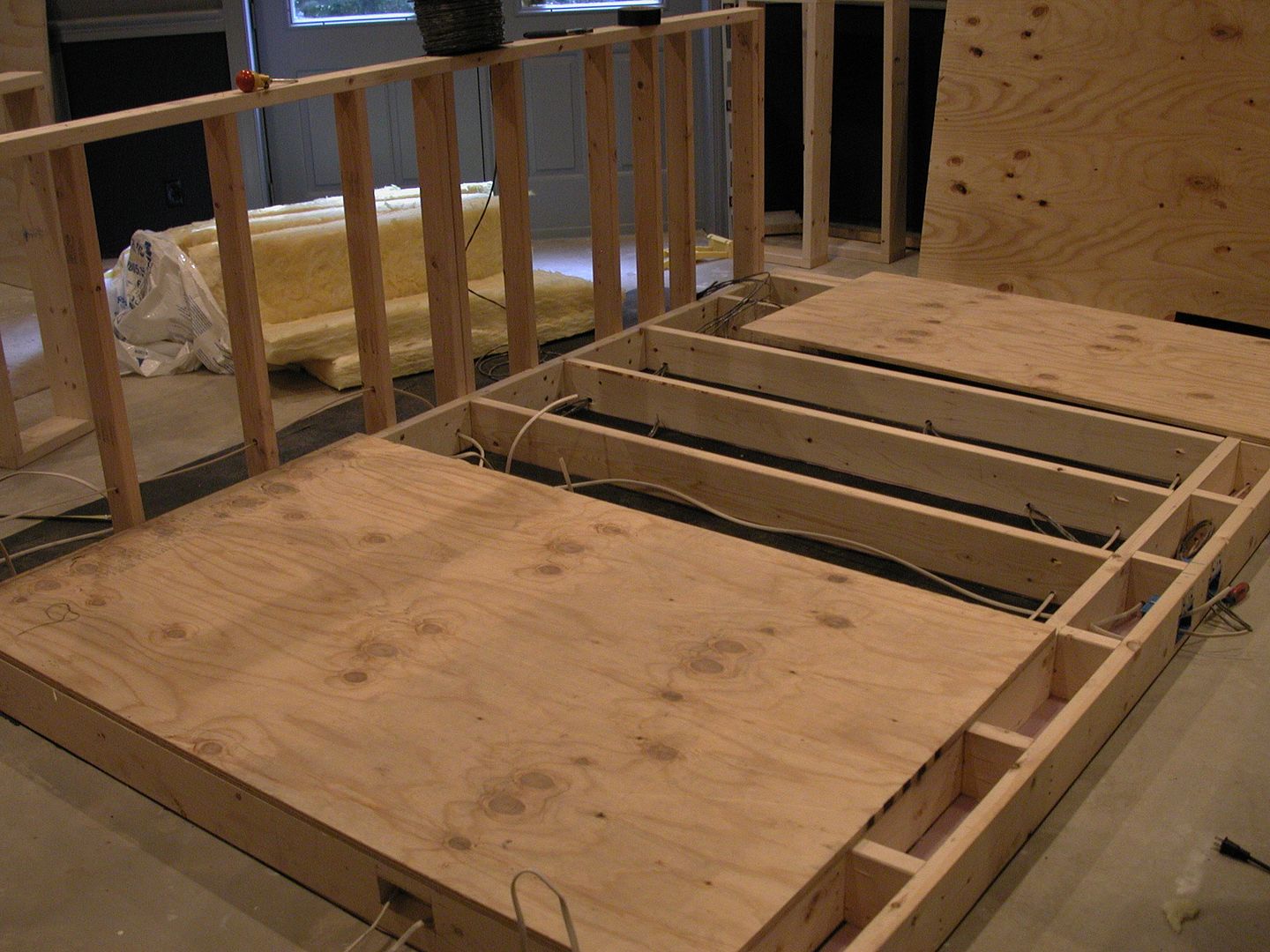

Some of the framing, basically a 2x4 short wall, with 2x6 wings (purely aesthetic) screwed to the back of the riser and to the floor. you can see I changed my mind on how deep the riser needed to be. 6ft didn't cut it.

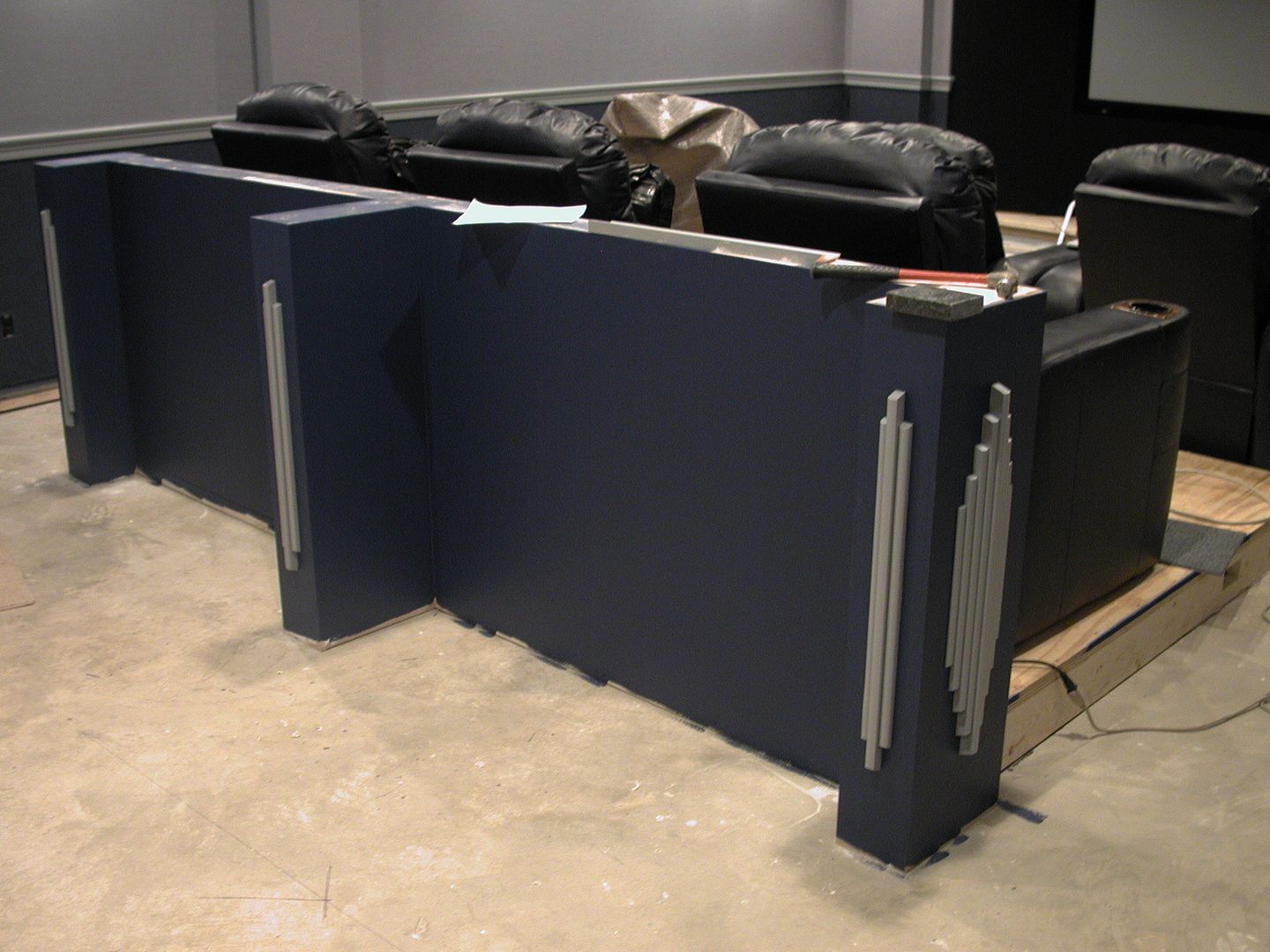

Covered it with a combination of plywood and MDF. The wings are MDF.



The designs were scraps of wood that I wondered if I could ever use. It started out life blue but I changed it later.

I ended up rounding over the edges, Added base molding and repeated under the top. The base molding was a build up of a 3 step and then another piece making it a total of 4 steps.

decided it looked better gray.


JEFF PARKINSON


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
BIGmouthinDC is online now
post #10 of 17 Old 01-03-2012, 10:12 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,913
Mentioned: 7 Post(s)
Tagged: 1 Thread(s)
Quoted: 323 Post(s)
Liked: 632
Quote:
Originally Posted by phisch View Post

Looks like some put the bar and stools on the riser and others do not. Is this just a matter of preference, or is there a reason to do it one way or the other?

Available head room is one reason, If there is going to be a lot of space behind the riser like my open concept then having it at ground level is safer.

JEFF PARKINSON


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
BIGmouthinDC is online now
post #11 of 17 Old 06-06-2012, 07:23 AM
Member

hamptonht48's Avatar

Join Date: Oct 2009
Location: Clayton, NC
Posts: 98
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Check out my build thread, also, you'll find the bar towards the end of it. It sits on the riser, with two seats behind, though it could probably hold 3. It's smallish, but my room is 15.5 by 21 ft.

I stole some ideas from just about everyone, but I'm sure they don't mind...! biggrin.gif

Cheers!

Tobe H.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

hamptonht48 is offline
post #12 of 17 Old 06-06-2012, 11:22 AM
Advanced Member

wraunch's Avatar

Join Date: Sep 2005
Location: Clayton, NC
Posts: 799
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked: 26
Big do you have any line of sight issues from the bar seats? Most of the "pros" i have talked to have told me to put the bar on the riser but I will have about 5' behind the bar top so I would have to either pull the riser all the way to the back wall or leave the bar at ground level. Just wondering if it makes those bar seats less than desirable when there is someone sitting in the second row?

Come see my Livin' the Dream build!

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
wraunch is offline
post #13 of 17 Old 06-06-2012, 11:46 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,913
Mentioned: 7 Post(s)
Tagged: 1 Thread(s)
Quoted: 323 Post(s)
Liked: 632
It is all a function of how high the riser is and how low the screen whether you will have line of sight issues. When I sit at the bar the first row tops are closer visually to the bottom of the screen than the second row primarily because you are sitting right on top of the second row seats. I have no problems a sub 5 ft person might.

There is another example of a ground level bar here

http://www.avsforum.com/t/628588/show-your-before-and-after-pics/0_40

JEFF PARKINSON


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
BIGmouthinDC is online now
post #14 of 17 Old 06-06-2012, 01:25 PM
AVS Special Member

jautor's Avatar

Join Date: Jun 2001
Location: Houston, TX
Posts: 7,940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 187 Post(s)
Liked: 360
Quote:
Originally Posted by wraunch View Post

Big do you have any line of sight issues from the bar seats? Most of the "pros" i have talked to have told me to put the bar on the riser but I will have about 5' behind the bar top so I would have to either pull the riser all the way to the back wall or leave the bar at ground level. Just wondering if it makes those bar seats less than desirable when there is someone sitting in the second row?

If you're using bar stools, you'll be fine with the bar built at ground level. Just look at the seat height difference between the chair and a barstool. 12" difference there would be the same as a chair on a 12" riser...

My bar was built on a riser, so I used normal chairs instead of barstools. My concern was finding barstools comfortable enough for a 2+ hour movie. Finding a comfortable chair, however, wasn't much easier.

Jeff


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
 -- CIH, Panamorph, Martin Logan, SVS PB2000, Carada Masquerade, Grafik Eye, Bar table, Green Glue, JVC RS50
Theater build photos:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

jautor is online now
post #15 of 17 Old 12-18-2012, 01:36 PM
Advanced Member

wraunch's Avatar

Join Date: Sep 2005
Location: Clayton, NC
Posts: 799
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked: 26
BIG, how did you get the wire over to your riser? My theater already has 3/4" OSB down and I need to get power over to where the riser will be eventually. I'm wondering what the best option is short of cutting a whole sheet up?

Come see my Livin' the Dream build!

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
wraunch is offline
post #16 of 17 Old 12-18-2012, 02:25 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,913
Mentioned: 7 Post(s)
Tagged: 1 Thread(s)
Quoted: 323 Post(s)
Liked: 632
The best code legal way is to dig a trench in the concrete floor and bury a line. I cheated and ran a wiremold on top of the carpet and I kick myself that I was so lazy that when I did a 5 ft trench to my bar I didn't do a 3 footer to my riser.



In your case I would be tempted to cut cut a trench in the OSB and cover it with a metal shield so that a carpet staple or the carpet tack strip anchors don't pierce the wire.

JEFF PARKINSON


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
BIGmouthinDC is online now
post #17 of 17 Old 12-18-2012, 03:55 PM
Advanced Member

wraunch's Avatar

Join Date: Sep 2005
Location: Clayton, NC
Posts: 799
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked: 26
Good recommendation, thanks.

Come see my Livin' the Dream build!

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
wraunch is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
