I'm in the beginning stages of building a Workshop addition to my house, for woodworking. I've done a great deal of research about sound control construction methods, but I still have a couple of very specific questions regarding my situation.

I realize this forum is dedicated to HT construction, but almost every aspect of my workshop soundproofing efforts is just as applicable to Home Theater sound control. In fact, there are two reasons I would appreciate being able to ask for advice/opinons here: 1) I kept getting hits on this forum when Googling issues I still need to clarify, and 2) even though my specific questions haven't been addressed here yet, there is a lot of very helpful advice on this forum, and I'd really appreciate being able to tap into that knowledge.

I'm also more than willing to offer my two cents on any construction/soundproofing issue I can.

If the focus on HT is iron-clad and moderators believe workshop noise abatement techniques won't translate to Home Theater noise abatement, does anyone know of another site with forums targeted to my situation? Soundproofing is such a specialized area, I haven't had any luck finding one so far.

Thanks in advance! Great information on this site regardless.
caliworkshop is offline
Sponsored Links
Advertisement

post #2 of 16 Old 03-02-2012, 04:02 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 46
Sound isolation principles apply equally to home theater as they do to any other application. The only differences may lie within the amount of energy to abate, the frequency spectra, and the materials required. I just did a sound abatement project for a commercial building (roof mounted air handlers, commercial kitchen exhaust handlers, and restaurant noise). The fundamentals were exactly the same, some of the materials were more robust (as in vibration damping of chillers weighing 3 tons).

So, ask away. Why not?

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors
www.erskine-group.com
www.CinemaForte.net
Dennis Erskine is offline
post #3 of 16 Old 03-02-2012, 04:05 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,721
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 233 Post(s)
Liked: 582
So what are your questions? We can always use some construction/woodworking expertise around here.

If you want to broaden your research, there is a list of forums on this link that the Guys from Soundproofingcompany.com hang out on where soundproofing is discussed.

http://www.soundproofingcompany.com/friends-2/
BIGmouthinDC is online now
post #4 of 16 Old 03-02-2012, 10:01 AM
Advanced Member

dwightp's Avatar

Join Date: Sep 2007
Location: Mesa, AZ
Posts: 630
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
... and besides which, every time I shove in my ear plugs as I turn on the dust collector in my own shop, I think to myself, "I really need to build an enclosure around that beast to contain the sound ..."

I would be interested in the discussion.

Maker of the finest saw dust since 1980, give or take

MY Custom AV Cabinet with DIY Pull-Out and Rotate Rack
dwightp is offline
post #5 of 16 Old 03-02-2012, 10:20 AM
Newbie

TeedOff's Avatar

Join Date: Mar 2005
Location: Washington, IL
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I have taken the lessons learned in the forum and applied them to my basement workshop build. I used the typical HT sound isolation stuff... hat channel, clips, green glue, pink stuff, putty pads, backer boxes, etc etc and am thrilled with the results. More to the point, the wife is pleased. I'll take the same approach to my HT build this spring and summer (and fall and winter...)

So ask away.
TeedOff is offline
post #6 of 16 Old 03-02-2012, 10:21 AM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Quote:
Originally Posted by TeedOff View Post

More to the point, the wife is pleased.

Well there ya go!

__________________

Ted



The Soundproofing Company
Ted White is offline
post #7 of 16 Old 03-02-2012, 02:28 PM
Advanced Member

dwightp's Avatar

Join Date: Sep 2007
Location: Mesa, AZ
Posts: 630
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
OK, so I'll ask some questions. I am mostly interested in containing the noise from my dust collector, which does not seem to have much low frequency content. Assuming I am correct about the relative lack of low frequency content, does that suggest any changes in the usual trifecta (mass, decoupling, damping)?

Question no. 2: I can't seal the dust collector in an air tight enclosure -- I have to provide a means for air exhausted by the collector to get back into the shop. I assume a dead vent is called for. What's the current thinking about dead vent construction? Is it important to install the flex duct with a bunch of bends and turns? Is a bigger dead vent inherently better than a smaller dead vent? Is overall volume the important factor, or are there dimensional targets (e.g., minimum depth) I should try to hit?

I appreciate any guidance the group can provide. Thanks!

Maker of the finest saw dust since 1980, give or take

MY Custom AV Cabinet with DIY Pull-Out and Rotate Rack
dwightp is offline
post #8 of 16 Old 03-02-2012, 05:04 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,721
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 233 Post(s)
Liked: 582

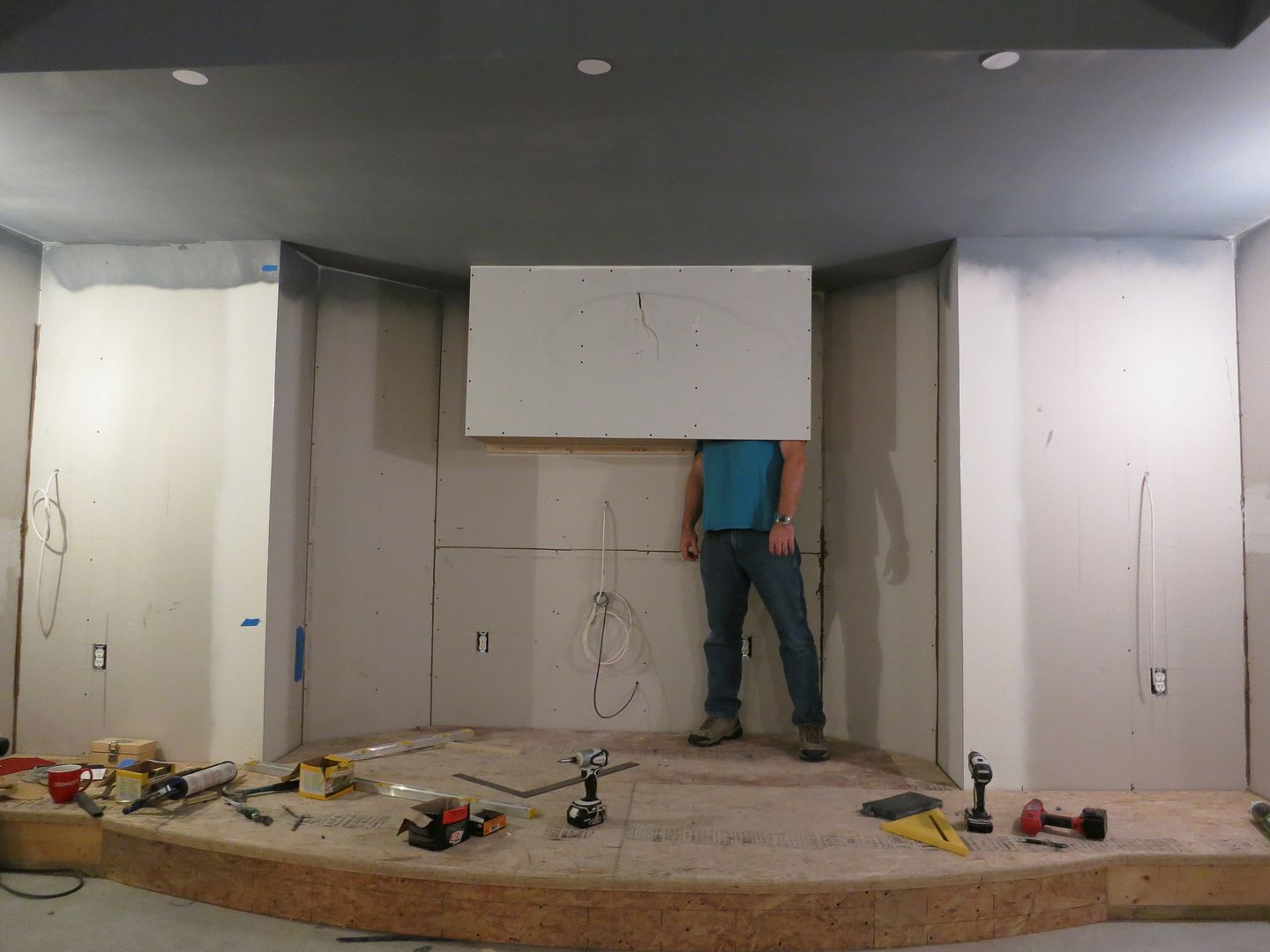

Just did this last week. The early development of this theater resulted in a very noise supply duct and vent. The fan motor was close and the air velocity too much for the size of flex duct used. We built a serpentine duct muffler and it put a big dent in the sound. It will be hidden behind the screen wall. You might try something similar for the air intake of the shop vac.



BIGmouthinDC is online now
post #9 of 16 Old 03-02-2012, 05:22 PM - Thread Starter
Newbie

caliworkshop's Avatar

Join Date: Mar 2012
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Well thanks for the welcome!

Ok, here's what the plan is so far (opinions/critiques/suggestions welcome): I'm currently doing the prep and grading for footings. The workshop will extend into my backyard, detached on 3 sides, attached to house on 4th side. 18' x 30' exterior dimensions, 16' x 28' interior. I plan to do the absolute most I can afford (doing all the labor myself, with assistance of friends) to "soundproof", since where I live houses have about six feet between them. The goal is to minimize shop noise so that even in daytime hours, the noise is never an aggravation to the neighbors. If it miraculously eliminated noise transmission enough to enable the occasional power tool at night, that would be gravy. But I'm staying realistic.

I'm going to build double stud walls (room within a room), with each wall on its own footing. Will pour footings with the same gap between them as walls (3")for maximum decoupling. 2x4 sill plates, studs and top plates. The inner "room" will have ceiling joists which are separated from the outer room's roof joists by the same air space as the walls. Yes, I will be sacrificing a couple feet of headroom, but 9' ceilings will be fine in exchange for really good sound control. Flat roof (to minimize the overall bulk of the building).

The inner walls will be: studs (24" OC) then 1 layer of 1/2" plywood (so I can hang shelving, etc. on walls without having to hit studs), then 2 layers of 5/8" type X drywall, with Green Glue or Quiet Glue (haven't pulled that trigger yet) in between (2 tubes per panel), staggered seams, sealed with acoustical caulk. All electrical on surface, so no intrusions into walls. Self contained dust collection (no ductwork penetrating walls). No glass windows, since there is no way to include windows that doesn't lower STC rating. (My idea for openable solid panels for daylight use is the subject of a future question.)

Ok, I guess that's enough background, although if anyone needs more information in order to offer advice, I'm more than happy to provide any details, from nail spacing to number and type of tools...

Here's my first question, which I'd think would be easy, but I've had no luck finding an answer:

In wall assembly diagrams which accompany STC test results, I see double stud construction for INTERIOR walls go: drywall/green glue/drywall/studs with bat insulation/air gap/studs with bats/drywall/green glue/drywall.

However, all my walls except one will be EXTERIOR walls. So working inside to outside, once I get to the outer layer of studs with insulation, what do I use for the two EXTERIOR layers of material with damping glue between? Has green glue been tested, or is there anecdotal evidence about its effectiveness between, say, two layers of Hardy board instead of two layers of drywall? If it DOES provide damping between two layers of exterior panels, will the final finish affect its damping properties? I'd planned on using stucco for mass, unless that would make the outer layer of the green glue sandwich too unequal to the inner layer, and reduce its effectiveness. (My understanding is that Green Glue has to be sandwiched between to identical layers to reach maximum effectiveness.)

Also, thanks a lot for the links to other Soundproofing-related forums. I will look through the links.

Thanks in advance for any and all comments!
caliworkshop is offline
post #10 of 16 Old 03-02-2012, 05:32 PM - Thread Starter
Newbie

caliworkshop's Avatar

Join Date: Mar 2012
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Also, one other thing: I'm using as my real-world example the workshop of a friend who is a retired professional cabinetmaker, which he built in his (much larger) back yard as a literal room within a room. He built a large exterior shell, inside of which is a 4' wide perimeter walkway completely surrounding the interior building. He uses the walkway for wood and tool storage, which adds to dampening effect. The inner structure also completely seals off with only one large doorway, on a different wall than the exterior door.

This is no exaggeration: with dust collector and a 20" Felder planer running under load, with the doors closed, you can stand 3 feet away outside the structure and hear absolutely nothing. Not a low hum, or faint whine, or anything. He built the shop 20 years ago, after a lot of research into the Sound Control methods of the time, so I'm hoping that with improved materials and knowledge, I can achieve something even close, in a much smaller footprint.
caliworkshop is offline
post #11 of 16 Old 03-02-2012, 05:41 PM - Thread Starter
Newbie

caliworkshop's Avatar

Join Date: Mar 2012
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by dwightp View Post

Question no. 2: I can't seal the dust collector in an air tight enclosure -- I have to provide a means for air exhausted by the collector to get back into the shop.

Is the reason you need to build an enclosure for the dust collector because the larger shop itself isn't soundproof enough to contain the sound?

I've been keeping my fingers crossed that my shop ends up being soundproof enough to contain the noise of the dust collector (the loudest machine in most home workshops). Otherwise, I'll be in the same boat as you, and looking forward to the answers to your question.

So far, suggestions I've received as sure-fire solutions for DC and air compressor (also loud beasts) are these: a high-end, high-dollar DC that generates less noise in the first place through fancy engineering. And a rotary screw air compressor, which are unbelievably quiet. And unbelievably expensive.

caliworkshop is offline
post #12 of 16 Old 03-02-2012, 05:50 PM - Thread Starter
Newbie

caliworkshop's Avatar

Join Date: Mar 2012
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by BIGmouthinDC View Post

Just did this last week.

NICE !!

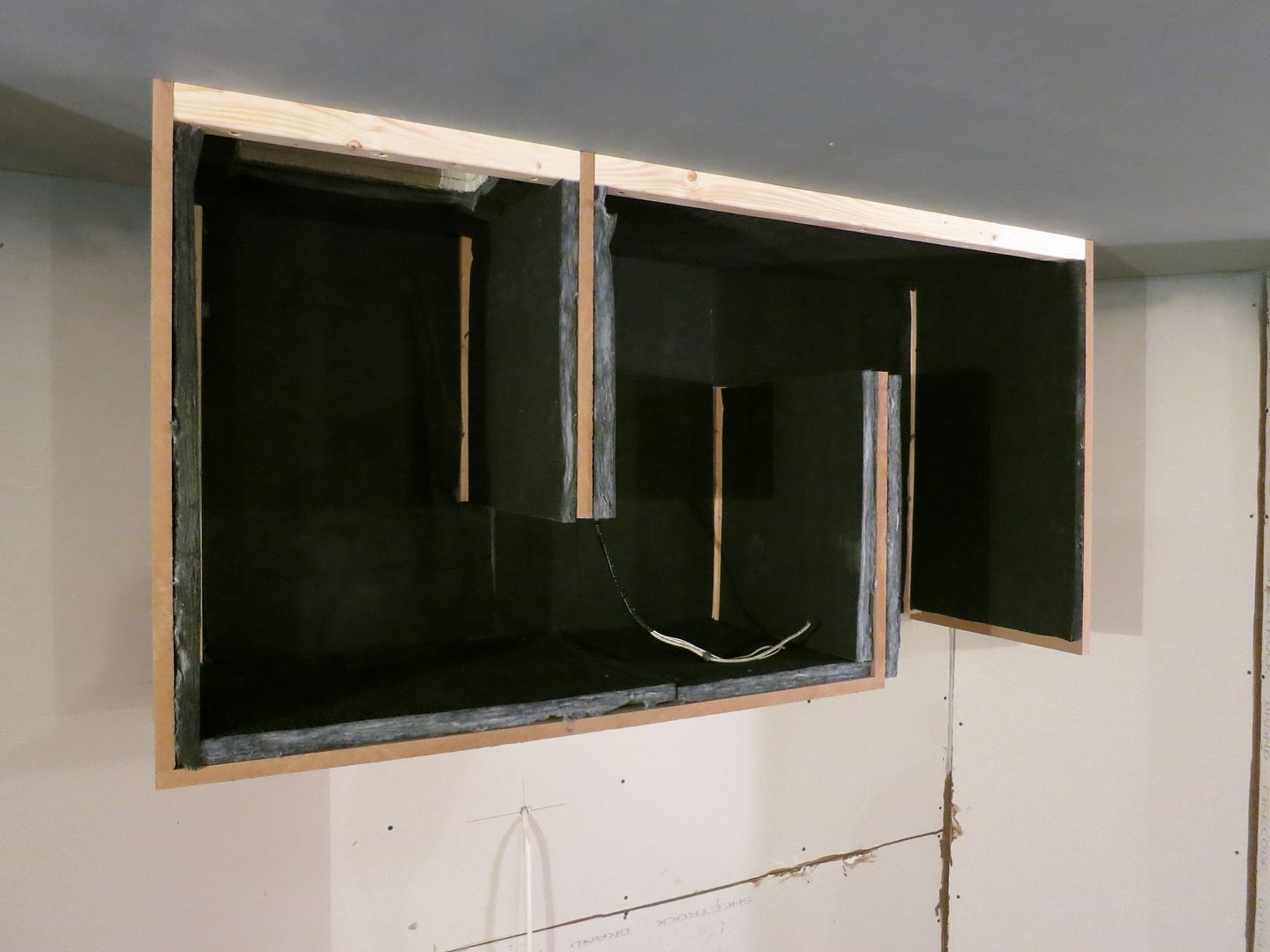

Could you run down the materials used in the muffler in your picture? (Great second picture for size reference )

As a friend pointed out very early in my planning: if my goal is to make the shop as air-tight as possible, I will most likely need some kind of air exchange, which I plan to do on the side that is attached to my house.

Thinking of doing it through floor, between joists and up through wall cavity, so as to isolate the intrusion as much as possible.
caliworkshop is offline
post #13 of 16 Old 03-02-2012, 06:37 PM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked: 254
For the dust collection system, I'm guessing you will be dealing with two problems. The noise from the motor, and the noise from the exhaust. I don't have any first hand experience with these, but I'm envisioning an over sized shop vac. So I'd guess you are going to building something more like a projector hush box. The entire unit would need to be inside a soundproofed case, with mufflers like BIG posted for the inlet and exhaust. Considering the frequencies you'll be dealing with, I think you'll have excellent results.

Also, as long as you don't have any midspan supports for your ceiling, you should be able to put the interior ceiling joists inside the building's ceiling joists and only lose an inch or so. Ted with the soundproofing company has a picture of this, but posting pictures from an iPad is a bit tough.

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is offline
post #14 of 16 Old 03-03-2012, 01:31 AM - Thread Starter
Newbie

caliworkshop's Avatar

Join Date: Mar 2012
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by J_P_A View Post

Also, as long as you don't have any midspan supports for your ceiling, you should be able to put the interior ceiling joists inside the building's ceiling joists and only lose an inch or so. Ted with the soundproofing company has a picture of this, but posting pictures from an iPad is a bit tough.

I've seen diagrams of that kind of ceiling/roof construction. Kind of like a staggered stud wall, but horizontal, and not connected by bottom and top plates.

My thinking for the totally separated ceiling and roof joists: I figure there are two reasons a double stud wall has higher STC rating than a staggered stud wall: 1) the DS wall doesn't have the shared top and sill plates to transmit sound like a SS wall, and 2) the DS wall has greater separation between one leaf and the studs of the opposite leaf.

The "Staggered Joist" ceiling you mentioned takes care of one of those problems (no shared support members), but doesn't separate the leaves and joists as much as a "Double joist" assembly would (where ceiling and roof joists don't overlap in the horizontal plane).

Hopefully someone more knowledgeable than me can give an opinion as to whether my proposed assembly would reduce sound transmission enough to be worthwhile? I'm operating under the principle that every little bit helps. There's no added cost or labor to build the separated roof/ceiling, but if it gains absolutely nothing, then headroom would be a consideration.

* * *

I realize there are already several issues in discussion, which I really appreciate (the more information the better). And that is what drew me to this forum in the first place. I think people dealing with HT and industrial noise are far more thorough, detailed and scientific than people dealing with workshop noise, because it is automatically an integral part of the HT design process.

But your post reminded me of an additional question I've always had, so I'll throw it in: Why aren't the studs staggered in a double stud wall? Why are they always shown in line with each other? Would it hurt the STC rating to stagger them? Or just have no effect?

Thanks again for all the replies so far. It's great to find a forum where the members have so much knowledge and experience with the issue.
caliworkshop is offline
post #15 of 16 Old 03-05-2012, 07:17 AM
Advanced Member

dwightp's Avatar

Join Date: Sep 2007
Location: Mesa, AZ
Posts: 630
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
Quote:
Originally Posted by caliworkshop View Post

But your post reminded me of an additional question I've always had, so I'll throw it in: Why aren't the studs staggered in a double stud wall? Why are they always shown in line with each other? Would it hurt the STC rating to stagger them? Or just have no effect?

Thanks again for all the replies so far. It's great to find a forum where the members have so much knowledge and experience with the issue.

Staggered studs usually are 2x4s that share a common top and bottom plates made out of 2x6s. The attachment to common top/bottom plates limits the amount of decoupling you get from this technique.

Double walls are built so there is no physical attachment between the two walls, which (as I understand it) produces better decoupling.

Maker of the finest saw dust since 1980, give or take

MY Custom AV Cabinet with DIY Pull-Out and Rotate Rack
dwightp is offline
post #16 of 16 Old 03-05-2012, 08:07 AM
Advanced Member

dwightp's Avatar

Join Date: Sep 2007
Location: Mesa, AZ
Posts: 630
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
Quote:
Originally Posted by caliworkshop View Post

Is the reason you need to build an enclosure for the dust collector because the larger shop itself isn't soundproof enough to contain the sound?

I've been keeping my fingers crossed that my shop ends up being soundproof enough to contain the noise of the dust collector (the loudest machine in most home workshops). Otherwise, I'll be in the same boat as you, and looking forward to the answers to your question.


My shop is detached from the house so my family is only bothered by the noise if they are silly enough to walk out and open the door.

I would like to contain the noise of the dust collector for my own sake while I'm in the shop. Less noise would be more comfortable and better for what's left of my hearing.

A couple of posts have talked about shop vacs, which is not really what we mean when we talk about dust collectors. There are different types of dust collectors, but here is mine:



Most of the noise this unit produces seems to be from the 14" steel impeller, the motor, and/or the air moving through the unit. At any rate, enclosing it means building a room to stick it in.

I have read that some folks who build a room for their dust collector also put their compressor in there. Since you're worried about both sources of noise, that might be something to consider.

Maker of the finest saw dust since 1980, give or take

MY Custom AV Cabinet with DIY Pull-Out and Rotate Rack
dwightp is offline
