post #1 of 597 Old 06-04-2012, 03:45 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16


Room Dimensions:  Unfinished:  19'10"L x 15'10"W x 8'8"H.



Soundproofing:  IB1 Clips / Channel, OSB, Green Glue, 5/8 Drywall



Acoustic Design:  Bryan Pape - GIK Acoustics







Equipment List:







Projector







Screen



130" Wide -  235:1 Seymour Center Stage XD







Speakers



LCR's - Triad In-Room Silver LCR



Surrounds:  4  Triad Silver In-Wall Surrounds



Subs:  2  Triad Gold In-Room Power Subs







Pre/Pro



Emotiva UMC-1







Amps



QSC CX168 8-Channel Pro Power Amp



2  Triad Power Sub Amps







Lighting/Automation



Lutron Grafik Eye - QS 8-zone (need to buy)







Intro:







EDIT

fax6202 is offline
Sponsored Links
Advertisement

post #2 of 597 Old 06-04-2012, 03:48 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16

Current Build Status:



Front:



Back:

fax6202 is offline
post #3 of 597 Old 06-04-2012, 04:05 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16

Reserved

fax6202 is offline
post #4 of 597 Old 06-04-2012, 04:20 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,118
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 57
AT screen at the poles makes sense to me - if you're planning on two rows of seats, second row on a riser, I would think you'll need to narrow down what seats you're planning, so you can plan the depth of the riser, and that will dictate where it makes sense to put the entry door.

Does the alcove have windows? If so, how high from the floor (i.e. would they interfere with the riser)?
Brad Horstkotte is offline
post #5 of 597 Old 06-04-2012, 04:53 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
No windows. To use the alcove for the screen wall would be ok also if I could somehow incorporate the poles into the last row, maybe between them.
fax6202 is offline
post #6 of 597 Old 06-04-2012, 04:55 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
Reserved
fax6202 is offline
post #7 of 597 Old 06-04-2012, 04:57 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
The room would be 18ft to the screen wall, 20-22ft to the back of the room (under the HVAC) where the LCR will be. Width would be about 16.5'. This would be more than enough for two rows of three with a riser, steps on both sides.
fax6202 is offline
post #8 of 597 Old 06-04-2012, 06:53 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
Does anyone have any suggestions for the size of the star ceiling, I am going to run soffits around the perimeter of the room but would like to have an idea on what size to make them.

My ceiling is pretty decent at 8'7".

Also, I now have two registers servicing the room, straight 10 ft runs right off of the main trunk line. I believe that two will be enough but I do not have a return. Is the purpose of the "dead vent" for the return?
fax6202 is offline
post #9 of 597 Old 06-05-2012, 04:37 AM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,904
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked: 63
You could use the area between the support posts and wall, as an aisle and go with a rear entry at riser level. Have to deal with how to access room 1, but a couple of steps could go in the storage area. (The storage room door could be a hidden door, to get one "less" door in the space.)

Steps in the hallway could allow another seat in the front row....

So what way do those steps go up or down? And exactly what is the function of the room beside the stairs?

The ceiling in the hallway could be at the height of the soffit and hide the ductwork completely.
LL
Tedd is offline
post #10 of 597 Old 06-05-2012, 05:24 AM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
That would definitely work. But would I lose some length? I would have 18ft to front and then have to factor in the stage.
fax6202 is offline
post #11 of 597 Old 06-06-2012, 04:46 AM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
Here are the preliminary floor plans. Any and all ideas/comments are welcome.

This is the general layout with chairs. I like the symmetry of two rows of 3. I could get 4 across and still have steps on both sides but that seems a bit crowded. Not sure on the riser height yet, will plan later.


Here is the layout with columns. I may place the back columns at each corner and make bass traps. I enjoy wood working and am tryiing to figure out a color scheme, probably going to be black and brown(s), the cabinets will be walnut. I have alot of walnut in my father in-laws shop. The stage and screen wall is probably going to be trimmed out in walnut also. Still up in the air. Going with a DIY star ceiling, I am just starting to go thru some threads on folks that have done it and gather some info, soffit will have crown and up lighting. I have two AC supplies which run from the trunk line (to the left of the screen wall) to the back of the room. Dead vent in back right side as a return.

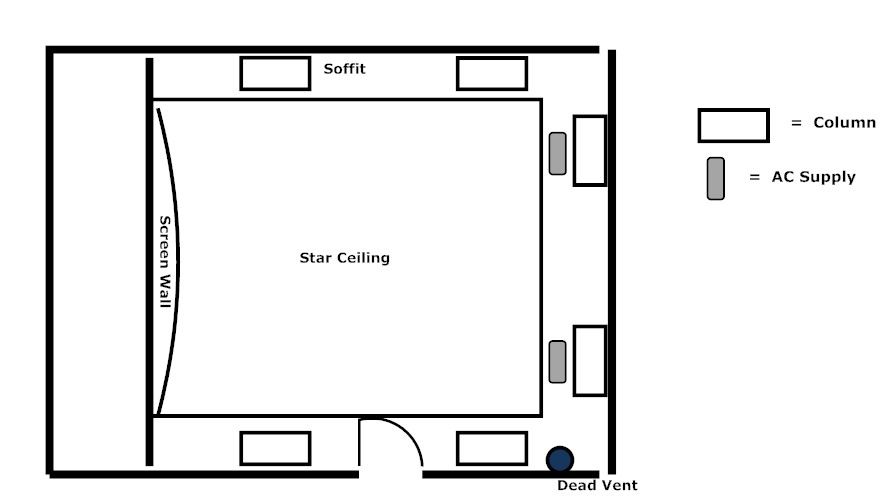

And this is the 1st lighting plan. Not sure yet how I am going to work in the soffit and the can lights up front shining on the stage. To be continued.....

Thoughts/Comments???
fax6202 is offline
post #12 of 597 Old 06-06-2012, 05:38 AM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,904
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked: 63
It could work if you do a very shallow front AT space and whether you can live without recliners, and on the stairs themselves. It'd be a tight design but could be managed.
I prefer offset seating when it allows for a lower riser. Otherwise, I prefer not wasting money on a chair that will go unused. smile.gif


Won't the support poles in the front stage area have a serious impact on audio? The poles will box the mains and (I'm guessing) they will have an impact
on sound pans and imaging. And won't the support posts will be a conduit for bass to get to the home's framing (and spread)? You also have the seats on the rear wall
and viewers will be right on top of the rear surrounds. Those surrounds will be very distracting to anyone seated nearby.

BTW, where are you planting the av rack? That alcove might work...
Tedd is offline
post #13 of 597 Old 06-06-2012, 05:42 AM
AVS Special Member

Spaceman's Avatar

Join Date: Nov 2009
Location: North Houston
Posts: 1,964
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 96
I like the layout. A few comments:

-You need to make your riser much deeper if you plan on reclining theater seats. 5' deep is not enough. Shoot for at least 6'-6", but more is better as it will pull your seats further away from the rear surrounds.

-HVAC supplies are more common in the front of the room, or on the sides if you can keep air flow from blowing directly on the seats. Seems like you would get better circulation if the supplies were on the opposite side of the room from the return, but I'm not an HVAC expert.

-Be careful when planning the locations of your can lights, supplies and columns. You most likely want a symmetrical look when done, with either your can lights centered between the columns (washing the walls), or centered on each column. Or, you can have them centered on AND between the columns if you need a little more light. However, you don't want your light spacing to seem random relative to the columns or it's going to look funny. Once you figure out the spacing of your lights & columns, locate your supplies in a location that doesn't conflict.

-If you are going with a curved stage, you might consider a curved soffit to hold your lights above the screen. Here is an example from my build.

I don't know if the dimensions would work, but have you looked at flipping the room and hiding your support posts in decorative columns of a rear row bar? I think you would only have room for one row of seats in front of the bar, but it might be an option.
Spaceman is offline
post #14 of 597 Old 06-07-2012, 06:37 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,715
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 229 Post(s)
Liked: 580

I like this plan but you need to be sure the hallway at the bottom of the stairs is reasonably wide, not only for code but for getting things up and down the stairs. It looks like you can sacrificece some width to make it reasonable. The door to the theater should be ahead of the first row and that decorator column may need to be moved. I didn't see mention of your choice of seating but as mentioned reclining HT seats require a riser at least 6 1/2 ft deep even then having your head at the back wall is not the best for surround sound.

Draw that plan more to scale for another review.
BIGmouthinDC is offline
post #15 of 597 Old 06-07-2012, 08:12 AM
Member

dRwOOD73's Avatar

Join Date: Jan 2012
Location: Southeast PA
Posts: 134
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Glad to have found this thread - was following you on the other one, subscribed.

dRwOOD73 is offline
post #16 of 597 Old 06-07-2012, 11:20 AM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
Big-

I had the same concern. I did not want it to be tight at the bottom of the stairs and to be honest I did not want a hallway at all. So i think I may go with something like this

614

The two boxes in the adjacent room will be the equipment rack and the blue one is the deadvent. This is an updated room spec

700

I did not add a door as I was waiting for some guidance on where to place it. Also the seating is still up in the air. I would probably want a couch/loveseat configuration in the rear row and the reclining seats up front.

@Spaceman - The stage looks great. I love the curved look.

Thanks all for your comments. I will continue to finalize plans and post as I do. Please keep the comments coming, there are alot of great ideas garnered from the folks around here.
fax6202 is offline
post #17 of 597 Old 06-07-2012, 05:11 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
While I am moving forward with the new plans I also started a little demo. I took the riser apart, I managed to salvage most of the treated 2x6's. I don't know if I will need them but I didnt want to just toss them. I cant convey how relieved and pleased I am with the changes. I am just glad it was not too late. The demo...........

338

I did save all of the fiberglass insulation, that will come in handy real soon.

338

338

Tearing this down and moving a wall is going to require that I make some modifications to my electrical runs, but nothing major. I will also have to reposition the ceiling fan in the adjacent room.

338

More this weekend.
fax6202 is offline
post #18 of 597 Old 06-08-2012, 06:25 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
I got quite a bit done today. First I took some chestnut oak to the sawmill that I use. I may use this for my baseboard in the rest of the basement, not sure yet.

338

338

338


A little demo as well....

338

338

And then a bit of cleaning. I will be framing the theater wall in the a.m.
338
fax6202 is offline
post #19 of 597 Old 06-09-2012, 05:15 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
A good long day on the basement today. More demo, taking out all of the A/V cable runs. And I finally have an exact room dimension. HT is 19'10" x 16' x 8'8". I had to do some serious calculating to make it work but I didnt want to fall into that width and 2x the ceiling height bpape warned me about. And this gives me plenty of room for the columns on both sides of the room.

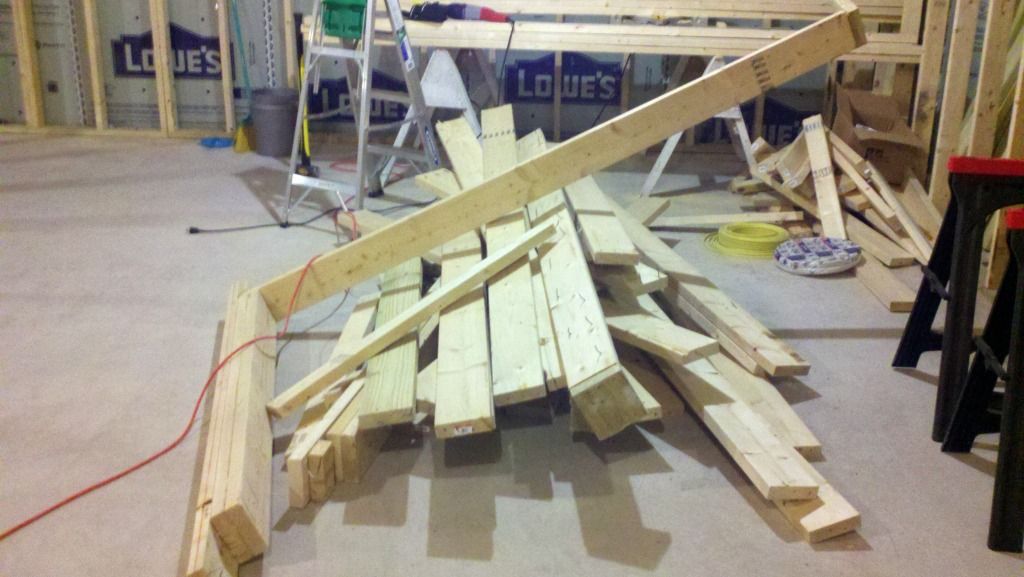

This pile got bigger and bigger.....

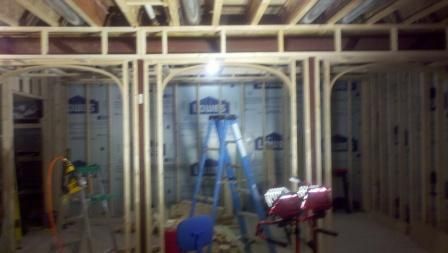

These are the archways I had in the original plan, I really loved the look but I just knew that I would regret not having a single dedicated room, with all of the acoustic benefits of that room

And then........

And now.....

This is the back wall of the theater, I still have to frame the right wall.

AT screen will go right in front of the poles
fax6202 is offline
post #20 of 597 Old 06-09-2012, 05:16 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
And now a question....

The two HVAC supplies are running on the outside walls of the HT....
This is the right one

and this is the left

The plan is to drop those into the soffits that will run the perimeter of the HT and run the flex duct to about the middle of the room (at the sides coming out the bottom of the soffit)

Does anyone have any suggestions/comments on how to do this.
the plan is to drop the ducts using flex into the soffits and then make the run to the middle of the midpoint in the soffit and place the register there. I was going to use flex/insulated 8" ducts and then wrap loosely with insulation and wrap with MLV.

Thoughts?
fax6202 is offline
post #21 of 597 Old 06-09-2012, 06:00 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,715
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 229 Post(s)
Liked: 580
replace the metal duct up in the ceiling with flex. Attach the flex to a metal collar and bring through a hole in the drywall. Then attach your soffit flex duct to the end sticking through. Caulk around the perimeter of the metal collar. Build your soffit inside the drywalled room. Not sure I see a benefit of the MLV if the soffit is drywalled.

What I've done in the past is to attach the metal collar to the ceiling duct work and leave hanging up in the joist space. After the double layer is up on the ceiling cut a round hole and reach up and persuade the collar to join the party in the theater. I've also just cut a snug round hole and pulled the flex duct though the hole. Not totally sure which provides the best sound barrier

Don't forget you need a return or all this effort is wasted.
BIGmouthinDC is offline
post #22 of 597 Old 06-09-2012, 06:57 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
Thanks Big.

The return will be a dead vent that I am building in the back right corner of the room, the dead vent itself will be in the room adjacent. that is why I wanted to move the supplies to the middle of the room, i didnt want the supplies and return right in the same spot. I dont know if that makes an impact but I thought it might. Again, thanks for the comments.
fax6202 is offline
post #23 of 597 Old 06-12-2012, 02:31 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
A question.....

What are the options of hiding the surround speakers, other than concealing inside of a column. Are there other options and what are their limitations.

This is the theater that I plan to implement, at least very similar to this and I cannot think of how to house the surrounds since the columns will be completely hardwood.
450
fax6202 is offline
post #24 of 597 Old 06-13-2012, 12:43 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
A small change in plans, all of my beautiful DRY walnut is now going to become our living room and hallway floors! So says the wife... Now I am scrambling around to get all of the oak that I have, dried. I suppose I will end up kiln drying it if I need it sooner rather than later.
fax6202 is offline
post #25 of 597 Old 06-13-2012, 12:56 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,715
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 229 Post(s)
Liked: 580
Quote:
Originally Posted by fax6202 View Post

A question.....
What are the options of hiding the surround speakers, other than concealing inside of a column. Are there other options and what are their limitations.

Triad will custom match the grills of their on-wall surrounds to any fabric color so you can hide them in plain sight.

You can use in-walls and hide them behind a fabric wall, obviously there are limits of which fabrics you can use.

You can use in-walls and paint the grills the same color as the walls.

You can use In-ceiling speakers
BIGmouthinDC is offline
post #26 of 597 Old 06-13-2012, 01:37 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
Thanks Big

That gives me some options.
fax6202 is offline
post #27 of 597 Old 06-13-2012, 01:38 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
Decided that I am going to build the dead vent inside of the room, in the back corner. this will be behind the screen wall here Untitled.jpg

Does anyone have any suggestions on where to put the return in the front of the room so it is inconspicuous.
fax6202 is offline
post #28 of 597 Old 06-13-2012, 03:34 PM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
I have one of my two Dead Vents behind the screen wall. It's the return DV. I pull air through the screen wall. Since I have a furnace filter on the supply DV, I don't have much dust collecting on the screen wall fabric.

__________________

Ted



The Soundproofing Company
Ted White is offline
post #29 of 597 Old 06-13-2012, 04:06 PM - Thread Starter
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
Hey Ted-

You have two dead vents? One for a supply and one return.

that brings me to another question, is one return and two supplies good enough for my size room. 20x16 roughly
fax6202 is offline
post #30 of 597 Old 06-13-2012, 04:11 PM
AVS Special Member

Ted White's Avatar

Join Date: May 1999
Location: Midland, MI USA
Posts: 8,186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
That would be plenty. A lot depends on the size of the ducts and the pressure pulling / pushing. The flex duct increases resistance, so I have a fan in each DV. I run them each at 1/2 speed.

__________________

Ted



The Soundproofing Company
Ted White is offline
Reply Dedicated Theater Design & Construction

Tags
Displays , Speaker Systems , Triad Inroom Gold Sub , Qsc

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
