So Onevoice2 said, I bought a new house and I want a theater can you help? It happens to be just 10 minutes away and there is a Home Depot on the way there.

The bad news is that the room was already finished, The good news is that Onevoice2 had the desire to do it right. Clips, channel, DD and GG. All penetrations treated and beefy door, Flex duct connections for supplies and a dead vent powered return.

Before

BIG SOFFIT




Can we actually get drywall down this stairway? We did a test sheet today and the answer is Just Barely


DEMO can be very therapeutic. Carrying it outside in contractor clean up bags and taking 2000 lbs to the dump, not so much.



What happens when a builder runs out of insulation? bottom right. Just cover it over.

When I looked at that soffit my initial reaction was I can't believe they need something that big. I drilled a couple of holes and stuck in a scope and there looked like a lot of air.

When we got the side off the answer was pretty obvious. The soffit was much larger than it needed to be.



Back wall goes up to define the space.


room will be 12'8" by 23' That bump out at the back will be a dead vent, a rack space and some disk storage rack

The plan is for two rows of 3 seats, a back bar won out over screen wall so the speakers will be in plain sight. Due to the head room. the desired screen size and the size of the desired sub-woofer A stage might not be possible.

More tomorrow.
BIGmouthinDC is offline
Sponsored Links
Advertisement

post #2 of 229 Old 07-24-2012, 08:24 PM
AVS Special Member

aaustin's Avatar

Join Date: Dec 2010
Location: Upstate NY
Posts: 1,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 32
Quote:
Originally Posted by BIGmouthinDC View Post

there is a Home Depot on the way there.

That my friend is the greatest perk of all! biggrin.gif

It's nice to see that you're starting over to do everything right. I'd think that ripping apart a finished room would be hard for many people, but it is definitely the right decision to get the best theater possible!

I'm excited to see how this one turns out.

The Austin Home Theater:
A DIY high school project (now complete and being enjoyed everyday)

aaustin is offline
post #3 of 229 Old 07-24-2012, 09:47 PM
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Sub'ed!!!!

Are you guys gonna decouple the walls somehow?

Yet another build that will be done before mine. frown.gif

Unless of course BIG wants to come up north, eh?

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #4 of 229 Old 07-25-2012, 04:09 AM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,511
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 145 Post(s)
Liked: 534
Quote:
Originally Posted by cdika17 View Post

Sub'ed!!!!
Are you guys gonna decouple the walls somehow?

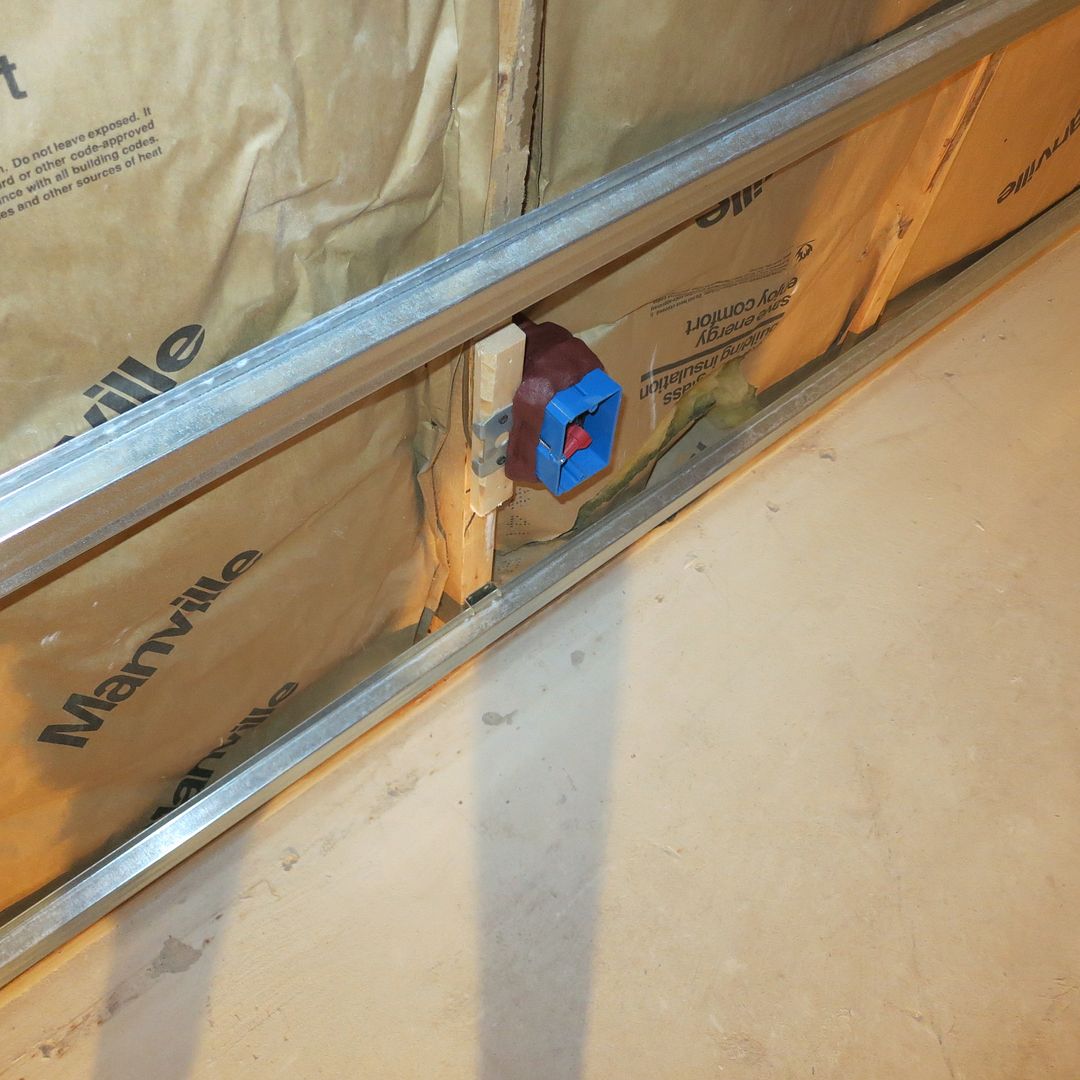

Clips and channel
BIGmouthinDC is offline
post #5 of 229 Old 07-25-2012, 05:42 AM
AVS Special Member

tlogan6797's Avatar

Join Date: Feb 2005
Location: Northern VA
Posts: 4,834
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 36
Looks like it will be a great project!

Just curious if removing the banister would help with the drywall delivery? It's GOT to be faster than trying to manipulate the drywall around it.

And by the way, if you happen to come across a replacement for the bottom piece of that banister (it looks just like mine except for the parts where the dog chewed it) let me know where I can pick it up.

Tom Logan
Everytime I reply the thread ends
Need motivation? Get LOGANED
http://www.avsforum.com/avs-vb/showthread.php?t=1014847

An as-yet un-named theater designed by Big-WarrenP-BritInVA
tlogan6797 is offline
post #6 of 229 Old 07-25-2012, 08:00 AM
AVS Special Member

NickTheGreat's Avatar

Join Date: Jan 2012
Location: Des Moines, Iowa
Posts: 1,573
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked: 79
Close jobs are great because you can be there every day, but suck, because you can be there every day . . . biggrin.gif

I like BIG threads, and this looks a little bit like my room. Stairs down, except mine "bumps out" where this one "bumps in." Will be excited to see how this goes cool.gif
NickTheGreat is offline
post #7 of 229 Old 07-25-2012, 08:59 AM
AVS Special Member

BllDo's Avatar

Join Date: Nov 2010
Location: Twin Cities
Posts: 1,009
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked: 63
I think we need a contest. Let's pit Dennis against Big in a home theater build off and see who gets done first. It'll be a duel to the death.

-




Is it solipsistic in here, or is it just me?
BllDo is offline
post #8 of 229 Old 07-25-2012, 09:41 AM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,511
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 145 Post(s)
Liked: 534
Does Dennis actually do any building himself?
BIGmouthinDC is offline
post #9 of 229 Old 07-25-2012, 10:39 AM
AVS Special Member

BllDo's Avatar

Join Date: Nov 2010
Location: Twin Cities
Posts: 1,009
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked: 63

-




Is it solipsistic in here, or is it just me?
BllDo is offline
post #10 of 229 Old 07-25-2012, 10:50 AM
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Quote:
Originally Posted by BIGmouthinDC View Post

Clips and channel

I was thinking about clips, to disconnect the walls from ceiling, but since it's existing kinda hard to do, similar to my situation.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #11 of 229 Old 07-25-2012, 11:26 AM
AVS Special Member

landshark1's Avatar

Join Date: Nov 2004
Location: Silver Spring, MD
Posts: 1,439
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 56
landshark1 is offline
post #12 of 229 Old 07-26-2012, 10:23 AM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,511
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 145 Post(s)
Liked: 534
BIGmouthinDC is offline
post #13 of 229 Old 07-26-2012, 11:03 AM
AVS Special Member

tlogan6797's Avatar

Join Date: Feb 2005
Location: Northern VA
Posts: 4,834
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 36

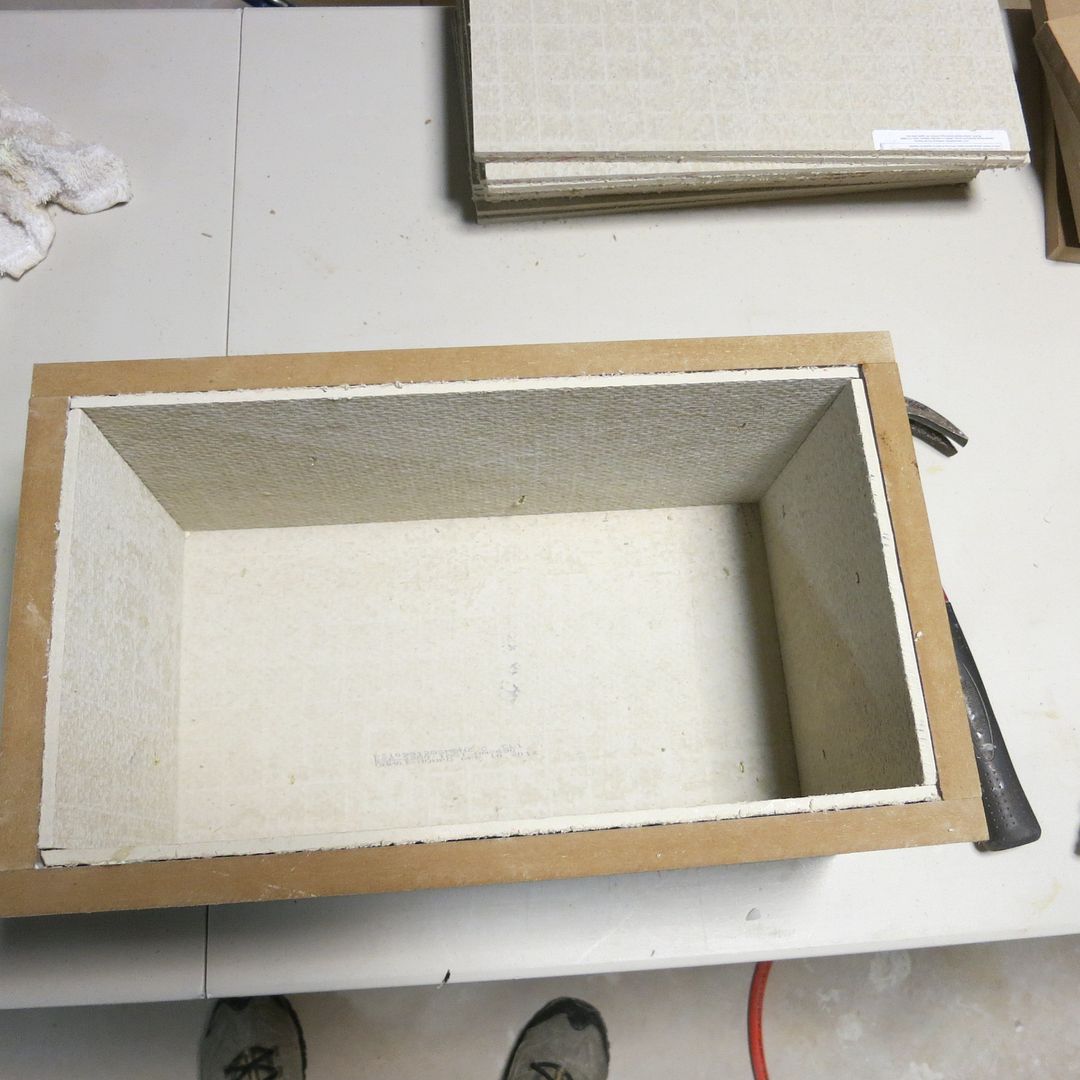

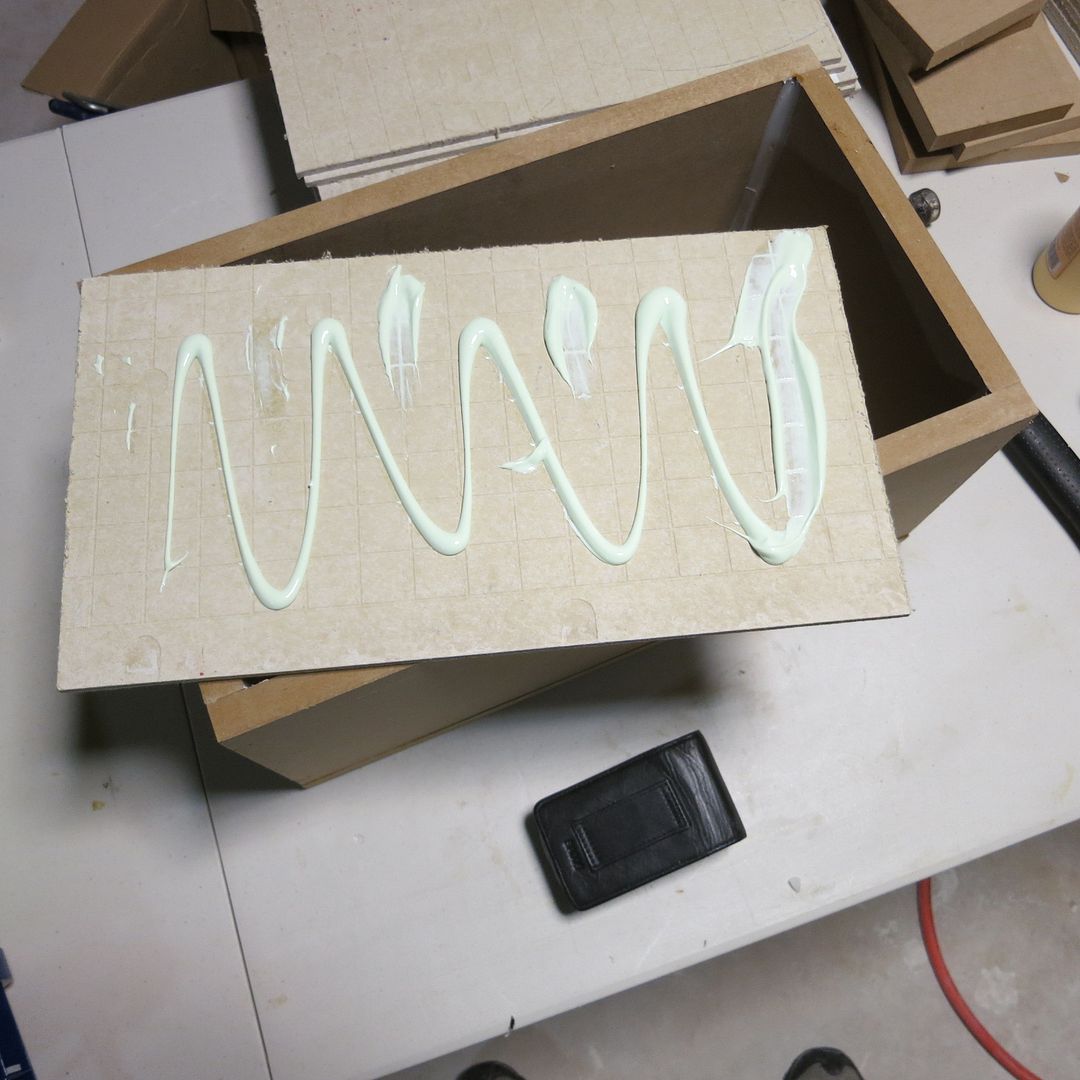

What are you using to cut the backer board? I ended up tearing mine up when I tried to cut it. I bought the scoring tool which helps but I had to score the line, like, 50 times. I have one of the Diablo blades for cutting cement board, and that works like a hot knife through butter on the cement board but didn't work so well on the backer board.

Tom Logan
Everytime I reply the thread ends
Need motivation? Get LOGANED
http://www.avsforum.com/avs-vb/showthread.php?t=1014847

An as-yet un-named theater designed by Big-WarrenP-BritInVA
tlogan6797 is offline
post #14 of 229 Old 07-26-2012, 11:35 AM
Advanced Member

pauleyc's Avatar

Join Date: Mar 2003
Location: Ashburn, VA
Posts: 649
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Tom - I just use a circular saw blade (rough/cheap construction type) to cut the backer. The backer if fiberous, so you need teeth to 'tear' it. Its dusty as hell though. The score technique works but takes to long (IMO) but it is a great indoor option. I have one of those small battery powered circular saws and it works really well for this purpose (not much else though).
pauleyc is offline
post #15 of 229 Old 07-26-2012, 11:42 AM
Advanced Member

pauleyc's Avatar

Join Date: Mar 2003
Location: Ashburn, VA
Posts: 649
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
BIG - The thread started less than two days ago and you are already rebuilding .. please tell me you have been sand bagging the pics and it really didn't happen that fast?? Look forward to seeing where this goes.

Also - I have an identical soffit along the rear of my theater that I "over-built" in 2003. Surprisingly, it looks a lot like that one w/r/t what is inside. Can't wait to see what you do with it, maybe it will give me some ideas on what I can do with mine before the GOM panels go up.
pauleyc is offline
post #16 of 229 Old 07-26-2012, 11:49 AM
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,696
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 108
Always good to see more people building theaters in our area! You all just went right for the throat and got to work didn't you!?
damelon is offline
post #17 of 229 Old 07-26-2012, 03:14 PM
Member

Unacceptable's Avatar

Join Date: Mar 2011
Posts: 189
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
So I guess its safe to assume that every house in Virginia has a theater? tongue.gif
Unacceptable is offline
post #18 of 229 Old 07-26-2012, 03:18 PM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 3,925
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked: 205
Quote:
Originally Posted by Unacceptable View Post

So I guess its safe to assume that every house in Virginia has a theater? tongue.gif

DANG IT! I knew I should have moved to Virginia instead!

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is offline
post #19 of 229 Old 07-26-2012, 04:16 PM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,511
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 145 Post(s)
Liked: 534
They sell a special blade for cement boards and I can tell you after using it I've snapped my last board.
BIGmouthinDC is offline
post #20 of 229 Old 07-26-2012, 04:18 PM
AVS Special Member

landshark1's Avatar

Join Date: Nov 2004
Location: Silver Spring, MD
Posts: 1,439
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 56
Quote:
Originally Posted by Unacceptable View Post

So I guess its safe to assume that every house in Virginia has a theater? tongue.gif
Well, I guess at least the northern Virginia area is.... tongue.gif
landshark1 is offline
post #21 of 229 Old 07-27-2012, 05:35 AM
AVS Special Member

tlogan6797's Avatar

Join Date: Feb 2005
Location: Northern VA
Posts: 4,834
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 36
Quote:
They sell a special blade for cement boards and I can tell you after using it I've snapped my last board.

Is that the 3-4 four tooth Diablo blade? If so that's the one I have and it works great on cement board but I didn't have any luck with it cutting the fiber backer board.
Quote:
The backer if fiberous, so you need teeth to 'tear' it. Its dusty as hell though.

Which is why I went with the scoring tool.

Tom Logan
Everytime I reply the thread ends
Need motivation? Get LOGANED
http://www.avsforum.com/avs-vb/showthread.php?t=1014847

An as-yet un-named theater designed by Big-WarrenP-BritInVA
tlogan6797 is offline
post #22 of 229 Old 07-27-2012, 07:45 AM
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,696
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 108
Quote:
Originally Posted by landshark1 View Post

Well, I guess at least the northern Virginia area is.... tongue.gif

It's getting there. A LOT of people do the easy-mode theaters. Just put a projector up in a room to watch football. (All of which are cheap projectors in a room full of light, which makes it look like watercolors... but hey, it's big!) But so many people have been at my house, seen the theater, and asked me so many questions about it, one of which is always.. "what did that cost you?/what would it cost me to do this?" which is usually followed by them touching the fabric walls, and wondering what they are made of, asking if my projector can do "high def" or not, which is funny by itself.
damelon is offline
post #23 of 229 Old 07-27-2012, 09:11 AM
Advanced Member

advertguy2's Avatar

Join Date: Jan 2006
Location: Oakville, Ontario
Posts: 523
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by damelon View Post

asking if my projector can do "high def" or not, which is funny by itself.

So.... can it?
advertguy2 is offline
post #24 of 229 Old 07-27-2012, 01:57 PM
AVS Special Member

HeyNow^'s Avatar

Join Date: Jul 2001
Location: Martinsburg, Wv USA
Posts: 2,720
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by damelon View Post

It's getting there. A LOT of people do the easy-mode theaters. Just put a projector up in a room to watch football. (All of which are cheap projectors in a room full of light, which makes it look like watercolors... but hey, it's big!)

I resemble that.....
HeyNow^ is offline
post #25 of 229 Old 07-27-2012, 03:02 PM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,511
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 145 Post(s)
Liked: 534
Quote:
Originally Posted by advertguy2 View Post

So.... can it?

yes in 3D, I helped hang it.

Sony-VPL-VW95ES-2.jpg?1319516736
BIGmouthinDC is offline
post #26 of 229 Old 07-27-2012, 08:14 PM
AVS Special Member

damelon's Avatar

Join Date: Sep 2007
Location: Woodbridge, VA
Posts: 1,696
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 108
So back on topic, when did this actually start? All of the sudden there are pics with significant work being done out of nowhere.
damelon is offline
post #27 of 229 Old 07-28-2012, 05:20 AM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,511
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 145 Post(s)
Liked: 534
Quote:
Originally Posted by damelon View Post

So back on topic, when did this actually start? All of the sudden there are pics with significant work being done out of nowhere.

OK full disclosure.

I started the project June 28th. Thirty days ago.

Phase one - demolition and clean-up, line stairway with plastic, put down plastic carpet protection and tarps. Remove carpet and pad, tear off drywall in pieces small enough to fit in garbage bags, remove soffit framing. Cart all that crap up the stairs and to the dump. actual time spent = 30 hours.

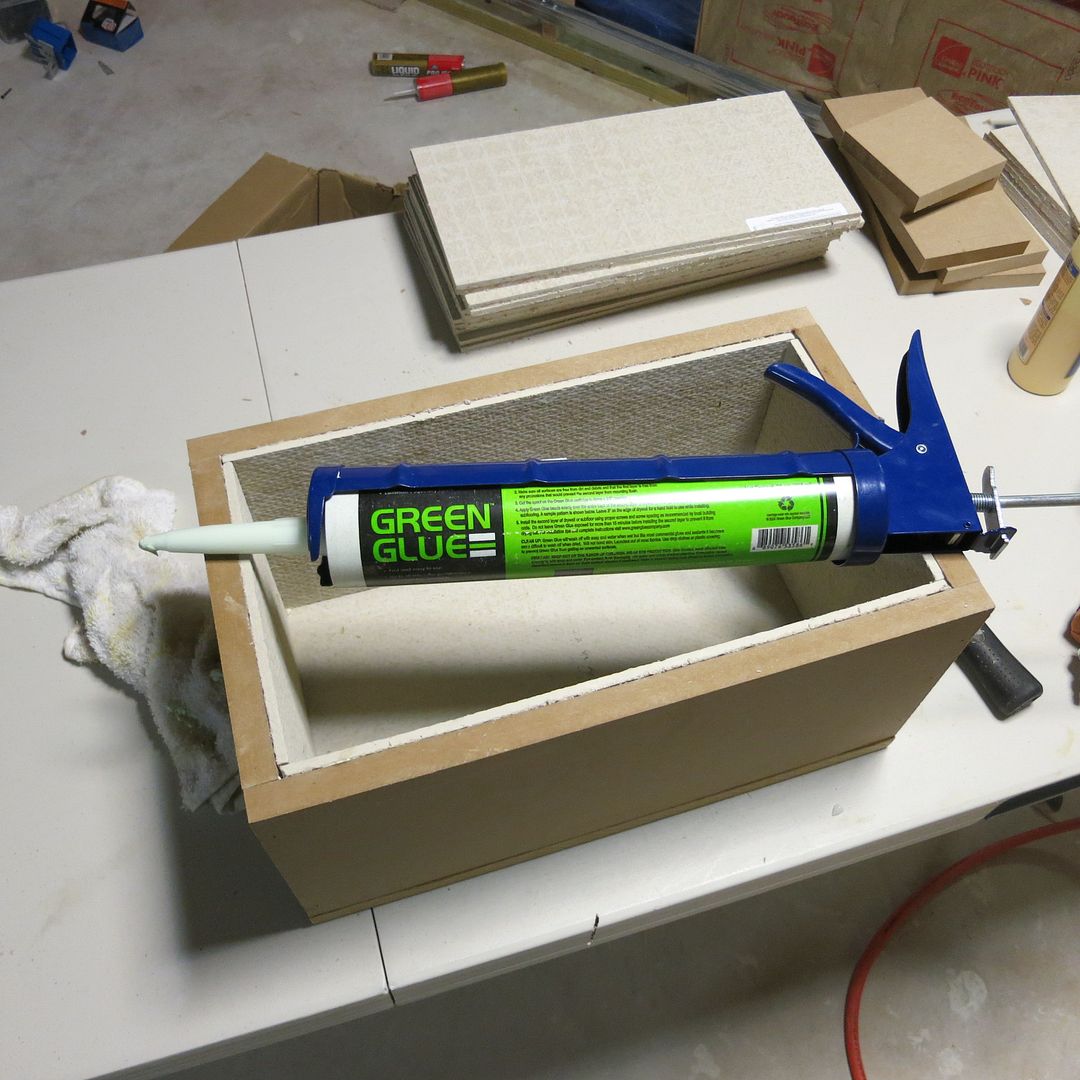

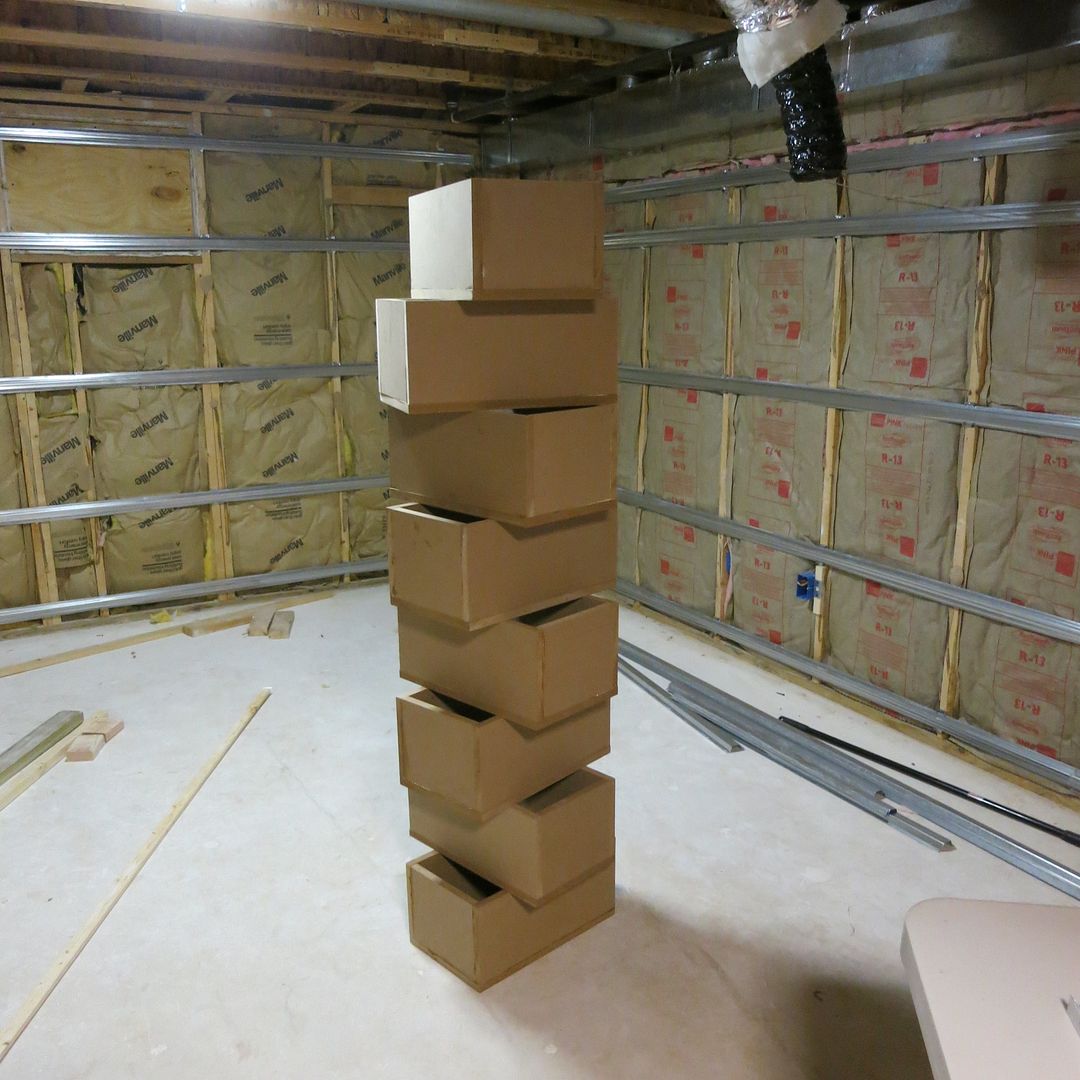

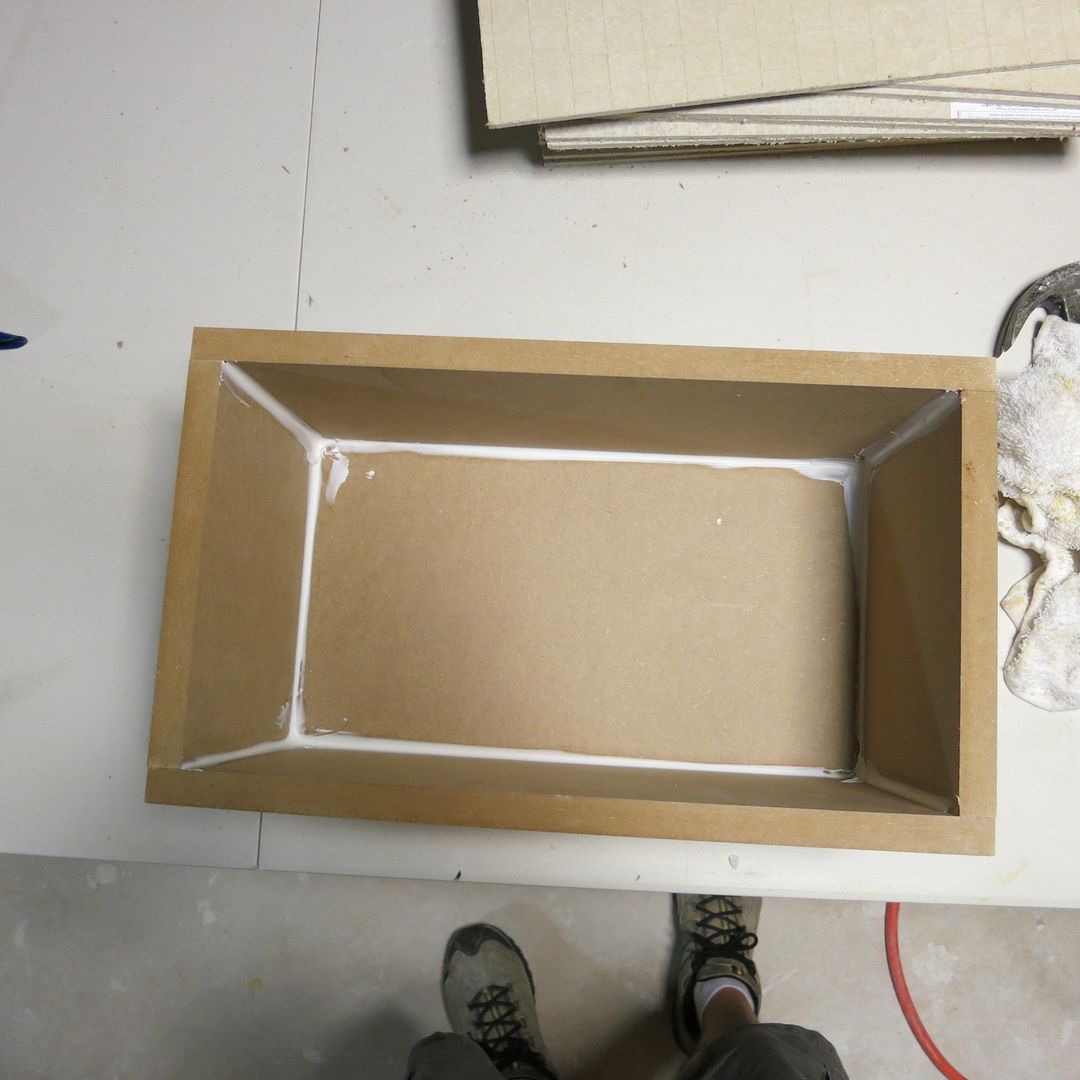

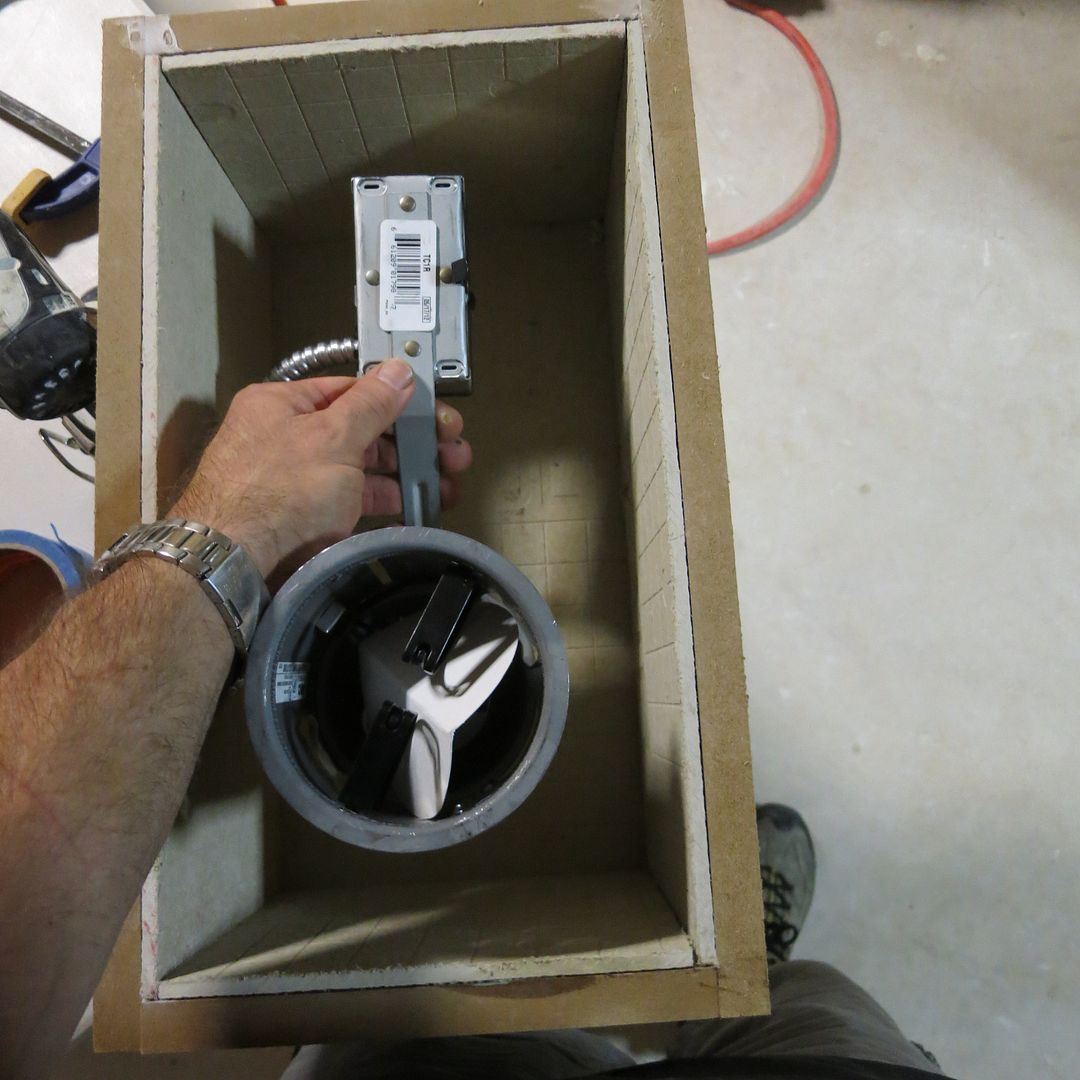

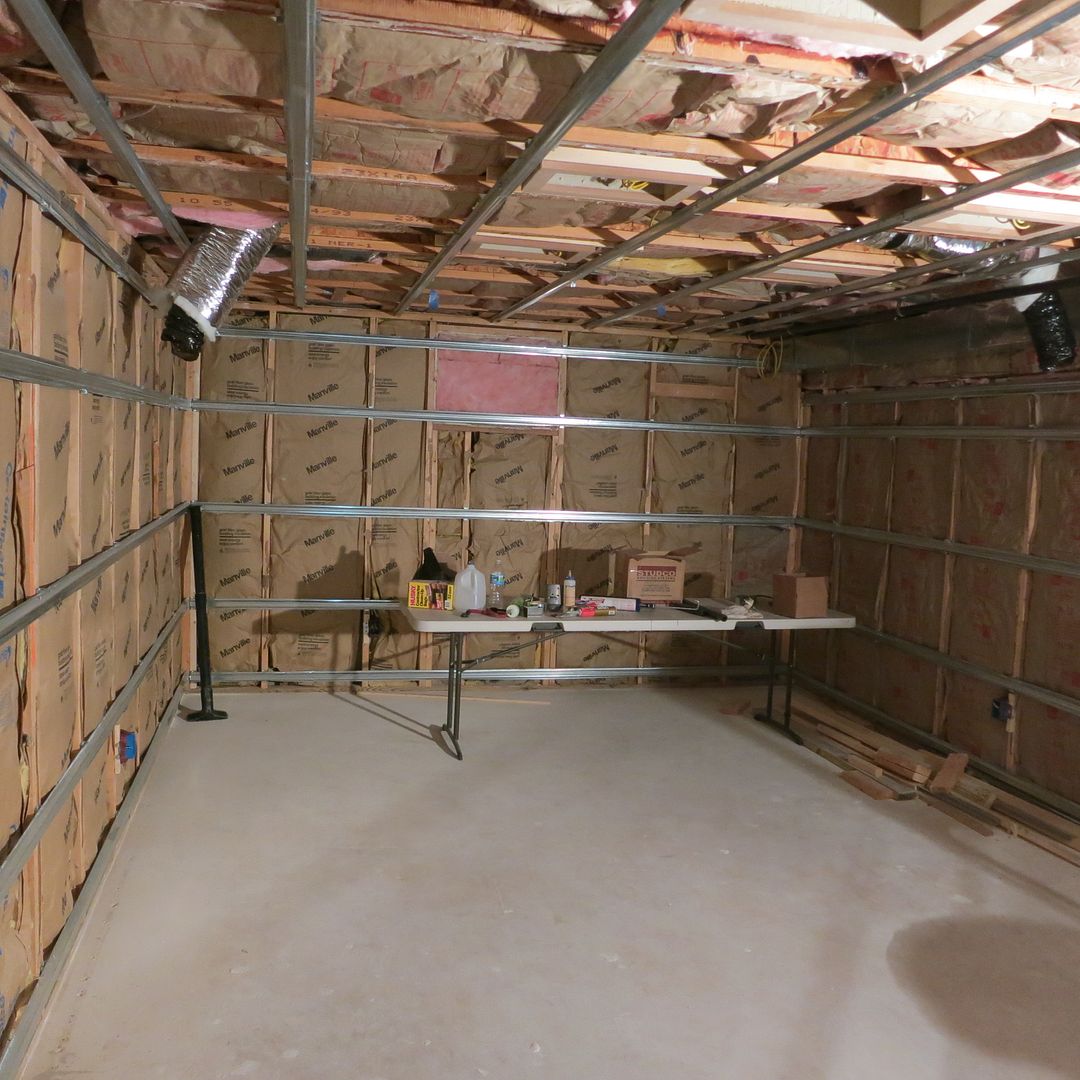

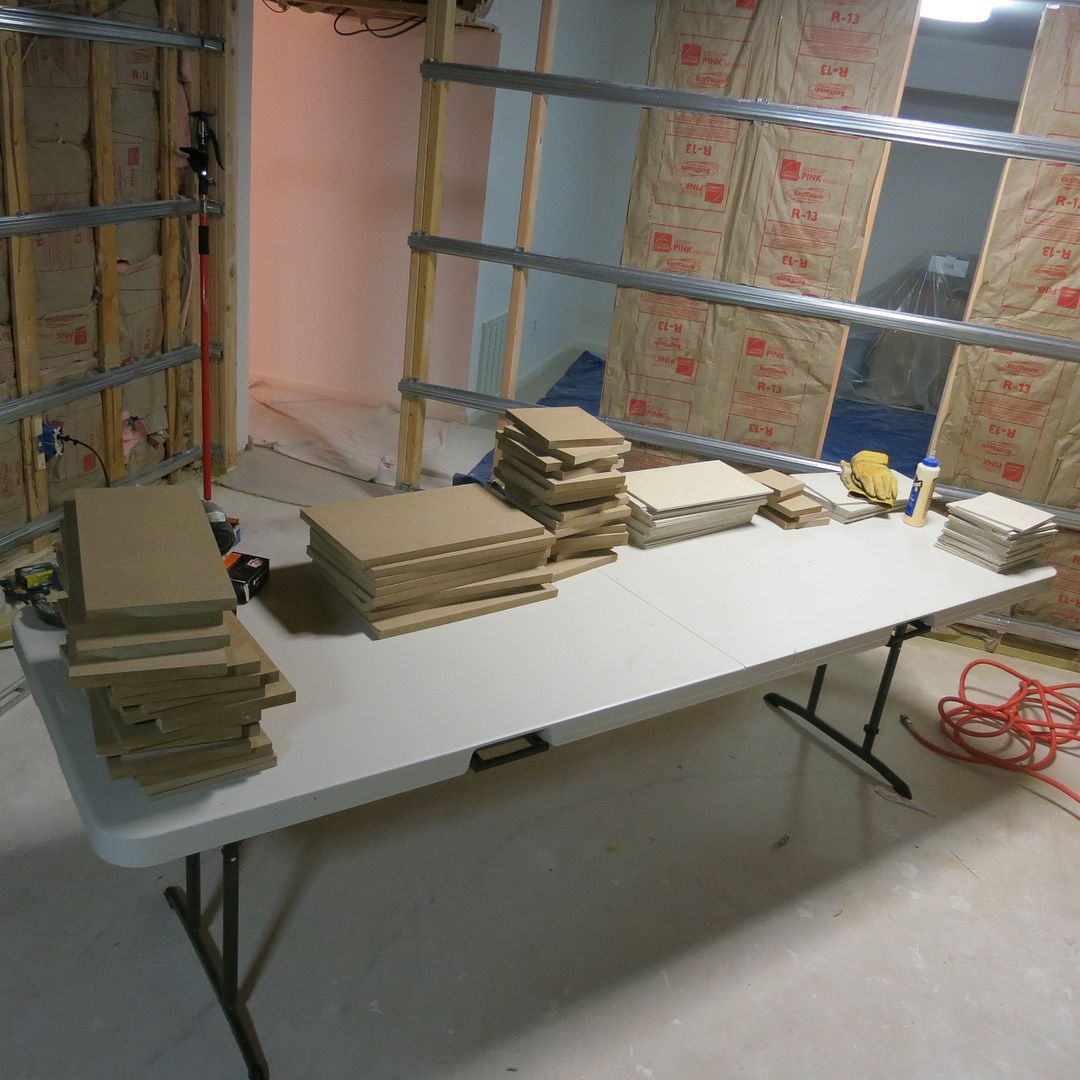

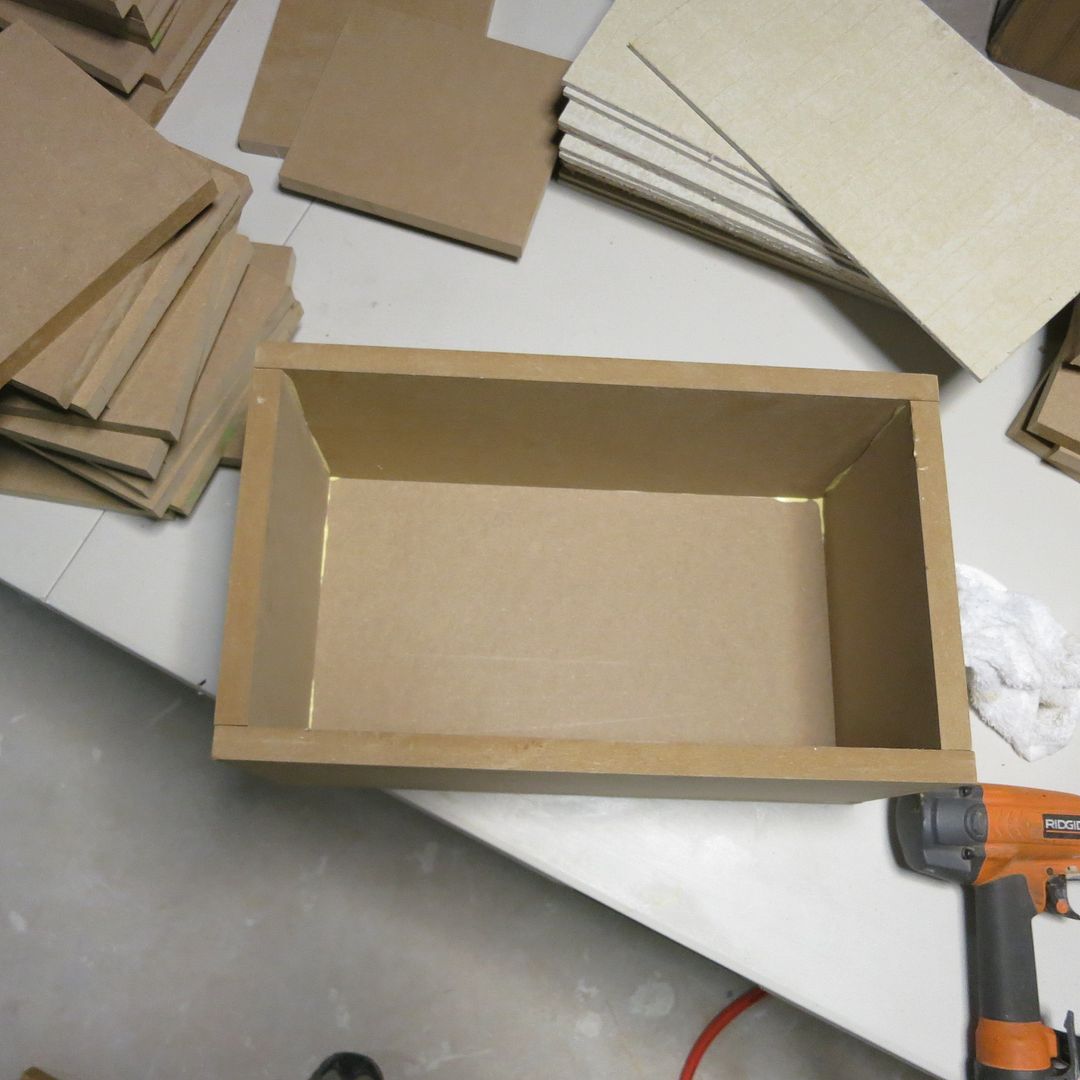

Phase two - Preparation for drywall - build new wall, rework existing electrical boxes, add insulation, , install clips and channel on walls and ceiling, install blinds and cover two windows, build and install backer boxes, Install new electrical circuits for lighting, equipment and outlets. Run wire to new sub-panel box installed in basement. Patch drywall holes electricians made in garage walls to run cable to sub-panel. Install conduit for projector, fashion plywood for first layer in projector location. Re-route TV cable connections. Plus Misc. Actual time spent = 60 hours.
BIGmouthinDC is offline
post #28 of 229 Old 07-28-2012, 05:29 AM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,511
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 145 Post(s)
Liked: 534
BIGmouthinDC is offline
post #29 of 229 Old 07-28-2012, 06:47 AM
AVS Special Member

carboranadum's Avatar

Join Date: Jan 2004
Location: Winchester, VA
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by BIGmouthinDC View Post

Does Dennis actually do any building himself?

Ah....it's always fun to watch the padwan turn on the master.


Follow my build here: Harvest Ridge Theater
carboranadum is offline
post #30 of 229 Old 07-29-2012, 04:50 AM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,511
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 145 Post(s)
Liked: 534
I'm not turning on the master, he probably has forgotten more than I will ever know about theater design and acoustics, just pointing out that there is a significant difference in our chosen paths in life and roles in theater building.

Challenge of the week is getting drywall to the basement. The company I was going to use to do inside delivery is now saying they are really busy. Translation = we don't want to do it and if we stall maybe you will go away. Frankly this will be one of the most difficult deliveries I've seen so I can't blame them. So I will be heading over to plan B Monday morning. My last resort will be to get normal garage delivery then round up two strong looking dudes at 7-11 to wrestle 63 sheets down the stairs.
BIGmouthinDC is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
