post #92 of 597 Old 09-19-2012, 05:07 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
I'm also moving along on my HVAC install.. Ordered 6 sticks of 15% silfos brazing rods off the 'Bay, so I may be purging and vacuuming lines this weekend.

Stopped by the HVAC supply house and had a great conversation with the guy there. He is going to bring in a supply and return plenum for my air handler, custom sized and lined. If I don't like it he said just bring it back. I've been going there for years picking up little things here and there, so they know me somewhat, but I was really impressed with how helpful he was today.

Between that and the brazing rods, I should be all set. Since I have a long lineset I will have to pick up some more refrigerant. The condensor only comes pre-charged for 15 ft.. I have like 60.

If there's any interest, I'll break out the contour roam when I get around to doing the work.

Tim
Mr.Tim is offline
post #93 of 597 Old 09-20-2012, 03:45 AM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
I was asking Mario some carpet q's in his thread and a question arose about my nosings. I did a quick sketch on what I'm planning to do:


I'm trying to get the nosing to match the height of the carpet without requiring shimming. Right now I am figuring a 3/8" lip. This sketch is of my steps down to the lower level seating.

For my highest riser I am putting a layer of 3/8" plywood over the existing 3/4. I'm going to install the nosing first, which will be 3/4" higher that the first layer of 3/4 plywood. The second layer of 3/8" will butt up to the nosing and bring the carpet transition to 3/8.

My question was how much lip[ should I leave.. 1/4, 3/8. 1/2.. I think 3/8 is pretty safe.

Tim
Mr.Tim is offline
post #94 of 597 Old 09-20-2012, 05:01 AM
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,691
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Liked: 158
Hi Mr Tim,

Looking good in here!

Hey, what is the tip size(stock) on the HVLP gun?

Nicholas
NicksHitachi is online now
post #95 of 597 Old 09-20-2012, 02:10 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Quote:
Originally Posted by NicksHitachi View Post

Hi Mr Tim,
Looking good in here!
Hey, what is the tip size(stock) on the HVLP gun?
Nicholas

There's no marking on it, but the specs say the 2900 ships with a 2mm needle. It's definitely bigger than the 1.5mm I ordered.

Tim
Mr.Tim is offline
post #96 of 597 Old 09-21-2012, 03:01 PM
Advanced Member

dwightp's Avatar

Join Date: Sep 2007
Location: Mesa, AZ
Posts: 630
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
Quote:
Originally Posted by Mr.Tim View Post

My question was how much lip[ should I leave.. 1/4, 3/8. 1/2.. I think 3/8 is pretty safe.

Tim

3/8" would be pretty thin carpet, wouldn't it? And what about the thickness of the pad under the carpet?

The only way to know for sure, I suppose, would be to choose your carpet now. Probably not practical. Since we're just guestimating here, my guestimate would be 5/8" (more than 1/2", less than 3/4"). I'm figuring the carpet and pad together will be about 3/4" thick, so a 5/8" lip would let the carpet sit just slightly higher than the nosing.

Maker of the finest saw dust since 1980, give or take

MY Custom AV Cabinet with DIY Pull-Out and Rotate Rack
dwightp is offline
post #97 of 597 Old 09-21-2012, 03:06 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Quote:
Originally Posted by dwightp View Post

3/8" would be pretty thin carpet, wouldn't it? And what about the thickness of the pad under the carpet?
The only way to know for sure, I suppose, would be to choose your carpet now. Probably not practical. Since we're just guestimating here, my guestimate would be 5/8" (more than 1/2", less than 3/4"). I'm figuring the carpet and pad together will be about 3/4" thick, so a 5/8" lip would let the carpet sit just slightly higher than the nosing.

Thanks for the input, Dwight. Mario had 3/4 and they had to shim his, so I think 1/2" would be the max.

I looked at it this way:
-there is no padding between the tackless and the nosing, so the thickness of the tackless+carpet is probably what I should shoot for
-a 3/8 gap under the baseboard usually compresses the carpet a bit (or, the carpet is a little taller than 3/8)
-a 1/2" gap under the baseboard usually allows the carpet to slide right under (or the carpet is about 1/2" tall)

I also figured if I had a choice between the carpet being higher than the nosing, or the nosing being higher than the carpet, I'd prefer the former.. I think it would be a greater trip hazard if the nosing (hard, immovable) was higher than the carpet (has some give).

With all the people here.. I can't believe nobody is/has been a pro carpet installer! Our members surely run the gamut of trades! Any volunteers to take up the trade??

Tim
Mr.Tim is offline
post #98 of 597 Old 09-22-2012, 04:24 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Lots of progress today. Started with a trip to the HVAC supply to pick up the custom plenums:

Extremely happy with them for just over $100. They fit the unit perfectly and they're lined (and pin welded).



Got all of the treads done for the stage. You can see the 1/4" lip I made:



Used all of my black undercoat.. Almost painted everything I wanted to get painted. Ran short so the F-20 only has half a paint job. The important thing is that I got all the woodwork done that I wanted to.. the sub can wait. Here's the stage:

I painted the treads outside. I also sprayed the risers before I installed the treads. I have to finish joining the top tread and fasten everything down. Before the carpet goes in I'll block it all with 320 grit and give it a final coat of black-tinted poly.

Tim
Mr.Tim is offline
post #99 of 597 Old 09-23-2012, 04:03 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Got the steps to the lower lvel complete. I think they came out pretty well considering it was built and painted outside, then installed:


Here you can see the beginnings of a column mockup:


My first impression is that these columns are HUGE. I am going to go ahead and get it mocked up all the way. It is perfectly square, so it isn't really bigger that the columns that are already there.. it just sticks into the room.

Tim
Mr.Tim is offline
post #100 of 597 Old 09-23-2012, 05:18 PM
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,691
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Liked: 158
Nice work Big Tim!
NicksHitachi is online now
post #101 of 597 Old 09-28-2012, 10:25 PM
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 715
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 20
Looking good Mr Tim, anymore updates?

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #102 of 597 Old 09-29-2012, 05:11 AM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Not much on the theater. I finish building and am enjoying my F-20 sub (see my sig). I am no audiophile... never have been, probably never will be.. But this sub is amazing. Not being an audio guy I don't have anything to compare it to, but IMHO it's an insane amount of bass.

Hope to work on the columns this weekend. Looks like rain this AM, but hopefully I can open the outdoor workshop this afternoon and get one done. We'll see.

Tim
Mr.Tim is offline
post #103 of 597 Old 10-07-2012, 03:17 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
A little more progress on the columns:

You can see how the base of the column is the same height regardless of which riser you're on.

Raised panels at stage:

Raised panels being glued up at the rear of the theater:

Not sure if I'll get anything else done tomorrow. Need to mill some more stiles as I ran short. Don't even want to think about the rails and stiles I need for those columns...

Tim
Mr.Tim is offline
post #104 of 597 Old 10-07-2012, 03:21 PM
AVS Special Member

NGiovas's Avatar

Join Date: Dec 2002
Location: Michigan
Posts: 1,354
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 35
Looks good Tim. Things are starting to come together. I can't wait to see your columns. I haven't come up with a final design yet, but I started measuring out the positions this weekend.

Nick
NGiovas is offline
post #105 of 597 Old 10-20-2012, 02:50 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
I've done a little more carpentry.. I'm working on the details right now. I turned a few corners with the wainscot and got one of the door frames fab'd and installed.

Today's big project was this:

Finally got the condenser brazed in to the lineset.


Charged with nitrogen to check for leaks:


Start pressure on high side:

30 mins later:


I wish I could say the same for the suction side. It has a pretty substantial leak as far as refrigeration goes. I charged to 300psi and will leave overnight.. but my 30 min test was pretty conclusive. Checked my brazed joints, and it's not those.

It's one of the joints that was done when the lineset was originally installed.

The good news is I know where the 3 fittings/joints are and two of them are actually outside, so I just have to dig down and cut through the pvc sleeve to expose them.

The bad news is that there is one fitting above the theater ceiling. Praying it's not that one.. because that will mean tearing through the soffit and I'm not even sure if I can get to the fitting without removing some of the ductwork.
Mr.Tim is offline
post #106 of 597 Old 10-20-2012, 04:27 PM
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,860
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Liked: 213
Huh. I work on automotive A/C, and we have don't anything as sophisticated as all this. But the questions is, do you have any way to identify the leak without digging it up or tearing open the ceiling? Some kind of tracer? We use fluorescent dye in the lubricant, but of course, that requires the system be charged and run for a while, and you still have to have a line of sight. Or there are electronic detectors that sense the presence of something other than air - that would be handy to get you in the right area, if it's not underground... I suppose the short story here is that none of the normal mobile A/C leak detection techniques are really appropriate.
HopefulFred is offline
post #107 of 597 Old 10-20-2012, 04:43 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Yes, they do have a leak detector that will detect the refrigerant. If I had one, I would put a trace of 410 in there and charge with nitrogen.

Unfortunately, I don't have one. Double-unforunately, I would have to expose the fittings anyway to be able to use the detector. At that point the leak detector solution (aka soapy water) should work anyway. At 300psi bubbles should form easily.

The tubing underground is in a 3" pvc pipe that's been filled with closed cel foam. It's not a huge ordeal, it's only about a foot deep, and a grinder will cut the pvc easily without risk of cutting the tubing. I am going to start there.. if it's not that, then I'm going to have to open the soffit up.

In the soffit is a single coupling, and I know where it is. But the ductwork is smashed right up against it, so I don't think I will be able to get a torch in there safely unless I remove the ductwork. Let's hope it doesn't come to that!

Tim
Mr.Tim is offline
post #108 of 597 Old 10-21-2012, 08:52 AM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Spent the night preparing for the worst. This morning I cut the line after it entered the house and tested the portion of the tubing that is buried in the soffit:

Success! The tubing held pressure.

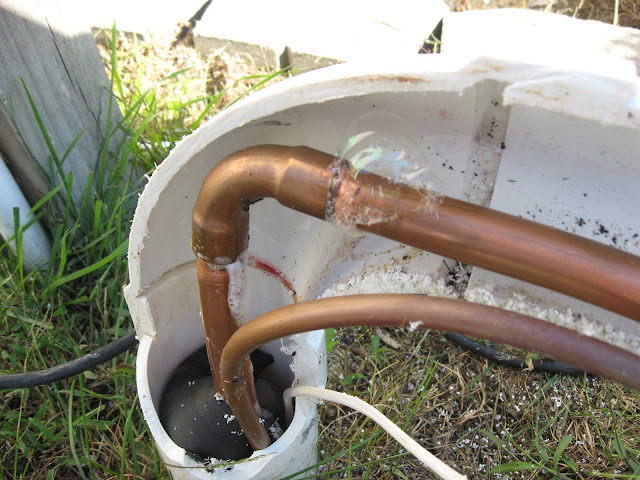

So now I knew I had to start dissecting the piping outside. Low and behold:

Got ya!

Tim
Mr.Tim is offline
post #109 of 597 Old 10-21-2012, 09:00 AM
AVS Special Member

Spaceman's Avatar

Join Date: Nov 2009
Location: North Houston
Posts: 1,966
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 101
Nice job, Sherlock!smile.gif

What did you use to dissect the pvc sleeve?
Spaceman is offline
post #110 of 597 Old 10-21-2012, 09:04 AM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
I used a pvc hand saw:

I shied away from the power tools for fear I destroy something biggrin.gif

Tim
Mr.Tim is offline
post #111 of 597 Old 10-21-2012, 09:20 AM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,122
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 57
Woot - nice catch! Those kind of jobs are always satisfying to complete - the ones where you dread having to take a step backwards and break things before you can move forward.
Brad Horstkotte is offline
post #112 of 597 Old 11-04-2012, 01:42 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Some progress on the columns. I've been sidetracked by the central air conditioning and then Sandy.

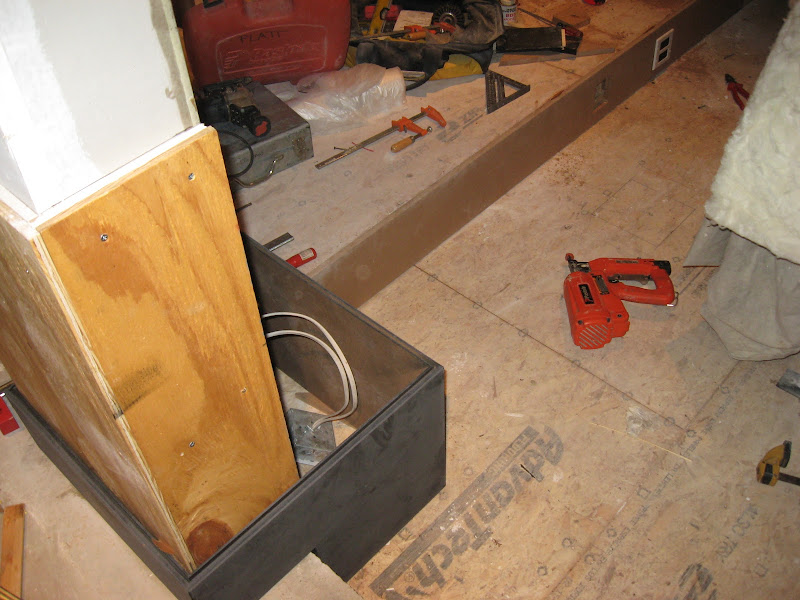

Base of the columns:

They tie into the MDF skirt board on the front of the second riser.. this was a pain, glad it is out of the way!:

Some columns corners assembled and painted... others waiting to be glued up:

Also got two of the three door jambs assembled and primed:

I assembled the main theater entrance door jamb (including gorilla glue) and thought... man that looks wide. A quick measure and found I had framed for a 30" door.. not a 36" like I built the jamb for. Luckily I popped it apart, ran to the miter saw and lopped 6" off.. back down to the theater and reassembled before the glue started to foam up. I think that exhausted this month's luck.. and it's only the 4th.

Tim
Mr.Tim is offline
post #113 of 597 Old 11-05-2012, 07:09 AM
AVS Special Member

BllDo's Avatar

Join Date: Nov 2010
Location: Twin Cities
Posts: 1,075
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked: 85
Quote:
Originally Posted by Mr.Tim View Post

Some columns corners assembled and painted... others waiting to be glued up:
Tim

Did you use a drawer lock bit on those colums?

-




Is it solipsistic in here, or is it just me?
BllDo is offline
post #114 of 597 Old 11-05-2012, 09:07 AM
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
It's a 45 degree Lock Miter Bit
fax6202 is offline
post #115 of 597 Old 11-05-2012, 09:19 AM
AVS Special Member

BllDo's Avatar

Join Date: Nov 2010
Location: Twin Cities
Posts: 1,075
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked: 85
I wish I would have thought of that when I was trying to cover up some lally columns. Very nice.

-




Is it solipsistic in here, or is it just me?
BllDo is offline
post #116 of 597 Old 11-05-2012, 12:54 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
As Dave said, it's a lock miter bit. I've pretty much stopped making corners any other way. Trying to miter the edges or butt them together never yields great results. You always see some sort of joint. I use the lock miter and then a 1/4" roundover bit to soften and hide the joint.

When glued properly the joint is exceptionally strong. Outside I've had mahogany planks split before the joint let go.

Tim
Mr.Tim is offline
post #117 of 597 Old 11-06-2012, 02:37 PM
AVS Special Member

cw5billwade's Avatar

Join Date: Aug 2011
Location: GA
Posts: 1,374
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked: 119
cw5billwade is online now
post #118 of 597 Old 11-06-2012, 03:57 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Quote:
Originally Posted by cw5billwade View Post

If you had room for 36" door why did you go with 30"

Every other door leading to the theater was 30", be it the door at the top of the stairs or the pass door leading to the exterior entrance.. Just didn't seem like it would help, since anything that got that far would fit through a 30" door smile.gif

Tim
Mr.Tim is offline
post #119 of 597 Old 11-06-2012, 04:37 PM
Advanced Member

fax6202's Avatar

Join Date: Apr 2012
Posts: 522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 16
Quote:
Originally Posted by Mr.Tim View Post

As Dave said, it's a lock miter bit. I've pretty much stopped making corners any other way. Trying to miter the edges or butt them together never yields great results. You always see some sort of joint. I use the lock miter and then a 1/4" roundover bit to soften and hide the joint.
When glued properly the joint is exceptionally strong. Outside I've had mahogany planks split before the joint let go.
Tim

Tim is right on. The lock miter is used a ton with plywood for a few different reasons. Its advantages are that it is hidden from the outside and that it requires clamping in only one direction because of the built in locking action. It is not used so much with long runs of solid stock. The reason there is that any variance in the wood; if it is at all cupped or bowed than it becomes very difficult to make a tight fit. With Plywood, not so much as it is very straight.

For example, look at Tim's columns, no visible seam....very well done Tim, great Craftsmanship
fax6202 is offline
post #120 of 597 Old 11-07-2012, 03:35 AM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,121
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 58
Quote:
Originally Posted by fax6202 View Post

For example, look at Tim's columns, no visible seam....very well done Tim, great Craftsmanship


Thanks smile.gif Hope to finish them within a week and have some final pics.

Tim
Mr.Tim is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
