I have three holes in my theater room under construction... and would like to reduce it to two... or even one. Unfortunately, the guy who did the work is jail for a DUI and cannot be reached. So, here's the situation as reflected in the photo below. The hole with the two electrical wires is for a light fixture... I'm okay with the that... and it's actually a fourth hole. The hole with one electrical wire is for the power to the projector. The rectangular box has CAT 6 cable in it. The round hole is for HDMI and future proofing. I'm told the yelow electrical wire can't come out of the same box as the CAT 6 cable. I also don't understand why the HDMI cable can't come out of the same box as the CAT 6. The painters are coming on Monday and I could sure use some help. Thanks!

Anhydro is offline
Sponsored Links
Advertisement

post #2 of 4 Old 11-22-2012, 05:00 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,909
Mentioned: 7 Post(s)
Tagged: 1 Thread(s)
Quoted: 323 Post(s)
Liked: 632

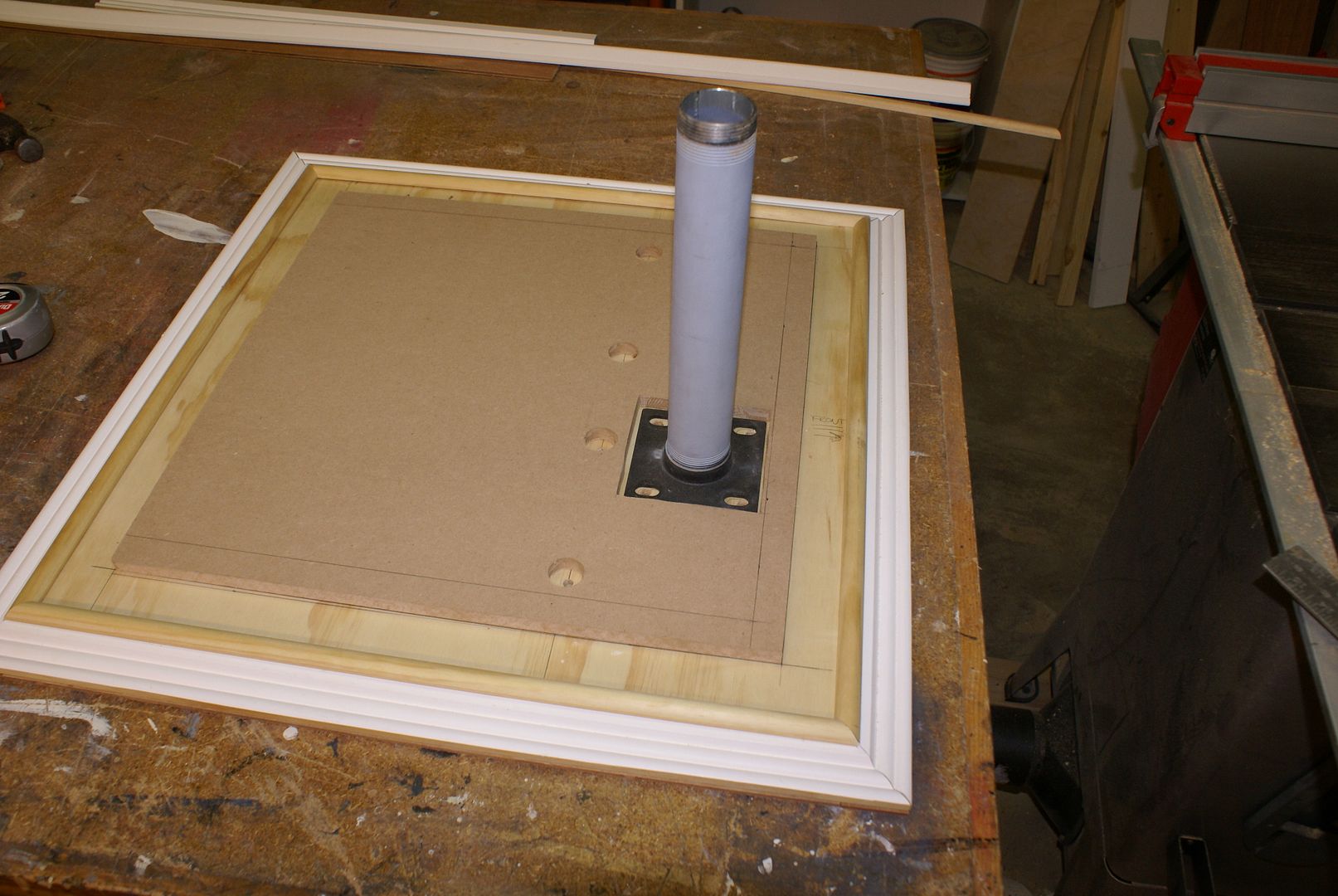

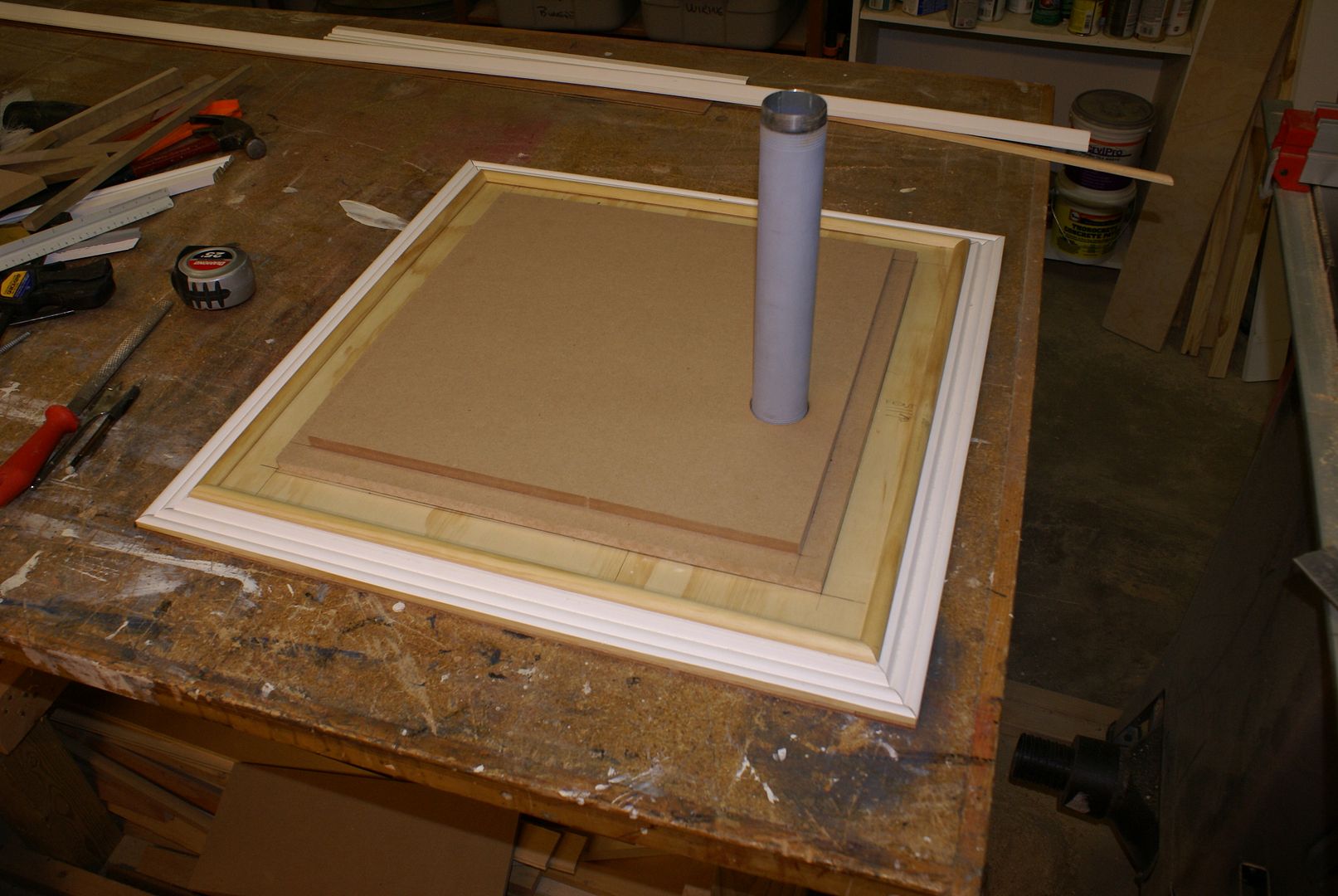

ALL my wires come down the down rod of my Chief Mount. There is a way to do it code legal and then there are shortcuts. Code legal would involve a hidden recess in the ceiling with an outlet side by side with the LV box. You cover that recess with a REMOVABLE plywood hatch that the projector mount is attached to and bring all the wires down the tube.


JEFF PARKINSON


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
BIGmouthinDC is online now
post #3 of 4 Old 11-22-2012, 05:04 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,909
Mentioned: 7 Post(s)
Tagged: 1 Thread(s)
Quoted: 323 Post(s)
Liked: 632


JEFF PARKINSON


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
BIGmouthinDC is online now
post #4 of 4 Old 11-22-2012, 07:47 AM - Thread Starter
Member

Anhydro's Avatar

Join Date: May 2012
Posts: 171
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Thanks BIG!!! Your response is just what I was hoping for!
