Although I am still building my other theater in my current house, It's time to start planning for the new one in the house I'm building starting next spring.

We have narrowed our plans and here is what it looks like:

Front Elevation



Upstairs



Downstairs



Theater Room



Vision



or



Soundproofing

Staggered Stud Walls or 2 x 4 walls with Clips/Channel, tops attached to floor joists by IB-3 clips
WhisperClips and channel on ceiling
Layer of 5/8 OSB, Green Glue, Layer of 5/8 Drywall
30" wide, 1-3/4" solid core door
Auto door bottom & jamb
Limited holes in soundproof shell. Lights in tray, outlets in columns.

Either 2 rows of 3 seats or 3 rows, back row being a bar on own riser.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
Sponsored Links
Advertisement

post #2 of 25 Old 05-08-2013, 11:42 AM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Equipment List

•Screen: Seymour SE 4k 2.37 130" wide
•Projector: JVC DLA X55 4k, Darbee Darblet DVP5000
•Speakers: eD Cinema 12 LCR, eD Cinema 6 slants surrounds, SVS PC-Ultra 13 x 2 (May upgrade to JTR LCR - Noesis 212HT, Surrounds - Single 8HT-lp, Subs - Cap S2)
•Electronics: Denon 4311CI, Emotiva XPA-5, Emotiva XPA-2, Oppo BDP103, Xbox 360, PS3, Sonos, Apple TV,
•Rack: Middle Atlantic
•Power: (2) 20A dedicated circuits, APC H15, APC S15
•Lighting: Lutron Grafik Eye QS 6-zone
•Control:
•Seating: (6) Fusion Escapes - Brown Bonded leather
•Acoustic Treatments: OC 703, linacoustic
•Paint/Fabric: GOM

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #3 of 25 Old 05-08-2013, 11:42 AM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Reserved

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #4 of 25 Old 05-08-2013, 02:42 PM
AVS Club Gold

warrenP's Avatar

Join Date: Jul 2005
Location: Now in Colorado!
Posts: 1,800
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 52
When are you deciding on which plan to go with? If you do go with that second plan, there looks to be better ways to layout that space....

Looking forward to the decision, and then watching it come to life!
warrenP is offline
post #5 of 25 Old 06-26-2013, 05:17 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,487
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 134 Post(s)
Liked: 530
what is that arch? riser or stage? If you intend to kill some time in the theater when your significant other is trying to sleep in the bedroom above you really need to get serious about soundproofing.
BIGmouthinDC is online now
post #6 of 25 Old 06-26-2013, 05:33 AM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Hey BIG!
Yah I wouldn't pay attention to what the draftsmen put in room as far as risers n such, this is just a pic of the lay out and dimensions of proposed theater. If I am gonna have width restraints then ill probably go to a staggered stud wall in stead of a true room within a room design. Clips and channel on ceiling, framing decoupled by ib-3 brackets, single door with auto door jamb and door bottom. I've had good practice with my first theater that I hope I can take what I learned and apply it to the new one. I'm getting close to finishing the theater in current house, check it out in my signature.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #7 of 25 Old 07-02-2013, 07:47 PM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
So we have been going thru structure and mechanical plans and looks as thou it would be best to keep the proposed room dimensions as is. So my inside dimensions I have to work with are 24'-6" x 14', this is using standard 2 x 4 framing and 1/2" drywall, so once I go staggered stud wall plus 2 layers of 5/8 material I'll be around 24'-1/2" x 13'-6 1/2" I/D. Longer and thinner than my current theater, not to sure how I feel about that! Everything is not set in stone, but it's looking like the way I may have to go.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #8 of 25 Old 07-04-2013, 04:37 AM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,849
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 58
30" deep AT space would be a plus.

How tall is the room? If the room is tall, the extra height could be used to raise the surrounds, to extend the distance from any speaker
to the nearest seat, and shrink the differential distance between the nearest and furthest seat.

Are those dipole side surround speakers, with that column placement?
Tedd is offline
post #9 of 25 Old 07-04-2013, 05:25 AM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Quote:
Originally Posted by Tedd View Post

30" deep AT space would be a plus.

How tall is the room? If the room is tall, the extra height could be used to raise the surrounds, to extend the distance from any speaker
to the nearest seat, and shrink the differential distance between the nearest and furthest seat.

Are those dipole side surround speakers, with that column placement?

We are hoping to do a 10' basement. I have eD Cinema 6 slants (Upgraded DE-250 driver and Alphalite 6A woofer
) for my surrounds.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #10 of 25 Old 07-04-2013, 07:37 AM
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,689
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked: 183
I think you'll want the door to swing the other way.
HopefulFred is offline
post #11 of 25 Old 07-04-2013, 09:45 AM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,849
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 58
and fire code will dictate the door needs to swing inwards....

Are those eD Cinema slants wide dispersion or horns? (Had to Google image them.) The side surrounds are properly located for dipoles but not for a direct radiator.
Tedd is offline
post #12 of 25 Old 07-04-2013, 02:01 PM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Quote:
Originally Posted by Tedd View Post

and fire code will dictate the door needs to swing inwards....

Are those eD Cinema slants wide dispersion or horns? (Had to Google image them.) The side surrounds are properly located for dipoles but not for a direct radiator.

Horns, but I may sell my current speakers in current theater with sale of house, then I will upgrade to something new, perhaps dipoles, who knows.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #13 of 25 Old 07-05-2013, 04:19 AM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,849
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 58
I wouldn't want horns that close to my seat. Your speaker surround location as drawn, is perfect for dipoles (which are also a good choice for narrow rooms).
The surround speaker location as drawn, should have a direct radiating speakers located at the end of the primary viewing row. Just one row with slightly compromised
surround sound then.

The Google Images picture I came up with, shows the eD to be a pretty shallow speaker. Another design option might be to ditch the columns and build a pair of angled fabric walls
on the side walls, then use the depth of these AT walls to mount the eD's up high and angle to fire forward and down, over seated heads. The AT walls would also earn their keep
hiding acoustical treatments. The equipment room door could be fabric covered and blend into the wall. The room's visible square footage would be slightly less, but the room would also
have a simplified look with all gear hidden.

You also might want to run a couple of empty conduits from the equipment room to the front AT space, as future proofing. The equipment room also would be a good candidate for
media shelves.
Mfusick likes this.
Tedd is offline
post #14 of 25 Old 07-05-2013, 04:34 AM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Here are my speakers.



Thanks for all your help Tedd!

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #15 of 25 Old 07-05-2013, 07:14 AM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,849
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 58
cdika17a.jpg 88k .jpg file

Over sized backer type boxes could steal a few inches of wall depth (but preserve sound proofing. A single angled fabric wall per side could create the depth to aim
the eD's (and keep the wall shallow,) to fire down and over, seated heads. A section of upper rear wall fabric panel could hide the rears. The side angled walls could
also hide rear corner wall treatments.

I have no idea how to draw in angled walls, but I could see the start of the angled wall starting at the top of the riser step, or media room door. The av/media room door could also be fabric
matched to the wall, to disappear. Give the entry a similar finish, and you would then have perfect symmetry.
Attached Images
File Type: jpg cdika17a.jpg (87.6 KB, 9 views)
Tedd is offline
post #16 of 25 Old 07-10-2013, 09:09 AM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
I think in order to maximize the space in the new theater, I may just go with 2 x 4 walls decoupled by clips on top plate instead of 2 x 6 walls, like NYGIANTSFAN23 theater. Stretch my length/width as much as possible, with this direction I can get a 24' 4 1/2" x 13' 10 1/2" room, inside a 2 x 4 frame & 2 layers of 5/8 material. Soundproofing is important but I have to work with what I got.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #17 of 25 Old 10-17-2013, 09:14 PM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Got more in depth plans.


Main Floor


Basement


Working on whole home a/v distribution over at this thread: http://www.avsforum.com/t/1491481/please-help-with-home-a-v-distribution/0_100
PaulFSemicolen likes this.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #18 of 25 Old 12-03-2013, 10:56 AM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Ok so we are finalizing our plans this week to then sign a building contract.

The builders are finishing the complete house except the theater room/media closet, but I need to go over with them the wall construction/clips, door placement and hvac.

Interior dimensions with below comments after drywall would be 24' 2 1/2" x 13' 8 1/2", longer and narrower than my previous theater. I wanted longer, be nice to be at least 15' wide but plans and budget didn't allow. In my current theater with the 2 rows of 3 seats i have a lot of room between seats and riser steps and could of made them bigger to fill the gap but didn't so that gap will get a bit smaller with new theater dimensions.

Everything will be finished on the interior side of the walls, so will be just studs on the theater side.

First
  1. Wall Construction with keeping soundproofing in mind
  • I want to preserve my interior dimensions as much as I can, so double wall is out of the question.
  • Thinking 2x4 walls along the exterior cement walls decoupled at joist with IB-3 clips.
  • Then 2x6 staggered stud walls on the 2 interior walls decoupled at joist with IB-3 clips.
  1. Door placement to go with room plans
  • Thinking of a two 30" solid core 1 3/4" thick doors again with wide throw hinges.
  • I may just get them to build the opening big enough so i can put my own 1.5" door jamb all the way around, needs to be beefy with two 1 3/4" door hanging from it.
  • Need to figure exact placement, factors include column placement, panel configuration(similar to bacon race), stage size.
  1. HVAC
  • The main trunks basically split the house in half, running end to end in the basement from the closet in Bed 5, thru hallway, across back side of rec room and into bathroom.
  • So basically get them to put access to a 8" return and two 6" supplies parallel with joists to the wall with caps for now.

Anything to add? Am i missing anything for the initial construction? What else should the builders do on the interior side of walls?

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #19 of 25 Old 12-08-2013, 05:29 AM
Member

ktm250rider's Avatar

Join Date: Jan 2003
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I like your floor plan. While not theater related, we joined our master bath and master closet. Im so lazy, i didnt want to have to walk out of the bathroom to get my clothes out of the closet. We also put the washer and dryer in the master closet. No carrying laundry from room to room.
ktm250rider is offline
post #20 of 25 Old 12-08-2013, 07:06 PM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Thanks for your comments. Most of the laundry comes from the kids, i don't want all their junk in my closet! smile.gif
PaulFSemicolen likes this.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #21 of 25 Old 04-08-2014, 07:08 PM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Quick verification:

Meeting surveyors and builders on site tomorrow to stake out house.

Going over final details on plans.

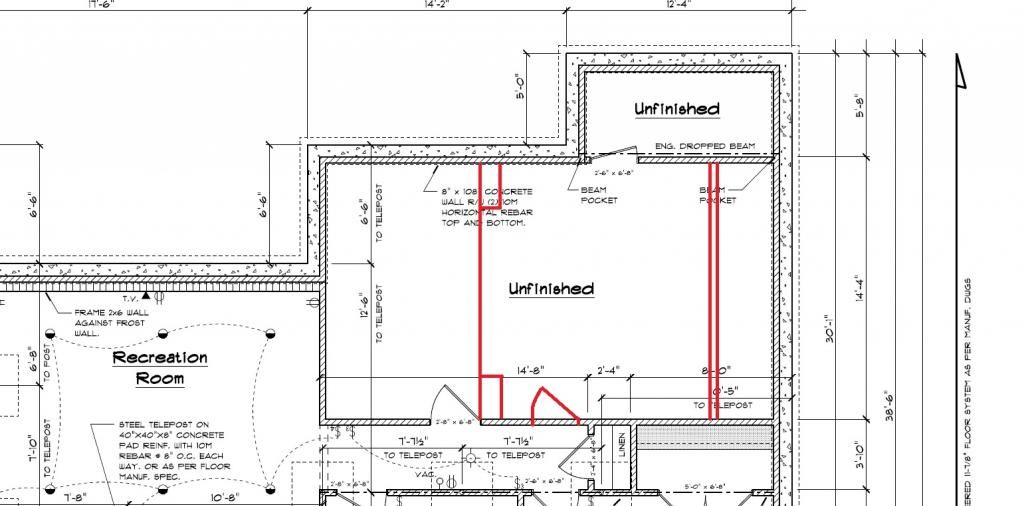

Unfinished space will eventually be the theater but not for some time.

Red lines are what I am thinking of doing.

Builder needs to know which walls I want decoupled. Id say all the walls in unfinished space, no?

theaterms.jpg 252k .jpg file

Attached Images
File Type: jpg theaterms.jpg (252.1 KB, 1 views)

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #22 of 25 Old 04-08-2014, 08:08 PM
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,689
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked: 183
Quote:
Originally Posted by cdika17 View Post

I'd say all the walls in unfinished space, no?
That's what I'd say.
HopefulFred is offline
post #23 of 25 Old 04-30-2014, 07:07 PM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Here is my audio/video/network/security pre wire plan

Hillsideaudio_video_network_security.xlsx 26k .xlsx file
Attached Files
File Type: xlsx Hillsideaudio_video_network_security.xlsx (25.7 KB, 22 views)

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
post #24 of 25 Old 04-30-2014, 08:20 PM
AVS Special Member

blipszyc's Avatar

Join Date: Aug 2000
Location: Concord, NC
Posts: 2,524
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 34
Quote:
Originally Posted by cdika17 View Post

Here is my audio/video/network/security pre wire plan

Hillsideaudio_video_network_security.xlsx 26k .xlsx file
Love the organization...and WOW, that's a lot of TVs. No wonder you need an AV distribution plan.

Visit the Lipszyc Home Theater! 1.0
2.0 done and finally posted! - Theater 2.0

And now...The Queen City Theater (3.0)
blipszyc is offline
post #25 of 25 Old 04-30-2014, 08:26 PM - Thread Starter
Advanced Member

cdika17's Avatar

Join Date: Oct 2009
Location: Alberta, Canada
Posts: 706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Quote:
Originally Posted by blipszyc View Post

Love the organization...and WOW, that's a lot of TVs. No wonder you need an AV distribution plan.

Some people think i'm crazy.... Props to Jautor for the help.

-----------------------------------------------
Chase "Fetch"


Current Theater Build


New House Build



cdika17 is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
