post #31 of 52 Old 06-04-2013, 06:43 AM - Thread Starter
Member

fulminis's Avatar

Join Date: Dec 2005
Location: Austin
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
Quote:
Originally Posted by SierraMikeBravo View Post

Where specifically are you placing the subs? Corners? In the middle? What did you use to determine that? I don't feel the riser is going to be as effective as you are hoping. You will need additional help in the form of electronics. Also, how far away from the back wall is your rear seating?

Definitely. I was going to save sub placement and electronics for a new thread, but might as well do it now. I had planned on using the Onkyo TX-NR818 or TX-NR828 with Audyssey XT32, but it looks like the 828 won't include XT32. So now it will either be the 929 or 818. It will definitely have a XT32 and individual sub channel calibration. I am a little tentative about this calibration though as it can only be as good as that little microphone that's included. Can a mic that small even be sensitive to the lower frequencies? I do like the idea of one comprehensive calibration system rather than a separate one just for the sub. It will be a 9.2 system and I have a B&K 200.5 S2 to drive the main channels. Sides and front highs will be poweedr direct from the receiver.

For sub placement, I have heard that you want them at 1/3 and 1/4 of the way down a wall and preferably on separate walls. Unfortunately, my theater is super tight and separate walls is not an option. I'll stay away from the corners since they seem to cause a more uneven response.

fulminis is offline
Sponsored Links
Advertisement

post #32 of 52 Old 06-11-2013, 04:19 AM - Thread Starter
Member

fulminis's Avatar

Join Date: Dec 2005
Location: Austin
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
I wanted to follow up. I am off to InfoComm today and probably won't be able to work on this for a week.

I think the riser design is pretty much settled. I had to lower the height a little to fit under the sills. That involved moving to 2x6's and adding an extra layer of 1/2" plywood. I also picked a grate, Fibergrate 878872. I need about 16' and it comes in a 48"x48"x1".

Quick question. Should the backing on the pink insulation removed? It seems like it would reflect some sound and degrade it's acoustic properties. Do they sell it without backing?

My sketchup model is coming along nicely. Now that the riser design is done, I will probably start a new thread for other more general design challenges. Here is the current revision of the model. Hopefully someone finds it useful.

Here is the updated design. I'd appreciate any thoughts.









fulminis is offline
post #33 of 52 Old 06-11-2013, 04:34 AM
AnalysisParalysis Analyst

TMcG's Avatar

Join Date: Mar 2010
Location: North Carolina
Posts: 2,674
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked: 289
Removing the backing isn't necessary if you've already bought the insulation, but why not just buy the unfaced R19 if you have the chance?

I'd say your biggest concern would be the acoustic impact of having a square shaped room.

EDIT: If you buy the faced, it will give you the opportunity to secure it to the sides of your 2x6 joists and thereby prevent it from ever falling down. I say the sides because that still leaves you the ability to glue and screw the first layer of decking to the top of the joist and not the insulation paper.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
TMcG is online now
post #34 of 52 Old 06-11-2013, 06:59 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,131
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Liked: 257
I'm not really qualified to make this statement, but I'm going to anyway biggrin.gif, my first thought was I bet that sectional is going to make a pretty good bass trap. Big and fluffy, and it takes up a lot of space out in the middle of the room. It would be interesting to know the before and after modal response with the sectional in and out of the room.

Dude, are you made of leprechauns? Cause that was awesome!


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
J_P_A is offline
post #35 of 52 Old 06-11-2013, 07:10 AM
Senior Member

RossoDiamante's Avatar

Join Date: Dec 2012
Location: Potomac, MD
Posts: 249
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

For some reason, faced rolls are so much cheaper than unfaced batts around here.  Something like $0.25/sq. ft. vs. $0.55/sq. ft.  Needless to say, I went with the rolls and peeled off the facing when needed.  Otherwise I just used them faced even though they don't need to be faced in my application.



To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
- Double Drywall, Green Glue, Drywall Furring Channel, Riser, Stage, Bass Trap, In-Wall Speakers, BG Radia, JTR Captivators, Seymour AV, Sony HW-50ES, Sherbourn, Panasonic, Middle Atlantic, Lutron Grafik Eye, Baffle Wall

RossoDiamante is offline
post #36 of 52 Old 06-11-2013, 07:35 AM - Thread Starter
Member

fulminis's Avatar

Join Date: Dec 2005
Location: Austin
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
TMcG, the room is not perfectly square, but that is a good point. I don't remember the exact dimension, but I think it is 190.5" wide and 182" deep. Hopefully that is unsquare enough.
fulminis is offline
post #37 of 52 Old 06-11-2013, 10:51 AM
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,809
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked: 202
Quote:
Originally Posted by J_P_A View Post

I'm not really qualified to make this statement, but I'm going to anyway biggrin.gif, my first thought was I bet that sectional is going to make a pretty good bass trap. Big and fluffy, and it takes up a lot of space out in the middle of the room. It would be interesting to know the before and after modal response with the sectional in and out of the room.
I agree that it would be interesting to see numbers, but I am sure there is some real benefit. Measurements like that are on my list. wink.gif


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
HopefulFred is online now
post #38 of 52 Old 06-11-2013, 01:39 PM
AVS Club Gold

SierraMikeBravo's Avatar

Join Date: Mar 2007
Location: Topeka, KS
Posts: 1,447
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 37
Honestly guys, it won't amount to much. we NEED to remember how big these wavelengths are AND what REALLY causes the problems in this room. Is it the velocity of the wave or the pressure the wave creates? Think of this in terms of tsunami. When the wave is translating in the ocean at 400 mph, and a ship is out in the middle of the ocean, do they feel it? Or is it when the wave slows down as it reaches shore and that energy is then used to create a large wave. Does the ship feel it closer to shore of out in the ocean?

Shawn Byrne
Erskine Group
CEDIA Certified Professional EST II - HAA Level III Certified -THX Certified Professional


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
SierraMikeBravo is offline
post #39 of 52 Old 06-11-2013, 01:48 PM
AVS Special Member

HopefulFred's Avatar

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 2,809
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked: 202
Most LF absorbers are pretty useless aren't they Shawn? I mean taking 3dB off a 12dB peak at a primary mode with traps is doing really pretty well isn't it? What kind of impact could a well-designed resonant riser trap really have?

(I hope that doesn't sound argumentative. I'm just trying to confirm my observations match your experience)


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
HopefulFred is online now
post #40 of 52 Old 06-11-2013, 02:10 PM
AVS Club Gold

SierraMikeBravo's Avatar

Join Date: Mar 2007
Location: Topeka, KS
Posts: 1,447
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 37

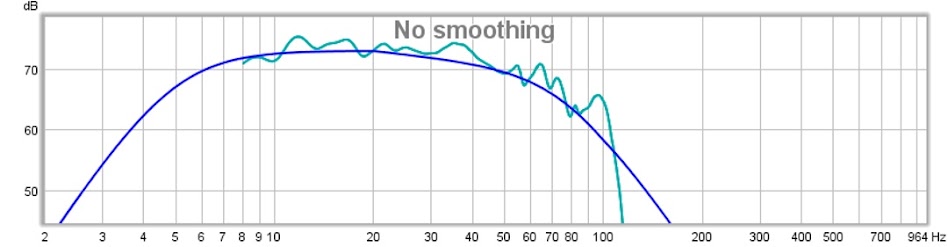

Actually...the impact can be very large depending on what issues were present to begin with. Where you place the subs is a critical part of that. Dennis and I have designed rooms where the actual measured result of the effect the riser trap was such that there was virtually NO resonating peaks below 100 Hz at the listening position. A properly designed trap can have enormous effect.

Shawn Byrne
Erskine Group
CEDIA Certified Professional EST II - HAA Level III Certified -THX Certified Professional


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
SierraMikeBravo is offline
post #41 of 52 Old 06-12-2013, 05:57 PM
AVS Special Member

rabident's Avatar

Join Date: Mar 2000
Posts: 2,017
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 23
How critical is implementation? I have a proper design. It says to construct using 2x6's. It doesn't say how. How do I frame a 2' riser using 2x6's ? Does it matter for the performance of the riser, or is whatever the local construction crew comes up with fine?





rabident is offline
post #42 of 52 Old 06-12-2013, 07:06 PM
AVS Club Gold

SierraMikeBravo's Avatar

Join Date: Mar 2007
Location: Topeka, KS
Posts: 1,447
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 37
PM Sent

Shawn Byrne
Erskine Group
CEDIA Certified Professional EST II - HAA Level III Certified -THX Certified Professional


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
SierraMikeBravo is offline
post #43 of 52 Old 06-13-2013, 08:32 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 46
Quote:
How do I frame a 2' riser using 2x6's ?
This comes to mind.... 2footriser.pdf 15k .pdf file

or this
2FootPlatformB.pdf 17k .pdf file
Attached Files
File Type: pdf 2FootPlatformB.pdf (16.7 KB, 78 views)

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Dennis Erskine is offline
post #44 of 52 Old 06-13-2013, 08:41 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 46
You are not going to have a Helmholtz and broadband absorber in one. You cannot have a 200mph Ferrari and 100Ton loader in a single vehicle. If you want that platform to be broadband, you will want the entire top decking to be grating..or you can make a low pass filter by drilling x dia. holes y distance apart on the entire surface of the decking...you then must have a carpet and pad which will allow air flow. What you have now is a pressure absorber (period) which will have its greater impact on length mode frequencies.

BTW, those 7 seats against the back wall will have rather horrid sound quality (presuming those sitting in the seats didn't pay for the room, I suppose they can suffer). More to the point, however, is those 7 seats add 3,500 BTU's to your cooling requirement and 105 CFM/hr of air exchange.
HopefulFred likes this.

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Dennis Erskine is offline
post #45 of 52 Old 06-21-2013, 10:13 AM - Thread Starter
Member

fulminis's Avatar

Join Date: Dec 2005
Location: Austin
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
My rudimentary understanding of a pressure absorber is that it has to be enclosed, so that sound gets trapped and mode frequencies are reflected repeatedly. But this current design with the open front really wouldn't do that, so is it still a pressure absorber? Or is it partially effective velocity based absorber limited by the small grill area?

It sounds like I need to go back to the drawing board and figure out a way to open up the design more. Maybe I will just drill a bunch of holes and try to find a porous carpet pad. Drilling 200 holes through three layers of plywood sounds pretty tedious, but doing it all with grate is going to be cost prohibitive. Does anyone have a suggestion of what hole size and spacing should be?


I am aware that the back row is difficult audio wise. I have a plan with some dipoles that I think will help and was planning to review it in a new thread once I had the surround speaker in the model. The use of this theater is mainly for family and I prefer more of a family room feel, hence the sectional. The back row is really for sporting events when we need extra capacity. Translation, I will rarely sit there.

fulminis is offline
post #46 of 52 Old 06-22-2013, 01:24 PM - Thread Starter
Member

fulminis's Avatar

Join Date: Dec 2005
Location: Austin
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
Here is the surround speaker design. I currently have (2) M&K SS-150's tripoles on the back wall and (2) M&K MP-150's on the sides.

I realize that traditionally, the diffusive speakers are usually used on the sides. Placing the tripoles on the back wall seemed like the only way create a soundfeild behind the back row. I have drawn a 90 degree dispersion in the elevation, which I know is inaccurate, but it helps to show who will be in the direct sound field. Also, the SS-150's are a three way design with a forward facing HF and LF drivers. It should act like a directed radiator for the people on the sectional.

I also included an overlay with Audessey's recommended angles to each speaker from the primary position.

Any comments on positioning or type? Is there a way to get a better soundfield for the back row without sacrificing the front?















fulminis is offline
post #47 of 52 Old 06-24-2013, 06:20 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 46
Quote:
I have a plan with some dipoles that I think will help ...

Won't help the problem.

Not sitting there ... will help. smile.gif

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Dennis Erskine is offline
post #48 of 52 Old 06-24-2013, 07:23 PM - Thread Starter
Member

fulminis's Avatar

Join Date: Dec 2005
Location: Austin
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
Quote:
Originally Posted by Dennis Erskine View Post

Won't help the problem.

I'd be interested to know what you are defining as the problem. One of my biggest home theater pet peeves is when a surround speaker is too close and becomes 'localized'. I find it very distracting and that is really what I am looking to avoid. I realize that the back channels will be overly diffuse/muddy for the back row, but the direct radiating side channels should help a little. Directionally it won't be great, but tripoles should help to make that better.

Is there some other acoustical issue that I am missing?
fulminis is offline
post #49 of 52 Old 06-27-2013, 12:34 AM
AVS Special Member

rabident's Avatar

Join Date: Mar 2000
Posts: 2,017
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 23
Quote:
Originally Posted by Dennis Erskine View Post

This comes to mind.... 2footriser.pdf 15k .pdf file

or this
2FootPlatformB.pdf 17k .pdf file

Thanks Dennis. The cross sectional view helps. Do I need to do anything to hold the insulation in place along the underside of the floor?





rabident is offline
post #50 of 52 Old 06-27-2013, 03:47 AM
AVS Club Gold

Dennis Erskine's Avatar

Join Date: Jul 1999
Location: Near an airport
Posts: 9,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 46
Those were cut/pasted from your plan set.
Home Depot (and others) have the spring steel wire used by contractors to hold the insulation in place. They are slightly longer than the distance between 16" O.C. joists. You just press them up between the joists and they hold the insulation in place.

Here's link:
http://www.homedepot.com/p/Simpson-Strong-Tie-16-in-OC-Insulation-Supports-100-Pack-IS16-R100/100375163

Dennis Erskine CFI, CFII, MEI
Architectural Acoustics
Subject Matter Expert
Certified Home Theater Designer
CEDIA Board of Directors

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Dennis Erskine is offline
post #51 of 52 Old 05-27-2014, 11:07 AM
Member

sulakd's Avatar

Join Date: Jul 2008
Posts: 102
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 10
If using two layers of decking with green glue between, does the top layer just get glued to the bottom layer, or is the top layer also screwed down?
sulakd is online now
post #52 of 52 Old 05-27-2014, 11:20 AM
AnalysisParalysis Analyst

TMcG's Avatar

Join Date: Mar 2010
Location: North Carolina
Posts: 2,674
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked: 289
Quote:
Originally Posted by sulakd View Post

If using two layers of decking with green glue between, does the top layer just get glued to the bottom layer, or is the top layer also screwed down?

Screwed down using screws that are long enough to penetrate both layers into the riser's joists. Use the grey colored exterior deck screws with minimum 3/4"+ screw length beyond your combined deck board thickness.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
TMcG is online now
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
