Hey all,
So I've been under water trying to read all the threads on this site that are relevant to what I want to do. I'm going to lay out my room with absolutely no work done to it. This is how the home was bought. The space pictured is what will be the HT room. it is not a dedicated room but rather an area of the basement. I will be asking for advice on acoustic treatments for the walls as well.

View of HT straight on (the blue tape on the front wall shows the stage that will be built)

Right Wall (cabinets will be built within the blue tape along entire wall)

Left Wall (This wall will be covered with curtains like a movie theater) I think I want to install some paneling or some other material on top of the concrete and drywall which will be covered by the curtains.

Looking forward to updating this thread slowly but surely!

Room dimensions are 18.8' by 18.8'
joetarin is offline
Sponsored Links
Advertisement

Old 08-17-2013, 07:36 PM - Thread Starter
Member

joetarin's Avatar

Join Date: Jun 2008
Location: Fishers, Indiana
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
Reserved for future use
joetarin is offline
Old 08-17-2013, 07:36 PM - Thread Starter
Member

joetarin's Avatar

Join Date: Jun 2008
Location: Fishers, Indiana
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
Reserved for future use
joetarin is offline
Old 08-21-2013, 12:58 PM - Thread Starter
Member

joetarin's Avatar

Join Date: Jun 2008
Location: Fishers, Indiana
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
OK. We now have the design approved for the right side of the room. The closed cabinets will be for general storage and the shelving on the left will be for my audio gear. Power will be installed behind the shelves on the left. In the middle there will be half cabinets with a surface for a popcorn maker, power outlets, and a space on the wall for the Klipsch R3800 II in wall speaker (right surround) Here's the layout:


Now I need to figure out how I'm going to treat the opposite side. My plan is to stretch curtains in panel sections and make it look like a theater. This will allow me to hide that concrete without having to do a major contstruction project to hide it. Cutouts will be made in the curtains for my left surround and for 4 lighting sconces. My question is what kind of material should I get to put on the concrete and the drywall to act as acoustic absorbing material underneath the curtains?



Thoughts?
joetarin is offline
Old 09-07-2013, 03:06 PM - Thread Starter
Member

joetarin's Avatar

Join Date: Jun 2008
Location: Fishers, Indiana
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
Got the stage finished. Took about a day and a half and it was backbreaking. My design pretty much mimicked JudsonP's found here. Also thanks to BIGmountinDC for the advice on building via PM.

Framing the main stage


stage is roughly 18' wide


Constructing the front curve. This is version 1, the masonite was later replaced with 1/4" plywood


Curve attached to main stage, and 2300lb of sand


1st layer of OSB


Dry fitting 2nd layer of OSB with 1.5" lip. Also the curve face has been replaced with 1/4" plywood. Much happier with the plywood.


Green Glue in between the 2 layers of OSB


Completed stage




joetarin is offline
Old 09-11-2013, 08:26 AM
Senior Member

JeffreyJonesBSME's Avatar

Join Date: Dec 2010
Location: Greenwood, Indiana
Posts: 409
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 35
Joe,

Yours is the second new thread I've seen that has two posts that say Reserved?

Am I missing something?

I live in Greenwood and I'm just at the end of my theater build. It's been fun, but also a lot of work.

Have fun.
joetarin likes this.

"Engineers aren't boring people, we just get excited over boring things".
--Anon.





JeffreyJonesBSME is offline
Old 09-11-2013, 08:38 AM
Member

jjslegacy's Avatar

Join Date: Jan 2005
Location: Cleveland
Posts: 157
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 22
Reserved for later posting information - it's a way to have a lot of your theater information at the beginning. Just like reserving a seat smile.gif
JeffreyJonesBSME likes this.

JJ
jjslegacy is offline
Old 09-11-2013, 09:04 AM
AVS Special Member

vanice's Avatar

Join Date: Jun 2010
Location: Southside Indy
Posts: 1,212
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked: 51
Am I missing something?? Why have the walls not been built before the stage was constructed?
vanice is offline
Old 09-11-2013, 07:38 PM - Thread Starter
Member

joetarin's Avatar

Join Date: Jun 2008
Location: Fishers, Indiana
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
Quote:
Originally Posted by vanice View Post

Am I missing something?? Why have the walls not been built before the stage was constructed?

There will be custom cabinets built over the right side and the stage will be integrated into the build (see design above). On the other side, the concrete and drywall will be covered with OC703 and we'll cover the entire wall with pleated fabric from top to bottom with another layer of fabric as a design/layering element. This is a cost effective way of covering up that wall with the exposed foundation and doing some AT at the same time.

Sent from my DROID RAZR using Tapatalk 2
joetarin is offline
Old 09-11-2013, 07:48 PM - Thread Starter
Member

joetarin's Avatar

Join Date: Jun 2008
Location: Fishers, Indiana
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
Quote:
Originally Posted by JeffreyJonesBSME View Post

Joe,

Yours is the second new thread I've seen that has two posts that say Reserved?

Am I missing something?

I live in Greenwood and I'm just at the end of my theater build. It's been fun, but also a lot of work.

Have fun.

Hey Jeff, great looking theater room. I'm just getting started, its definitely fun and will be a process.
joetarin is offline
Old 12-07-2014, 01:45 PM - Thread Starter
Member

joetarin's Avatar

Join Date: Jun 2008
Location: Fishers, Indiana
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
OK. After 15 months of no updates to this post it's time to add some pics. We started the full basement finishing in October which includes completing the theater room. We're almost done at this point but wanted to upload the progress pics.

Theater room being framed. This is the cabinet wall.

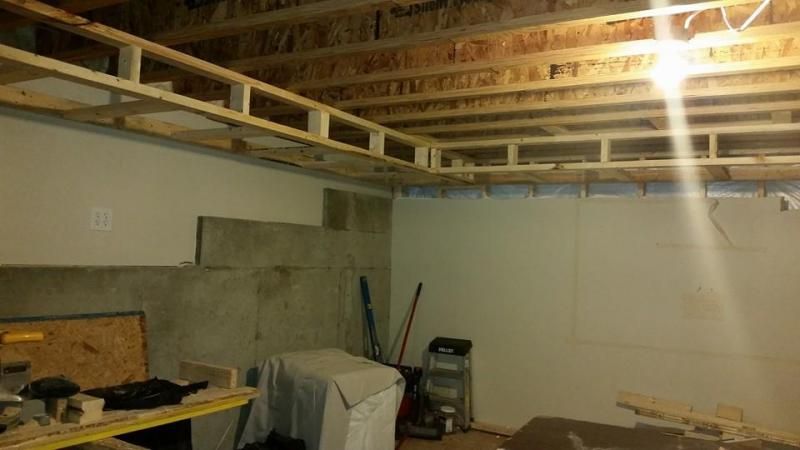

Tray ceiling framed
