Lukeamdman's Dedicated Theater Construction - AVS Forum
Forum Jump:
 14Likes
Reply

Thread Tools
post #1 of 151 Old 10-11-2013, 12:12 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
This area, roughly 13x26 is going to be my dedicated theater space. I had a dumpster delivered today so the remodel just began for the entire basement.



Here's what's going to be in there for subs:


My question is about that main wall and the rear wall I'll be putting in. I need to beef these things up...big time.

On my old system, quad LMS 5400s, here's what the wall would do:

http://www.youtube.com/watch?v=KO_wJIst0xI

Well, I've over doubled the 15-30hz output since then, and that wall, which is a supporting wall and very solid already, moves WAY more during some spirited demos...

The other two walls are obviously concrete, but what can I do to make the other two wall as sturdy as possible?

Double up on 5/8" drywall? Anything I can fill the wall with?

I'm looking for ideas, I don't care how crazy!
eng-399 likes this.
lukeamdman is online now
Sponsored Links
Advertisement

post #2 of 151 Old 10-11-2013, 01:40 PM
AVS Special Member

gpmbc's Avatar

Join Date: Jun 2006
Location: AZ
Posts: 2,413
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked: 79
Man you gotta be excited for the dedicated room! If it were me I would think extra drywall, not sure how much. I've also heard of green glue and whisper clips to decouple and further isolate from vibration.
gpmbc is offline
post #3 of 151 Old 10-11-2013, 02:11 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 21,082
Mentioned: 8 Post(s)
Tagged: 1 Thread(s)
Quoted: 397 Post(s)
Liked: 681
Three layers of 5/8 drywall with Green Glue dampening between layers. mount the walls, ceiling and soffits hiding those ducts using a clip and channel isolation method. Address HVAC isolation and all holes in the drywall bunker for electrical etc with appropriate strategies. click the curve frenzy theater in my signature for a similarly insane audio adventure.
BIGmouthinDC is online now
post #4 of 151 Old 10-11-2013, 03:14 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by BIGmouthinDC View Post

Three layers of 5/8 drywall with Green Glue dampening between layers. mount the walls, ceiling and soffits hiding those ducts using a clip and channel isolation method. Address HVAC isolation and all holes in the drywall bunker for electrical etc with appropriate strategies. click the curve frenzy theater in my signature for a similarly insane audio adventure.

Wow, 3 layers?

How much could the OS LFU vibrate those walls?
lukeamdman is online now
post #5 of 151 Old 10-11-2013, 03:17 PM
FOH
AVS Special Member

FOH's Avatar

Join Date: Apr 2010
Location: Midwest
Posts: 4,749
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked: 212
I'll keep an eye on this one, good luck moving forward.

------------------------------------
Flat, Deep, Clean, Linear, and Loud
------------------------------------
Active 16.8kw, 7.3 system
(3)Seaton Cat12C up front, (4)QSC K8 sides/rears
(2)Seaton SubM-HP, (4)18" IB
FOH is offline
post #6 of 151 Old 10-12-2013, 07:43 AM
AVS Special Member

carp's Avatar

Join Date: Aug 2003
Posts: 5,422
Mentioned: 36 Post(s)
Tagged: 2 Thread(s)
Quoted: 510 Post(s)
Liked: 553
^ Me too.

Luke, I'm not surprised at the recommendation for 3 layers. My room doesn't have anywhere close to the fire power you have, and I already fear for the drywall on the back wall. As you know it's crazy how much it can flex and move with the bass - I'm somewhat surprised that I don't have any cracking issues yet.

Good luck, I'll be following this thread.
carp is online now
post #7 of 151 Old 10-12-2013, 07:47 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by carp View Post

^ Me too.

Luke, I'm not surprised at the recommendation for 3 layers. My room doesn't have anywhere close to the fire power you have, and I already fear for the drywall on the back wall. As you know it's crazy how much it can flex and move with the bass - I'm somewhat surprised that I don't have any cracking issues yet.

Good luck, I'll be following this thread.

Right now, the room is completely open in the back, so it's basically a 13x48 space. I'm wondering what the heck will happen to the walls when this room has a back wall and is more "sealed"...3 layers seems more reasonable the more I think about it!
lukeamdman is online now
post #8 of 151 Old 10-12-2013, 08:01 AM
AVS Special Member

carp's Avatar

Join Date: Aug 2003
Posts: 5,422
Mentioned: 36 Post(s)
Tagged: 2 Thread(s)
Quoted: 510 Post(s)
Liked: 553
I did luck out in the fact that my front screen wall used to be wood paneling (with studs and concrete wall behind) and when I had my basement re-finished a few years ago they told me I could save a bit if I just had them put the drywall right on top of the wood paneling instead of tearing the paneling down. The wood paneling is very sturdy/rigid stuff so my front wall does soooo much better than my other 3 walls which is nice since my screen is a painted wall. The image vibrates like crazy on some scenes like Flight of the Phoenix but it's not the wall, it's the projector - that's a whole other issue that needs to be addressed eventually.

I'm jealous of you man, you get to start from scratch and make sure it's all done right! smile.gif
carp is online now
post #9 of 151 Old 10-13-2013, 10:19 AM
AVS Special Member

popalock's Avatar

Join Date: Jul 2009
Location: Doha, Qatar
Posts: 3,731
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 421 Post(s)
Liked: 748
Send a message via Skype™ to popalock
Subscribed. Should be fun trying to contain that madness!
Mfusick likes this.
popalock is offline
post #10 of 151 Old 10-14-2013, 09:27 AM
Advanced Member

NWCgrad's Avatar

Join Date: Feb 2010
Location: Frederick, MD
Posts: 967
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked: 111
4 of Ricci's horn subs must put out insane bass! Cant wait to see your containment strategy.

Varibus Mari Victoria
NWCgrad is online now
post #11 of 151 Old 10-14-2013, 11:36 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Instead of doing three 5/8" layers of drywall on the inside of the theater room, I think I'll do two 5/8" layers on each side of the wall. That should be pretty sturdy. I may double up the 2x4's in that wall as well.
lukeamdman is online now
post #12 of 151 Old 10-14-2013, 11:45 AM
Senior Member

HT_SoulMan's Avatar

Join Date: Nov 2001
Location: Maryland
Posts: 218
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 13
Looks like your ceiling height is a little over 7ft... correct?... Instead of 9ft or so... 3 5/8 layers on the ceiling may be a little low if your build a riser...
HT_SoulMan is offline
post #13 of 151 Old 10-14-2013, 11:48 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by HT_SoulMan View Post

Looks like your ceiling height is a little over 7ft... correct?... Instead of 9ft or so... 3 5/8 layers on the ceiling may be a little low if your build a riser...

The ceilings are just under 8ft...and then there's the duct work on the right side. I'm not sure what i'm going to do with the ceiling since I don't want to lose even more height.
lukeamdman is online now
post #14 of 151 Old 10-14-2013, 12:09 PM
AVS Special Member

popalock's Avatar

Join Date: Jul 2009
Location: Doha, Qatar
Posts: 3,731
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 421 Post(s)
Liked: 748
Send a message via Skype™ to popalock
Quote:
Originally Posted by lukeamdman View Post

The ceilings are just under 8ft...and then there's the duct work on the right side. I'm not sure what i'm going to do with the ceiling since I don't want to lose even more height.

If you are wanting to contain sound...there is no getting around losing a bit more height... What would be the point of beefing up your basement walls, but not the ceiling...

My theater is directly below my den. Family hates life when I have sessions without them while they are hanging out in the den.
popalock is offline
post #15 of 151 Old 10-14-2013, 01:29 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by popalock View Post

If you are wanting to contain sound...there is no getting around loosing a bit more height... What would be the point of beefing up your basement walls, but not the ceiling...

My theater is directly below my den. Family hates life when I have sessions without them while they are hanging out in the den.

Containing the sound is only going to happen so much.

The chief offender for vibration is that supporting wall, and it just goes crazy from 25hz and below.

The ceiling isn't so bad in the ultra low stuff, but rather the 30-60hz stuff.

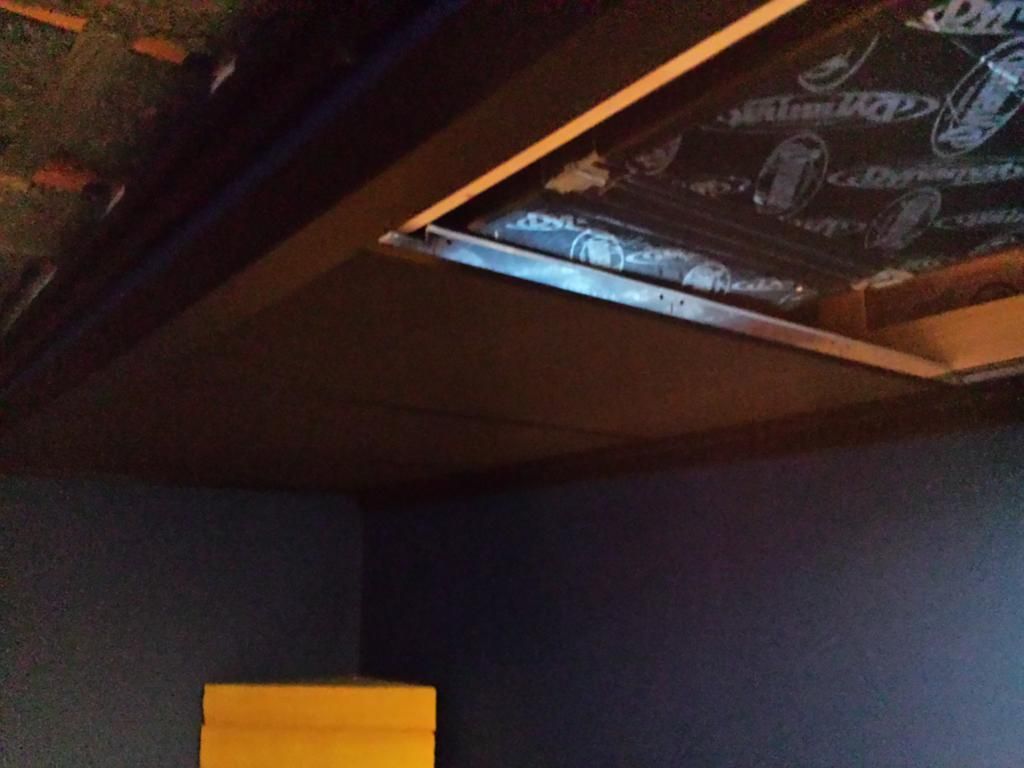

I'm also thinking about covering the duct work with dynamat. The sound just echoes through the whole thing.
lukeamdman is online now
post #16 of 151 Old 10-15-2013, 06:15 AM
Member

cogeng182's Avatar

Join Date: Nov 2012
Location: Richland, WA
Posts: 140
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Have you considered staggered studs? May help if you have the room.
cogeng182 is offline
post #17 of 151 Old 10-15-2013, 10:09 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by cogeng182 View Post

Have you considered staggered studs? May help if you have the room.

Staggered studs? Can you elaborate?
lukeamdman is online now
post #18 of 151 Old 10-15-2013, 01:48 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 21,082
Mentioned: 8 Post(s)
Tagged: 1 Thread(s)
Quoted: 397 Post(s)
Liked: 681
BIGmouthinDC is online now
post #19 of 151 Old 10-17-2013, 07:12 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by BIGmouthinDC View Post


That would definitely keep the supporting wall from vibrating, but that extra wall on the staggered studs would still go crazy.

I think it might be easier to just add another wall on the theater room side and make that the 3-layer wall. Keep about an inch of space between that wall and the supporting wall.

The ceiling is the tricky part since I don't wall to drywall it. All the water and gas lines are there, with a kitchen and laundry room directly above. The odds of water spills leaking down is high, so I want some sort of accessibility to that area.
lukeamdman is online now
post #20 of 151 Old 10-28-2013, 09:07 AM
AVS Special Member

popalock's Avatar

Join Date: Jul 2009
Location: Doha, Qatar
Posts: 3,731
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 421 Post(s)
Liked: 748
Send a message via Skype™ to popalock
Luke, can you post up your current and/or contemplated basement floor plan?

Are you planning on leaving the room access door in the same location?
popalock is offline
post #21 of 151 Old 10-28-2013, 11:07 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by popalock View Post

Luke, can you post up your current and/or contemplated basement floor plan?

Are you planning on leaving the room access door in the same location?

Here are some plans I drew up a while back of the current layout:





I'll upload a new one that will show the new layout.

That one door that connects the two living rooms won't be there in the future.
lukeamdman is online now
post #22 of 151 Old 10-28-2013, 12:59 PM
AVS Special Member

Tedd's Avatar

Join Date: May 2001
Location: Ontario
Posts: 3,997
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked: 67
Ever consider reworking some of the HVAC? You could swing the one run of ductwork over to the other wall.
And then use top take offs to run over in the joist cavity, to tie into where the existing ducts run to the next floor.
Tedd is offline
post #23 of 151 Old 10-28-2013, 03:47 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by Tedd View Post

Ever consider reworking some of the HVAC? You could swing the one run of ductwork over to the other wall.
And then use top take offs to run over in the joist cavity, to tie into where the existing ducts run to the next floor.

The old HT room that's 11x29 is where I'll have my ping pong table, so I'd rather have the lower ceilings in the new HT room.
lukeamdman is online now
post #24 of 151 Old 10-28-2013, 04:03 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Can anyone recommend a good free software for drawing a simple floor plan? The one i'm using royally stinks.
lukeamdman is online now
post #25 of 151 Old 10-28-2013, 04:17 PM
Advanced Member

SeekingNirvana's Avatar

Join Date: Dec 2012
Location: Santa Cruz California
Posts: 681
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked: 84
Quote:
Originally Posted by lukeamdman View Post

Can anyone recommend a good free software for drawing a simple floor plan? The one i'm using royally stinks.

+1

My dual sealed LMS 5400 Ultra build
http://www.avsforum.com/forum/155-di...0-build-4.html
SeekingNirvana is online now
post #26 of 151 Old 10-28-2013, 08:15 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Here's how the subs will be positioned in the room:





After moving them around a ton, firing them sideways towards the outside walls yielded the best gains by far. I'm also putting them on that end of the room so there's a concrete wall behind them.

With them positioned that way, they're only out from the back wall about 5ft, leaving about 15ft between and the seats. Plenty of space.
lukeamdman is online now
post #27 of 151 Old 10-29-2013, 12:59 AM
AVS Special Member

popalock's Avatar

Join Date: Jul 2009
Location: Doha, Qatar
Posts: 3,731
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 421 Post(s)
Liked: 748
Send a message via Skype™ to popalock
Quote:
Originally Posted by lukeamdman View Post

The old HT room that's 11x29 is where I'll have my ping pong table, so I'd rather have the lower ceilings in the new HT room.

You worried about the kids hitting the ceiling? My table is literally right under the lowest point in my basement with no problems.



Quote:
Originally Posted by lukeamdman View Post

Can anyone recommend a good free software for drawing a simple floor plan? The one i'm using royally stinks.

Google Sketchup.
popalock is offline
post #28 of 151 Old 10-29-2013, 10:04 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by popalock View Post

You worried about the kids hitting the ceiling? My table is literally right under the lowest point in my basement with no problems.


Google Sketchup.

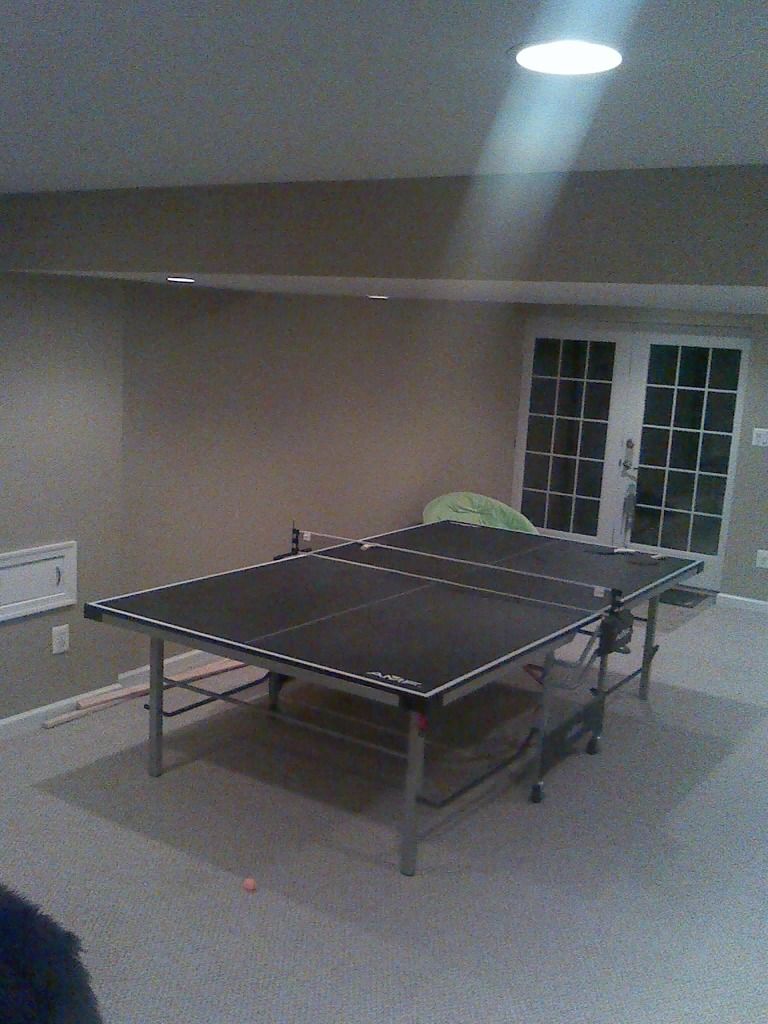

The ping pong table used to be in the current HT room where the duct work is, and it was already a problem there. The ceiling without the duct work is only like 7'10", so with the duct work and the drywall it'll be at about 7' and maybe a little less.

Really, moving the duct work to the other side would be really difficult of not impossible, since the stairs completely block that path. I'll upload a picture so you can see for yourself.
lukeamdman is online now
post #29 of 151 Old 11-01-2013, 08:23 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,484
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked: 158
Quote:
Originally Posted by Tedd View Post

Ever consider reworking some of the HVAC? You could swing the one run of ductwork over to the other wall.
And then use top take offs to run over in the joist cavity, to tie into where the existing ducts run to the next floor.

Yeah, it would look a lot better of there was soffit on each side of the room instead of it all on one side. I'm looking into moving the return air over to the other side of the room.

I'm also thinking about the entrance to the theater being hidden. Maybe a sliding bookcase or something.
lukeamdman is online now
post #30 of 151 Old 11-02-2013, 09:06 AM
Advanced Member

BIG INJUN CHIEF's Avatar

Join Date: Jan 2011
Location: Pittsburgh
Posts: 507
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 192

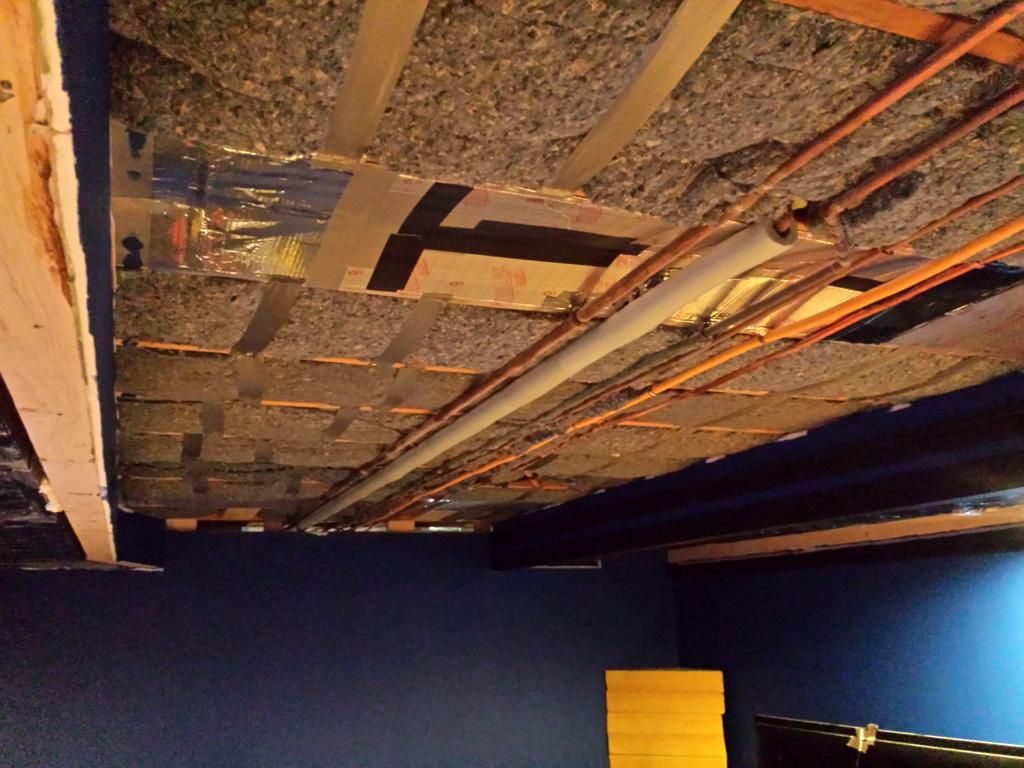

I tore down a tongue and groove basement drop ceiling and replaced with drywall. In an effort to spare ceiling height, I doubled up the 12"x12" panels and screwed between the studs to the underside of the floor above(seemed a waste to trash). Helps with HF leaking out and noise entering. Does little/nothing to mitigate LF. Soundproofing was not a major goal in my instance. Cutting strips of 5/8" drywall, green goo'ing and attaching in a similar fashion should be more effective.
BIG INJUN CHIEF is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
