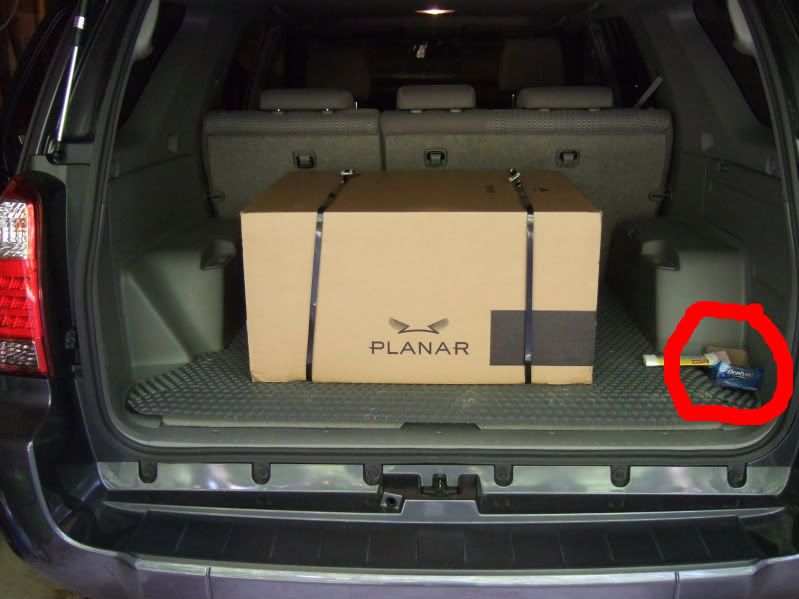

Just a preview to let you know this thread isn't going to be just about sheds for the rest of this year. HT2.0 has begun.

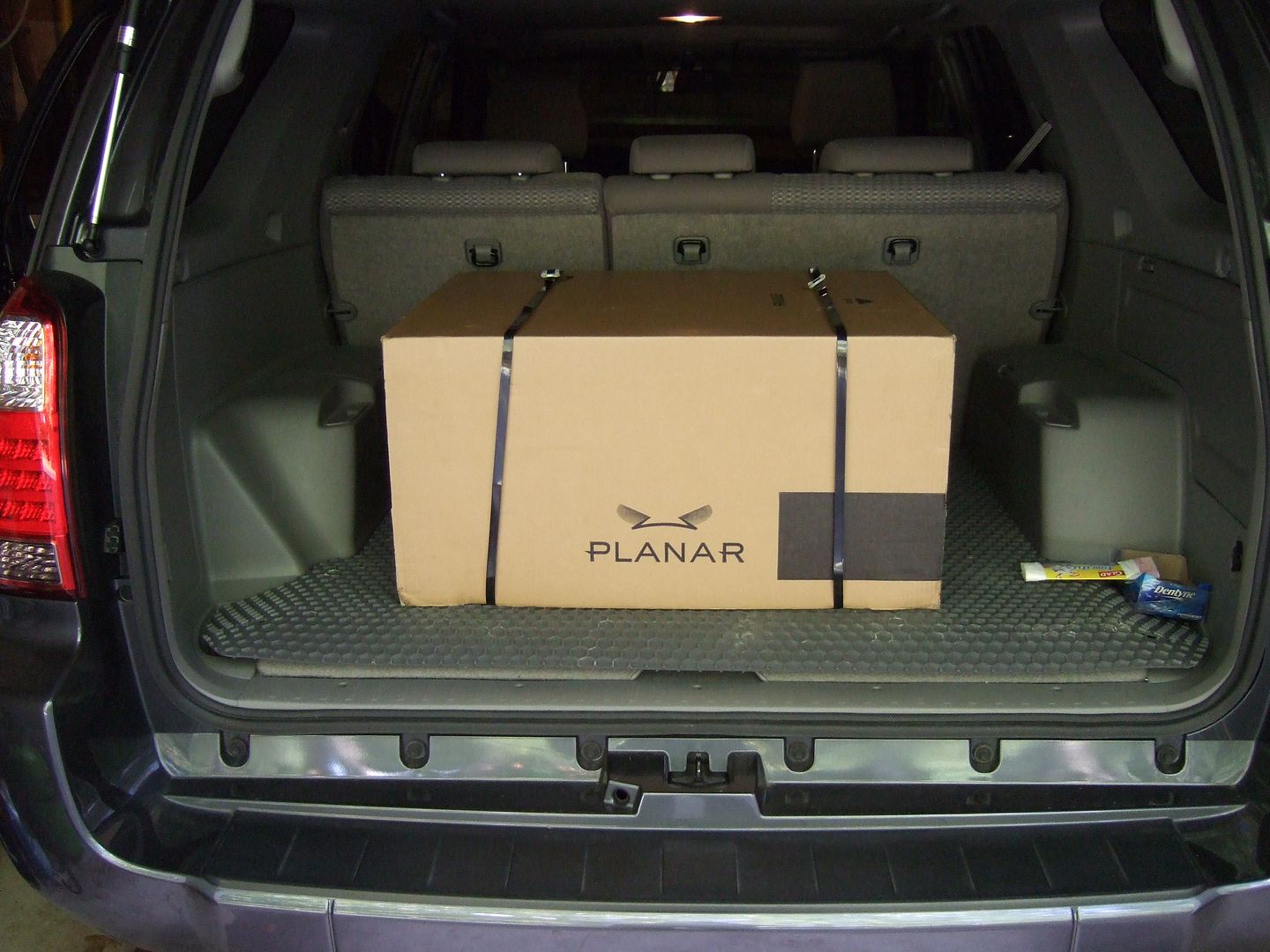

out of the box it will look like this:

BIGmouthinDC is offline
Sponsored Links
Advertisement

post #722 of 1637 Old 10-01-2009, 12:25 PM
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,699
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 35
Hey, hey, hey.... you can't just show us a pic of Planar box and not mention what exactly is in it.

Give us some details, looking foward to see the development of 2.0.
oman321 is offline
post #723 of 1637 Old 10-01-2009, 12:31 PM
AVS Club Gold

dc_pilgrim's Avatar

Join Date: Oct 2004
Location: South Central... PA
Posts: 4,617
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Oh-oh fellas, Jeff came here to kick ass and chew bubble gum, and it looks like he is all out of gum:

dc_pilgrim is offline
post #724 of 1637 Old 10-01-2009, 12:33 PM
AVS Special Member

oman321's Avatar

Join Date: Sep 2005
Location: MASS
Posts: 4,699
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 35
Very nice, I guess I posted a little to soon. Just before you got to post the pic of it. I started googling planar 1080p and came accross 8120, 8130 & 8150. I figured you went for the 8150. Now, I'm sure you wanna test it out and all but you know what they say, don't keep it up or you'll be replacing the bulb before you know it. Congrats.
oman321 is offline
post #725 of 1637 Old 10-01-2009, 12:41 PM
AVS Special Member

In2Photos's Avatar

Join Date: Apr 2008
Location: Monroe, NC
Posts: 1,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by BIGmouthinDC View Post

Just a preview to let you know this thread isn't going to be just about sheds for the rest of this year. HT2.0 has begun.



out of the box it will look like this:


Does this mean we can expect a new screen wall as well?

Mike

Where am I with my HT build?

Still Dreaming! But I built a shed!
In2Photos is offline
post #726 of 1637 Old 10-01-2009, 12:49 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,720
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 232 Post(s)
Liked: 581
Quote:
Originally Posted by In2Photos View Post

Does this mean we can expect a new screen wall as well?

In time of course

I'm thinking of building Wayne Parham's Pi4 speakers as part of the front redo.

Also need a new pre-amp.
BIGmouthinDC is offline
post #727 of 1637 Old 10-01-2009, 05:15 PM
AVS Special Member

queendvd2's Avatar

Join Date: Jan 2005
Posts: 1,935
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 10
In time? And a complete masking system too to boot I presume!
queendvd2 is offline
post #728 of 1637 Old 10-01-2009, 05:55 PM
AVS Special Member

BritInVA's Avatar

Join Date: Mar 2006
Location: Ashburn, VA
Posts: 3,816
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
I think Tom's ways are migrating to Big

=====================================
My HT Thread index on 1st post
Samsung AllShare and Internet@TV Discussion
BritInVA is offline
post #729 of 1637 Old 10-01-2009, 07:30 PM
AVS Special Member

smakovits's Avatar

Join Date: May 2007
Posts: 2,077
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
didnt the theater just get finished not all that long ago? 2.0 already?
smakovits is offline
post #730 of 1637 Old 10-01-2009, 08:06 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,720
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 232 Post(s)
Liked: 581
Quote:
Originally Posted by BritInVA View Post

I think Tom's ways are migrating to Big

? I am not planning to hire out the front end build.
BIGmouthinDC is offline
post #731 of 1637 Old 10-01-2009, 08:11 PM
AVS Special Member

carboranadum's Avatar

Join Date: Jan 2004
Location: Winchester, VA
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
WHEN's the meet? I can't wait to see that puppy in action!

CJ

Follow my build here: Harvest Ridge Theater
carboranadum is offline
post #732 of 1637 Old 10-01-2009, 11:12 PM
Senior Member

titch--'s Avatar

Join Date: Oct 2005
Location: Cnd Prairies
Posts: 375
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by BIGmouthinDC View Post

In time of course

I'm thinking of building Wayne Parham's Pi4 speakers as part of the front redo.

Also need a new pre-amp.

Hey Big!

I was just wondering if you were going to get the basic kit for the Pi4's or go with the upgrades? I was looking at these not to long ago.

cheers

Trevor
titch-- is offline
post #733 of 1637 Old 10-02-2009, 05:38 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,720
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 232 Post(s)
Liked: 581
Quote:
Originally Posted by titch-- View Post

Hey Big!
I was just wondering if you were going to get the basic kit for the Pi4's or go with the upgrades? I was looking at these not to long ago.

I figure if you are going to go to the effort you might as well go full speed. So the upgraded drivers and at least the capacitors.

I'm planning a basic black cabinet with behind the screen lighting (like the Sandman's)

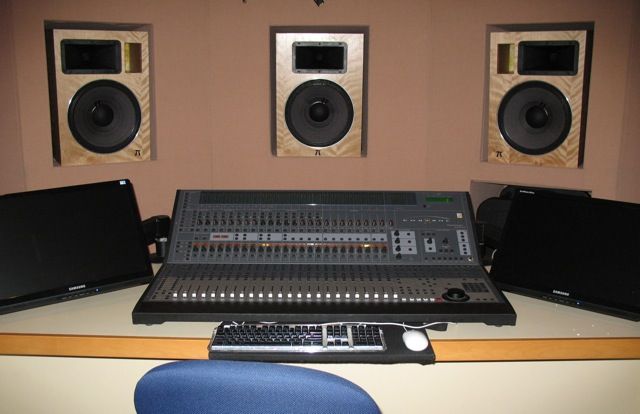

for those following the thread not familiar with the Pi's: Those are 15 inch woofers.

BIGmouthinDC is offline
post #734 of 1637 Old 10-02-2009, 06:00 AM
Advanced Member

advertguy2's Avatar

Join Date: Jan 2006
Location: Oakville, Ontario
Posts: 523
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Am I the only one that thought "dutch oven" when I saw that projector?
LL
advertguy2 is offline
post #735 of 1637 Old 10-02-2009, 06:09 AM
AVS Special Member

RPh Drew's Avatar

Join Date: Feb 2008
Location: Grand Rapids, MI
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by smakovits View Post

didnt the theater just get finished not all that long ago? 2.0 already?

It never ends. I haven't even finished 1.0 and I have my 2.0 list started. The only way I will ever be able to "finish" 1.0 is to define what 1.0 is and list other stuff on the 2.0 list.

Man, that took longer than I thought it would...

Loganed 4/6/08 Logan's Hero 5/1/08

RPh Drew's INDEXED Thread - Logan's Hero... for now...

2010 - The year of the Shed
RPh Drew is offline
post #736 of 1637 Old 10-02-2009, 06:27 AM
AVS Special Member

smakovits's Avatar

Join Date: May 2007
Posts: 2,077
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by RPh Drew View Post

It never ends. I haven't even finished 1.0 and I have my 2.0 list started. The only way I will ever be able to "finish" 1.0 is to define what 1.0 is and list other stuff on the 2.0 list.

We are all very sick people...
smakovits is offline
post #737 of 1637 Old 10-02-2009, 07:03 AM
AVS Special Member

BeerParty's Avatar

Join Date: Jun 2008
Location: New Hampshire, USA
Posts: 1,073
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by advertguy2 View Post

Am I the only one that thought "dutch oven" when I saw that projector?

Yes, you are.

Chris

"It hurts to admit when you make mistakes - but when they are big enough, the pain only lasts a second."
--Despair, Inc. "Regret"

My AviaTrix TM Build
BeerParty is offline
post #738 of 1637 Old 10-03-2009, 01:40 PM
Senior Member

titch--'s Avatar

Join Date: Oct 2005
Location: Cnd Prairies
Posts: 375
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by BIGmouthinDC View Post

I figure if you are going to go to the effort you might as well go full speed. So the upgraded drivers and at least the capacitors.

I'm planning a basic black cabinet with behind the screen lighting (like the Sandman's)

for those following the thread not familiar with the Pi's: Those are 15 inch woofers.


Looking forward to what you think of them.

When are you thinking on starting them?

cheers

Trevor
titch-- is offline
post #739 of 1637 Old 10-03-2009, 07:26 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,720
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 232 Post(s)
Liked: 581
Quote:
Originally Posted by titch-- View Post

When are you thinking on starting them?


Right after I finish the shed and a kitchen rebuild at the beach that I've started.
BIGmouthinDC is offline
post #740 of 1637 Old 10-04-2009, 06:18 AM
AVS Special Member

BritInVA's Avatar

Join Date: Mar 2006
Location: Ashburn, VA
Posts: 3,816
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
What about the Steam Shower

=====================================
My HT Thread index on 1st post
Samsung AllShare and Internet@TV Discussion
BritInVA is offline
post #741 of 1637 Old 10-04-2009, 08:36 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,720
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 232 Post(s)
Liked: 581
Quote:
Originally Posted by BritInVA View Post

What about the Steam Shower

Yes I know, Last week I just missed buying a steam generator on Craig's list by a couple of hours. $1500 new never installed unit for $150.

Somehow with 4 other bathrooms in the house, finishing the one in basement doesn't have a sense of urgency.
BIGmouthinDC is offline
post #742 of 1637 Old 10-04-2009, 06:49 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,720
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 232 Post(s)
Liked: 581
Back to the Shed....Roof truss factory

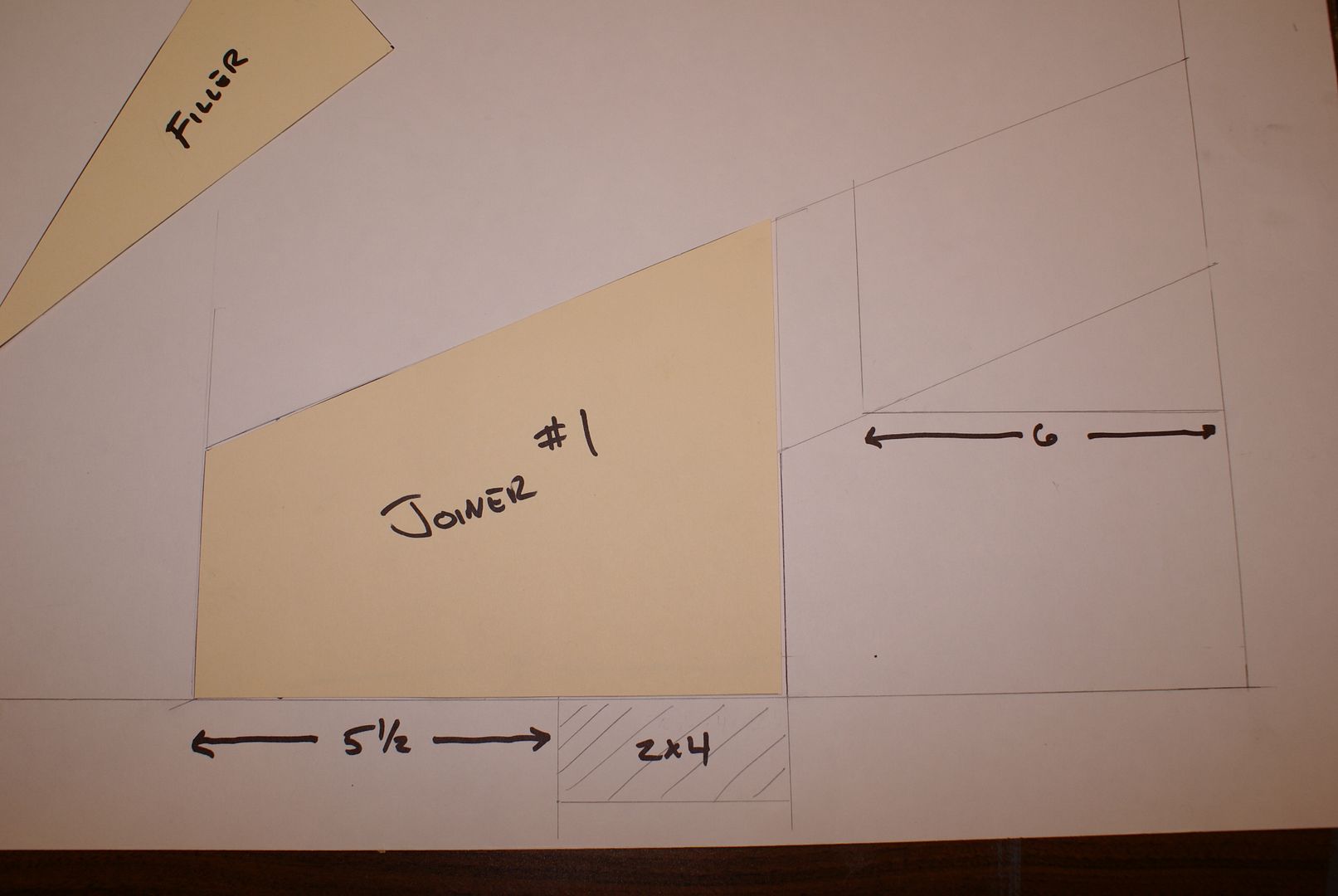

First a 1/4 scale drawing of 1/2 of the roof. It is 10 ft 11 inches wide and has a 31.5 height (or 28 to the bottom of the 2x4s)

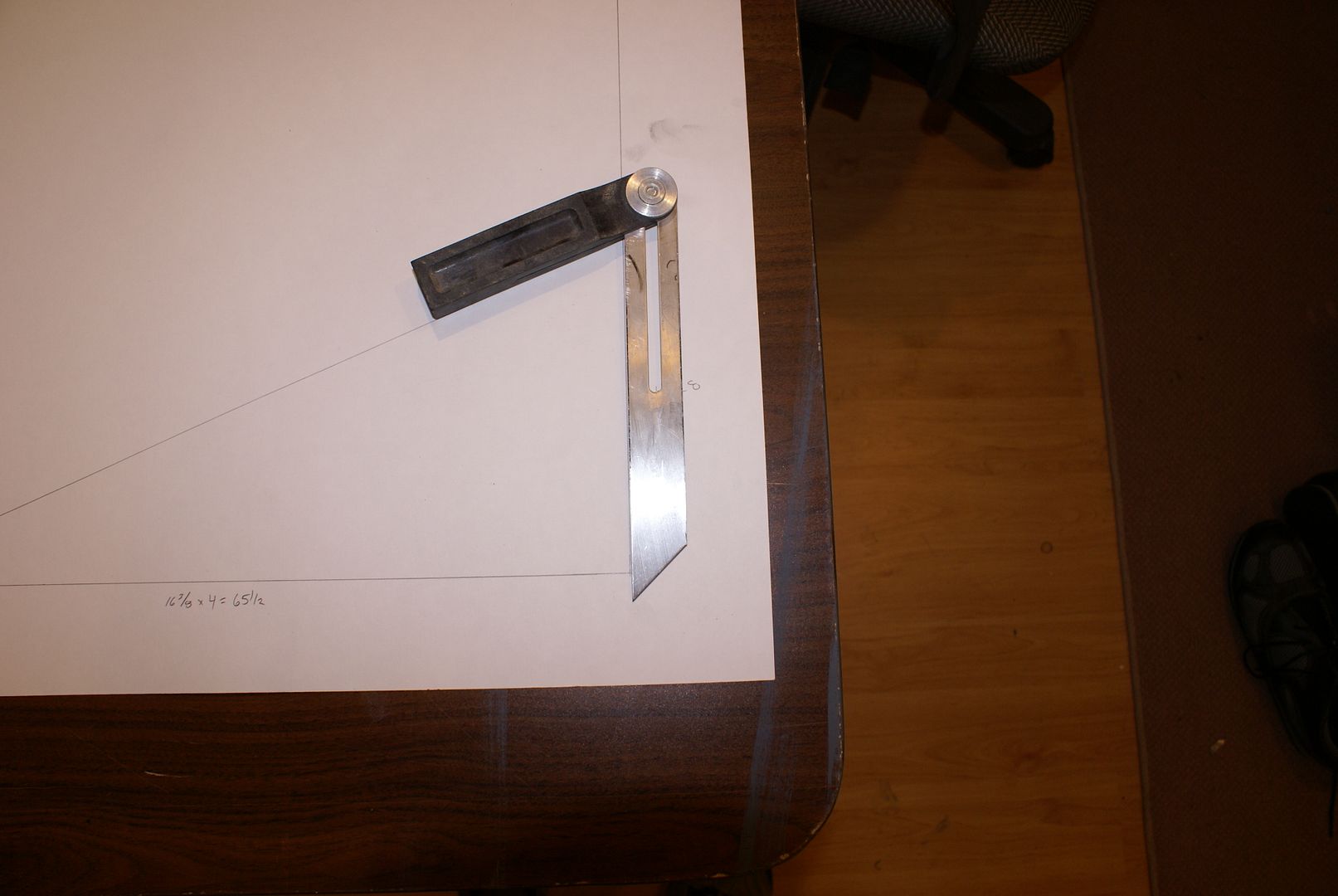

take the angle directly from the drawing

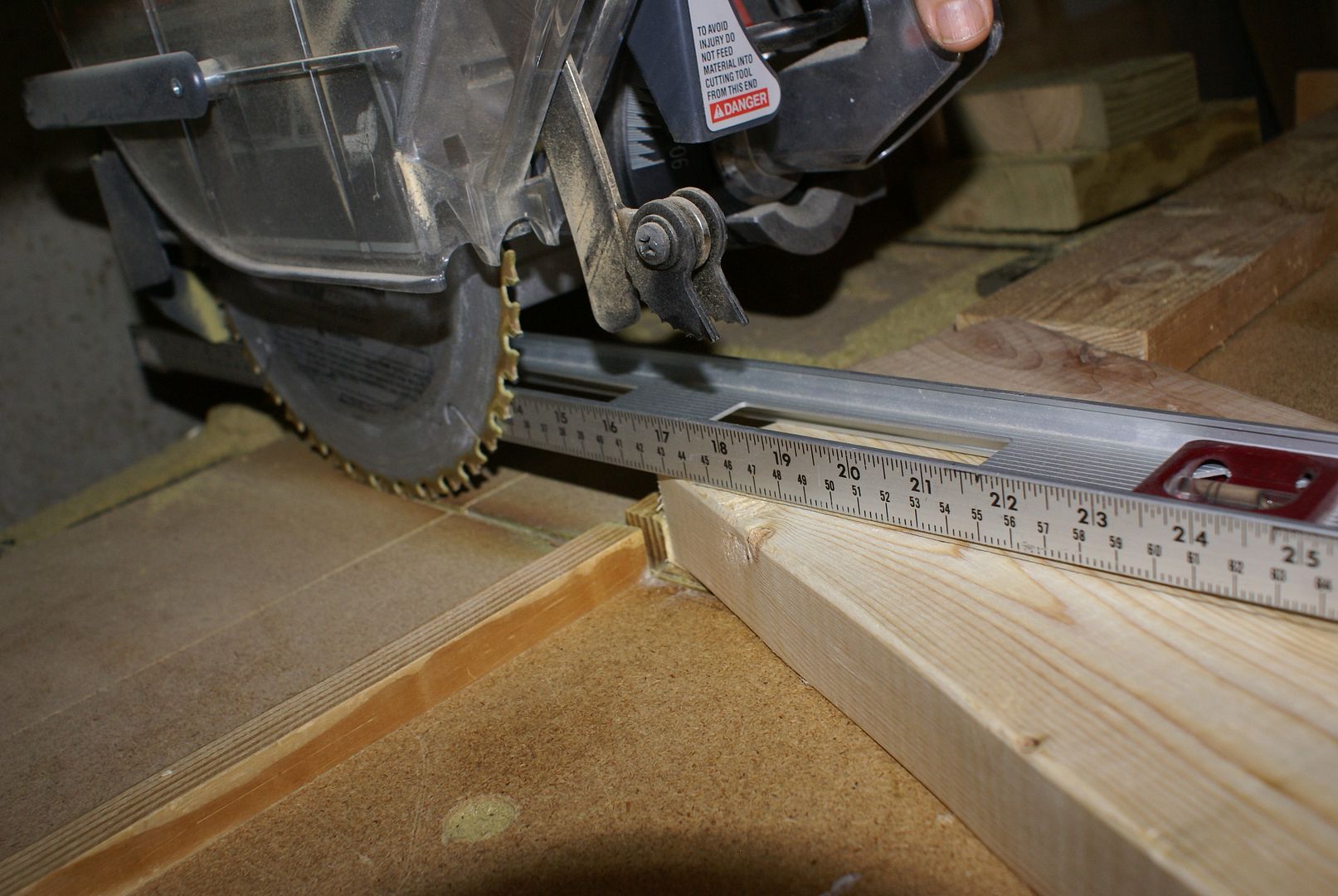

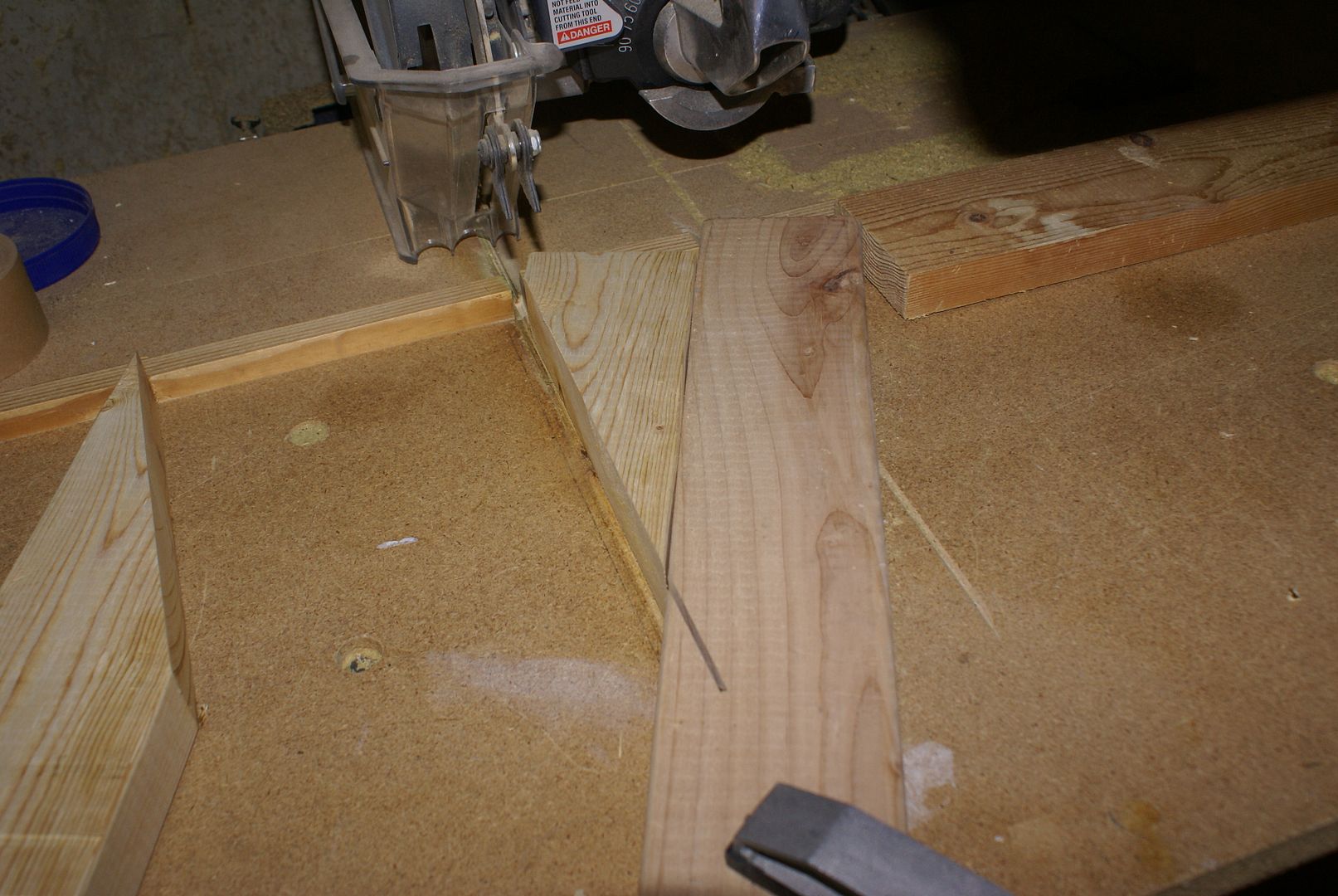

Set the saw


cut

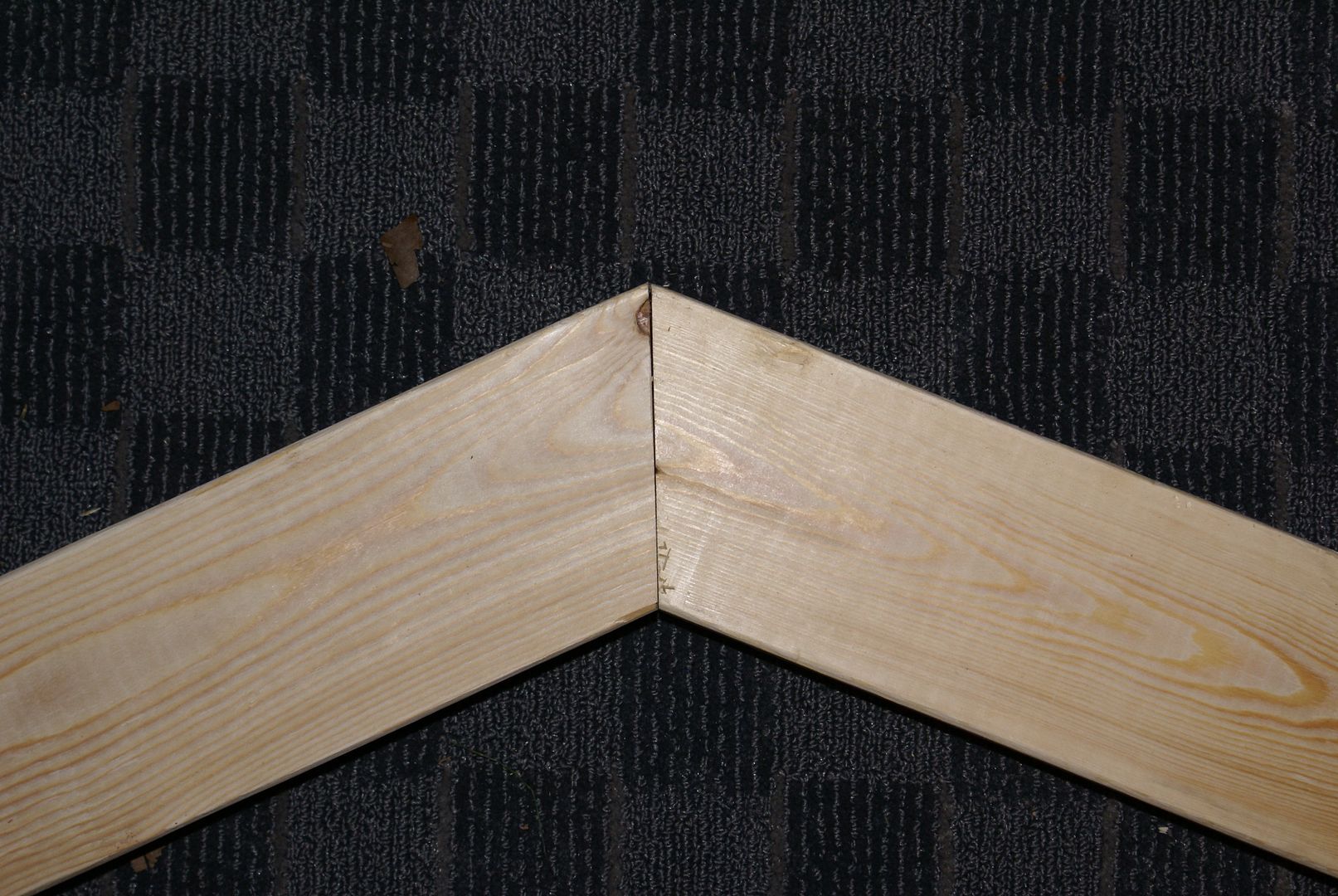

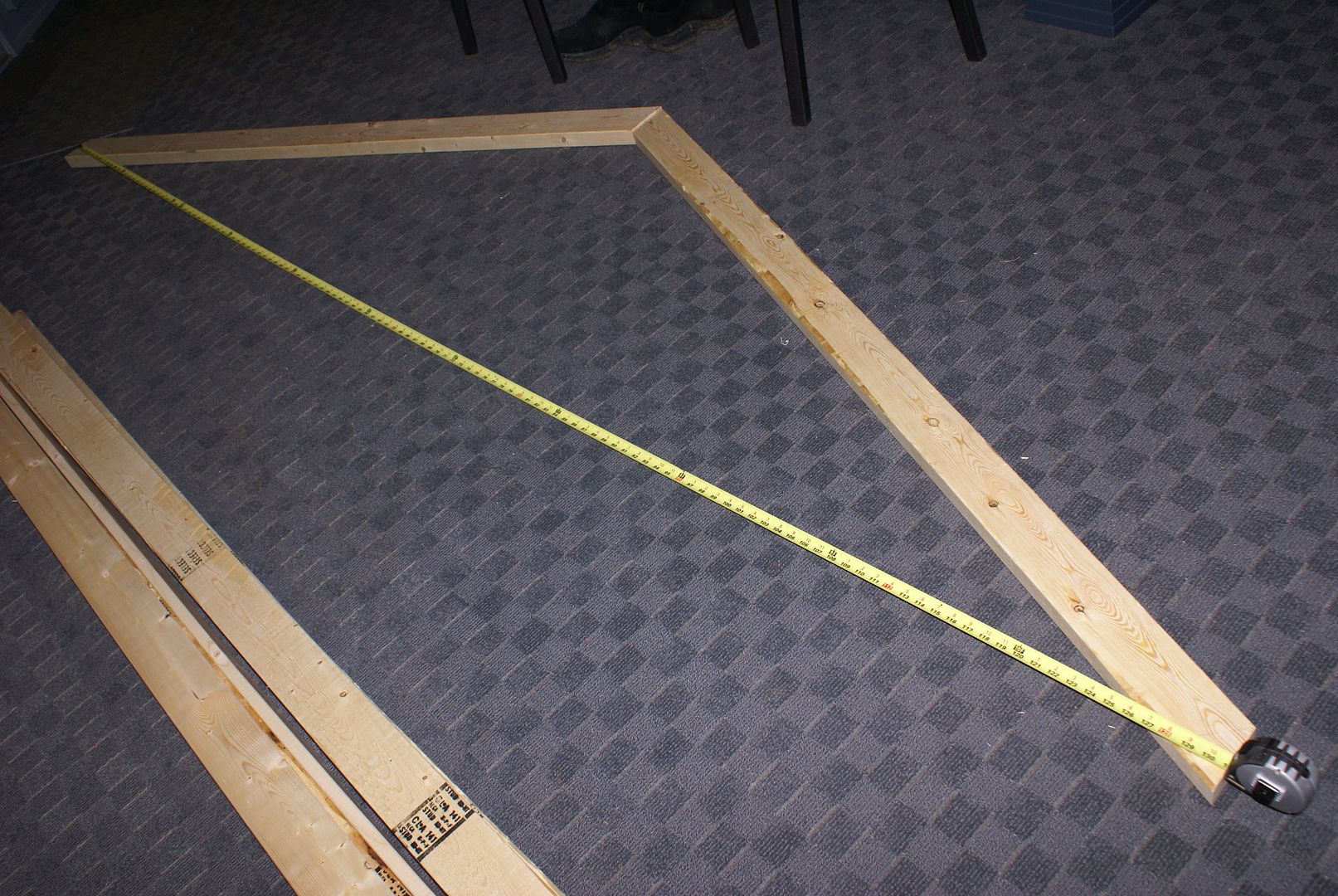

check to see if it comes out to the right length Remember the length is the square root of the sum of the squares of the other two sides of the triangle.

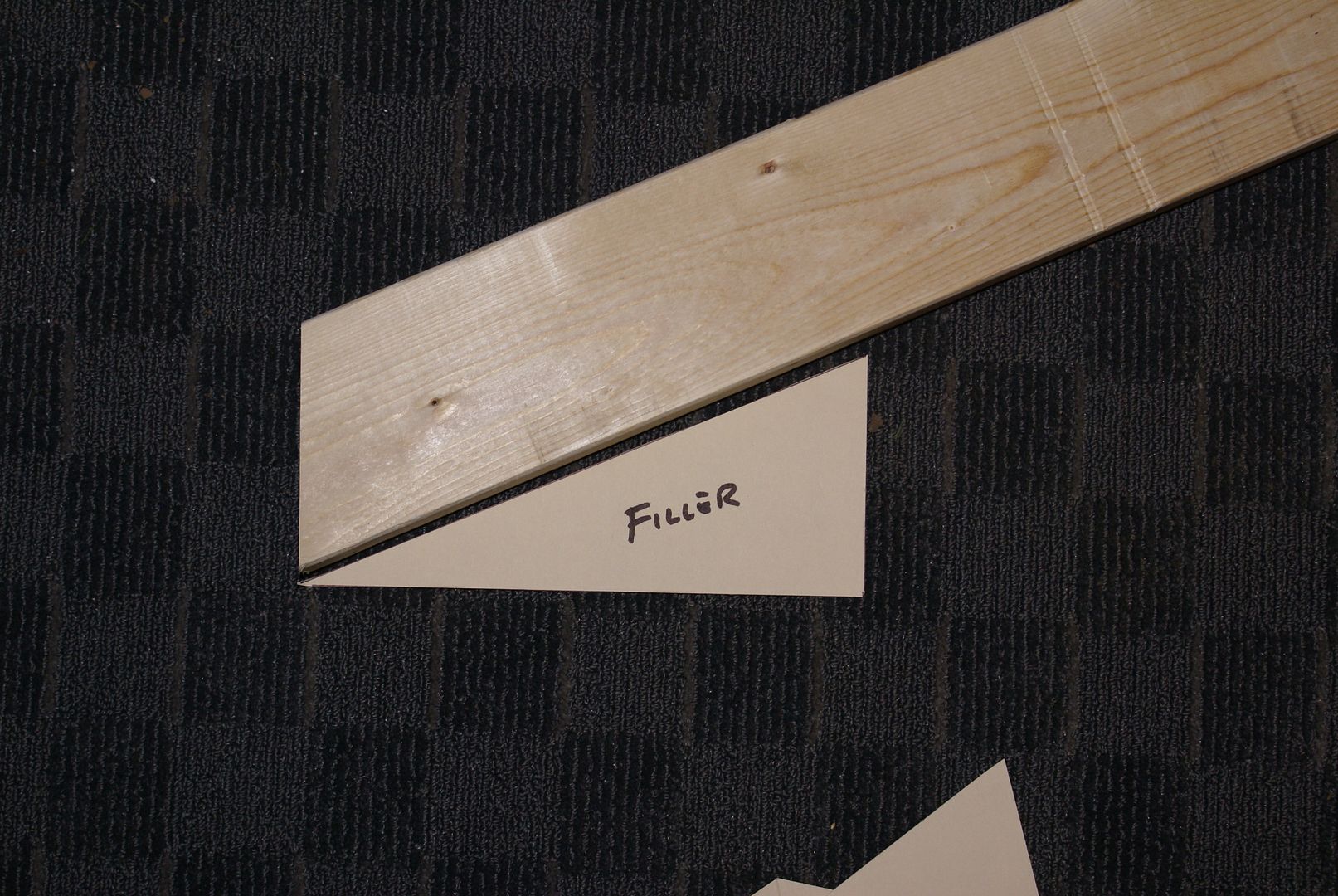

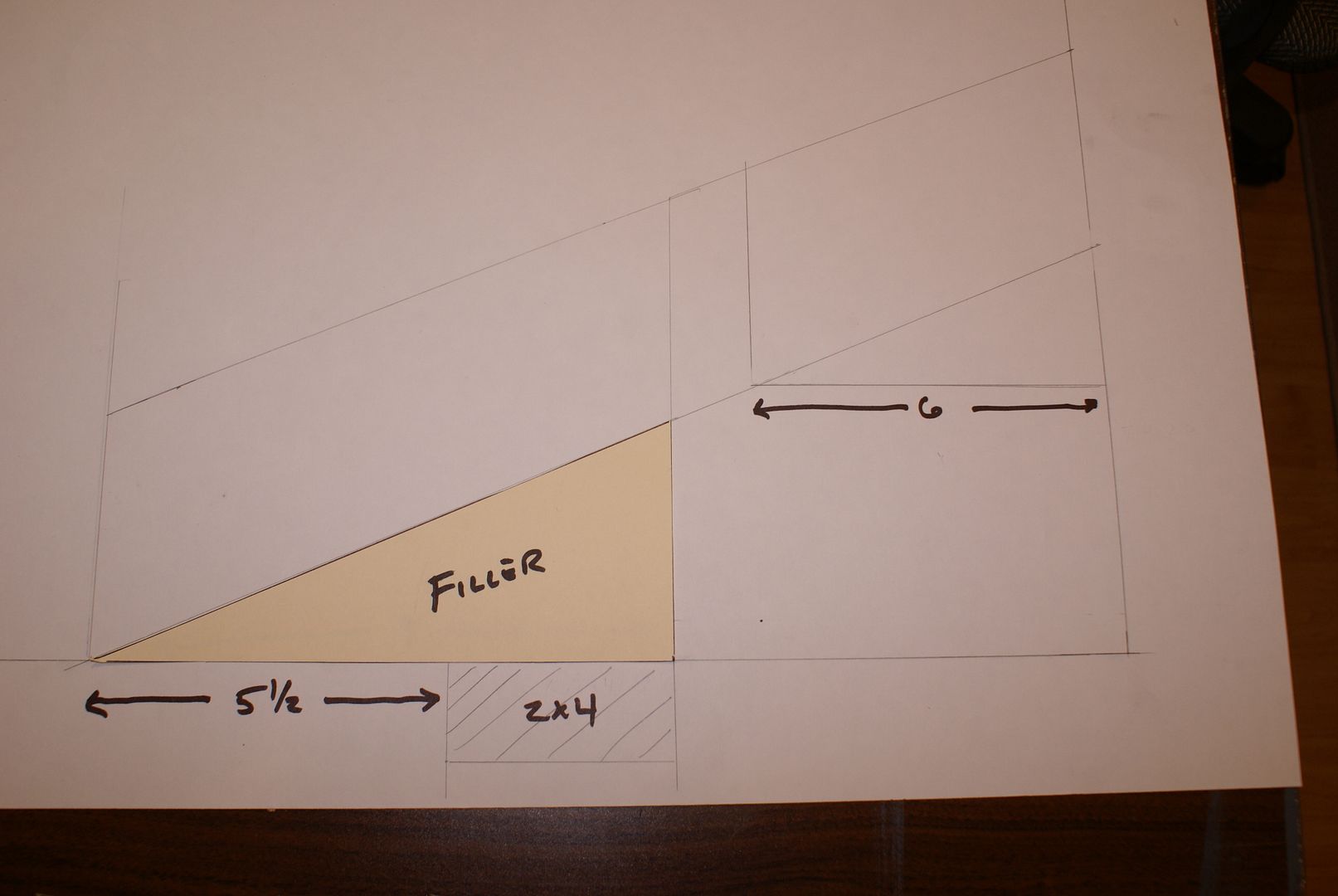

Then figure the filler over the eave using the drawing full scale

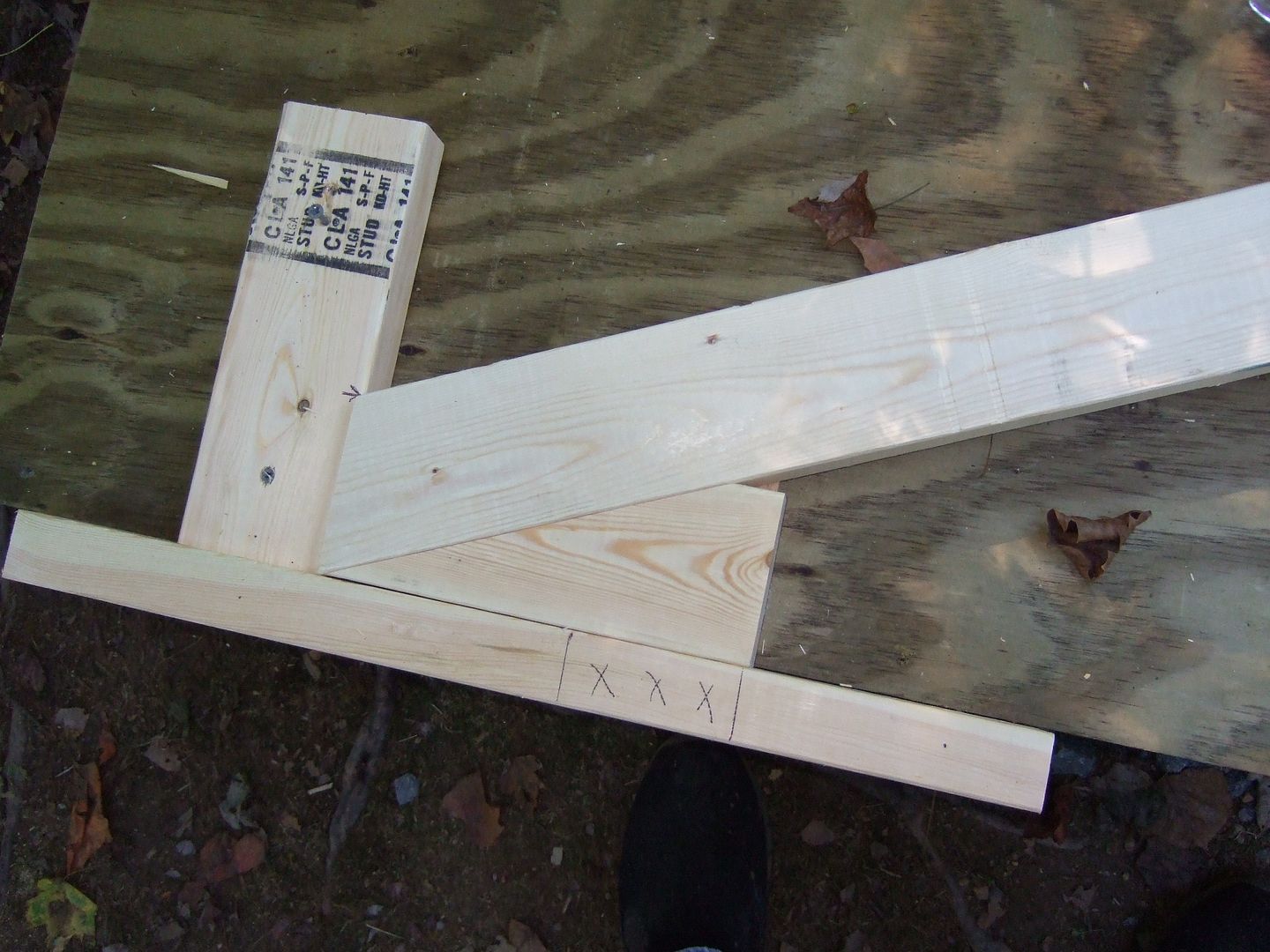

then a joiner for securing the filler to the truss (they sell metal mending plates but they are a buck each and I have all this scrap lumber so lumber it is)

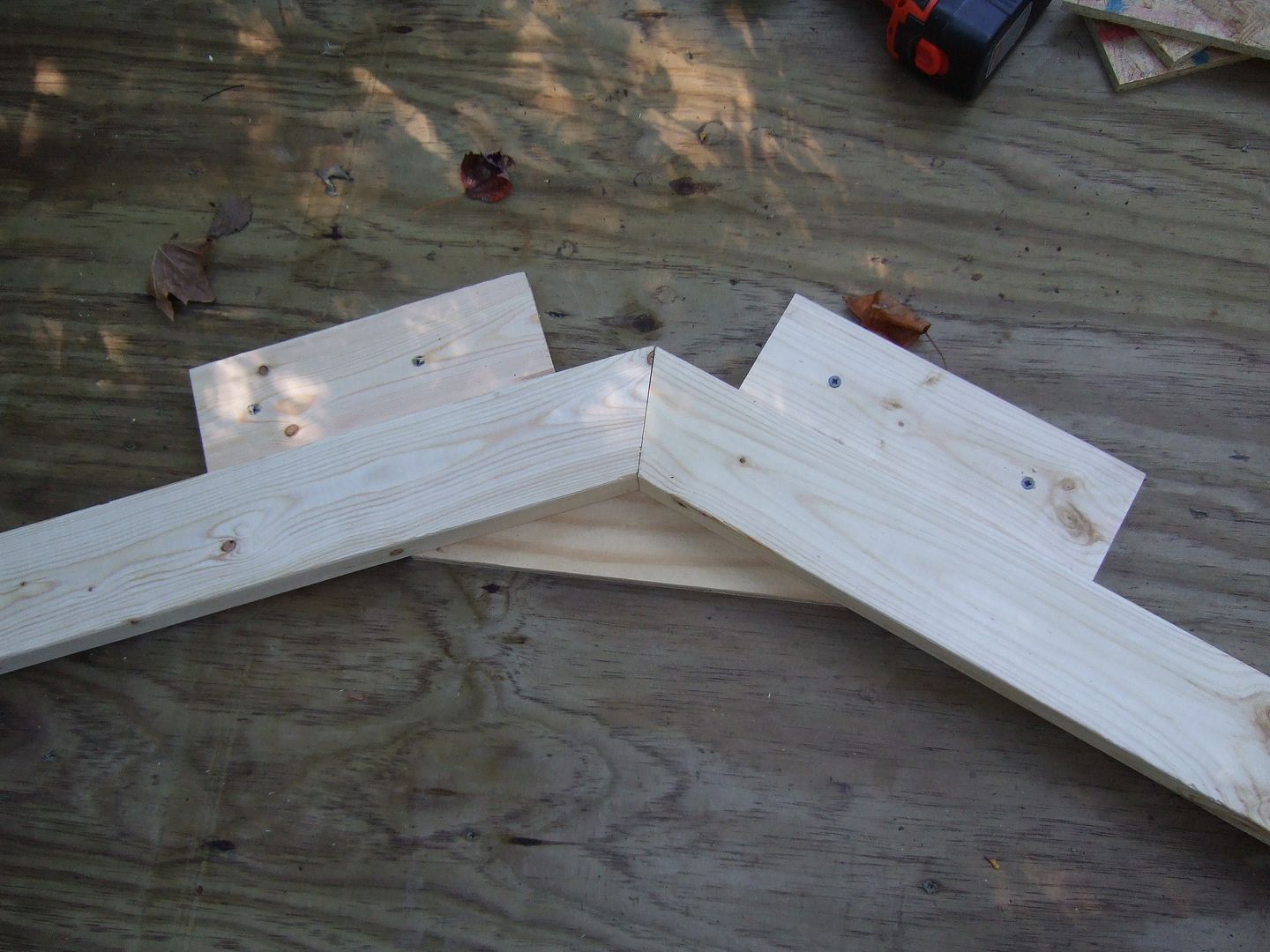

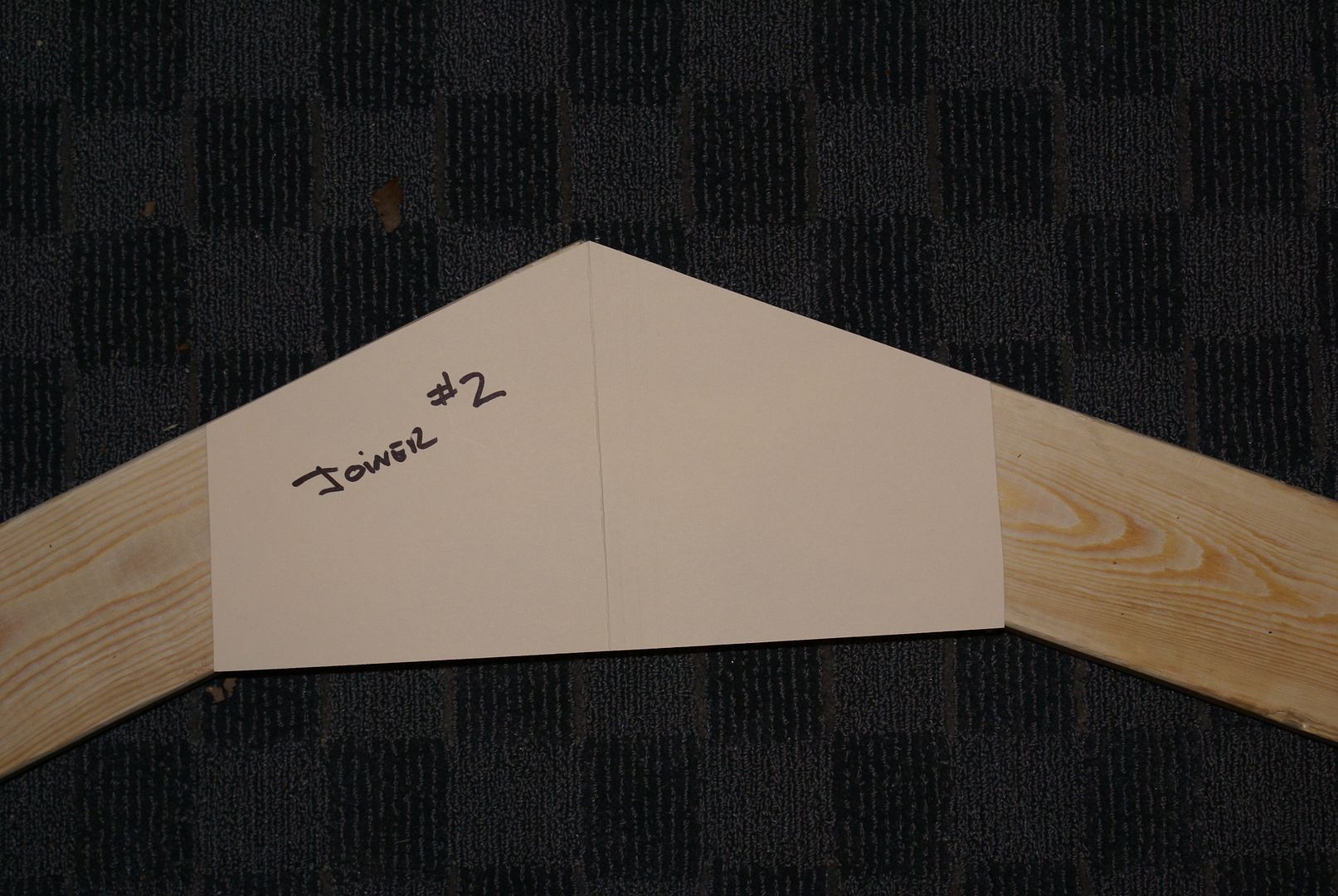

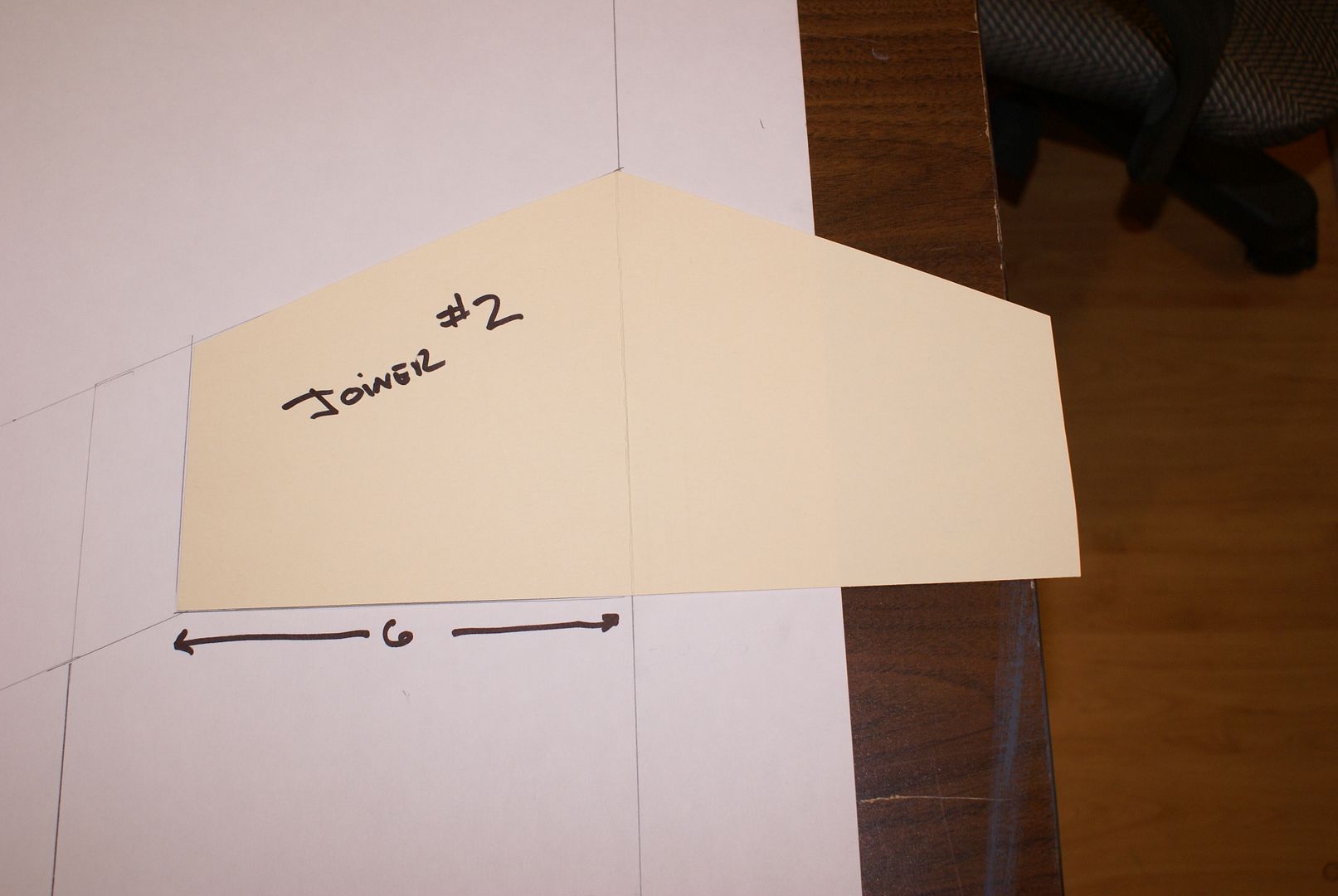

then the joiner for the peak

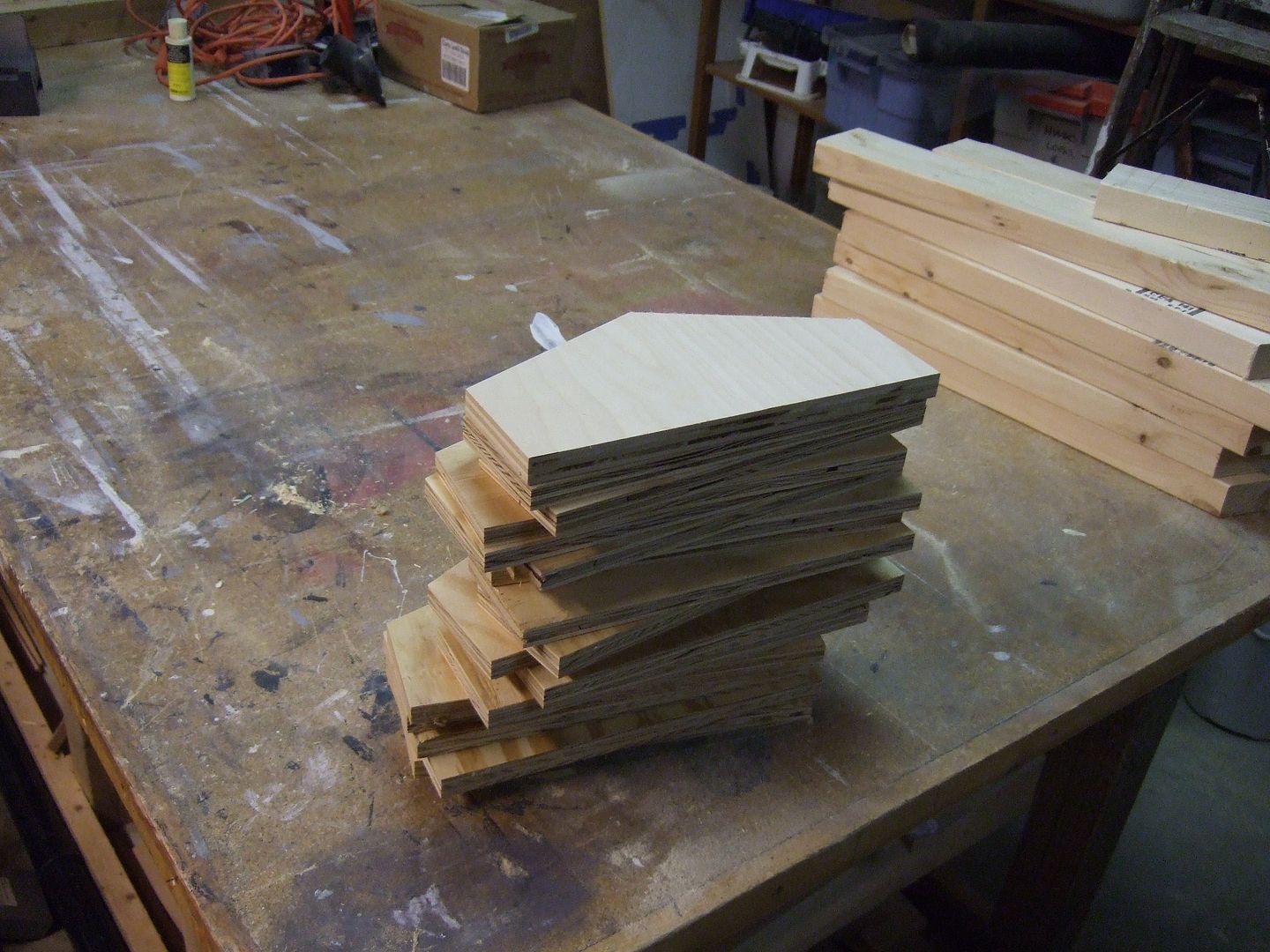

a whole bunch of these:

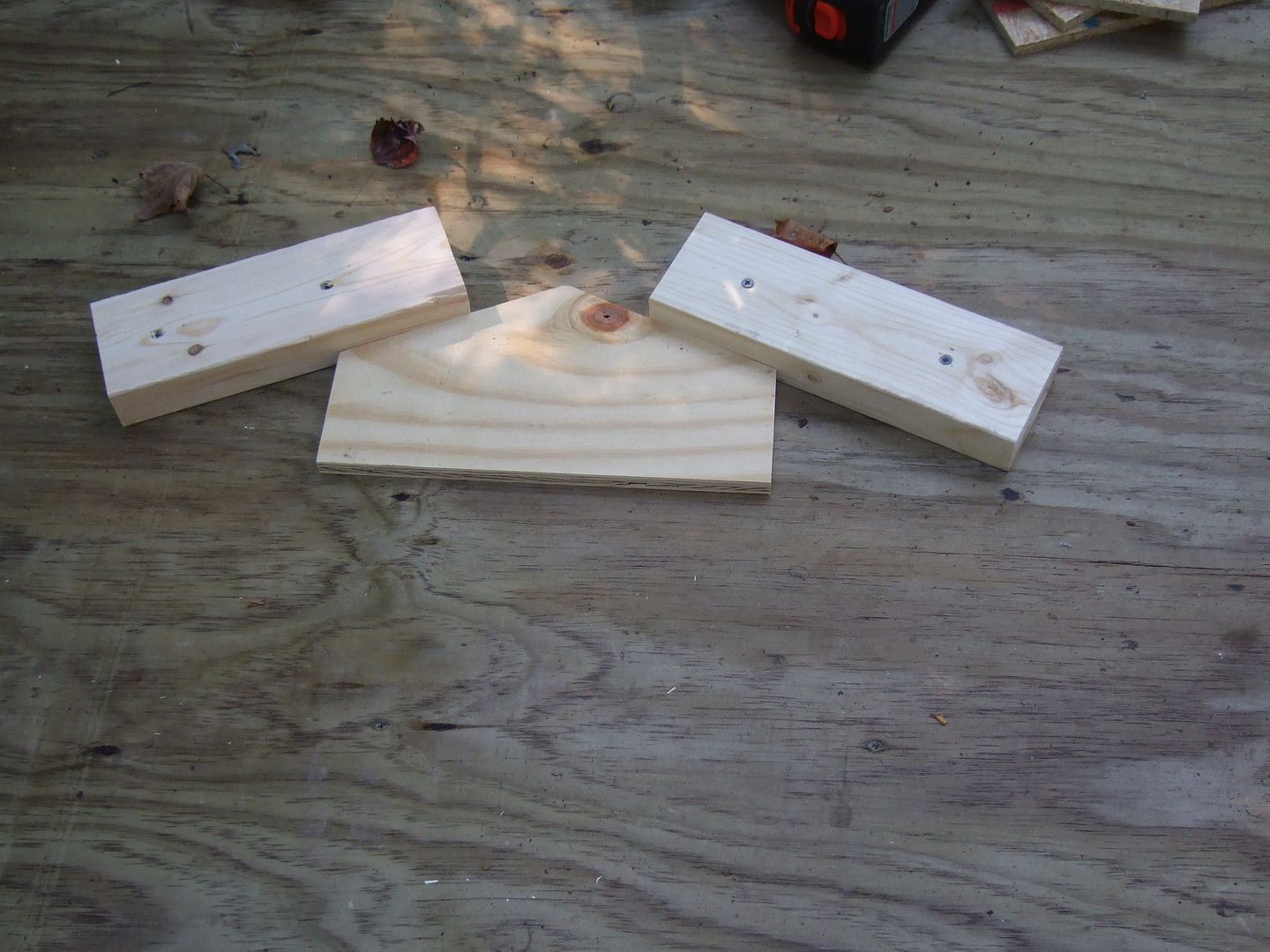

and these:

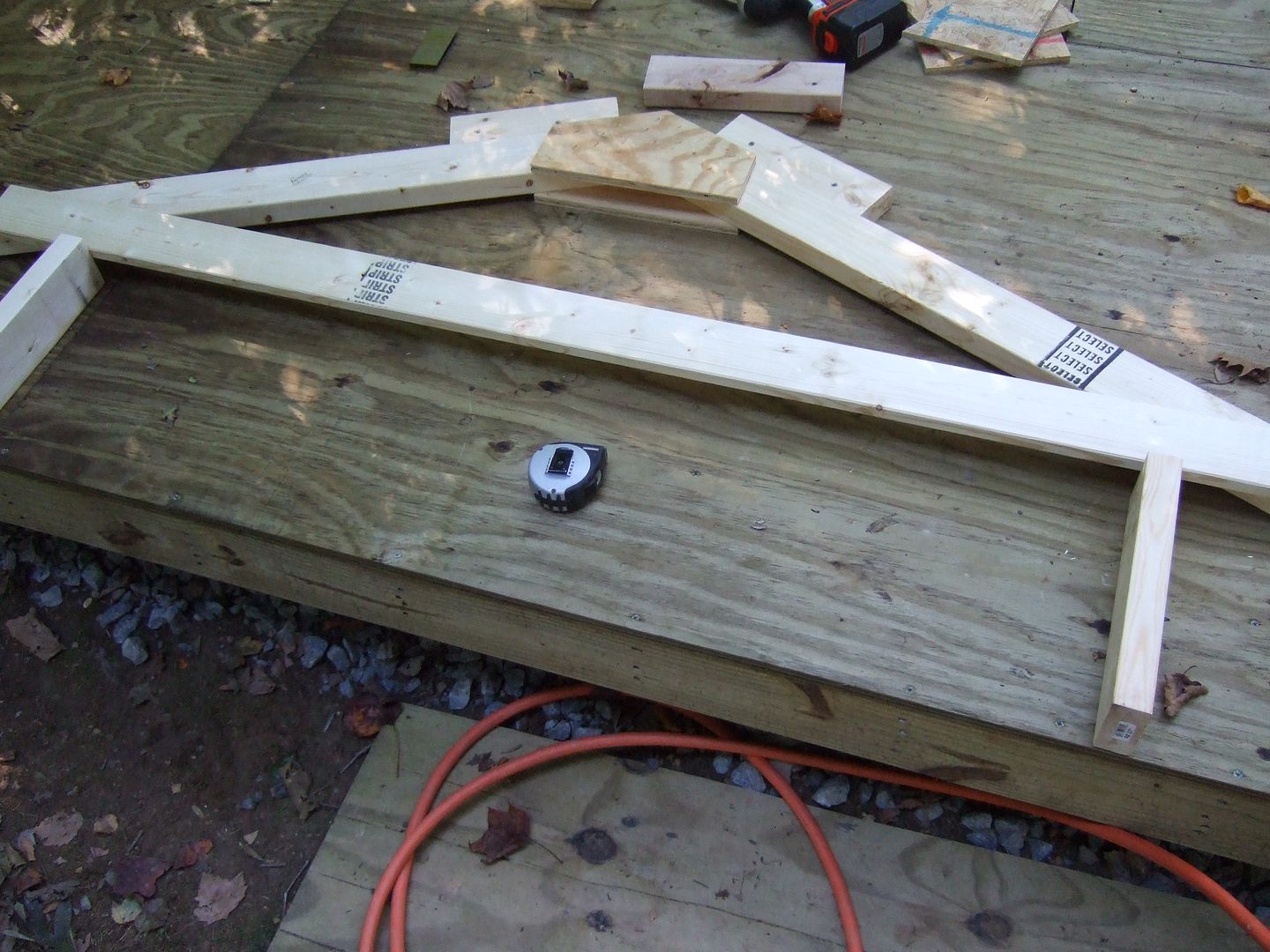

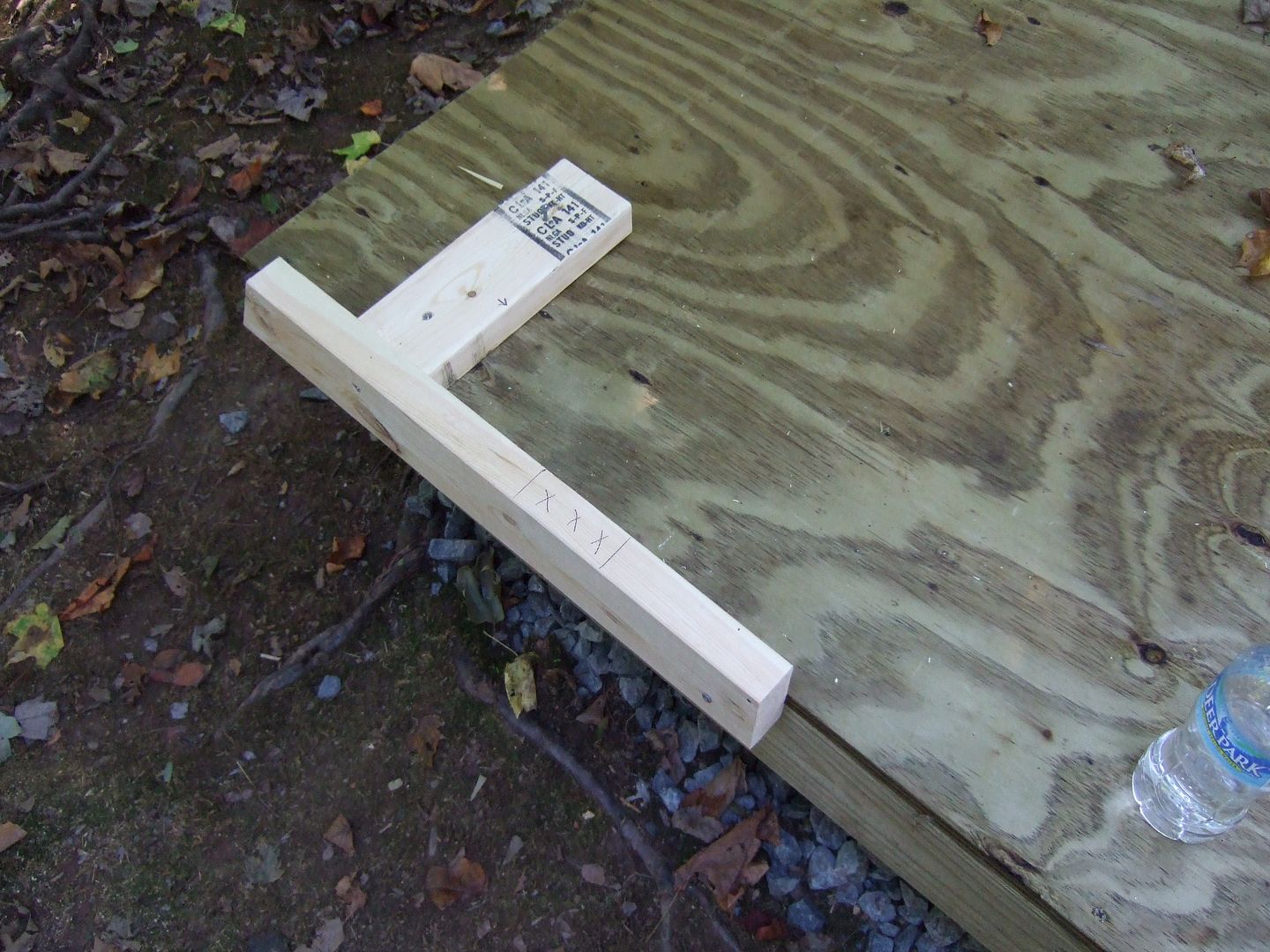

set stops on top of the deck floor




put in the pieces

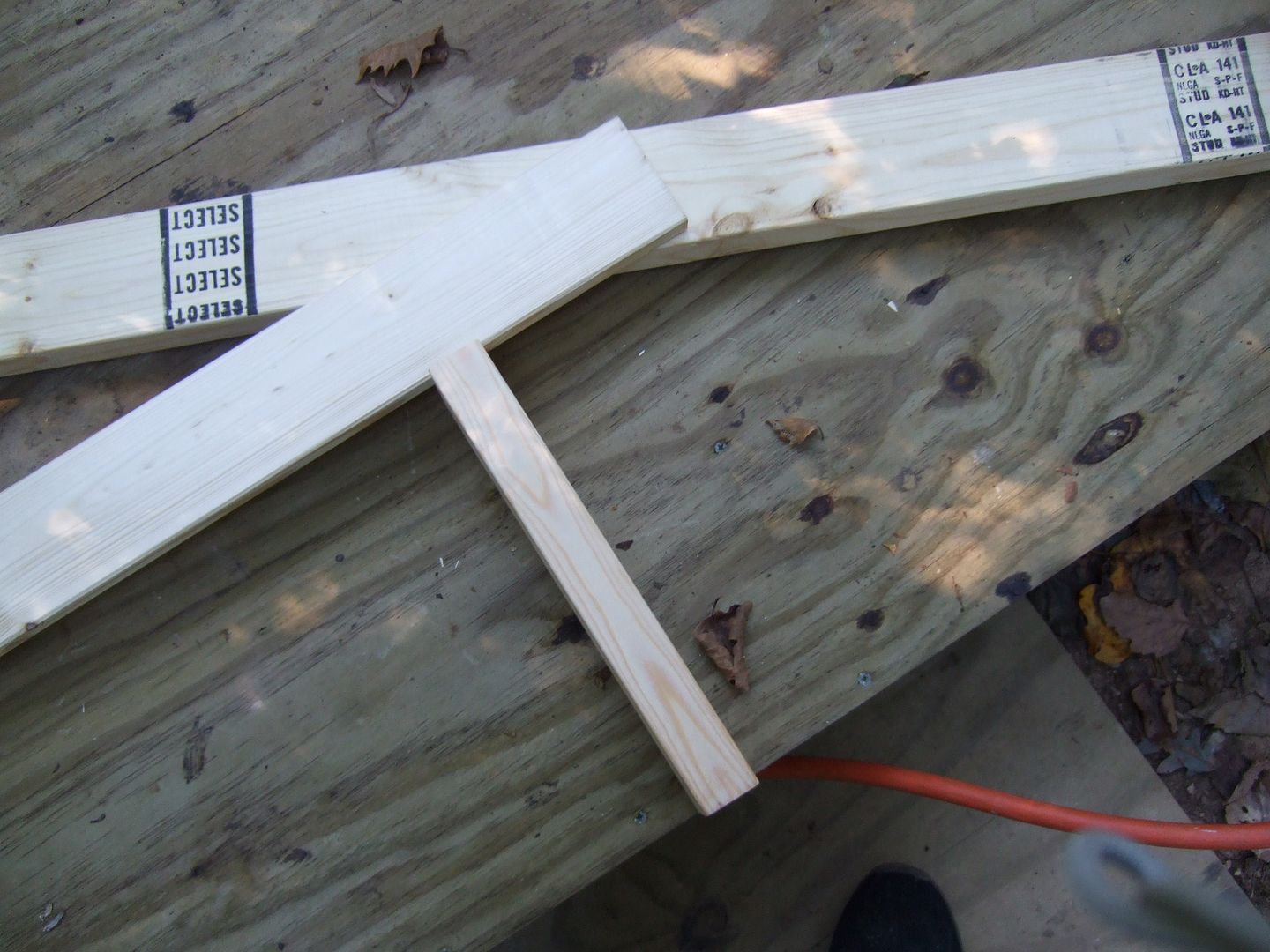

use a 13 inch piece to locate the 6 ft cross piece




a few hours later

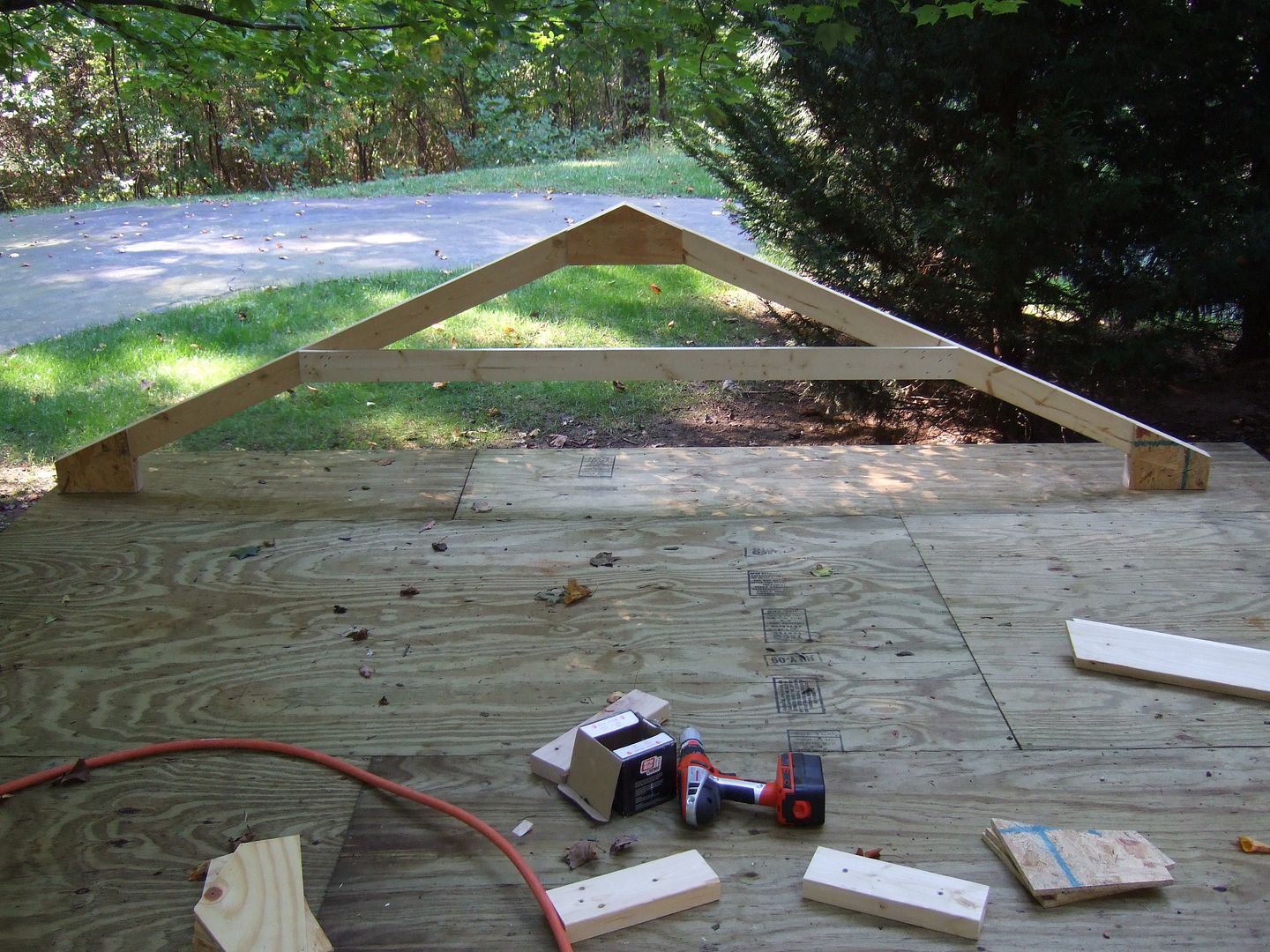

one

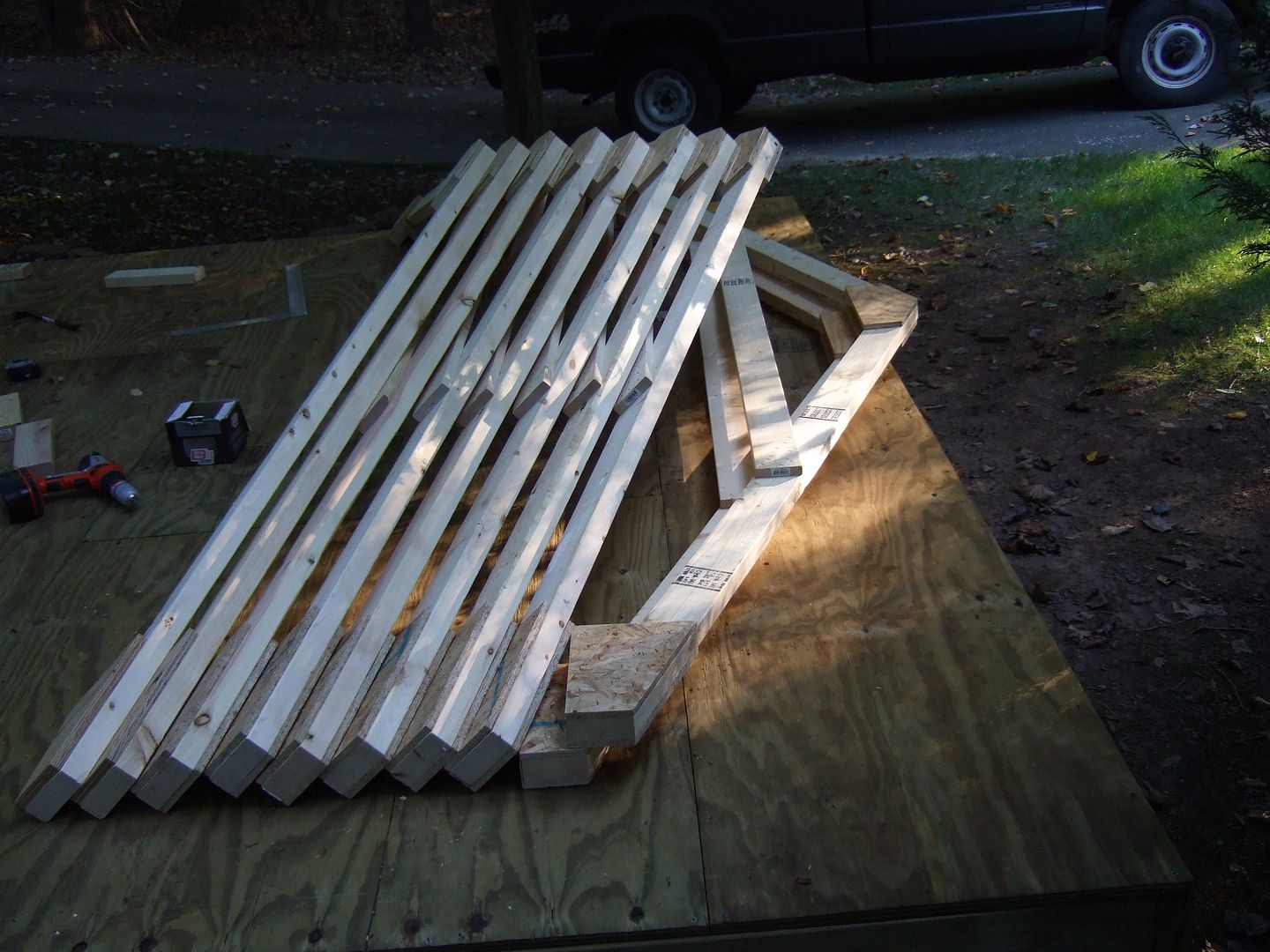

later many


Make sure that two only have the joiners on one side because the other side gets sheathed. Also they don't need the cross piece.
BIGmouthinDC is offline
post #743 of 1637 Old 10-04-2009, 08:04 PM
AVS Special Member

smakovits's Avatar

Join Date: May 2007
Posts: 2,077
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
those look great. funny, I love math, but never got into engineering. To figure all that out, man, it is beyond me now, I just cant think straight like that. Now I keep buried in a computer. I am glad I hired my shed out, I would have gone mad making those, I guess having the right tools helps too.

I know lowes also now has something where you can order custom trusses, although I have no clue as to pricing.
smakovits is offline
post #744 of 1637 Old 10-04-2009, 08:45 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,720
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 232 Post(s)
Liked: 581
I made jigs and stops for all the repetitive cuts. Basically once it is set up you just load the new piece of wood without measuring and in a few minutes you have 20 of something.

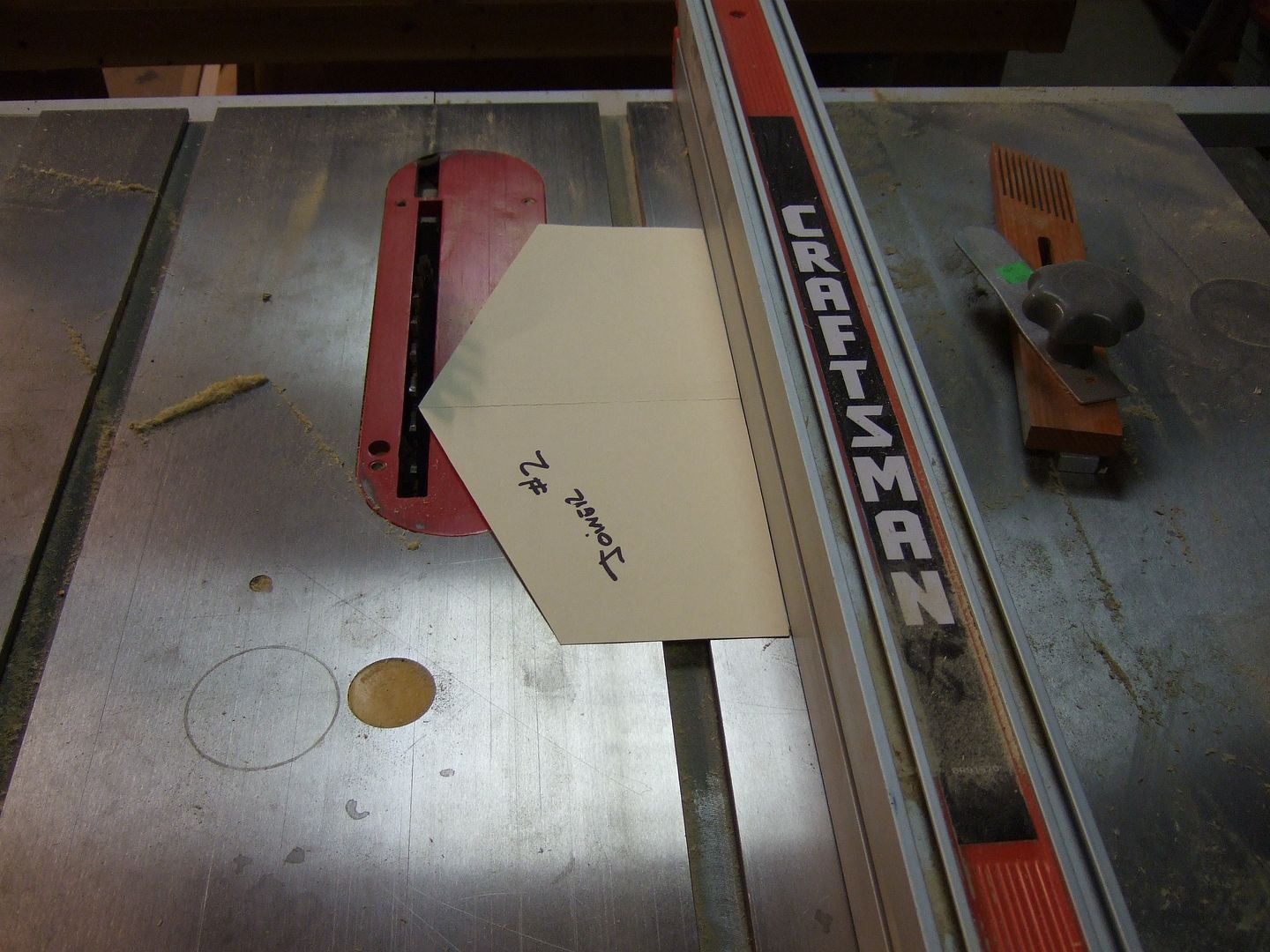

and I use the templates to set up all the equipment.

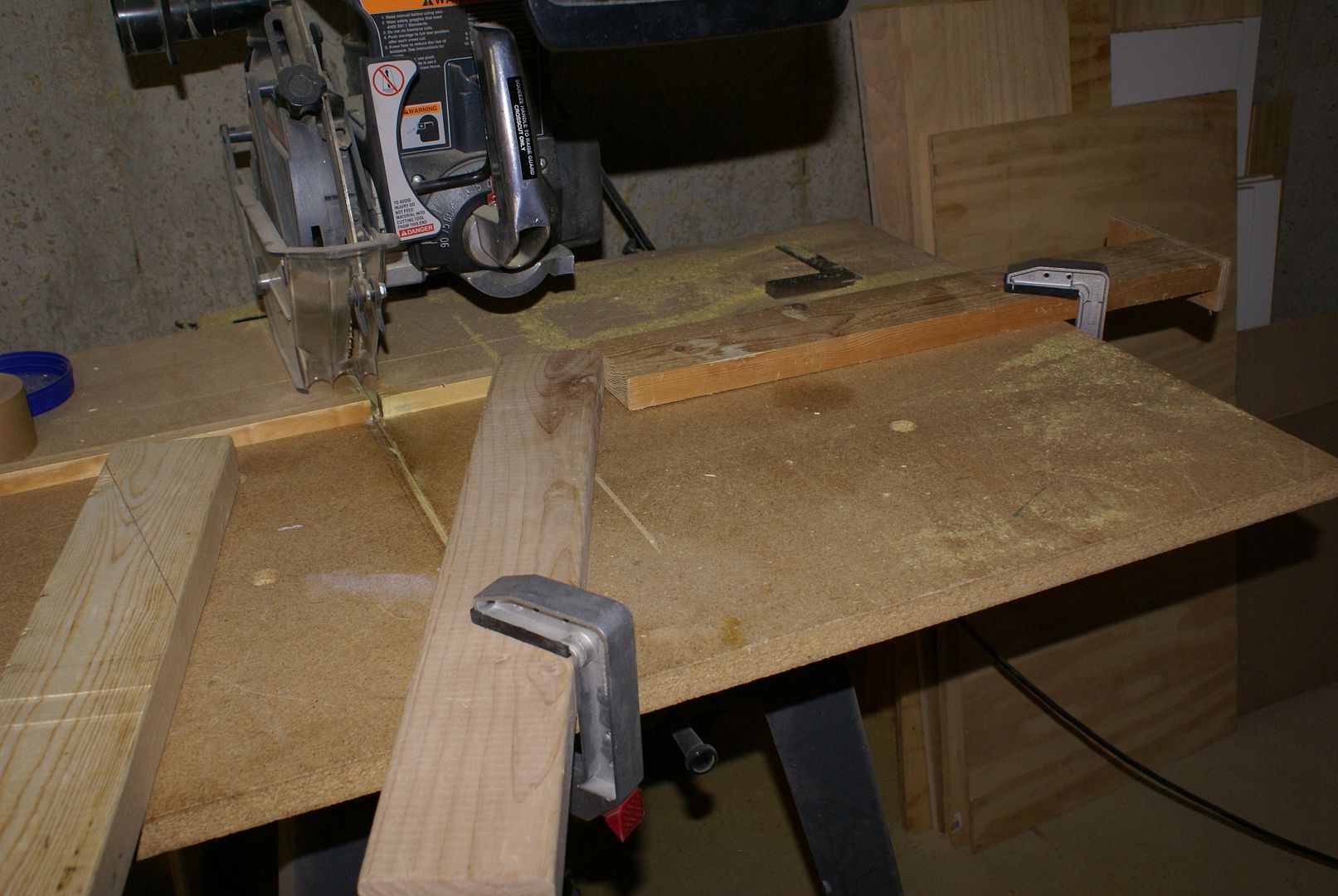

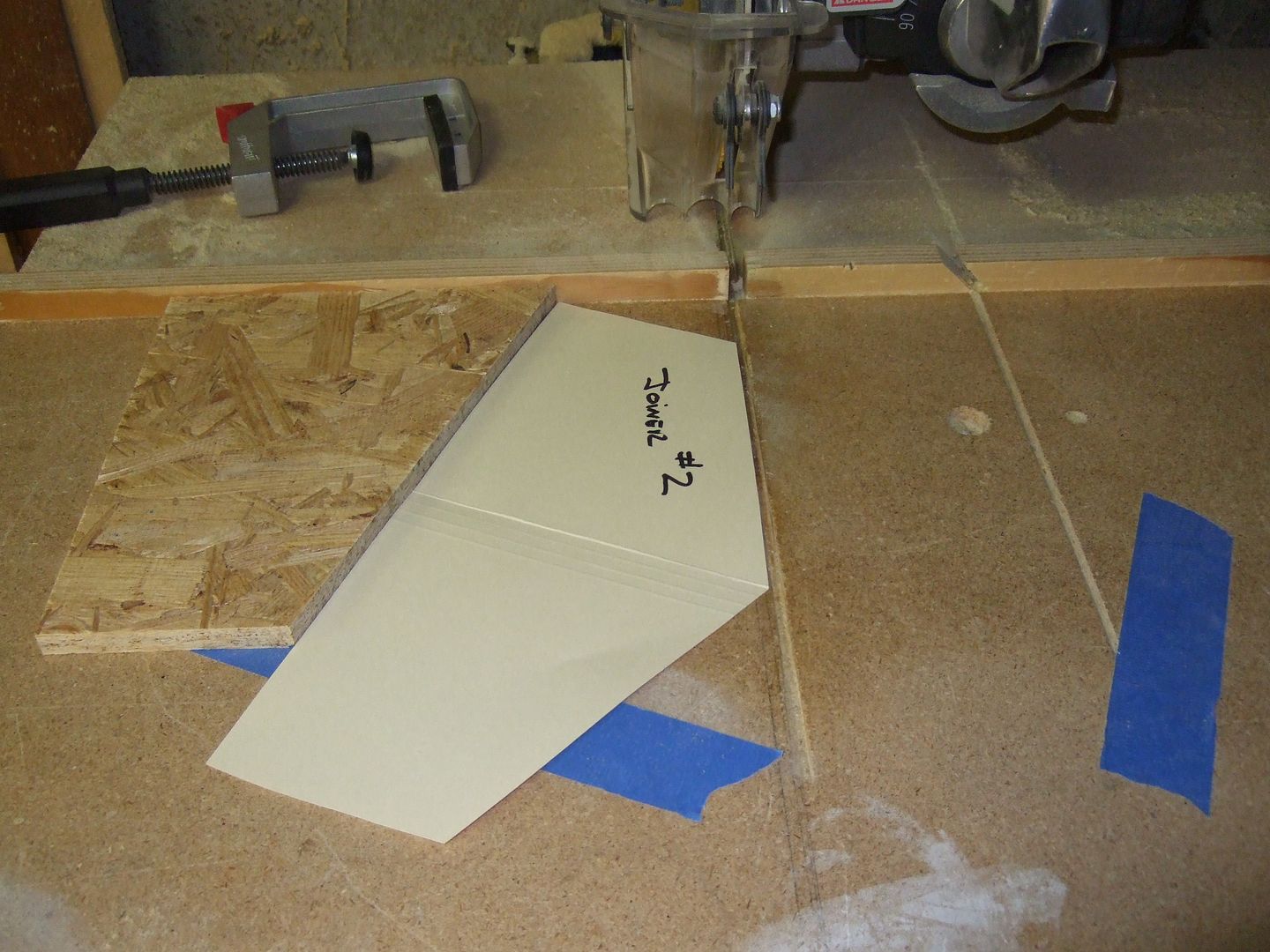

setting up the stops for the filler pieces





BIGmouthinDC is offline
post #745 of 1637 Old 10-04-2009, 08:59 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,720
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 232 Post(s)
Liked: 581
As for ordering custom trusses. My DIY cost was $7.06 a truss. Plus scrap lumber and 2 inch galvanized crown staples I already had.
BIGmouthinDC is offline
post #746 of 1637 Old 10-05-2009, 07:24 AM
AVS Special Member

BeerParty's Avatar

Join Date: Jun 2008
Location: New Hampshire, USA
Posts: 1,073
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Hey Big, we need to find you a DIY shed building forum - then you can be famous in three different forums.

Those trusses look good, and thanks for the pictures. I know it takes longer when you have to stop and snap a pic while you are working.

Chris

"It hurts to admit when you make mistakes - but when they are big enough, the pain only lasts a second."
--Despair, Inc. "Regret"

My AviaTrix TM Build
BeerParty is offline
post #747 of 1637 Old 10-05-2009, 07:33 AM
AVS Club Gold

dc_pilgrim's Avatar

Join Date: Oct 2004
Location: South Central... PA
Posts: 4,617
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
What is the second forum?
dc_pilgrim is offline
post #748 of 1637 Old 10-05-2009, 12:47 PM
AVS Special Member

BeerParty's Avatar

Join Date: Jun 2008
Location: New Hampshire, USA
Posts: 1,073
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by BeerParty View Post

Hey Big, we need to find you a DIY shed building forum - then you can be famous in three different forums.

Quote:
Originally Posted by dc_pilgrim View Post

What is the second forum?

HTGuide - I am pretty sure I have seen Big posting over there, either that or someone over there has absconded with Big's handle...

Chris

"It hurts to admit when you make mistakes - but when they are big enough, the pain only lasts a second."
--Despair, Inc. "Regret"

My AviaTrix TM Build
BeerParty is offline
post #749 of 1637 Old 10-05-2009, 02:29 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,720
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 232 Post(s)
Liked: 581
I frequent the HTguide DIY speaker section but haven't posted. I did post some at DBStalk and HiDef forum when I was trying to sort out some sat box issues.
BIGmouthinDC is offline
post #750 of 1637 Old 10-06-2009, 08:35 AM
AVS Special Member

BeerParty's Avatar

Join Date: Jun 2008
Location: New Hampshire, USA
Posts: 1,073
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by BIGmouthinDC View Post

I frequent the HTguide DIY speaker section but haven't posted.

OK, either I'm psychic or you must have mentioned somewhere here in AVS that you frequent the HTGuide DIY speaker section. I would have bet money that I saw postings by you over there on my build thread. Now that I check you don't even your ID registered.

Chris

"It hurts to admit when you make mistakes - but when they are big enough, the pain only lasts a second."
--Despair, Inc. "Regret"

My AviaTrix TM Build
BeerParty is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
