The Bunker Cinema is a 20'x12'x6.5' basement theater. My house was built in the 1950's and they really didn't think of basements as living space back then. The room started as bare brick walls.

I used double wall construction on all walls adjacent to the other rooms in the basement. All walls were insulated and finished with a single layer of drywall. All wires were run in-wall. The paint used on the walls is Lowe's Valspar Academy Gray with Cobalt Cannon on the columns.

I used knotty pine T&G on the ceiling. I was worried about what this might do to the sound, but I haven't noticed any problematic reflections.

It features 110' diagonal 16:9 screen and 7.1 surround sound.

It sounds incredible. I was blown away by the difference in sound from a rather open living room, were I had everything setup before.

Thanks to everyone for the great build threads on this site.

http://i187.photobucket.com/albums/x124/schneedoo/

Screen Wall
SCHNEEDOO is offline
Sponsored Links
Advertisement

post #2 of 34 Old 07-28-2007, 06:12 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I'll be adding real flip up theater seats for the back row in the future. The back row will be for short people because with the riser I'll be close to the six-foot height mark. I have the love seat pictured jacked up with a jury-rigged riser now to serve as temporary seating until then. It works for now.
LL
SCHNEEDOO is offline
post #3 of 34 Old 07-28-2007, 06:13 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I ordered my backrow seating today. Seatsandchairs.com had a deal I couldn't resist. A row of 4 chairs shipped for $316.00. These should work OK for overflow seating.
LL
SCHNEEDOO is offline
post #4 of 34 Old 09-19-2007, 08:00 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I painted and reupholstered the chairs I received for seatsandchairs.com last weekend. We used a microfiber fabric that works well with the walls. I'm also going to cover the pillows on the sofa to pull things together more. I think the chairs turned out great.

I'm now working on the riser.
LL
LL
SCHNEEDOO is offline
post #5 of 34 Old 09-24-2007, 01:58 PM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

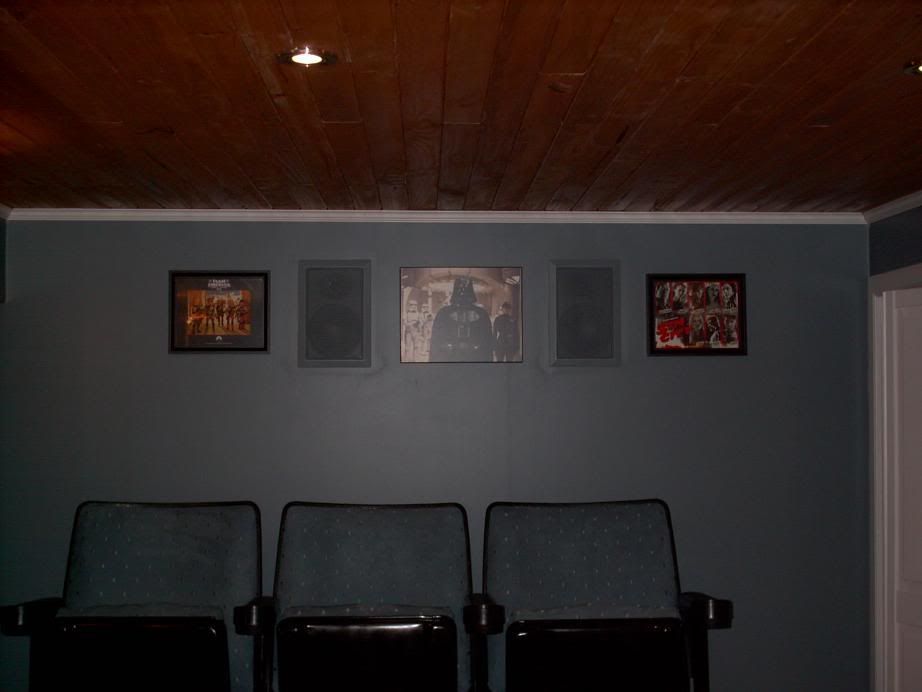

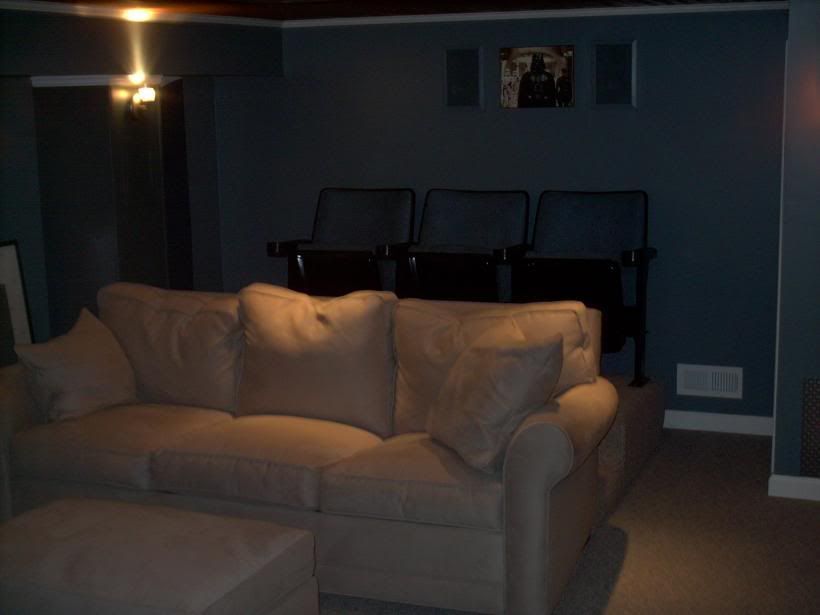

Last weekend, I finished reupholstering the rear row seats and installed these on the finished riser. I carpeted the riser to match the room.




LL
SCHNEEDOO is offline
post #6 of 34 Old 09-25-2007, 05:40 AM

scottyb's Avatar

Join Date: Mar 2000
Location: mound,mn,usa
Posts: 3,537
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Nice job, looks like a fun room.

scott
scottyb is offline
post #7 of 34 Old 09-25-2007, 06:12 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Thanks. It has been a fun process. I love watching movies and football in the room. I get a kick out of showing the room off to friends and family.
SCHNEEDOO is offline
post #8 of 34 Old 09-27-2007, 05:47 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

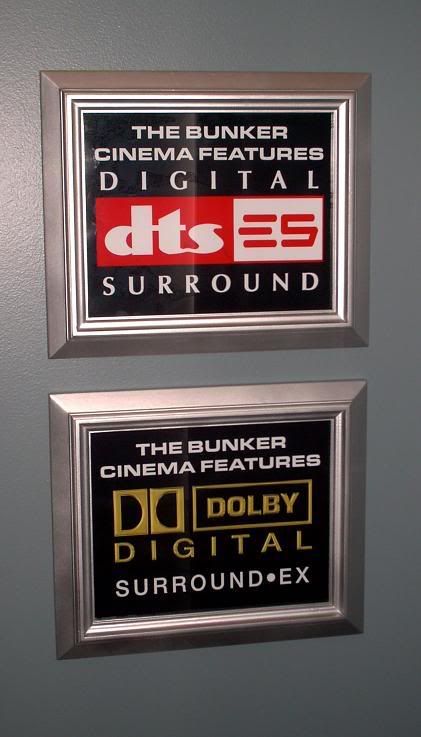

Here are signs I created from a couple of downloads I found on AVS. I can't remember which thread had these, but thanks. I used MS Publisher to add my theater name to the logos.

Here's what I created using photo paper, cheap frames from Big Lots, and silver spray paint.

SCHNEEDOO is offline
post #9 of 34 Old 10-08-2007, 09:42 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I had some family over at the end of September. We watched "The 300". Here is a picture of the theater in action. My uncle is on the sofa and one of my cats, who thinks we built the theater for her, is on the ottoman. It was a fun night sharing the theater with family.
LL
SCHNEEDOO is offline
post #10 of 34 Old 10-21-2007, 05:25 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
This weekend, I built a new screen using blackout cloth. I used poplar wrapped with a faux velvet material for the border. I then stretched the blackout cloth across this frame. It turned out great for $60 and 2.5 hours.
LL
SCHNEEDOO is offline
post #11 of 34 Old 10-21-2007, 06:15 AM
AVS Special Member

elmalloc's Avatar

Join Date: Apr 2002
Location: Cleveland, OH
Posts: 4,776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 35
you are a superior DIY'er

Current Projects:
IN PROGRESS (80%) - Building 3D Theater room.
IN PROGRESS (30%) - Building Lounge/Hallway Area.
IN PROGRESS (15%) - Building Home LAN (4 PCs).
ON HOLD - Building Home Gym.
ON HOLD - Building Simulation Room (Eyefinity).
ON HOLD - Building Theater room (Sim2 HT380, 2.35 14ft wide).
elmalloc is offline
post #12 of 34 Old 10-21-2007, 08:19 PM
AVS Special Member

Cathan's Avatar

Join Date: Mar 2006
Location: Northern VA
Posts: 4,225
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Great work. I'm sure you'll enjoy the room for years to come.

Cathan is offline
post #13 of 34 Old 02-21-2008, 06:56 PM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

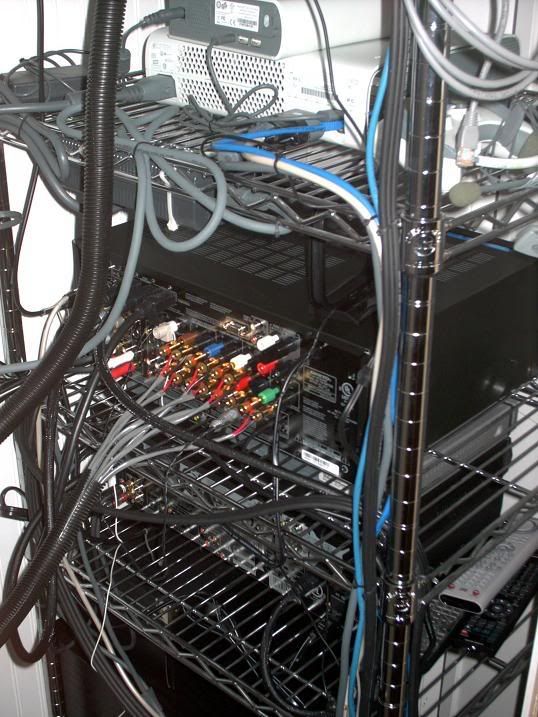

Last week I got the urge to clean up the snake pit that was the back of my equipment rack. I still have more to do but its better than it was.

SCHNEEDOO is offline
post #14 of 34 Old 02-21-2008, 07:20 PM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

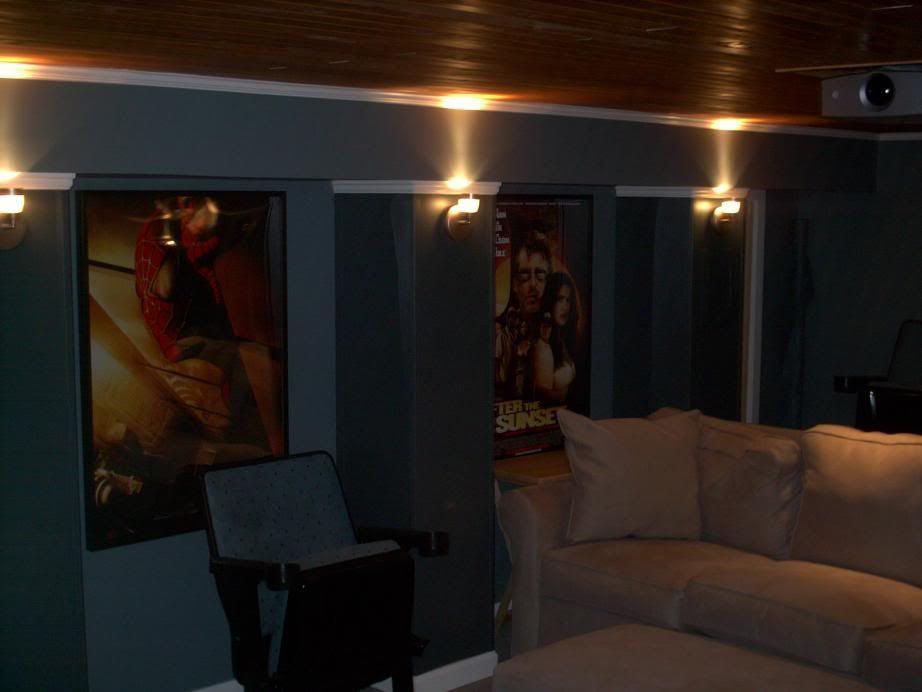

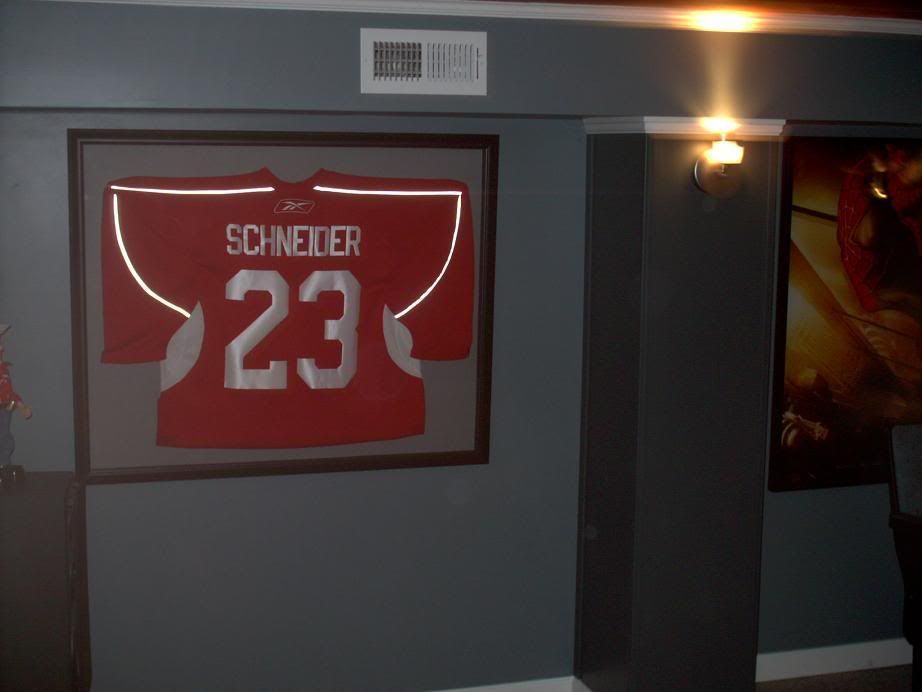

A few shots of the side wall with the posters and such in place.



SCHNEEDOO is offline
post #15 of 34 Old 01-07-2009, 10:22 AM
AVS Special Member

ejhuzy's Avatar

Join Date: Oct 2005
Location: NEPA
Posts: 1,167
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Schneedoo, nice job on the HT. Your back row is exactly what I'm leaning towards right now. Couple questions:

1) How deep is your riser? I'm stuck at around 5' at the max.
2) Are you happy with those seats? For me they'd be used when we have company over.
ejhuzy is offline
post #16 of 34 Old 01-07-2009, 11:36 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by ejhuzy View Post

Schneedoo, nice job on the HT. Your back row is exactly what I'm leaning towards right now. Couple questions:

1) How deep is your riser? I'm stuck at around 5' at the max.
2) Are you happy with those seats? For me they'd be used when we have company over.

Thanks for the compliment.

1) The riser is 48" deep. The upper part is 30"x70" and 12" high, the lower step/walkway is 18"x70" and 4" high.
When I built it I started with a 48"x70" 2x4 base, on top of that I built the upper part 30"x70" out of 2x8's. I then used 3/4" plywood for the sub-floor. I would have to say that 30" for the upper part is the minimum for leg comfort.

2) The seats have worked out great. I just couldn't beat the price. I have sports parties and none of my guests have ever complained about being uncomfortable.

seatsandchairs.com is a great company. Their customer service is some of the best.
SCHNEEDOO is offline
post #17 of 34 Old 01-07-2009, 02:27 PM
Member

jntart's Avatar

Join Date: Dec 2007
Location: Lawrenceville, GA
Posts: 133
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Nice room. I have been looking at some used theater chairs from seatsandchairs but was wondering how hard it was to paint reupholster. What did you use to paint the plastic and how is it holding up. How hard was to dismantle and reupholster? Did you take any pics of the process?
jntart is offline
post #18 of 34 Old 01-07-2009, 03:04 PM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by jntart View Post

Nice room. I have been looking at some used theater chairs from seatsandchairs but was wondering how hard it was to paint reupholster. What did you use to paint the plastic and how is it holding up. How hard was to dismantle and reupholster? Did you take any pics of the process?


The chairs were actually easier to reupholster than I thought they would be. The seat backs slide out of the plastic back piece and I just covered right over the old fabric and stapled it to the back of the wood in the seat back.

For the seat bottom I had my wife help. The seat cushion is held in with clip on the sides. We popped the cushions out and removed the clips holding the old fabric on and removed the old fabric. We then wrapped the cushions in the new fabric and strategically folded the material and clipped it in place. It was almost like wrapping a Christmas gift. No sewing involved. The material has stayed in place really well through multiple uses.

I painted the metal parts with regular black spray paint. For the plastic seat backs I used Valspar plastic paint. It has held up well, but it will scratch off if you get rough with it. Being that my seat backs face the wall I haven't had any issues.

No pics of the process but it was fairly straight forward.

Overall about 24 hours total work time to paint and reupholster 4 seats.
SCHNEEDOO is offline
post #19 of 34 Old 01-12-2009, 08:05 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

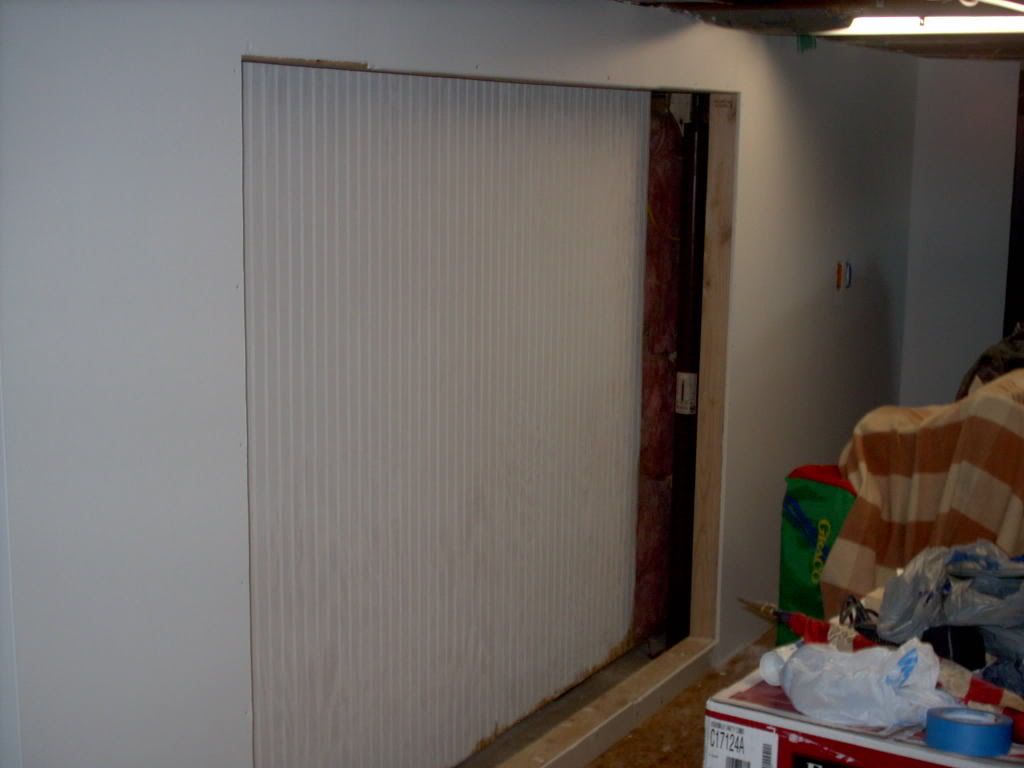

My wife and I started to tackle the rest of the basement over summer 2008. We had a baby on Thanksgiving of 2007, so progress slowed to a halt for several months after she arrived.

We are turning the rest of the basement into a multi-purpose room. My wife has been working from home so one area of the room will be her office. The basement was plumbed for a bathroom when the house was built so we are taking advantage of that.

Here are some progress pictures as things stand now.

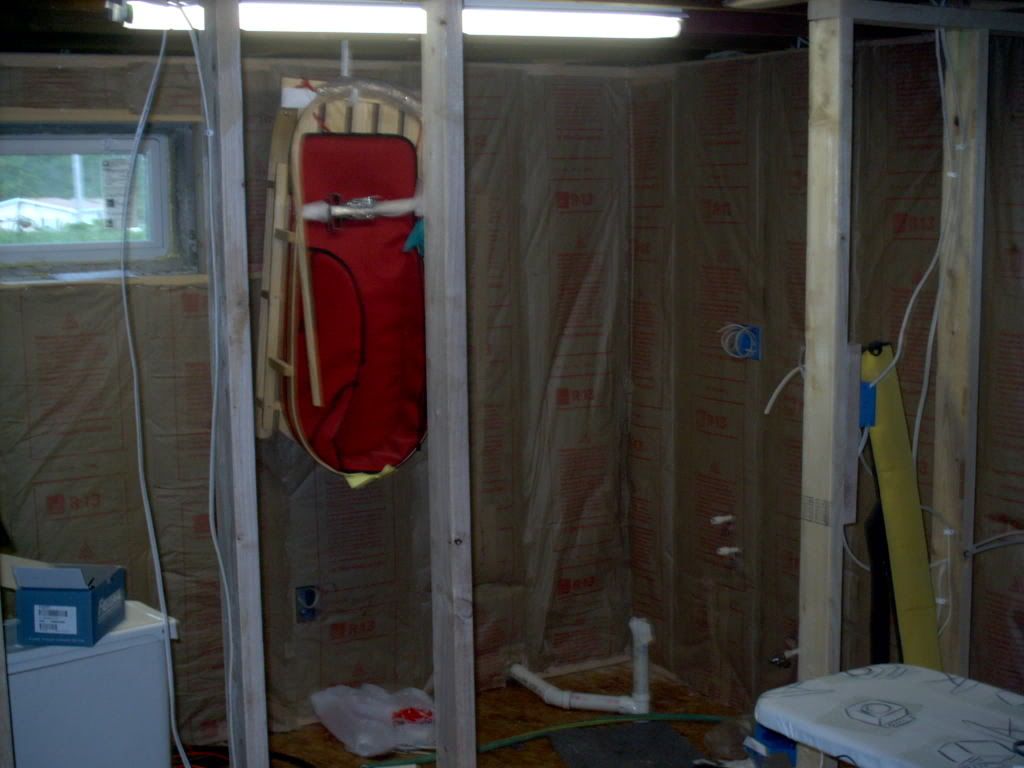

Bathroom Framing



Bathroom Entrance

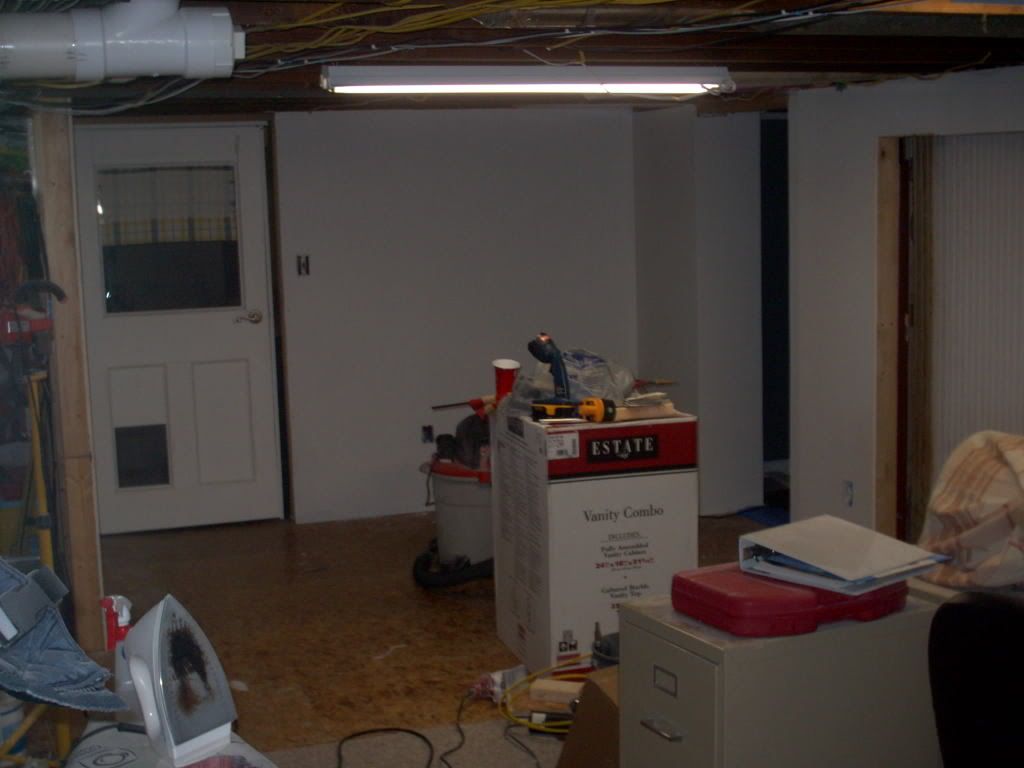

Basement Entrance

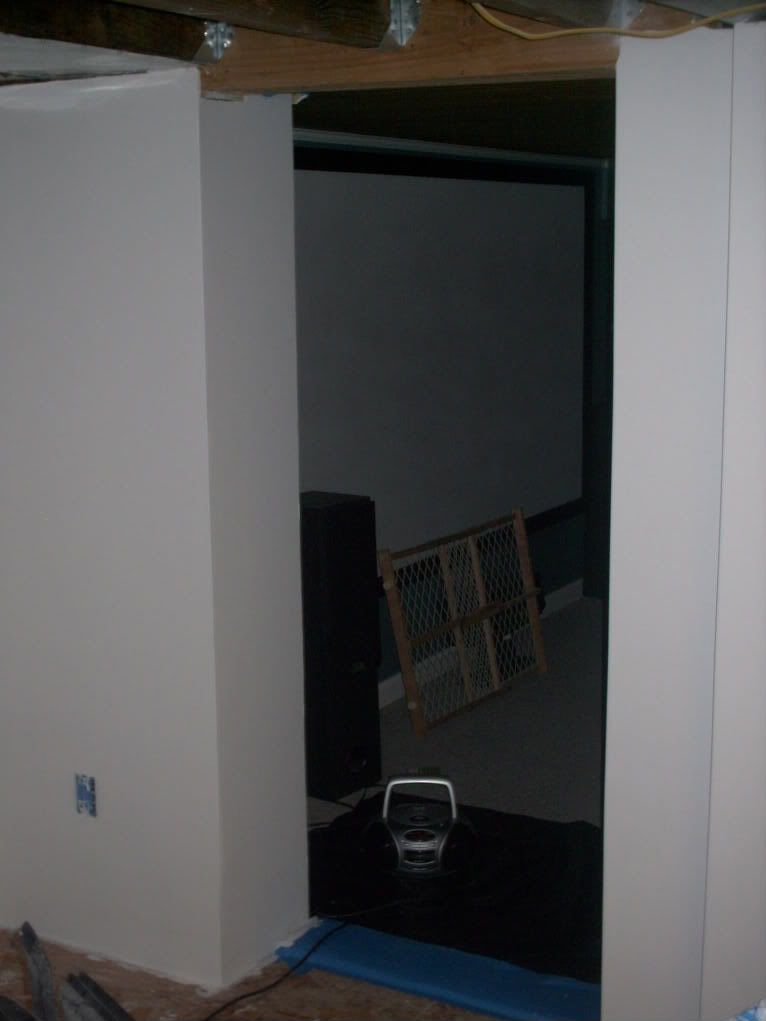

Theater Entrance



Future Bar Area (Fingers Crossed)



There is still a lot of work to do but any progress is good progress.
SCHNEEDOO is offline
post #20 of 34 Old 05-11-2010, 12:36 PM
Member

lawnboy33's Avatar

Join Date: May 2006
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Very Nice!! 6'5" I bet that was a challenge! Im working with 7' so if you can do I should be able to also... Nice layout!
lawnboy33 is offline
post #21 of 34 Old 03-02-2012, 07:17 PM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I'm in the process of adding an AT screen wall to my theater so I thought I should update this zombie to show my progress. Its been a busy three years around here. I popped the top on the house and added a second story, because we also added a second child during the same time as well.

When I built the theater I had a short throw projector and I made the mistake of locating it too close to the screen wall. I now have a new projector and in order to move the screen wall out I need to relocate the projector because in its current position the zoom is maxed out. Luckily the opposite side of the basement still has unfinished ceilings so the process is running fairly smooth. I'm dealing with low ceilings so I also had to customize my projector mount to bring the projector closer to the ceiling. Once I finish moving the projector and patching the ceiling, the real fun can begin with the stage and screen wall.
LL
LL
LL
LL
LL
SCHNEEDOO is offline
post #22 of 34 Old 03-04-2012, 09:30 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I relocated the projector yesterday and started working on the ceiling patch. The patch boards are just dry fit right now but once they're nailed into everything should look good.
LL
LL
LL
SCHNEEDOO is offline
post #23 of 34 Old 03-08-2012, 11:41 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

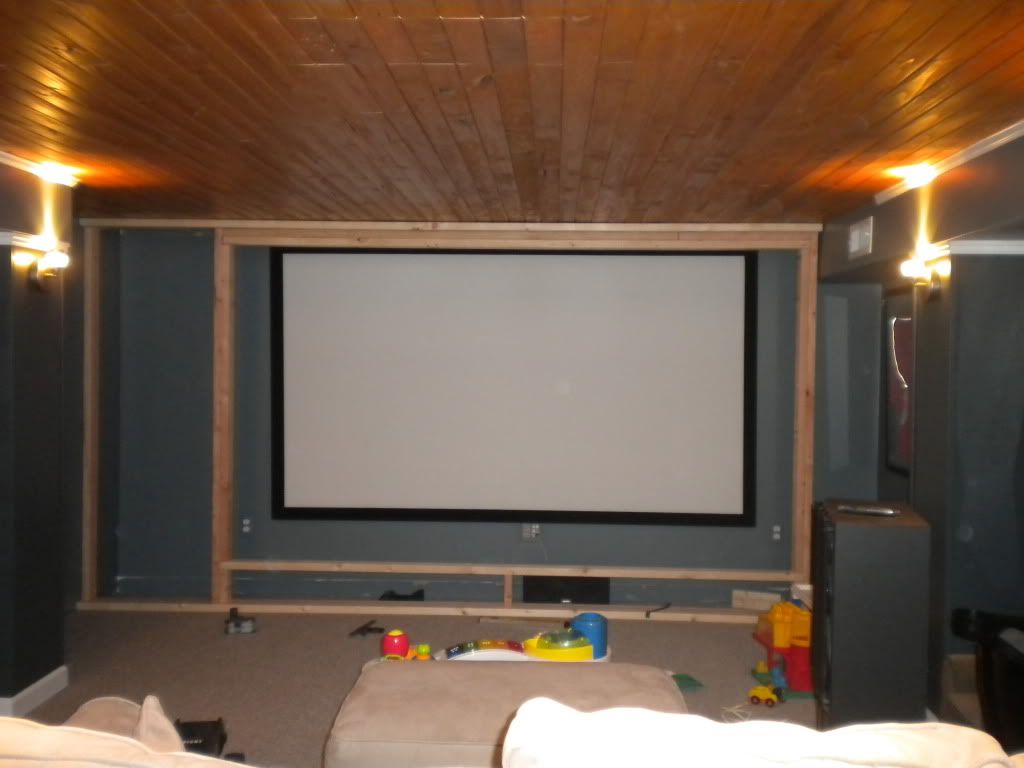

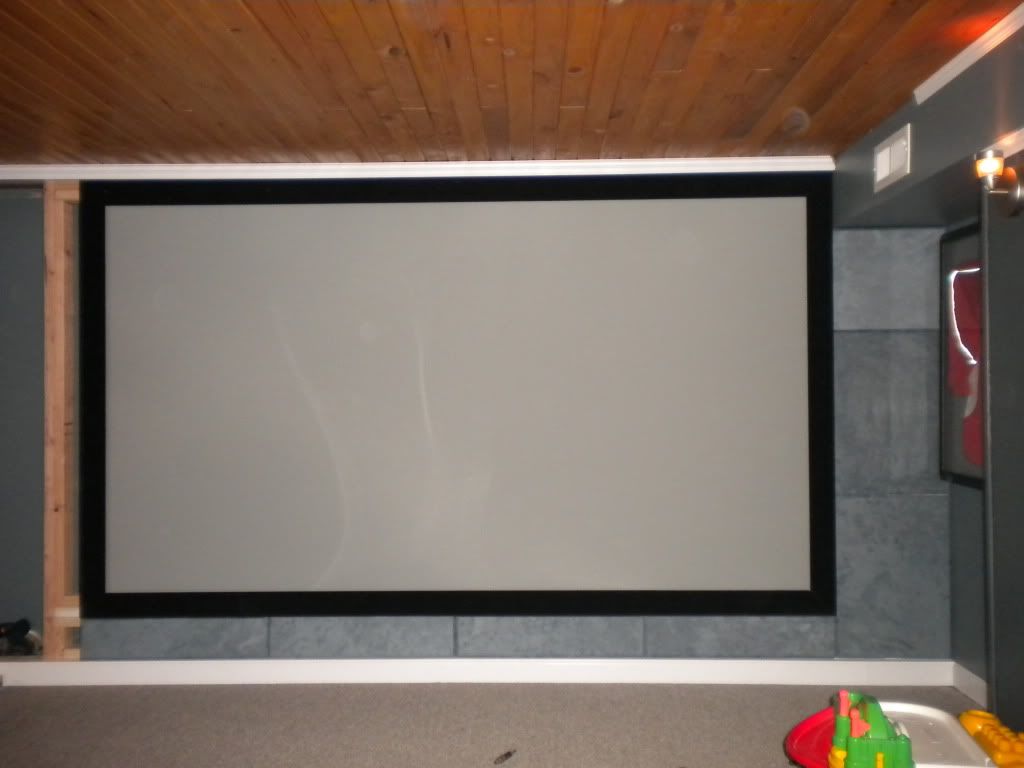

Screen Wall under construction. The new screen will be 107" x 60". The old screen is up for comparison.

SCHNEEDOO is offline
post #24 of 34 Old 03-08-2012, 02:19 PM
Advanced Member

alittletank's Avatar

Join Date: Mar 2011
Location: San Antonio Tx
Posts: 565
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
good job working with a height challenged space. What are your viewing distances going to be and what PJ are you using?

alittletank is offline
post #25 of 34 Old 03-08-2012, 06:36 PM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Thanks, it's been a great room to have to watch movies in and have Superbowl parties. My 4-yr old just loves the room and I don't mind watching the Disney stuff with her.

My projector is a Sony VPL-AW15, with the new false wall in place the main seating will be 12-feet back. The second row is 17-feet back. After I finish the false wall I'll be redoing the riser to squeeze the fourth theater seat onto it.
SCHNEEDOO is offline
post #26 of 34 Old 03-09-2012, 02:20 PM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

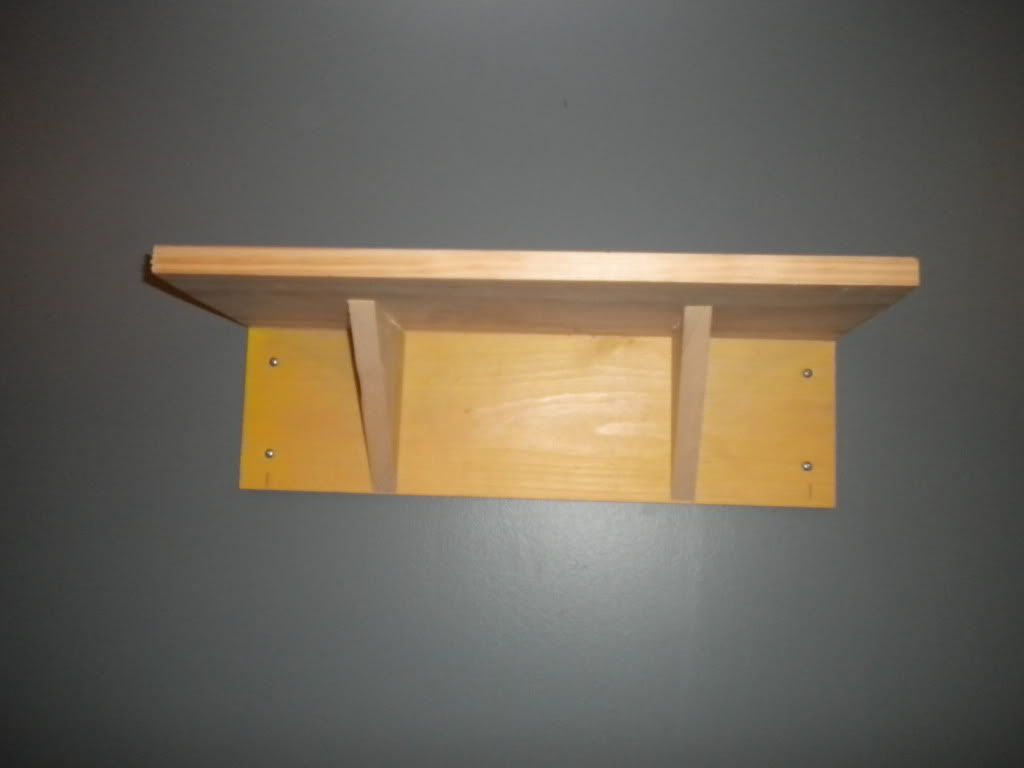

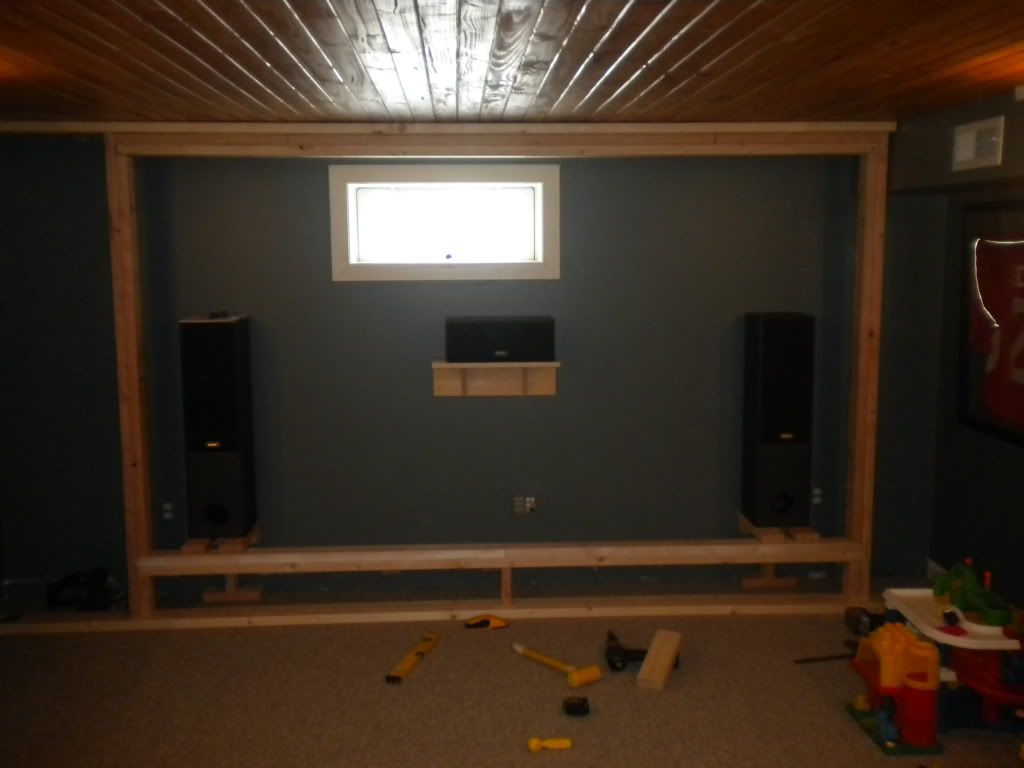

Quick and dirty shelf for my center channel.



Part of my crew helping out.


SCHNEEDOO is offline
post #27 of 34 Old 03-10-2012, 11:38 AM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
In the DIY Screen Forum some have been having success using Spandex as AT screen material. I thought I'd give it a try and so far its working great. I need to put black material on the frame supports as they are visible when the lights are on. I'll probably put a second layer of black spandex under the silver as this was hiding the supports when I first built the screen. The screen is 116" diagonal.



SCHNEEDOO is offline
post #28 of 34 Old 03-15-2012, 05:35 PM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Stretch Velvet Border
SCHNEEDOO is offline
post #29 of 34 Old 03-16-2012, 01:15 PM
Senior Member

dvmiller's Avatar

Join Date: Apr 2008
Location: Great Northwest
Posts: 264
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 20
Nice work on the Spandex AT screen. I've seen those DIY discussions about using this material and plan to try it as well. Your thoughts on it after you have a chance to watch some would be great. Thanks,

Dale
dvmiller is offline
post #30 of 34 Old 03-26-2012, 05:49 PM - Thread Starter
Senior Member

SCHNEEDOO's Avatar

Join Date: Jul 2006
Location: Batavia, NY
Posts: 429
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Finishing the screen wall. I'm using a microfiber material that plays well with the color of the walls. I'll be installing hidden media storage to the left of the screen.

SCHNEEDOO is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
