Hello All,
I wanted to start a thread in which to chronicle the construction of my dedicated theater, game room, theater lobby and A/V room.

Here are the details of each of the rooms.

Movie Theater:
24' x 30' x 12'. We worked with our architect back in 2003 when formulating the floor plans of the entire house to purposefully design it in advance so that there is stadium seating to keep people from seeing the heads of people in front. The rear rows are not risers built as afterthoughts, but rather we built out that room about a foot-and-a-half lower than the rest of the 2nd story of the house. The theater has a 12' ceiling in the front where the screen and proscenium are located, and 10' ceiling in the rear. There are 22 seats: three rows of seating with 8 theater seats in the first row, 7 in the second row, and 7 in the third row.
There will be two “money seats” in the second row. All other seats recline and the seat bottoms become upright. These seats were bought from an actual movie theater.
Each row is a little over 8" higher than the previous row.
I have 24 tactile transducers which will be mounted below each seat and row to provide an impact to all viewers.

The speakers are complete Klipsch THX ULTRA2 speakers with LCRs, two side dipolars and two rear centers. The two center rears are both upgraded from the standard rears and are the same as the LCRs.
There are two big subwoofers with two 1000 watt amplifiers for them.

I have a 2 Terabyte Home Theater PC from EPICENTER with capability of storing about 200 Standard Def DVD movies on the hard drives, all my music, and pictures which are then distributed to other rooms in my house using Microsoft Xbox360’s as Media Center Extenders. The HTPC also has HD DVD access with the capability of having HD DVD movies also stored on the hard drives. I have attached to the computer 5 Sony VAIO firewire 200-DVD changers which are daisy chained to each other to allow for an additional 1000 movies which are displayed in the interface for instant viewing. If you are interested in more information about the HTPC, please feel free to PM me.

The projector is the JVC RS1. Not much to say about it, other than how great it is. There are numerous threads in $3000+ Projector forums stating how it is a fantastic projector.

My screen was put together about half a year ago. I actually received help from one of the long-time contributors (MississippiMan) of the DIY Sceen forum, who provided advice and helped to build the screen, as well as suggesting to create the starfield.
The screen measures about 90 inches high and 16 feet wide. This gives us about a 212” diagonal 2.35:1 screen with a high-gain screen. Unfortunately, I don't know what that gain is.
When using the 16:9 aspect ratio, the screen diagonal is approximately 221".

The ceiling is a starfield with about a thousand points of fiber optic light. It has the Milky Way, a whole bunch of constellations, and two shooting stars that span the width of the ceiling. It is painted completely in flat black.

A soffit is built around the perimeter of the theater with 3” can lights, and we have columns strategically placed to hide the left, right, and surrounding speakers. The center speaker and subs are hidden in the stage and proscenium.
Two rows of crown molding are dropped 3” so that rope lighting will illuminate the side and edges of the ceiling and the walls / soffitts.

The stage has four steps up and is built with a semi-circular shape. It is sturdy enough to allow for performances, such as karaoke and Guitar Hero competitions. Beneath the stage is hollow with a large crawlspace.

The walls will be covered by a red and black brocade fabric with a continuous elegant pattern. Hidden behind will be a combination of diffusors and Linacoustic.

The Lobby has an 8oz popcorn machine maker with wheels and stand. There is a movie marquee and we will have a candy counter and ticket taker.

The A/V room contains enough cable to allow for every room in the house to have 2 CAT5E and 2 RG6, as well as in-wall and in-ceiling speakers with CAT5E for electronic volume and source controls. It feeds signal for 16 HD DVR, DVR, and On-Demand boxes. It integrates with an HAI panel for internet control of the alarm, security cameras, garden sprinkler
automation, and lighting controls using UPB. All the audio and video components will be stored on two racks with an isolated electrical panel. It will have climate control for all of the generated heat.

The Game Room is 23' x 33' x 10' in dimension. It contains a 8’x9’ wet bar with sink. Adjacent to it is a foosball table and have a 8’ pool table with a Stroh’s Beer billiard bar light. There are two 10-person oval red felt poker tables.
I’ll try to answer as completely and as frequently as possible. Feedback and advice is very welcome.

Take care,
J.

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
Sponsored Links
Advertisement

post #2 of 398 Old 11-21-2007, 08:42 PM
Member

MGNiko's Avatar

Join Date: Nov 2007
Location: Anchorage, Alaska
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
It sounds amazing....work on those pics!
MGNiko is offline
post #3 of 398 Old 11-21-2007, 09:10 PM
AVS Special Member

victor-eyd's Avatar

Join Date: Sep 2003
Location: Hayward, CA
Posts: 2,172
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Wow! A serious theater. I'd love to check it out

Cal alumni Sociology 1991

Victor

Free cake! Free cake!
- Mordecai and Rigby


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Think small, project big!

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
victor-eyd is offline
post #4 of 398 Old 11-21-2007, 10:56 PM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Here are a few pictures. I’ll update this thread as we progress.

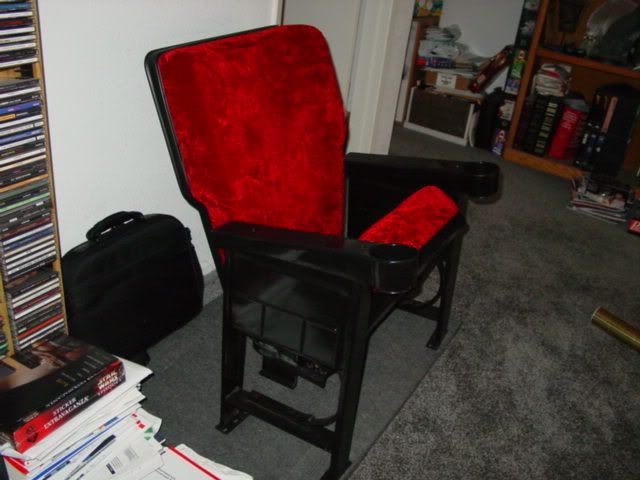

Movie Theater seat that I upholstered myself as a test:

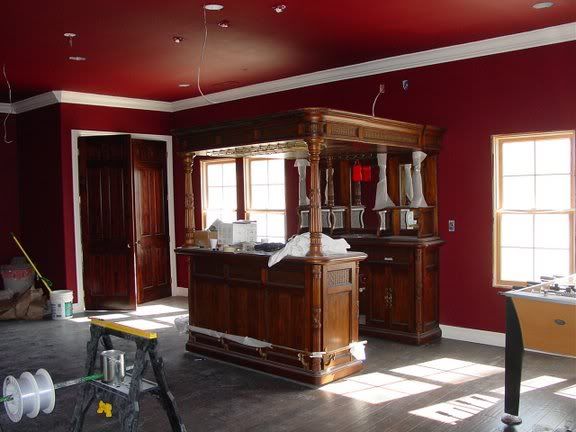

Game Room from the perspective of if you were playing pool. You can see the spools of fiber optic for the star field ceiling:

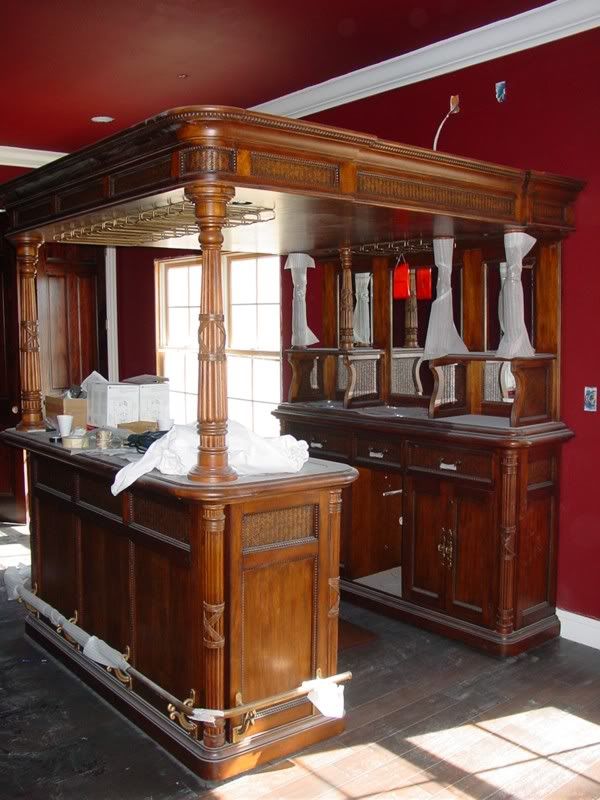

Wet Bar with sink and wine racks:

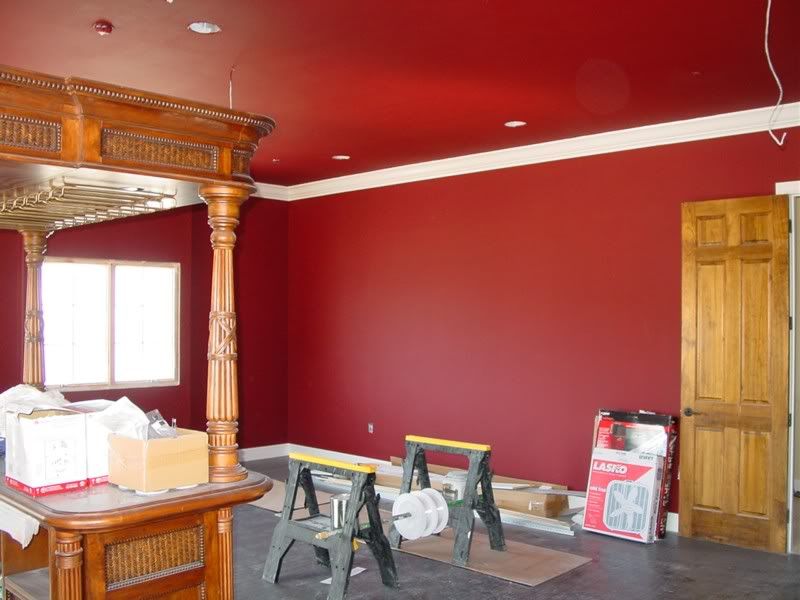

Looking into the Game Room where the pool table will be placed:

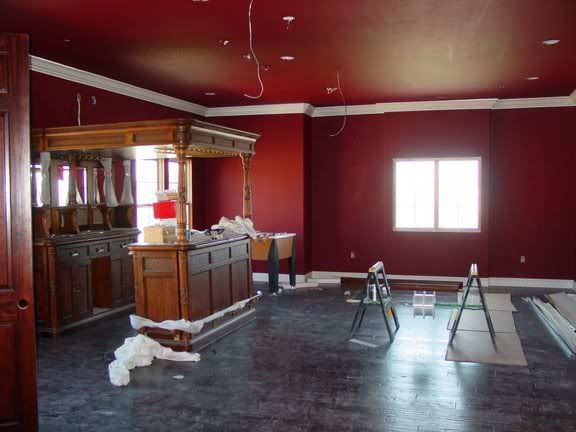

From the Lobby. The floors are a hand scraped Ebony Merbau wood floor:

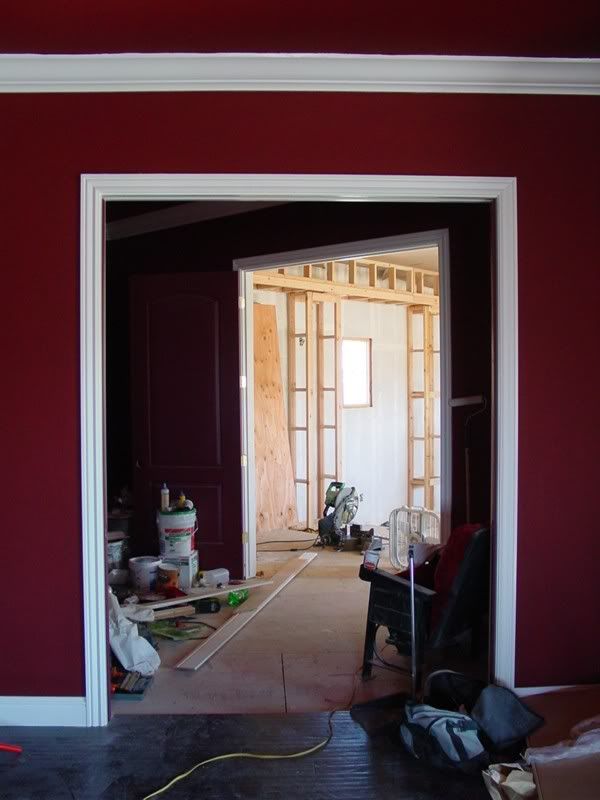

Looking into the Lobby and the double doors of the theater entrance:

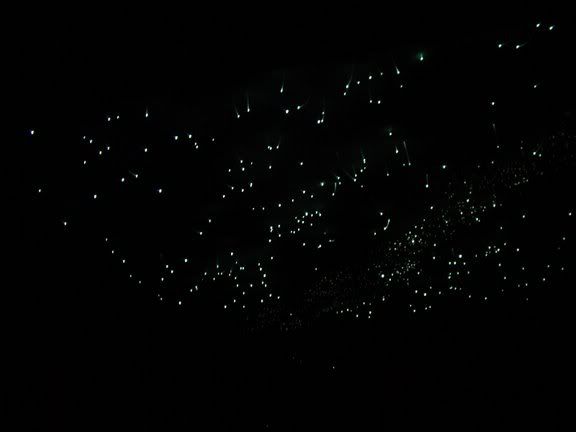

The Milky Way fiber optics start from the front left corner to the right rear corner. Constellations are placed in the relatively accurate places and the shooting stars span left to right and front corner to opposite rear corner. The strands have not been melted yet nor pushed up to be flush with the ceiling:

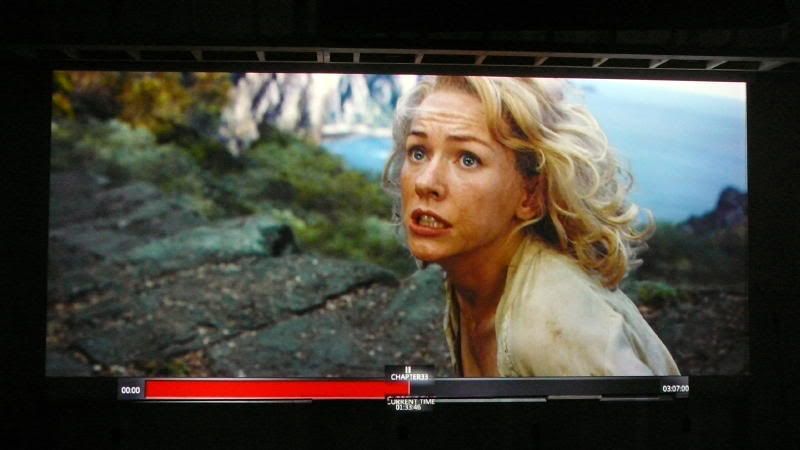

Screen shot of Naomi Watts in King Kong. This was a HD DVD source with the JVC RS1 projector:

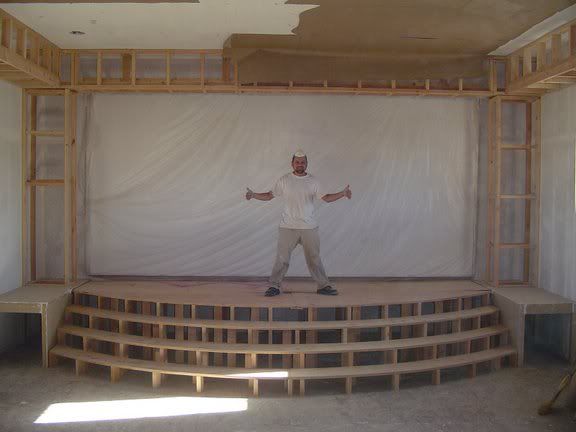

Me standing in front of the screen to provide a reference point of size. The screen is 16' wide by 90" high:



Very wide viewing cone. Note that even at an extreme angle, there is minimal loss of brightness:


Thanks for your interest.

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
post #5 of 398 Old 11-21-2007, 10:57 PM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Some more screen shots using HD DVD source:


A screen shot with my other screen (2.35:1 for 8' wide screen):

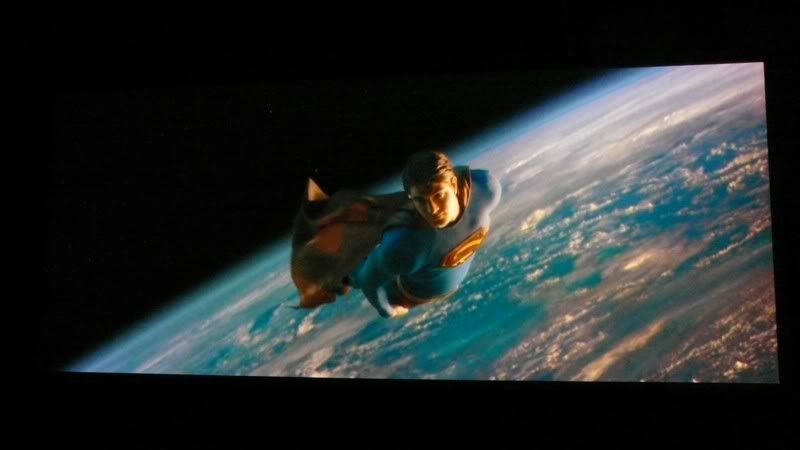

Superman Earth in background:

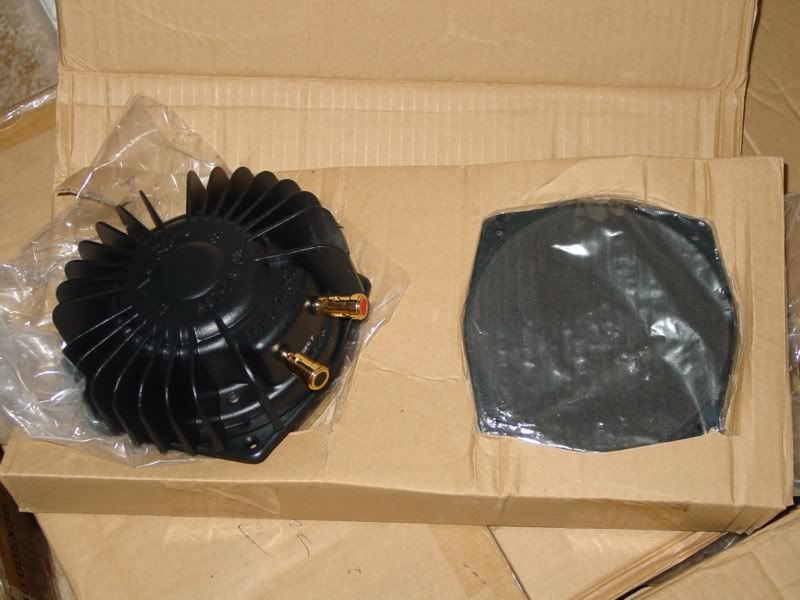

Bass Shakers / Transducers:


Red and Black Brocade for wall covering:


Close-up of brocade:

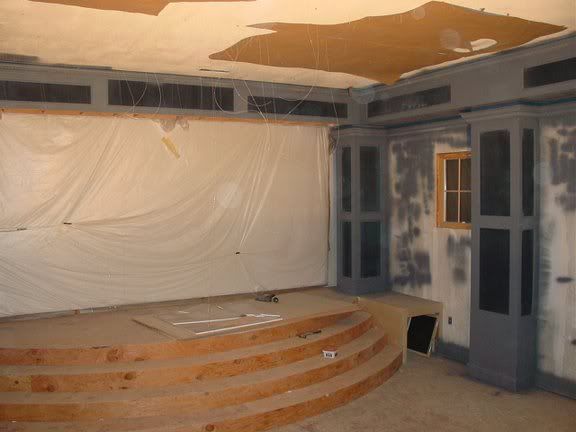

Screen, stage, and columns on the right side of the theater:


I have many more pics and will post them as I upload them from Picasa to Photobucket.

Thanks.

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
post #6 of 398 Old 11-21-2007, 11:50 PM
Member

outcast_p's Avatar

Join Date: Aug 2006
Location: Cheektowaga, Ny
Posts: 99
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Wow, What a space. I cannot wait to see how everything turns out.

I think your theater/bar/lobby is more sq/ft than my house.

Edit : yep, between the 2 rooms, thats more than my house.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
outcast_p is offline
post #7 of 398 Old 11-22-2007, 12:14 AM
AVS Club Gold

warrenP's Avatar

Join Date: Jul 2005
Location: Now in Colorado!
Posts: 1,800
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 53
Looking great! I look forward to your updates.

Every man dies. Not every man really lives.
warrenP is offline
post #8 of 398 Old 11-22-2007, 04:27 AM
AVS Special Member

mbgonzomd's Avatar

Join Date: Jul 2006
Location: North Carolina
Posts: 3,722
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Wow. That is huge! Where are the speakers going relative to the screen? Are you concerned with the hollow stage resonating (maybe it is not an issue with a stage that big)?

Gonzo


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

PSN: mule-tool
mbgonzomd is offline
post #9 of 398 Old 11-22-2007, 07:45 AM
AVS Special Member

BritInVA's Avatar

Join Date: Mar 2006
Location: Ashburn, VA
Posts: 3,816
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Man I love that bar - awesome!

=====================================

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
index on 1st post

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
BritInVA is offline
post #10 of 398 Old 11-22-2007, 08:24 AM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I love the bar too!

The speakers will be hidden inside the columns.

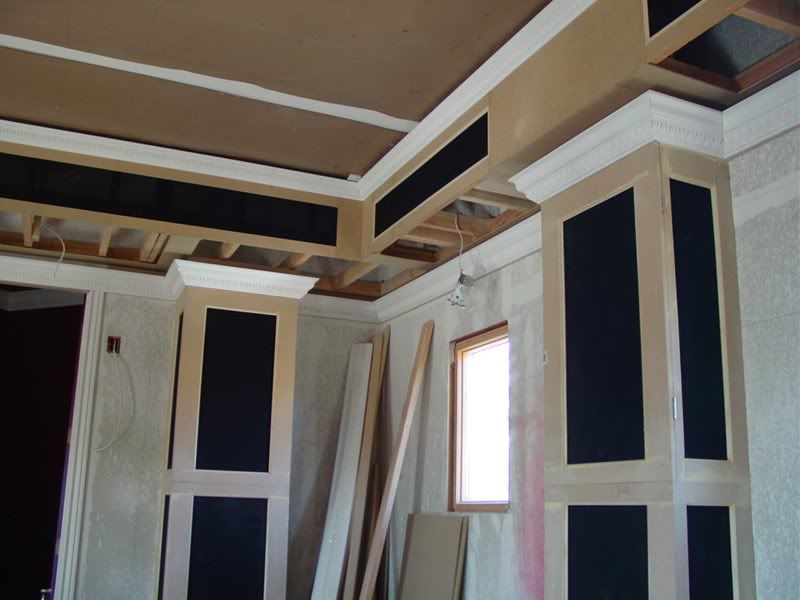

Here is a pic of the side of the column. Note the hinge.



The black panel parts are all acoustically-transparent speaker cover fabric so as not to affect the sound. We even put them in the soffits to maintain consistency in the appearance, as well as to create bass-traps.



I actually hadn't thought about the resonance of the stage. It is built of MDF, so hopefully that will absorb the vibration considerably.
On either side of the curved stage, just below the two front columns are spaces for the two subwoofers. There probably is concern about resonance since these THX Ultra2's are quite powerful. Now you have me thinking about the resonance of the stadium tiered flooring where the seats will be. Since we are planning on putting the transducers in the back, perhaps the flooring will rattle as well. I better try experimenting before the carpet is installed. Thanks for pointing that out mbgonzomd.

BTW, in case anyone is wondering, the windows that you see in the pics will be fully covered with the brocade material.

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
post #11 of 398 Old 11-23-2007, 06:47 PM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Here are some more pictures.

My contractor is standing on the stage in front of the screen:

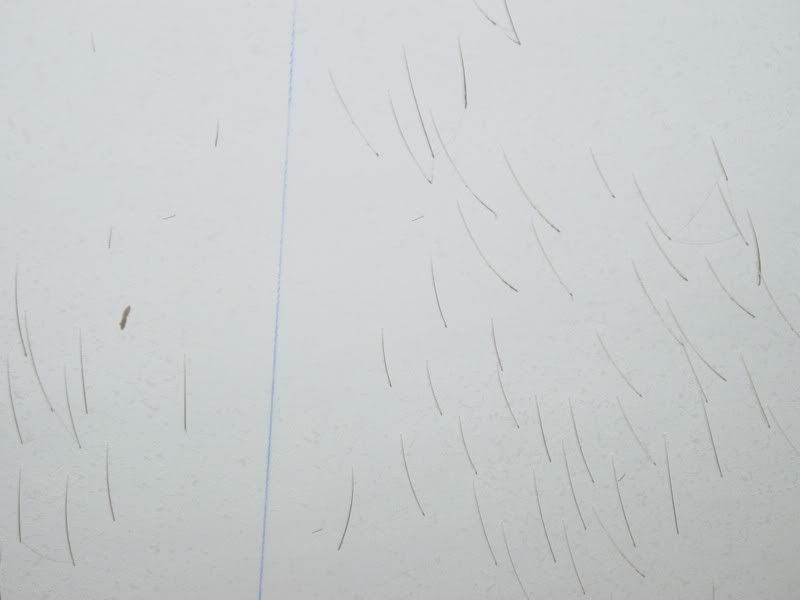

Close up of the fiber optic ends coming off the ceiling. These need to be melted so that they mushroom and then can be pushed up to be flush with the ceiling surface:


Picture of two 10-person poker tables set up temporarily in another room while Game Room is being completed:


More pics to come!

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
post #12 of 398 Old 11-23-2007, 06:56 PM
AVS Special Member

plain fan's Avatar

Join Date: Jan 2002
Location: Okc, OK
Posts: 1,473
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Wow, can't wait for more pictures. I would love to see one from the screen looking towards the rear of the room.

Grady
<<plain fan>>
plain fan is offline
post #13 of 398 Old 11-23-2007, 09:47 PM
AVS Special Member

elmalloc's Avatar

Join Date: Apr 2002
Location: Cleveland, OH
Posts: 4,776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 35
man youre creative and rich

Current Projects:

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

ON HOLD - Building Home Gym.
ON HOLD - Building Simulation Room (Eyefinity).
ON HOLD - Building Theater room (Sim2 HT380, 2.35 14ft wide).
elmalloc is offline
post #14 of 398 Old 11-24-2007, 07:09 AM
Senior Member

tlllava's Avatar

Join Date: Apr 2003
Location: Elkridge, MD
Posts: 284
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Holly ****! That's an amazing theater! I've just posted to comments on how many feel my 106" screen is too big from 11'. At 16', your screen is double the width of my 106" 16x9 screen which is 8' wide. If any room could take that big of a screen, it would be yours. Hopefully, this is a 2.35 screen.

Very nice theater & bar.

-----------------------------------------

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
tlllava is offline
post #15 of 398 Old 11-24-2007, 08:53 AM
Senior Member

hlomax's Avatar

Join Date: Nov 2005
Location: Powder Spring, Ga.
Posts: 209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
That is not a home theater ... IT IS GONNA BE A MOVIE HOUSE!!!!
Awsome bar and what a gaming area.. cant wait to see it as it progresses to the finish!!!
Fantastic Job!!!
Max

Let a Nation of Black & Gold rise up.
Go forth and proclaim "YOUR IN STEELERS COUNTRY!!"
Go Steelers!!!


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
hlomax is offline
post #16 of 398 Old 11-24-2007, 02:28 PM
AVS Club Gold

calv1n's Avatar

Join Date: Jun 2005
Location: Alberta
Posts: 2,004
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Wow, most impressive. Looking forward to more updates and pics
Cheers
Calvin

Check out my construction thread below -

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calv1n is offline
post #17 of 398 Old 11-24-2007, 05:23 PM
Senior Member

grigsby's Avatar

Join Date: Oct 2003
Location: Winder GA
Posts: 209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
somebody is taking to heart the old phrase:

He who dies with the most toys wins!

impressive indeed.
grigsby is offline
post #18 of 398 Old 11-24-2007, 06:07 PM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Thank you for the kind words.

Ask, and you shall receive, plain fan!

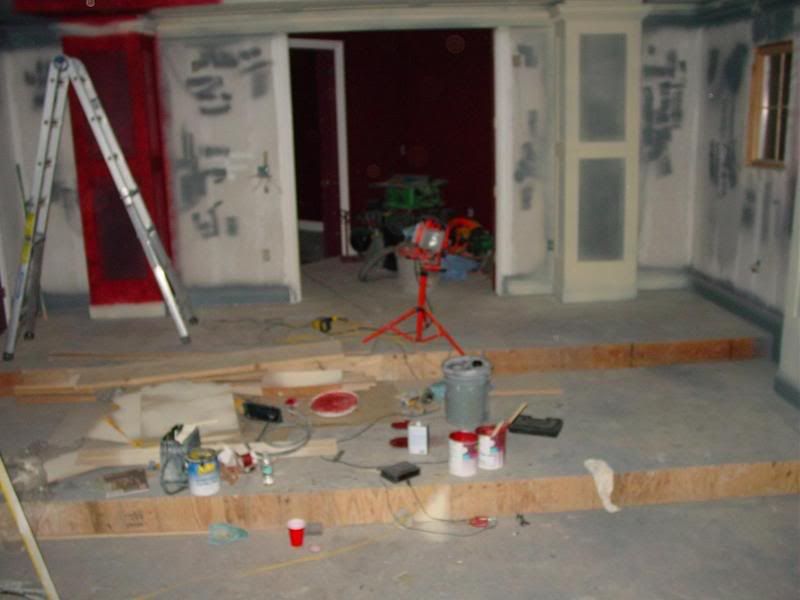

This is a picture taken from the stage. Sorry for the mess, as well as the blurryness of the images. Note the risers, and how the last one is flush with the rest of the lobby and game room.

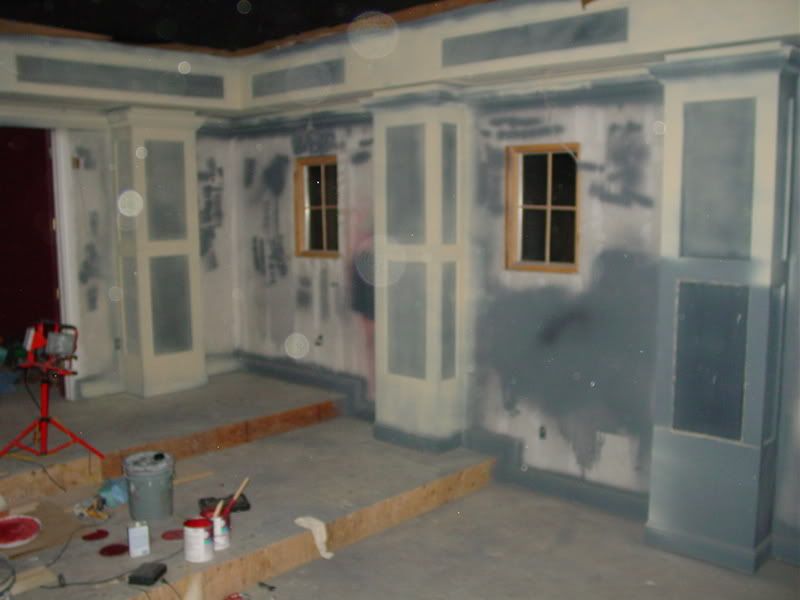

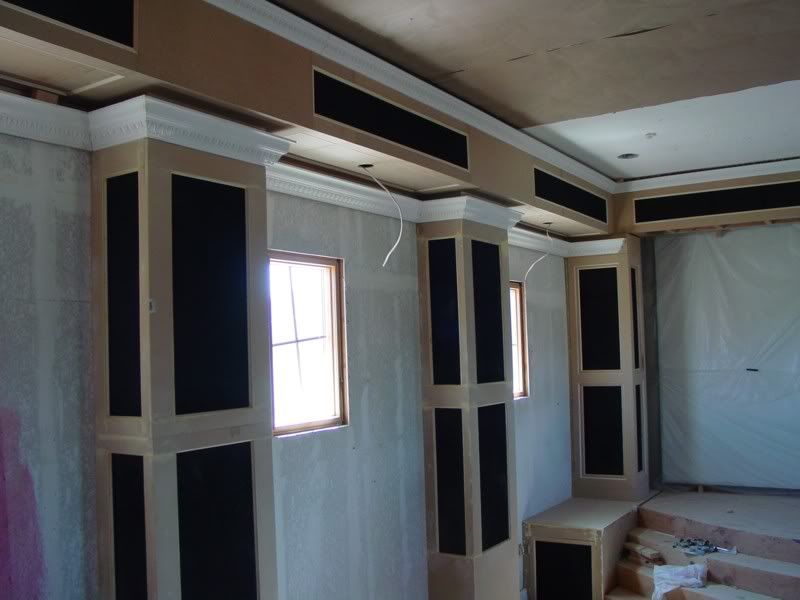

This would be the left side of the theater if you were facing the screen. I started painting the base color of the faux. It is from Kelly-Moore and is called Tropical Straw. I paint both columns and soffits with this color, and then I will faux paint the special burgundy red mixed with glaze on top of the Tropical Straw to give it dimension and depth. It will require about 5 light coats of paint.



Here is a little bit of the burgundy red faux painted on the columns. Think "Cheesecake Factory"!



The brocade fabric will be installed underneath the soffits and between the columns, covering the windows. The double crown molding, door trim, and baseboard will be painted a glittery antique gold foil similar to the grape leaves and handrail on my staircase:



Here is a better pic of the gold in the daylight. Also note the faux paint for the beige soffits next to the sky ceiling of my living room. You can see how much more depth and visual interest it adds next to the solid color soffit adjacent to it. This will be somewhat similar in pattern to what I am painting the columns and soffits, except for the burgundy color.


Thanks for tuning in!

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
post #19 of 398 Old 11-24-2007, 08:28 PM
AVS Special Member

Semisentient's Avatar

Join Date: Sep 2003
Location: Woodbridge,Ontario
Posts: 1,417
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by calbear View Post

My screen was put together about half a year ago. I actually received help from one of the long-time contributors of the DIY Sceen forum, who provided advice on how to build the screen, as well as suggesting to create the starfield.

Can you elaborate on the screen more?

Do you have any links detailing the build process, or any keywords that will help in a forum search?

The screen looks plenty bright in your pictures, is it as bright in person?

Thanks, James

There's no place I can be, since I found Serenity. You can't take the sky from me.
Semisentient is offline
post #20 of 398 Old 11-25-2007, 05:42 AM
AVS Special Member

mbgonzomd's Avatar

Join Date: Jul 2006
Location: North Carolina
Posts: 3,722
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Very impressive house! Reminds me of some of the casinos in vegas (in a good way , with the attention to details). The poker tables help create the feel also! I'm interested in more house pictures if you have any. Also, you may want to shrink some of the big pictures so your thread is easier to read (so one doesn't have to scroll right and left).

Gonzo


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

PSN: mule-tool
mbgonzomd is offline
post #21 of 398 Old 11-25-2007, 06:26 AM
AVS Special Member

TSHA222's Avatar

Join Date: Dec 2000
Location: barely within my means
Posts: 1,165
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 54
I love the finish of your theater. I have a similar sized room and also use a 2.40 screen that is just over 16ft wide. My problem is that we got the room finished to a point, started using it and now it is hard to go in there and NOT watch a movie so we don't get much work done on it lately. We had the benefit of having an indoor pool that seldom got used so we did what any movie buff would do. We drained the pool, built up a stadium style room, projection booth and spent way more than we should have on equipment! I have to say it is well worth it. My only regret now is that we are needing to finish the detail work but no one wants to do it I have a few pics in the members section. Of course some things have changed since the original posts so below the link, I have a pretty updated list of gear.

http://gallery.avsforum.com/member.p...2821&protype=1

Equipment:

DPI Titan HD250
TheaterScope System with ISCO lens
Harkness Hall 2.40:1 Mini-Perfed Screen (16ft wide)
Algolith Flea
DVDO VP50
Key Digital HDMI Switcher
Panasonic BD
Toshiba HD-DVD
Toshiba Region Free DVD - Pal to NTSC
Escient DVDM300 & (3) Sony 400 disc changers
JVC D-Theater
Pioneer LD-S9 Laserdisc Player (yes I watch a disc occassionally)
Faroudja Industrial Y/C to Component Converter
Vudu Movie Download Box
Arcam AV8 Pre-pro
Sherbourn 7.1 Channel Amp
(4) Buttkickers and (2) Buttkicker Amps
D-Box 340C Controller
(2) D-Box 3 Axis Loveseat Motion Seats
(3) JBL 3677 Commercial Cinema Speakers for LCR
(8) JBL 8330 Surounds
(3) Custom Built Subwoofers
ADA 1500 Watt Amplifier
Crestron control system
Centralite lighting control
TSHA222 is offline
post #22 of 398 Old 11-25-2007, 08:50 AM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Semisentient View Post

Can you elaborate on the screen more?

Do you have any links detailing the build process, or any keywords that will help in a forum search?

The screen looks plenty bright in your pictures, is it as bright in person?

Thanks, James

Hi James,
I will use this thread to provide you some info about the screen. Here is a link which describes the build:
http://www.avsforum.com/avs-vb/showthread.php?t=854134

In case the link gets broken in the future, here is the location:
AVS Forum > Display Devices > 2.35:1 Constant Image Height Chat > DIY Constant Height > The Really BIG Picture Show

I think the screen is bright in person. I would say it is as enjoyable to my eyes as the local IMAX theater in terms of brightness.

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
post #23 of 398 Old 11-25-2007, 09:06 AM
AVS Special Member

plain fan's Avatar

Join Date: Jan 2002
Location: Okc, OK
Posts: 1,473
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Calbear,
That will be a very nice home theater. Did you do all the planning yourself or are you working with a local dealer/installer/designer?
Grady

Grady
<<plain fan>>
plain fan is offline
post #24 of 398 Old 11-25-2007, 09:58 AM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by mbgonzomd View Post

Very impressive house! Reminds me of some of the casinos in vegas (in a good way , with the attention to details). The poker tables help create the feel also! I'm interested in more house pictures if you have any. Also, you may want to shrink some of the big pictures so your thread is easier to read (so one doesn't have to scroll right and left).

Hello mbgonzomd,
Thanks you for your compliments.

I will try to shrink the bigger pictures to make them more acceptable. I suppose 800x600 will do.

Here are some more pictures of my house...

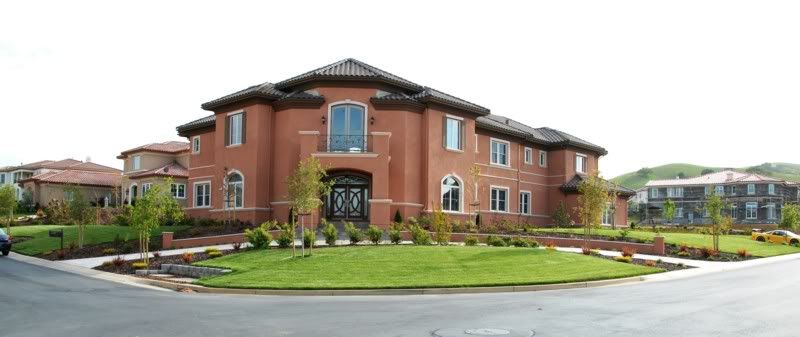

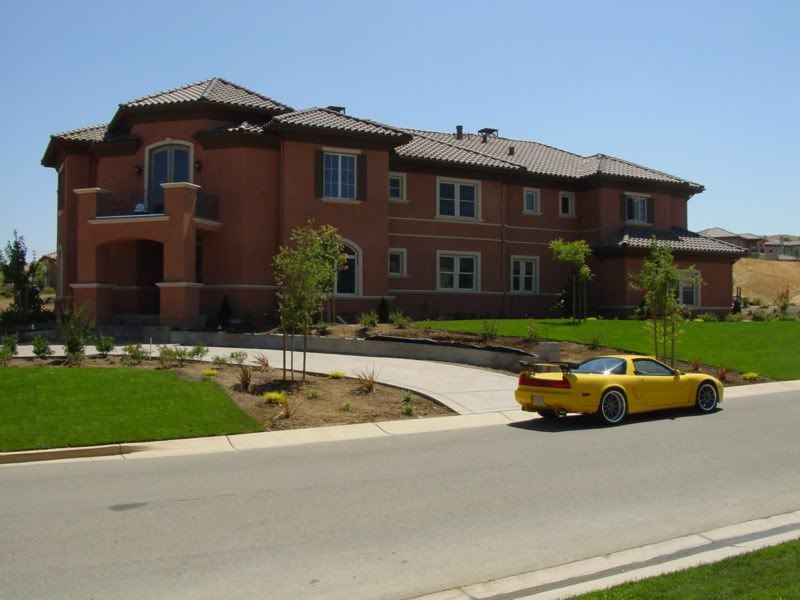

The home is located on a corner lot. Photo of the front and part of the side facing south:



Photo taken from the side:

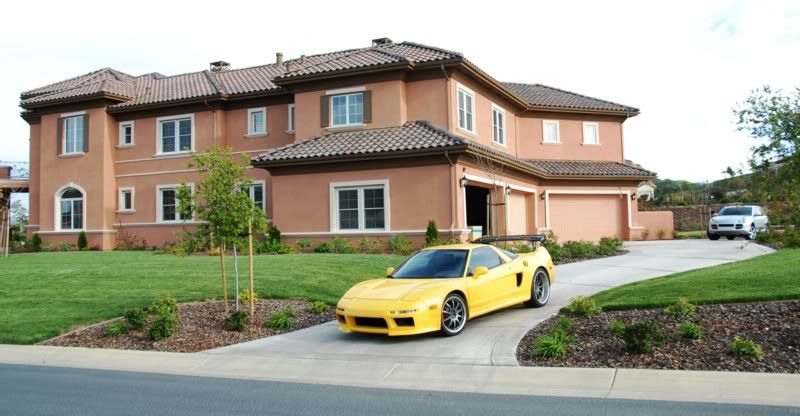

6-1/2 car garage. 1/2 car is for golf cart if you want to drive to the golf course located in the community:



Back of the house:

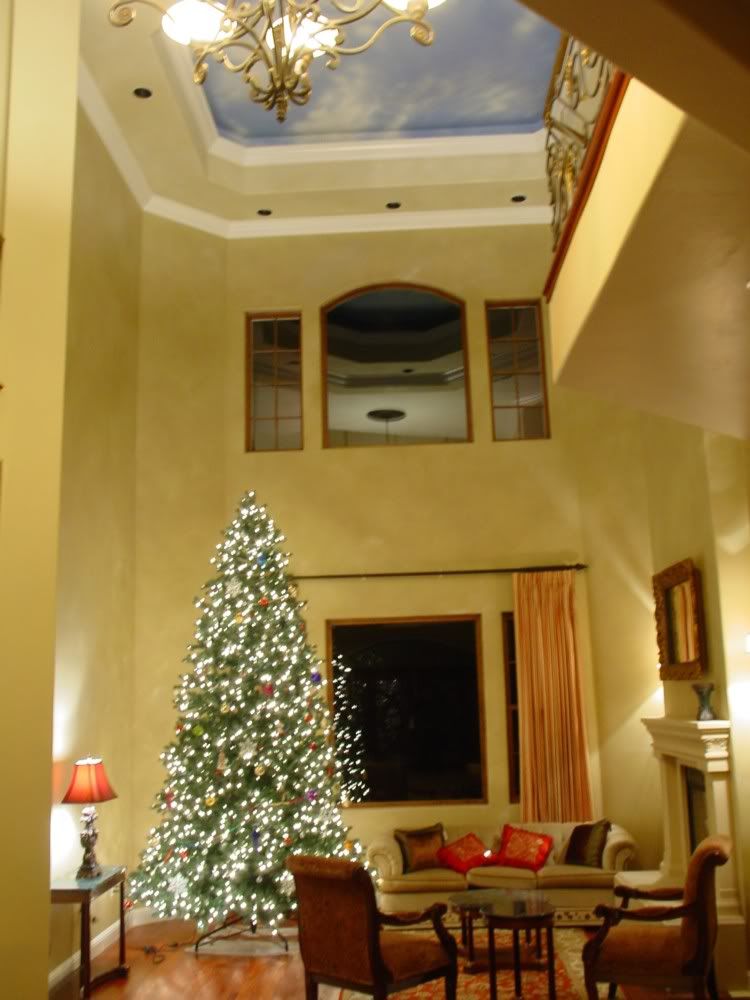

Christmas photo of living room:

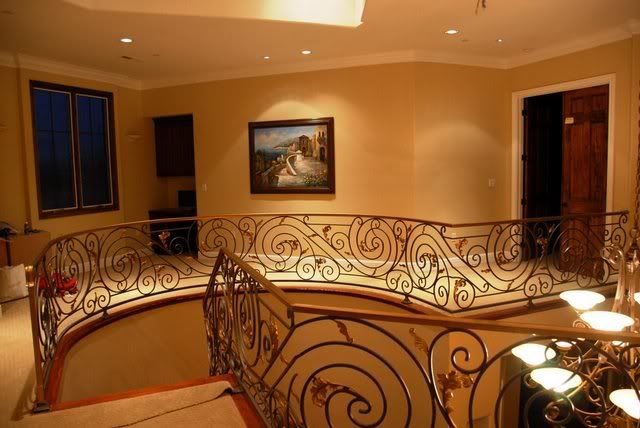

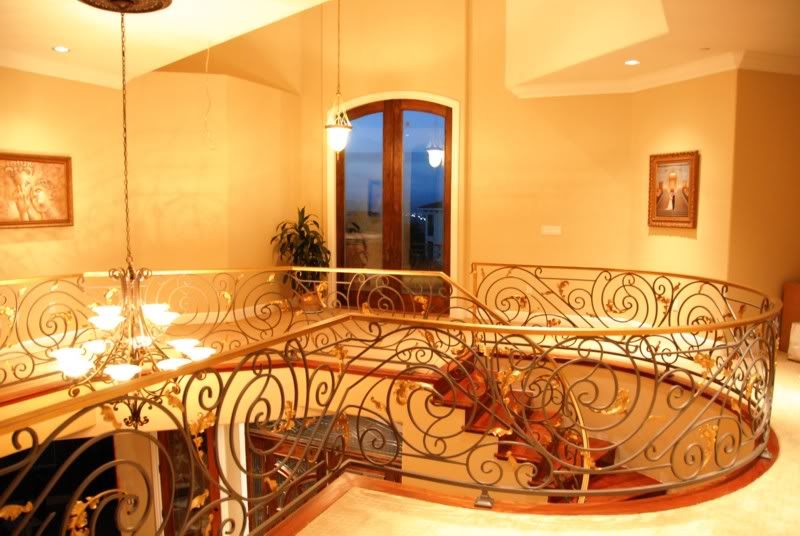

Upstairs sitting room:

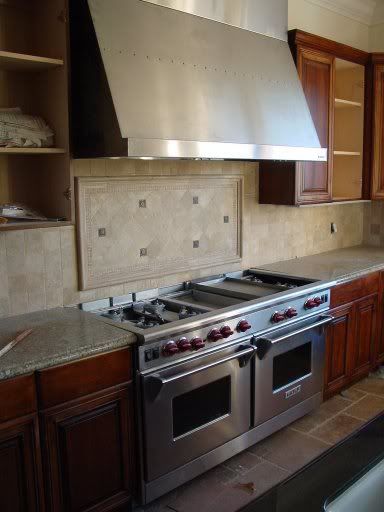

Part of kitchen where 60" Wolf double oven is situated:



Double-sided fireplace in room:

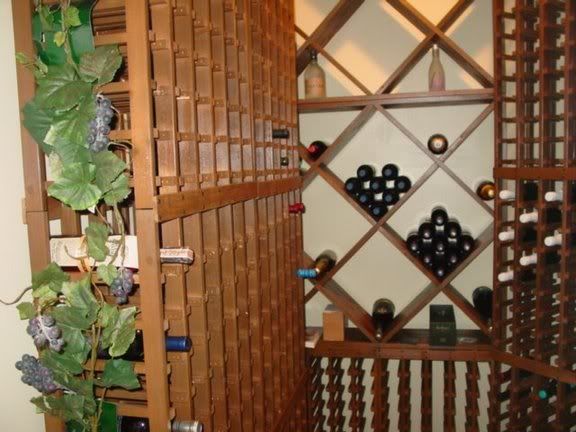

1600+ bottle wine cellar:



I should say that it may take a little time to respond back, as we have a newborn daughter to take care of. I am also finding that editing photos takes much more time than expected.

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
post #25 of 398 Old 11-25-2007, 10:03 AM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hello TSHA222,

What a fantastic project!
I think we are along the same lines of thinking.
Talk about a great list of equipment! I'm sure your photos don't do it justice.

Take care,
J.

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
post #26 of 398 Old 11-25-2007, 10:12 AM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by plain fan View Post

Calbear,
That will be a very nice home theater. Did you do all the planning yourself or are you working with a local dealer/installer/designer?
Grady

Hello Grady,
I did the rough planning of the theater. I worked with my architect to tweak the details. As you can see in the thread I linked in a previous post, MississippiMan was an integral part of the screen build, the starfield ceiling, and the transducers. My contractor, Juan Carlos, provided good suggestions during the build, so the decisions were kind of on-the-fly.
Acoustic considerations for absorption and dispersion were suggested from a friend of mine in Boston who is in the business. Otherwise, everything was done by me and of course the tremendous resources here at AVSForum. I've been lurking here since 2003, before I broke ground... back when I was still in the design stage of the entire house. At the time, and up until now, I didn't feel I could contribute anything worthwhile and hence my low post count. However, I feel there is no better source of information on the planet for all things A/V.

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
post #27 of 398 Old 11-25-2007, 10:21 AM
AVS Special Member

RobZ's Avatar

Join Date: Aug 2002
Posts: 3,546
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Anyone ever tell you that you have a nice little house?




To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

RobZ is offline
post #28 of 398 Old 11-25-2007, 08:28 PM
Senior Member

grigsby's Avatar

Join Date: Oct 2003
Location: Winder GA
Posts: 209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
lol your tile roof cost more than my house.
grigsby is offline
post #29 of 398 Old 11-25-2007, 09:28 PM
Member

swamdog's Avatar

Join Date: Aug 2006
Location: Michigan
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Wow...Nice NSX and is that a Cayenne in the background? Where's the other 4 1/2? Just kiddin dude...killer house.
swamdog is offline
post #30 of 398 Old 11-25-2007, 10:16 PM - Thread Starter
Senior Member

calbear's Avatar

Join Date: Apr 2003
Location: Silicon Valley, CA
Posts: 217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hi RobZ,
LOL. Each time my friends and family come over, they let me know that they enjoy spending time here.

Hi grigsby,
That's funny. There sure is a lot of tile up there.

Hi swamdog,
Yes, it is a Cayenne in the background. The other cars are in the garage. Here is a pic of my daily-driver:

My theater construction thread labeled "16' wide screen theater w/ 20+ seats and starfield ceiling and stadium configuration":
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
calbear is offline
Reply Dedicated Theater Design & Construction

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
