Quote:
Originally Posted by Larry M View Post

I noticed the plug looks weird and the dimmable receptacle has an odd protrusion. What is that for?

Do you need to use a special plug or adapter?
How is the dimming feature on the star ceiling?

It is a dimmable receptacle. The protrusion is designed to physically reject any appliance that does not have the mating plug attached to the end of it. For a dimmable load, you just replace the plug end and it will work just fine. It prevents you (or the next homeonwer) from plugging in a vacuum cleaner or a television and then inadvertently dimming it.

So, yes, you do need the special plug to go with the special outlet.

Dimming the coolsky LED fiber optic generator works just fine. Ditto for the LED rope light.

It appears my hypocrisy knows no bounds.

Brian
The Cinema Rouge Home Theater
Sands_at_Pier147 is offline
Sponsored Links
Advertisement

Old 02-13-2012, 07:35 PM
AVS Forum Special Member

Larry M's Avatar

Join Date: Jul 2007
Location: Bergen County, NJ
Posts: 1,405
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 45
Quote:
Originally Posted by Sands_at_Pier147 View Post

It is a dimmable receptacle. The protrusion is designed to physically reject any appliance that does not have the mating plug attached to the end of it. For a dimmable load, you just replace the plug end and it will work just fine. It prevents you (or the next homeonwer) from plugging in a vacuum cleaner or a television and then inadvertently dimming it.

So, yes, you do need the special plug to go with the special outlet.

Dimming the coolsky LED fiber optic generator works just fine. Ditto for the LED rope light.

Does anyone make a special plug converter so you don't have to replace the existing plug?

Regarding the dimming of the star ceiling,do you think it is worth the effort/added expense?
Larry M is offline
Old 02-13-2012, 07:50 PM - Thread Starter
Advanced Member

Sands_at_Pier147's Avatar

Join Date: Jan 2007
Location: Commerce, MI
Posts: 756
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 15
Quote:
Originally Posted by Larry M View Post

Does anyone make a special plug converter so you don't have to replace the existing plug?

Not that I know of. It seems that would defeat the purpose of the physical protection. They want you to have to physically put a plug on any device you want to dim through a dimmable receptacle.

Quote:
Originally Posted by Larry M View Post

Regarding the dimming of the star ceiling,do you think it is worth the effort/added expense?

Yes.

It appears my hypocrisy knows no bounds.

Brian
The Cinema Rouge Home Theater
Sands_at_Pier147 is offline
Old 04-08-2012, 11:34 PM
AVS Forum Special Member

Favelle's Avatar

Join Date: Dec 2004
Location: Victoria, BC, Canada
Posts: 3,858
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 12
Holy epic theater design!

Great work!

In terms of LFE, size does matter!
Favelle is offline
Old 06-01-2012, 08:12 PM
Advanced Member

SKINSnCANES's Avatar

Join Date: Oct 2011
Location: New Jersey
Posts: 650
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 25
How are you liking the two SVS subs in the front of the room? My design is to have to of the SVS PC13s. I spoke with Bryan Page a lot and right now my design has them centered front and back of the room, which is better acoustically but it means my back row must be movie seating instead of nice theater recliners...

When I did all my design work I was sitting on a computer designing all the angles, etc. but now that my theater got delayed a few months I'm wondering how much it would really matter if I just put both subs in the front of the room and had better seating. Thanks for the feedback!
SKINSnCANES is offline
Old 06-04-2012, 10:20 AM - Thread Starter
Advanced Member

Sands_at_Pier147's Avatar

Join Date: Jan 2007
Location: Commerce, MI
Posts: 756
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 15
I am afraid I don't have good news for you with respect to your desired seating ...

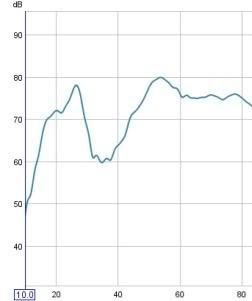

I wound up moving one of the subs to the back of the room. There was a black hole at the primary (front row) seats at around 34 Hz, which I determined to be quarter wave interference from the back wall.



The only way to eliminate it was to move one of the subs away from the front wall. I didn't want it in the middle of the room, so it wound up in the back, where it would be less noticeable.

They aren't centered, because I couldn't fit the tall cylinder in the middle. It doesn't fit behind the screen or under the screen, so it would block the screen if I put it in the middle. I did a number of iterations with one sub on one side of the screen, and then moving the other sub around the room. The best I found - both subjectively and also analytically - was front right and back right. Here is the front position:

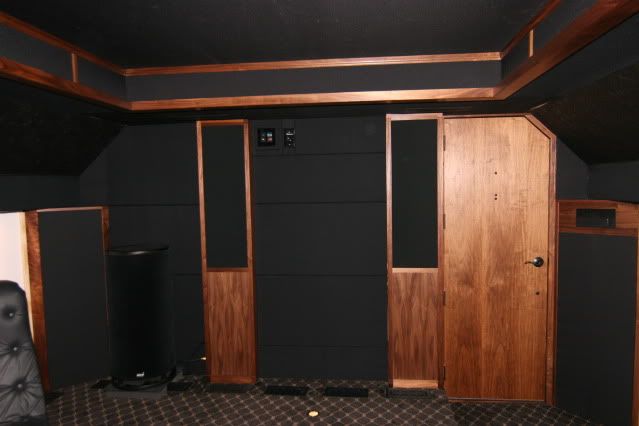

Notice the sub is on the right side of the screen, and there is still a "pocket" in the wall on the left where I had intended the other sub to have been. Then in the back right, here is the other sub on the riser in the back corner:



I will opine that I really do enjoy this positioning. I had some limitations, too, but I feel the acoustics work well. I don't have a chart to show you of final acoustics in the room, but I am very happy with where my subs wound up. Maybe a back corner position would work for you, too? That might help you with your seating choice.

It appears my hypocrisy knows no bounds.

Brian
The Cinema Rouge Home Theater
Sands_at_Pier147 is offline
Old 07-14-2012, 12:23 PM
Senior Member

dengland's Avatar

Join Date: May 2004
Location: Rockledge, FL
Posts: 336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 17
Quote:
Originally Posted by Sands_at_Pier147 View Post

I wound up moving one of the subs to the back of the room. There was a black hole at the primary (front row) seats at around 34 Hz, which I determined to be quarter wave interference from the back wall.


I really enjoyed reading the tread. As others before me have said, the place looks awesome. What did you use to gather the response curves? Did you try to analyze the room size before bulding with some of the frequency response calculators out there? However, I am not sure anything would be useful with the kneewall / ceiling set up you had. Again. Nice job.
dengland is offline
Old 03-13-2015, 05:35 PM
Senior Member

bsuave's Avatar

Join Date: Sep 2014
Location: Northwest Houston, TX
Posts: 320
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked: 27
Very Nice work my friend! I know this is old, but my room is in similar shape. I was wondering if you have a finish picture shot??? Thanks in advance.

-Brion
bsuave is offline
Old 07-11-2015, 06:21 AM
Member

mattowpe's Avatar

Join Date: Jun 2015
Location: London, Ontario, Canada
Posts: 78
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked: 50
Great work and I hope you're really enjoying the theater! Your build is particularly inspiring to me since I'm in the planning stages with a very similar bonus room above our garage.

I'm going to have to do something with 2 front HVAC ducts, just like you did. I'm curious - did your method of redirecting the air with your MDF boxes and the 2.5 x 12 inch grills work out well in the end? Do you think the air flow gets through just fine? I've never messed with HVAC ducts, and the reason I ask is that the flow through the ducts in our bonus room is already fairly anemic (it doesn't get quite enough flow either in summer or winter unfortunately).

Thanks for documenting your build for the rest of us with vaulted ceilings and knee walls!
mattowpe is offline
Old 07-28-2015, 01:41 PM - Thread Starter
Advanced Member

Sands_at_Pier147's Avatar

Join Date: Jan 2007
Location: Commerce, MI
Posts: 756
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 15
I have neglected my theater build for quite some time, I see. Sorry about that.


Yes, the HVAC redirection with my MDF boxes and 2.5 x 12 grills is quite awesome. Up close to the register it feels as strong as another register on the same branch. The room cools quite sufficiently. We keep the theater a few degrees on the warm side in the summer, since we aren't in it all the time. Seventy five degrees, I think. I'll turn it down to 70 or so when we enter the room for a movie, and there is a noticeable drop in temperature before I am done navigating XBMC to pick what I want to watch.


I did not do any before / after flow tests through the register. intuitively, with the 90 degree turn in the makeshift hood I built, there is probably a slight loss of velocity. Maybe imperceptibly. I don't know. I'm an EE, not an ME. If your flow is already anemic, you might want to find a booster fan or something for those ducts. My design isn't going to boost air flow, of course, but I don't you will notice much degradation from what you have already.

It appears my hypocrisy knows no bounds.

Brian
The Cinema Rouge Home Theater
Sands_at_Pier147 is offline
Old 07-28-2015, 01:47 PM - Thread Starter
Advanced Member

Sands_at_Pier147's Avatar

Join Date: Jan 2007
Location: Commerce, MI
Posts: 756
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 15
Quote:
Originally Posted by bsuave View Post
Very Nice work my friend! I know this is old, but my room is in similar shape. I was wondering if you have a finish picture shot??? Thanks in advance.

-Brion


I am not sure I did have a good finished shot when you asked. But I took some pictures up there this weekend to show some other friends, so now I do. Here you go. (One of them made a comment about wanting to see Apocalypse Now in my theater, hence the screen shot selection.)
Attached Thumbnails
Click image for larger version

Name:	IMG_8635.jpg
Views:	91
Size:	70.5 KB
ID:	856066   Click image for larger version

Name:	IMG_8642.jpg
Views:	94
Size:	64.4 KB
ID:	856074
rms8 and bsuave like this.

It appears my hypocrisy knows no bounds.

Brian
The Cinema Rouge Home Theater
Sands_at_Pier147 is offline
Old 07-29-2015, 06:23 AM
AVS Special Member

rms8's Avatar

Join Date: Jul 2002
Location: Northern IL just west of Chitown
Posts: 1,193
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Liked: 311
Quote:
Originally Posted by Sands_at_Pier147 View Post
I am not sure I did have a good finished shot when you asked. But I took some pictures up there this weekend to show some other friends, so now I do. Here you go. (One of them made a comment about wanting to see Apocalypse Now in my theater, hence the screen shot selection.)
That's really nice!!! Got any other pics you can share of different views (front to back...). You really dressed up the soffits too. Classy look.


.
