I absolutely love my DLP (can't comment on other DLP models). I am just afraid about being able to buy a bulb in the future, so I am asking questions now. I was looking mostly at Sony and JVC projectors for the longest time, and then at the last minute I discovered what I really wanted was DLP when it came time to make a purchase. Perfectly sharp and aligned RGB pixels, vibrant image, perfect colors, great black levels, what's not to love? It's like Plasma on the huge screen. Long live DLP.
thorr is offline
Sponsored Links
Advertisement

post #92 of 206 Old 07-05-2011, 03:20 PM
AVS Special Member

pgwalsh's Avatar

Join Date: Feb 2008
Location: Colorado Springs
Posts: 1,406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked: 57
Quote:
Originally Posted by thorr View Post

I absolutely love my DLP (can't comment on other DLP models). I am just afraid about being able to buy a bulb in the future, so I am asking questions now. I was looking mostly at Sony and JVC projectors for the longest time, and then at the last minute I discovered what I really wanted was DLP when it came time to make a purchase. Perfectly sharp and aligned RGB pixels, vibrant image, perfect colors, great black levels, what's not to love? It's like Plasma on the huge screen. Long live DLP.

I'm a DLP fan too. I have the Planar and a Samsung rear projection DLP TV. I've been very happy with both.

Builds:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
, Dual Opposed MFW's x 2, Statements,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
 x 5.
pgwalsh is offline
post #93 of 206 Old 07-05-2011, 07:27 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,845
Mentioned: 5 Post(s)
Tagged: 1 Thread(s)
Quoted: 289 Post(s)
Liked: 617
I bought a spare bulb the day I bought my projector and immediately took out the 350 hr dealer demo bulb to keep as a future spare.

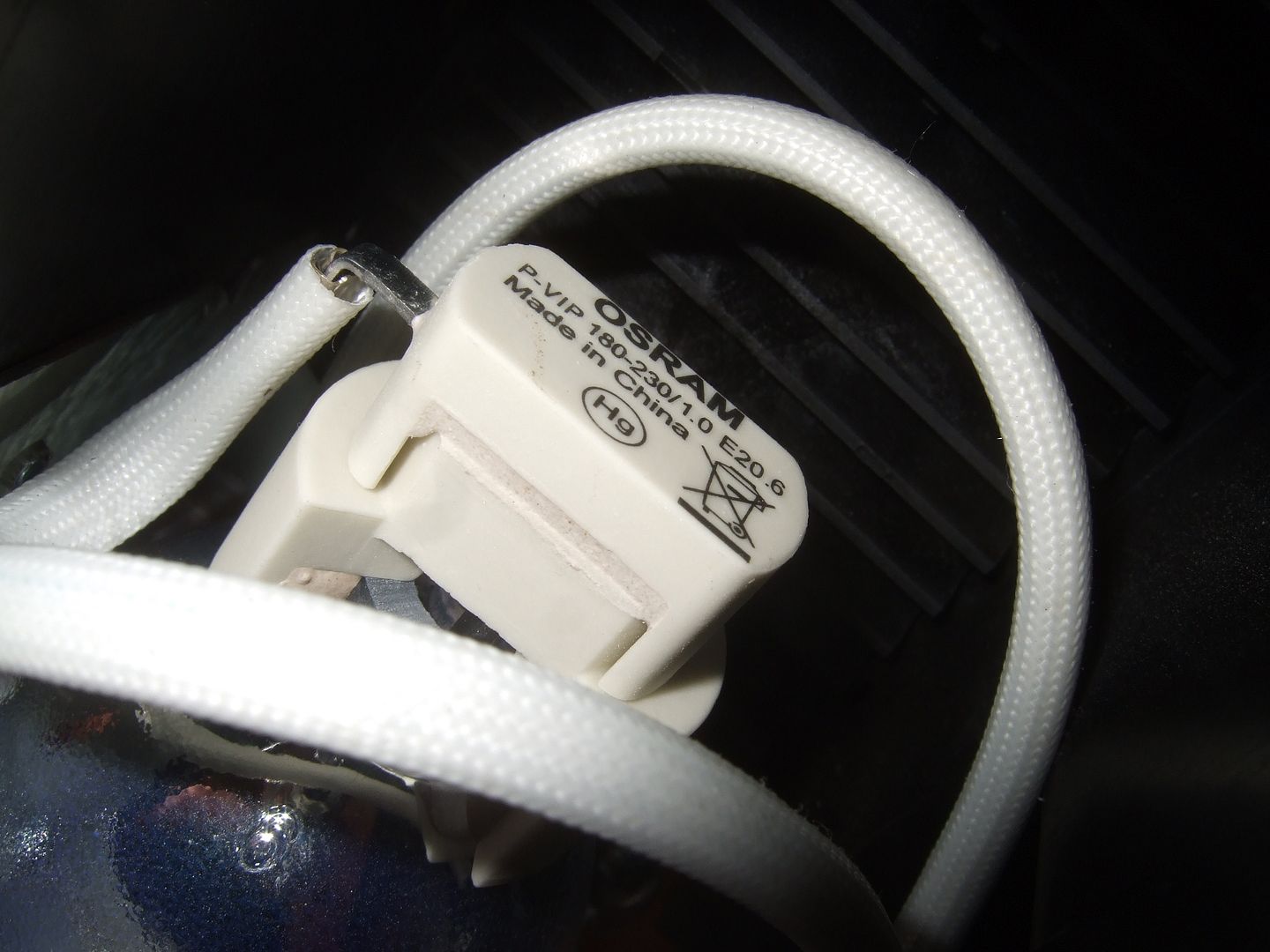

here are some pics, first the bulb. I don't see a N

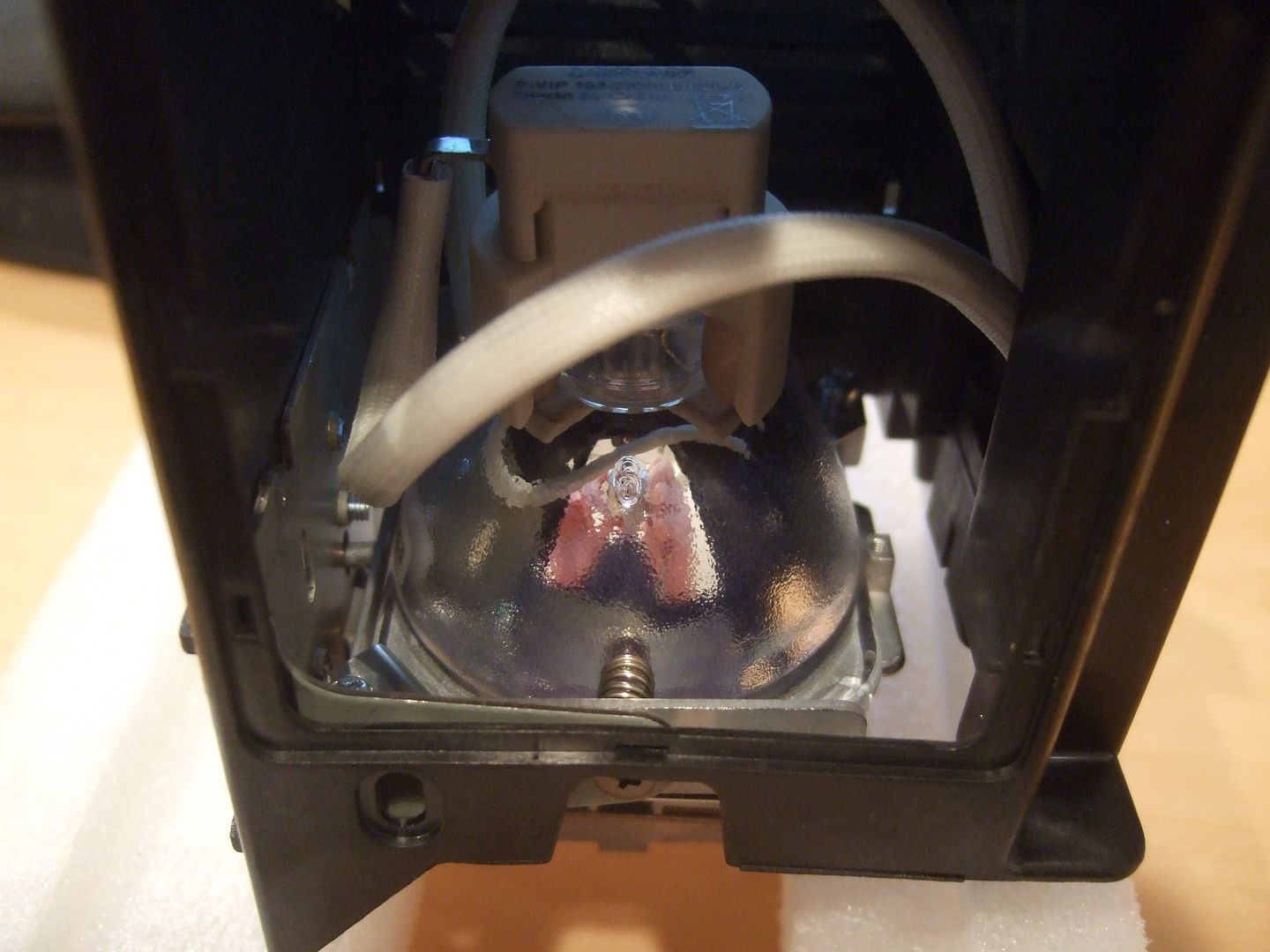

Now a broad lay of the land.

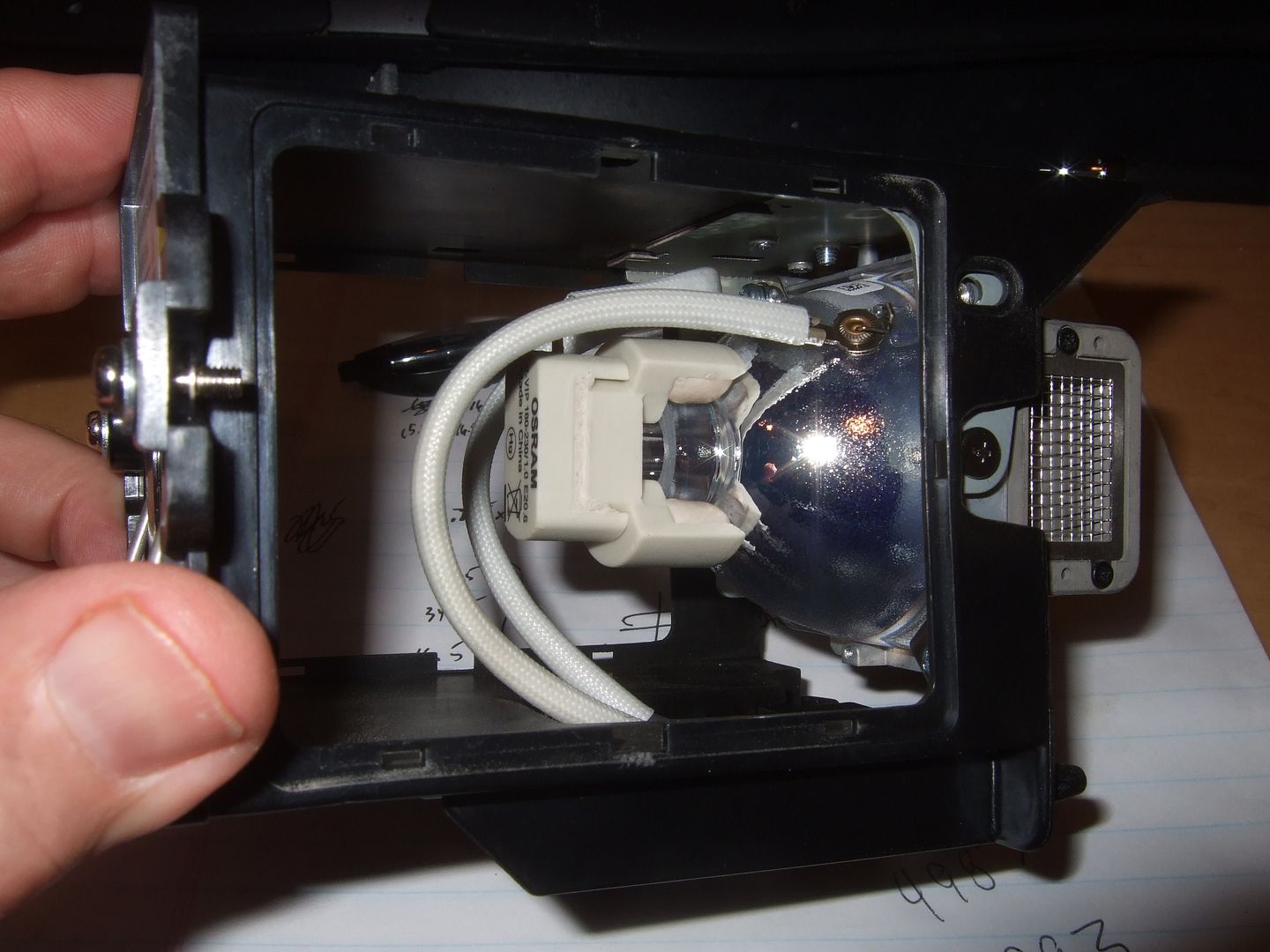

A pretty big housing (black) and an inner bulb cradle (metal)

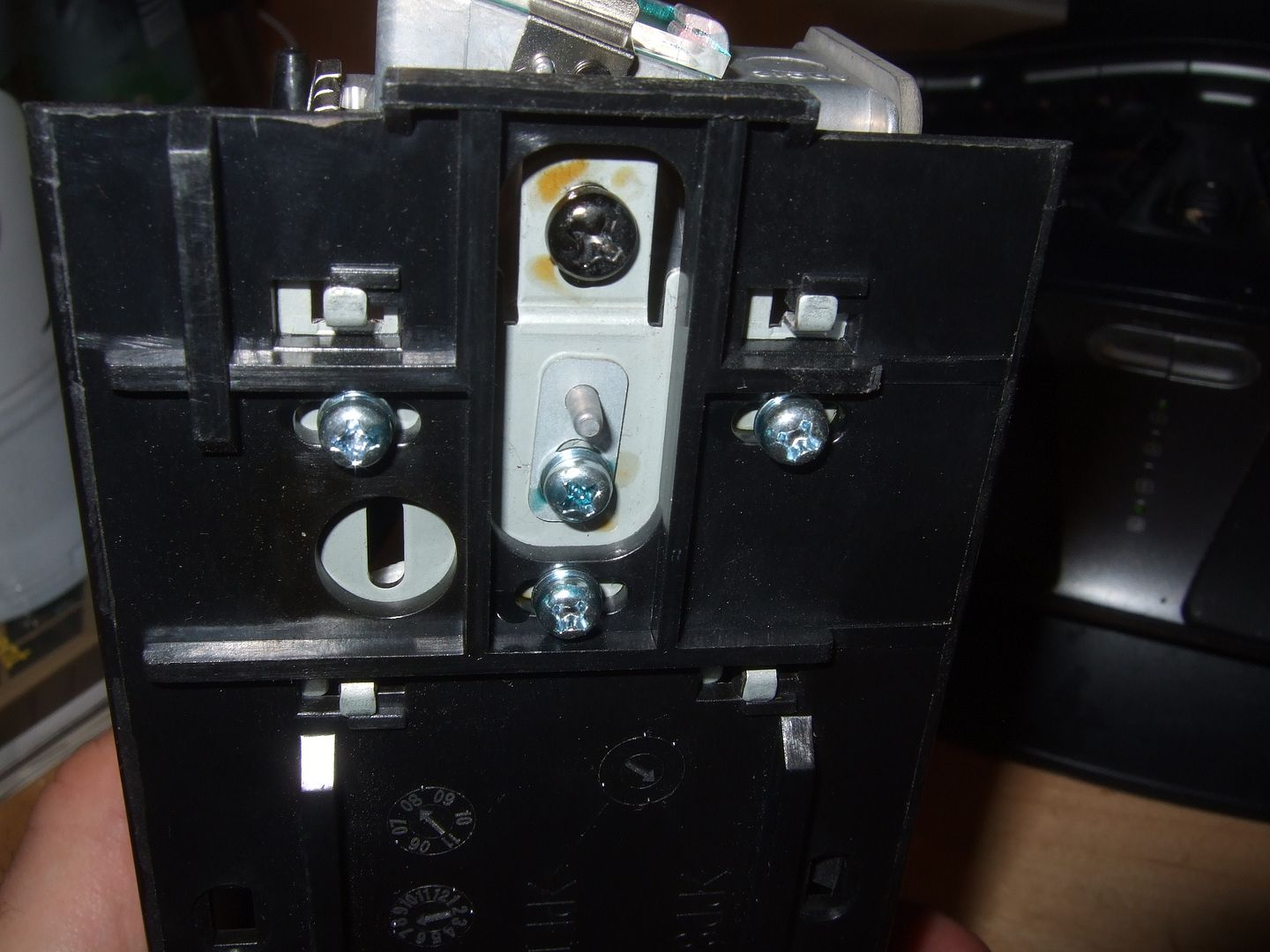

I think the cradle is secured by the 3 silver screws forming a V. I think the bare bulb can go in without taking the cradle out of the housing. In any case there is some play in the mount and perhaps the bulb is aimed and the cradle placement in the slots is important.




I think this is an aiming screw and that it shouldn't be touched

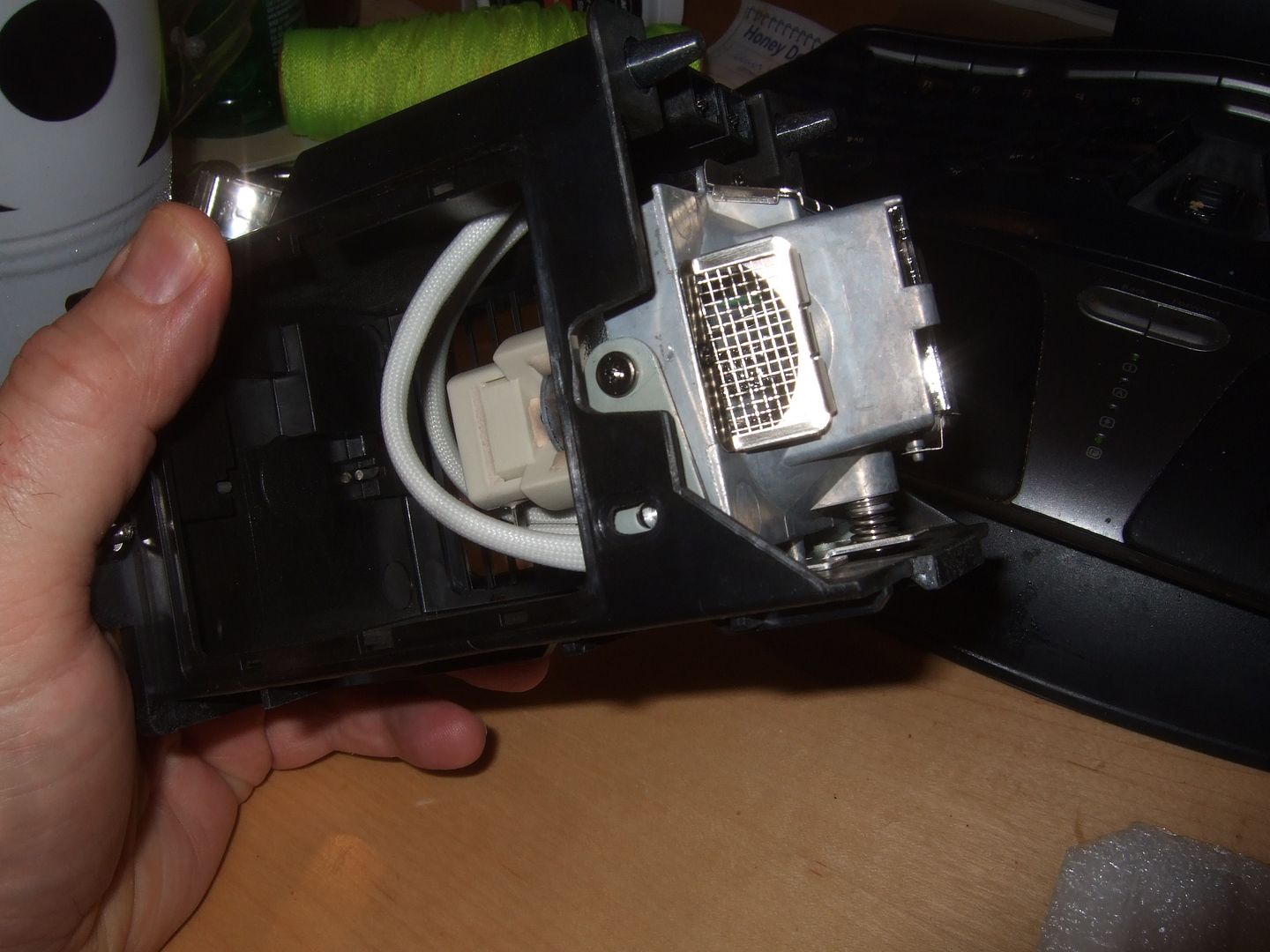

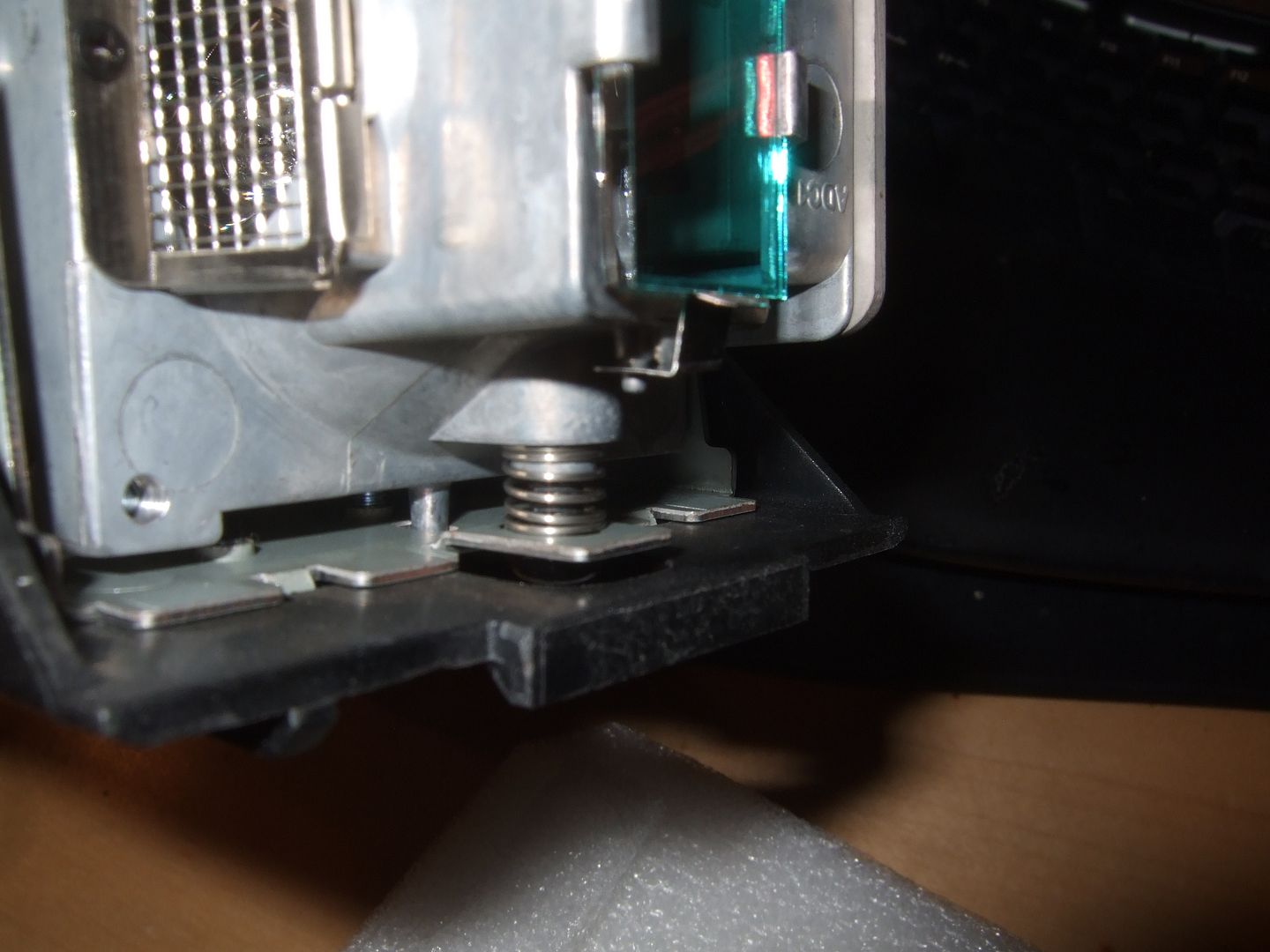

One side is open and you can see a spring loaded screw holding the bulb in the cradle

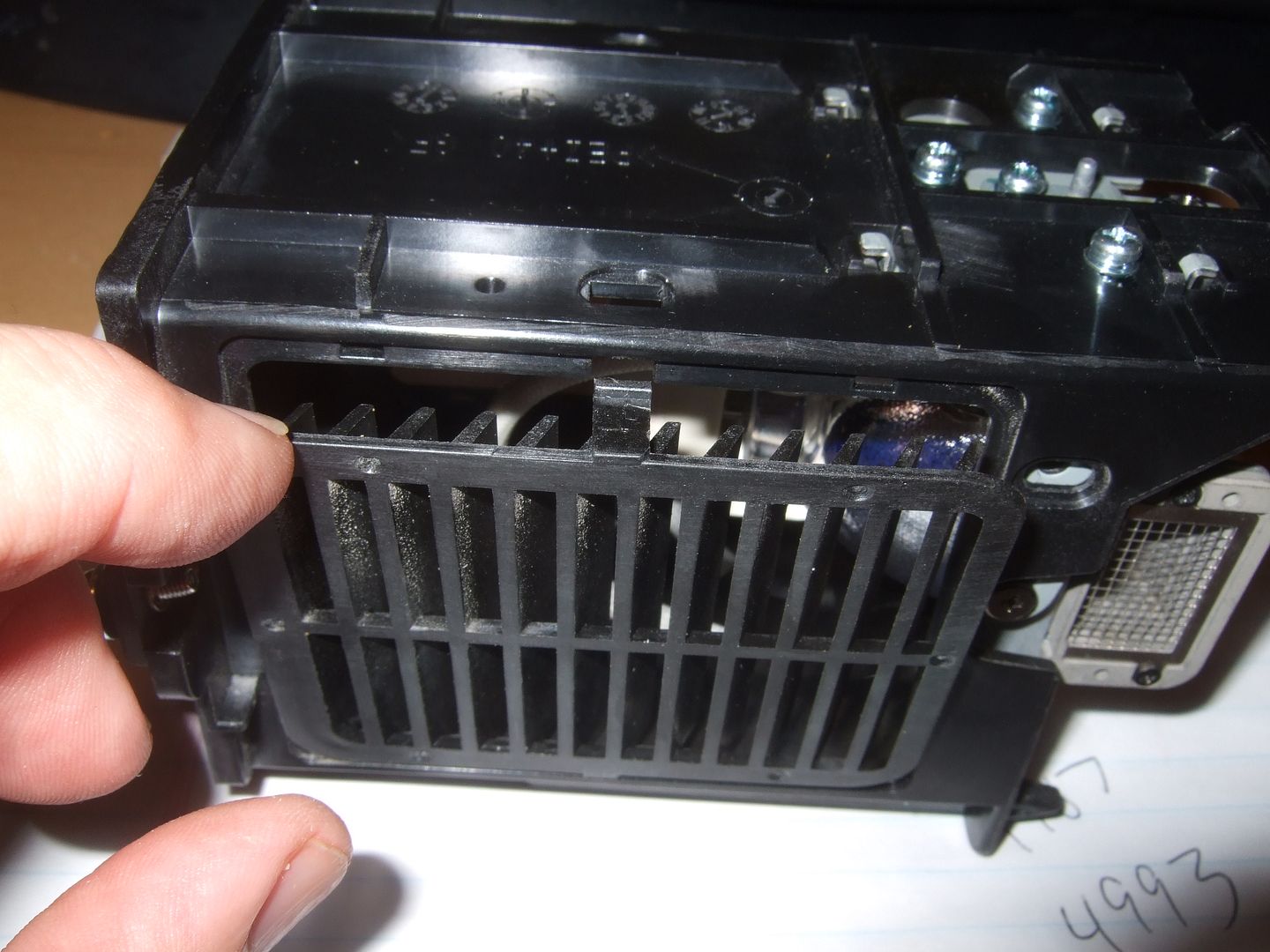

The other side is covered with a spring loaded cover.





I think we can get the bulb out by loosening the two spring loaded screws.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,

BIGmouthinDC is offline
post #94 of 206 Old 07-06-2011, 07:26 AM
AVS Special Member

thorr's Avatar

Join Date: Jan 2001
Location: San Diego, CA USA
Posts: 1,700
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Awesome post! Thanks for sharing the info!
thorr is offline
post #95 of 206 Old 07-06-2011, 11:39 AM
AVS Addicted Member

guitarman's Avatar

Join Date: May 2001
Location: The Bay Area San Francisco.
Posts: 12,968
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
I've been changing just the lamps for a while now it's easy to eyeball how to dismantle and install the bulbs. One time the replacement had screws for the contacts they normally do. Yet the original lamp had fixed contacts. I was able to work off the fixed contact and drilled out the loop holes on the wire ends to use the screws of the new lamp. Make sure you use rubber gloves.

This planar is at the top of the DLP chain. I've always understood the DLP chip having the ability to have mirrors on and off at the same time is a good thing. That's why the ANSI contrast is so good. If I scaled my screen down to 92" diag I could fit this projector or even an Optoma HD8600 which my friend said he'd give me for just 2 grand. Always tempted

Tom/guitarman
VideoDementia

Are you twisted also?

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
guitarman is offline
post #96 of 206 Old 07-06-2011, 11:41 AM
AVS Addicted Member

guitarman's Avatar

Join Date: May 2001
Location: The Bay Area San Francisco.
Posts: 12,968
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
Quote:
Originally Posted by BIGmouthinDC View Post

I bought a spare bulb the day I bought my projector and immediately took out the 350 hr dealer demo bulb to keep as a future spare.

here are some pics, first the bulb. I don't see a N



Now a broad lay of the land.

A pretty big housing (black) and an inner bulb cradle (metal)



I think the cradle is secured by the 3 silver screws forming a V. I think the bare bulb can go in without taking the cradle out of the housing. In any case there is some play in the mount and perhaps the bulb is aimed and the cradle placement in the slots is important.




I think this is an aiming screw and that it shouldn't be touched



One side is open and you can see a spring loaded screw holding the bulb in the cradle



The other side is covered with a spring loaded cover.





I think we can get the bulb out by loosening the two spring loaded screws.

The last picture? are those contacts fixed to the bulb? You may have to do what I mentioned in the last post.

Tom/guitarman
VideoDementia

Are you twisted also?

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
guitarman is offline
post #97 of 206 Old 07-06-2011, 01:01 PM
AVS Special Member

thorr's Avatar

Join Date: Jan 2001
Location: San Diego, CA USA
Posts: 1,700
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by guitarman View Post

This planar is at the top of the DLP chain. I've always understood the DLP chip having the ability to have mirrors on and off at the same time is a good thing. That's why the ANSI contrast is so good. If I scaled my screen down to 92" diag I could fit this projector or even an Optoma HD8600 which my friend said he'd give me for just 2 grand. Always tempted

I have a 163" screen I made with Stewart Studiotek 130 material and it works great. My room is completely dark (black material over all the walls and the ceiling). Love my Planar!
thorr is offline
post #98 of 206 Old 07-07-2011, 05:30 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,845
Mentioned: 5 Post(s)
Tagged: 1 Thread(s)
Quoted: 289 Post(s)
Liked: 617
Quote:
Originally Posted by guitarman View Post

The last picture? are those contacts fixed to the bulb? You may have to do what I mentioned in the last post.

Tom, just took a look, the leads are attached with slip on compression fittings.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,

BIGmouthinDC is offline
post #99 of 206 Old 07-07-2011, 11:24 AM
AVS Addicted Member

guitarman's Avatar

Join Date: May 2001
Location: The Bay Area San Francisco.
Posts: 12,968
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
Ok, lately for a JVC RS1 the Hong Kong lamp had the wires already on it with screw attachments, but the plug part didn't match up with the JVC. What I meant was I pryed those fixed connections off the dead lamp to use the correct plug part on the Hong Kong lamp.

Looks like the lamps are comming with the wires on it, you just have to hope it matches up.

Tom/guitarman
VideoDementia

Are you twisted also?

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
guitarman is offline
post #100 of 206 Old 07-23-2011, 04:43 PM - Thread Starter
AVS Club Gold

mortisemaker's Avatar

Join Date: Mar 2002
Location: Greenfield, IN
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

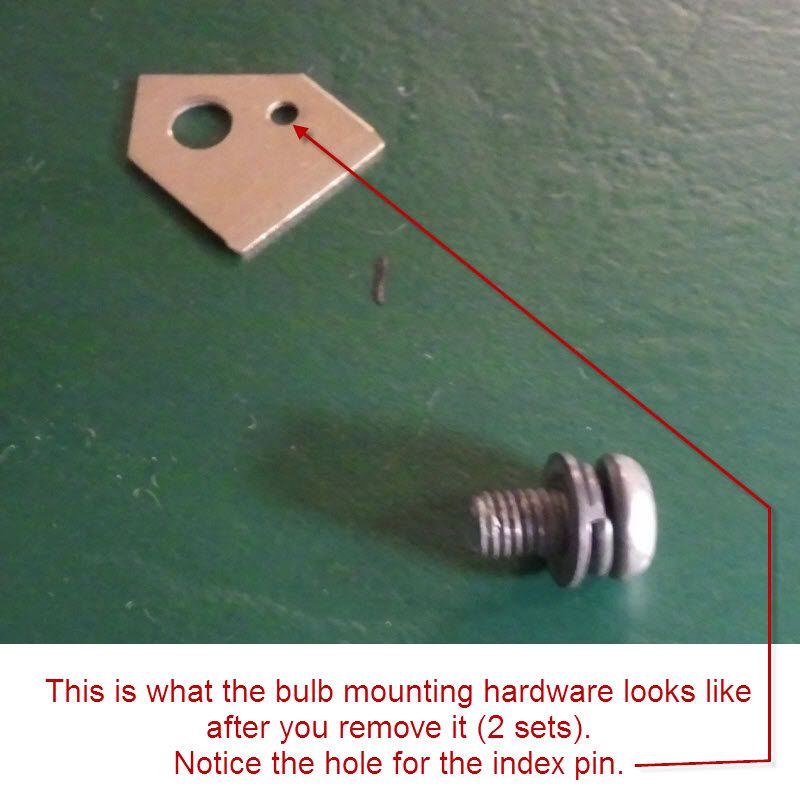

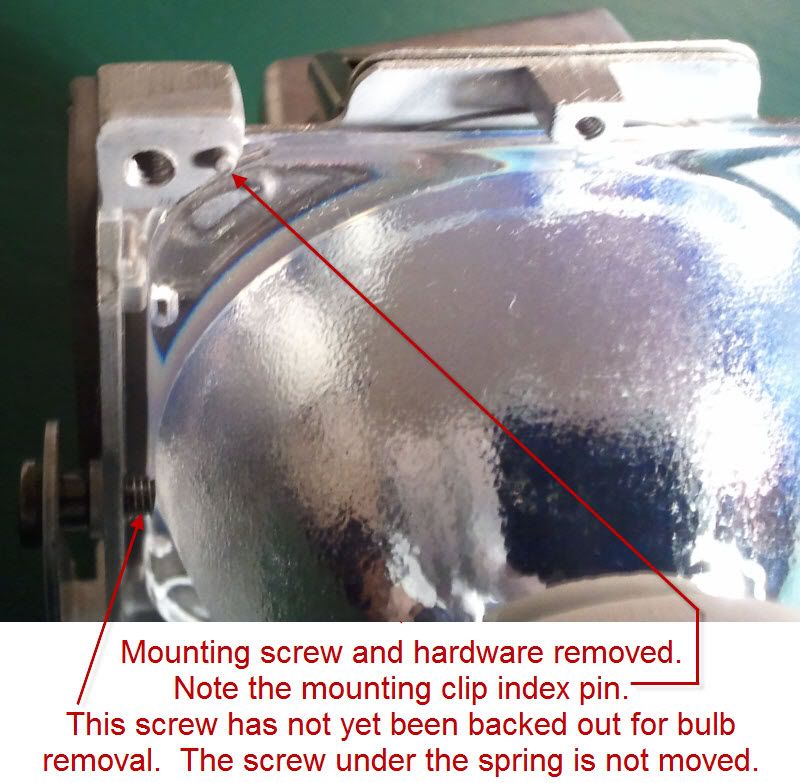

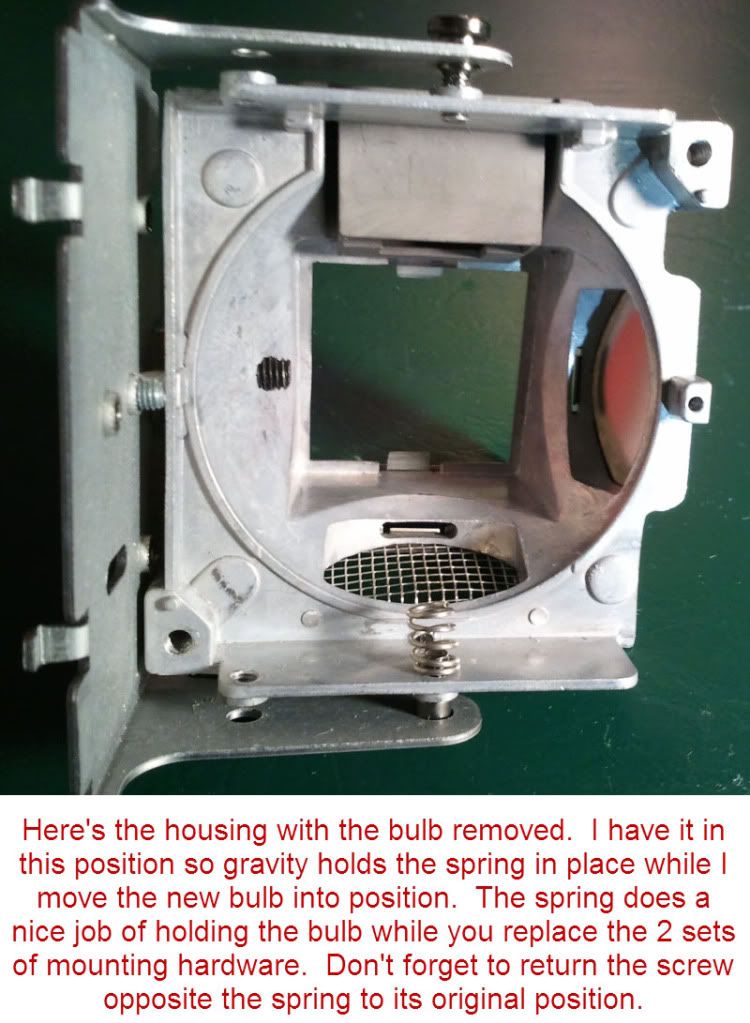

Thanks to the photos by BIGmouthinDC and the discussion here I have completed a bulb replacement in my Planar PD8150 this afternoon. The bulb I purchased had only tabs for connections. So the existing wiring slipped off the old bulb and onto the new one with no difficulty. The biggest problem I had was getting the carrier out of and back into the projector. That required a great deal more force than I expected. Changing the bulb out was easy!

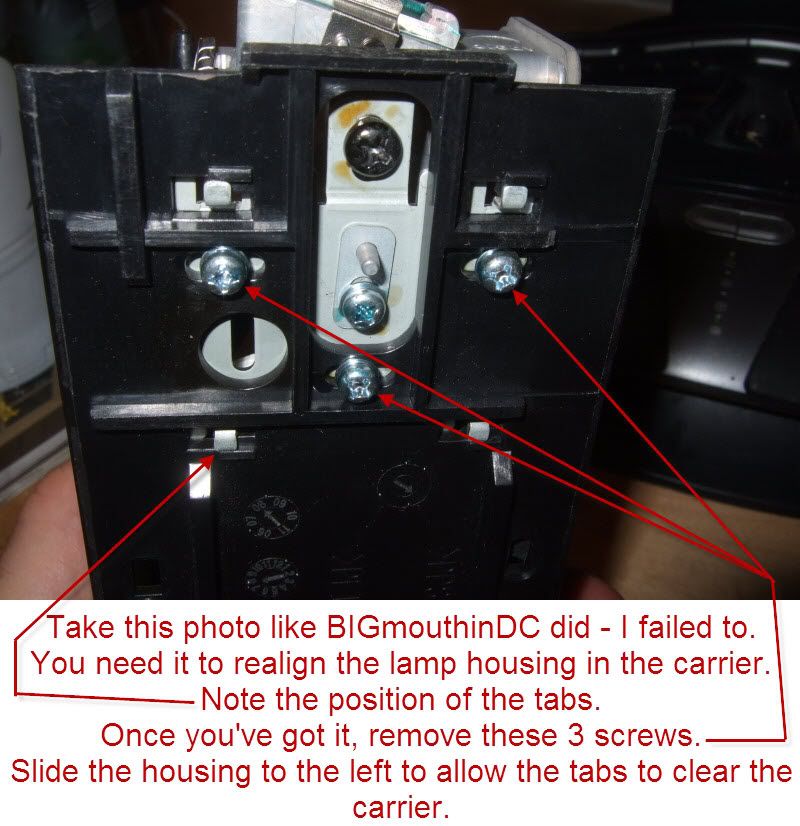

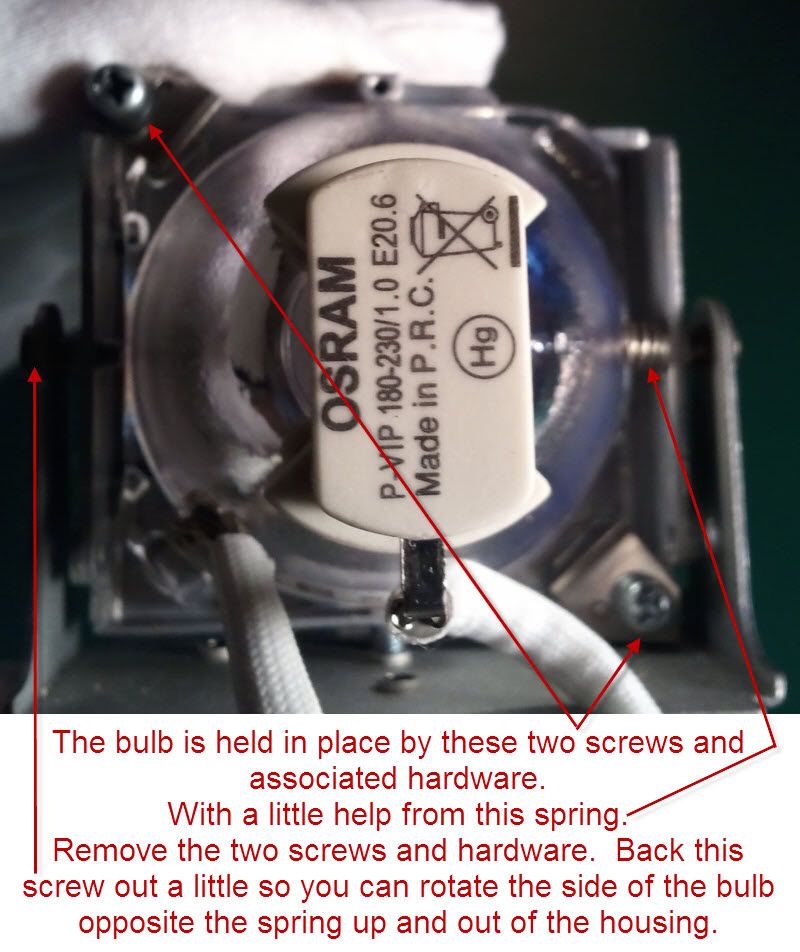

I am attaching a few photos of the process:












This is the bulb I used and its source.
mortisemaker is offline
post #101 of 206 Old 07-25-2011, 08:54 AM
AVS Special Member

pgwalsh's Avatar

Join Date: Feb 2008
Location: Colorado Springs
Posts: 1,406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked: 57
Quote:
Originally Posted by mortisemaker View Post

Thanks to the photos by BIGmouthinDC and the discussion here I have completed a bulb replacement in my Planar PD8150 this afternoon. The bulb I purchased had only tabs for connections. So the existing wiring slipped off the old bulb and onto the new one with no difficulty. The biggest problem I had was getting the carrier out of and back into the projector. That required a great deal more force than I expected. Changing the bulb out was easy!

I am attaching a few photos of the process:

Wow.. thanks for posting the picture and information, that's great. I'll need to bookmark this page for future reference.

Builds:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
, Dual Opposed MFW's x 2, Statements,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
 x 5.
pgwalsh is offline
post #102 of 206 Old 07-25-2011, 11:19 AM
AVS Addicted Member

rboster's Avatar

Join Date: Jul 2000
Location: USA
Posts: 17,578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked: 63
mortisemaker-

Thanks so much for the pics and directions. Both you and BIGmouthinDC have been very generous with your time and efforts to help in this process. I placed my order for the replacement bulb and will use your directions as my guide.

Thanks again
Ron

"Retired" AVS Moderator
rboster is offline
post #103 of 206 Old 07-27-2011, 05:43 PM
AVS Addicted Member

rboster's Avatar

Join Date: Jul 2000
Location: USA
Posts: 17,578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked: 63
Well I have been "successful" in replacing my bulb. I "think" I did everything correct...had the had time getting the clip on the back end of the bulb attached...but I got it on and secured it with a tweak of the pliers.

Here's my problem. I can't get the housing back in place. I get it to a certain point in the projector and try to give it a little extra push...but I am really scared of damaging the projector....I'd rather buy a whole new unit housing/bulb unit then damage the actual projector. Any idea's for those who have reinserted the housing unit? Tricks of the trade if you will?

Thanks
Ron

"Retired" AVS Moderator
rboster is offline
post #104 of 206 Old 07-28-2011, 06:33 AM - Thread Starter
AVS Club Gold

mortisemaker's Avatar

Join Date: Mar 2002
Location: Greenfield, IN
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by rboster View Post

...Here's my problem. I can't get the housing back in place. I get it to a certain point in the projector and try to give it a little extra push...but I am really scared of damaging the projector....I'd rather buy a whole new unit housing/bulb unit then damage the actual projector. Any idea's for those who have reinserted the housing unit? Tricks of the trade if you will?

Thanks
Ron

I would also like to hear the experience of others - particularly from those who do this for a living. Your experience mirrors mine. It took me a very (to me) surprising high level of force to get the unit out of and back into the projector. I originally expected some small amount of friction - but certainly not this much.

One thing you do want to check is to compare the position of the bulb housing with respect to the carrier. You need the first photo to decide how far to the right or left to slide the tabs before tightening the 3 screws. There are slots for the tab and slots for the screws to allow the housing quite a lot of lateral movement in the carrier. I first had mine all the way to the right as show in the photo. I later repositioned it so that the tab was just covering the plastic behind them and not all the way over against the stops.

When you compare the housing and carrier to the inside of the projector, you will see that there are several things that need to line up just right to position the air flow vents and probably also the bulb.

Nevertheless, I think you just need to work up enough courage and basically man handle (slam) the unit back into place.
mortisemaker is offline
post #105 of 206 Old 07-28-2011, 07:43 AM
AVS Addicted Member

rboster's Avatar

Join Date: Jul 2000
Location: USA
Posts: 17,578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked: 63
Quote:
Originally Posted by mortisemaker View Post

I would also like to hear the experience of others - particularly from those who do this for a living. Your experience mirrors mine. It took me a very (to me) surprising high level of force to get the unit out of and back into the projector. I originally expected some small amount of friction - but certainly not this much.

One thing you do want to check is to compare the position of the bulb housing with respect to the carrier. You need the first photo to decide how far to the right or left to slide the tabs before tightening the 3 screws. There are slots for the tab and slots for the screws to allow the housing quite a lot of lateral movement in the carrier. I first had mine all the way to the right as show in the photo. I later repositioned it so that the tab was just covering the plastic behind them and not all the way over against the stops.

When you compare the housing and carrier to the inside of the projector, you will see that there are several things that need to line up just right to position the air flow vents and probably also the bulb.

Nevertheless, I think you just need to work up enough courage and basically man handle (slam) the unit back into place.

Thanks very much for the advice. I'll review the tabs on my lamp housing. Yes, like you I assumed the tabs should be all the way to the right, espcially since the lowest screw opening alligned up with the tabs being on the far right.

BigmouthinDC said he thought the male/female electrical slots were probably slightly out of line. I know the internal projector side of that equation has no play..so it can't be out of line. The bulb housing would be the problem side of the equation....but one would think they've designed the tracking to work so the electrical components line up. I can get the housing within about an half inch or so of being all the way in...it's the last umph that has the resistance.

I've got a call into Planar CS, but I don't expect much help...I sure their answer will be to send the projector in for service. I'm not going to mention that I replaced the bulb myself....just that I removed the housing to verify the parts number.

Ron

"Retired" AVS Moderator
rboster is offline
post #106 of 206 Old 07-28-2011, 11:29 AM
AVS Addicted Member

rboster's Avatar

Join Date: Jul 2000
Location: USA
Posts: 17,578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked: 63
Well customer service acknowledged their is an issue with the housing relative to insertion into the projector. He said it requires the customer to "jiggle" the housing to manuever it into the projector. He said they designed it to fit in more than the 8150 model, inwhich he was alluding that is doesn't have a perfect design fit.

"Retired" AVS Moderator
rboster is offline
post #107 of 206 Old 07-28-2011, 12:32 PM - Thread Starter
AVS Club Gold

mortisemaker's Avatar

Join Date: Mar 2002
Location: Greenfield, IN
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by rboster View Post

Well customer service acknowledged their is an issue with the housing relative to insertion into the projector. He said it requires the customer to "jiggle" the housing to manuever it into the projector. He said they designed it to fit in more than the 8150 model, inwhich he was alluding that is doesn't have a perfect design fit.

Jiggle? Sledge hammer is more like it. I hope you work up the courage to get yours back in place. One other thought, perhaps you could loosen the three screws just a little - to allow some small amount of movement as it goes in. In my case, I just reviewed the photo, made mine match what I saw as close as possible and slammed it home.

In any case, thanks for passing this along. At least we now know they know about the somewhat imperfect fit.
mortisemaker is offline
post #108 of 206 Old 07-28-2011, 12:58 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,845
Mentioned: 5 Post(s)
Tagged: 1 Thread(s)
Quoted: 289 Post(s)
Liked: 617
I do recall that when I first removed my factory bulb and housing I thought WTF and stopped. The next day after consulting the manual one more time and determined to succeed I gave it much harder tug and it came out.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,

BIGmouthinDC is offline
post #109 of 206 Old 07-28-2011, 01:16 PM
AVS Addicted Member

rboster's Avatar

Join Date: Jul 2000
Location: USA
Posts: 17,578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked: 63
Quote:
Originally Posted by BIGmouthinDC View Post

I do recall that when I first removed my factory bulb and housing I thought WTF and stopped. The next day after consulting the manual one more time and determined to succeed I gave it much harder tug and it came out.

I'm going to reposition my tabs tonight and give it one more try. I'm just worried about trying to force a $500 replacement item into a $6k projector and doing some damage. Again, thanks to both of you for your instructions, support and first person insights....you both are great examples of the stellar AVS community.

Thanks
Ron

"Retired" AVS Moderator
rboster is offline
post #110 of 206 Old 07-28-2011, 05:15 PM
AVS Addicted Member

rboster's Avatar

Join Date: Jul 2000
Location: USA
Posts: 17,578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked: 63
Success!! You were right on the money. Moving the tabs even the slight bit did the trick. The housing with a little push moved right into place. Did you notice a very slight smell powering up the unit? My wife claims she can't smell anything...so maybe it's my imagination.

"Retired" AVS Moderator
rboster is offline
post #111 of 206 Old 07-28-2011, 05:33 PM - Thread Starter
AVS Club Gold

mortisemaker's Avatar

Join Date: Mar 2002
Location: Greenfield, IN
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by rboster View Post

Success!! You were right on the money. Moving the tabs even the slight bit did the trick. The housing with a little push moved right into place. Did you notice a very slight smell powering up the unit? My wife claims she can't smell anything...so maybe it's my imagination.

Congratulations!!! I am delighted to hear of your success. I certainly understand your concern at the forces involved in this process. I was too.

No, I don't recall any smell - but with the A/C on in here and my unit mounted at the ceiling - I doubt I would have noticed a smell. I think the only thing I noticed was a somewhat brighter picture - but that is just a subjective observation. I don't have anything to measure it with.

Don't forget to go into your lamp hours counter and reset it to zero.
mortisemaker is offline
post #112 of 206 Old 07-28-2011, 05:36 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,845
Mentioned: 5 Post(s)
Tagged: 1 Thread(s)
Quoted: 289 Post(s)
Liked: 617
I imagine that the first time a bulb gets hot it is going to off gas something.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
PROJECTS:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
,

BIGmouthinDC is offline
post #113 of 206 Old 07-29-2011, 06:26 AM
AVS Addicted Member

rboster's Avatar

Join Date: Jul 2000
Location: USA
Posts: 17,578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked: 63
In retrospect, the smell might have been coming from my son's movie choice of "Dylan Dog". As suspected, it would seem to have been a little gas coming from the bulb, which within a reasonable amount of time went away...though the movie still stunk up the place.

So the bullet points from my experience would be...

1) Take some pics of the bulb in the housing including the tab placement.

2) Expect resistance when pulling the housing out and putting it back in.

3) Make sure to wear the plastic gloves provided by Pureland Supply

4) Be careful when lifting the original bulb out of the lamp housing, keeping the spring/screw in place.

5) To reapply the hardware clips and screws that hold the lamp in place against the front of the housing, you'll need a screw driver with a magnetic end. The screw on the inside of the housing is recessed in the corner of the housing and too hard to get to with one's fingers (this took sometime-I felt like I was playing the game "operation").

6) I had a tough time reattaching the clip (at the end of the electrical wire) to the bulb prong on the base of the bulb. The prong is bent towards the bulb and leaves little space to use my fat fingers to reattach the clip to the prong. PPL with slender fingers may not have this issue.

7) Again, use your picture taken before you've started the replacement process to check the placement of the tabs to ensure the same position after reinserting the internal bulb housing into the external housing.

I printed off a copy of both BigmounthinDC's pics and Mortisemaker's pictures and instructions (huge help) to refer to when making the change out. I can honestly say, I may not have been able to do this project without their pictures and help....thanks guys!!

Let me know if anyone has any questions? I'd feel much more prepared and confident making another change out down the road. The cost diffence between the bulb only and the housing the bulb is huge....I am more likely to keep my planar for a longer period of time, now that I have an cheap option to replace the bulb vs weighting the cost of investing $550 (shipping and tax) into a used projector vs using the cash towards a new one.

Ron

"Retired" AVS Moderator
rboster is offline
post #114 of 206 Old 10-07-2011, 12:51 PM
Senior Member

TonyL222's Avatar

Join Date: Sep 2001
Location: Reston, VA, USA
Posts: 209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
A little late for this discussion, but might help someone down the road. I bought my PD8150 in Aug '08 and after over 6100hrs the lamp wen out in Oct '11. My replacement "bulb" (which I bough over a year ago) came already installed in the cradle. So all I had to do was pull out the old and pop in the new - or so I though.

The old one came out with a little effort. The replacement just would not go in. As was mentioned, I was leery of trying to force a $500 part into a $6k projector. I called Planar to see if there was some "trick" to this. The technician told me he had replaced many of these, and there was no real trick.

Basically, he told me to grab hold tight to the front and push like hell on the cradle in the back - and don't be afraid of breaking anything, that I wouldn't hurt it. I actually made a fist and pressed "like hell" against the back of the cradle while holding it steady on the front (left it in its ceiling mount). The cradle popped right in.

I asked my wife to come down and help with the realignment (her eyesight is a little better than mine). She noticed right away that the PQ was much better with the new lamp. I'm set for another 6000 hrs.
TonyL222 is offline
post #115 of 206 Old 10-07-2011, 01:06 PM
AVS Special Member

pgwalsh's Avatar

Join Date: Feb 2008
Location: Colorado Springs
Posts: 1,406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked: 57
Thanks for the info, that's a lot of hours.


Any word if they'll be producing a newer model? Not that there's anything wrong with the current model, but I was planning on buying a second for another place. I'd like to get one with built-in anamorphic capability.

Builds:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
, Dual Opposed MFW's x 2, Statements,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
 x 5.
pgwalsh is offline
post #116 of 206 Old 10-07-2011, 02:03 PM
AVS Special Member

rovingtravler's Avatar

Join Date: Nov 2010
Location: Clovis, NM
Posts: 1,262
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Runco does not have any native widescreen PJs yet. You would have to go to Sony, DP, DPI, or SIM2.

Hopefully they will release a few more new ones in the near future.

David

"You buy a Ferrari when you want to be somebody. You buy a Lamborghini when you are somebody." - Frank Sinatra
rovingtravler is offline
post #117 of 206 Old 12-09-2011, 08:25 PM
AVS Special Member

Seegs108's Avatar

Join Date: Jul 2007
Location: Schenectady, New York
Posts: 4,100
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 304 Post(s)
Liked: 226
I was wondering if anyone knew where to purchase a short throw lens for this. I asked my local Runco dealer about a LS-5 short throw lens, but with wanted $995 for it. IIRC the MSRP was only ~$700. Can anyone help? Maybe there's someone here looking to sell theirs?

----------------------------------------------------------------------------

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Seegs108 is offline
post #118 of 206 Old 12-10-2011, 08:34 AM
AVS Special Member

pgwalsh's Avatar

Join Date: Feb 2008
Location: Colorado Springs
Posts: 1,406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked: 57
Quote:
Originally Posted by Seegs108 View Post

I was wondering if anyone knew where to purchase a short throw lens for this. I asked my local Runco dealer about a LS-5 short throw lens, but with wanted $995 for it. IIRC the MSRP was only ~$700. Can anyone help? Maybe there's someone here looking to sell theirs?

Have you called AV Science to see if they can help you? I bought my Planar from Jason.

Builds:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
, Dual Opposed MFW's x 2, Statements,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
 x 5.
pgwalsh is offline
post #119 of 206 Old 12-10-2011, 08:39 AM
AVS Special Member

Seegs108's Avatar

Join Date: Jul 2007
Location: Schenectady, New York
Posts: 4,100
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 304 Post(s)
Liked: 226
Quote:
Originally Posted by pgwalsh View Post


Have you called AV Science to see if they can help you? I bought my Planar from Jason.

Unfotunately they aren't planar or runco dealers anymore. I already asked.

----------------------------------------------------------------------------

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Seegs108 is offline
post #120 of 206 Old 12-10-2011, 03:12 PM
AVS Special Member

pgwalsh's Avatar

Join Date: Feb 2008
Location: Colorado Springs
Posts: 1,406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked: 57
Quote:
Originally Posted by Seegs108 View Post

Unfotunately they aren't planar or runco dealers anymore. I already asked.

Did you call Runco and see if they sell them directly?

Builds:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
, Dual Opposed MFW's x 2, Statements,
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
 x 5.
pgwalsh is offline
Reply Digital Hi-End Projectors - $3,000+ USD MSRP

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
