Why pin 2 missing in these HDMI adapters?

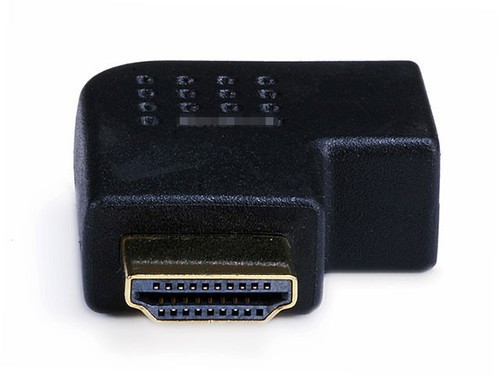

On a quick look, all the adapters of this kind on eBay are missing pin 2 (seems to be Data2 shield). Any idea why?
shae is offline
Sponsored Links
Advertisement

post #2 of 18 Old 07-06-2014, 12:46 PM
AVS Special Member

domino92024's Avatar

Join Date: Jan 2007
Posts: 3,440
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 169
Quote:
Originally Posted by shae View Post
On a quick look, all the adapters of this kind on eBay are missing pin 2 (seems to be Data2 shield). Any idea why?

That is pin 18, not 2. Your picture is of a plug, not a receptacle. It is a 5v pin, missing in many circuits.


http://www.hdmi.org/installers/insidehdmicable.aspx
domino92024 is offline
post #3 of 18 Old 07-06-2014, 12:52 PM - Thread Starter
Member

shae's Avatar

Join Date: Dec 2008
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 10
Thanks. What uses it in practice? And why would it be missing, to save a quarter of a cent?
shae is offline
post #4 of 18 Old 07-06-2014, 12:59 PM
AVS Special Member

AntAltMike's Avatar

Join Date: Nov 2001
Location: College Park, MD
Posts: 3,564
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 25
Perhaps to preclude the source being used as a power supply?
AntAltMike is offline
post #5 of 18 Old 07-08-2014, 02:00 AM - Thread Starter
Member

shae's Avatar

Join Date: Dec 2008
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 10
I don't think it's the business of a simple physical adapter to decide what the connected devices should or shouldn't do.
shae is offline
post #6 of 18 Old 07-08-2014, 07:37 AM
AVS Addicted Member

Ratman's Avatar

Join Date: May 2002
Location: Collingswood, N.J.
Posts: 14,391
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked: 272
You can probably find a comparable adapter from another vendor that has the full compliment of pins that you desire/require.

Or... just contact the EBay vendor of that particular adapter and ask them.
Ratman is online now
post #7 of 18 Old 07-08-2014, 12:23 PM
AVS Special Member

domino92024's Avatar

Join Date: Jan 2007
Posts: 3,440
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 169
Quote:
Originally Posted by Ratman View Post
You can probably find a comparable adapter from another vendor that has the full compliment of pins that you desire/require.

Or... just contact the EBay vendor of that particular adapter and ask them.

Hmm...I wonder why HDMI's parent site (HDMI.org) shows that pin missing in its cable diagram?


http://www.hdmi.org/installers/insidehdmicable.aspx
domino92024 is offline
post #8 of 18 Old 07-08-2014, 12:43 PM
Senior Member

speedlaw's Avatar

Join Date: Nov 2004
Location: New York, about 40 miles north of "New York"
Posts: 434
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 22
Quote:
Originally Posted by shae View Post
I don't think it's the business of a simple physical adapter to decide what the connected devices should or shouldn't do.
The entire purpose of HDMI was to enforce the HDCP protocol by licensing. "The industry" didn't want to see an open source plug like DVI become the standard.

Sorry, but I'm sure you too have never seen an HDMI "Record IN" jack

In Vienna we sit, in late night cafe. Straight Connection, on T.E.E.
speedlaw is offline
post #9 of 18 Old 07-08-2014, 01:02 PM
AVS Addicted Member

Ratman's Avatar

Join Date: May 2002
Location: Collingswood, N.J.
Posts: 14,391
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked: 272
Quote:
Originally Posted by domino92024 View Post
Hmm...I wonder why HDMI's parent site (HDMI.org) shows that pin missing in its cable diagram?
Golly! I don't know! Contact HDMI.ORG and ask them to explain.

Maybe it's just bad lighting.

Last edited by Ratman; 07-08-2014 at 01:07 PM.
Ratman is online now
post #10 of 18 Old 07-08-2014, 03:36 PM - Thread Starter
Member

shae's Avatar

Join Date: Dec 2008
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 10
So that's the key to defeating HDCP: the missing pin 18!

And asking Chinese eBay sellers on the items they sell will likely result in:

"Hi friend, I don't know, I only paste the description from the supplier. I don't even have the items available directly to me so I can't check."
shae is offline
post #11 of 18 Old 07-09-2014, 04:07 AM
Advanced Member

bac522's Avatar

Join Date: Jan 2003
Posts: 895
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked: 50
Junk...don't buy it.

http://www.hdmi.org/learningcenter/kb.aspx?c=6#68

Quote:
The HDMI specification requires all source devices to provide at least 55mA (milliamps) on the 5V line for the purpose of reading the EDID of a display.
bac522 is offline
post #12 of 18 Old 07-31-2014, 09:23 PM - Thread Starter
Member

shae's Avatar

Join Date: Dec 2008
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 10
I got one of these adapters. Looks like the pin isn't missing, it's just recessed further in. I guess it's supposed to connect last.

But there's another problem: the adapter sticks out too much because of that L shape. I didn't find so far a more compact version.

Last edited by shae; 07-31-2014 at 09:54 PM.
shae is offline
post #13 of 18 Old 08-01-2014, 05:31 AM
AVS Addicted Member

Ratman's Avatar

Join Date: May 2002
Location: Collingswood, N.J.
Posts: 14,391
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked: 272
Ratman is online now
post #14 of 18 Old 08-01-2014, 09:15 AM - Thread Starter
Member

shae's Avatar

Join Date: Dec 2008
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 10
Thanks. The L-shaped ones are exactly like the one I have, the rest aren't better. I found on eBay more compact adapters from HDMI Micro (D) to normal HDMI, as well as HDMI male/male, but not male/female. It's a conspiracy.
shae is offline
post #15 of 18 Old 08-01-2014, 10:26 AM
AVS Addicted Member

Ratman's Avatar

Join Date: May 2002
Location: Collingswood, N.J.
Posts: 14,391
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked: 272
Yeah... well, good luck and keep looking.
https://www.google.com/webhp?sourcei...20port%20saver
Ratman is online now
post #16 of 18 Old 08-01-2014, 03:58 PM
AVS Special Member

Glimmie's Avatar

Join Date: Sep 2000
Location: Los Angeles, CA
Posts: 7,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 206
Quote:
Originally Posted by speedlaw View Post
The entire purpose of HDMI was to enforce the HDCP protocol by licensing. "The industry" didn't want to see an open source plug like DVI become the standard.

Sorry, but I'm sure you too have never seen an HDMI "Record IN" jack
There are many devices with HDMI inputs. Some even HDCP compliant like video processors and scalers.

There are also HDMI capture cards and USB3 interfaces. But of course these don't support HDCP. Some pro (not broadcast) video cameras use HDMI.

Glimmie's HT Page
Being redone - comming soon!

Glimmie is online now
post #17 of 18 Old 08-02-2014, 06:00 AM
AVS Special Member

sneals2000's Avatar

Join Date: May 2003
Location: UK
Posts: 7,024
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked: 44
Quote:
Originally Posted by speedlaw View Post
Sorry, but I'm sure you too have never seen an HDMI "Record IN" jack
Err - I'm sitting looking at one now. My BlackMagic Ultrastudio Express has both HDMI and HD-SDI inputs for recording, and outputs for replay.

It's a common requirement to be able to record the HDMI output from cameras and camcorders - particularly those which don't have HD-SDI outputs. The popular Convergent Nanoflash (which arguably created the sector) and current Odyssey 7 both have HDMI inputs as well. People use external HDMI recorders to record at higher quality (say ProRes or DNXHD) than the internal recorders of some cameras which may use poorer quality codecs like AVCHD. This can often allow you to record 4:2:2 rather than 4:2:0, or to record at higher resolution.

For example, the current Sony A7s is a 4K camera which has stellar low-light performance, and will output a 4K 4:2:2 signal, but will only record 1080p internally. There are plenty of reasons to have HDMI "Record In" jacks...

And the other widespread use for HDMI "Record In" is to allow gamers to record their gameplay.

(Of course this has nothing to do with HDCP - as the cameras and camcorders have HDMI outputs without HDCP)
sneals2000 is offline
post #18 of 18 Old 08-04-2014, 04:13 AM - Thread Starter
Member

shae's Avatar

Join Date: Dec 2008
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 10
Quote:
Originally Posted by Ratman View Post
Yeah... well, good luck and keep looking.
https://www.google.com/webhp?sourcei...20port%20saver
Thanks. I think I'll have to wait until a new supplier starts feeding all the Chinese eBay sellers.
shae is offline
