15 feet long
10 feet 2 inches wide
8 feet 8 inches high
Chimney breast to left of room is sound challenge as I have to work off the chimney breast and make the remaining last front of the room appear to be one large wall.
Double glaze window might as well be paper which needs to be blocked up with x2 layers of MDF at different levels to reduce as much traffic sound as possible.
Acoustical tiles are fitted at different angles on side and rear wall and a few on the ceiling near to the front.Audio processorsY
amaha RX-V650 main AVR
Manual for RX-V650http://www2.yamaha.co.jp/manual/pdf/.../RX-V650_e.pdfY
amaha DSR-70 front preamp left/rightY
amaha DSR-70 sidewall surrounds for matrix overhead surrounds on 5.1 / 6.1 and any 8.1 mixes its all good fun
Manual for DSR70Prohttp://www2.yamaha.co.jp/manual/pdf/...m/DSR70PRO.pdfY
amaha DSP-100 disconnected and presently set aside now.
(Most of the manuals I can find in pdf form but I have the hard-copy for reading up on)K
enwood KRF-X9050D now serves as 4 zone surround amp
Manual for KRF-X9050Dhttp://manuals.kenwood.novenaweb.inf...50D%20(EN).pdfP
ioneer VSP-200 (removed now in use in bedroom for pc)H
arman-Kardon AVP1a Dolby pro-logic THX (used for auto balance of the Lt-Rt and serving as an extra, way of see if levels are too high before passing to Format 60 non-sync.EqualizersJ
VC Sea-E30 extra surround overehead (soon to be replaced)T
echnics SH-8055 sidewall surrounds (soon to be replaced)B
ehringer GEQ3102 31 band 1/3 rear back duel centre mono surrounds as well as stereo rear back for Dolby-EX Dolby TrueHD surround 7.1 and dts-ES 6.1 7.1 when used.
Manual for GEQ3102http://www.behringer.com/assets/GEQ3102_P0088_M_EN.pdfB
ehringer FBQ2496 parametric EQ channel A LCRS sub bass extension / channel B sub bass and LFE.1
Manual for FBQ2496http://www.behringer.com/assets/FBQ2496_P0315_M_EN.pdfDolby Cinema processorsD

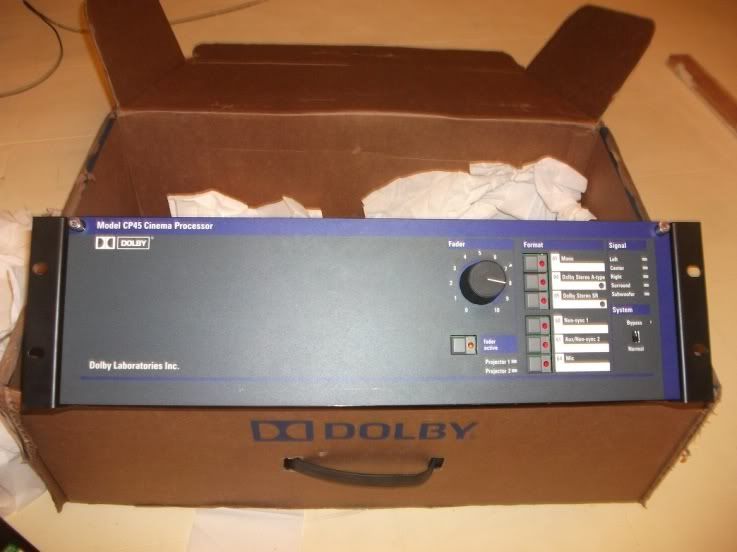

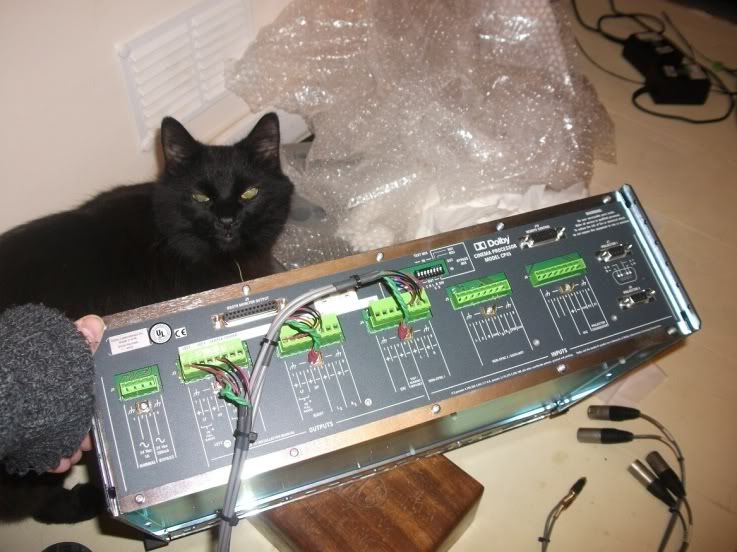

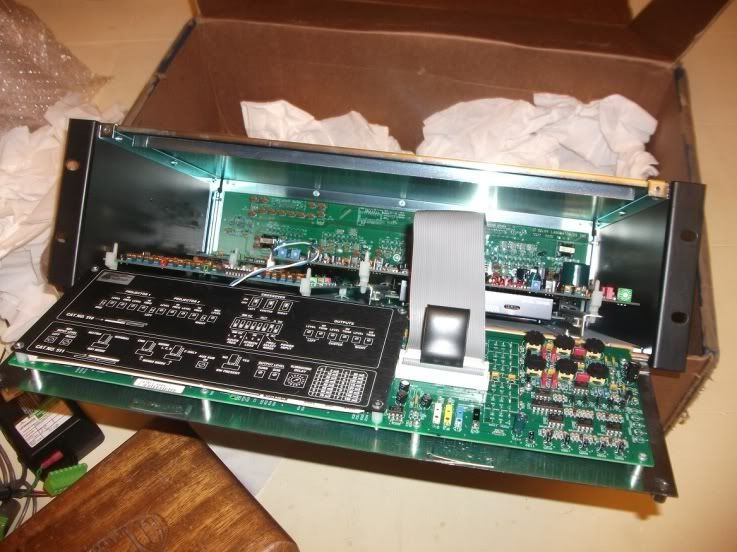

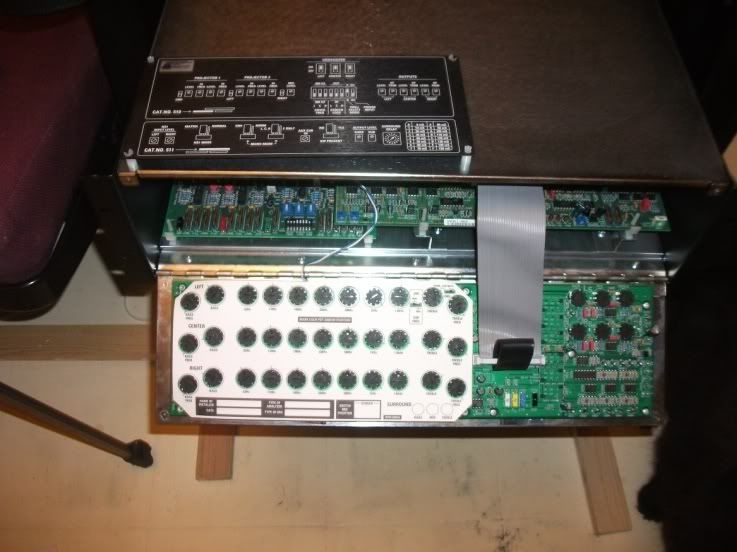

olby CP45 currently being used for the surrounds as EX on Dolby-Logic additional 6channel input still planing on what to use it for with the surrounds?
Manuals for CP45http://www.iceco.com/Dolby/CP45%20User%20Manual.pdfhttp://www.iceco.com/Dolby/CP45%20Specs.pdfhttp://www.iceco.com/Dolby/CP45%20In...n%20Manual.pdfD

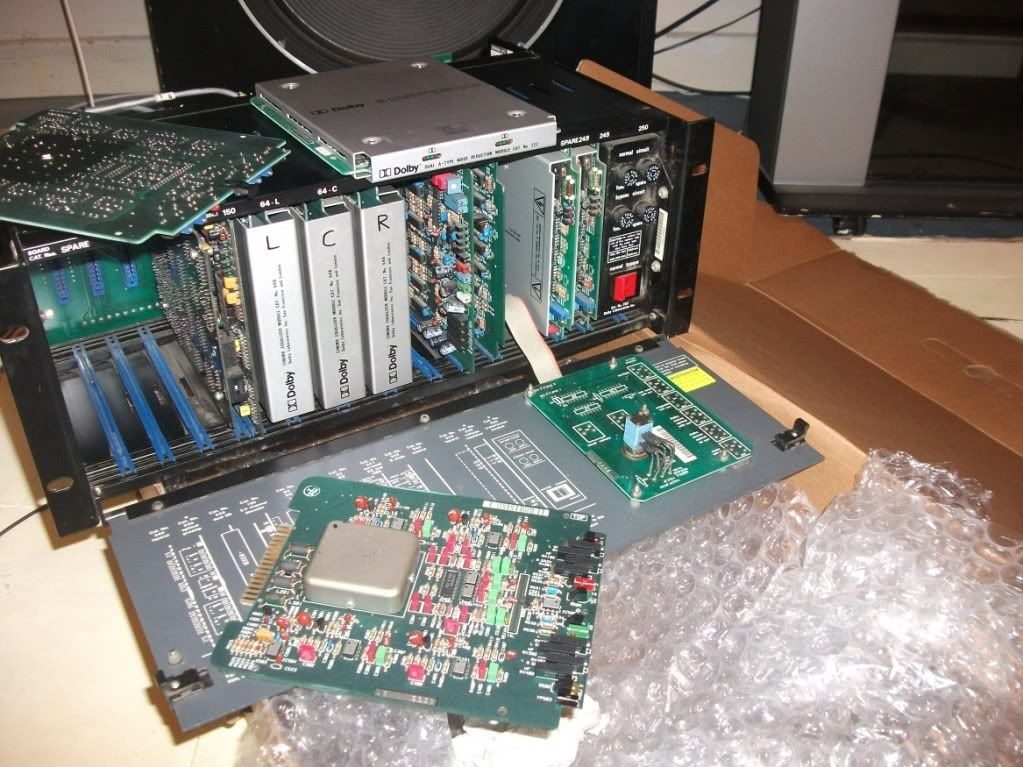

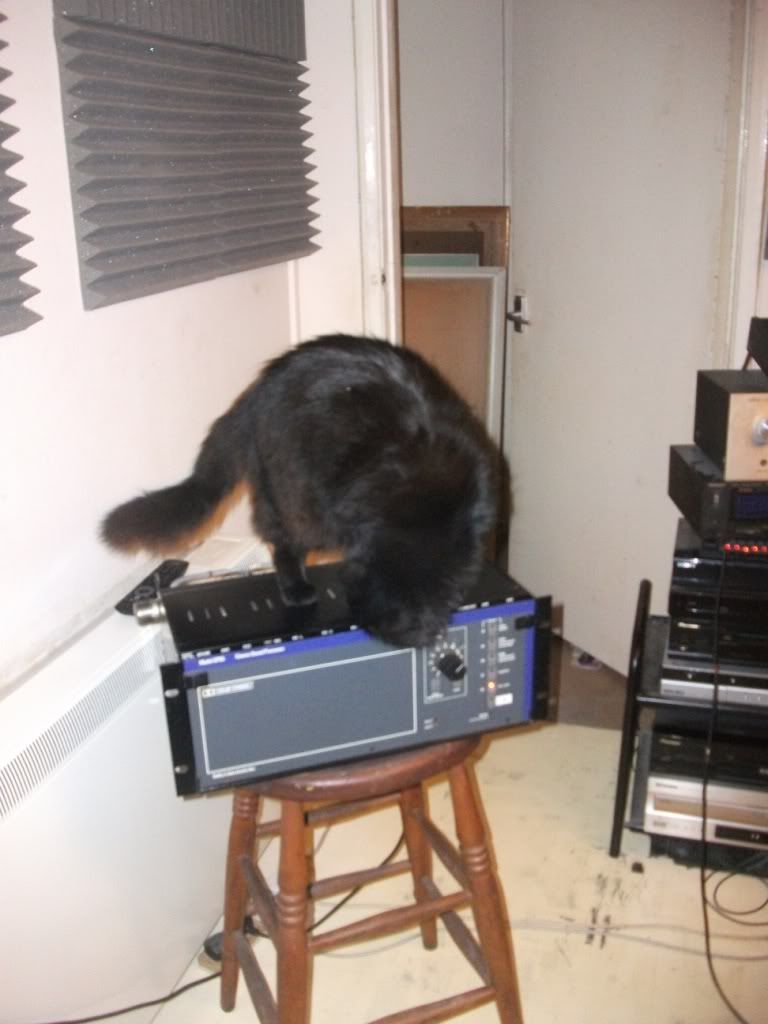

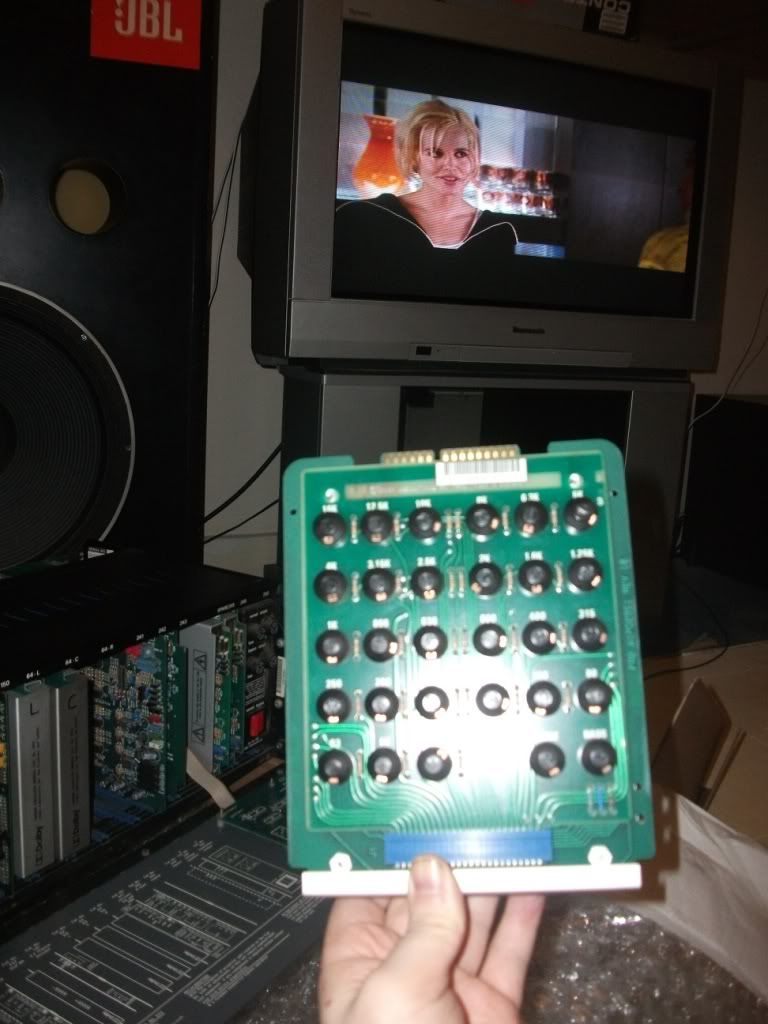

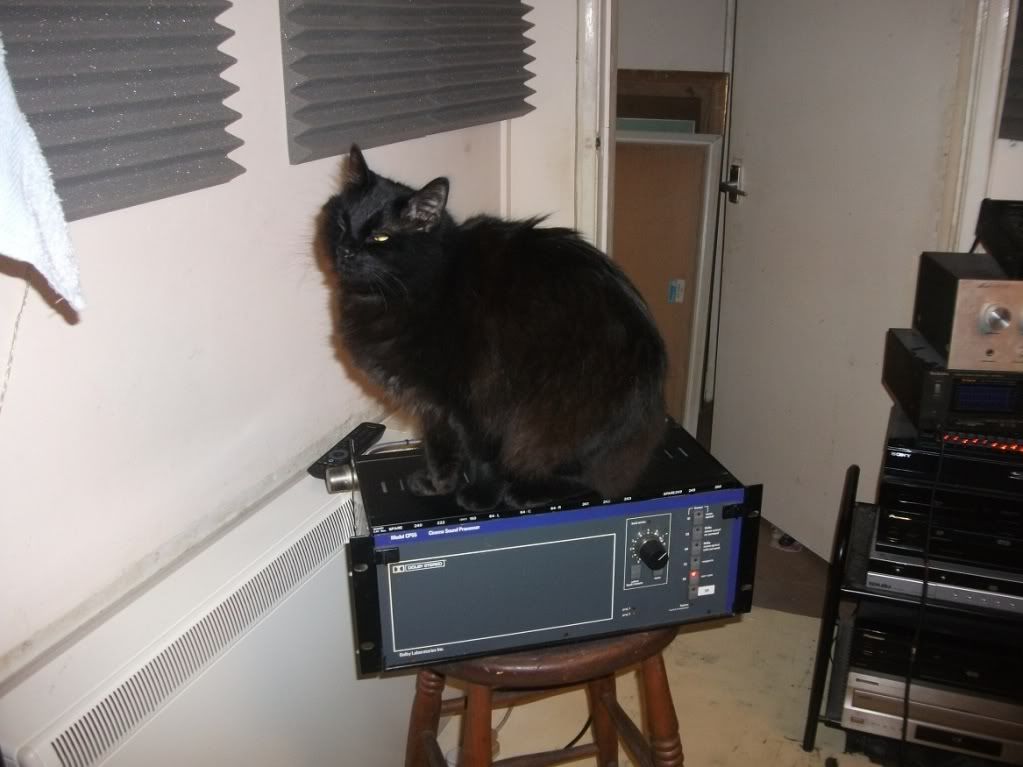

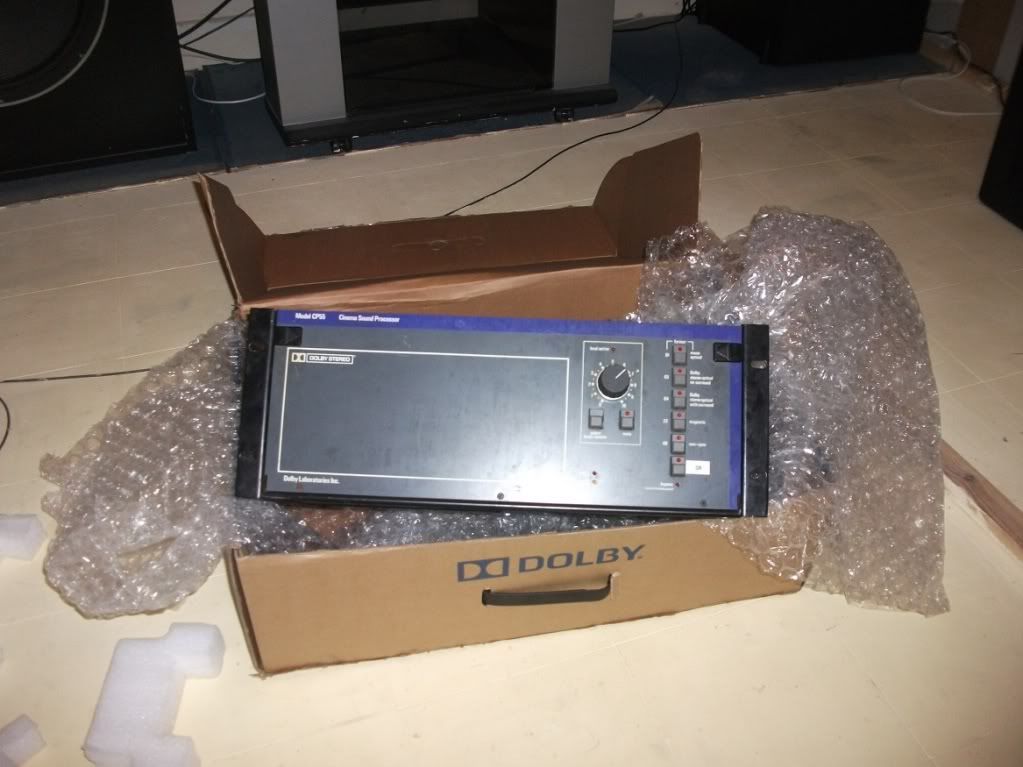

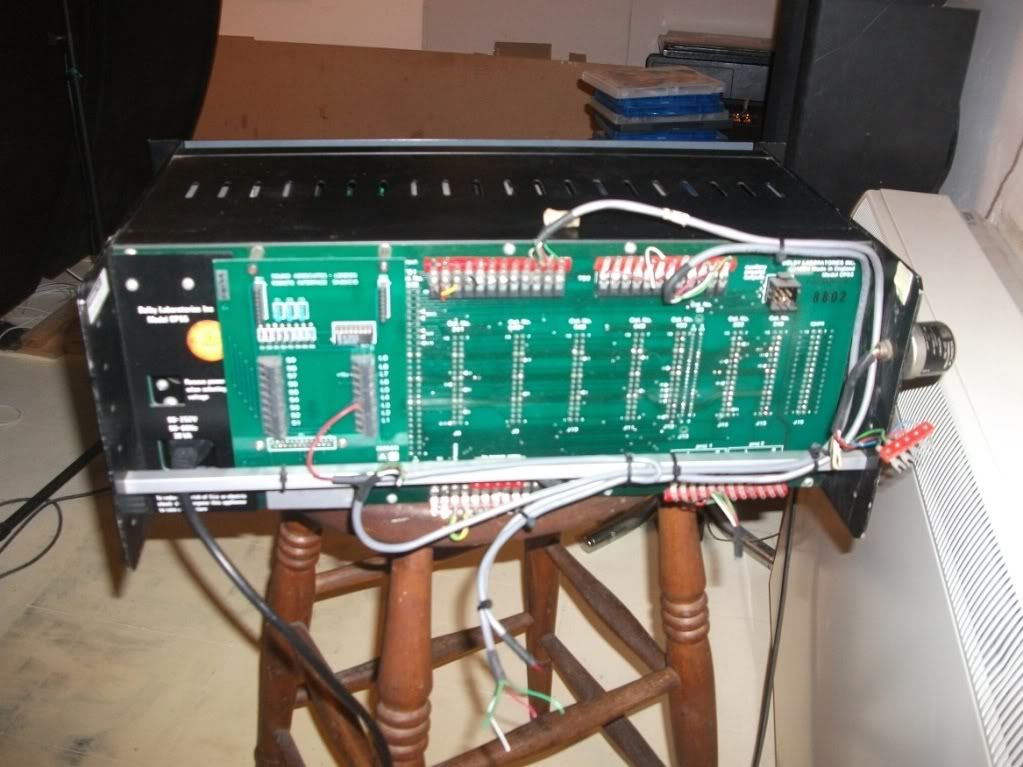

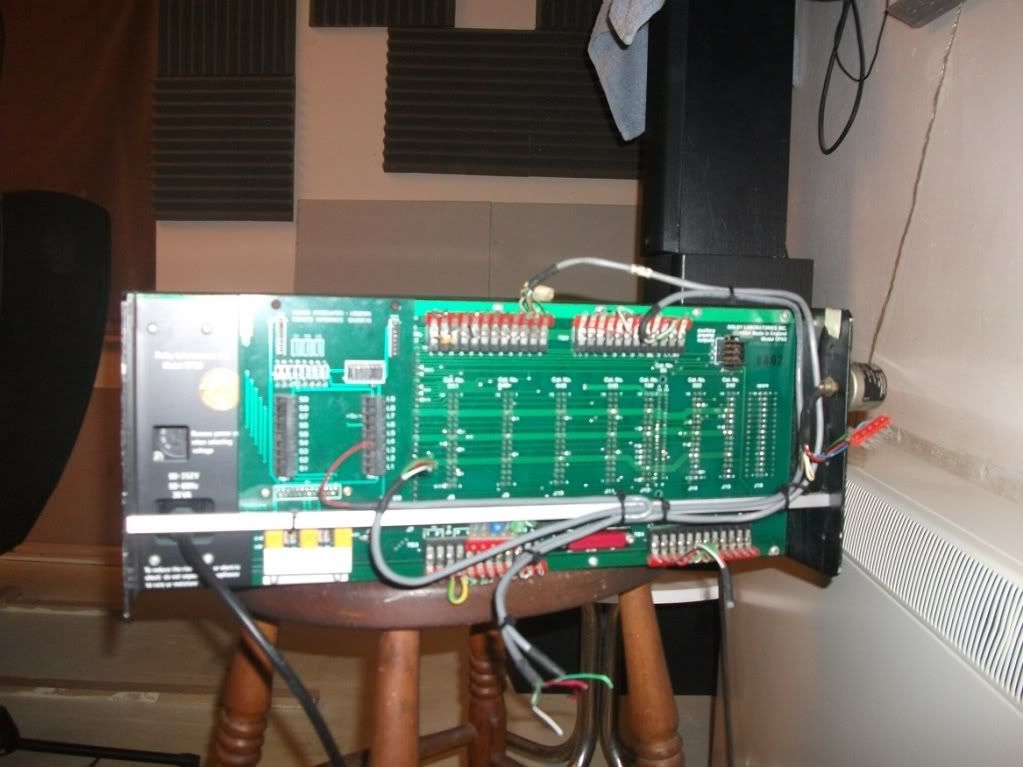

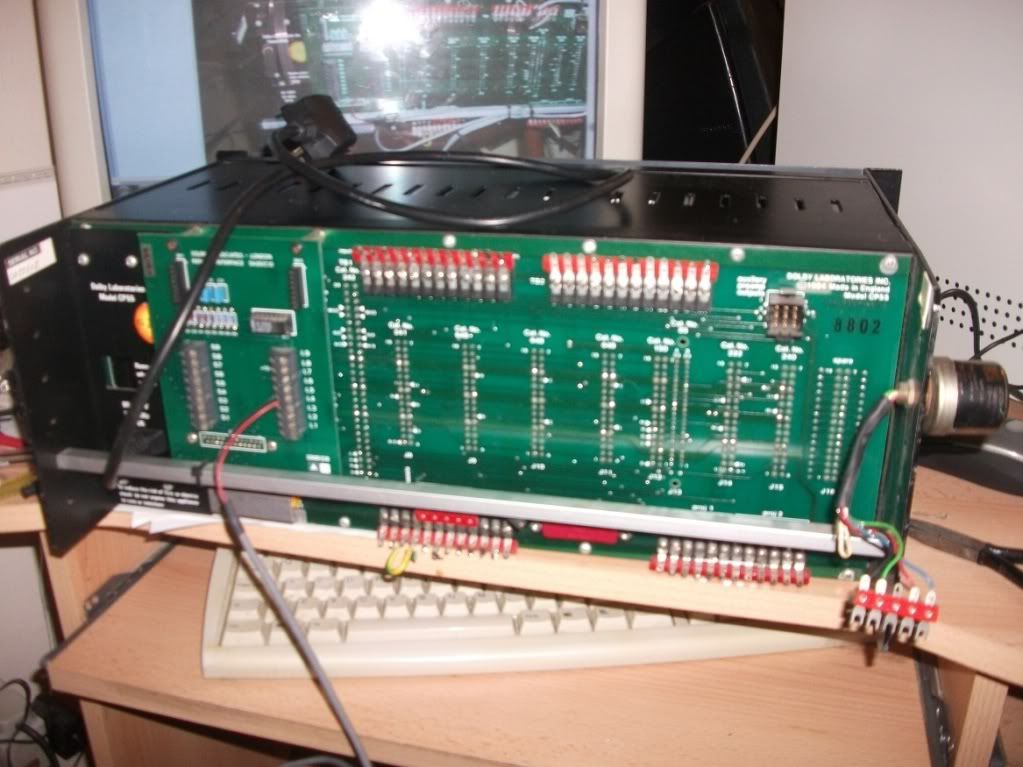

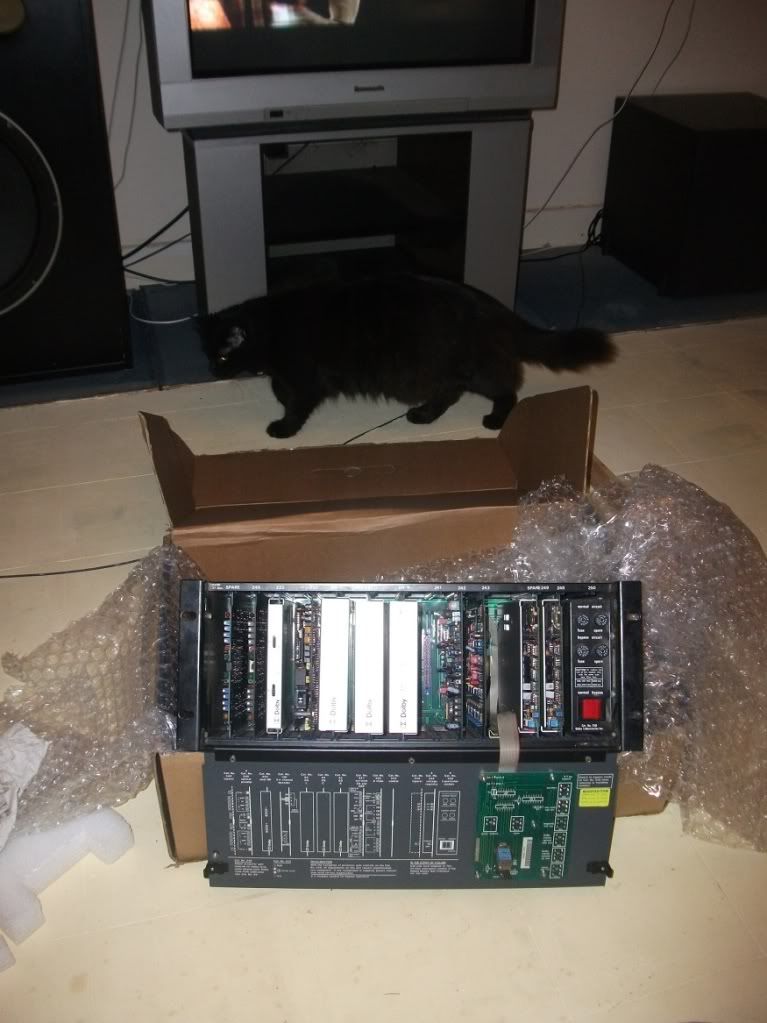

olby CP55 set aside awaiting deciding on what to use it for
Manual for CP55http://www.film-tech.com/warehouse/m...DOLBYCP551.pdfhttp://www.film-tech.com/warehouse/m...DOLBYCP552.pdfhttp://www.film-tech.com/warehouse/m...BYCP55OPER.pdfD

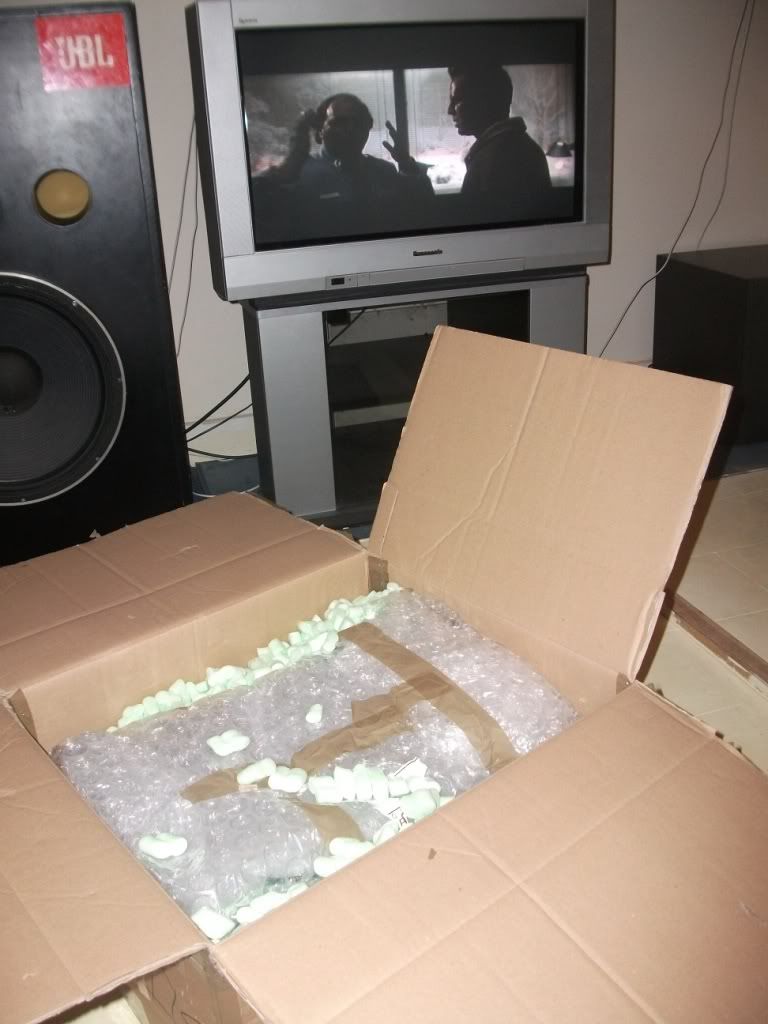

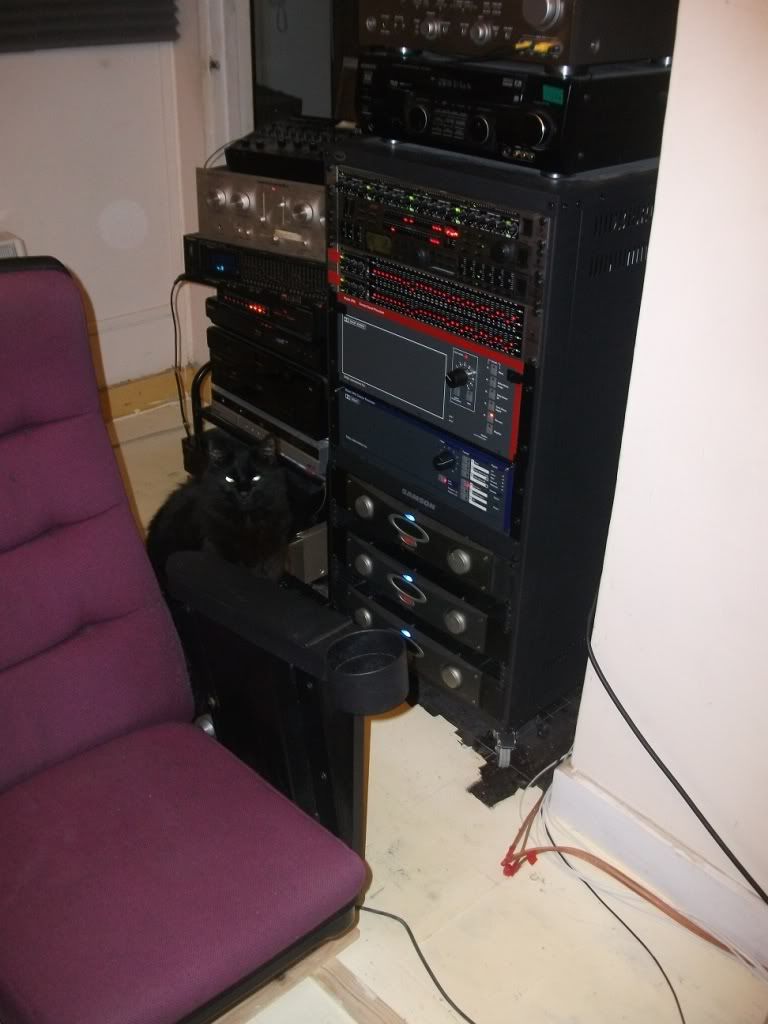

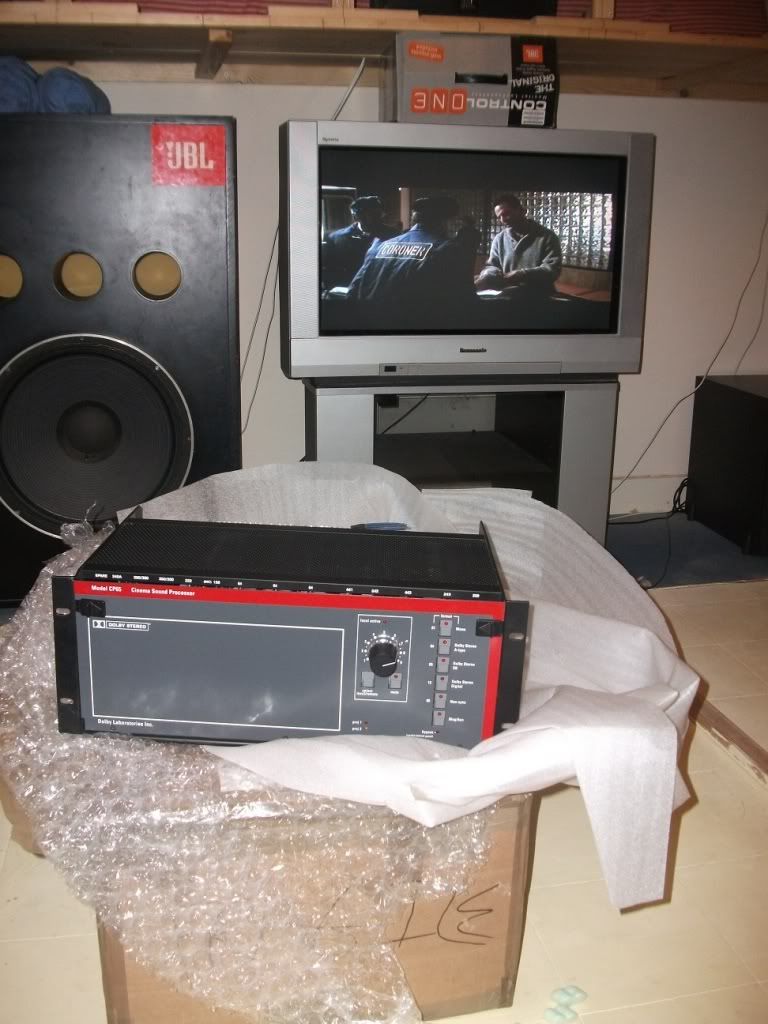

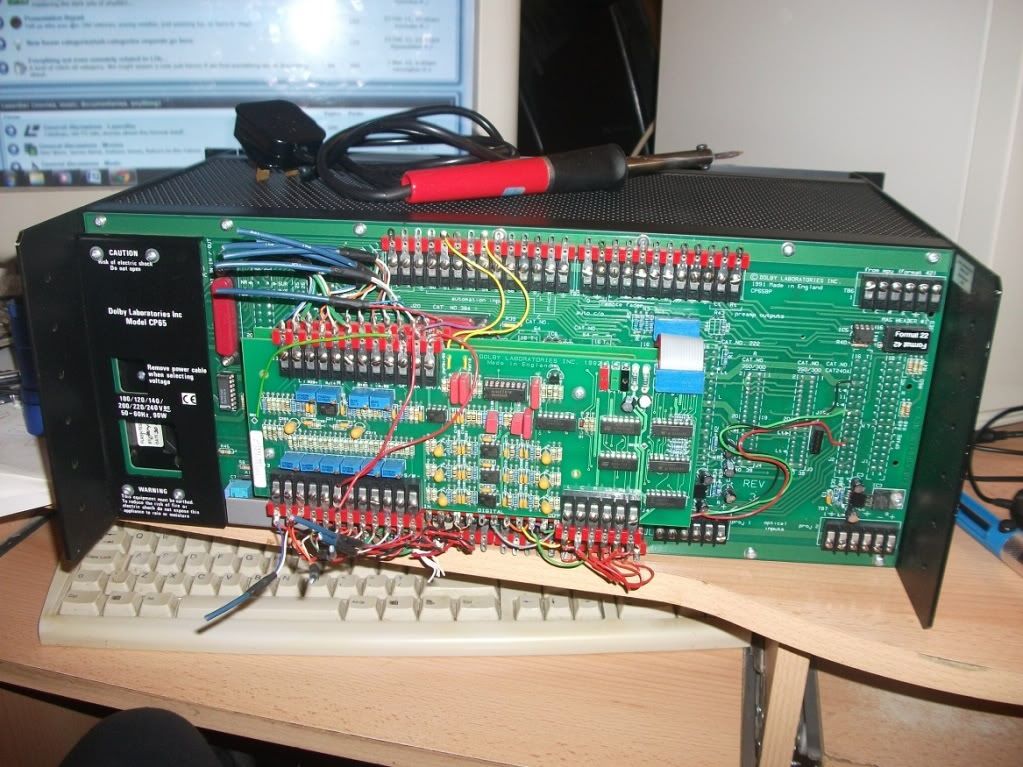

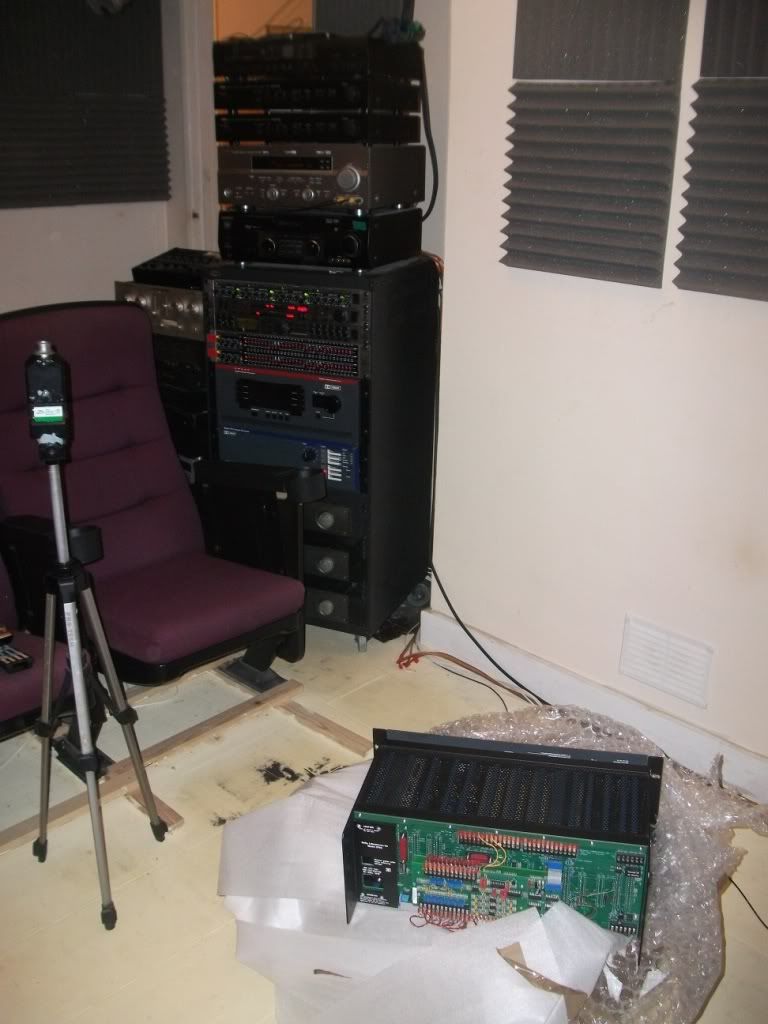

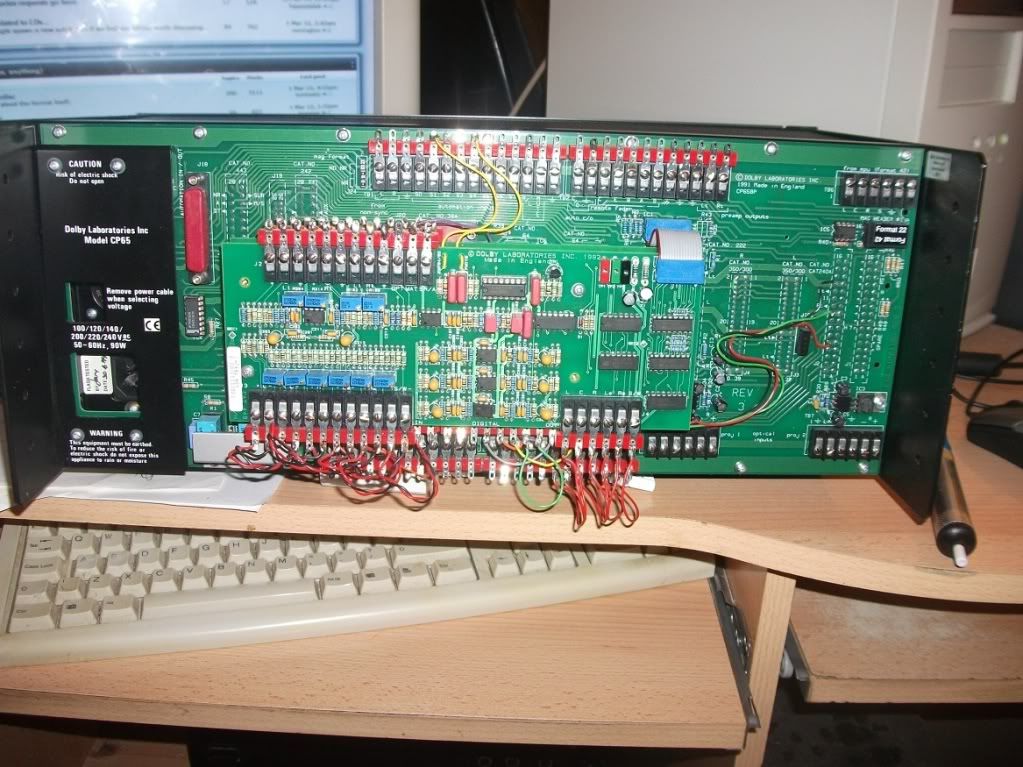

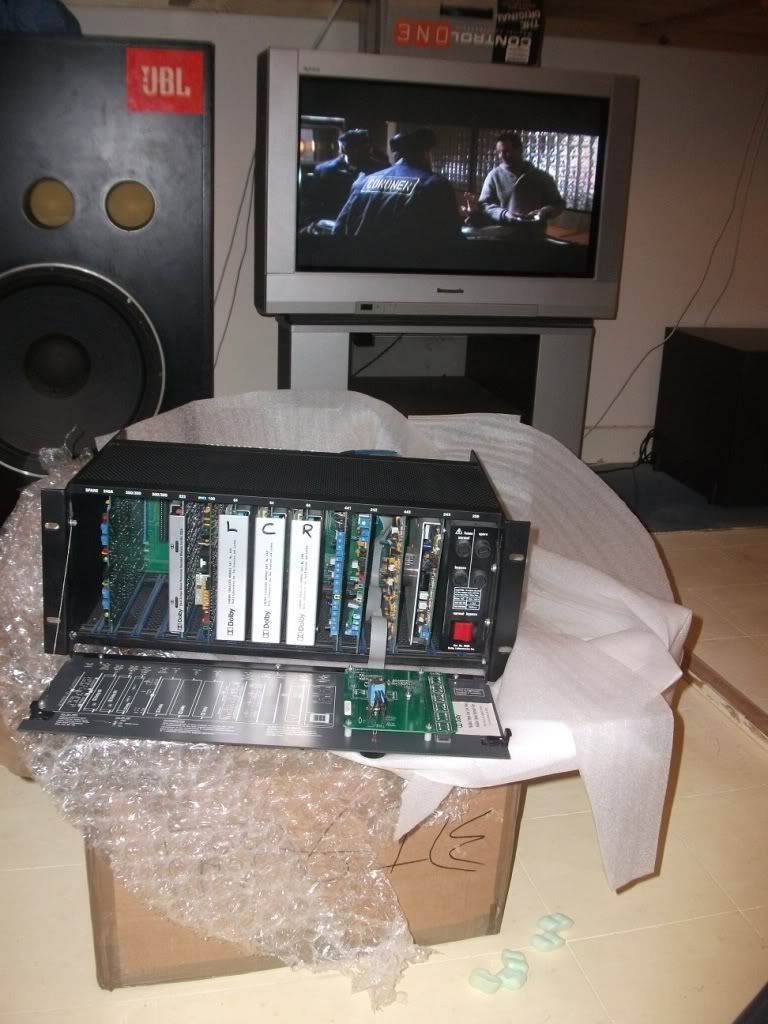

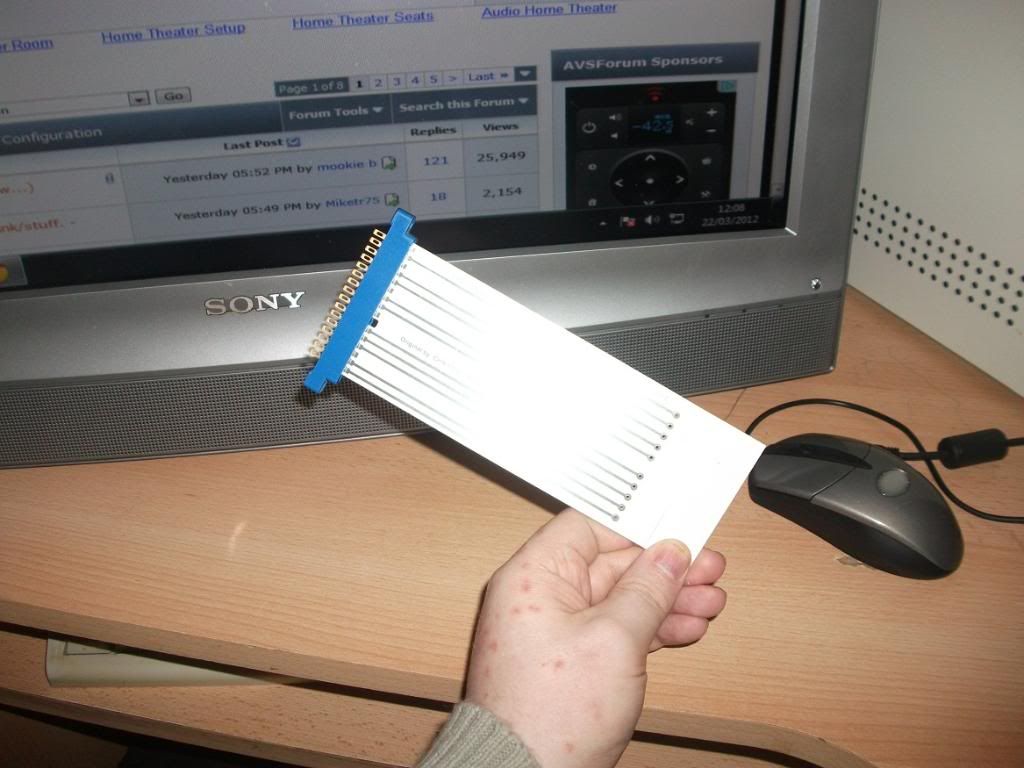

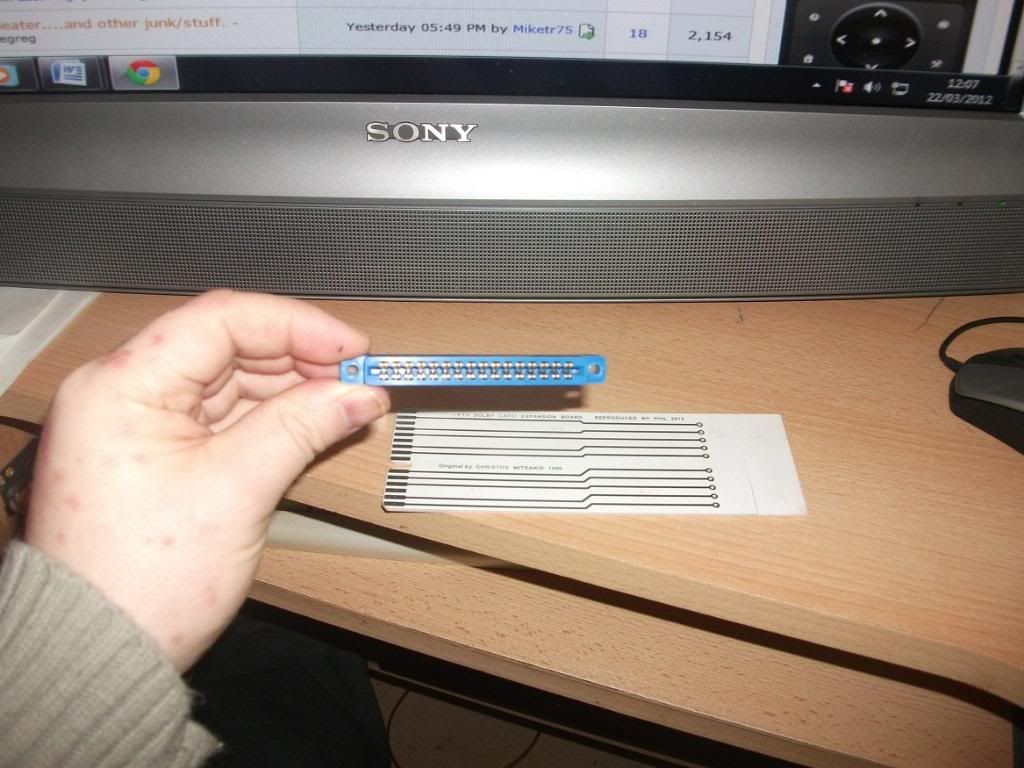

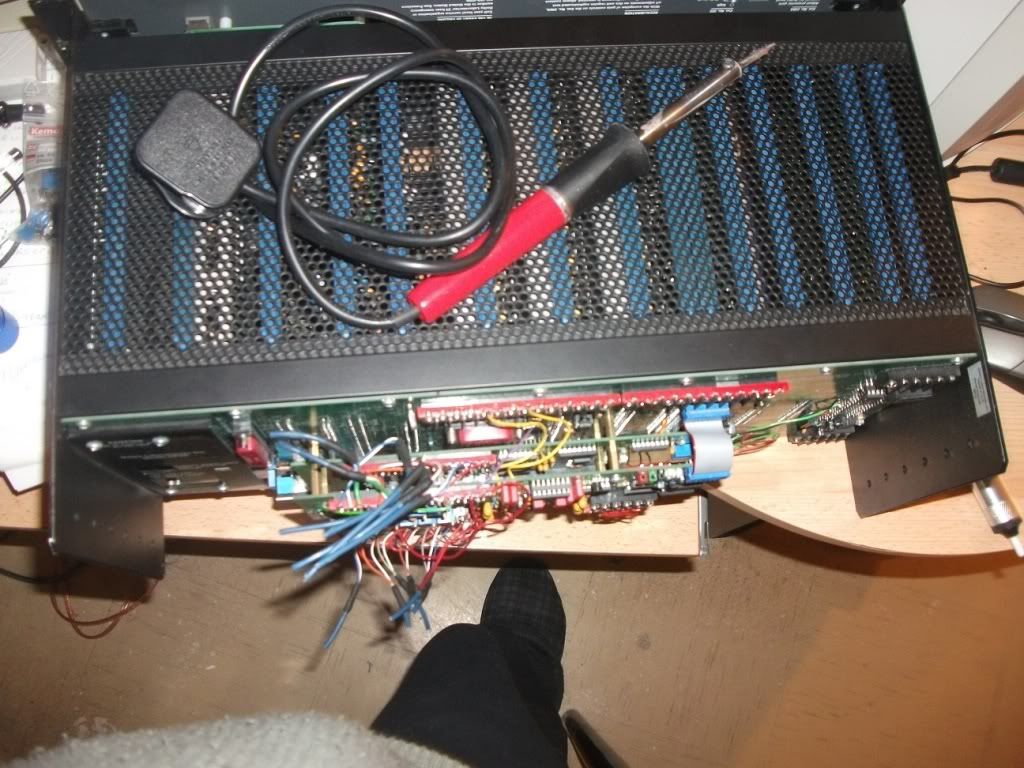

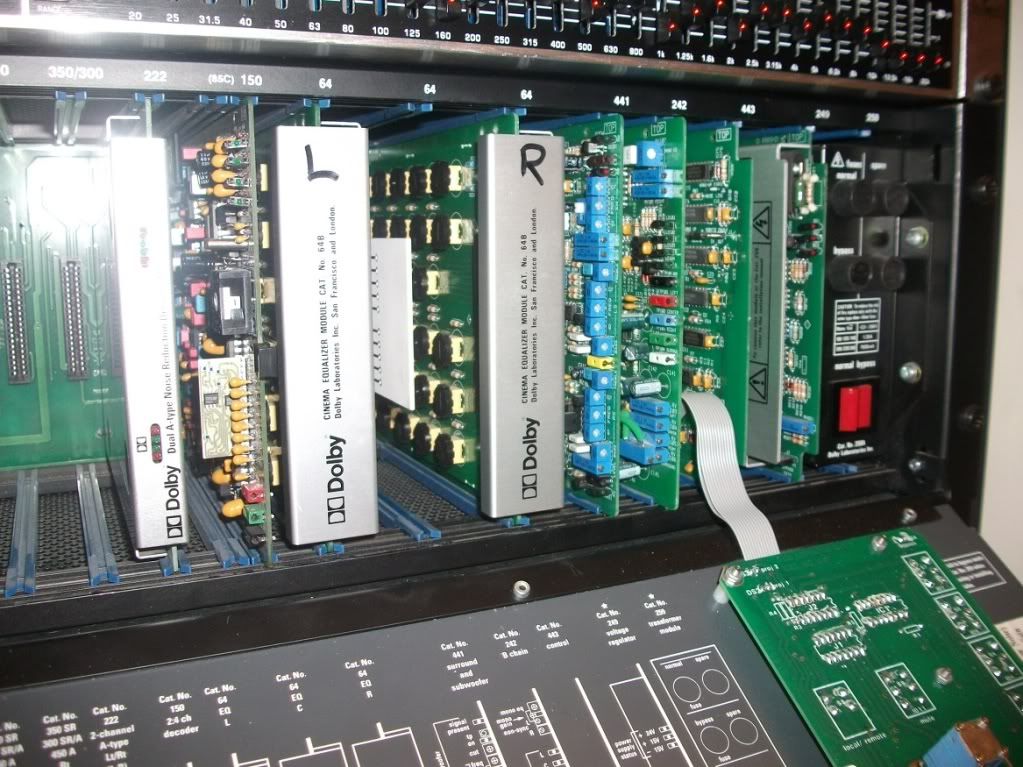

olby CP65 currently being used for 6channel discrete and Dolby Pro-Logic
Manual for CP65http://www.iceco.com/Dolby/CP65%20Product%20Sheet.pdfhttp://www.iceco.com/Dolby/CP65%20In...n%20Manual.pdfhttp://www.film-tech.com/warehouse/m...YCP65CHART.pdfD

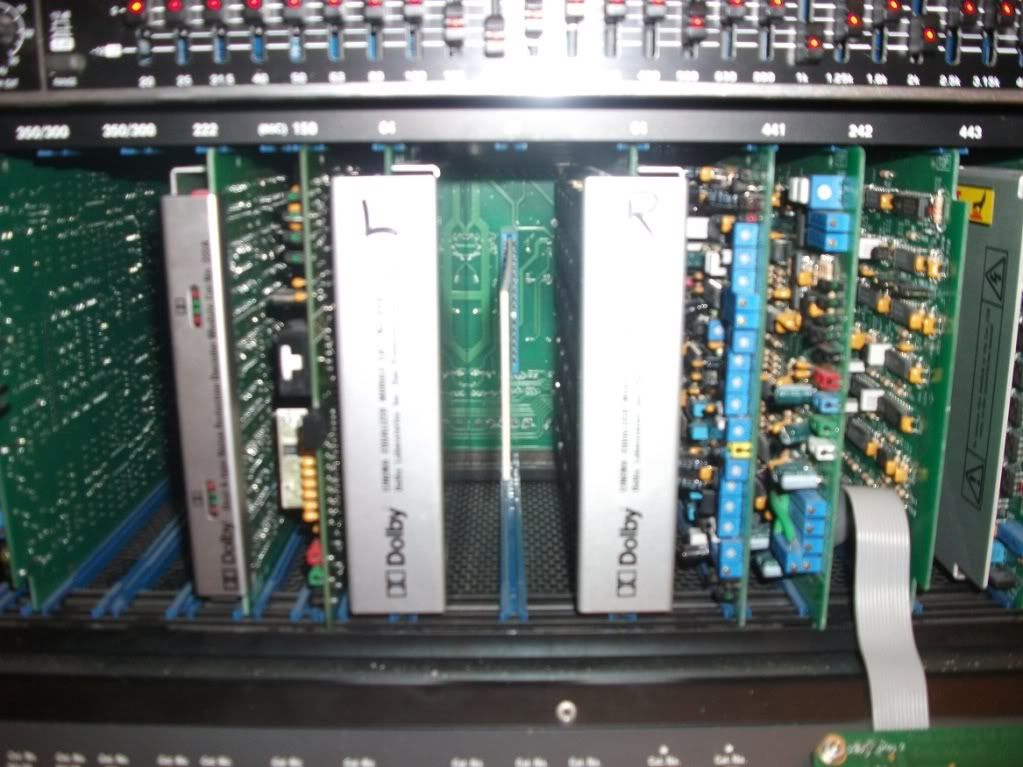

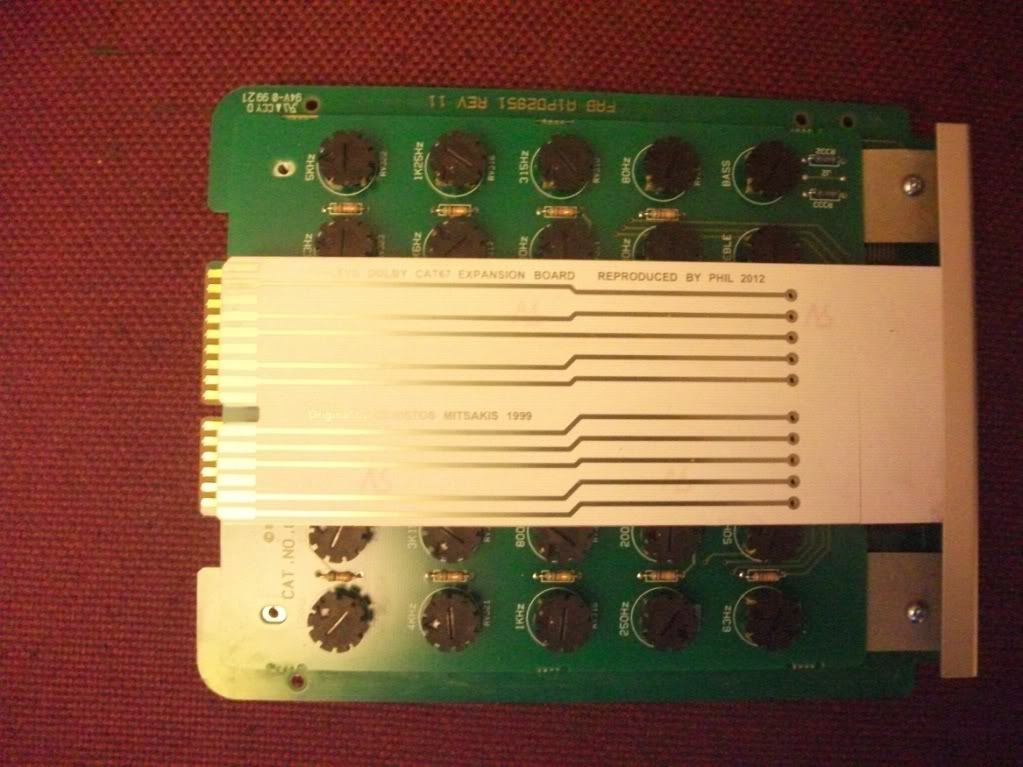

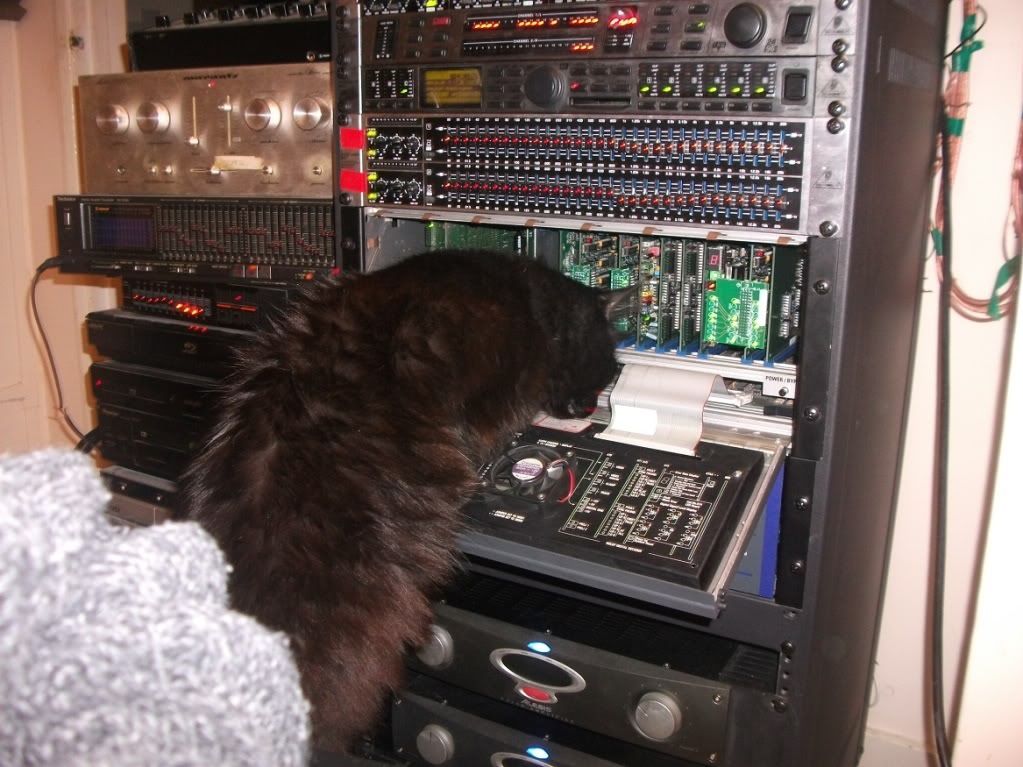

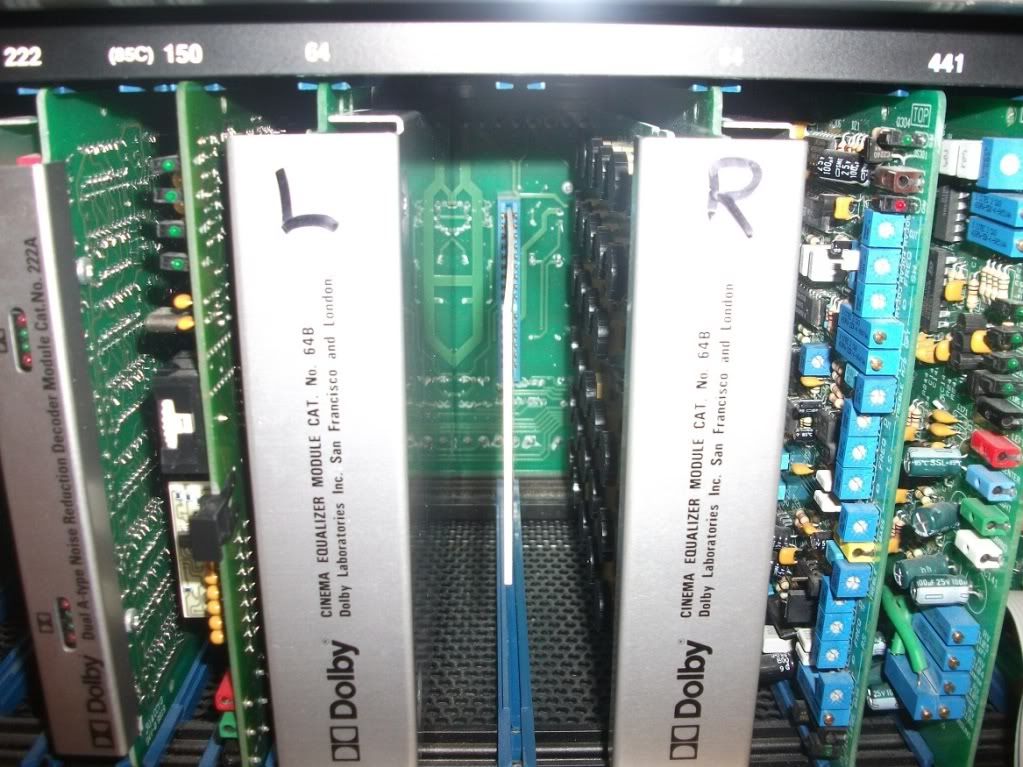

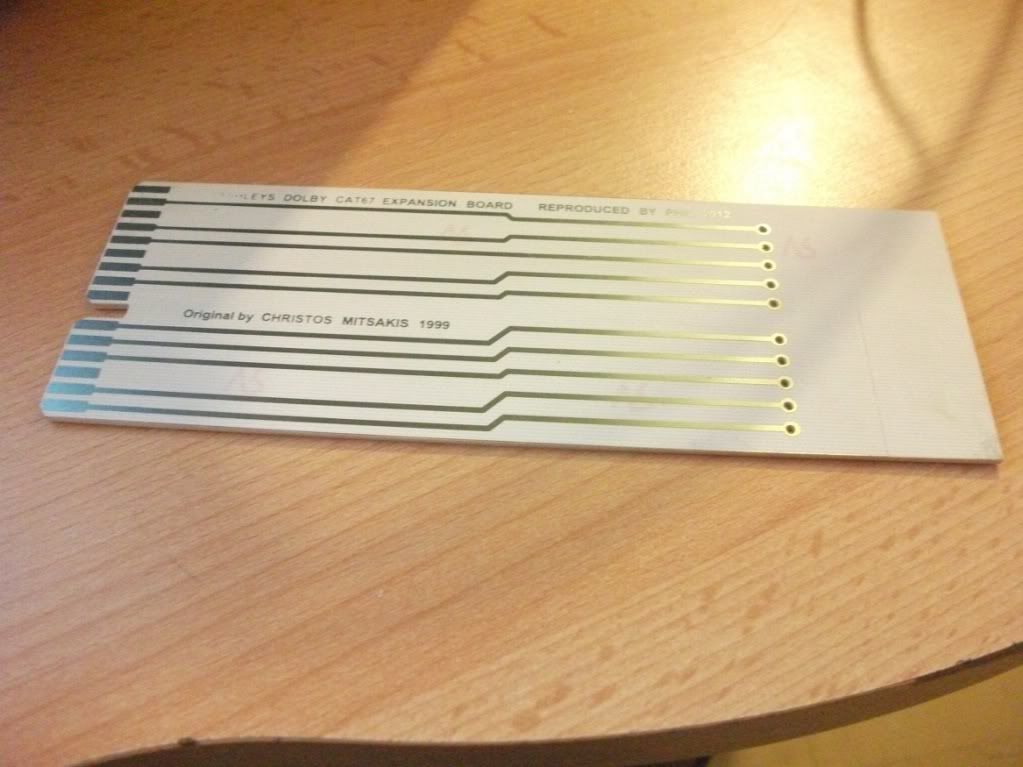

olby CP500 set aside awaiting additional CAT cards
Manual for CP500http://www.film-tech.com/warehouse/m...DOLBYCP500.pdfhttp://www.film-tech.com/warehouse/m...500REFDIAG.pdfhttp://www.film-tech.com/warehouse/m...CP500USERS.pdfhttp://www.film-tech.com/warehouse/m...CP500CHART.pdfhttp://www.rsem.com/pdf_manuals/Dolb...c%20Decode.pdfCrossover systemB
ehringer DCX2496 LCR front loudspeaker management crossover system
Manual for DCX2496http://www.behringer.com/assets/DCX2496_P0036_M_EN.pdfAmplifiersA
lesis RA300 left/right front LFA
lesis RA300 centre front LF / overhead surroundA
lesis RA300 sub bass / LFE.1 in bridge mode
Manual for RA serieshttp://www.alesis.com/stuff/contentm...t_overview.pdfhttp://www.alesis.com/stuff/contentm...500_manual.pdfM
arantz 1050 lefr/right front HFM
arantz 1050 centre front HFM
arantz 1030 powering The Puck sub bass transducersAdditional audio processorsB
ehringer MDX4600 LCR /sub LFE.1 audio limiter compressor as and when I need it
Manual for MDX4600http://www.behringer.com/assets/MDX1600_P0177_M_EN.pdfR
ealistic 6 channel audio mixer for LCRS sub bass extension (soon to be replaced with second DCX2496)Audio/video playersP
hillips BDP7300 DVD/bluray player with 6channel DOLBY TrueHD 6.1 / dts hd master audio 6.1 decoder in active useS
ony BDP-S550 DVD/Bluray player with 8channel DOLBY TrueHD 6.1 / dts hd master audio 7.1 decoder in active useS
ony DVP-S336 DVD player bedroom DVD playerP
ioneer DLV-909 CD/DVD Laserdisc player in active useP
ioneer CLD-1750 Laserdisc player (needs a few basic parts to get it up and running again)P
ioneer CLD-2950 Laserdisc player (needs a few basic parts to get it up and running again)P
ioneer DV-515 DVD player multi-regional player in active useP
ioneer DV-525 DVD player waiting for new useY
amada DVR-9300HK DVD/recorder playerY
amada DVR-9300HX DVD-RW recorderVideo monitor and projectorH
itachi XGA CP-X430 HD ready only 1080i gets little use only for special showsP
anasonic widescreen CRT 32”S

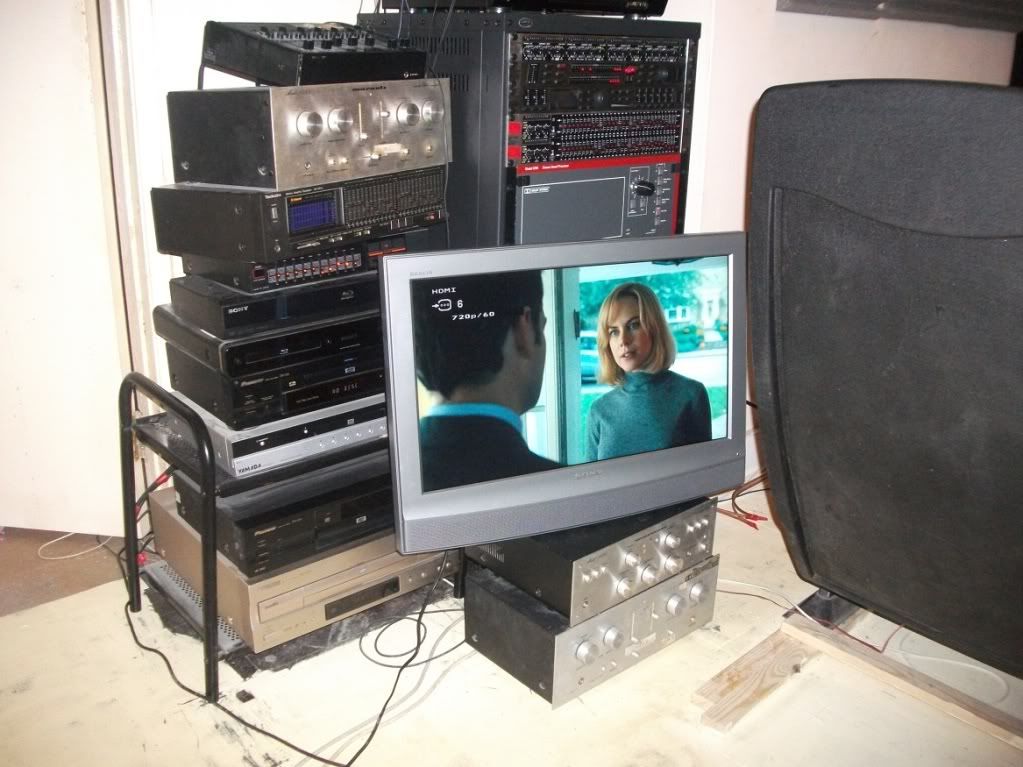

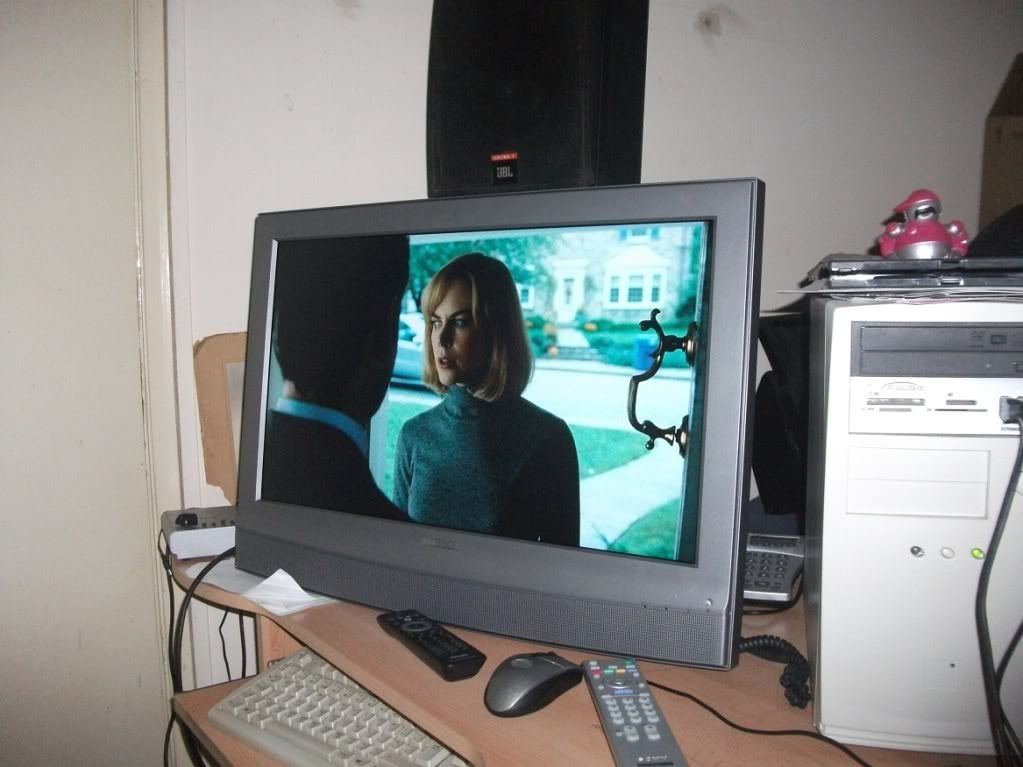

ony Bravia LCD 30" flat screen HD ready for bedroom. Thou Might think of using it for the living room. Fine picture not great just fine displays a bit more width then my CRT Panasonic.LoudspeakersJ
BL sound system main roomJ
BL control 5 (x5 inactive at present time), I’m thinking for a new role in the sound system for them to play in.http://www.jblpro.com/catalog/suppor...=785&doctype=3http://www.jblproservice.com/pdf/Con...trol%205WH.pdfJ
BL x 3 Control 12SR the forth one sits at the back of the room) LCR modified to run as separate LF / HF with the Beringer DCX2496 x4 only x3 are used for LCR at present looking for two more for 5-screen matrix for special film showings with Dolby Stereo CP65 or CP500.http://www.jblpro.com/pub/obsolete/control_12sr.pdfJ
BL Control 1 x12 Surrounds all are fitted at equal height and aimed downwards for uniform defused surroundhttp://www-it.desy.de/fepos/download...L_Control1.pdfhttp://www.jblproservice.com/pdf/Con...trol%201WH.pdf
x3 for left sidewall wired in series
3x for right sidewall wired in series
x4 for back wall in two halves each side wired in series

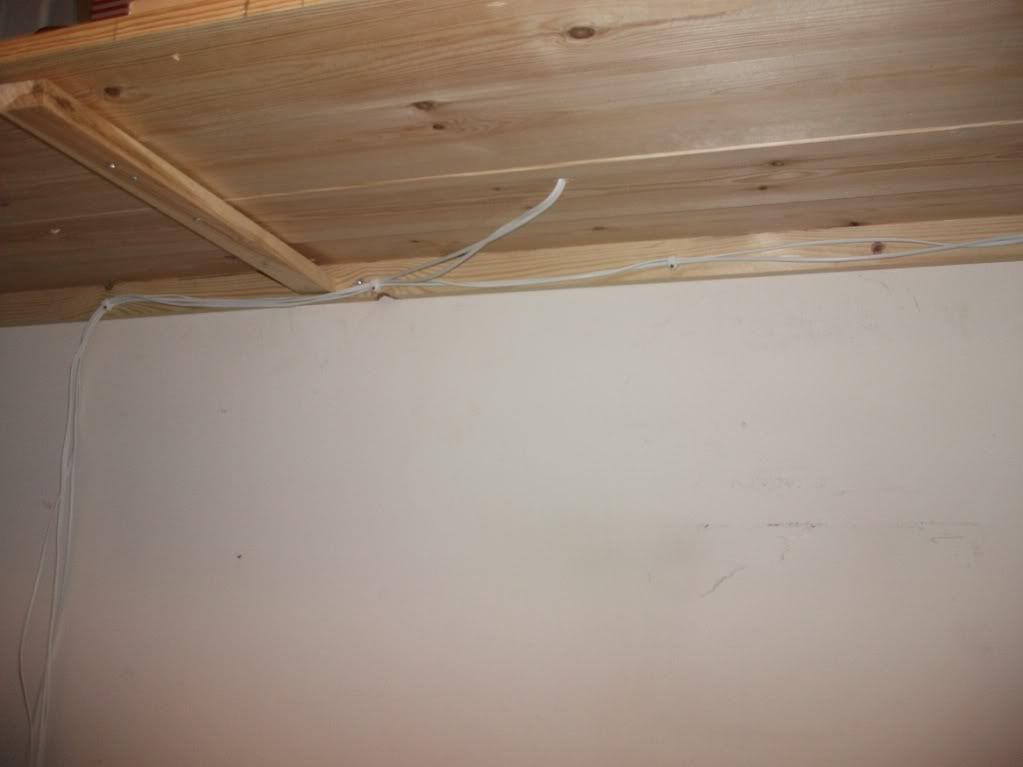

x2 for overhead matrix surround wired in seriesJ
BL diy 4645 sub bass 18” sub bass / LFE.1http://www.jblpro.com/pub/obsolete/2240gh.pdfJ
BL GTO1202D x2 LCRS sub bass extensionhttp://www.jbl.com/resources/Brands/.../GTO_1202D.pdfT
he Puck sub bass transducers fitted to x3 seats the remaining, The Puck I'll buy later and several more as they're not all that bad for the price if kept within their technical tolerance range.http://www.parts-express.com/pe/show...number=300-388http://www.daytonaudio.com/media/res...nual-43678.pdfToolsR
ealistic analogue SPL db metreB
ehringer ECM8000 calibration microphone (need 3 to maybe 7 more ECM8000)
Manual for ECM8000http://www.speechresearch.co.nz/ecm8000.pdfB
Manual for MIC100http://www.behringer.com/assets/MIC100_P0207_M_EN.pdfR
pectrum LabTest discs
dts demo music and calibration set-up disc
THX bluray set-up disc

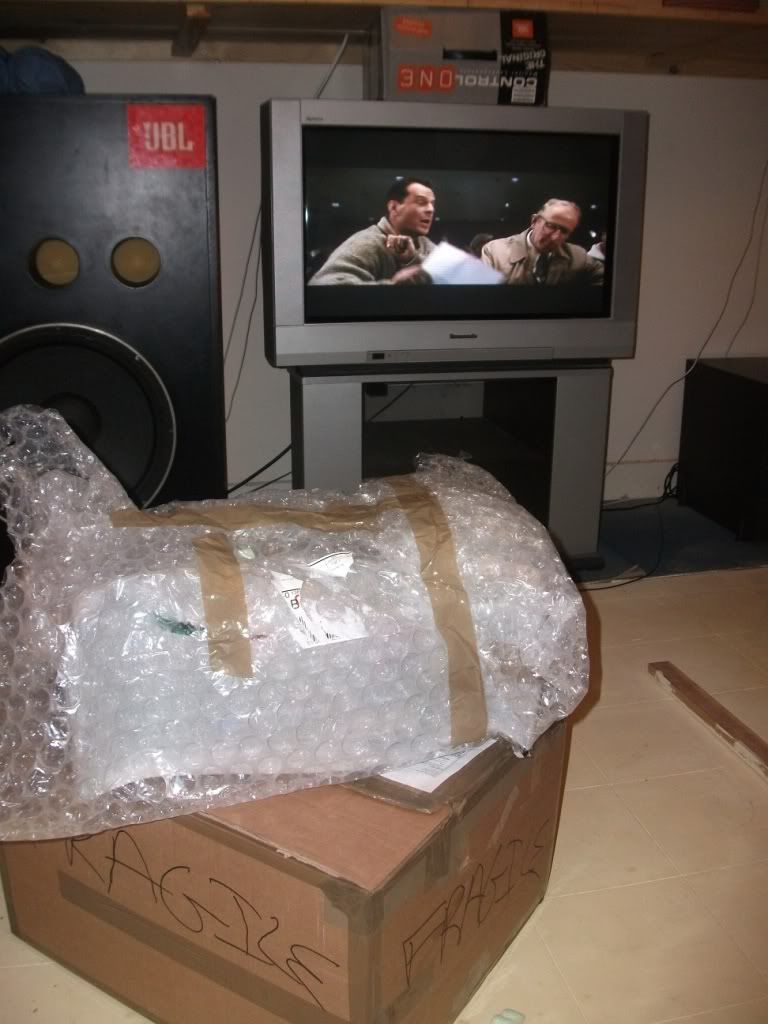

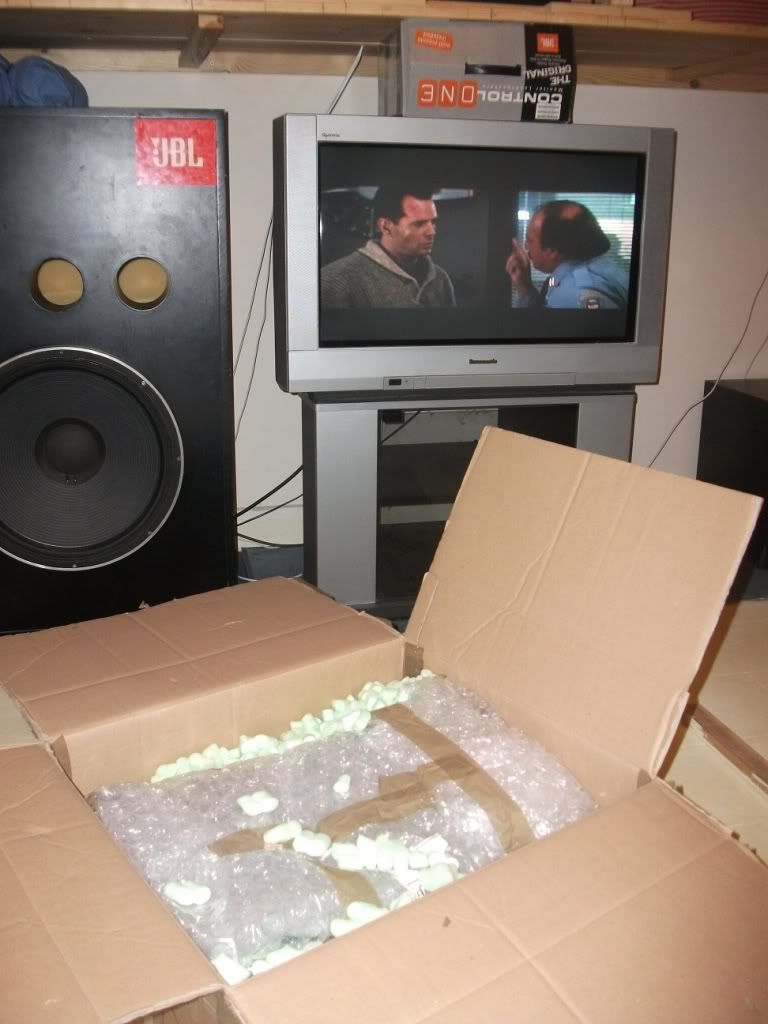

I was kinder hoping I'd have it this way and would see it though to being finished until I scored some rare JBL Control 12SR and removed the plasterboard. Got start all over again and it peanuts for plasterboard.

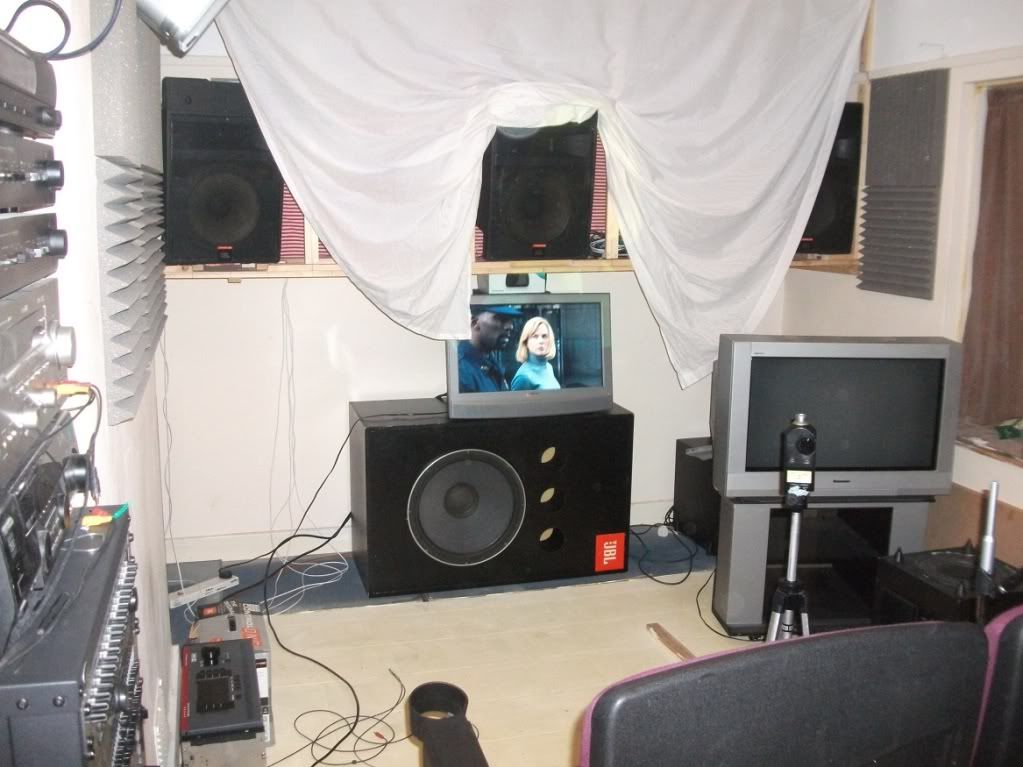

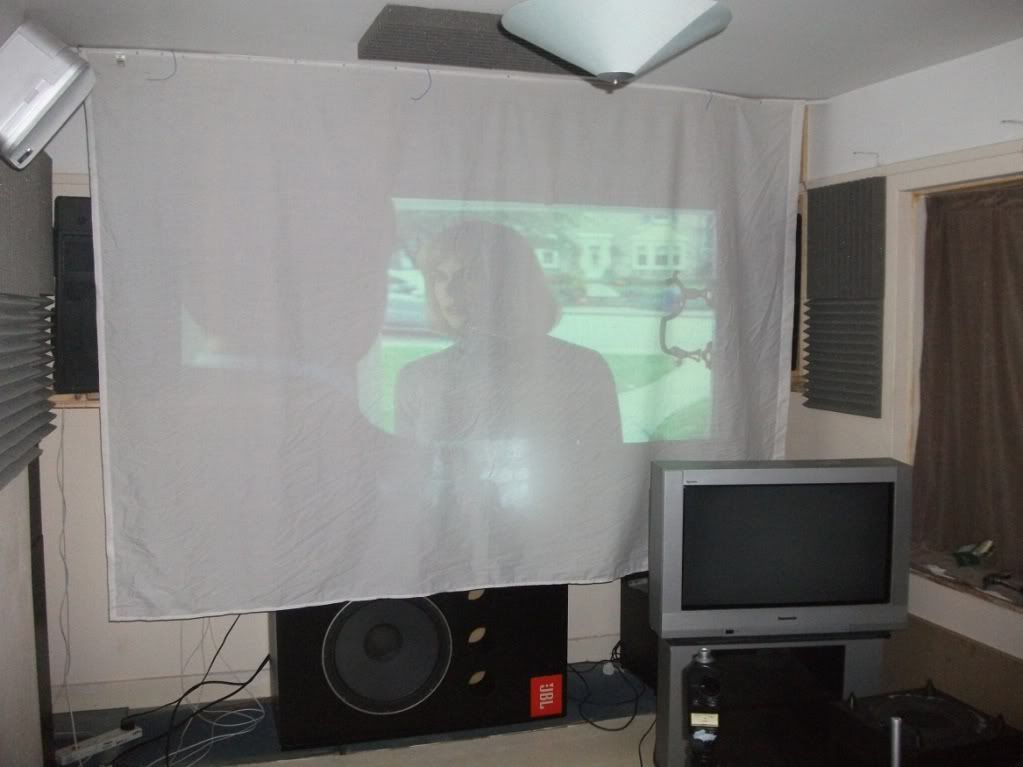

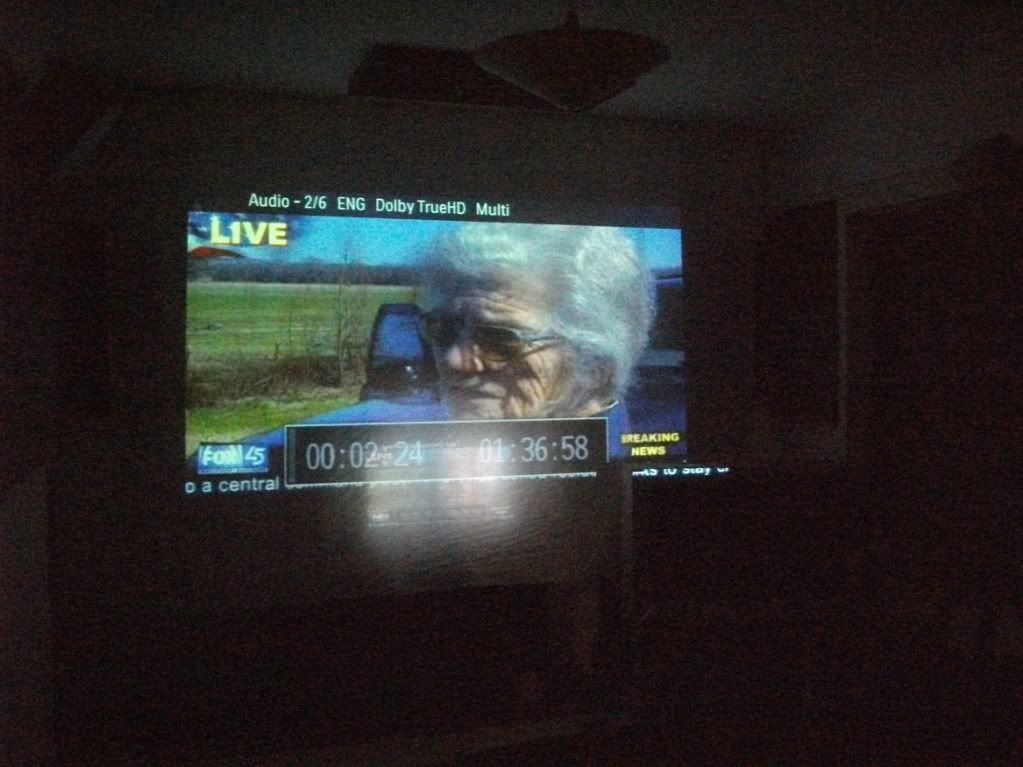

Bed sheet visible to upper right corner for video projection as and when I run it.

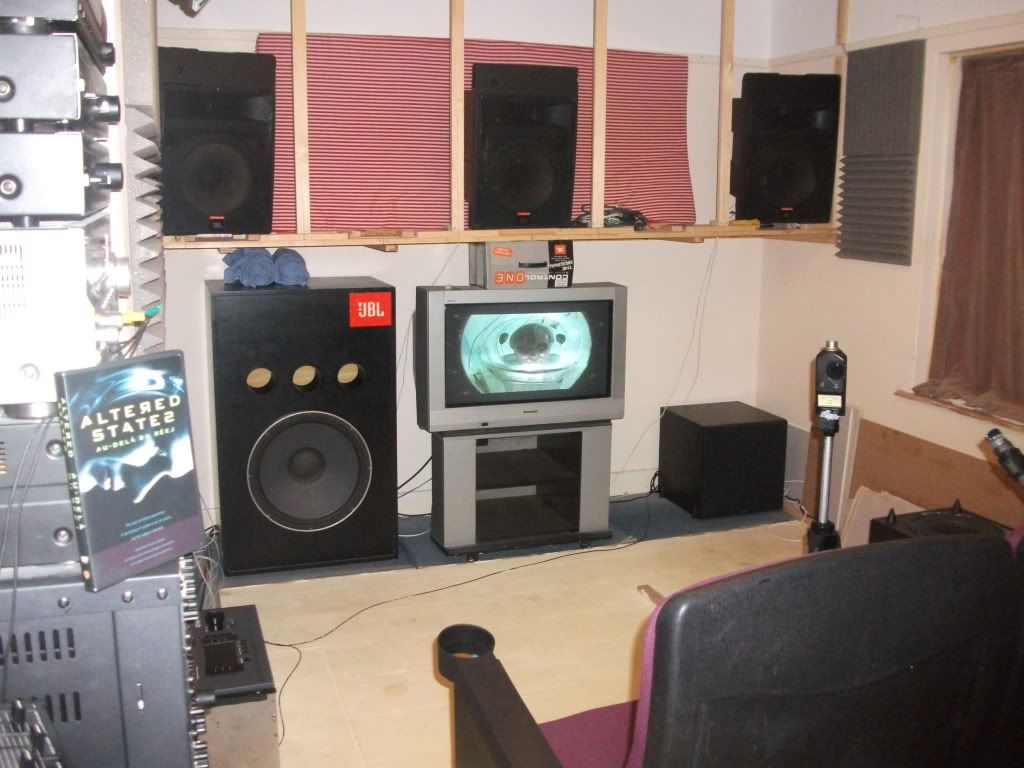

Panoramic view got a little cropped in the editing of piecing the three halves together, I should have used a tripod.

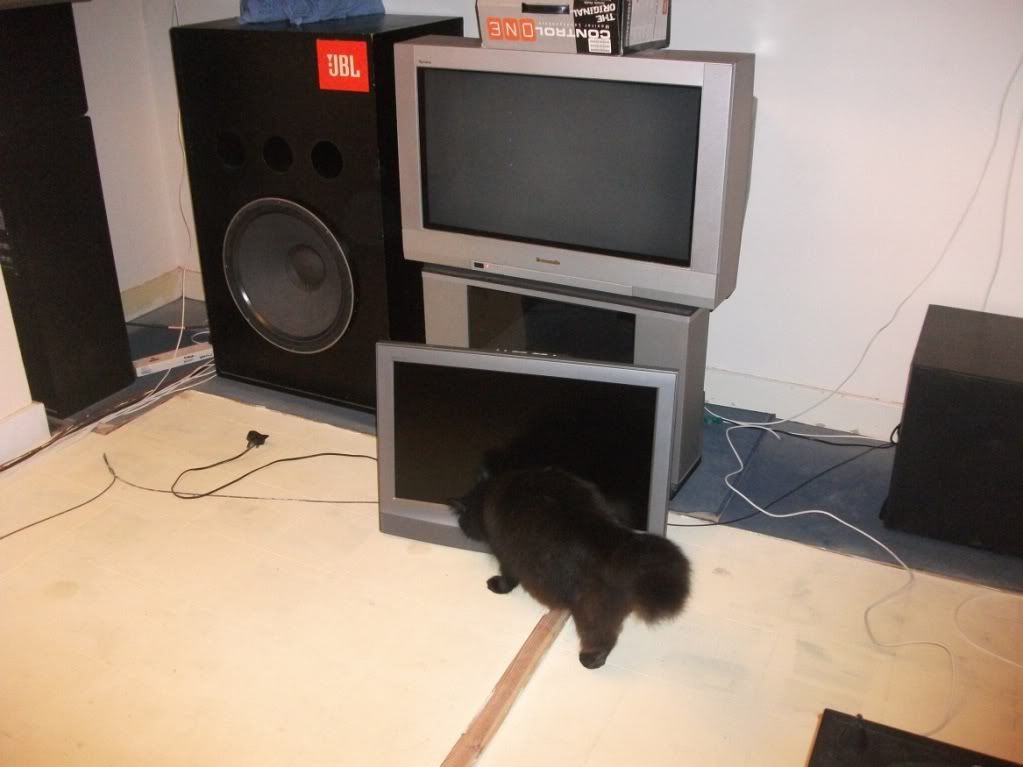

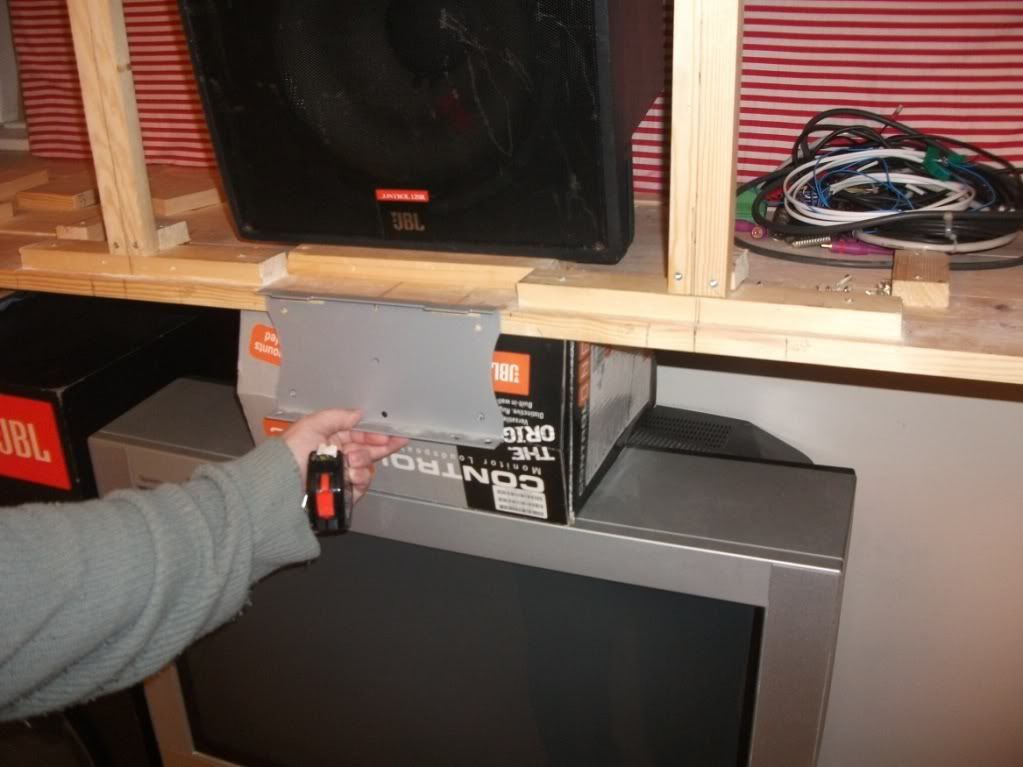

Woodwork is not my sort of thing and thou I spent a few days building the platform stage and it was never intended to have heavier items placed it and its held up well, the 12SR weigh a damn sight more than the control 5. The box placed between the TV and stage is to give it a ridged middle support until I finish it off with beams on the left and right side or an extra one placed in the middle as I might fit an LCD flat screen to the stage base and move the sub over since it won't be affected by the magnet with discolouring of the picture.

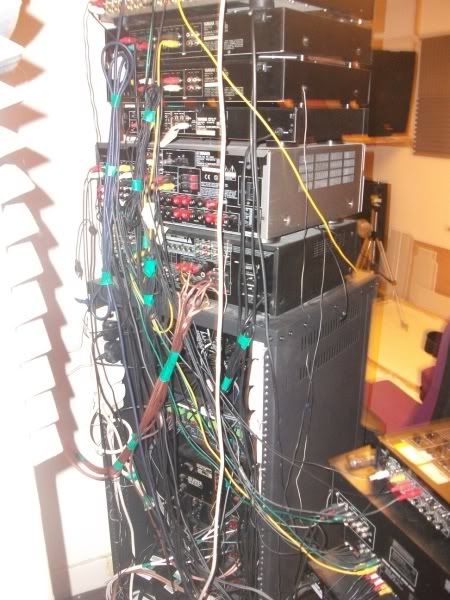

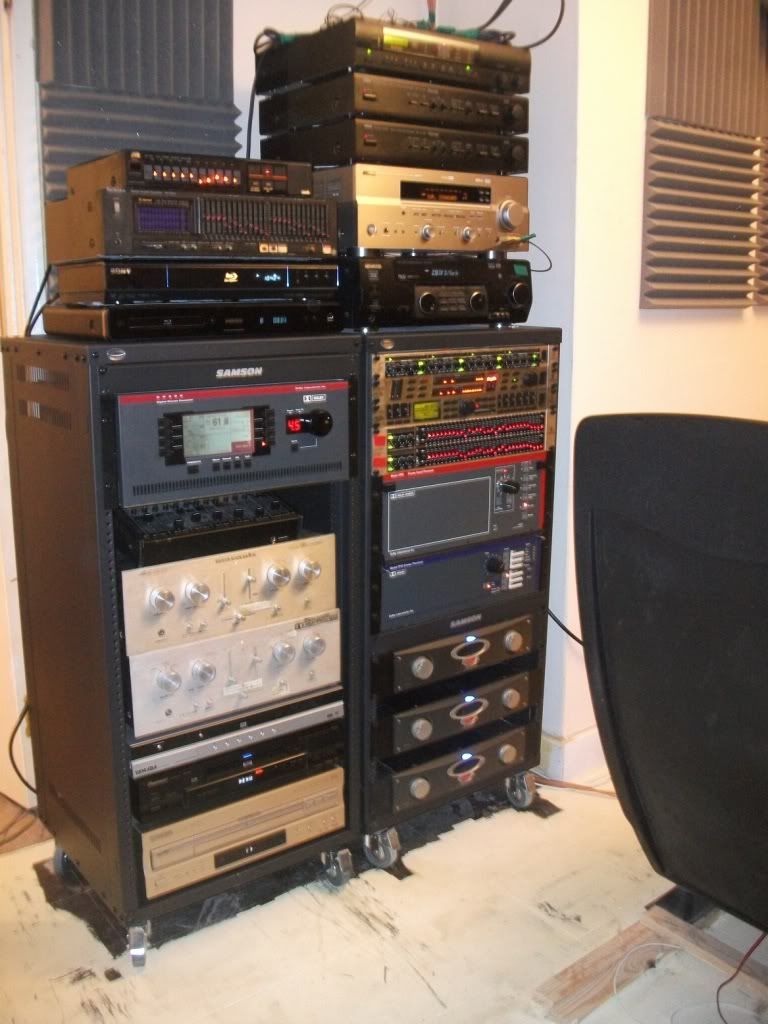

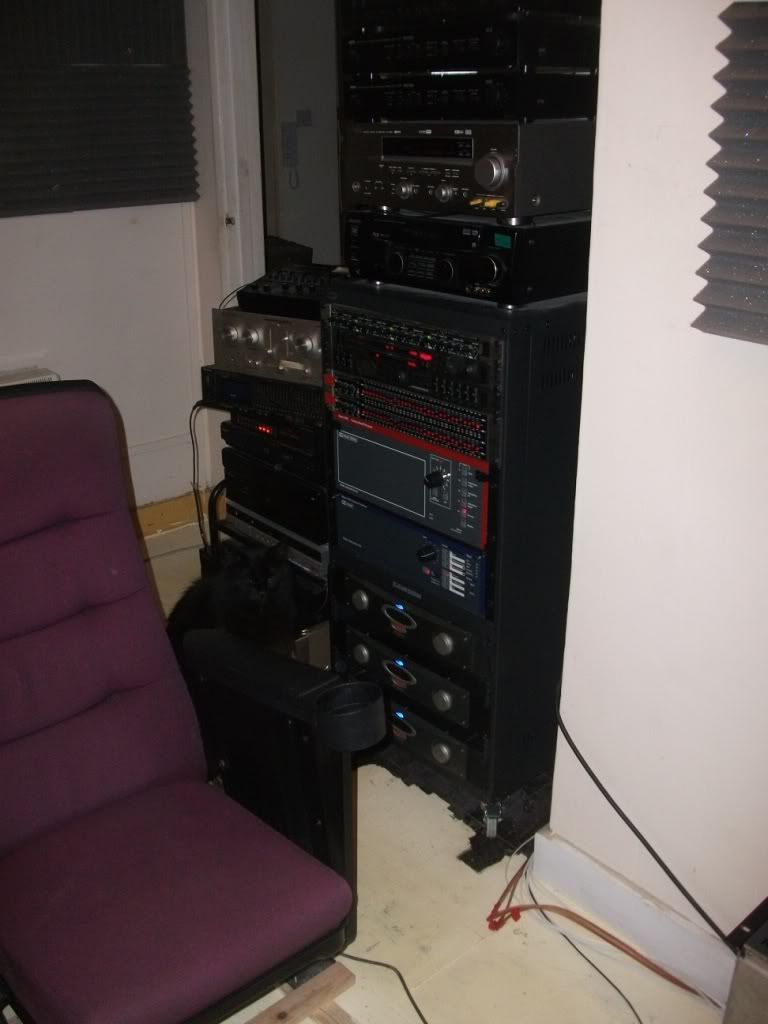

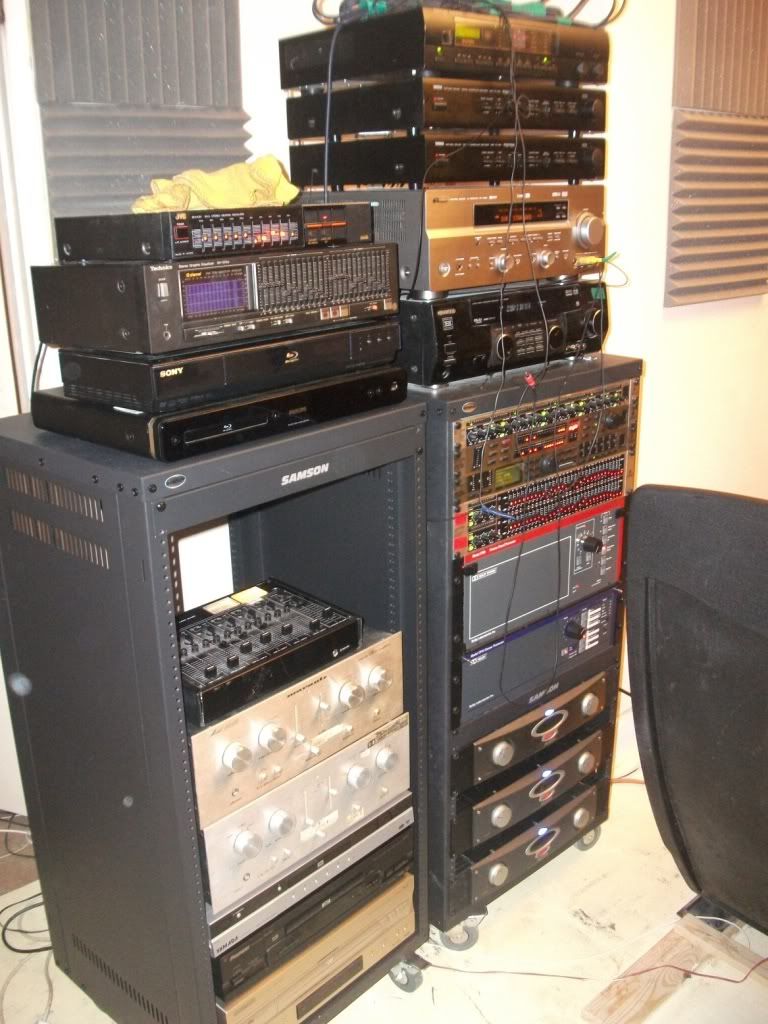

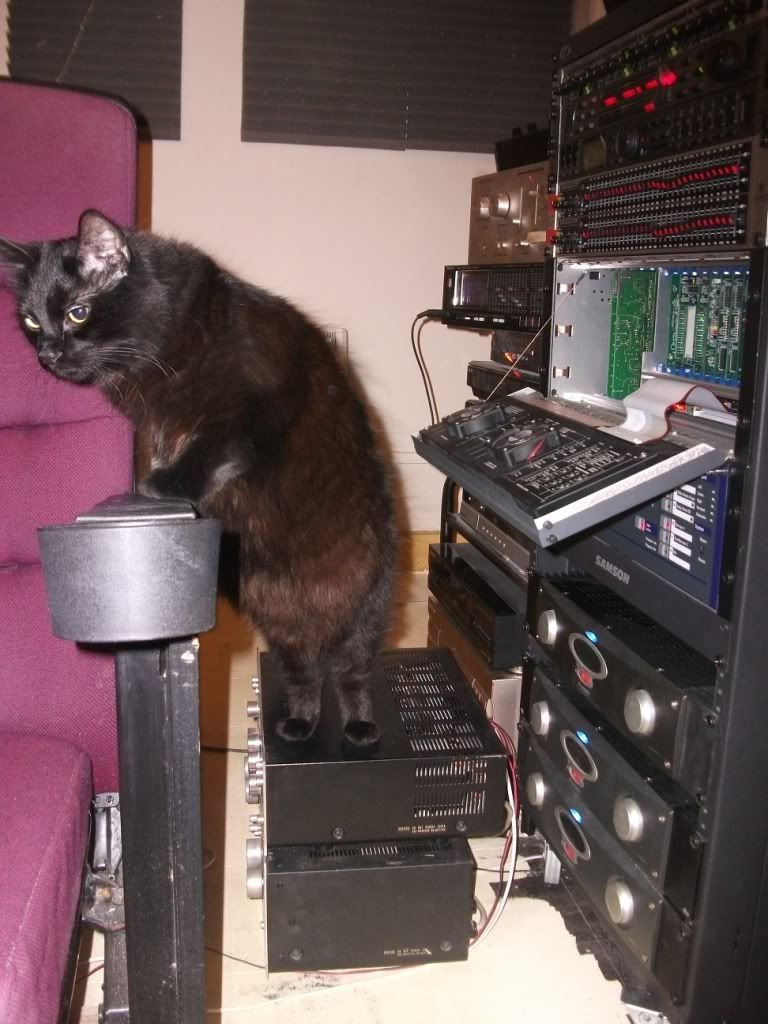

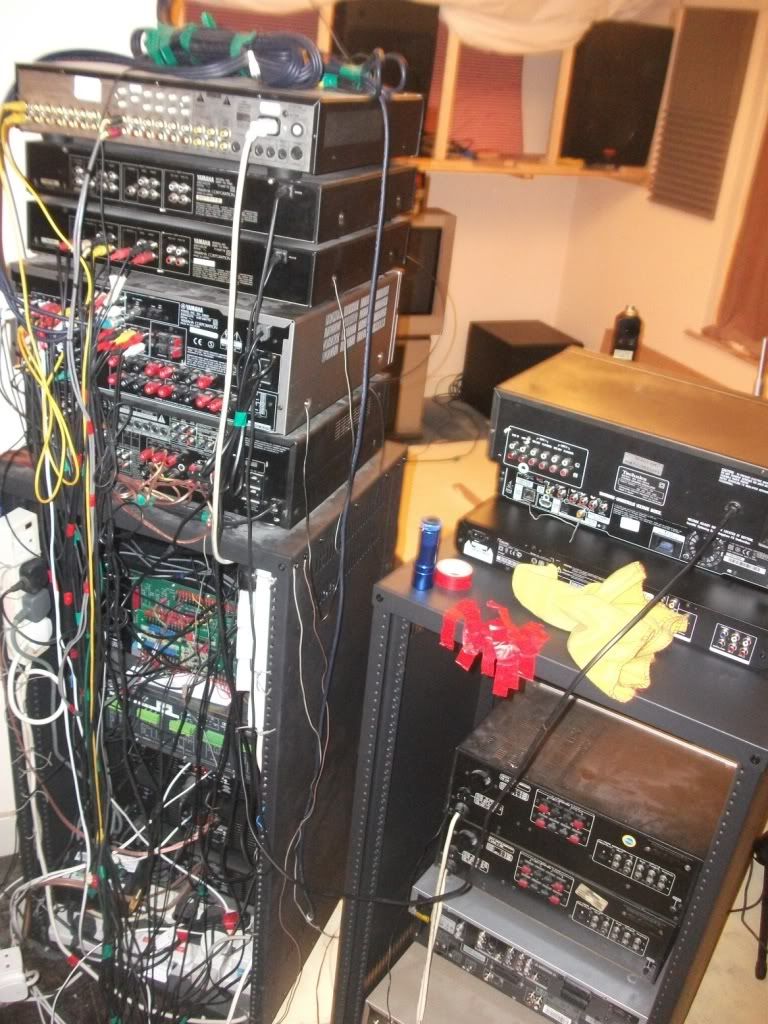

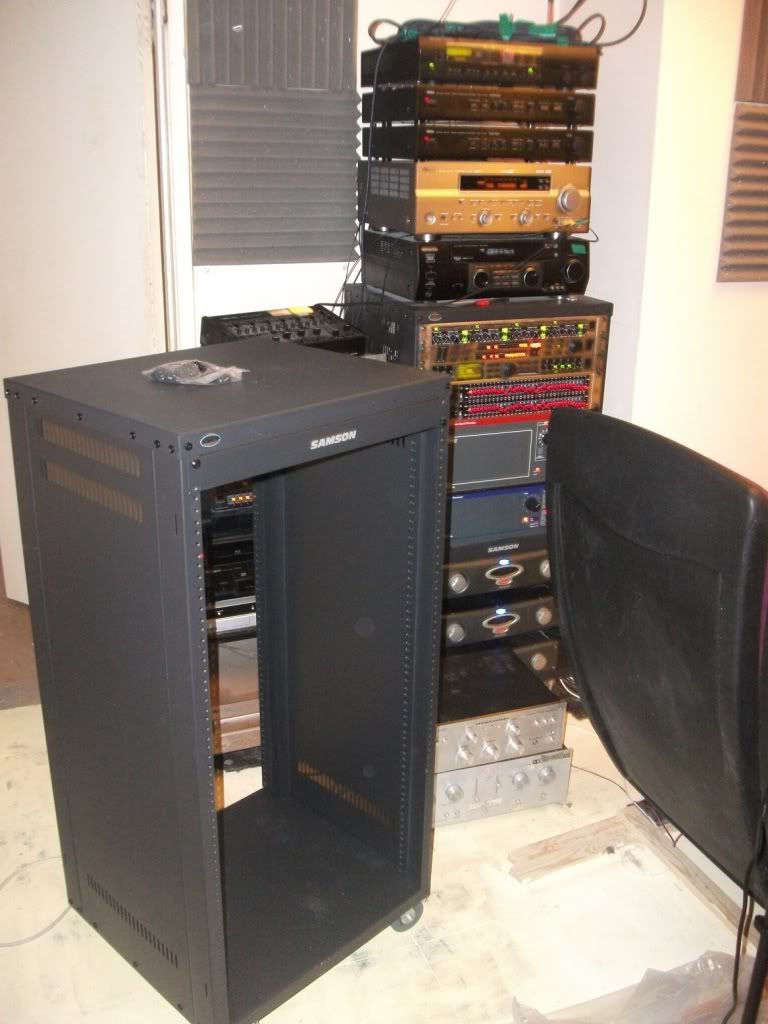

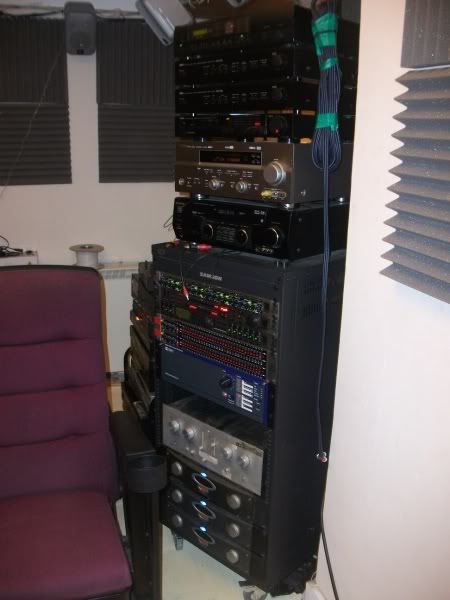

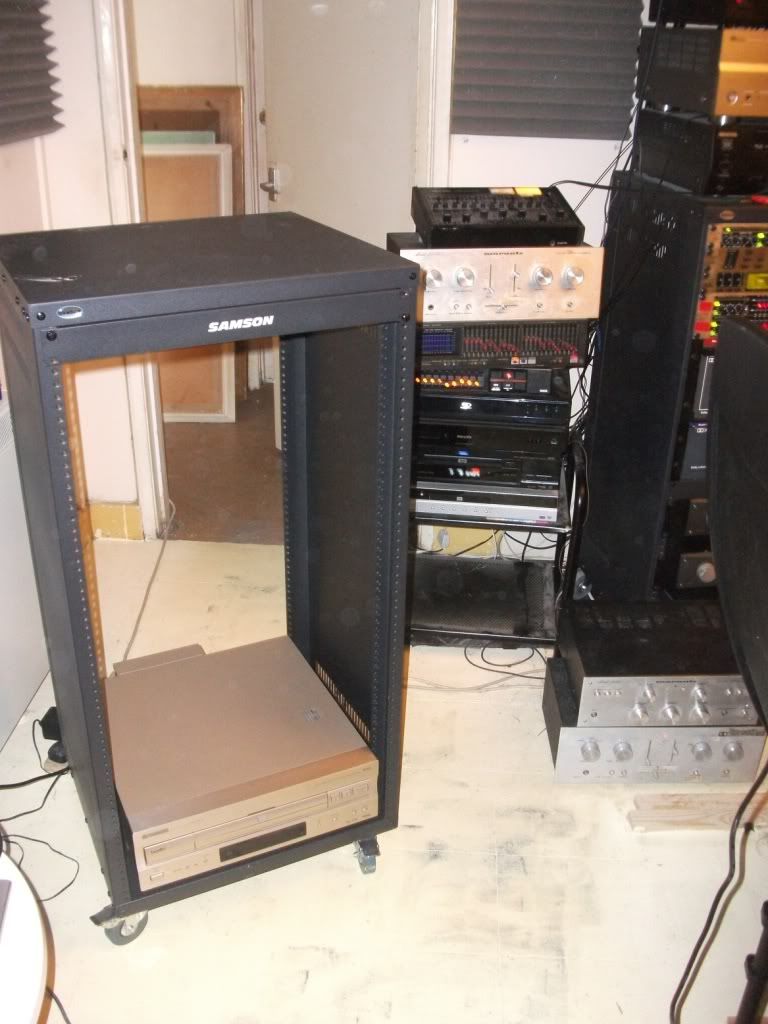

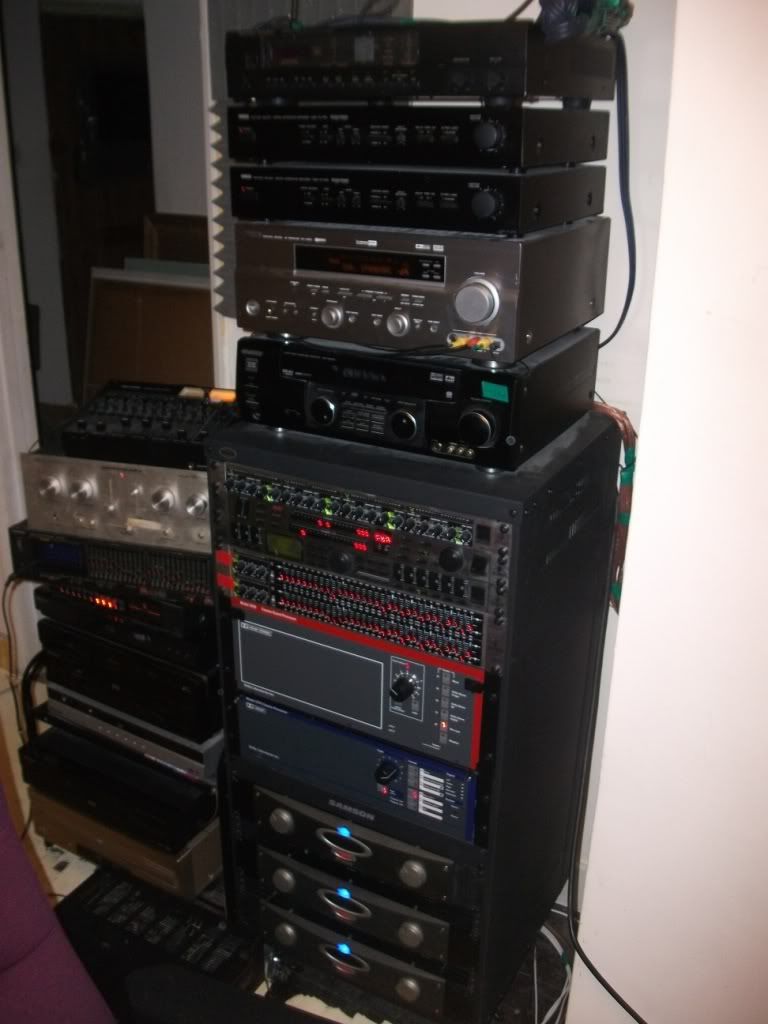

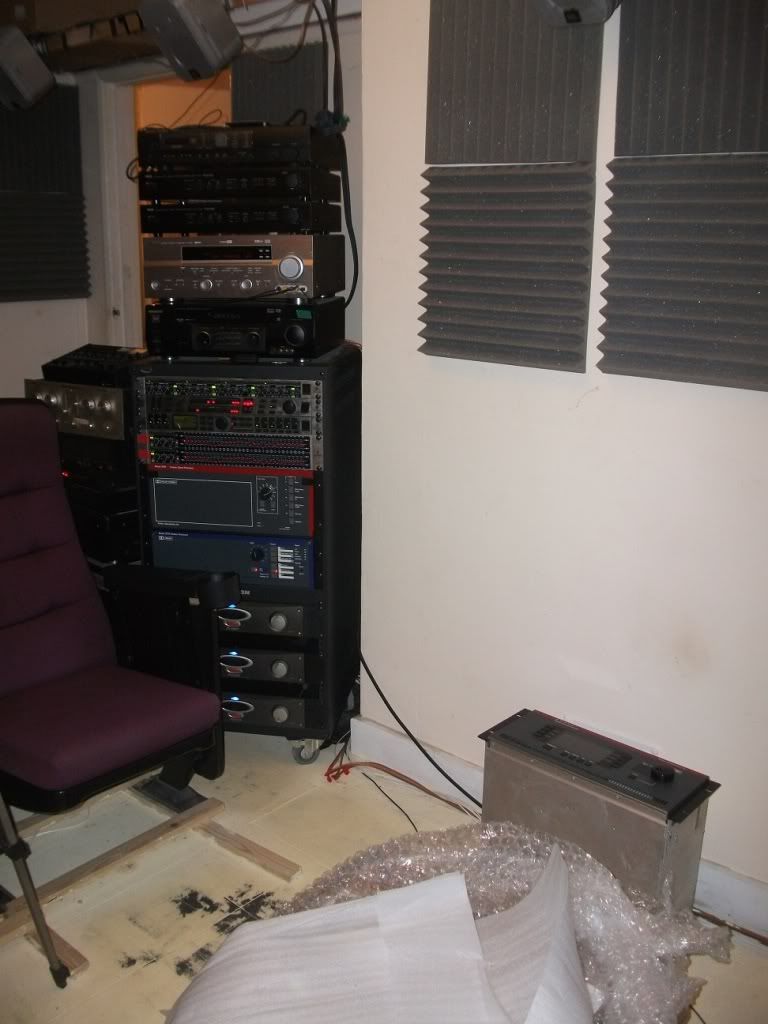

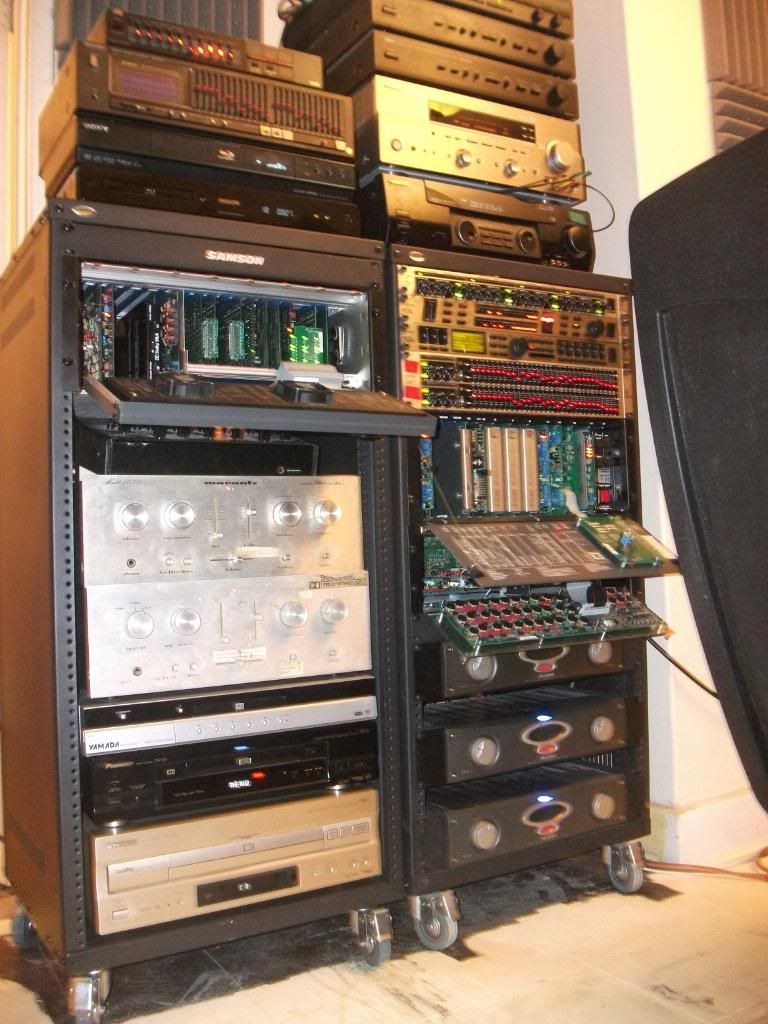

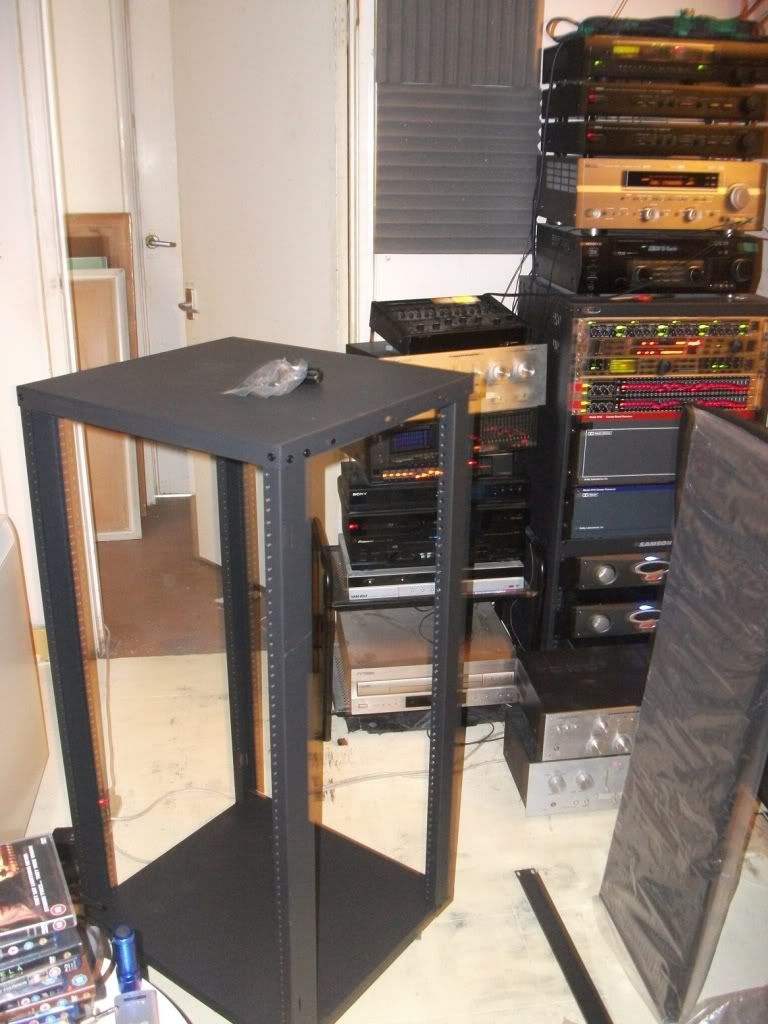

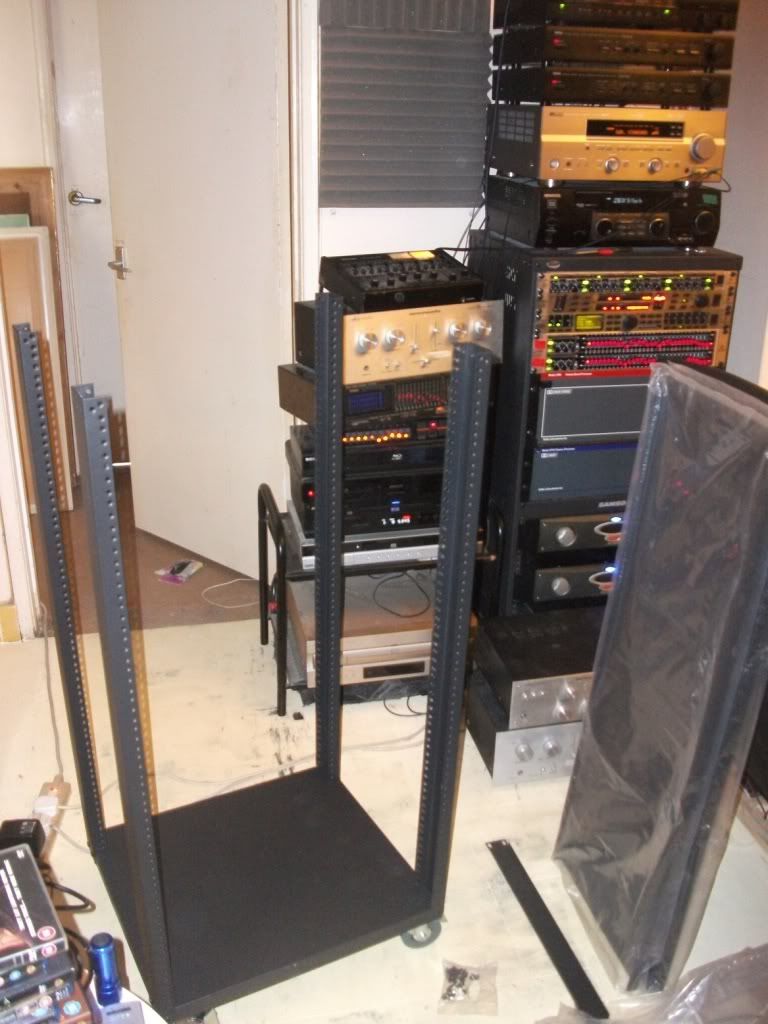

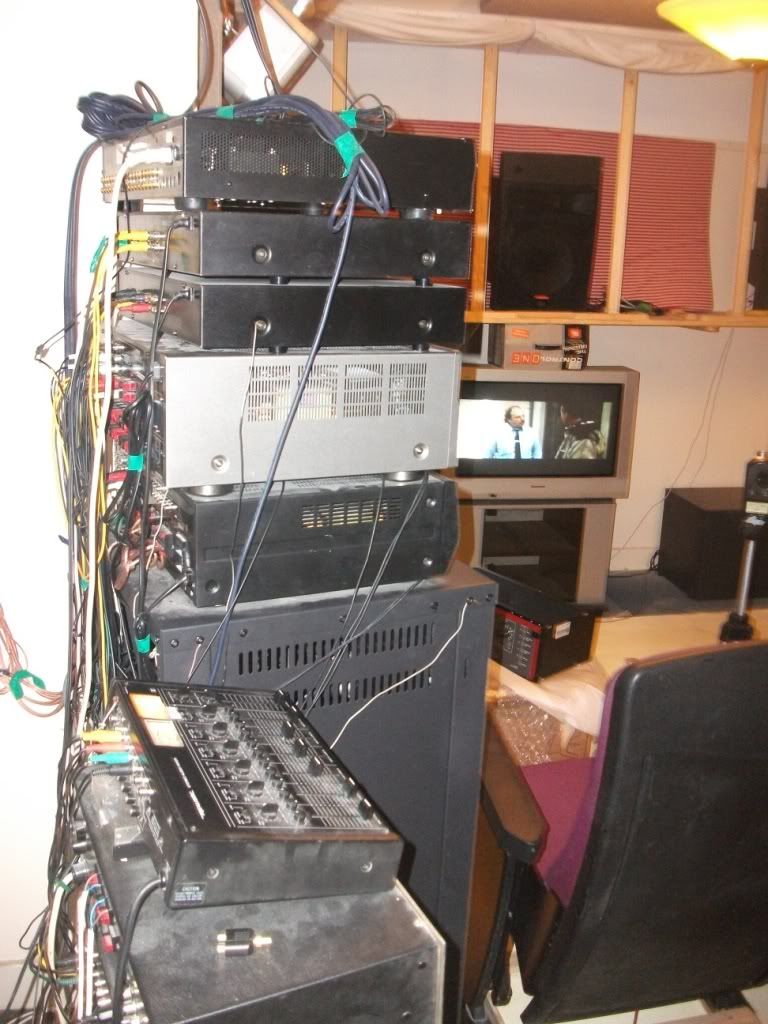

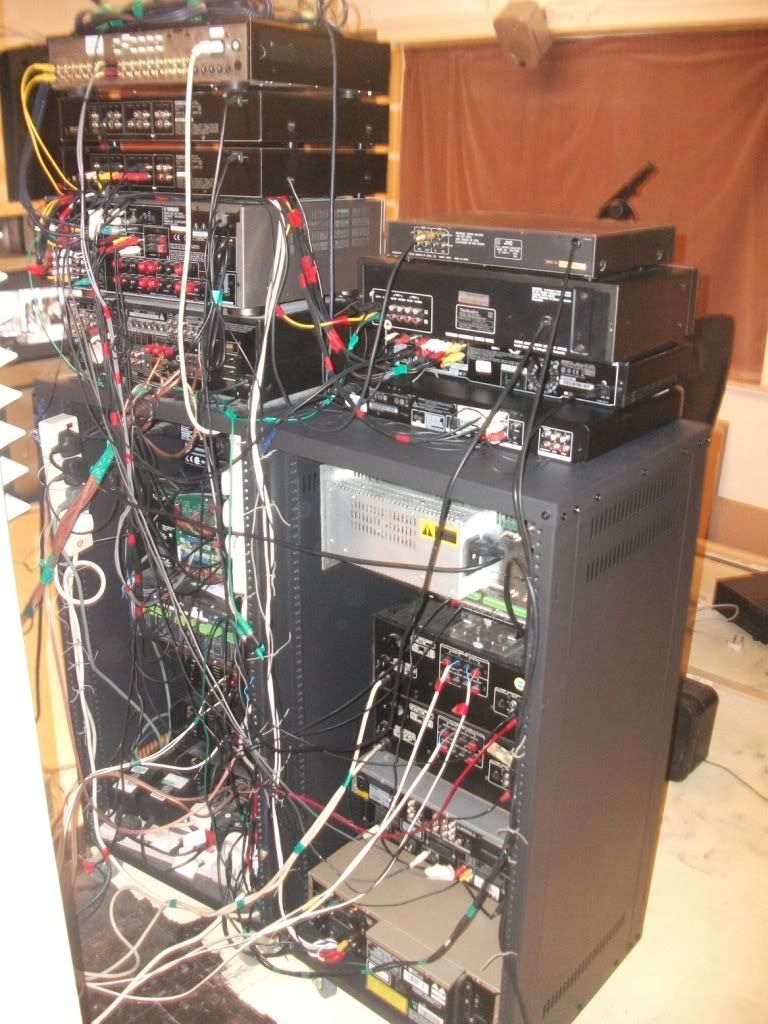

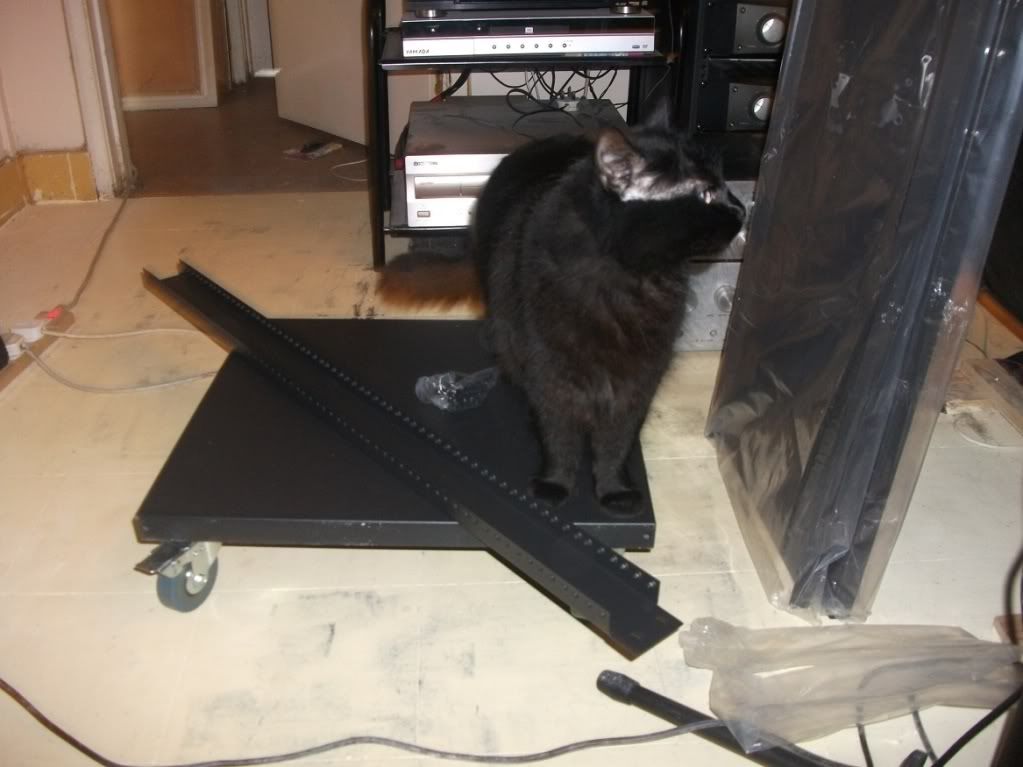

Samson SRK21 cheap buy doesn't cost the Earth to rack mount. This is only one I have at the moment and x3 more will be needed to rack all the audio/video gear.

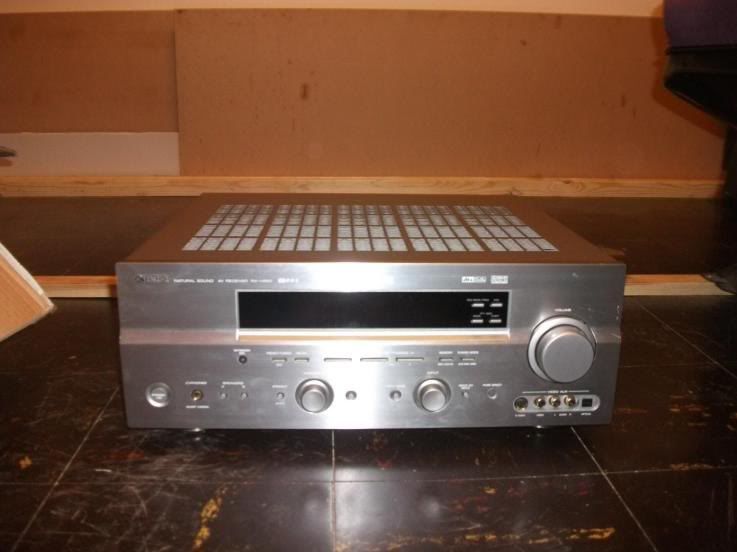

Yamaha RX-V650 cheap buy of eBay for under £70.00 offered only Dolby-EX dts-ES and other trimmings but the goal was to cut corners and use it as and when for Dolby TrueHD 7.1 dtsHDMA 7.1 though its 8channel input now there is no need to spend out on new AVR costing far more.

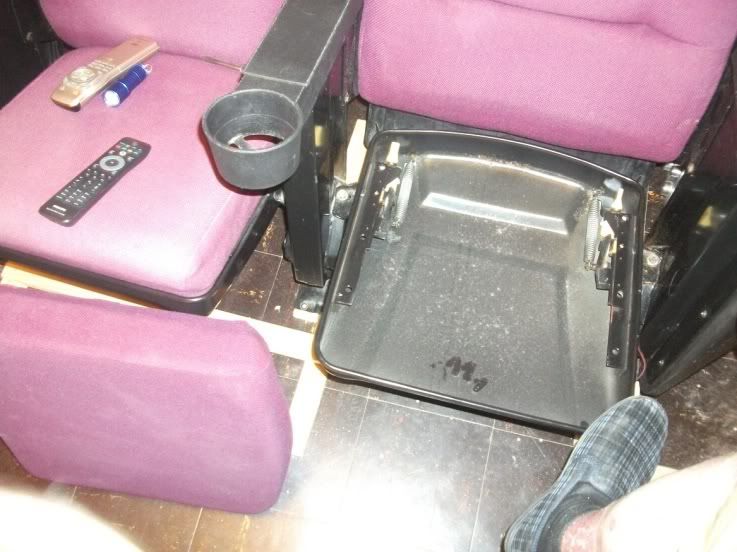

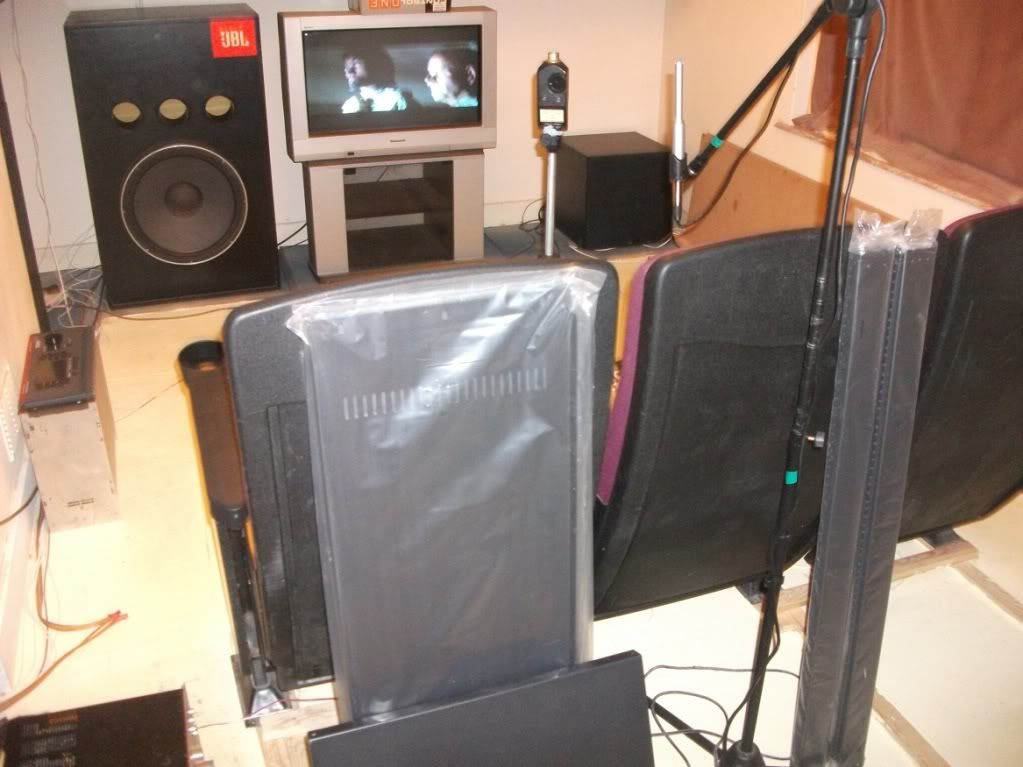

Irwin cinema rocker seats stadium with cup holders cheap buy for x6 seats remaining x3 are in the bedroom and awaiting to be fitted down to an MDF flooring that will over most of the living room floor so that the first row seats can be screwed into the MDF securely and raised seating platform at back at around 6" high will be more than enough.

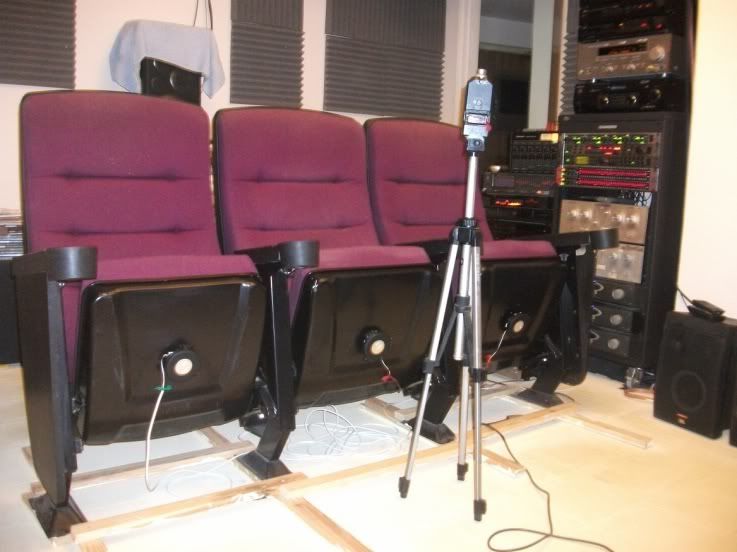

A simple bit of timber screwed together can easily support the three seats.The Puck

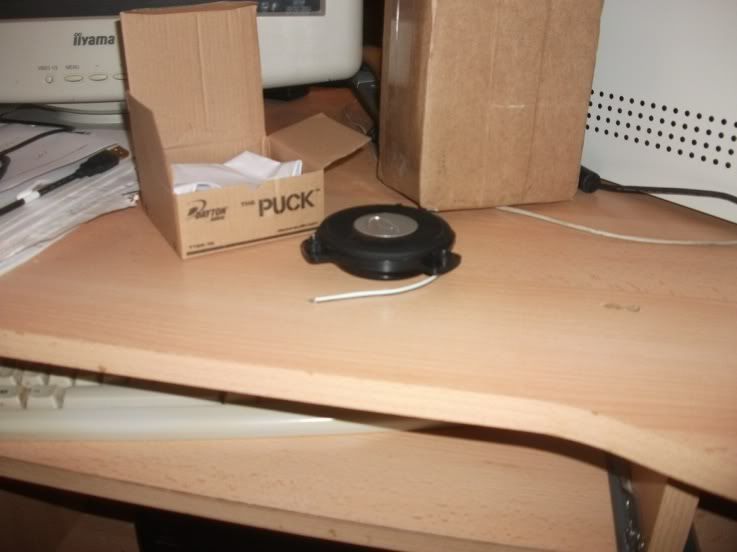

Looking for ideas to use The Puck a starters sub bass transducer but I think its rather good for the price if you can find the best location for it, and that levels are balanced between sub-woofers and sub transducers there is no excuses for overpowering them.
If placed in poor way most of the lows used up might be nearing its limit and can get a little warm as I tested a sine wave and later found out over several minutes.

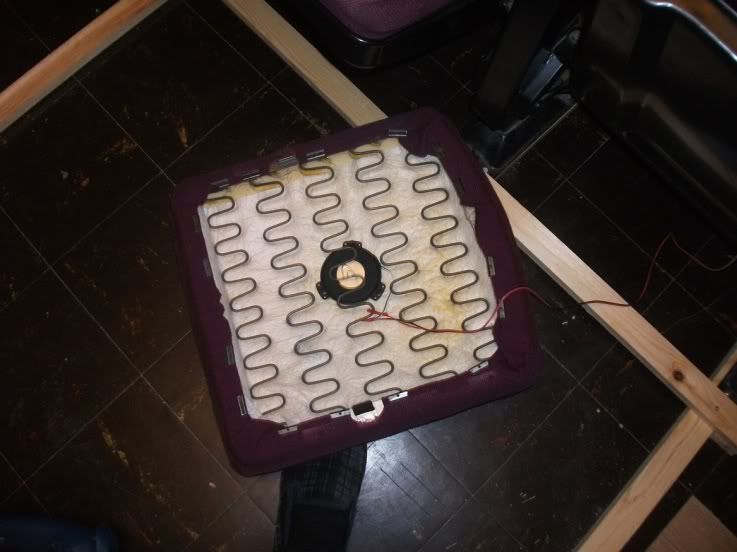

Well the seat bucket has plenty of room as I expected it would. Its now trail and error to see what I can get from these small devices?

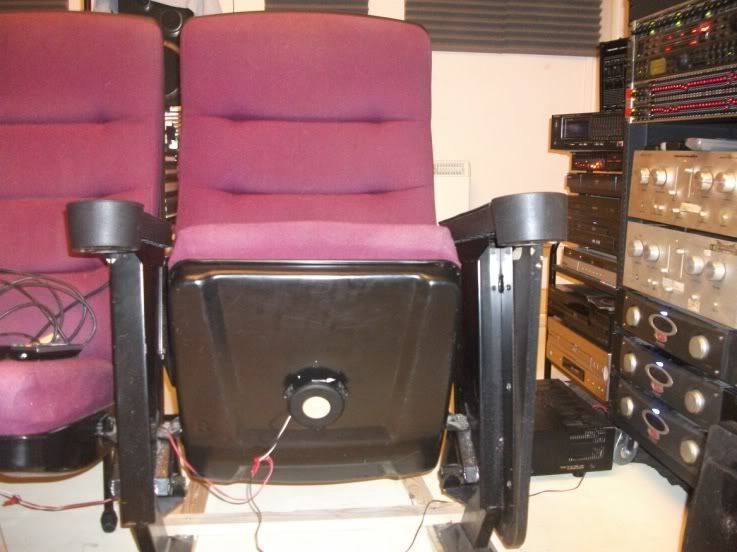

One fast simple way I saw was to place it between the seating springs and it worked magic expect it has a bit of sweet point a rather unpleasant sweet spot, when after playing Earthquake (1974) The Big One on chapter 8 region 2 DVD twice I had trouble sitting down for 20 mins. My ass was still buzzing off all the LFE.1 kinder like the "white finger" effect. A bit tingly well at least I know they work.
Another way was to use a quick means of double sided tape which produced better effect over the whole seating with different frequencies within its range ether vibrated the seat bucket or armrest and occasional the seat back, kinder like what one might notice in the real world, only thing missing of course is vibration beneath my feet and I've got plans for that one once the flooring goes down.

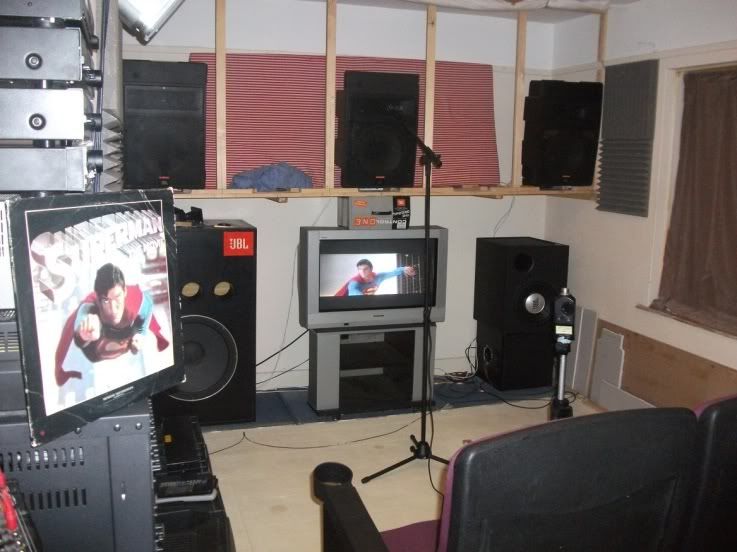

Watching a bit of Laserdisc once in while with the man of steel Superman The movie (1978).
