I just received my black speaker cloth from PartsExpress.com, 260-335 Grill Cloth Black Yard 70" Wide, and it is very thin/transparent.

I am thinking that once applied to my cabinet and columns to hide speakers it will not be very effective.

What other products should I be using?
Is GOM acceptable for this use?

kezug is offline
Sponsored Links
Advertisement

post #2 of 32 Old 05-09-2008, 07:23 PM
AVS Special Member

McCall's Avatar

Join Date: Jul 2006
Posts: 3,084
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
I would not personally use GOM in front of speakers. I used STRETCH velvet fully stretched and it is very AT in that state but also hides very well.
Check out my theater in my signature you can see my columns. My fronts and center are behind the SMX screen.

McCall
-----------------------------------------------------------------
Yup that really IS me in the avatar.
http://www.avsforum.com/avs-vb/showt...he+Mickelodeon
McCall is offline
post #3 of 32 Old 05-10-2008, 04:04 AM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by McCall View Post

I would not personally use GOM in front of speakers. I used STRETCH velvet fully stretched and it is very AT in that state but also hides very well.
Check out my theater in my signature you can see my columns. My fronts and center are behind the SMX screen.

So then, can someone point me in the direction of some speaker cloth material that wont be so shear?
kezug is offline
post #4 of 32 Old 05-10-2008, 03:01 PM
AVS Special Member

PamW's Avatar

Join Date: Jun 2002
Location: Greensboro, NC
Posts: 2,535
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
[quote=kezug;13824223]I just received my black speaker cloth from PartsExpress.com, 260-335 Grill Cloth Black Yard 70" Wide, and it is very thin/transparent.

I am thinking that once applied to my cabinet and columns to hide speakers it will not be very effective.

What other products should I be using?
Is GOM acceptable for this use?

QUOTE]

It will only be sheer (see through) if light is projected from behind it. It will look fine with light in front of it. If you are still worried, paint the object you are attaching the cloth to the same color as your cloth.

GOM looks a little "see through" as well, but that doesn't stop it from looking very good AND doing it's Acoustically Transparent thing!

Pam
PamW is offline
post #5 of 32 Old 05-11-2008, 08:44 AM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
[quote=PamW;13839365]

It will only be sheer (see through) if light is projected from behind it. It will look fine with light in front of it. If you are still worried, paint the object you are attaching the cloth to the same color as your cloth.

QUOTE]

Thanks, I didnt think of that.
kezug is offline
post #6 of 32 Old 05-11-2008, 01:11 PM
AVS Special Member

PamW's Avatar

Join Date: Jun 2002
Location: Greensboro, NC
Posts: 2,535
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Glad to help!

Pam
PamW is offline
post #7 of 32 Old 05-11-2008, 04:48 PM
AVS Special Member

HeyNow^'s Avatar

Join Date: Jul 2001
Location: Martinsburg, Wv USA
Posts: 2,720
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Does the speaker cloth come in 96" plus?
HeyNow^ is offline
post #8 of 32 Old 05-11-2008, 06:37 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by HeyNow^ View Post

Does the speaker cloth come in 96" plus?

I do not think so. I believe it was only 72" wide or clost to that.
kezug is offline
post #9 of 32 Old 05-12-2008, 05:26 AM
Senior Member

bluesboyjr's Avatar

Join Date: Oct 2004
Location: Hoosier
Posts: 258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
kezug,

I'm in NW Indiana, also.

I used Dazian coated celtic cloth (black), and am very happy with it.
bluesboyjr is offline
post #10 of 32 Old 05-12-2008, 04:34 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by bluesboyjr View Post

kezug,

I'm in NW Indiana, also.

I used Dazian coated celtic cloth (black), and am very happy with it.


A fellow Hoosier...awesome. I am finding a few others that are near this area.

About how much per yard can I expect to pay for Dazian and is it acoustically transparent (I know nothing is 100%, but is it for acoustical transparent treatment?)?
kezug is offline
post #11 of 32 Old 05-12-2008, 06:57 PM
Advanced Member

auburnu008's Avatar

Join Date: Jun 2004
Location: Auburn, AL
Posts: 846
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 26
I use Dazian as well. Very pleased with it. http://www.dazian.com/ Do a search for "dazian" and you will see a lot of people use it.

War Eagle!
auburnu008 is offline
post #12 of 32 Old 05-12-2008, 07:23 PM
Senior Member

bluesboyjr's Avatar

Join Date: Oct 2004
Location: Hoosier
Posts: 258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by kezug View Post

A fellow Hoosier...awesome. I am finding a few others that are near this area.

About how much per yard can I expect to pay for Dazian and is it acoustically transparent (I know nothing is 100%, but is it for acoustical transparent treatment?)?

The 122" wide stuff is $12.90/yd and the 61" wide is $6.95/yd. The fabric is excellent in regards to acoustic transparency. Someone on the forum did some measurments with different fabrics a while back, and if I remember correctly the Dazian finished with the best results. If I can find the thread, I will post a link.
bluesboyjr is offline
post #13 of 32 Old 05-12-2008, 09:54 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by bluesboyjr View Post

The 122" wide stuff is $12.90/yd and the 61" wide is $6.95/yd. The fabric is excellent in regards to acoustic transparency. Someone on the forum did some measurments with different fabrics a while back, and if I remember correctly the Dazian finished with the best results. If I can find the thread, I will post a link.

Much appreciated!

Is this what I should be ordering?
http://www.dazian.com/cgi-bin/page.p...d=92&group_id=
kezug is offline
post #14 of 32 Old 05-13-2008, 05:00 AM
Senior Member

bluesboyjr's Avatar

Join Date: Oct 2004
Location: Hoosier
Posts: 258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by kezug View Post

Much appreciated!

Is this what I should be ordering?
http://www.dazian.com/cgi-bin/page.p...d=92&group_id=

Although that would probably work (and looks like it may make a nice AT projection screen in the white), this is what I used:
61"
http://www.dazian.com/cgi-bin/page.p...=161&group_id=
122"
http://www.dazian.com/cgi-bin/page.p...=162&group_id=
bluesboyjr is offline
post #15 of 32 Old 05-13-2008, 07:47 AM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by bluesboyjr View Post

Although that would probably work (and looks like it may make a nice AT projection screen in the white), this is what I used:
61"
http://www.dazian.com/cgi-bin/page.p...=161&group_id=
122"
http://www.dazian.com/cgi-bin/page.p...=162&group_id=


Hmmm, I would have never chose this based on the description as it does not specify that it is acoustically transparent or used for "speaker cloth" applications.

So you are usign this infront of speakers without issues?
kezug is offline
post #16 of 32 Old 05-13-2008, 08:33 AM
AVS Special Member

scaesare's Avatar

Join Date: Feb 2003
Location: Ashburn, VA
Posts: 4,637
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I'll second the idea that the Parts Express cloth should be fine provided you arent covering up a light source or something very shiny/reflective. I used it over a center speaker. The speaker frame was originally white so I hit it with some flat black spray paint (I also touched up the center dome tweeter after this pic):


I was very happy with the results using the Parts Express grill cloth:

-Steve
scaesare is offline
post #17 of 32 Old 05-13-2008, 09:15 AM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by scaesare View Post

I'll second the idea that the Parts Express cloth should be fine provided you arent covering up a light source or something very shiny/reflective. I used it over a center speaker. The speaker frame was originally white so I hit it with some flat black spray paint (I also touched up the center dome tweeter after this pic):


I was very happy with the results using the Parts Express grill cloth:

That is really cool how you did that. Do you have some more detailed photo's of how you put the cloth in place? Did you frame it out , then just pop it in there? How is it secured without falling?

Also, If you look at my sketchup of my columns, I worry that I will be able to see thru the columns (not into the cavity) but through the columns to the back wall to the left or right of the column. I guess I wont know until I put up one and test it.!
kezug is offline
post #18 of 32 Old 05-13-2008, 09:55 AM
AVS Special Member

scaesare's Avatar

Join Date: Feb 2003
Location: Ashburn, VA
Posts: 4,637
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by kezug View Post

That is really cool how you did that. Do you have some more detailed photo's of how you put the cloth in place? Did you frame it out , then just pop it in there? How is it secured without falling?

Also, If you look at my sketchup of my columns, I worry that I will be able to see thru the columns (not into the cavity) but through the columns to the back wall to the left or right of the column. I guess I wont know until I put up one and test it.!

Unfortunately I got involved in building the fabric frame and forgot to take pictures of it during the process.

I bult a small frame out of 3"x3/8" stock from Home Depot. At the rear two joints, and at the front-top two joints where the flat stock makes a 90-degree butt joint, I added a small piece of 1/2" square stock in the corner for stength.

For the front-lower joints where the side portion of the flat frame makes a 90-degree turn to follow the profile of the light tray, I overlapped the butt joints with another small piece of 3x3/8" stock for strength.

I then notched the lower-front corner of the frame to accept a piece of 5/16" square stock running along the lower-front "edge" of the frame to serve as a point to wrap the fabric around. This is what allows the fabric to make a 90-dgree turn and have the same profile as the light tray. Here's a shot to see what I mean:


When I test fit the frame, friction alone held it in place pretty well. When I wrapped the fabric around it, it held even better, and I didn't have to use the clamps I was planning on fabricating.

I wish I had pictues of it during the build. Much easier than trying to describe it. If you REALLY would like me to, I can pull it down and snap some pics of the inside for you.


There are a couple of other shots on my basement pics page if you'd like: BASEMENT.

-Steve
scaesare is offline
post #19 of 32 Old 05-13-2008, 10:11 AM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by scaesare View Post


I wish I had pictues of it during the build. Much easier than trying to describe it. If you REALLY would like me to, I can pull it down and snap some pics of the inside for you.


There are a couple of other shots on my basement pics page if you'd like: BASENT.

Thanks Steve, this pretty much explains it for me.
kezug is offline
post #20 of 32 Old 05-13-2008, 04:35 PM
Senior Member

bluesboyjr's Avatar

Join Date: Oct 2004
Location: Hoosier
Posts: 258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
kezug,
The celtic cloth has a long history on the forum of being used as an acoustically transparent projector screen. I tried doing a search to find that thread I mentioned earlier, but didn't have much luck. In that thread though, the person tested the audio capabilities of different materials used as AT projection screens (including dalite, vutec, celtic cloth, and screen research clearpix) and the celtic cloth had the least adverse affects on audio. Try doing a search for "celtic cloth" and you will find a lot of first hand accounts of people's experience with it. I am very happy using it as speaker cloth and find no issues with audio quality (I'm no audiophile, however).
bluesboyjr is offline
post #21 of 32 Old 05-13-2008, 04:44 PM
Senior Member

bluesboyjr's Avatar

Join Date: Oct 2004
Location: Hoosier
Posts: 258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

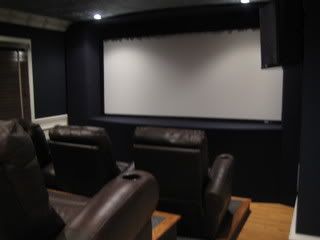

Here is a pic of my theater with the celtic cloth in place.
bluesboyjr is offline
post #22 of 32 Old 05-15-2008, 06:56 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15

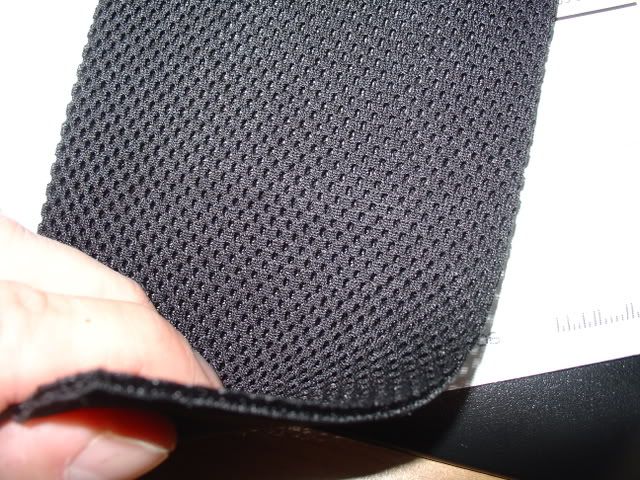

The samples of Dazian are on the way. I just received a sample from Fabric Mate for their AudioMesh line.

Check this out. Is the useable as speaker cloth? It says that its rated for seating and panels. I am not so sure if its good for speaker cloth. I can certainly breath through it but not as easy as the cloth sample from SpeakerWorks.

This material is pretty thick, spongy and the back is not as weaved as the front. Feels very durable.
kezug is offline
post #23 of 32 Old 05-16-2008, 07:42 AM
AVS Addicted Member

JOHNnDENVER's Avatar

Join Date: Dec 2005
Posts: 13,377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 12
Is there a way to just double up the PE stuff????


Seems the easiest solution.
JOHNnDENVER is offline
post #24 of 32 Old 05-16-2008, 04:32 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by JOHNnDENVER View Post

Is there a way to just double up the PE stuff????


Seems the easiest solution.

I never thought about that. It seems that after reading some stuff here on acoustical material that it might "color" the sound. But I bet I wouldnt be able to detect it if it did anyone.

Thanks. I may do just that.
kezug is offline
post #25 of 32 Old 05-29-2008, 05:59 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Well, a lot of samples came and I got around to comparing them today.

In comparison of my samples from Fabric Mate, Dazian, Speaker Works and Parts Express. The PE material is very .... purple looking, not so "black".
s
The Fabric Mate material, while very cool look and feel, does not seem to be the best fit for my application. I want something more traditional.

Dazian Celtic Cloth, is very black. But it appears very solid compared to the Speaker Works material. As if it would affect acoustics somewhat. I put the cloth to my mouth and blew...lots of resistance.

The Speaker Works material matches in black with others except for PE (as this is..purple looking) and is not as transparent as the PE material but definetely appears to be ready to use for speakers.

Why hasnt anyone mentioned Speaker works? Its about 12.00 sq yd (67" wide by 36")
kezug is offline
post #26 of 32 Old 05-30-2008, 07:19 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Bump...anyone?
kezug is offline
post #27 of 32 Old 05-31-2008, 09:28 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Bumpty bump. Anyone?

Is there a boycott on Speaker Works . com or somehtning?
kezug is offline
post #28 of 32 Old 06-02-2008, 08:20 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
One last bump...anyone care to comment on my inquiry on SpeakerWorks?
kezug is offline
post #29 of 32 Old 06-03-2008, 11:06 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,717
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 231 Post(s)
Liked: 581
So many people have been perfectly happy using GOM for speaker covers that relatively little effort has gone into the search for a better alternative.

Not sure why McCall doesn't like it. I believe DE specs it in his HTs.

It's in mine.
BIGmouthinDC is online now
post #30 of 32 Old 06-03-2008, 01:16 PM - Thread Starter
AVS Special Member

kezug's Avatar

Join Date: May 2003
Location: NW Indiana
Posts: 2,290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by BIGmouthinDC View Post

So many people have been perfectly happy using GOM for speaker covers that relatively little effort has gone into the search for a better alternative.

Not sure why McCall doesn't like it. I believe DE specs it in his HTs.

It's in mine.


Thanks, so does anyone have 3 yards (67-70" wide x 36") of Black GOM that they are willing to sell?
kezug is offline
Reply Theater Room Items & Accessories

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
