Figured it was time to open an OFFICIAL owners thread:

Here are the specs to start it off-

Resolution: HD (1920 x 1080)
Brightness: 1600 lumens
Contrast Ratio: 60000:1
Uniformity : 85%
No. of Colors : Full color
Aspect Ratio(s): 16:9, 4:3
Display Type: LCD; Transparent LCD panel (x 3, R/G/B)



Lens Powered Zoom and Focus : (1:1–1:2) F 1.9 – 3.2, f 22.4 – 44.8 mm
Image Size : 40 - 200 inches
Throw Distance: 3.11 - 39.4 feet

Inputs:
* Component, RCA (Y,Pb,Pr) x 2
* Composite Video, RCA x 1
* HDMI 1.3 (High-Definition Multimedia Interface, version 1.3 with increased bandwidth) x 3
* S-Video (Mini DIN 4-pin (Y/C)) x 1
* VGA (Analog data, mini D-Sub 15-pin) x 1
* RS-232 (Serial) x 1

Dimensions: 18.11" x 5.11" x 11.81" (W x H x D)
Unit Weight: 16.1 lbs.
aquafire is offline
Sponsored Links
Advertisement

post #2 of 4832 Old 10-29-2008, 05:41 AM - Thread Starter
Advanced Member

aquafire's Avatar

Join Date: Feb 2007
Posts: 963
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Early Review of Panasonic AE3000:
http://www.projectorcentral.com/pana...tor_review.htm

Projector Calculator:
http://www.projectorcentral.com/Pana...ulator-pro.htm
aquafire is offline
post #3 of 4832 Old 10-29-2008, 07:37 AM
AVS Special Member

Stu Pedaso's Avatar

Join Date: Mar 2001
Location: Big Lake, MN
Posts: 1,271
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Mine looks good so far. I think it needs a few adjustments (something odd with skin tones in a normal DVD last night), but it does very well on a 126" screen, in my opinion.

And then...
Stu Pedaso is offline
post #4 of 4832 Old 10-29-2008, 07:47 AM
AVS Special Member

Brajesh's Avatar

Join Date: Dec 2000
Location: Metro Atlanta
Posts: 5,749
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked: 47
Stu, you'll need to provide more detailed impressions than that! Is your 126" a 16:9 or 2.35:1? Any convergence issues w/your unit? Mine's coming tomorrow & hope to post impressions by Saturday. Would do it Friday, but can't miss the last day of early election voting here.

HD Media Keen Videosaurus
Brajesh is offline
post #5 of 4832 Old 10-29-2008, 08:34 AM
AVS Special Member

Stu Pedaso's Avatar

Join Date: Mar 2001
Location: Big Lake, MN
Posts: 1,271
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
16:9. No convergence problems that I've noticed. Since I don't notice any, I don't want to look harder. I have zero light control in my basement (walkout, with windows right next to the screen) at the moment, but I just went down and played around a bit anyway. Apparently I had it in "normal" mode last night. I see there are some "color" and "cinema" settings, as well as a "dynamic". I'll have to see what I prefer when I get a chance to watch some more source material.

And then...
Stu Pedaso is offline
post #6 of 4832 Old 10-29-2008, 09:18 AM
AVS Special Member

Ron Jones's Avatar

Join Date: Jul 2000
Location: Florida and West Virginia, USA
Posts: 5,741
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked: 122
Quote:
Originally Posted by Stu Pedaso View Post

16:9. No convergence problems that I've noticed. Since I don't notice any, I don't want to look harder. I have zero light control in my basement (walkout, with windows right next to the screen) at the moment, but I just went down and played around a bit anyway. Apparently I had it in "normal" mode last night. I see there are some "color" and "cinema" settings, as well as a "dynamic". I'll have to see what I prefer when I get a chance to watch some more source material.

Cinema mode is probably the most accurate in terms of colors and gray scale, but it's also the dimmest. Please try that mode and let us know if the picture is still bright enough, at least at night when the windows are a non-issue. Also we need to know what type of screen you have. Specifically what is its gain.

Ron Jones
Blog + Reviews + Articles: projectorreviews.com
Ron Jones is offline
post #7 of 4832 Old 10-29-2008, 09:25 AM

dogone's Avatar

Join Date: Apr 2008
Posts: 2,155
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Anyone mess with the frame creation 120 Hertz setting?...Curious to know how good that looks...Mine won't be here till tomorrow...
dogone is offline
post #8 of 4832 Old 10-29-2008, 09:37 AM
Senior Member

Charlie Tango's Avatar

Join Date: Feb 2007
Posts: 244
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by Ron Jones View Post

Cinema mode is probably the most accurate in terms of colors and gray scale, but it's also the dimmest. Please try that mode and let us know if the picture is still bright enough, at least at night when the windows are a non-issue. Also we need to know what type of screen you have. Specifically what is its gain.

According to the manual and professional reviews, "Color 1" is the 6500K standard as well as HDTV standard. Please try Color 1 and report.
Charlie Tango is offline
post #9 of 4832 Old 10-29-2008, 11:31 AM
Senior Member

bignorm's Avatar

Join Date: Feb 2003
Location: Ohio
Posts: 350
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by aquafire View Post

Early Review of Panasonic AE3000:
http://www.projectorcentral.com/pana...tor_review.htm

Projector Calculator:
http://www.projectorcentral.com/Pana...ulator-pro.htm

Would the calculations be different if using a anamorphic screen??

I am looking at a 103" 2:35 screen

Thanks


bignorm is my bulldog!!
bignorm is offline
post #10 of 4832 Old 10-29-2008, 11:46 AM
AVS Special Member

pottscb's Avatar

Join Date: May 2005
Posts: 1,268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 35
Quote:
Originally Posted by bignorm View Post

Would the calculations be different if using a anamorphic screen??

I am looking at a 103" 2:35 screen

Thanks


I believe the horizontal measurement from PJC from a 16:9 screen will remain constant, you'll just have to do the math to figure out what it is in 2.35.
pottscb is offline
post #11 of 4832 Old 10-29-2008, 11:55 AM
AVS Special Member

Maestro J's Avatar

Join Date: Nov 2004
Location: Madison, WI
Posts: 1,986
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked: 12
Quote:
Originally Posted by dogone View Post

Anyone mess with the frame creation 120 Hertz setting?...Curious to know how good that looks...Mine won't be here till tomorrow...

In the demo I saw last week, there was a test of scrolling text. First we saw it with frame creation off and then on. We went back and forth for a minute or so. There was a substantial difference in smoothness of the text with the setting on.
Officially I will become an owner of one tomorrow.
Maestro J is offline
post #12 of 4832 Old 10-29-2008, 12:20 PM
Senior Member

James Mos's Avatar

Join Date: Sep 2002
Location: New Jersey
Posts: 365
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
What kind of 126" screen do you have?

I'm considering this projector with my 120" screen but it's just a 1.0 gain.
James Mos is offline
post #13 of 4832 Old 10-29-2008, 03:53 PM
AVS Special Member

Stu Pedaso's Avatar

Join Date: Mar 2001
Location: Big Lake, MN
Posts: 1,271
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Checking in from the coffee shop...

The screen is a DIY Wilsonart Designer White laminate, unknown gain. Maybe someone has measured it, but I don't know. Something fancy wasn't in the budget at the moment, so I figured I would give it a shot. I can't say I have any complaints.

I will compare the cinema and color1 modes tonight when I get home. I have had requests for screen shots, so I may have a crack at that, too.

ETA: I should clarify that it is 126" because is it 1.85:1, 60x111. I had brainfade when I was measuring it out. It will get masked down to a proper 16:9 when I do the black velvet frame. Right now I have it filling the full width, with a titch of overscan overflowing the bottom.

And then...
Stu Pedaso is offline
post #14 of 4832 Old 10-29-2008, 04:32 PM
Newbie

Syfulheim's Avatar

Join Date: Apr 2008
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Stu Pedaso View Post

Checking in from the coffee shop...

The screen is a DIY Wilsonart Designer White laminate, unknown gain. Maybe someone has measured it, but I don't know. Something fancy wasn't in the budget at the moment, so I figured I would give it a shot. I can't say I have any complaints.

I will compare the cinema and color1 modes tonight when I get home. I have had requests for screen shots, so I may have a crack at that, too.

ETA: I should clarify that it is 126" because is it 1.85:1, 60x111. I had brainfade when I was measuring it out. It will get masked down to a proper 16:9 when I do the black velvet frame. Right now I have it filling the full width, with a titch of overscan overflowing the bottom.

Supposedly the WA Designer White has a gain of about 1.24. I have no way of measuring it but the 8''x10'' sample I have definately is brighter than the generic 1.0 gain screen I use atm.

I am seriously considering getting the AE3000 and a 5' x 12' WA DW laminate screen. My idea is to make a 60'' x 141'' screen for 2.35 and just use black curtains on the sides to adjust it down to 60'' x 107'' for 16:9 viewing.

Stu can you check for me if the AE3000 looks good 16' from the screen at the widest angle in 2:35 mode (Should be about 141' wide)? I have a fully light controlled basement with black walls/ceiling. I am hoping the panny can handle a 2:35 screen that wide in one of the color/contrast accurate modes (cinema modes).
Syfulheim is offline
post #15 of 4832 Old 10-29-2008, 05:34 PM
Senior Member

James Mos's Avatar

Join Date: Sep 2002
Location: New Jersey
Posts: 365
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Welp...I'm glad to hear you're using that screen as that's exactly what mine is made of. If it's acceptable at 126 or so, I'm sure it'll be fine on my 120".

Thanks.
James Mos is offline
post #16 of 4832 Old 10-29-2008, 05:42 PM
AVS Special Member

bruce banner's Avatar

Join Date: May 2004
Location: Carolina
Posts: 1,146
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Isn't the Panasonic PT-AE3000 under $3000?

http://www.projectorcentral.com/Pana...000-prices.htm

Is this the right forum for this thread.?
bruce banner is offline
post #17 of 4832 Old 10-29-2008, 05:48 PM
AVS Addicted Member

Dave Mack's Avatar

Join Date: May 2003
Location: NYC
Posts: 11,966
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
MSRP is over $3k so this is the right place
Dave Mack is offline
post #18 of 4832 Old 10-29-2008, 06:26 PM
AVS Special Member

bruce banner's Avatar

Join Date: May 2004
Location: Carolina
Posts: 1,146
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by Dave Mack View Post

MSRP is over $3k so this is the right place

I see.

Projector Central has the MSRP marked out on their website.
bruce banner is offline
post #19 of 4832 Old 10-29-2008, 06:53 PM
Advanced Member

stef2's Avatar

Join Date: Mar 2005
Location: Canada
Posts: 511
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked: 29
So how does the zooming trick for 2.35:1 look? Do pixels become more visible in 2.35:1, does the brightness change a lot, is the light overspill easily visible??? If that PJ performs well with 2.35:1, I want one

Stef
stef2 is offline
post #20 of 4832 Old 10-29-2008, 07:16 PM
Advanced Member

WaveyD4vey's Avatar

Join Date: Apr 2006
Location: San Diego
Posts: 573
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
hehe...comn guys with the impressions! im itching to pull the trigger on this one but wanna hear a little more about what people here have to say first
WaveyD4vey is offline
post #21 of 4832 Old 10-29-2008, 07:39 PM
AVS Special Member

xradman's Avatar

Join Date: Nov 2002
Location: Northern VA
Posts: 3,017
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by stef2 View Post

So how does the zooming trick for 2.35:1 look? Do pixels become more visible in 2.35:1, does the brightness change a lot, is the light overspill easily visible??? If that PJ performs well with 2.35:1, I want one

I am also interested in amount of light spillage.

Addicted to shiny round discs with HD content

My Home Theater
My Movie Collection
BDP-83 EAP (second group)
xradman is offline
post #22 of 4832 Old 10-29-2008, 08:35 PM
AVS Special Member

Stu Pedaso's Avatar

Join Date: Mar 2001
Location: Big Lake, MN
Posts: 1,271
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
DISCLAIMER: I'm not sure I get the whole 2.35 setting on this thing... If it's just a zoom and ability to set memory for the zoom, then I think I get it. This is what I jsut did:

Ok, zoomed it way out for 2.35, and I think it still looks really good. With light control, I think a person could get away with whatever this this would be. It looks like it's running about a foot off either side, so... 111 + 24 = 135" wide, and I could pull that off if my screen was wider. It appears that the top stays stationary when zooming, FWIW.

Light spill appears to be minimal to negligible. I'm not seeing anything that I would identify as light spillage, but I'm not an experienced critic.

ETA: If I walk up to the screen, I can make small shadow puppets in the "black bars", but it's nothing significant. If I hold the instruction manual up, there is not enough light spill to read it. No better than sitting on the couch.

ETAA: The dark cave scenes in Iron Man look good. I'm watching in "Cinema2" mode.

ETAAA: Now I think I like Cinema3 better. Is seems just titch brighter. I should read the manual and see what the differences are supposed to be.

And then...
Stu Pedaso is offline
post #23 of 4832 Old 10-29-2008, 10:57 PM
Advanced Member

WaveyD4vey's Avatar

Join Date: Apr 2006
Location: San Diego
Posts: 573
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
how loud is it from about 6 feet or so away?
WaveyD4vey is offline
post #24 of 4832 Old 10-30-2008, 11:09 AM
Newbie

Syfulheim's Avatar

Join Date: Apr 2008
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Stu Pedaso View Post

DISCLAIMER: I'm not sure I get the whole 2.35 setting on this thing... If it's just a zoom and ability to set memory for the zoom, then I think I get it. This is what I jsut did:

Ok, zoomed it way out for 2.35, and I think it still looks really good. With light control, I think a person could get away with whatever this this would be. It looks like it's running about a foot off either side, so... 111 + 24 = 135" wide, and I could pull that off if my screen was wider. It appears that the top stays stationary when zooming, FWIW.

Light spill appears to be minimal to negligible. I'm not seeing anything that I would identify as light spillage, but I'm not an experienced critic.

ETA: If I walk up to the screen, I can make small shadow puppets in the "black bars", but it's nothing significant. If I hold the instruction manual up, there is not enough light spill to read it. No better than sitting on the couch.

ETAA: The dark cave scenes in Iron Man look good. I'm watching in "Cinema2" mode.

ETAAA: Now I think I like Cinema3 better. Is seems just titch brighter. I should read the manual and see what the differences are supposed to be.


How far back from the screen is your Projector Stu? Thx for doing that test for me. I am pretty excited about this projector but the lumens issue is giving me some doubts. 2.35 with a 60''x141'' screen in a color accurate mode (cinema mode) would be awesome.

I just hope the bulb on this doesnt lose too much lumens with age.
Syfulheim is offline
post #25 of 4832 Old 10-30-2008, 11:55 AM
AVS Special Member

smakovits's Avatar

Join Date: May 2007
Posts: 2,077
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I am beginning to think this projector doesnt actually exist yet, where in the world are the screen shots?
smakovits is offline
post #26 of 4832 Old 10-30-2008, 12:31 PM
AVS Special Member

Stu Pedaso's Avatar

Join Date: Mar 2001
Location: Big Lake, MN
Posts: 1,271
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by Syfulheim View Post

How far back from the screen is your Projector Stu? Thx for doing that test for me. I am pretty excited about this projector but the lumens issue is giving me some doubts. 2.35 with a 60''x141'' screen in a color accurate mode (cinema mode) would be awesome.

I just hope the bulb on this doesnt lose too much lumens with age.

Ran downstairs with a tape, and it looks like the front of the lens is ~15'8" or so. Between 15 1/2 and 16.

We'll see how the lumens fare over time.

And then...
Stu Pedaso is offline
post #27 of 4832 Old 10-30-2008, 12:35 PM
AVS Special Member

Stu Pedaso's Avatar

Join Date: Mar 2001
Location: Big Lake, MN
Posts: 1,271
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by smakovits View Post

I am beginning to think this projector doesnt actually exist yet, where in the world are the screen shots?

I can't find my tripod, but I will try to use the couch or something tonight. I just don't want to take crappy pics that aren't indicative of how nice the picture looks. I also have some rack updates for my build thread.

And then...
Stu Pedaso is offline
post #28 of 4832 Old 10-30-2008, 12:53 PM
AVS Special Member

wnielsenbb's Avatar

Join Date: Apr 2005
Location: Phoenix AZ
Posts: 2,054
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 20
If you have a PC you could hook up to it can you see if it will sync 1920x1080 at 120Hz?
Warren.
wnielsenbb is offline
post #29 of 4832 Old 10-30-2008, 01:01 PM - Thread Starter
Advanced Member

aquafire's Avatar

Join Date: Feb 2007
Posts: 963
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Here we go!!!

Picked mine up today. This machine is a work of art!!!

Pics:

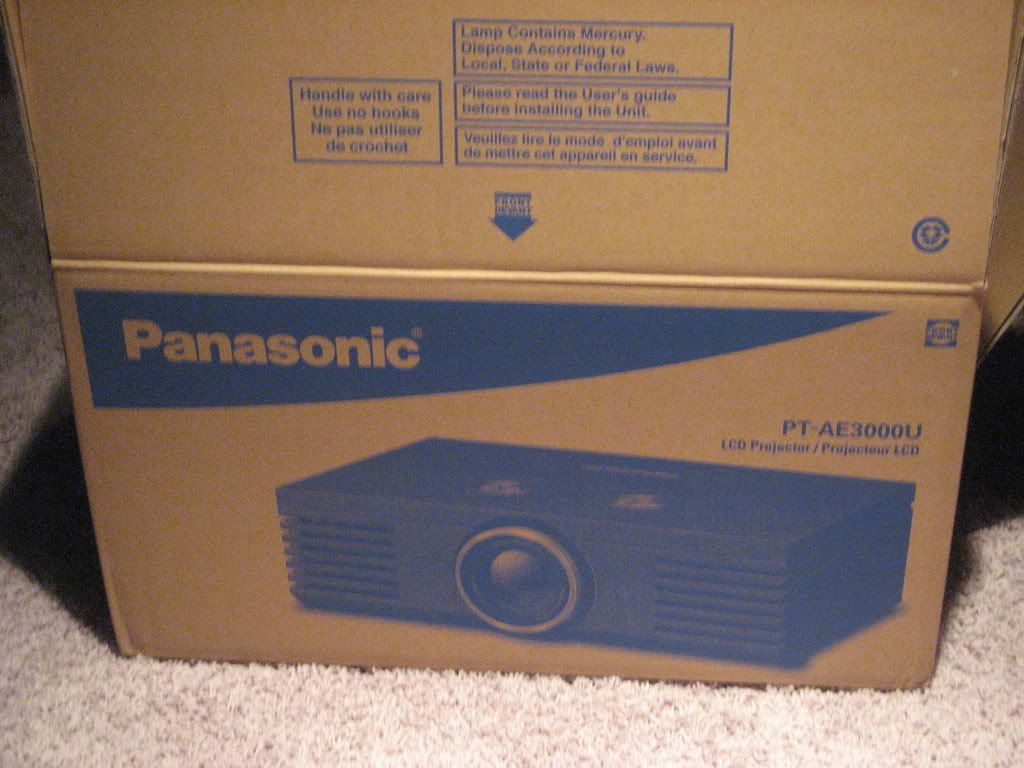

Opening Box:

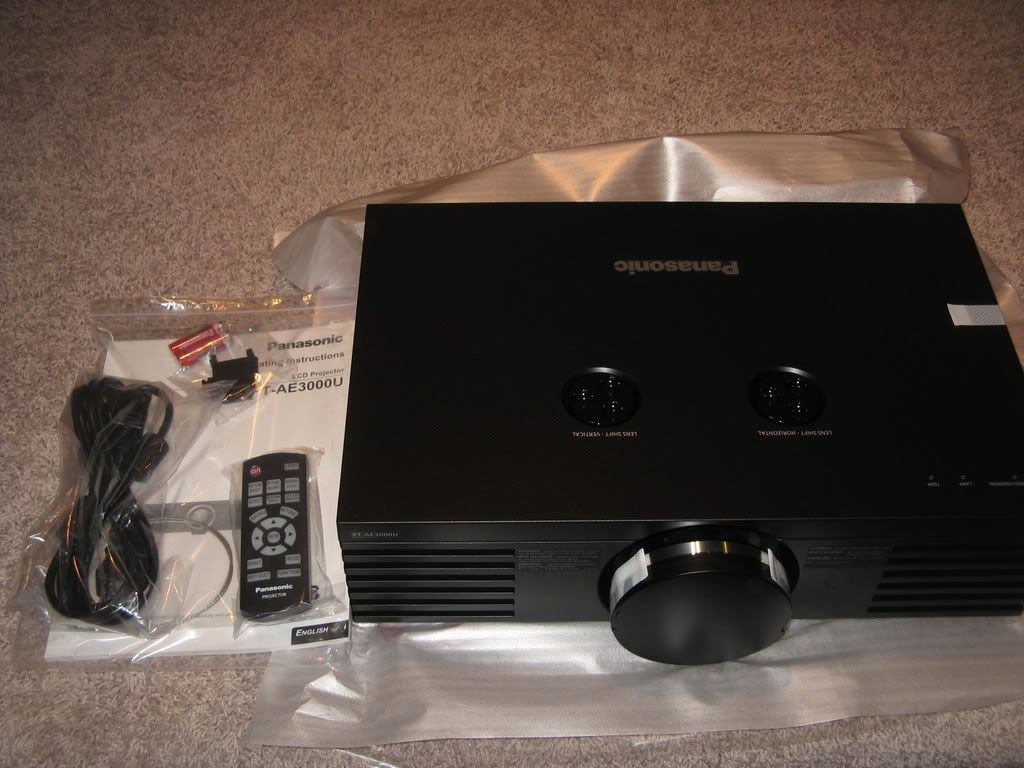

Whats Inside:



Back View:

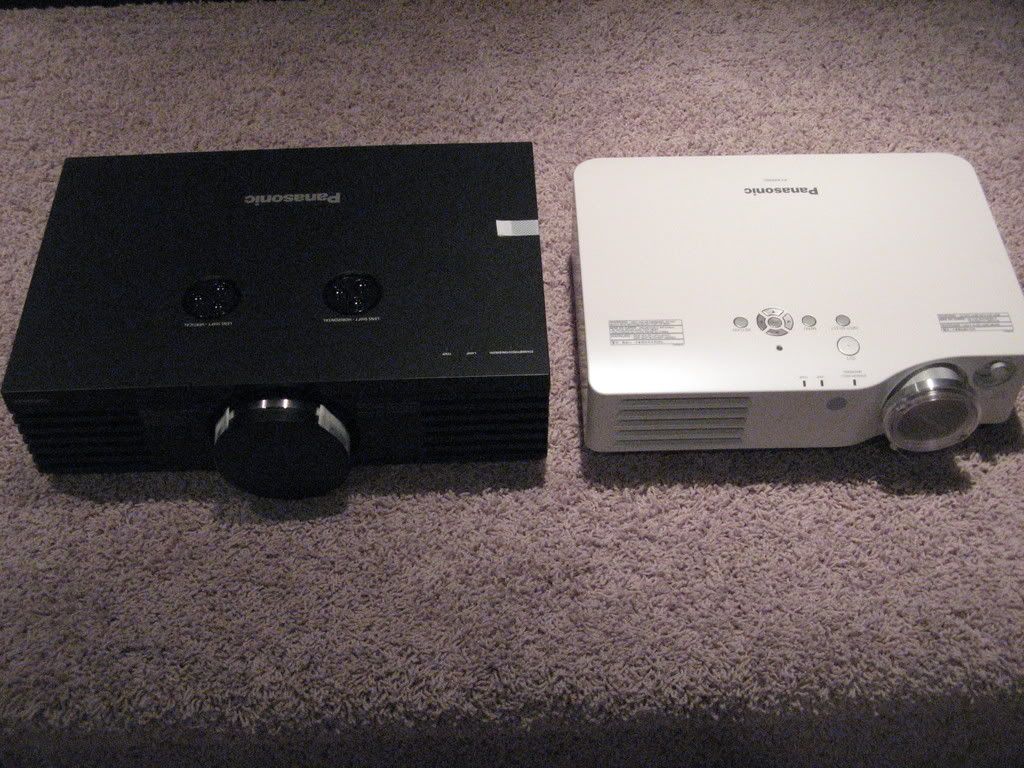

AE3000 VS AX200:

aquafire is offline
post #30 of 4832 Old 10-30-2008, 01:20 PM
AVS Special Member

wnielsenbb's Avatar

Join Date: Apr 2005
Location: Phoenix AZ
Posts: 2,054
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 20
Still not on Panasonic's web site.
wnielsenbb is offline
Reply Digital Projectors - Under $3,000 USD MSRP

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
