post #11431 of 11442 Unread 08-27-2015, 10:13 AM
Member

rrskda's Avatar

Join Date: Mar 2010
Posts: 69
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked: 19
Quote:
Originally Posted by AV_Integrated View Post
BenQ lied to you and has no clue what they are saying.

The W1070 has about 6" of total lens shift coverage. The lens shift covers about 1.5" to 7.5" above the top of the screen and should really not be more than about 6" above the top of the screen. 2'6" is not at all correct. AT ALL - No matter what they tell you.
But that would depend on screen size--the farther you project, the greater the shift in picture, no? Not sure how it can be fixed between 1.5" - 7.5"

edit: also means the BenQ calculator is full of BS, since it gives the same answer as what the BenQ rep said. Surprised no one has called it out for that.
rrskda is online now
Sponsored Links
Advertisement

post #11432 of 11442 Unread 08-27-2015, 10:33 AM
Advanced Member

kreeturez's Avatar

Join Date: Apr 2013
Posts: 938
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 294 Post(s)
Liked: 262
Quote:
Originally Posted by rrskda View Post
But that would depend on screen size--the farther you project, the greater the shift in picture, no? Not sure how it can be fixed between 1.5" - 7.5"

edit: also means the BenQ calculator is full of BS, since it gives the same answer as what the BenQ rep said. Surprised no one has called it out for that.

2'5" isn't the same as 2.5" [emoji3]

BenQ W1070 Projector; Xtreamer Ultra 2 (running XBMC on OpenELEC) via Sony STR-DH540 AVR with Boston Acoustics SoundWare XS SE 5.1 Audio. MediaBrowser3 for Mobile Streaming.

Helpful post? Click the 'Like' button!
kreeturez is offline
post #11433 of 11442 Unread 08-27-2015, 11:18 AM
Member

rrskda's Avatar

Join Date: Mar 2010
Posts: 69
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked: 19
Quote:
Originally Posted by kreeturez View Post
2'5" isn't the same as 2.5" [emoji3]
Not sure what 2.5" figure you're referencing. The BenQ calculator for the w1070 clearly shows a lens shift of 2'5" for a 100" screen, and it changes depending on screen size. See below.

rrskda is online now
post #11434 of 11442 Unread 08-27-2015, 11:27 AM
Advanced Member

kreeturez's Avatar

Join Date: Apr 2013
Posts: 938
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 294 Post(s)
Liked: 262
Quote:
Originally Posted by rrskda View Post
Not sure what 2.5" figure you're referencing. The BenQ calculator for the w1070 clearly shows a lens shift of 2'5" for a 100" screen, and it changes depending on screen size. See below.


Yeah, I'm saying that the calculator is likely meant to be indicating 2.5 inches rather than 2-feet-5-inches.

BenQ W1070 Projector; Xtreamer Ultra 2 (running XBMC on OpenELEC) via Sony STR-DH540 AVR with Boston Acoustics SoundWare XS SE 5.1 Audio. MediaBrowser3 for Mobile Streaming.

Helpful post? Click the 'Like' button!
kreeturez is offline
post #11435 of 11442 Unread 08-27-2015, 11:52 AM
Member

rrskda's Avatar

Join Date: Mar 2010
Posts: 69
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked: 19
Quote:
Originally Posted by kreeturez View Post
Yeah, I'm saying that the calculator is likely meant to be indicating 2.5 inches rather than 2-feet-5-inches.
I see. Possibly. Except they actually spell out the ft/in label. In any case, I think I figured it out. Came across a post on another forum stating that BenQ measures lens shift differently than other brands, making it confusing. BenQ assumes a projector at the vertical and horizontal midpoint of the projection has no vertical lens shift, while others assume it only has to be at the vertical midpoint. So per BenQ's approach, the projector comes with 2'5" of vertical lens shift out of the box (for a 100" screen) since the it projects the top/bottom of the image just a couple inches above/below the projector's height.

So yeah, BenQ is misleading. That's disappointing. Any other projectors in the same price range that offer 2-3' actual feet of lens shift, or do I have to go up a tier? I don't want the projector hanging so far down off the ceiling to get the image in the right place.
rrskda is online now
post #11436 of 11442 Unread 08-27-2015, 12:15 PM
AVS Special Member

AV_Integrated's Avatar

Join Date: Jun 2005
Location: Northern, VA - Washington, DC
Posts: 4,451
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 702 Post(s)
Liked: 555
Quote:
Originally Posted by rrskda View Post
So yeah, BenQ is misleading. That's disappointing. Any other projectors in the same price range that offer 2-3' actual feet of lens shift, or do I have to go up a tier? I don't want the projector hanging so far down off the ceiling to get the image in the right place.
Yes, they are calling it out incorrectly. Most projectors have a neutral position that is midway up/down from the center of the screen.

The W1070 has a neutral position that is just a few inches above the top of the screen (call it about 3"). From there, it only has a couple of inches of up/down shift.

Yes, if your screen is 160" then you may find it to be 3" or so of up/down shift instead of 2" of shift, but at the end of the day, it's no more than a few inches in either direction and at most about 6" or 7" from the top of the screen to the lens. This is a fine tuning amount of lens shift, not a game changing amount.

If you want more offset, then you could consider a Optoma projector which includes no lens shift, but has more out of the box lens shift. You can go with the Epson 8350 which has an incredible amount of shift, or the 5025 which is a solid projector with better black levels for a fair price.

At the end of all of this, if you are looking for a better lens, you will need to buy a better projector, but still, getting a ton of lens offset is not desirable for most home theater setups which often are in basements which have 7' to 8' ceilings in far greater quantities.

If I didn't care about 3D, then I would get the Epson 8345 with a average screen size setup and a requirement for great placement flexibility.

AV Integrated - Theater, whole house audio, and technology installation in the Washington DC metro area.
AV_Integrated is offline
post #11437 of 11442 Unread 08-29-2015, 11:47 AM
Newbie

Jonathanpbk's Avatar

Join Date: Apr 2007
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 0
Hi,

So I'm thinking of upgrading my now dying Epson TW3200 to this projector.

I wanted to ask advice re: distance and mounting. I currently have an electric 110" screen approximately 12ft from the front edge of a shelf (a single floating shelf, actually a microwave wall mount shelf!). The top of the shelf is 16" from the ceiling and the screen is ~10" from the ceiling but could be adjusted a couple of inches up or down. The projector calculator on projectorcentral.com says that that will work but only at 1.00x zoom. The BenQ calculator says that it would work with 1.30x, however.

Can anyone shed light on this? Also, with those measurements and lens shift, can I place it on the shelf normally, or would it have to be mounted on the ceiling upside down? If it matters, my ceilings are 8'.

Thanks!
Jonathanpbk is offline
post #11438 of 11442 Unread 08-29-2015, 02:46 PM
Member

StephenRC's Avatar

Join Date: Oct 2004
Location: Spacecoast of Florida
Posts: 109
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 12
If you have the projector at the top of the screen, it has to be mounted upside down. The top of where the image is on the screen needs to be even or below the lens. The lens shift only moves the image a few inches, mostly in the direction of the projector top. Just use some spacers on each side to level the projector upside down on the shelf.
StephenRC is online now
post #11439 of 11442 Unread Today, 04:35 AM
Newbie

Jonathanpbk's Avatar

Join Date: Apr 2007
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 0
Quote:
Originally Posted by StephenRC View Post
If you have the projector at the top of the screen, it has to be mounted upside down. The top of where the image is on the screen needs to be even or below the lens. The lens shift only moves the image a few inches, mostly in the direction of the projector top. Just use some spacers on each side to level the projector upside down on the shelf.
Thanks for the info! I probably will do the spacer idea, but considering the projector is so light, I may even throw up a ceiling mount since the shelf may be slightly beyond the right throw distance for my size screen. Do you have any insight on the zoom confusion between the 2 calculators? I could screenshot them both if it helps!
Jonathanpbk is offline
post #11440 of 11442 Unread Today, 05:21 AM
Advanced Member

Adult Beverage's Avatar

Join Date: Dec 2006
Posts: 541
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 25
Quote:
Originally Posted by Jonathanpbk View Post
Thanks for the info! I probably will do the spacer idea, but considering the projector is so light, I may even throw up a ceiling mount since the shelf may be slightly beyond the right throw distance for my size screen. Do you have any insight on the zoom confusion between the 2 calculators? I could screenshot them both if it helps!
This is my second projector. I couldn't make any sense out of using the BenQ calculator. The ProjectorCentral seemed to give the most accurate. Just keep your placement within the limits it gives (with a little to spare) to make sure you have room for fine tuning and adjustments. Small errors, either in the calculator or your measurements, become bigger the greater the projection distance. Allow for a margin of error and all should be good.
Fa11ou7 likes this.

Infamous last words: "Hold my beer. Watch this!"
Adult Beverage is online now
post #11441 of 11442 Unread Today, 08:39 AM
AVS Special Member

Ftoast's Avatar

Join Date: Dec 2013
Posts: 2,759
Mentioned: 16 Post(s)
Tagged: 1 Thread(s)
Quoted: 931 Post(s)
Liked: 327
Quote:
Originally Posted by Jonathanpbk View Post
Can anyone shed light on this? Also, with those measurements and lens shift, can I place it on the shelf normally, or would it have to be mounted on the ceiling upside down? If it matters, my ceilings are 8'.

Thanks!
Along with needing to mount the projector upsidedown, it'll need the len's center to be between 3"-8"inches above the top of the 16:9 110"-diagonal image.
The Benq can fit 110" anywhere from 9ft-3inches back, all the way up to 12ft back (lens-to-screen horizontal distance).

The extreme ends of these aren't always guaranteed, so it's safer to assume you'll be mounting between 9ft-9inches and 11ft-6inches back (lens-to-screen) and about 5" or 6" above the image (center-of-lens to top-of-image).

Simple <$250 dedicated black-fabric theater room, build in a day, takedown in an hour.
Easy $25-40 DIY black/dark-grey ambient-light rejecting screen, grab two things from a local store..mix..roll..done.
Ftoast is online now
post #11442 of 11442 Unread Today, 08:51 AM
Advanced Member

Adult Beverage's Avatar

Join Date: Dec 2006
Posts: 541
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked: 25
I posted the following in a thread for 3D glasses in the 3D Dispaly section, but not a lot of 1070 owners may know about it. Hoping readers here have some input:

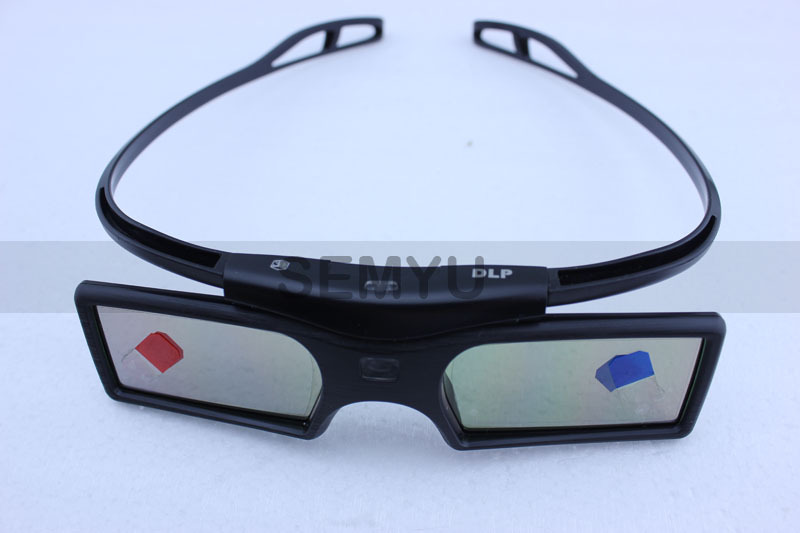

Have there been any other side by side comparisons of the BenQ DGD5 and the EStar ESG601? I can find the EStars for $40 and the BenQ for $60, but not much info out there on BenQ DGD5. Will eventually need 4-6 pairs and not sure if the higher cost is worth it.

Infamous last words: "Hold my beer. Watch this!"
Adult Beverage is online now
