waynefish's Avatar waynefish 02:39 PM 10-04-2010
I'm seriously considering this receiver. Just wondered if anyone here has used it as part of their HTPC. My setup would be PC to Receiver to TV all via HDMI. Anyone have such a set up working smoothly or any issues? Thanks for your help! My PC has an Nvidia 9200 onboard video/audio if that helps.

jdsmoothie's Avatar jdsmoothie 03:00 PM 10-04-2010
HTPC video cards sometimes do have issues when connecting to AVRs in general, although it more often has to do with a specific card. If you don't get any responses for your particular card, I would suggest you post a separate thread asking if anyone is using that particular card with ANY Denon AVR or better yet in the general AMPS forum, use the "Search This Forum" button (upper right corner of page) with the keywords "NVIDIA 9200" to see what posts come up. Using the "Search This Thread" and those keywords in this thread results in no entries.
batpig's Avatar batpig 03:19 PM 10-04-2010
Quote:
Originally Posted by streetmike View Post

I have the 1611 and am having an issue with it. I am running my cable box to the reciever via component and optical. The running to the Samsung C8000 plasma. Now my issue is that sometimes the audio becomes out of sync with the program. It does not happen all then time, but occasionally it will. I replaced the optical and HDMI cords already. What else should I try?

if it is only happening with the cable box, I would just deal with it. you could adjust the AUDIO DELAY setting but it's going to vary from channel to channel (as you note it only happens occasionally) so if you fix it for one program it will just be screwy for the others.


Quote:


Thanks, so far I love this thing, except for this issue and the click when you mute (I can live with that)

you can actually rid of the mute click by setting the mute setting to -40dB (instead of "full mute") in MANUAL SETUP > OPTION SETUP > VOLUME CONTROL. When it's on "full mute" it has to activate a relay to cut the audio (thus the "click") but when you set the mute level to -20 or -40, it doesn't click (it just digitally attenuates the volume).
mwok's Avatar mwok 04:10 PM 10-04-2010
Got a question about this receiver (591).

Can I connect HDMI #1 and HDMI #2 and get the video from HDMI #1 BUT the audio from HDMI #2?

Also, why does this receiver (like every other receiver) contain so many ancient outdated extinct ports like composite and component? So many modern devices use HDMI and optical (toslink and coax) yet receivers put tons of composite and component ports but rarely any digital ports.
batpig's Avatar batpig 04:29 PM 10-04-2010
Quote:


Can I connect HDMI #1 and HDMI #2 and get the video from HDMI #1 BUT the audio from HDMI #2?

no, unfortunately. mixing of audio/video from two different HDMI sources is not possible (due to HDMI copyright restrictions).

your best bet (I am assuming you will use this to stream music from a PS3 or other media player while watching TV) is to connect the cable box straight to the TV for video, allowing you to use whatever audio source you want on the receiver.

Quote:


Also, why does this receiver (like every other receiver) contain so many ancient outdated extinct ports like composite and component?

wait, what???? actually, it contains very few legacy connections!! There is only ONE component video input, two composite video inputs, and three analog audio inputs! You think that's a lot?

Quote:


So many modern devices use HDMI and optical (toslink and coax) yet receivers put tons of composite and component ports but rarely any digital ports.

that is, like, the opposite of the truth. Industry wide, entry-level receivers have been moving more and more to almost all HDMI connections with very limited legacy connections. Compare the back panel of the AVR 591 to an entry-level receiver from 3-4 years ago. You have 4 HDMI inputs, plus two digital audio inputs and almost no legacy connections. That is SIX digital audio options and FIVE hi-def video options (4 HDMI + 1 component) versus only three analog audio inputs and three SD video inputs.

This receiver is designed for an all-HDMI setup basically. Your comments are strange, to say the least! Most people complain about the opposite (not having enough legacy connections).
mwok's Avatar mwok 04:48 PM 10-04-2010
I think you might have misunderstood my question. Can I "block" the audio from HDMI #1 and instead output the audio from HDMI #2? (not necessarily mixing two sources)

Also, does this receiver run hot? is it fanless cooling? Does it include any kind of speaker wires?

Thanks!
JChin's Avatar JChin 04:56 PM 10-04-2010
Quote:
Originally Posted by mwok View Post

I think you might have misunderstood my question. Can I "block" the audio from HDMI #1 and instead output the audio from HDMI #2? (not necessarily mixing two sources)
...

Thanks!

So you want video output from HDMI #1 to tv but want audio to play from HDMI #2, while watch HDMI #1?
batpig's Avatar batpig 05:03 PM 10-04-2010
Quote:
Originally Posted by mwok View Post

I think you might have misunderstood my question. Can I "block" the audio from HDMI #1 and instead output the audio from HDMI #2? (not necessarily mixing two sources)

but you want to take the audio from one HDMI cable and combine it with the video from a different HDMI cable, right? You said: "Can I get the video from HDMI #1 BUT the audio from HDMI #2?" that is, by definition, mixing sources (video from one source with audio from a different source).

Quote:


Also, does this receiver run hot? is it fanless cooling? Does it include any kind of speaker wires?

Denons do not run that hot, it will get pretty warm towards the back (above the amps and HDMI board) but never painful to the touch if properly ventilated. No fans AFAIK.

No speaker wires are included with any AVR (that's really only when you get a "home theater in a box" setup with speakers included in the package). Just grab a roll of 16-gauge from Monoprice: http://www.monoprice.com/products/su...02&cp_id=10239
mwok's Avatar mwok 06:37 PM 10-04-2010
Quote:
Originally Posted by JChin View Post

So you want video output from HDMI #1 to tv but want audio to play from HDMI #2, while watch HDMI #1?

Exactly and I want to accomplish this without using switches etc. I don't understand why a receiver can't have this kind of functionality.
mwok's Avatar mwok 06:39 PM 10-04-2010
Quote:
Originally Posted by batpig View Post

but you want to take the audio from one HDMI cable and combine it with the video from a different HDMI cable, right? You said: "Can I get the video from HDMI #1 BUT the audio from HDMI #2?" that is, by definition, mixing sources (video from one source with audio from a different source).



Denons do not run that hot, it will get pretty warm towards the back (above the amps and HDMI board) but never painful to the touch if properly ventilated. No fans AFAIK.

No speaker wires are included with any AVR (that's really only when you get a "home theater in a box" setup with speakers included in the package). Just grab a roll of 16-gauge from Monoprice: http://www.monoprice.com/products/su...02&cp_id=10239

Damn, can I at least use HDMI #1 for video and optical input for audio?
mwok's Avatar mwok 06:50 PM 10-04-2010
Got an additional question.

I'm going to pair the 591 with the Energy 5.1 classic. The main purpose of this is for listening to music and movies. Unfortunately, I keep all the equipment on my work desk and at the moment, the Logitech Z-5500 satellites fit barely fit behind the dual monitor + TV setup.

The "frontend" is right to the wall so there is no way the front+center speakers can sit on stands. I can put them on the floor but my pets will probably use them as scratch posts.

I have determined that the Energy satellites WILL fit behind the monitors.

Do you think that this is a could matchup for the 591? Do you recommend a better set of speakers (max budget is 499)? Should I even get 5.1? The clearance behind the monitor is around 17.2 x 8.9 x 15.2 cm.
jdsmoothie's Avatar jdsmoothie 07:00 PM 10-04-2010
Quote:
Originally Posted by mwok View Post

Damn, can I at least use HDMI #1 for video and optical input for audio?

Yes, either digital optical or coax or analog .... just can't be HDMI. Set INPUT MODE for the video source to "Digital."

Quote:
Originally Posted by mwok View Post

Got an additional question.

I'm going to pair the 591 with the Energy 5.1 classic. The main purpose of this is for listening to music and movies. Unfortunately, I keep all the equipment on my work desk and at the moment, the Logitech Z-5500 satellites fit barely fit behind the dual monitor + TV setup.

The "frontend" is right to the wall so there is no way the front+center speakers can sit on stands. I can put them on the floor but my pets will probably use them as scratch posts.

I have determined that the Energy satellites WILL fit behind the monitors.

Do you think that this is a could matchup for the 591? Do you recommend a better set of speakers (max budget is 499)? Should I even get 5.1? The clearance behind the monitor is around 17.2 x 8.9 x 15.2 cm.

Although the Energy speakers pair up nicely with the AVR, if all speakers are sitting on a desk, where would you place the side surrounds? Perhaps save them for when you have a larger space.
mwok's Avatar mwok 07:08 PM 10-04-2010
Quote:
Originally Posted by jdsmoothie View Post

Yes, either digital optical or coax or analog .... just can't be HDMI. Set INPUT MODE for the video source to "Digital."



Although the Energy speakers pair up nicely with the AVR, if all speakers are sitting on a desk, where would you place the side surrounds? Perhaps save them for when you have a larger space.


Well, this is permanent, my work room and home entertainment room are integrated. When I'm watching TV, I'm at a far enough distance that the rear speakers are in "5.1" mode. When I'm working, the front and rear left speakers are facing me (behind the dual monitors).

I actually wanted to get a Onkyo receiver due to the fact that it comes with 2 optical + 1 coax (which will fit all my devices and allow me to switch audio sources) but I heard they run really hot and are not comparable to the Denon (quality wise). I just wish the Denon had 2 or 3 more optical ports instead of 1.
JChin's Avatar JChin 07:32 PM 10-04-2010
Quote:
Originally Posted by mwok View Post

I actually wanted to get a Onkyo receiver due to the fact that it comes with 2 optical + 1 coax (which will fit all my devices and allow me to switch audio sources) but I heard they run really hot and are not comparable to the Denon (quality wise). I just wish the Denon had 2 or 3 more optical ports instead of 1.

If you don't need 3D and ARC, then look into last year models 1610 or 590. May even fine a better deal on 1910 model.
batpig's Avatar batpig 10:24 AM 10-05-2010
Quote:
Originally Posted by mwok View Post

I don't understand why a receiver can't have this kind of functionality.

like I said above, the problem is the digital copyright restrictions on HDMI. It also would require two independent HDMI decoders in the receiver, one to decode video data from HDMI-1 and another to decode audio data from HDMI-2.

as JD noted, you can mix sources with HDMI + optical using INPUT MODE. It's just the HDMI/HDMI thing that is a problem.


Quote:


Well, this is permanent, my work room and home entertainment room are integrated. When I'm watching TV, I'm at a far enough distance that the rear speakers are in "5.1" mode. When I'm working, the front and rear left speakers are facing me (behind the dual monitors).

post a picture so we can see the space, it will be invaluable in properly advising you here. If you can't position the speakers properly for surround sound, it may be better to get a nice 2.1 setup (e.g. a small pair of high-end, mini-sized bookshelf speakers + a nice subwoofer).
dcontis's Avatar dcontis 11:25 AM 10-05-2010
Quote:
Originally Posted by batpig View Post

l If you can't position the speakers properly for surround sound, it may be better to get a nice 2.1 setup (e.g. a small pair of high-end, mini-sized bookshelf speakers + a nice subwoofer).

Sorry to hijack this post. Out of curiosity, what kind of mini-sized bookshelf speakers do you recommend these days? I was looking at getting two Infinity P152 for the 1611 I have on order (I can only do a 2.1 / 3.1 setup in our living room).
batpig's Avatar batpig 11:27 AM 10-05-2010
depends on your budget....

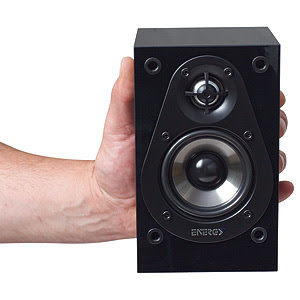

P152's are nowhere close to "mini" speakers, those are standard sized bookshelf speakers (13" x 8" x 10"). We're talking about speakers that are like 6 inches tall max.

the OP was worried about THESE speakers fitting!


dcontis's Avatar dcontis 11:48 AM 10-05-2010
Quote:
Originally Posted by batpig View Post

depends on your budget....

P152's are nowhere close to "mini" speakers, those are standard sized bookshelf speakers (13" x 8" x 10"). We're talking about speakers that are like 6 inches tall max.

the OP was worried about THESE speakers fitting!

[

Understood. Would these correspond to the CB-5 (if I want to go with just a pair of front speakers) ?
mwok's Avatar mwok 12:02 PM 10-05-2010
Does the Energy 5.1 take classic system contain 4x CB-5's or a different model (which?)?
batpig's Avatar batpig 12:20 PM 10-05-2010
Quote:
Originally Posted by dcontis View Post

Understood. Would these correspond to the CB-5 (if I want to go with just a pair of front speakers) ?

Not exactly sure what you mean, but are you asking what Energy model would be approximately equivalent to the P152's? If so, that would actually be the CB-10 (similar size with 5.5" woofer). The CB-5 is a bit smaller and only has a 4.5" woofer.


Quote:
Originally Posted by mwok View Post

Does the Energy 5.1 take classic system contain 4x CB-5's or a different model (which?)?

no, they are their own thing. The CB-5's are significantly larger than the Take Classic satellites.
weidner6's Avatar weidner6 03:30 PM 10-05-2010
Would the AVR 1611 have enough oomph to power a pair of Magneplanar MMG speakers? If anyone has tried this combination please let me know how they sound together.
jdsmoothie's Avatar jdsmoothie 03:48 PM 10-05-2010
Denon AVRs in general don't handle 4 ohm speakers very well much above "average" (ie 20db below reference) volume, especially when they are not very efficient (ie MMG's). If you like to play movies loud then you may want to look at an AVR that has pre-outs for connecting an external amp (eg. Emotiva XPA-3).
weidner6's Avatar weidner6 04:34 PM 10-05-2010
Quote:
Originally Posted by jdsmoothie View Post

Denon AVRs in general don't handle 4 ohm speakers very well much above "average" (ie 20db below reference) volume, especially when they are not very efficient (ie MMG's). If you like to play movies loud then you may want to look at an AVR that has pre-outs for connecting an external amp (eg. Emotiva XPA-3).

Thanks, since I already purchased the 1611 then I will go with different speakers. Any thoughts on the aperion intimus 4t towers?
mwok's Avatar mwok 04:55 PM 10-05-2010
Quote:
Originally Posted by jdsmoothie View Post

Denon AVRs in general don't handle 4 ohm speakers very well much above "average" (ie 20db below reference) volume, especially when they are not very efficient (ie MMG's). If you like to play movies loud then you may want to look at an AVR that has pre-outs for connecting an external amp (eg. Emotiva XPA-3).


Does this affect the Energy 5.1 classic take system? (I think the satellites are 4ohms? If so, do you recommend some other speakers (rear left will have to be around 3.7" width and 4.7" depth).

It would be nice if there was a stand that I could mount to the desk, that way I maybe able to get bigger speakers without drilling into the desk. So far, I couldn't find any stands like that.
batpig's Avatar batpig 04:59 PM 10-05-2010
no, the Maggies are a totally different class of speaker meant to be run with high-end amplifiers. The Take Classic are entry level satellites and intended to run on entry-level receivers.
jdsmoothie's Avatar jdsmoothie 05:19 PM 10-05-2010
Quote:
Originally Posted by weidner6 View Post

Thanks, since I already purchased the 1611 then I will go with different speakers. Any thoughts on the aperion intimus 4t towers?

These are 6 ohm, 86 db speakers so there shouldn't be any issues powering them with the 1611.

Quote:
Originally Posted by mwok View Post

Does this affect the Energy 5.1 classic take system? (I think the satellites are 4ohms? If so, do you recommend some other speakers (rear left will have to be around 3.7" width and 4.7" depth).

The Energy Take Classic speakers are 8 ohm, 89 db speakers and, along with Jamo speakers, make a great addition to these lower level AVRs.
posher's Avatar posher 09:51 PM 10-05-2010
Thanks to all for the great info, and batpig for the awesome website, was a huge help to setting up my 1611. Love it so far, other than the OSD keeps superimposing the volume level when i adjust it on my tv screen.

I have gone into options and turned MASTER VOLUME to Bottom, Top and OFF, with the goal of removing it off the screen completely, Its driving Me Nuts!! Even reset the whole receiver, but no matter what I do it superimposes on the bottom of TV screen at every setting.

My system is all hooked up via HDMI with a samsung plasma, any advice?
JChin's Avatar JChin 09:59 PM 10-05-2010
Quote:
Originally Posted by posher View Post

Thanks to all for the great info, and batpig for the awesome website, was a huge help to setting up my 1611. Love it so far, other than the OSD keeps superimposing the volume level when i adjust it on my tv screen.

I have gone into options and turned MASTER VOLUME to Bottom, Top and OFF, with the goal of removing it off the screen completely, Its driving Me Nuts!! Even reset the whole receiver, but no matter what I do it superimposes on the bottom of TV screen at every setting.

My system is all hooked up via HDMI with a samsung plasma, any advice?

Hi posher, try turning Off HDMI-CEC (AnyNet+) feature on your Samsung Tv.
posher's Avatar posher 11:29 PM 10-05-2010
Thanks JChin! That did it, no more volume display. Will I remove any features from the TV by doing so?

Anyone else able to get the BDwise function to work when connecting Samsung Bluray and TVs together, when looping the HDMI through the receiver?



UPDATE:
Turning off HDMI-CEC (AnyNet+) does remove ARC feature to send audio info upstream. So it looks like one or the other, or toggling CEC on and off between movies and TV.
Paul Clancy's Avatar Paul Clancy 05:37 AM 10-06-2010
591 installed and tweaked this weekend. Like it a lot. Replaced a pio and it seems cooler and the audessy makes for a better sound field for sure. The bass is still needing to be reeled in but thanks to batpigs guide I've got it mostly under control. Using energy E:XL 25 mains C center and 15 surrounds, ES-10 sub. Very nice match.
