Thanks for this insight. I have a room with 70hz axial mode(s). My mains show this strongly. The dual sub response far less so. They are on side walls.
I just raised the xover of my mains up 10 hz to 70 hz (previously at 60 1st choice) to decrease the mains interactions with this mode. Guitar and bass seem to be more articulate.

80 hz is a third choice . I may go there next. I do not know the characteristics of the xover slopes so I do not know how much the contribution of the mains has been decreased at 70 with the xover at 70.

Room 11.7x16x8.
jmschnur is offline
Sponsored Links
Advertisement

post #2192 of 5612 Old 04-28-2012, 10:56 AM
AVS Addicted Member

ccotenj's Avatar

Join Date: Mar 2005
Location: the toxic waste dumps of new jersey
Posts: 21,915
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 89
^^^

you are welcome...

iirc, most avr's xovers are comprised of second order high pass and 4th order low pass filters... but i could be recalling incorrectly... edit: i did. see post 2195...

- chris



my build thread - updated 8-20-12 - new seating installed and projector isolation solution



http://www.avsforum.com/t/1332917/ccotenj-finally-gets-a-projector

ccotenj is offline
post #2193 of 5612 Old 04-28-2012, 11:21 AM
AVS Special Member

jmschnur's Avatar

Join Date: Dec 2001
Location: VA MD DC area
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 26
Quote:
Originally Posted by ccotenj View Post

^^^

you are welcome...

iirc, most avr's xovers are comprised of second order high pass and 4th order low pass filters... but i could be recalling incorrectly...

Same for both sub and mains in modern avrs? I have an integra 80.2
jmschnur is offline
post #2194 of 5612 Old 04-28-2012, 11:49 AM
AVS Special Member

Gooddoc's Avatar

Join Date: Oct 2004
Posts: 3,377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 143
Quote:
Originally Posted by ccotenj View Post

side note: that ringing at around 35hz is where my old anti-mode made it's money... knocking off that peak alone was worth the expenditure...

I probably shouldn't even be commenting here because I can't see the graphs, but when you speak of "ringing" are you talking about bass decay graphs or in relation to the FR curve? AFAIUI, they are different things. Regardless, I mention it only because I have been curious about the effectiveness of Audyssey on bass decay AKA "ringing" and I think looking at both the bass decay and the FR curve during optimization may lead to discovering the combination of sub positioning and distance tweaks that are most amenable to Audyssey correction. IOW, different combinations of sub positions and distances that result in similar "pre" Audyssey FR graphs may result in differing post Audyssey bass decay graphs. Or maybe not. I only mention it since I see so little in the way of before and after bass decay graphs that I haven't been able to come to any conclusion one way or the other.

Edit: in fact, since using this forum app I see so little of ANY graphs anymore

JTR Noesis 212HT x 3 (LCR) powered by Lab Gruppen 10000Q amp
CHT SHO-10 x 4 (sides and rear) powered by Denon 4311
JTR S2 x 2
CHT 18.1 x2
Oppo BDP103D bluray player/Sonos/PS3
Gooddoc is offline
post #2195 of 5612 Old 04-28-2012, 12:02 PM
AVS Addicted Member

ccotenj's Avatar

Join Date: Mar 2005
Location: the toxic waste dumps of new jersey
Posts: 21,915
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 89
Quote:
Originally Posted by ccotenj View Post

^^^

you are welcome...

iirc, most avr's xovers are comprised of second order high pass and 4th order low pass filters... but i could be recalling incorrectly...

Quote:
Originally Posted by jmschnur View Post

Same for both sub and mains in modern avrs? I have an integra 80.2

a quick measurement of my a100 (1/6th smoothing for clarity), would indicate i recalled backwards...



sure looks like a 2nd order low pass and a 4th order high pass to me... not sure if that holds true for your integra...

- chris



my build thread - updated 8-20-12 - new seating installed and projector isolation solution



http://www.avsforum.com/t/1332917/ccotenj-finally-gets-a-projector

ccotenj is offline
post #2196 of 5612 Old 04-28-2012, 01:02 PM
AVS Special Member

jmschnur's Avatar

Join Date: Dec 2001
Location: VA MD DC area
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 26
That is,ore or less what I wanted. Sounds crisper so moving the xover up 10 hz seems to have decreased the coupling with my axial modes. Thanks for the advice.

Question is why xt 32 chose. 60 1st with 70 2nd given the room modes . Perhaps it decides it can equalize the region so it doesn't matter.
jmschnur is offline
post #2197 of 5612 Old 04-28-2012, 01:26 PM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Quote:
Originally Posted by jmschnur View Post


Question is why xt 32 chose. 60 1st with 70 2nd given the room modes . Perhaps it decides it can equalize the region so it doesn't matter.

That would be a question for "Ask Audyssey."

Jeff
pepar is offline
post #2198 of 5612 Old 04-28-2012, 02:20 PM
AVS Special Member

Gooddoc's Avatar

Join Date: Oct 2004
Posts: 3,377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 143
Quote:
Originally Posted by jmschnur View Post

That is,ore or less what I wanted. Sounds crisper so moving the xover up 10 hz seems to have decreased the coupling with my axial modes. Thanks for the advice.

Question is why xt 32 chose. 60 1st with 70 2nd given the room modes . Perhaps it decides it can equalize the region so it doesn't matter.

I look at it this way. Audyssey is looking for the best crossover, so it would want the axial mode out of the crossover. At 60 Hz that mode is not in the mains contribution to the crossover at all. As you move up from 60 to 70 Hz you have now moved that mode into the crossover. Go up to 80 Hz and now the tail of the mains contribution to the crossover will have that mode in it. Since the sub is not impacted by the axial mode, with the crossover at 60 Hz it is the tail of the sub's contribution at 70 Hz that will pass through the crossover. Bottom line, better crossover.

But maybe not better FR curve

Edit: reworded for clarity(I think)

JTR Noesis 212HT x 3 (LCR) powered by Lab Gruppen 10000Q amp
CHT SHO-10 x 4 (sides and rear) powered by Denon 4311
JTR S2 x 2
CHT 18.1 x2
Oppo BDP103D bluray player/Sonos/PS3
Gooddoc is offline
post #2199 of 5612 Old 04-28-2012, 03:04 PM
AVS Special Member

jmschnur's Avatar

Join Date: Dec 2001
Location: VA MD DC area
Posts: 2,940
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 26
That makes sense.clearly careful listening will be required to choose the optimal. However, I will try some room treatments first to see if I can tame the mode a bit. Then rerun audyssey pro etc.
jmschnur is offline
post #2200 of 5612 Old 04-29-2012, 12:27 AM
AVS Special Member

Gooddoc's Avatar

Join Date: Oct 2004
Posts: 3,377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 143
Good idea, that's always the best way to do it.(treatments)

JTR Noesis 212HT x 3 (LCR) powered by Lab Gruppen 10000Q amp
CHT SHO-10 x 4 (sides and rear) powered by Denon 4311
JTR S2 x 2
CHT 18.1 x2
Oppo BDP103D bluray player/Sonos/PS3
Gooddoc is offline
post #2201 of 5612 Old 04-29-2012, 04:45 AM
AVS Addicted Member

ccotenj's Avatar

Join Date: Mar 2005
Location: the toxic waste dumps of new jersey
Posts: 21,915
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 89
Quote:
Originally Posted by jmschnur View Post

That is,ore or less what I wanted. Sounds crisper so moving the xover up 10 hz seems to have decreased the coupling with my axial modes. Thanks for the advice.

Question is why xt 32 chose. 60 1st with 70 2nd given the room modes . Perhaps it decides it can equalize the region so it doesn't matter.

the conclusion that i am starting to come to is that the logic for choosing the xovers in pro isn't as robust as we might want to hope it is...

- chris



my build thread - updated 8-20-12 - new seating installed and projector isolation solution



http://www.avsforum.com/t/1332917/ccotenj-finally-gets-a-projector

ccotenj is offline
post #2202 of 5612 Old 04-29-2012, 06:08 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Never chirping a main channel with a sub would seem to be a weakness of the system as their interaction at the splice is not evaluated, but that I'm sure is a limitation of the receiver/processor.

Jeff
pepar is offline
post #2203 of 5612 Old 04-29-2012, 06:17 AM
Advanced Member

fitzcaraldo215's Avatar

Join Date: Feb 2008
Posts: 980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 20
Quote:
Originally Posted by ccotenj View Post

the conclusion that i am starting to come to is that the logic for choosing the xovers in pro isn't as robust as we might want to hope it is...

I think you are right. But, as a practical matter, I think there is more to what sounds best than just frequency and time domain response. There is also distortion, dynamics, power handling, etc. which are issues unknown to Audyssey. Assuming a good sub or subs, I think it is usually best to err on the side of a higher xover frequency, allowing the sub to handle more of the frequency spectrum. Even with XT32, you usually cannot go wrong with just setting everything to 80 Hz or so, even if the other channels can go lower than that.
fitzcaraldo215 is offline
post #2204 of 5612 Old 04-29-2012, 07:55 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Quote:
Originally Posted by fitzcaraldo215 View Post

Even with XT32, you usually cannot go wrong with just setting everything to 80 Hz or so, even if the other channels can go lower than that.

That is still my recommendation ... regardless the manufacturer's specs.

Jeff
pepar is offline
post #2205 of 5612 Old 04-29-2012, 09:22 AM
AVS Addicted Member

ccotenj's Avatar

Join Date: Mar 2005
Location: the toxic waste dumps of new jersey
Posts: 21,915
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 89
^^^

can't agree more... imo/ime, it's a very rare situation where crossing any lower than 80hz is beneficial...

- chris



my build thread - updated 8-20-12 - new seating installed and projector isolation solution



http://www.avsforum.com/t/1332917/ccotenj-finally-gets-a-projector

ccotenj is offline
post #2206 of 5612 Old 04-29-2012, 09:56 AM

mjf_uk's Avatar

Join Date: Dec 2006
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I would only like to crossover lower for 2-channel music.
mjf_uk is offline
post #2207 of 5612 Old 04-29-2012, 10:12 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Quote:
Originally Posted by mjf_uk View Post

I would only like to crossover lower for 2-channel music.

Do you listen to music without bass management/mains on Large?
pepar is offline
post #2208 of 5612 Old 04-29-2012, 10:14 AM
AVS Addicted Member

kbarnes701's Avatar

Join Date: Jan 2008
Location: Main Listening Positon
Posts: 16,519
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked: 1229
@ccotenj (or anyone else who cares to comment).

Chris, I promised to upload a graph of the other listening seat for your perusal. Here it is, with one of the MLP taken at the same time (both graphs 1/24th smoothing):

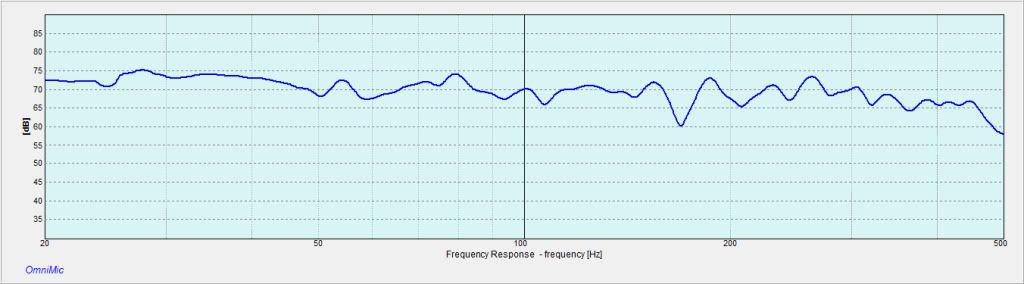

First the MLP:

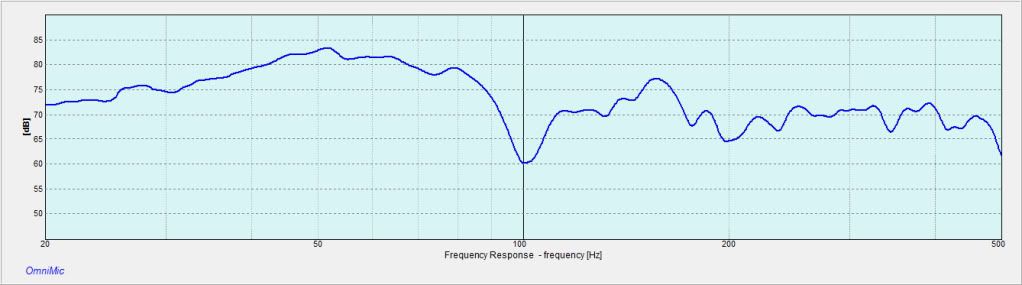

Then the other seat:

You can see how my maximising my Pro mic positions around the MLP makes a difference! If I cared about the sound in that seat I would have to adopt a more neutral mic placement policy. I may do a Pro reading with such a policy and see how it affects the MLP. It might not be too bad in which case I may as well go for a decent overall result.

I also promised you a waterfall - here is one from the MLP taken with the same mic position as the first graph above. I would welcome your comments and interpretations of this please.



Thanks, Keith
kbarnes701 is offline
post #2209 of 5612 Old 04-29-2012, 10:24 AM

mjf_uk's Avatar

Join Date: Dec 2006
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by pepar View Post

Do you listen to music without bass management/mains on Large?

I use the Stereo mode on the 5509, so I'm stuck with the same settings for movies - as I don't want to faff around. A music mode would be good (like I used to have on my Arcam) or at least a user preset option which can be changed at the touch of a button (like I used to have on my Yamaha). It's one of the few things that I wish was a bit different on the Onkyo. But having said all of that, I'll soon be back to 2 decent Subwoofers and probably won't be bothered.
mjf_uk is offline
post #2210 of 5612 Old 04-29-2012, 11:45 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Quote:
Originally Posted by kbarnes701 View Post

I also promised you a waterfall - here is one from the MLP taken with the same mic position as the first graph above. I would welcome your comments and interpretations of this please.


Keith,

I am not familiar with Omnimic ... are those milliseconds on the scale on the bottom right that are to indicate time?

Jeff
pepar is offline
post #2211 of 5612 Old 04-29-2012, 11:49 AM
AVS Addicted Member

kbarnes701's Avatar

Join Date: Jan 2008
Location: Main Listening Positon
Posts: 16,519
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked: 1229
Quote:
Originally Posted by pepar View Post

Keith,

I am not familiar with Omnimic ... are those milliseconds on the scale on the bottom right that are to indicate time?

Jeff

Hmm. I think so Jeff, but now you mention it there were several different sorts of waterfall to choose from and I wonder if I chose the wrong one? I'll get the laptop out later and fire up OM and have a look. If Chris is around he uses OM so he can probably answer you immediately. I am still very much a novice with OM - although it is incredibly easy to use. It's interpreting the graphs that is the difficult part for us noobs.
kbarnes701 is offline
post #2212 of 5612 Old 04-29-2012, 11:53 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Here is a waterfall from a relatively well-behaved room. There is some stuff at the lower frequencies that ring, but nothing like what you've got happening at the top end. From the graph, you room not only rings, but it seems to be ... adding it's own noise up there?

BTW, my question was semi-rhetorical as the scale is always milliseconds ...

pepar is offline
post #2213 of 5612 Old 04-29-2012, 11:58 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Quote:
Originally Posted by kbarnes701 View Post

Hmm. I think so Jeff, but now you mention it there were several different sorts of waterfall to choose from and I wonder if I chose the wrong one? I’ll get the laptop out later and fire up OM and have a look. If Chris is around he uses OM so he can probably answer you immediately. I am still very much a novice with OM - although it is incredibly easy to use. It's interpreting the graphs that is the difficult part for us noobs.

What I was referring to your room "contributing" is where marked. The red circled area is sound that decayed below the threshold and the green is where it ... came back up .. for some reason.



I am not an acoustician .. but it strikes me that this is very high frequency and that area usually is absorbed toute suite with the area below Schroeder ringing on. Puzzling.
pepar is offline
post #2214 of 5612 Old 04-29-2012, 12:02 PM
AVS Addicted Member

kbarnes701's Avatar

Join Date: Jan 2008
Location: Main Listening Positon
Posts: 16,519
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked: 1229
Quote:
Originally Posted by pepar View Post

Here is a waterfall from a relatively well-behaved room. There is some stuff at the lower frequencies that ring, but nothing like what you've got happening at the top end. From the graph, you room not only rings, but it seems to be ... adding it's own noise up there?

It's more than likely that I fubarred the graph somehow. The room is relatively inert - it has a thick carpet, an even thicker rug, heavy drapes that fill two thirds of the back wall, two big cinema chairs in suede leather that occupy a significant percentage of the total room volume and the walls are sheetrock on timber. I can't imagine it ringing too much at the top end, but....
kbarnes701 is offline
post #2215 of 5612 Old 04-29-2012, 12:05 PM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Quote:
Originally Posted by kbarnes701 View Post

Hmm. I think so Jeff, but now you mention it there were several different sorts of waterfall to choose from and I wonder if I chose the wrong one? I’ll get the laptop out later and fire up OM and have a look. If Chris is around he uses OM so he can probably answer you immediately. I am still very much a novice with OM - although it is incredibly easy to use. It's interpreting the graphs that is the difficult part for us noobs.

Here in orange is the area that puzzles me. Without that, your room pretty much decays like many residential spaces.

pepar is offline
post #2216 of 5612 Old 04-29-2012, 12:06 PM
AVS Addicted Member

kbarnes701's Avatar

Join Date: Jan 2008
Location: Main Listening Positon
Posts: 16,519
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked: 1229
Quote:
Originally Posted by pepar View Post

What I was referring to your room "contributing" is where marked. The red circled area is sound that decayed below the threshold and the green is where it ... came back up .. for some reason.



I am not an acoustician .. but it strikes me that this is very high frequency and that area usually is absorbed toute suite with the area below Schroeder ringing on. Puzzling.

I thought the graph looked strange at the bottom end too - not like any other waterfalls I've seen. I bet I cocked it up. I'll have another go tomorrow when Mrs Keith is out of the way.
kbarnes701 is offline
post #2217 of 5612 Old 04-29-2012, 12:11 PM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Quote:
Originally Posted by kbarnes701 View Post

It's more than likely that I fubarred the graph somehow.

I'd say that the mic was measuring *something* - what could it have been? Is there anything that would be introducing electomagnetic or RF interference into your laptop and/or measuring system?
pepar is offline
post #2218 of 5612 Old 04-29-2012, 12:14 PM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,930
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked: 131
Quote:
Originally Posted by kbarnes701 View Post

I thought the graph looked strange at the bottom end too - not like any other waterfalls I've seen. I bet I cocked it up. I’ll have another go tomorrow when Mrs Keith is out of the way.

I am inclined to interpret this graph as having the area that always rings .. below 400Hz-500Hz .. to be truncated for some reason. Look at the graphic representation of sound decaying to baseline elsewhere and then look at the region below 400Hz. Chopped off ... like that 5K - 15K stuff where time ... "expired."
pepar is offline
post #2219 of 5612 Old 04-29-2012, 12:15 PM
AVS Special Member

WiWavelength's Avatar

Join Date: Feb 2006
Posts: 1,778
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 15
Quote:
Originally Posted by pepar View Post

BTW, my question was semi-rhetorical as the scale is always milliseconds ...

Actually, the z axis unit of measurement in Keith's waterfall plot is not milliseconds. It is cycles, which are frequency dependent (e.g. 10 cycles at 100 Hz is equivalent to 100 ms, while 10 cycles at 10 kHz is only 1 ms). That different z axis scale is the reason why Keith's waterfall appears wonky in the upper octaves.

AJ
WiWavelength is offline
post #2220 of 5612 Old 04-29-2012, 12:16 PM
AVS Addicted Member

kbarnes701's Avatar

Join Date: Jan 2008
Location: Main Listening Positon
Posts: 16,519
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked: 1229
Quote:
Originally Posted by pepar View Post

I am inclined to interpret this graph as having the area that always rings .. below 400Hz-500Hz .. to be truncated for some reason. Look at the graphic representation of sound decaying to baseline and then look at the are below 500Hz. Chopped off ...

Yeah. Let's assume it's fubar. I'll try again tomorrow. Nothing I know of that could be causing interference of any sort.
kbarnes701 is offline
